Carrier 38QUS014DS2 series User manual

MULTI SYSTEM AIR CONDITIONERMULTI SYSTEM AIR CONDITIONE
R
INSTALLATION MANUAL
IMROPTANT NOTE:
Read this manual carefully before installing or operating your new air conditioning unit.
Make sure to save this manual for future reference.
This manual only describes the installation of outdoor unit. When installing the indoor
unit,refer to the installation manual of indoor unit.
Please check the applicable models, F-GAS and manufacturer information from the
“Owner's Manual - Product Fiche” in the packaging of the outdoor unit.
L
G B
ENG ISH
INSTALLATION MANUAL
S K
SLOVENČINA
S Q
H R
HRVATSKI
B G
C Z
M K
МАКЕ
Д
О
Н
С
КИ
SHQIP
ČEŠTINA
БЪЛГАРСКИ
S R SRPSKI
R O ROMÂNĂ
S L
B S
MAGYAR
SLOVENŠČINA
BOSANSKI
H U
E L
ΕΓΧΕΙΡΙΔΙΟ ΕΓΚΑΤΑΣΤΑΣΗΣ
ΕΛΛΗΝΙΚΑ
MANUALI I INSTALIMIT
NÁVOD NA INŠTALÁCIU
УПАТСТВО ЗА МОНТИРАЊЕ
PRIRUČNIK ZA UGRADNJU
PRIRUČNIK ZA INSTALACIJU
UPUTSTVO ZA UGRADNJU
NAVODILA ZA NAMESTITEV
MANUAL DE INSTALARE
SZERELÉSI ÚTMUTATÓ
NÁVOD K INSTALACI
РЪКОВОДСТВО ЗА МОНТАЖ

The manufacturer reserves the right to change any product specifications without notice.
This product has been determined to be in compliance with the Low Voltage Directive (2014/3
5/EC), andthe Electromagnetic Compatibility Directive (2014/30/EC)ofthe European Union.
CorrectDisposal ofThis Product
(Waste Electrical & Electronic Equipment)
(Whenusingthisairconditioner inEuropeancountries,thefollowingguidancemustbefollowed)
- This marking shown on the product or its literature, indicates that waste electrical and eletrical equipment
(WEEE as in directive 2012/19/EU) should not be mixed with general household waste.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
1. The municipality has established collection systems, where electronic waste can be disposed of at least
free of charge to the user.
2. When buying a new product, the retailer will take back the old product at least free of charge.
3. The manufacture will take back the old appliance for disposal at least free of charge to the user.
4. As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak
into the ground-water and find their way into the food chain.
GB-1
Caution:Risk of fire
for R32/R290 refrigerant only
ThisproductcontainsfluorinatedgasescoveredbytheKyotoProtocol
Chemical Name ofGas
Global Warming Potential (GWP) of Gas
R410A / R32
2088/ 675
CAUTION
1. Paste the enclosed refrigerant label adjacent to the
charging and/or recovering location.
2. Clearly write the charged refrigerant quantity on the
refrigerant label using indelible ink.
3. Prevent emission of the contained fluorinated gas.
Ensure that the fluorinated gas is never vented to
the atmosphere during installation, service or
disposal. When any leakage of the contained
fluorinated gas is detected, the leak shall be
stopped and repaired as soon as possible.
4. Only qualified service personnel are allowed to
access and service this product.
5. Any handling of the fluorinated gas in this product,
such as when moving the product or recharging
the gas, shall comply under (EC) Regulation
No. 517/2014 on certain fluorinated greenhouse
gases and any relevant local legislation.
6. Contact dealers, installers, etc., for any questions.

CONTENTS
3
7
8
9
11
11
13
13
13
14
16
16
16
18
21
21
22
23
24
25
1. PREPARING FOR INSTALLATION ··································································

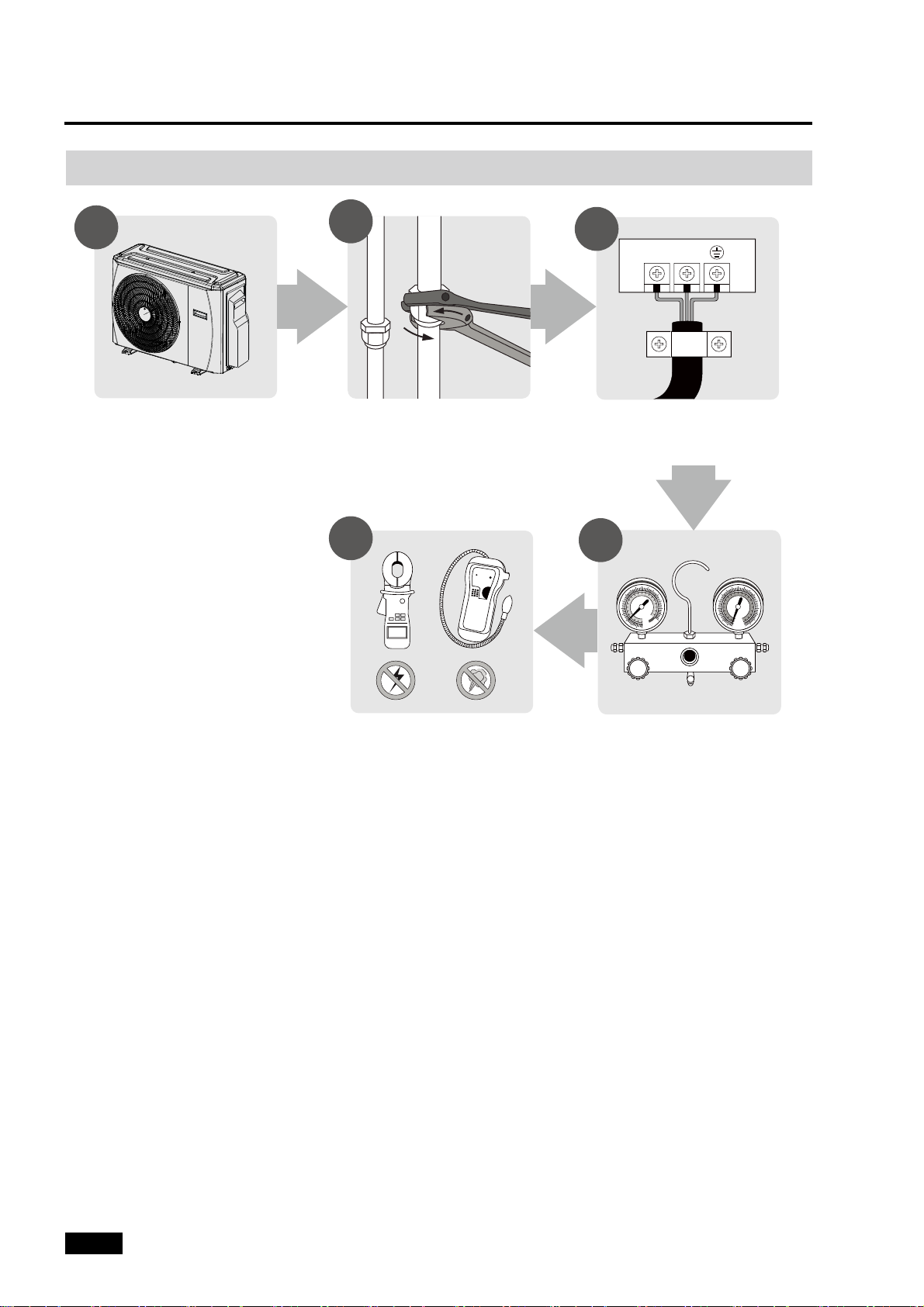

2. INSTALLATION OVERVIEW ················································································
3. INSTALLATION DIAGRAM ··················································································
4. SPECIFICATIONS ·······························································································
5. OUTDOOR UNIT INSTALLATION ···········································································
5.1 Outdoor Unit Installation Instructions ······························································
5.2 Drain Joint Installation ·················································································
5.3 Notes on Drilling Hole in Wall ···········································································
5.4 When Select a 24K Indoor Unit ······································································

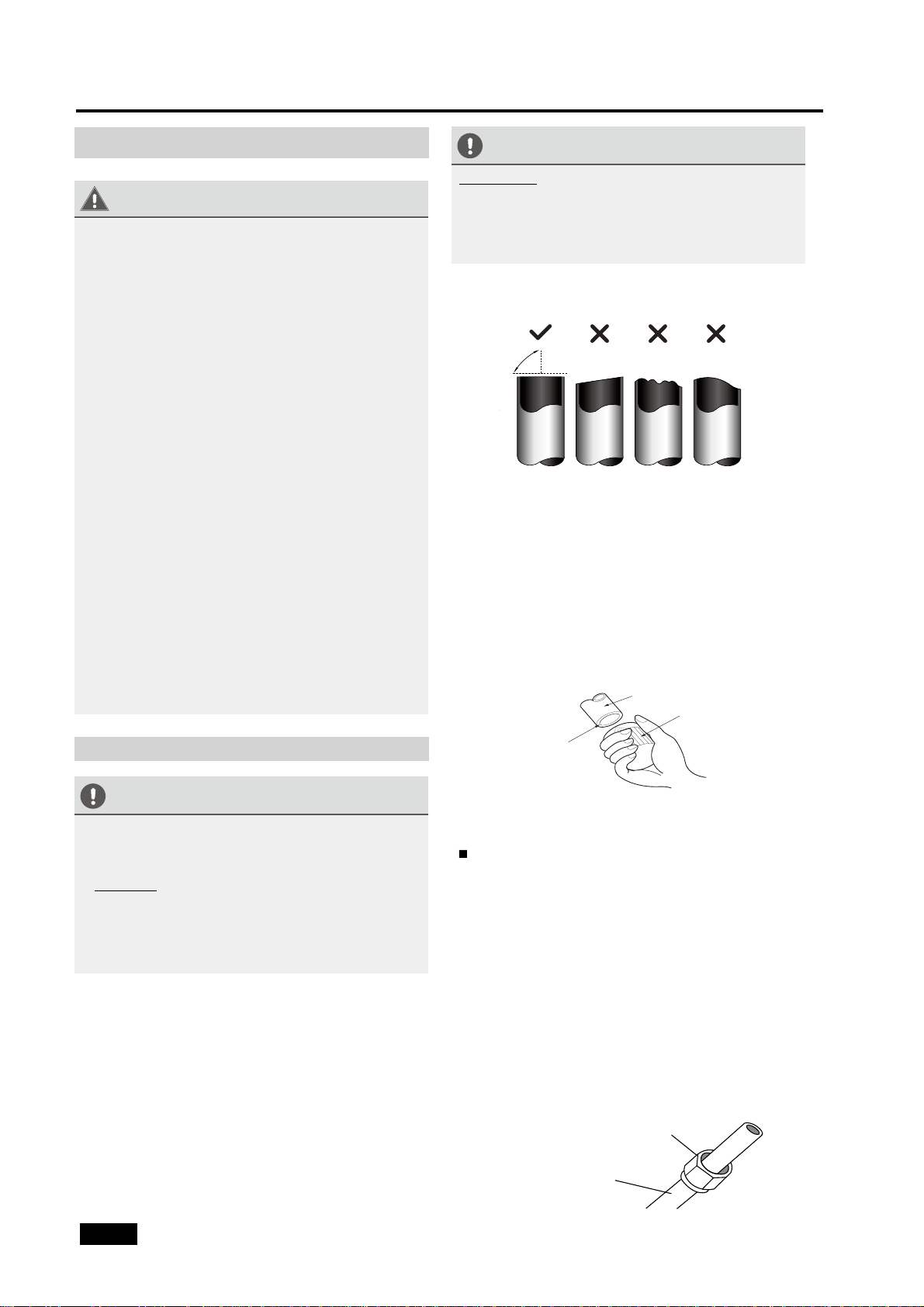

6. REFRIGERANT PIPING CONNECTION ·································································
7. WIRING ··············································································································
7.1 Safety Precautions ···················································································
7.2 Outdoor Unit Wiring ··················································································
7.3 Wiring Figure ···························································································
8. AIR EVACUATION ··································································································
8.2 Evacuation Instructions ·················································································
8.4 Note on Adding Refrigerant ············································································
9. TEST RUN ············································································································
10. FUNCTION OF AUTOMATIC WIRING/PIPING CORRECTION ·······························
11. INFORMATION SERVICING ·····················································································
7
GB-2
Type Dimension(ODU) Rated Voltage & Hz
812×192×300
973×218×319
1082×225×338
880x674x210
1100x774x249
840x840x245
220-240V~ 50Hz
Duct Type
Indoor Unit
Console Type
Indoor Unit
Cassette Type
Indoor Unit
42QTD007DS*
570x570x260
42QTD009DS*/42QTD009D8S*
42QTD012DS*/42QTD012D8S*
42QTD018DS*/42QTD018D8S*
42QTD024DS*
700x600x210
42QSS009D8S*
42QSS012D8S*
700×450×200
42QSS012DS*
42QSS007D8S*
42QSS018DS*/42QSS018D8S*
42QSS024DS*//42QSS024D8S*
42QZA009DS*
42QZA012DS*/42QZA012D8S*
42QZA018DS*
Model Name
Wall Mounted
Indoor Unit
800x333x554
845x363x702
946x410x810
Outdoor Unit
38QUS014DS2*
38QUS018DS2-2/38QUS018D8S2
38QUS018DS2*
38QUS021DS3*
38QUS027DS3*/38QUS027D8S3*
38QUS028DS4*
38QUS036DS4*/38QUS036D8S4*
38QUS042DS5*/38QUS042D8S5*
730×192×291
700x635x210
42QHC007DS*/42QHC007D8S*
42QHC009DS*/42QHC009D8S*
42QHC012DS*/42QHC012D8S*
42QHC018DS*/42QHC018D8S*
42QHC024DS*/42QHC024D8S*
42QSS009DS*
GB

GB-3
1. PREPARING FOR INSTALLATION
1.1 Safety cautions
WARNING
This symbol indicates the possibility of personnel injury or loss of life.
Installing, starting up, and servicing air-conditioning equipment can be hazardous due to system
ressures, electrical components, and equipment location (roofs, elevated structures, etc.).
Only trained, qualified installers and service mechanics should install, start-up, and serve this equipment.
When working on the equipment, observe precautions in the literature and on tags, stickers, and labels
attached to the equipment.
Follow all safety codes. Wear safety glasses and work gloves. Keep quenching cloth and fire extinguisher
nearby when brazing. Use care in handing, rigging, and setting bulky equipment.
Read these instructions thoroughly and follow all warnings or cautions included in literature and attached to
the unit. Consult local building codes and National Electrical Code for special requirement.
Refrigerant gas is heavier than air and replaces oxygen.A massive leak could lead to oxygen
depletion, especially in basements, and an asphyxiation hazard could occur leading to serious
injury or death.
When the air conditioner is installed in a small room, provide appropriate measures to ensure that
the concentration of refrigerant leakage occur in the room does not exceed the critical level.
If the refrigerant gas leaks during installation, ventilate the area immediately.
Refrigerant gas may produce a toxic gas if it comes in contact with fire such as from a fan heater, stove
or cooking device.
Exposure to this gas could cause severe injury or death.
Disconnect from power source before attempting any electrical work. Connect the connective cable
correctly.
Wrongly connecting may result in electric parts damaged.
Use the specified cables for electrical connections and attach the wires firmly to the terminal block
connecting sections so that the external force is not exerted to the terminal.
Be sure to provide grounding.
Do not ground units to gas pipes, water pipes, lightning rods or telephone wires. Incomplete grounding could cause a severe
shock hazard resulting in injury or death.
Safely dispose of the packing materials.
Packing materials, such as nails and other matal or wooden parts, may cause stabs or other injuries. Tear apart and throw away
plastic pacaging bags so that children will not play with them. Children playing with plastic bags face the danger of suffocation.
Do not install unit near concentrations of combustible gas or gas vapors.
Be sure to use the supplied or exact specified installation parts.
Use of other parts may cause the unit to come to lose, water leakage, electrical shock, fire or equipment damage.
When installing or relocating the system, do not allow air or any substances other than the
specified refrigerant (R410A/R32) to enter the refrigeration cycle.
Duct and Cassette type indoor is not accessible to the general public and intended to be
maintained by qualified service personnel and located at a level not less than 2.5m from floor.
Electrical work should be carried out in accordance with the installation manual and the national,
state and local electrical wiring codes.
Be sure to use a delicated power circuit. Never share the same power outlet with other appliance.

7
GB-4
1. PREPARING FOR INSTALLATION
WARNING
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
Use the prescribed cables for electrical connection with insulation protected by insulation
sleeving having an appropriate temperature rating.
Unconformable cables can cause electric leak, anomalous heat prodcution or fire.
NOTE: The following information are required for the units adopt R32/R290 Refrigerant.
The appliance shall be stored in a room without continuously operating ignition sources.
(for example: open flames, and operating gas appliance or an operating electric heater).
Do not pierce or burn.
Be aware that refrigerants may not contain an odour.
Compliance with national gas regulations shall be observed.
Appliance shall be stored in a well-ventilated area where the room size corresponds to the room
area as specified for operation.
Appliance shall be installed, operated and stored in a room with a floor area larger than X m²,
installation of pipe-work shall be kept to a minimum X m²(Please see the following form ).
Appliance shall not be installed in an unventilated space, if that space is smaller than X m²
(Please see the following form ).Spaces where refrigerant pipes shall be compliance with
national gas regulations.
Amount of refrigerant
to be charged (kg)
maximum installation
height (m)
Minimum room
area (m²)
≤2.048 1.8m 4
0.6m 35
2.048-3.0 1.8m 8
0.6m 80
>3.0 1.8m 9
Model(Btu/h)
≤30000
30000-48000
>48000 0.6m 80
CAUTION
This symbol indicates the possibility of property damage or serious consequences.
To avoid personal injury, be careful when handling parts with sharp edges.
Do not install the indoor or outdoor units in a location with special environmental conditions.
Do not install in a place that can amplify the noise level of the unit or where noise and discharged
air might disturb neighbors.
Note about Fluorinated Gases
This air-conditioning unit contains fluorinated gases. For specific information on the type of gas
and the amount, please refer to the relevant label on the unit itself.
Installation, service, maintenance and repair of this unit must be performed by a certified technician.
Product uninstallation and recycling must be performed by a certified technician.
If the system has a leak-detection system installed, it must be checked for leaks at least every 12
months.
When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.
GB

1. PREPARING FOR INSTALLATION
WARNING
CAUTION
This symbol indicates the possibility of property damage or serious consequences.
WARNING
Never modify this unit by removing any of the safety guards or bypassing any of the safety
interlock switches.
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
Use the prescribed cables for electrical connection with insulation protected by insulation
sleeving having an appropriate temperature rating.
Unconformable cables can cause electric leak, anomalous heat prodcution or fire.
Perform the drainage/piping work securely according to the installation manual.
Improper drain piping may result in water leakage and property damage.
Do not instal the air conditioner in the following places.
-The place where there is mineral oil or arsenic acid.
-The place where corrosive gas (such as sulfurous acid gas) or combustible gas (such as thinner)
can accumulate or collect, or where volatile combustible substances are handled.
-The place there is equipment that generates electromagnetic fields or high frequencey harmonics.
7
GB-5

72GB-6
1. PREPARING FOR INSTALLATION
The air conditioning system comes with the following accessories. Use all of the installation
parts and accessories to install the air conditioner. Improper installation may result in water
leakage, electriclshock and fire, or equipment failure.
Name Shape Quantity
Installation plate 1
Plastic expansion sheath 5-8
Self-Tapping Screw A ST3.9X25 5-8
Connecting
pipe
assembly
Liquid side
Gas side
1
Drain joint (some models)
1
Seal ring (some models)
Ø9.52
Ø6.35
Parts you must purchase.
Consult a technician for
the proper size.
Ø12.7
Ø9.52
Ø15.9
1
1
Owner’s manual
Installation manual
Optional part
(one piece/one indoor unit)
Optional part
(1-5 pieces for outdoor
unit, depending on
models)
Transfer connector (packed with the indoor or
outdoor unit, depending on models)
NOTE: Pipe size may differ from appliance to
appliance. To meet different pipe size requirements,
sometimes the pipe connections need a transfer
connector installed on the outdoor unit .
Optional part
(one piece/one cable)
Magnetic ring
(Hitch on the connective cable between the indoor
unit and outdoor unit after installation.)
1
Cord protection rubber ring
(If the cord clamp cannot fasten on a small cord, use
the cord protection rubber ring [supplied with
accessories] to wrap around the cord. Then fix it in
place with the cord clamp.)
(depending on models)
(depending on models)
(on some models)
Optional Accessories
There are two types of remote controls: wired and wireless.
Select a remote controller based on customer preferences and requirements and install
in an appropriate place.
Refer to catalogues and technical literature for guidance on selecting a suitable remote
controller.
1.2 Accessories
GB

2. INSTALLATION OVERVIEW
7
GB-7
LN
123
MC MC
4
5
2.1 Installation order
Install the outdoor unit
(Page 9)
Evacuate the refrigeration
system
(Page 19)
Connect the wires
(Page 14)
Connect the refrigerant pipes
(Page 12)
Perform a test run
(Page 21)

7
GB-8
3. INSTALLATION DIAGRAM
3.1 Installation Diagram
Fig. 3.1
Safety Precautions
CAUTION
•This illustration is for demonstration
purposes only.
The actual shape of your air condtioner
may be slightly different.
Copper lines must be independently
insulated.
•
CAUTION
•To prevent wall damage, use a stud
finder to locate studs.
A minimum pipe run of 3 metres is
required to minimise vibration &
excessive noise.
Two of the A, B, and C air circulation
pathways must be free from
obstructions at all times.
•
•
GB

7
GB-9

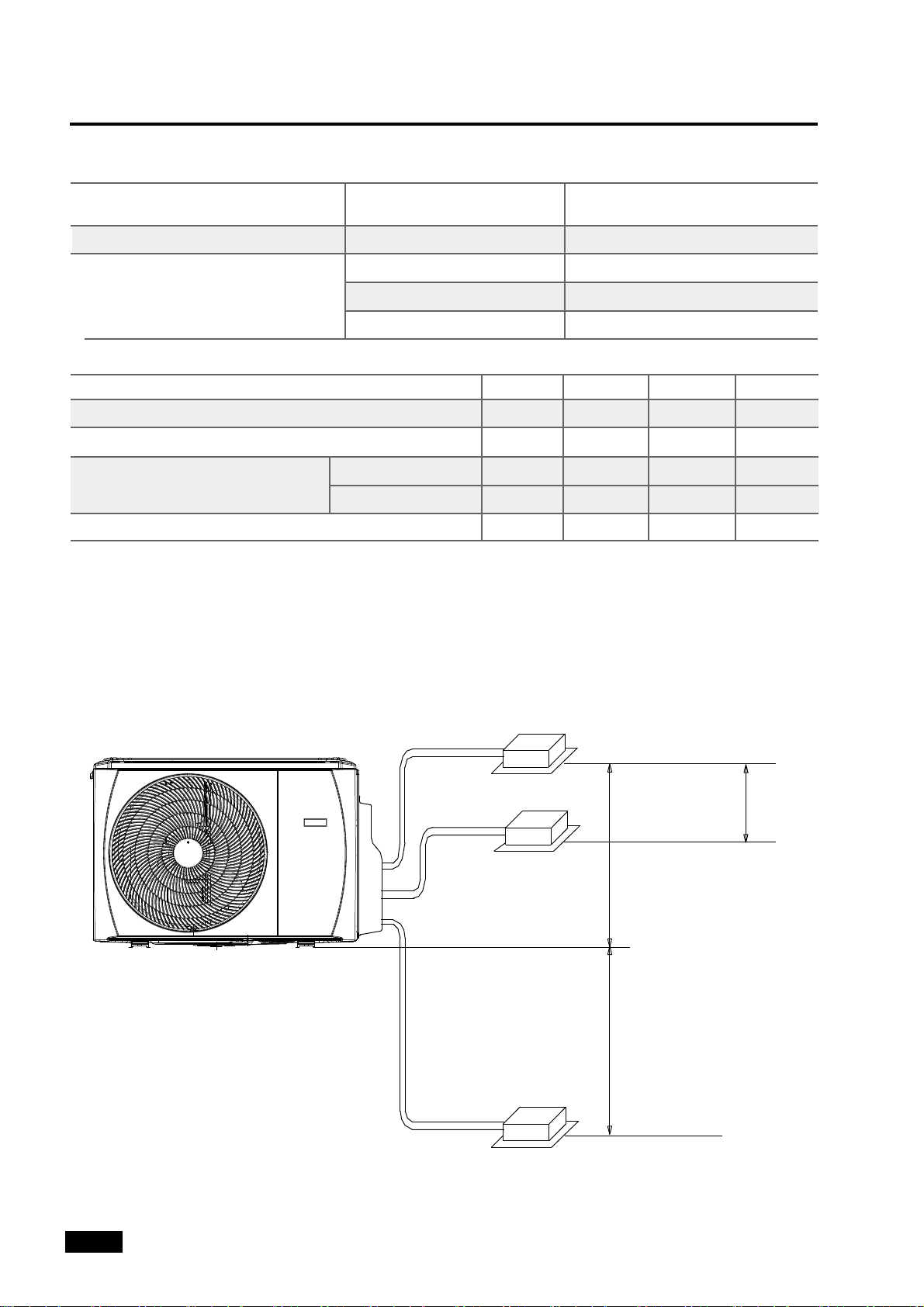

Table 4.1
Table 4.2
4. SPECFICATIONS
Number of units that can be
used together Connected units 1-5 units
Compressor stop/start frequency Stop time 3 min or more
voltage fluctuation within ±10% of rated voltage
Power source voltage voltage drop during start within ±15% of rated voltage
interval unbalance within ±3% of rated voltage
1 drive 2 1 drive 3
Max. length for all rooms 30 45
Max. length for one indoor unit 25 30
Max. height different between
indoor and outdoor unit
OU higher than IU
15 15
OU lower than IU 15 15
Max. height different between indoor units 10 10
1 drive 4 1 drive 5
60 75
35 35
15 15
15 15
10 10
Unit: m
10m
When installing multiple indoor units with a single outdoor unit, ensure that the length of
the refrigerant pipe and the drop height between the indoor and outdoor units meet the
requirements illustrated in the following diagram:
Indoor unit
Indoor unit
Indoor unit
Outdoor unit
15m
15m
Max.Height
difference

If possible, DO NOT install the unit
where it is exposed to direct sunlight.
7GB-10
5. OUTDOOR UNIT INSTALLATION
5.1 Outdoor Unit Installation Instructions
Step 1: Select installation location.
The outdoor unit should be installed in the
location that meets the following
requirements:
Place the outdoor unit as close to the
indoor unit as possible.
Ensure that there is enough room for
installation and maintenance.
The air inlet and outlet must not be
obstructed or exposed to strong wind.
Ensure the location of the unit will not be
subject to snowdrifts, accumulation of
leaves or other seasonal debris. If
possible, provide an awning for the unit.
Ensure the awning does not obstruct
airflow.
The installation area must be dry and
well ventilated.
There must be enough room to install
the connecting pipes and cables and to
access them for maintenance.
The area must be free of combustible
gases and chemicals.
The pipe length between the outdoor
and indoor unit may not exceed the
maximum allowable pipe length.
If possible, make sure the unit is located
far away from your neighbors’ property
so that the noise from the unit will not
disturb them.
If the location is exposed to strong winds
(for example: near a seaside), the unit
must be placed against the wall to
shelter it from the wind. If necessary, use
an awning. (See Fig. 5.1 & 5.2)
Install the indoor and outdoor units,
cables and wires at least 1 meter from
televisions or radios to prevent static or
image distortion. Depending on the radio
waves, a 1 meter distance may not be
enough to eliminate all interference.
Strong wind
Strong wind
Strong wind
Fig. 5.1 Fig. 5.2
Step 2: Install outdoor unit.
Fix the outdoor unit with anchor bolts (M10)
>60cm / 23.6”
Fix with bolts
CAUTION
• Be sure to remove any obstacles
that may block air circulation.
• Make sure you refer to Length
Specifications to ensure there is
enough room for installation and
maintenance.
Fig. 5.3
√
GB

5. OUTDOOR UNIT INSTALLATION
7GB-11
Table 5.1: Length Specifications of Split
Type Outdoor Unit (unit: mm)
Split Type Outdoor Unit
(Refer to Fig 5.4, 5.5, 5.6, 5.9 and Table 5.1)
Fig. 5.5
A
D
W
H
Fig. 5.4
Outdoor Unit Dimensions
W x H x D
Mounting Dimensions
Distance A Distance B
946x810x420 (37.2x31.9x16.53) 673 403
946x810x410 (37.2x31.9x16.14) 673 403
845x702x363 (33.27x27.6x14.3) 540 350
800x554x333 (31.5x21.8x13.1) 514 340
Rows of series installation
L ≤H L ≤1/2H
LA
25 cm / 9.8” or more
1/2H < L ≤H 30 cm / 11.8” or more
L > H Can not be installed
Table 5.2 The relations between H, A and
L are as follows.
Fig. 5.6
L
H
300 cm / 118” or more
A
60 cm / 23.6”
or more
150 cm / 59”
or more
25 cm / 9.8”
or more
25 cm / 9.8”
or more
B

5. OUTDOOR UNIT INSTALLATION
7GB-12
Fig. 5.7 5.4 When Select a 24K Indoor Unit
The 24K indoor unit can only be connected
with an A system. If there are two 24K
indoor units, they can be connected with A
and B systems. (See Fig. 5.9)
Table 5.3: Connective pipe size of an A and
B system (unit: inch)
Indoor Unit capacity
(Btu/h) Liquid Gas
7K/9K/12K 1/4 3/8
18K 1/4 1/2
24K 3/8 5/8
NOTE:
The minimum distance between the
outdoor unit and walls described in the
installation guide does not apply to airtight
rooms. Be sure to keep the unit
unobstructed in at least two of the three
directions (M, N, P) (See Fig. 5.7)
Fig. 5.8
5.2 Drain Joint Installation
Before bolting the outdoor unit in place, you
must install the drain joint at the bottom of
the unit. (See Fig. 5.8)
1.Fit the rubber seal on the end of the drain
joint where it will connect to the outdoor
unit.
2.Insert the drain joint into the hole in the
base pan.
3.Rotate the drain joint 90° until it clicks in
place and faces the front of the unit.
4.Connect a drain hose extension (not
included) to the drain joint to redirect
water from the unit during heating mode.
NOTE: Make sure the water drains to a
safe location where it will not cause water
damage or a slipping hazard.
Seal
Drain joint
(A) (B)
Base pan hole of
outdoor unit
Seal Fig. 5.9
5.3 Notes On Drilling Hole In WallH
You must drill a hole in the wall for the
refrigerant piping, and signal cable that will
connect the indoor and outdoor units.
1.
Determine the location of the wall hole
based on the location of the outdoor unit.
2.
Using a 65-mm (2.5”) core drill, drill a
hole in the wall.
NOTE: When drilling the wall hole, make
sure to avoid wires, plumbing, and other
sensitive components.
3. Place the protective wall cuff in the hole.
This protects the edges of the hole and
helps seal it when you finish the
installation process.
30 cm from back wall
60 cm on right
60 cm above
30 cm on left
200 cm in front
M
N
P
GB

7GB-13
6. REFRIGERANT PIPING CONNECTION
6.1 Safety Precautions707
WARNING
• All field piping must be completed by a
licensed technician and must comply
with the local and national regulations.
• When the air conditioner is installed in a
small room, measures must be taken to
prevent the refrigerant concentration in
the room from exceeding the safety limit
in the event of refrigerant leakage. If the
refrigerant leaks and its concentration
exceeds its proper limit, hazards due to
lack of oxygen may result.
• When installing the refrigeration system,
ensure that air, dust, moisture or foreign
substances do not enter the refrigerant
circuit. Contamination in the system may
cause poor operating capacity, high
pressure in the refrigeration cycle,
explosion or injury.
• Ventilate the area immediately if there is
refrigerant leakage during the
installation. Leaked refrigerant gas is
both toxic and flammable. Ensure there
is no refrigerant leakage after
completing the installation work.
Refrigerant Piping Connection Instructions
CAUTION
• The branching pipe must be installed
horizontally. An angle of more than 10°
may cause malfunction.
• DO NOT install the connecting pipe
until both indoor and outdoor units have
been installed.
• Insulate both the gas and liquid piping to
prevent water leakage.
Step1: Cut pipes
When preparing refrigerant pipes, take extra
care to cut and flare them properly. This will
ensure efficient operation and minimize the
need for future maintenance.
1. Measure the distance between the
indoor and outdoor units.
2. Using a pipe cutter, cut the pipe a little
longer than the measured distance.
CAUTION
DO NOT deform pipe while cutting. Be
extra careful not to damage, dent, or
deform the pipe while cutting. This will
drastically reduce the heating efficiency
of the unit.
1. Make sure that the pipe is cut at a perfect
90° angle. Refer to Fig. 6.1 for examples of
bad cuts
Oblique Rough Warped
90°
Fig. 6.1
Step 2: Remove burrs.
Burrs can affect the air-tight seal of
refrigerant piping connection. They must be
completely removed.
1. Hold the pipe at a downward angle to
prevent burrs from falling into the pipe.
2. Using a reamer or deburring tool,
remove all burrs from the cut section
of the pipe.
Pipe
Reamer
Point down
Fig. 6.2
Step 3: Flare pipe ends
Proper flaring is essential to achieve an
airtight seal.
1. After removing burrs from cut pipe, seal
the ends with PVC tape to prevent
foreign materials from entering the pipe.
2. Sheath the pipe with insulating material.
3. Place flare nuts on both ends of pipe.
Make sure they are facing in the right
direction, because you can’t put them
on or change their direction after flaring.
See Fig. 6.3
Flare nut
Copper pipe Fig. 6.3
NOTE
For R32 refrigerant models, the pipe connection
points must be placed outside of room.

Carefully bend the tubing in the middle
according to the diagram below. DO NOT
bend the tubing more than 90° or more t
han 3 times.
NOTE: DO NOT intertwine signal cable
with other wires. While bundling these
items together, do not intertwine or cross
the signal cable with any other wiring.
6. REFRIGERANT PIPING CONNECTION
7GB-14
4. Remove PVC tape from ends of pipe
when ready to perform flaring work.
5. Clamp flare form on the end of the pipe.
The end of the pipe must extend beyond
the flare form.
Flare form
Pipe
Fig. 6.4
6.
Place flaring tool onto the form.
7. Turn the handle of the flaring tool
clockwise until the pipe is fully flared.
Flare the pipe in accordance with the
dimensions shown in table 6.1.
Table 6.1: PIPING EXTENSION BEYOND FLARE
FORM
Pipe
gauge
Tightening
torque
Flare dimension (A)
(Unit: mm)
Flare shape
Min. Max.
Ø 6.4 14.2-17.2 N.m
(144-176 kgf.cm) 8.3 8.3
R0.4~0.8
45 °±2
90 °
±4
A
Fig. 6.5
Ø 9.5 32.7-39.9 N.m
(333-407 kgf.cm) 12.4 12.4
Ø 12.7 49.5-60.3 N.m
(504-616 kgf.cm) 15.4 15.8
Ø 15.9 61.8-75.4 N.m
(630-770 kgf.cm) 18.6 19
Ø 19.1 97.2-118.6 N.m
(990-1210 kgf.cm) 22.9 23.3
8. Remove the flaring tool and flare form,
then inspect the end of the pipe for
cracks and even flaring.
Step 4: Connect pipes
Connect the copper pipes to the indoor unit
first, then connect it to the outdoor unit. You
should first connect the low-pressure pipe,
then the high-pressure pipe.
1. When connecting the flare nuts, apply
a thin coat of refrigeration oil to the
flared ends of the pipes.
2. Align the center of the two pipes that
you will connect.
Indoor unit tubing Flare nut Pipe
Fig. 6.6
3. Tighten the flare nut as tightly as
possible by hand.
4. Using a spanner, grip the nut on the unit
tubing.
5. While firmly gripping the nut, use a
torque wrench to tighten the flare nut
according to the torque values in table
7.1.
NOTE: Use both a spanner and a torque
wrench when connecting or disconnecting
pipes to/fromthe unit.
Fig. 6.7
CAUTION
• Ensure to wrap insulation around the
piping. Direct contact with the bare piping
may result in burns or frostbite.
• Make sure the pipe is properly connected.
Over tightening may damage the bell
mouth and under tightening may lead to
leakage.
NOTE ON MINIMUM BEND RADIUS
Bend the pipe with thumb
min-radius 10cm (3.9”)
Fig. 6.8
6. After connecting the copper pipes to
the indoor unit, wrap the power cable,
signal cable and the piping together
with binding tape.
7. Thread this pipeline through the wall
and connect it to the outdoor unit.
8. Insulate all the piping, including the
valves of the outdoor unit.
9. Open the stop valves of the outdoor
unit to start the flow of the refrigerant
between the indoor and outdoor unit.
CAUTION
Check to make sure there is no refrigerant
leak after completing the installation work.
If there is a refrigerant leak, ventilate the
area immediately and evacuate the system
(refer to the Air Evacuation section of this
manual).
Ø 22 109.5-133.7 N.m
(1117-1364 kgf.cm) 27 27.3
GB

outlet must be used for this unit.
DO NOT plug another appliance or
charger into the same outlet.If the
electrical circuit capacity is not
enough or there is a defect in the e
lectrical work, it can lead to shock,
fire, unit and property damage.
DO NOT modify the length of the
power cord or use an extension cord.
DO NOT connect the unit with the
power source until all wiring and
piping is completed.
7
GB-15
7. WIRING
7.1 Safety Precautions
WARNING
• Be sure to disconnect the power
supply before working on the unit.
• All electrical wiring must be done
according to local and national
regulations.
• Electrical wiring must be done by a
qualified technician. Improper
connections may cause electrical
malfunction, injury and fire.
• An independent circuit and single
• Connect the power cable to the
terminalsand fasten it with a clamp.
An insecure connection may cause
fire.
• Make sure that all wiring is done
correctly and the control board cover
is properly installed. Failure to do so
can cause overheating at the
connection points, fire, and electrical
shock.
• Ensure that main supply connection
is made through a switch that
disconnects all poles, with contact
gap of a least 3mm (0.118”).
•
CAUTION
• Connect the outdoor wires before
connecting theindoor wires.
• Make sure you ground the unit. The
grounding wire should be away from
gas pipes, water pipes, lightning rods,
telephone or other grounding wires.
Improper grounding may cause
electrical shock.
•
• Make sure that you do not cross your
electrical wiring with your signal
wiring, as this can cause distortion
and interference.
Follow these instructions to prevent
distortion when the compressor starts:
• The unit must be connected to the main
outlet. Normally, the power supply must
have a low output impedance of 32
ohms.
• No other equipment should be
connected to the same power circuit.
• The unit’s power information can be
found on the rating sticker on the
product.
7.2 Outdoor Unit Wiring
WARNING
Before performing any electrical or wiring
work, turn off the main power to the system.
1. Prepare the cable for connection
a. You must first choose the right cable
size before preparing it for connection.
Be sure to use H07RN-F cables.

7
GB-16
Table 7.1: Other Regions
Rated Current of
Appliance (A)
Nominal Cross-Sectional
Area (mm²)
6 0.75
6 - 10 1
10 - 16 1.5
16 - 25 2.5
25- 32 4
32 - 45 6
b. Using wire strippers, strip the rubber
jacket from both ends of signal cable
to reveal about 15cm (5.9”) of the
wires inside.
c. Strip the insulation from the ends of
the wires.
d. Using a wire crimper, crimp u-lugs on
the ends of the wires.
NOTE: While connecting the wires, please
strictly follow the wiring diagram (found
inside the electrical box cover).
2.Remove the electric cover of the outdoor
unit. If there is no cover on the outdoor
unit, disassemble the bolts from the
maintenance board and remove the
protection board. (See Fig. 8.1)
Cover
Screw
Fig. 7.1
3. Connect the u-lugs to the terminals
Match the wire colors/labels with the
labels on the terminal block, and firmly
screw the u-lug of each wire to its
corresponding terminal.
4. Clamp down the cable with designated
cable clamp.
5. Insulate unused wires with electrical tape.
Keep them away from any electrical or
metal parts.
6. Reinstall the cover of the electric control
box.
7. WIRING
GB

GB-17
7. WIRING
7.3 Wiring Figure
NOTE:Refer to the following figures if end-users wish to perform their own wiring.
Run the main power cord through the lower line-outlet of the cord clamp.
CAUTION
Connect the connective cables to the terminals, as identified, with their matching
numbers on the terminal block of the indoor and outdoor units. For example, in the
models shown in the following diagram, Terminal L1(A) of the outdoor unit must
connect with terminal 1 on the indoor unit A.
Magnetic ring ( not supplied, optional part)
(Used to hitch to the connective cable of indoor and
outdoor units after installation.)
One-two models:
Model A Model B
S(B)
N(A)
N(B) L(B) L
L(A) N
S(A)
POWER
SUPPLY
TO B
TO A
S(2)
S(1) S(B)
N(A)
N(B) L(B) L
L(A) N
S(A)
POWER
SUPPLY
TO B TO A
S(2)
S(1)
OPTIONAL OPTIONAL OPTIONAL
OPTIONAL OPTIONAL OPTIONAL

7
GB-18
7. WIRING
NOTE: Please refer to the following figures if end-users wish to perform their own wiring.
One-three models:
One-four models:
Model A Model B
Model A Model B
One-two models:
Model C Model D
GB

7GB-19
7. WIRING
One-five models:
Model A Model B
CAUTION
NOTE OF FUSE SPECIFICATIONS:
After confirmation of the above conditions, follow these guidelines when performing wiring:
• Always have an individual power circuit specifically for the air conditioner. Always
follow the circuit diagram posted on the inside of the control cover.
•
Check the specifications for the power source.
Confirm that electrical capacity is sufficient.
Confirm that the cable thickness is as specified in the power source specifications.
Always install an earth leakage circuit breaker in wet or moist areas.
Screws fastening the wiring in the casing of electrical fittings may come loose during
transporation. Because loose screws may cause wire burn-ou, check that the screws
are tightly fastened.
•The following can be caused by a drop in voltage: vibration of a magnetic switch,
damaging the contact point, broken fuses, and disturbance of normal functioning.
•
Confirm that starting voltage is maintained at more than 90 percent of the rated
voltage marked on the name plate.
Before accessing terminals, all supply circuits must be disconnected.
• Disconnection from a power supply must be incorporated into the fixed wiring. It must
have an air gap contact separation of at least 3mm in each active (phase) conductors.
•
•
•
•
•
(applicalbe to units adpot R32 refrigerant only.)
1. The specification of outdoor unit fuse is T20A/250VAC(for <24000Btu/h unit),
T30A/250VAC(for >24000Btu/h unit )
2. The fuse is made of ceramic.
