Carrier Superia Plus K+ Series User manual

Please read the operating instructions and safety precautions carefully and thoroughly
before installing and operating your room air conditioner.
USER'S MANUAL
Split Type Room Air Conditioner
United Technologies

Dear Customer,
For trouble free services please register with Carrier
Customer Care on 180030111111 or write to us at :
[email protected]
Manager
Customer Services

CONTENTS
SAFETY PRECAUTIONS
Warning ......................................................................................................................................
Caution .......................................................................................................................................
OPERATING INSTRUCTIONS

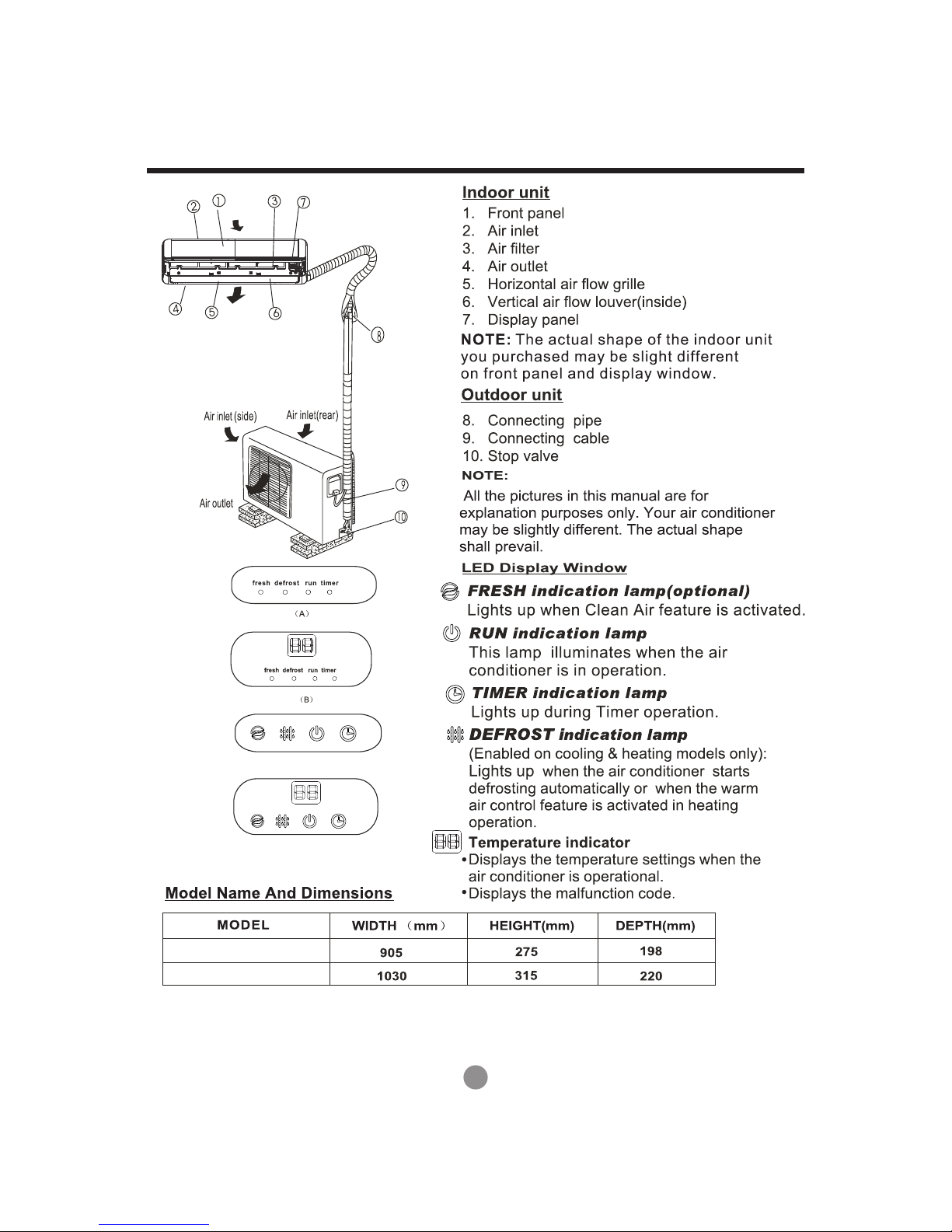

Parts names ...............................................................................................................................
Special Functions .......................................................................................................................
Manual operati on.........................................................................................................................
Operating temperatur e.................................................................................................................
Airflow direction control ..............................................................................................................
How the air conditioner works ....................................................................................................
CARE AND MAINTENANCE
Care and maintenanc e ...............................................................................................................
TROUBLESHOOTING TIPS
Troubleshoot ing tips .................................................................................................................
OPERATION TIPS
Operati on tips .................................................................................................................................
WARRANTY CARD
WARRANTY TERMS AND CONDITI ONS
Warranty card .............................................................................................................................
WARRANTY TERMS AND CONDITIONS .................................................................................
E-WASTE MANAGEMENT GUIDELINES
ANNUAL MAINTENANCE CONTRACT
E-Waste Management Guidelines ................................................................................................
Annual Maintenance Contract ......................................................................................................
1
2
3
4
5
6
6
7
8
9-10
12-13
11
19-20
16-18
14
15
CAUTION
Contact an authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the air conditioner.
If the power cord is to be replaced, replacement work shall be performed by authorised personnel only.
Installation work must be performed in accordance with the national wiring standards by authorised
personnel only.

SAFETY PRECAUTIONS
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
WARNING
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
Connect with the power
properly.
Do not modify power cord
length or share the outlet
with other appliances
Always ensure effective
earthing.
Disconnect the power if
strange sounds, smell, or
smoke comes from it.
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or
fire due to heat generation.
No earthing may cause electric
shock.
It may cause fire and electric
shock.
It may cause explosion, fire and, burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It contains contaminants and
could make you sick.
It may cause fire and electric
shock.
It may cause electric shock or fire.
This could damage your health.
No installation may cause fire
and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric shock.
Do not operate or stop the
unit by switching on or off
the power.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not drink water drained
from air conditioner.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble or modify unit.
!
!
!
!
!
WARNING
Use the correctly rated
breaker or fuse.
There is risk of fire or electric
shock.
!
2

SAFETY PRECAUTIONS
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking
and installing. Sharp edges
could cause injury.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Ventilate the room well
when used together
with a stove, etc.
An oxygen shortage
may occur.
Do not use this air cond-
itioner to preserve preci-
sion devices, food, pets,
plants, and art objects.
It may cause deterioration
of quality, etc.
It may cause failure of
product or fire.
Do not use for
special purposes.
Turn off the main power
switch when not using
the unit for a long time.
If water enters the
unit, turn the unit off
and disconnect the
power , contact a
qualified service
technician.
!
!
!
!
!
!
!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product color or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong detergent
such as wax or thinner. Use
a soft cloth for cleaning.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
Do not place heavy object on the
power cord and take care so that
the cord is not compressed.
Operation without filters
may cause failure.
Always insert the filters
securely. Clean filter
once every two weeks.
!
!
!
CAUTION
3

OPERATING INSTRUCTIONS
4
(A)
(B)
12000 Btu
18000/24000 Btu

5
OPERATING INSTRUCTIONS

OPERATING INSTRUCTIONS
6

OPERATING INSTRUCTIONS
7
To set the horizontal air flow direction (left - right)
Move the vertical louver manually to adjust the air flow
in the direction you prefer.
IMPORTANT: Before adjusting the vertical louvers, the
supply power must be disconnected.
Airflow direction control
Adjust the air flow direction properly otherwise, it
might cause discomfort or cause uneven room
temperatures.
Adjust the horizontal louver using the remote
controller.
Adjust the vertical louver manually.
To set the vertical air flow(Up--Down) direction
Perform this function while the unit is in operation.
Use the remote controller to adjust the air flow
direction. The horizontal louver can be moved at
O
a range of 6 for each press, or swing up and down
automatically. Please refer to the REMOTE
CONTROLLER OPERATION MANUAL for details.
,,
,,

OPERATING INSTRUCTIONS
How the air conditioner works
To achieve optimal performance, please note the following:
Adjust the air flow direction correctly so that it is not directed
on people.
Adjust the temperature to achieve the highest comfort level. Do
not adjust the unit to excessive temperature levels.
Close doors and windows on COOL or HEAT modes, or perfor-
mance may be reduced.
Use TIMER ON button on the remote controller to select a time
you want to start your air conditioner.
Do not put any object near air inlet or air outlet, as the efficiency
of the air conditioner may be reduced and the air conditioner
may stop running.
Clean the air filter periodically, otherwise cooling performance
may be reduced.
Do not operate unit with horizontal louver in closed position.
Optimal operation
8

CARE AND MAINTENANCE

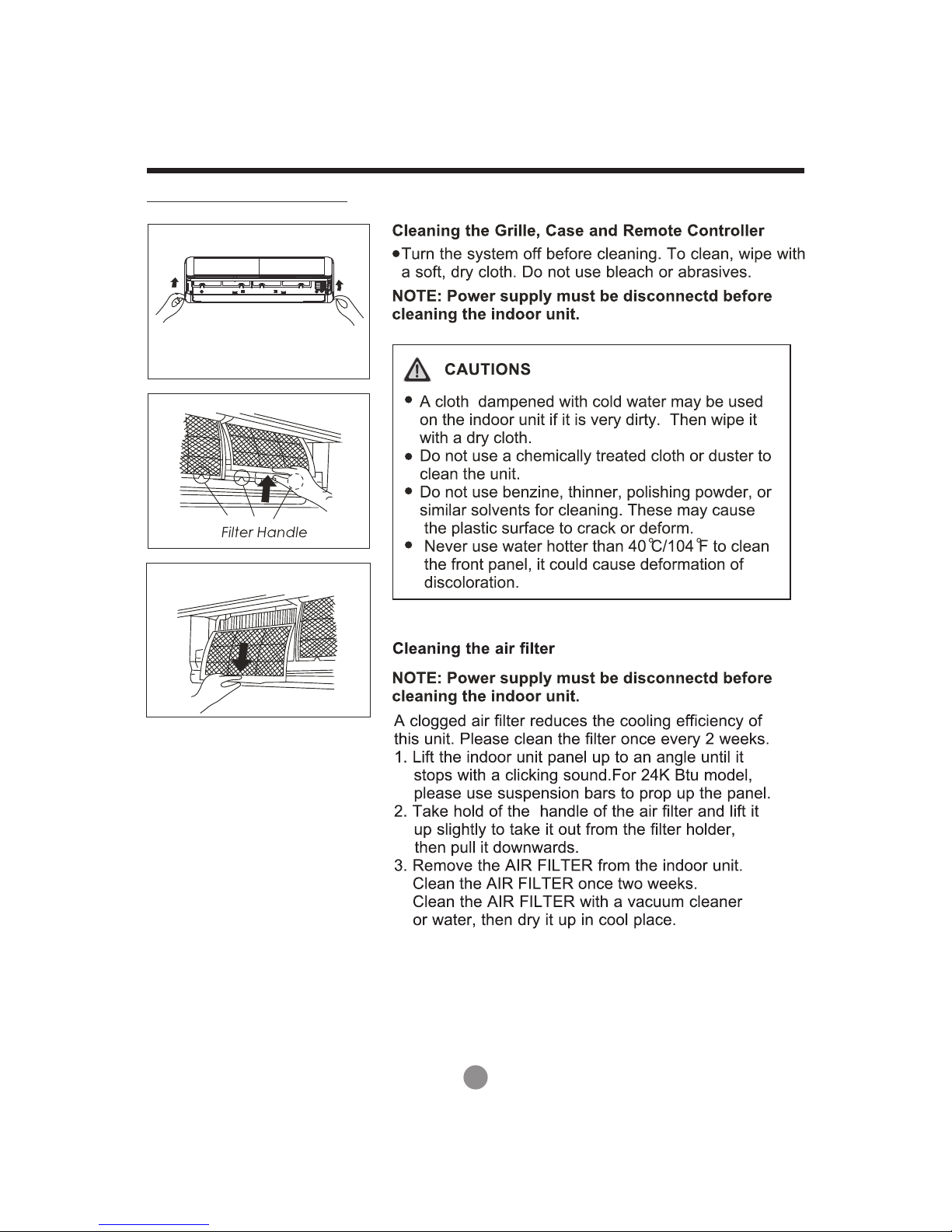

Care and maintenance
9

CARE AND MAINTENANCE
10

OPERATION TIPS
11

OPERATION TIPS
12

13
Notes: Do not attempt to repair the unit yourself.
Always consult an authorised service provider.
Troubleshooting Tips
TROUBLE SHOOTING TIPS

E-WASTE MANAGEMENT GUIDELINES
14
We have tied up with government authorised e-waste recycler for facilitating our channel partners /
customers so that they can dispose of e-waste products and also defective spare parts. You may call on toll
free number 180030111111 or visit our website for details of collection centers.
United Technologies

15
ANNUAL MAINTENANCE CONTRACT
Our air conditioners contain various components and inputs that are technical in nature and it is
important that any repair or replacement of any of the components of the air conditioners is done
only by the personnel authorized by Carrier.
We at Carrier Midea India Pvt. Ltd. believe in providing our valued customers the best in
engineered technology & quality performance for extreme Indian conditions. Striving to keep
our commitments and to ensure best product performance, We offer to you exciting “ Happy
HomesAnnual Maintenance plans” to cover the service support for your products.
We recommend that you avail Happy Homes annual maintenance services from us in order to
optimize the performance and the life span of your conditioners and also to ensure their safe
and proper handling.
You can contact us on our call center number 180030111111, 8am to 8pm to register your
reque st f or Annua l Ma inten an ce serv ices or y ou c an writ e to u s on
[email protected]
ANNUAL MAINTENANCE CONTRACT

WARRANTY TERMS AND CONDITIONS
WARRANTY TERMS & CONDITIONS
CARRIER MIDEA INDIA PRIVATE LIMITED (hereinafter referred to as the "Company"), hereby warrants to
the original domestic purchaser (here in after called the "Purchaser") of the air-conditioning unit (as detailed
within the Warranty Registration Card and here in after referred to as the "said unit") that the said unit is free
from defects in materials and workmanship under normal use and service and under specified voltage
conditions, and that during a period of twelve (12) months commencing from the date of invoice, as provided in
the Warranty Registration Card, the Company undertakes to repair or to replace as it deems fit in sole
discretion, free of charge, any part or parts of the said unit (including the compressor, condenser and
evaporator) which proves to be defective in materials or workmanship.
FIVE YEAR COMPRESSOR WARRANTY
For four (4) years following the expiration of the entire unit warranty, the Company shall continue to warrant the
compressor to be free from defects in material and workmanship under normal use and service and under
specified voltage conditions. The Company shall repair or replace without cost to the original purchaser, any
part or portion of the compressor, which shall be returned to us, transportation charges prepaid and which on
inspection shall be shown to be thus defective. Expendable items like refrigerant gas, overload, oil, dryer,
strainer and others are excluded from this warranty and are on chargeable basis. This warranty is subject to
use of air-conditioner with input voltage of 230 V +/-10%. We recommend use of approved make of voltage
stabilizer with output voltage of 230 V +/-10%. The terms and conditions as set out below shall form the basis of
this warranty:
1. The warranty shall be valid and that the Purchaser can have the benefit of this warranty, if and only if t h e
Purchaser has duly intimated the fault to the Company or its authorized dealer and that the unit is in the
possession of and is used by the Purchaser.
2. The Warranty will shall be valid only for the said period of twelve months as specified above,
irrespective of whether the said unit has been in use or not for any reason whatsoever, or the unit is
moved from one location to another. The warranty period specified above shall include time taken for
repairs, replacements, testing of unit, technical breakdowns, transit time etc. This warranty shall
automatically expire by efflux of time on completion of the period indicated herein above and no notice
of such expiry will be given by the Company.
3. This warranty shall stand automatically terminated in the event of the said unit being serviced,
repaired, installed, de-installed, re-installed or otherwise attended to by and person or organization
or agency or by the Purchaser himself (by whatever name called), other that the authorized
representative / Dealer of the Company
4. Parts of the units replaced or repaired under the terms of this warranty are warranted only for the
remaining period of the original warranty period.
16
