Installation Instructions
CONTENTS
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
VERTICAL UNIT INSTALLATION . . . . . . . . . . . . . . 2
Step 1 — Install Wall Mounting Strip and Hang Base
Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Step 2 — Make Air Connections . . . . . . . . . . . . . . 2
Step 3 — Connect Piping . . . . . . . . . . . . . . . . . . . 3
Step 4 — Install Accessory Grilles (If Supplied,
on Furred-In or Custom
Enclosure Installations) . . . . . . . . . . . . . . . . . . 3
Step 5 — Install Carrier Enclosures . . . . . . . . . . . 3
Step 6 — Install Stiffener Brackets for Enclosure
Runouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Step 7 — Install Enclosure and Runout Arrange-
ment As Required . . . . . . . . . . . . . . . . . . . . . . . . 4
• COLUMN-TO-COLUMN ARRANGEMENT
• COLUMN-TO-COLUMN WITH SHELVING
• ENCLOSURE WITH SINGLE OR DUAL RUNOUT
• SINGLE OR DUAL RUNOUT WITH KICKSTRIP
Step 8 — Balance System . . . . . . . . . . . . . . . . . . 6
HORIZONTAL UNIT INSTALLATION
(Unit-Mounted or Wall-Mounted
Thermostat) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Base Unit Not in Carrier Enclosure . . . . . . . . . . . . 7
Base Unit in Carrier Enclosure . . . . . . . . . . . . . . . 7
Coil Reversal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
GENERAL
These units are controlled by varying water flow through coil.
Follow installation steps in sequence suggested. Each step in-
cludes figure(s) and procedures required for a specific stage
of installation.
Set up a sample installation to familiarize all trades with their
specific job function.
See Fig. 1 for the Proposition 65 warning label. See Fig. 2
and 3 for 36SV,SL base units.

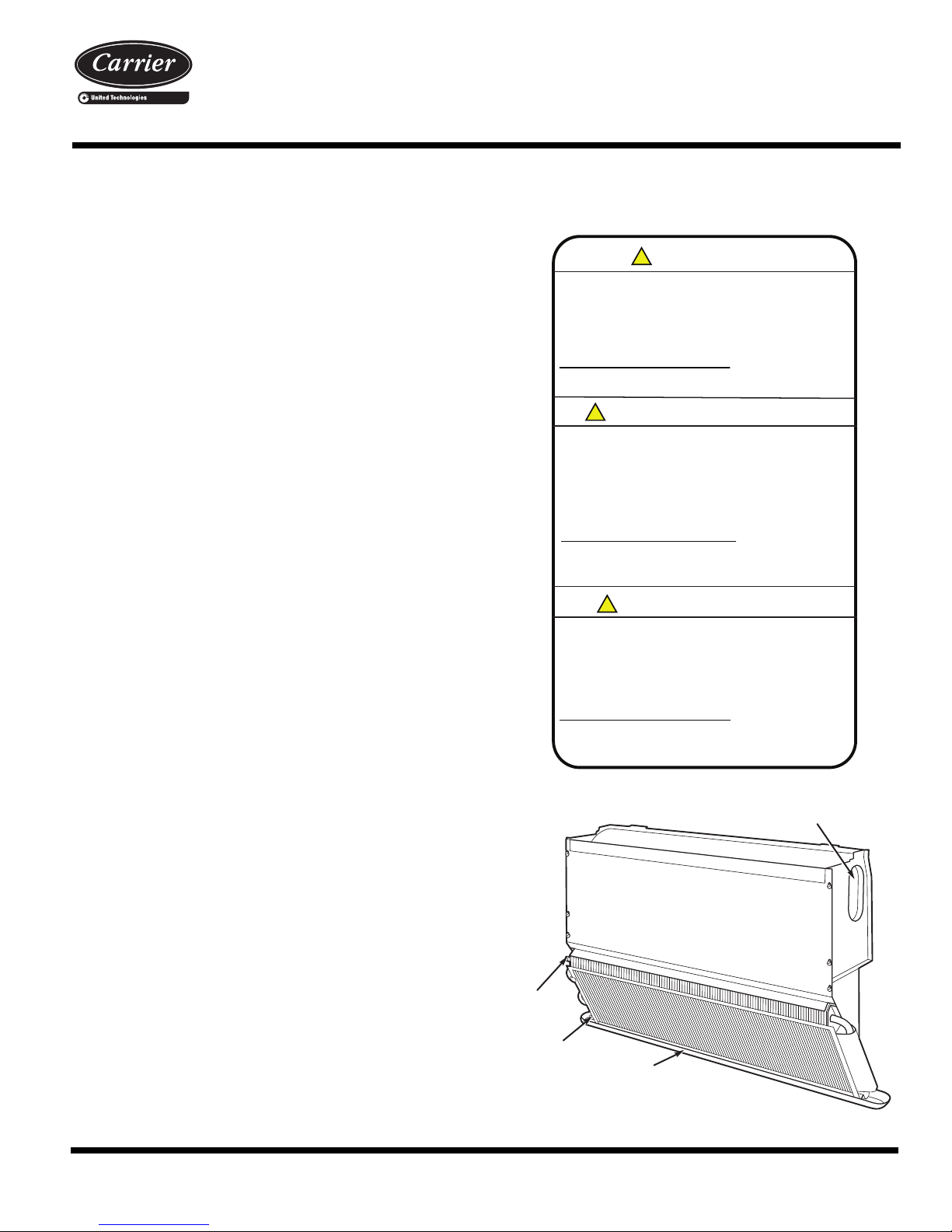

Fig. 1 — Proposition 65 Warning Label
Fig. 2 — 36SV Base Unit
!
!
!
WARNING
AVERTISSEMENT
ADVERTENCIA
This product can expose you to chemicals
including Acrylonitrile, which is known to the
State of California to cause cancer. For
more information, go to
www.P65Warnings.ca.gov
Ce produit peut vous exposer à des
agents chimiques, y compris l’acrylonitrile,
que l’État de Californie reconnaît comme
cancérigènes. Pour plus d’informations,
veuillez consulter
www.P65Warnings.ca.gov
Este producto puede exponerlo a productos
químicos que incluyen acrilonitrilo, que
el estado de California considera que
causa cáncer. Para más información visite
www.P65Warnings.ca.gov
RETURN
SUPPLY
CONDENSATE
PAN
PRIMARY AIR INLET
36S
Induction Air Terminals
(Bypass and Water Control)

2
Fig. 3 — 36SL Base Unit
VERTICAL UNIT INSTALLATION
Step 1 — Install Wall Mounting Strip and Hang
Base Unit (see Fig. 4)
1. Determine required length of mounting strip. Allow for
length of enclosures and runouts to be used. Maximum
unsupported length of Carrier enclosures is 2-in. on
either side.
2. Locate strip per job prints. Install straight and level using
field-supplied fasteners through alternate and end holes.
Shim if necessary.
3. Install separate mounting strip above base unit strip for
hanging 36SC or 36ST enclosures if used.
4. Mark enclosure vertical center line on wall near mount-
ing strip.
5. Remove base unit from carton. Retain carton and place
over unit after installation to protect from dirt.
6. Remove unit protective packing.
7. Do not remove lint screen clips (taped to condensate pan)
or tee and connector (tape to side of slave unit) until
required.
8. Install two No. 10-24 bolts (factory-supplied) through
two No. 10-24 speed nuts provided. (These, or any other
suitable means, will be used for unit leveling.)
9. Mark base unit vertical center line on unit.
10. Determine from job prints or certified prints relative
position of base unit with respect to enclosure.
11. Hang base unit on wall-mounting strip, using center lines
for reference.
12. Level unit by adjusting two No. 10-24 bolts (or other
means selected).
Fig. 4 — Hanging Base Unit
Step 2 — Make Air Connections (see Fig. 5)
1. Remove end plug from shipping position. Do not discard.
2. Air connections:
Apply sealer (3M Scotch Seal 800 or equivalent) to end
plug and air transition fitting. Install plug and fitting to
plenum connection. Connect duct to transition fitting;
seal connection with duct sealer. CAUTION: Excessive
duct sealer may interfere with damper movement. After
applying sealer, check damper for free travel by rotating
adjusting screw (See Step 8 — Balance System) with
1/8-in. Allen wrench.
3. Check that all tubing connections are tight.
Fig. 5 — End Plug Fittings

3
Step 3 — Connect Piping (see Fig. 6)
1. If coil requires reversing, see Coil Reversal (page 8).
2. Remove burrs and chips from all joints.
3. Locate piping as shown. Piping may run behind 36S
units.
4. Connect water lines to coil. (Bottom coil connection is
recommended for supply.)
5. Use soft or silver solder, if required, for coil connections.
6. Level condensate pan; straighten strap. If drainable con-
densate pan in used, connect to drain line. Pitch drain
line for adequate flow.
7. Insulate water and drain lines if required. Install service
valves between runouts and water control valves.
8. Compress coil end covers slightly and insert between
coil end flanges, with solid (un-notched) side on forward
coil flange. Install coil end covers on 36SV, 36SD only.
9. Install lint screen against coil, securing to flange with
clips provided. Install 2 lint screens on 36ST.

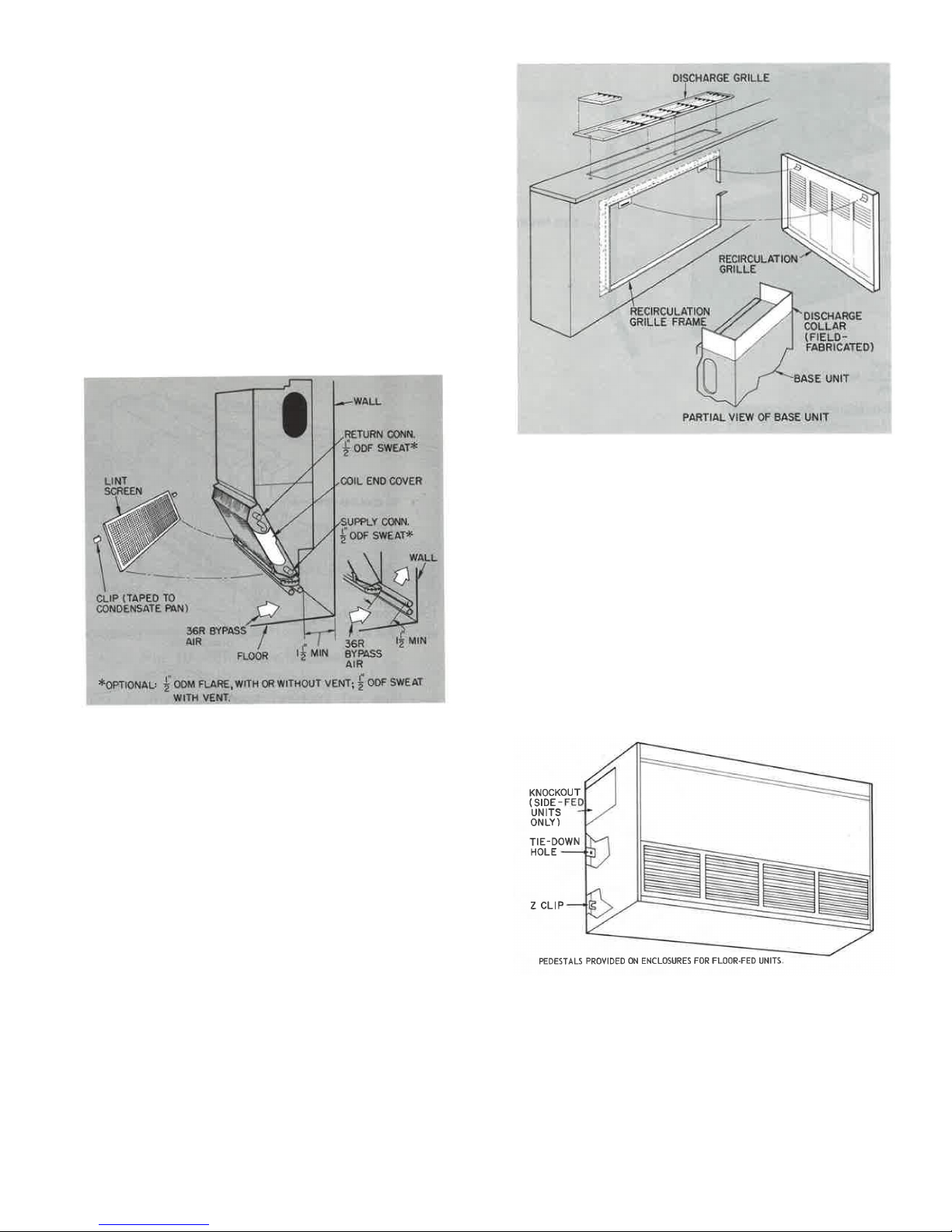

Fig. 6 — Piping Connections
Step 4 — Install Accessory Grilles (If Supplied,
on Furred-In or Custom Enclosure Installa-
tions) (see Fig. 7)
1. Position recirculation grille mounting frame, using holes
provided. Install recirculation grille panel to grille frame.
2. Install discharge grille frame and removable grille sec-
tions. Field-fabricated collar may be installed on front
and sides of unit discharge if required.
Fig. 7 — Accessory Grilles and Field-Supplied
Collar
Step 5 — Install Carrier Enclosures (see Fig. 8)
1. Remove enclosures from carton.
2. On side-fed enclosures, remove end panel knockout as
required for air connections.
36SC,ST unit enclosures (with kickstrip) are for floor-
fed units only; no knockout is provided.
3. Hang enclosure on wall mounting strip. From job prints
or certified prints, determine relative position of enclo-
sure and base unit. Unit discharge must be in line with
enclosure discharge grille.
Hang 36SC,ST enclosures on separate mounting strip
previously installed above base unit strip.
4. Remove front panel. Fasten enclosure to wall, using clips
or tie-down holes. Re-install panel.
Fig. 8 — Enclosure Installation (36SV Side-Fed
Units)
Step 6 — Install Stiffener Brackets for Enclosure
Runouts (see Fig. 9)
1. Determine length of runout from job prints.
2. Place stiffener brackets on wall mounting strip.

4
Fig. 9 — Positioning Stiffener Brackets
Step 7 — Install Enclosure and Runout
Arrangement As Required
Use end frame as template when drilling holes on unit enclo-
sure side panels. Tap runout enclosure lightly to ensure tight
fit in end frame slots.
COLUMN-TO-COLUMN ARRANGEMENT (SEE FIG. 10)
1. Drill two 3/16-in. holes for attaching runout.
2. Cut runout enclosure and enclosure panel to desired
length.
3. Fit runout enclosure into slots of one end frame.
4. Insert enclosure panel into end frame slots.
5. Fit second end frame to opposite end of assembly.
6. Hang assembly on wall mounting strip and adjacent to
unit enclosure. Stiffener bracket lip must support bottom
of runout.
7. Attach end frame to unit enclosure with two No. 8 sheet
metal screws (field-supplied).
Fig. 10 — Column-to-Column Enclosure Arrangement

5
COLUMN-TO-COLUMN WITH SHELVING (SEE FIG. 11)
1. Drill two 3/16-in. holes for attaching runout.
2. Cut runout enclosure, back panel, and shelving to desired
length. Maximum unsupported shelf length is 3 ft.
3. Fit runout enclosure into slots of 2 end frames.
4. Install end panels flush with front of runout enclosure,
leaving space at bottom to insert shelving. Fasten end
panels to runout enclosure with U-clips.
5. Insert shelving below end panels, with flanges turned
down. Shelving rests on lower flange of end frame.
6. Hang assembly on wall mounting strip and adjacent to
unit enclosure. Stiffener bracket lip must support bottom
of runout.
7. Attach end frame to unit enclosure with two No. 8 sheet
metal screws (field-supplied).
ENCLOSURE WITH SINGLE OR DUAL RUNOUT (SEE
FIG. 12)
1. Drill two 3/16-in. holes for attaching runout.
2. Cut runout enclosure to desired length; fit into slots of 2
end frames.
3. Hang assembly on wall mounting strip and adjacent to
base unit enclosure. Stiffener bracket lip must support
bottom of runout.
4. Attach end frame to base unit enclosure with one No. 8
sheet metal screw (field-supplied).
Fig. 11 — Column-to-Column Enclosure with Shelving

6

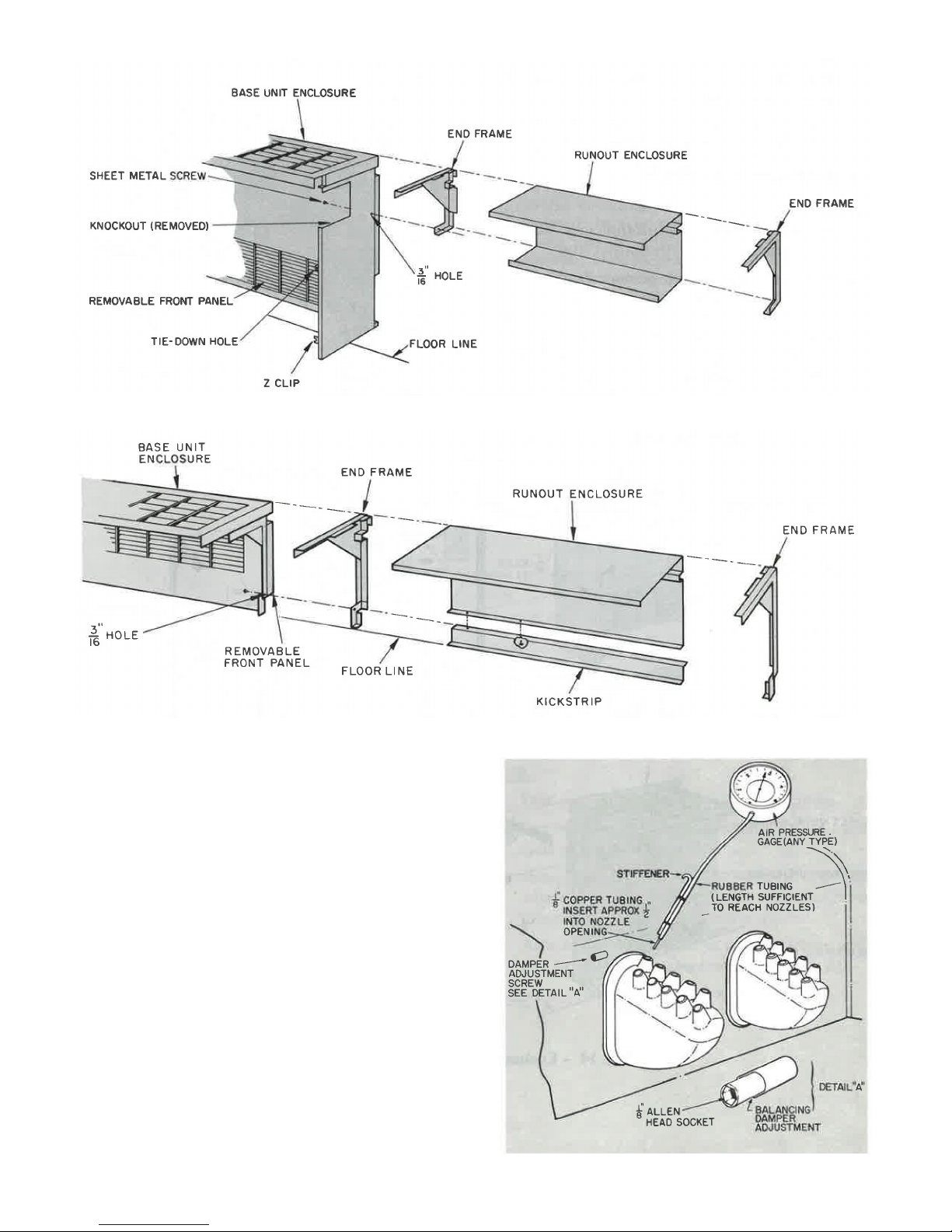

Fig. 12 — Enclosure with Single or Dual Runout
Fig. 13 — Single or Dual Runout (with Kickstrip)
SINGLE OR DUAL RUNOUT WITH KICKSTRIP (SEE
FIG. 13)
1. Drill one 3/16-in. hole for attaching runout.
2. Cut runout enclosure and kickstrip to desired length; join
with No. 8 sheet metal screws.
3. Fit runout and kickstrip into slots of 2 end frames.
4. Hang assembly on wall mounting strip and adjacent to
unit enclosure.
5. Attach end frame to unit enclosure with one No. 8 sheet
metal screw (field-supplied).
Step 8 — Balance System (see Fig. 14)
1. Remove construction debris from unit. Remove protec-
tive plastic from thermostat cover.
2. Units are shipped with plenum damper wide open. Turn
damper adjustment screw clockwise to close damper and
decrease nozzle pressure to design value. Two or three
runs may be necessary to obtain proper balance.
Note that 36SL,SM,SC,ST have different nozzle types.
Maximum allowable plenum pressure is 5-in. wg.
Fig. 14 — Pressure Measurements

7
HORIZONTAL UNIT INSTALLATION
(Unit-Mounted or Wall-Mounted Thermostat)
Base Unit Not in Carrier Enclosure (see Fig. 15)
1. Remove unit from carton. Remove protective packing.
2. Remove Z bars from shipping position. Fasten to unit
with screws and clips provided.
3. Insert short lint screen (91/2-in. height), if used, adjacent
to water coil. Use 2 screws and clips taped to unit front
panel. Install one screw on either side of coil support and
below screen. Install clip through hole as shown.
4. Locate unit per job prints. Suspend as shown.
5. Level unit, using drain pan as reference.
6. Make air connections (see Vertical Unit Installation,
Step 2).
7. Make piping connections (see Vertical Unit Installation,
Step 3, 1 through 7 only).
8. Balance system (see Vertical Unit Installation, Step 8).
Fig. 15 — 36SH Base Unit Installation
Base Unit in Carrier Enclosure (see Fig. 16)
1. Remove base unit, enclosure, and ceiling mounting
plates from their cartons. Remove protective packing.
2. Remove four No. 10-16 x 1/2-in. screws taped to inside of
enclosure end panel.
3. Remove Z bars from shipping position; fasten to unit
with screws and clips provided. Install ceiling mounting
plates to ceiling; lift unit and fasten Z bars to mounting
plates. (Mounting plates may be installed on Z bars and
entire assembly lifted to be secured to ceiling.)
4. Insert short lint screen (91/2-in. height), if used, adjacent
to water coil. Use 2 screws and clips taped to unit front
panel. Install one screw on either side of coil support and
below screen. Install clip through hole as shown.
5. Locate unit per job prints. Suspend as shown.
6. Level unit, using drain pan as reference.
7. Make air connections (see Vertical Unit Installation,
Step 2).
8. Make piping connections (see Vertical Unit Installation,
Step 3, 1 through 7 only).
9. Install long lint screen (111/2-in. height), if used.
10. Lift enclosure so that its flanges pass through slots in
ceiling mounting plate. Slide enclosure flanges over
mounting plate flanges; fasten with 4 screws provided.
11. Balance the system (see Vertical Unit Installation,
Step 8).
Fig. 16 — 36SH Installed in Carrier Enclosure

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53360009-01 Printed in U.S.A. Form 36S-1SI Pg 8 9-18 Replaces: 36R,S-1SI
© Carrier Corporation 2018
Coil Reversal (see Fig. 17)
Do not reverse coils having vent fittings (except
36SL,SM,SC,ST). To reverse coils without vent fittings:
1. Remove sheet metal screws fastening condensate pan to
coil.
2. Remove sheet metal screws holding coil to unit.
3. Reverse coil end-to-end.
Reverse coil in horizontal plane on 36SL,SM,SC,ST
units.
4. Reassemble coil to unit; re-install condensate pan.
Fig. 17 — Coil Reversal
