Carrier INFINITY SYSTXCCITC01 User manual

SYSTXCCITC01---B
InfinityrSystem Control
Owner’s Manual
A170203
NOTE: Read the entire instruction manual before starting the installation.
The features and functions outlined in this Owner’s Manual reflect Version 1.3 or
later software. Occupancy sensing is only available with Series B Infinity System
Controls. See the Downloads section of www.MyInfinityTouch.Carrier.com for the
latest software release and literature.
US Patents: CarrierrU.S. Pat No. 7,243,004, CarrierrU.S. Pat No. 7,775,452,
pointSETtU.S. Pat No. 7,415,102

TABLE OF CONTENTS
PAGE
INTRODUCTION 1................................................
HOME SCREEN 1.................................................
Information Displayed 1...........................................
Wi--Fi Connectivity 2.............................................
Information Buttons 4.............................................
MAIN SCREEN 5.................................................
System Mode 5..................................................
Set Day and Time 6..............................................
Adjust Temperature (Temporary Hold) 6..............................
Adjusting Comfort Activities 7.....................................
Adjusting Heating 7..............................................
Adjusting Cooling 8..............................................
Adjust Temperature (Permanent Hold) 8..............................
Adjusting Comfort Profiles 8.......................................
Adjusting Heating 9..............................................
Adjusting Cooling 9..............................................
Occupancy Override 11...........................................
FEATURES 12....................................................
Adjust Fan Speed 12..............................................
View Current Humidity Level 12....................................
MENU SCREEN 13................................................
Comfort Profiles 13..............................................
Home Humidity Control 15........................................

TABLE OF CONTENTS (cont.)
PAGE
Home Fresh Air Control 17........................................
Away Humidity Control 18.........................................
Away Fresh Air Control 19.........................................
Vacation Humidity Control 20......................................
Vacation Fresh Air Control 21......................................
SCHEDULES 22..................................................
View or Edit Schedule 23..........................................
Guided Scheduling 24............................................
Upload My Schedule 26...........................................
VACATION 28...................................................
REMINDERS 30..................................................
OPERATING STATUS 31...........................................
Accessories Status 32.............................................
Temperature Control Status 32.....................................
DISPLAY 34.....................................................
Temperature Units 35.............................................
Backlight Levels 35..............................................
Sound Settings 36................................................
Screen Saver Settings 36..........................................
Activate Screen Lock 37...........................................

TABLE OF CONTENTS (cont.)
PAGE
ENERGY TRACKING 38...........................................
TIME / DATE 40..................................................
Set Time and Date 40.............................................
Manually Adjust Time and Date 40..................................
Setup Daylight Savings Time 41....................................
Setup Time Zone 42..............................................
Enable Time Synchronization 42....................................
SERVICE 43.....................................................
Service Information 43............................................
Service Reminder Update 44.......................................
Software Update 44..............................................
Updating Software Using Micro SD Card 45...........................
Updating Software Using Wi--Fi 47..................................
Model / Serial Numbers 49.........................................
PHOTO UPLOAD 50...............................................
HEAT SOURCE (IF APPLICABLE) 51.................................
ZONE NAMES (IF APPLICABLE) 52.................................
Home Automation System Interface (If Applicable) 52...................
WIRELESS 53...................................................

TABLE OF CONTENTS (cont.)
PAGE
WEATHER 58....................................................
SENSORS 59.....................................................
UTILITY DEMAND EVENT RESPONSE SETUP 62.....................
Utility Event 62.................................................
Price Response 63...............................................
Price Settings 63.................................................
Demand Response 64.............................................
Demand Settings 65..............................................
Response Limits 65..............................................
Restore UE Factory Default Settings 66...............................
STATEMENT INFORMATION 67....................................
FCC Interference Statement 67......................................

1
INTRODUCTION
CONGRATULATIONS! Your decision to choose the InfinityRSystem Control puts
you in a select group of homeowners who understand the value of precise comfort
Control and appreciate the simplicity of an easy--to--use, intuitive, Control.
Your new Infinity System Control offers high quality comfort technology. Please
take a few moments to carefully read through this manual. Next set up a comfort
profile and schedule that makes sense for your lifestyle; then relax and enjoy the
new comfort of your home!
HOME SCREEN
Information Displayed
NOTE: When you connect your system to the Internet and register on the My
Infinity website, you can access nearly all of the consumer features on the My
Infinity mobile app. See the WIRELESS section for more information.
The information displayed on the home screen will appear when there has been no
interaction with the Infinity System Control for at least two minutes. The basic
information displayed on the Home Screen consists of the current date and time, the
room temperature (zone temperature if applicable), the outdoor temperature (if
applicable), occupancy sensing status and current weather condition. Connectivity
status to the home Wi--Fi network and the MyInfinity Server will also be displayed
on the Home Screen. Note: You must have Wi--Fi enabled for the indicator to
appear.
If you have uploaded a photo to the Control (see Pg. 50), it will be displayed until
you touch the display. You will then be taken to the Home Screen.
Occupancy Status
When the occupancy sensing feature is enabled, a dot (occupancy sensing
indicator) next to the zone name is shown to indicate if the room is sensed to be
occupied. When no movement is detected, Occupancy Status indicator stays GRAY.

2
When movement is detected, but the system hasn’t yet determined that the space is
occupied (example, someone is just walking through the room), Occupancy Status
indicator turns BLUE. When the system determines that the space is occupied,
Occupancy Status indicator turns GREEN.
Wi--FirConnectivity Status
A13258C

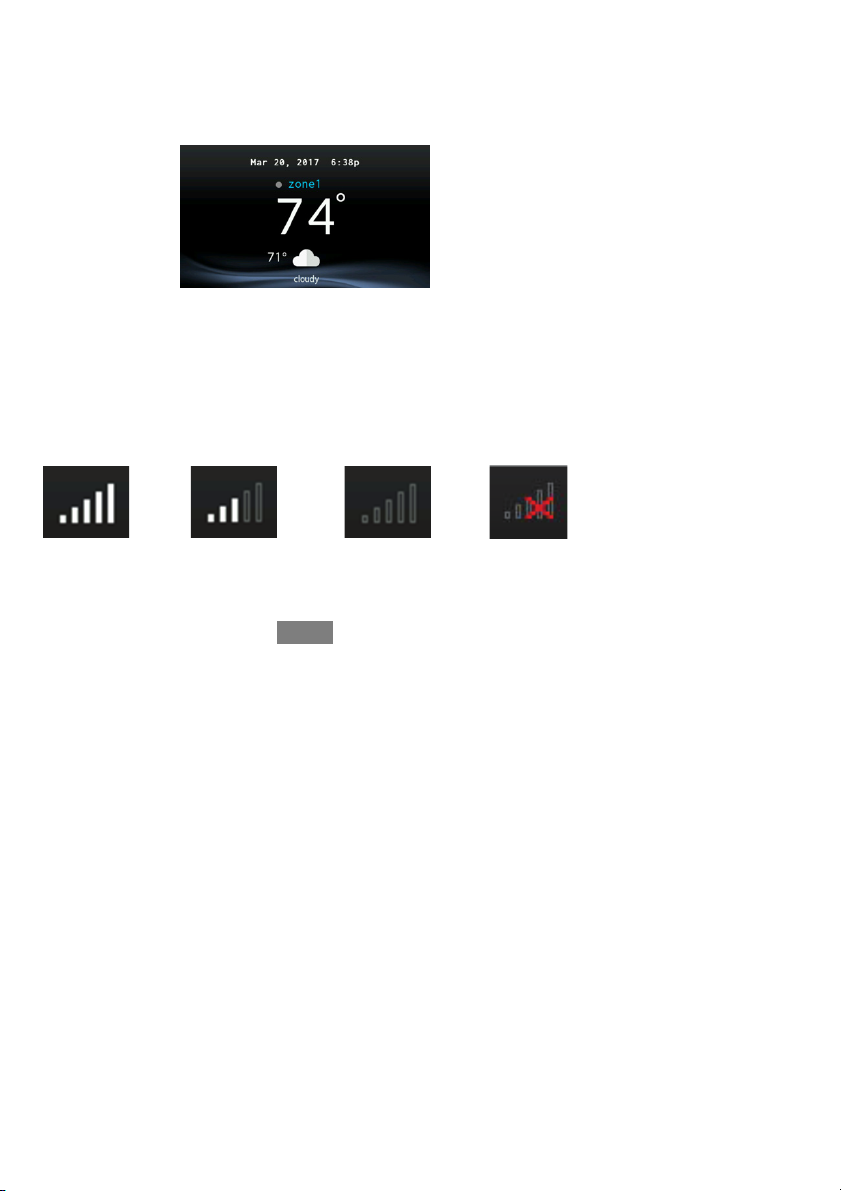

Connectivity status to the home Wi--Fi network and MyInfinity Server is displayed
in the top right hand corner of the Home Screen.
When the Infinity System Control is connected to the home Wi--Fi network and the
MyInfinity Server, the signal strength bars will be displayed in white as depicted in
the image above. Connection strength to the home Wi--Fi network will be indicated
by the number of solid white bars displayed. A red “X” over the bars indicates no
connection to the home Wi--Fi network.
Strong Connection Limited Connection Poor Connection No Connection
A170246

3

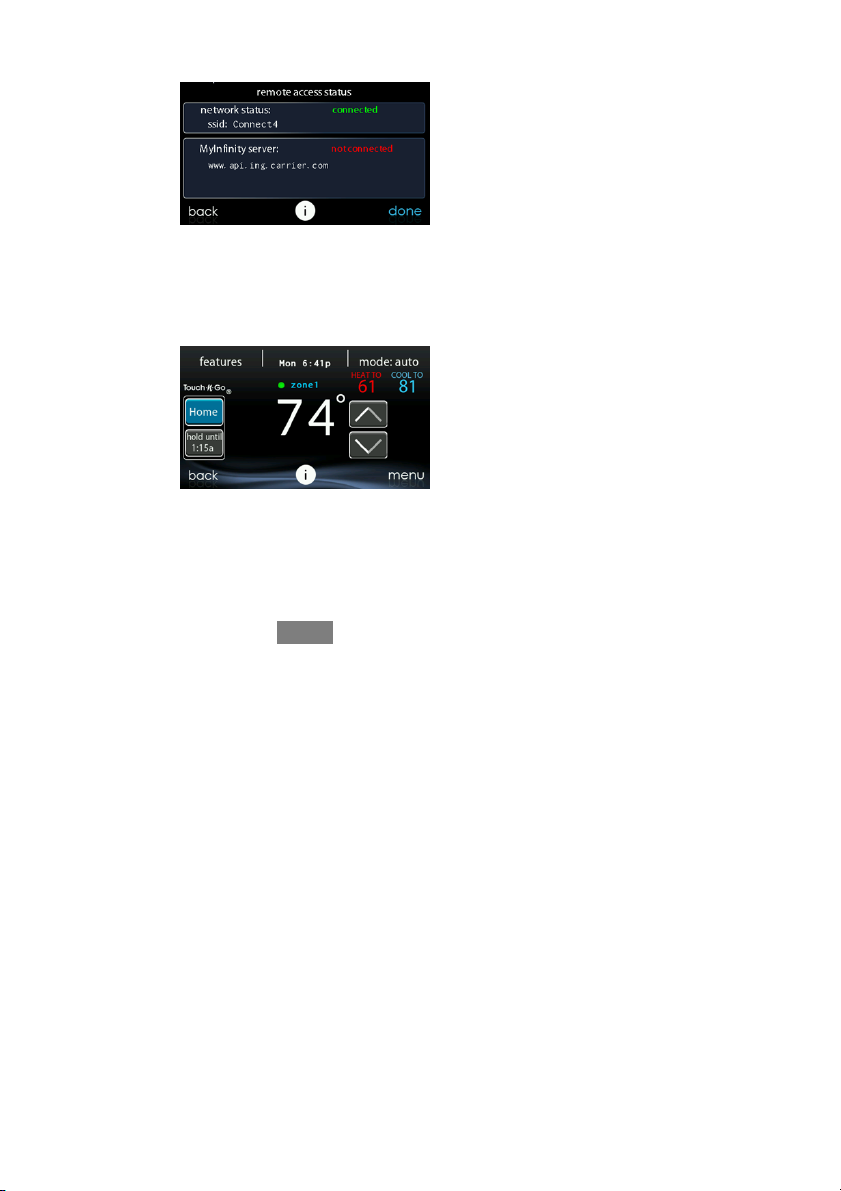

SPressing on the Connectivity Status bars from the Home Screen will
allow you to view the Remote Access Status screen.
A13260C

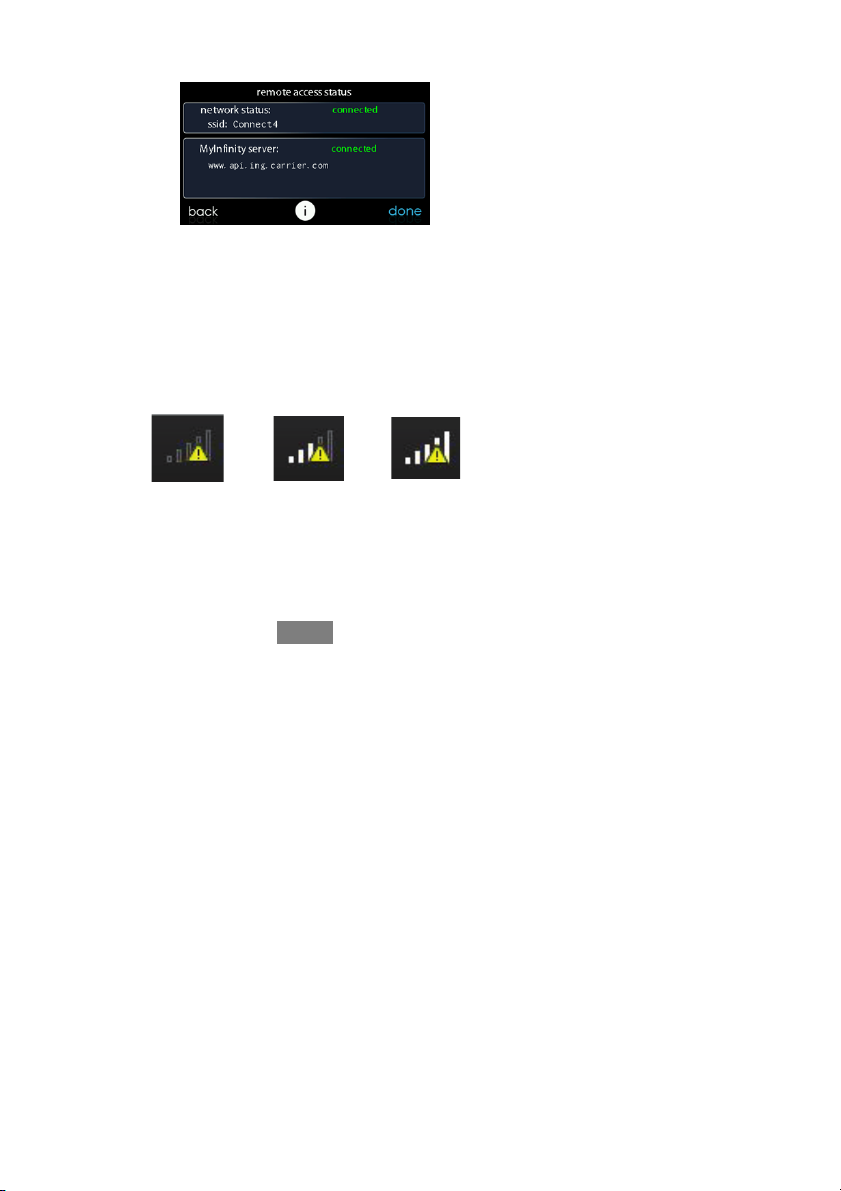

SNOTE: If the Infinity System Control is not connected to the home
network, a red “X” will appear over the strength bars. If the Infinity
System Control is connected to the home Wi--Fi network but loses con-
nection to the MyInfinity Server, a triangle will appear over the strength
bars as depicted in the image below. Connection strength to the home
Wi--Fi network will continue to be displayed by the number of solid
bars. If this problem persists, please contact 1--800--Carrier for assis-
tance.
A170247

4
SPressing on the Connectivity Status bars from the Home Screen will
allow you to view the Remote Access Status screen.
A13262C
Information Buttons
On the bottom of some screens will be an information icon. By pressing the
information icon, a text box will display to show what interactions are available on
that particular screen. To close the text box, touch the text box.
A14237C

5
MAIN SCREEN
The Main Screen is where most interactions will take place. Touch anywhere on the
Home screen to arrive at the Main Screen. The most convenient way to interact with
your control is using the My Infinity mobile app. See the WIRELESS section for
more details on connecting your product to the Internet.
System Mode
Once in the Main Screen,
STo access your system mode touch the MODE label located in the upper
right of the Control.
SThe drop--down menu will allow you to choose between AUTO, HEAT,
COOL, FAN ONLY and OFF, depending on the equipment installed in
your system.
SIf OFF is selected your system will not Control temperatures, humidity,
or fan.
SIf AUTO is selected, the Infinity System Control automatically switches
between heating and cooling to maintain your comfort during transition-
al seasons.
NOTE: AUTO mode is intended to switch between heating and cooling modes
based on temperature demand. A gradual auto transition is the energy--conscious
default that will satisfy the majority of customers. For Infinity Zoning systems,
some customers might have significant and simultaneous heating and cooling
demands in different zones. To address this need, a special simultaneous heating
and cooling demand auto mode could be enabled by the Installer. When the feature
is enabled and AUTO mode is selected, the simultaneous heating and cooling
demand auto mode will alternate between heating and cooling, depending on
demand, every half hour. This may result in higher energy usage but provide the

6
benefit of greater comfort. Your installing contractor is able to enable this feature,
if desired. (This feature is only available with zoned systems).
SIf HEAT is selected then the Infinity System Control operates only the
heating system.
SIf COOL is selected then the Infinity System Control operates only the
cooling system.
SIf FAN ONLY is selected, then the Infinity System Control operates the
indoor fan but heating, cooling, humidification or dehumidification will
not take place.
Set Day and Time
STo set the day and time for your home screen enter the Main Screen by
touching anywhere on the Control.
STouch the DAY and TIME label located at the top middle of the screen
or access by going through the menu screen (see Pg. 40).
STo set the HOUR, MINUTE, MONTH, DAY,orYEAR touch the fea-
ture you wish to change.
SUse the Up (Y) and Down (B) buttons to make the appropriate
changes.
SWhen you have completed all of the settings, touch SAVE.
SIf you make a mistake you may touch CANCEL and begin again.
Adjust Temperature (Temporary Hold)
The Infinity System Control allows you to temporarily override your programmed
schedule by adjusting the indoor temperature at any time to meet your needs.
NOTE: The Infinity System may seem slow to react to set point, activity and
system mode changes. This is normal, as the system will ramp up capacity and fan
speeds slowly to achieve the proper level of home conditioning, while avoiding
wasting energy, stressing home circuits and dimming lights with a ”hard start.”

7
Adjusting Comfort Activities (See Comfort Profiles on Pg. 13)
STo adjust the comfort activity, enter the Main Screen by touching any-
where on the Control.
STouch the activity/top button under the Touch ’N’ Go®feature on the
left side of the screen; then select the desired activity of HOME, AWAY,
SLEEP,orWAK E.
SUse the Up (Y) and Down (B) buttons to change the time to temporar-
ily hold the desired temperature in 15 minute increments.
SWhen the correct time interval is displayed, touch DONE.
STo return to the scheduled program, touch HOLD UNTIL,andthen
select PER SCHEDULE.
Adjusting Heating
NOTE: If OFF is selected, the Heat, Cool, Auto and Fan Only will not be available.
When changing from the OFF mode to Heat, Cool, Auto, or Fan Only, it is normal
for the system to run the blower for a minute or two. During this time, the system is
using the True Sensetfeature to determine the filter usage. This feature is part of
the system design and cannot be turned off.
STo adjust the heating temperature, enter the Main Screen by touching
anywhere on the Control.
SWith the system in either AUTO or HEAT mode, use the Up (Y)and
Down (B) buttons to set the desired temperature.
SOn the left hand side of the screen, the comfort profile will switch to
manual, and the system will be placed in a temporary hold.
SUse the Up (Y) and Down (B) buttons to change the time to temporar-
ily hold the desired temperature in 15 minute increments.
SWhen the correct time interval is displayed, touch DONE.

8
STo return to the scheduled program, touch HOLD UNTIL,andthen
select PER SCHEDULE.
Adjusting Cooling
STo adjust the cooling temperature, enter the Main Screen by touching
anywhere on the Control.
SWith the system in either AUTO or COOL mode, use the Up (Y)and
Down (B) buttons to set the desired temperature.
SOn the left hand side of the screen, the comfort profile will switch to
manual, and the system will be placed in a temporary hold.
SUse the Up (Y) and Down (B) buttons to change the time to temporar-
ily hold the desired temperature in 15 minute increments.
SWhen the correct time interval is displayed, touch DONE.
STo return to the scheduled program, touch HOLD UNTIL,andthen
select PER SCHEDULE.
Adjust Temperature (Permanent Hold)
The Infinity System Control allows you to permanently override your programmed
schedule by adjusting the indoor temperature at any time to meet your needs.
Adjusting Comfort Activities (See Comfort Profiles on Pg. 13)
STo adjust the comfort activity, enter the Main Screen by touching any-
where on the Control.
STouch the activity under the Touch ’N’ Go®feature on the left side of
the screen; then select the desired activity of HOME, AWAY, SLEEP, or
WAK E.
STouch the HOLD UNTIL button, then touch HOLD.
STo return to the scheduled program touch HOLD, and then touch PER
SCHEDULE.

9
Adjusting Heating
STo adjust the heating temperature, enter the Main Screen by touching
anywhere on the Control.
SWith the system in either AUTO or HEAT mode, use the Up (Y)and
Down (B) buttons to set the desired temperature.
SOn the left hand side of the screen, the comfort profile will switch to
MANUAL.
STouch the HOLD UNTIL button, then touch HOLD.
STo return to the scheduled program, touch HOLD, and then touch PER
SCHEDULE.
Adjusting Cooling
STo adjust the cooling temperature, enter the Main Screen by touching
anywhere on the Control.
SWith the system in either AUTO or COOL mode, use the Up (Y)and
Down (B) buttons to set the desired temperature.
SOn the left hand side of the screen, the comfort profile will switch to
MANUAL.
STouch the HOLD UNTIL button, then touch HOLD.
STo return to the scheduled program, touch HOLD, and then touch PER
SCHEDULE.
NOTE: For Multi--Zone Applications (Temporary and Permanent Hold options)
SFor added convenience in a multi--zone application, the Touch ’N’ Go®
feature will also allow you select the desired activity of HOME or
AWAY for ALL ZONES.

10
A14238
SOnce you have selected the desired activity for ALL ZONES, you will
have the option to either permanently (HOLD) or temporarily (HOLD
UNTIL) override your programmed schedule.
A14239
dSelecting the HOLD option will permanently override your pro-
grammed schedule until you CANCEL ALL ZONES.
dSelecting the HOLD UNTIL option will allow you to temporarily
override your programmed schedule.
dOnce selected, use the Up (Y) and Down (B) buttons to change the
time in 15 minute increments.
dWhen the correct time interval is displayed, touch DONE.

11
Occupancy Override
The integrated motion sensor allows the system to make automatic set point and
activity changes, based on occupancy, to provide the optimum home comfort and
energy savings.
A170203
The Occupancy Sensing feature can be enabled or disabled under the “sensors”
icon on the main screen. See Occupancy Setup section on page 61.
When the Occupancy Sensing feature is enabled, the current scheduled activity is
HOME or WAKE, and timing is “per schedule,” the activity and set point(s) change
to AWAY automatically when the space is determined to be Unoccupied.
When Occupancy Sensing feature is enabled, the current scheduled activity is
AWAY, and timing is “per schedule, “ the activity and set point(s) change to HOME
automatically when the space is determined to be Occupied.
“All zones HOME“ or “All zones AWAY” activity, and any HOLD or HOLD
UNTIL setting will override Occupancy sensing activity changes.

12
FEATURES
Adjust Fan Speed
The Features function of Infinity System Control allows you to adjust the fan speed
during continuous fan operation.
STo adjust the fan speed, enter the Main Screen by touching anywhere on
the Control.
STouch FEATURES on the top left of the screen.
SA drop down menu will appear. Touch FAN selection.
SUse the Up (Y) and Down (B) buttons to set the fan to AUTO, LOW,
MEDIUM or HIGH, then touch SAVE. This will permanently change
the fan setting in the active Comfort Profile. If the current activity is
Manual, it will only change the current fan speed.
SFor zoned systems, the selected fan speed and Comfort Profile changes
will apply to the zone currently displayed in the Home and Main
screens. To adjust the fan speed in another zone, touch the zone name on
the Main screen, and select the desired zone.
View Current Humidity Level
The Features function of Infinity System Control allows you to view the current
humidity level within the conditioned space.
SEnter the Main Screen by touching anywhere on the Control.
STouch FEATURES on the top left of the screen.
SIn the drop down menu you will see your measured humidity levels
within the conditioned space.

13
MENU SCREEN
Your menu screen offers more features and Control for your Infinity System
Control. Touch the MENU button at the bottom right of the Main Screen. The most
convenient way to program your control is using the My Infinity mobile app. See
the WIRELESS section for more details on connecting your product to the Internet.
Comfort Profiles
You will need to set the comfort profiles before you attempt to program your new
Infinity System Control.

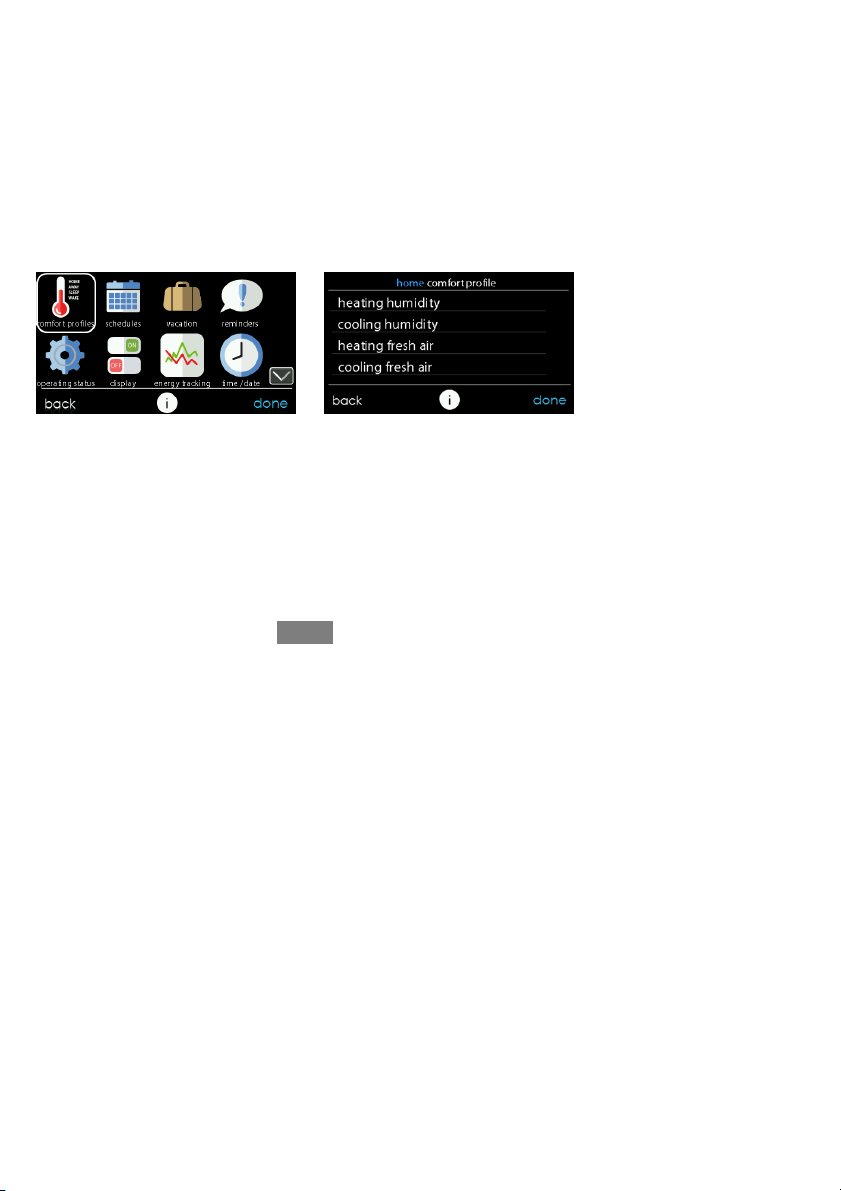

SThe COMFORT PROFILES button includes settings for Temperature
and Fan Profiles, Humidity and Fresh Air Profiles, as well as Window
Protection Setup.
A14240
SSet your desired heating and cooling temperatures and your fan setting
using the TEMPERATURE AND FAN PROFILES for each activity.
In zoned systems, the activity settings will apply to the selected zone
only.

14

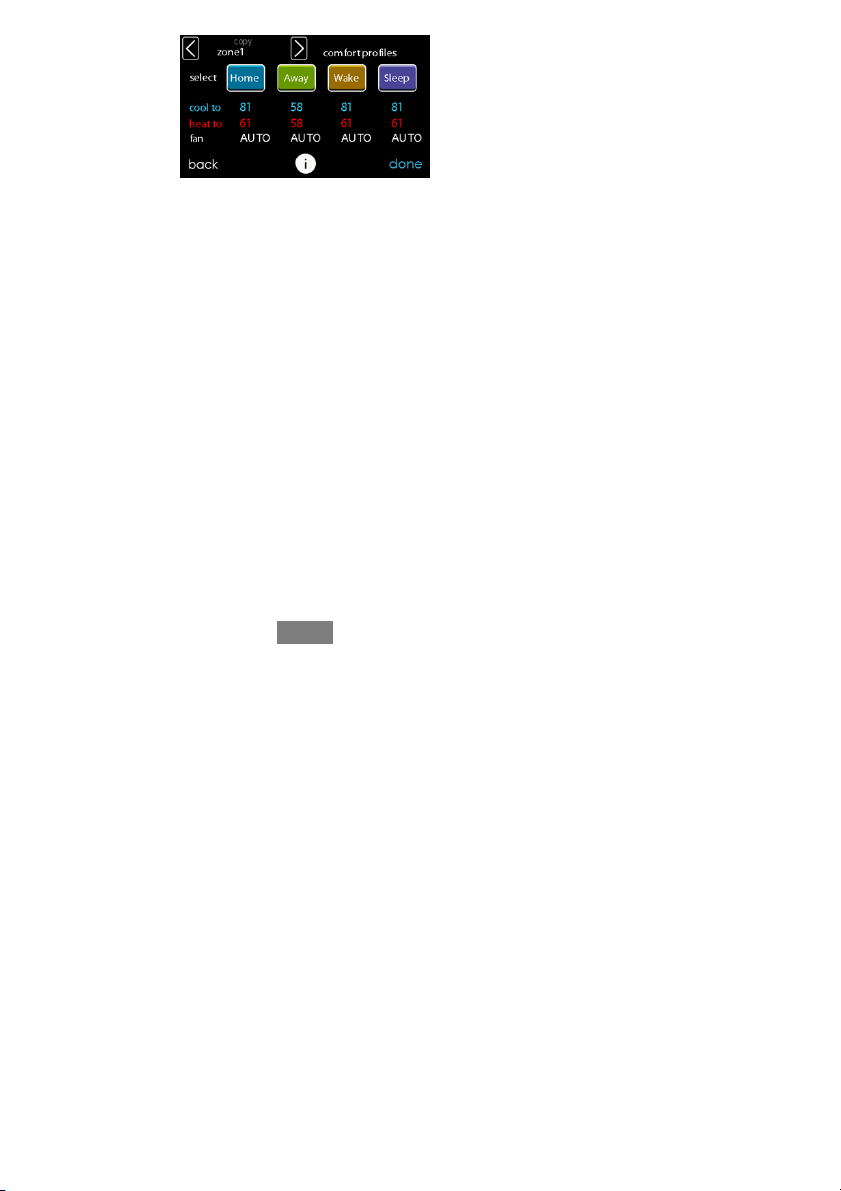

A14241
dFor example to change your HOME comfort profile, touch the
HOME icon.
dUse the Up (Y) and Down (B) buttons to change the fan settings,
heating and cooling temperatures. When you are done, press the
DONE button on the bottom right.
dDo the same thing to change the WAK E and SLEEP profiles.
dThe AWAY profile provides an extra feature called Advanced
Smart Setback. It allows the Infinity System to dynamically deter-
mine the away temperature automatically to save the most amount
of money, yet reach your comfort settings when you return home.
Advanced Smart Setback may Control the temperature somewhere
in between the Away temperature limits. This is normal and is
intended to prevent excessive energy use.
dUse the Up (Y) and Down (B) buttons to change the fan settings
and temperature settings. The temperature settings are the range in
which you choose to keep your home conditioned while you are
away. The Advanced Smart Setback function will maintain your
temperature within this range.
