Product information

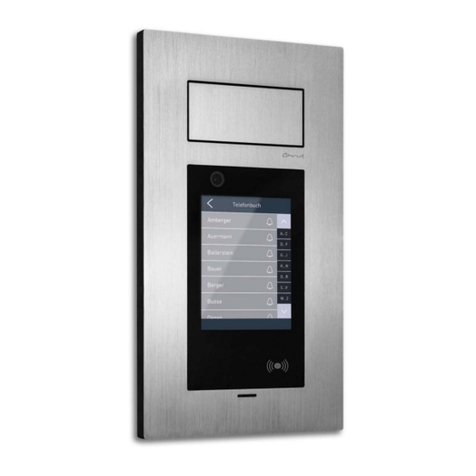

IP video front door station ARGOS
CAE3x02-IP-
015x
2nd generation

2

3
Table of contents
Introduction.................................................................................................................... 5
Notes on this product information.................................................................................................................................5
Used symbols and warning notices..............................................................................................................................5
Further used symbols...................................................................................................................................................6
Safety instructions......................................................................................................... 6
General safety regulations............................................................................................................................................6
Requirements to protect against lightning....................................................................................................................6
Note for video surveillance according to DIN 33450 ....................................................................................................6
Product description ....................................................................................................... 7
Intended use.................................................................................................................................................................7
Short description............................................................................................................ 7
Device overview............................................................................................................. 9
Technical data.............................................................................................................................................................10
Mounting and installation ............................................................................................ 10
Installation...................................................................................................................................................................10
Installation site..............................................................................................................................................................................10
Flush-mount..................................................................................................................................................................................11
Connecting the lines .....................................................................................................................................................................12
Put on the front plate ....................................................................................................................................................................13
Remove the front plate..................................................................................................................................................................13
Start screen.................................................................................................................................................................14
Configuration via OSD menu........................................................................................ 15
Overview configuration menu.....................................................................................................................................15
Camera.......................................................................................................................................................................16
Audio...........................................................................................................................................................................16
Volume..........................................................................................................................................................................................16
Microphone...................................................................................................................................................................................17
Display........................................................................................................................................................................18
Automatic control..........................................................................................................................................................................18
Manual control..............................................................................................................................................................................18
Network.......................................................................................................................................................................19
IP address.....................................................................................................................................................................................19
Manual allocation of the IP address..............................................................................................................................................19
Intercom function for visitor communication ............................................................. 20
Trigger a call.................................................................................................................................................................................20
Cancel a call .................................................................................................................................................................................20
Accept a call .................................................................................................................................................................................20
End a call......................................................................................................................................................................................20
Control during a voice connection.................................................................................................................................................21
Set up the access control............................................................................................ 22
Enrolment....................................................................................................................................................................22
Use the access control................................................................................................ 23
Access via RFID card.................................................................................................................................................23
Overview error messages RFID card............................................................................................................................................24
Access with access code............................................................................................................................................24
Overview error messages access code........................................................................................................................................25
Set up video surveillance ............................................................................................ 25
Extended configuration via web interface.................................................................. 26
Home screen...............................................................................................................................................................26

4
Persons.......................................................................................................................................................................26
Set up access control with RFID UID............................................................................................................................................27
Set up access control with PIN code ............................................................................................................................................27
Access control with RFID UID and PIN code................................................................................................................................28
Groups........................................................................................................................................................................28
Login/Logout...............................................................................................................................................................29
Admin password...........................................................................................................................................................................29
Special cards ................................................................................................................................................................................29
System status .............................................................................................................................................................30
Menu modifications.....................................................................................................................................................30
Individual lettering.........................................................................................................................................................................30
Indication of the group page .........................................................................................................................................................31
Phone book mode.........................................................................................................................................................................31
Make a call....................................................................................................................................................................................31
Basic settings..............................................................................................................................................................31
Network settings .........................................................................................................................................................31
SIP configuration ........................................................................................................................................................32
Audio/Video.................................................................................................................................................................33
Configuration of pan, tilt and zoom ...............................................................................................................................................33
Interface configuration................................................................................................................................................34
Upload/Download .......................................................................................................................................................35
Cleaning........................................................................................................................ 35
Conformity.................................................................................................................... 35
Information on disposal ............................................................................................... 36
Warranty....................................................................................................................... 36
Service.......................................................................................................................... 36

5
Scope of delivery
1 x IP video front door station ARGOS
1 x flush-mount box
1 x installation kit with screws, dowels and sealing
1 x allen key with SW 2.0
3 x RFID cards: 1 x green, 1 x red and 1 x grey
1 x assembly instruction
1 x product information
Article overview IP video front door station ARGOS 2nd generation
CAE3002-IP-0150 345x192x8 (HxWxD mm), colour: silver (anodised)
CAE3002-IP-0151 345x192x8 (HxWxD mm), colour: bronze (anodised)
CAE3002-IP-0156 345x192x8 (HxWxD mm), colour: black (anodised)
CAE3102-IP-0150 365x192x8 (HxWxD mm), colour: silver (anodised)
CAE3102-IP-0151 365x192x8 (HxWxD mm), colour: bronze (anodised)
CAE3102-IP-0156 365x192x8 (HxWxD mm), colour: black (anodised)
CAE3202-IP-0151 345x150x8 (HxWxD mm), colour: bronze (anodised)
Introduction
Notes on this product information
This product information refers exclusively to qualified electricians.
The product information contains important notes on intended use, installation and initial operation.
Please keep the product information at a suitable place, where it is easily accessible
for maintenance and repair.
All product information are available in the download area under www.carus-concepts.com.
Used symbols and warning notices
Symbol
signal word
Explanation
DANGER! The signal word describes an endangering with a high level of risk. Failure to ob-
serve this warning will result in death or very serious injury.
WARNING! The signal word describes an endangering with a medium level of risk. Failure to
observe this warning could result in death or very serious injury.
CAUTION! The signal word describes an endangering with a low level of risk. Failure to observe
this warning could result in a minor or moderate injury.
CAUTION!
The signal word indicates, that damages on equipment, environment and property
can occur.

6
Further used symbols
important note or important information
►
Step
cross reference: For further information on this topic, see source
•
list, list entry 1 level
‐
list, list entry 2 level
a)
Explanation
Safety instructions
General safety regulations
Assembly, installation, commissioning and repair of electronic devices must be carried out by
qualified electricians.
Observe the latest regulations and standards for system installations.
WARNING! Danger to life due to electric shock
When working on main power connections of 230 V,
the safety regulations according to DIN VDE 0100 must be observed.
When installing TCS:BUS systems the general safety regulations for telecommunication sys-
tems according to VDE 0800 must be observed. Inter alia:
•separated cable routing of high and low voltage lines
•minimum distance of 10 cm in case of a common cable routing
•use of separators between high and low voltage lines within shared cable ducts
•use of standard telecommunication lines, e.g. J-Y (St) Y with 0.8 mm diameter,
•already existing lines (modernisation) with deviating cross-sections can be used in compli-
ance with the loop resistance
Observe the general requirements for network installations according to DIN EN 50173.
Requirements to protect against lightning
CAUTION! Device damage due to over-voltage
By suitable lightning protection measures it has to be ensured that the electric voltage of 32 V
DC at each connection is not to be exceeded.
Note for video surveillance according to DIN 33450
Creating and saving video recordings can infringe personal rights.
Always observe the current legislation and labelling requirements
during assembly and operation of video components.

7
Product description
Intended use
The IP video front door station ARGOS is a terminal for access control that combines access control and
video door communication. Video door communication can be implemented in a network directly via SIP
phones.
The IP video front door station ARGOS is suitable for flush-mount in the outdoor area.
For applications, which differ from the intended use or go beyond, the manufacturer accepts
no liability.
Short description
RFID
•integrated RFID reader
•MIFARE®
•optionally adaptable for LEGIC® and iCLASS®
•identification storage for up to 1000 persons
•integrated code lock
•identification via RFID and code can be queried combined
VIDEO
•integrated camera with 1.3 mega pixel CMOS colour sensor
•wide angle objective with 130 degree opening angle
•electronic PTZ control
•video compression H.264, MJPEG, JPEG
•video resolution VGA and CIF
•frame rate with up to 25 images per second
•6 infrared LED for night lighting
AUDIO
•integrated microphone and loudspeaker
•full duplex high power echo suppression
•frequency range 200 - 16,000 Hz
•audio coding G.711 (A/µ-Law), G.711, G.729
Operation / configuration
•capacitive colour touch screen with 5.7'' LCD (640 x 480 pixel)
•brightness controlled by ambient light
•configuration via LCD menu and web interface
•customisable start screen
•integrated data base, up to 1000 call destinations can be stored
Access control
•via RFID and/or PIN
•optional time recording of employees (administration via software FaceAdmin, not included)
Event dealer
•assigning events to actions
•maximum 50 links can be configured

8
•Events: – access control (RFID and/or PIN)
– tamper contact (contact, acceleration)
– SIP (INFO/DTMF, INVITE, BYE)
– trigger inputs
– RFID
– PIN
– TIMER
•Actions: – video (PTZ, snapshot)
– relay
– SIP (INVITE, BYE, TALK)
– IP (HTTP GET, UDP Broadcast)
– LCD (Switch screen, Display ON/OFF)
Example 1:
An access event switches a relay. A video snapshot is taken and the screen displays Access
granted.
Example 2:
A relay is switched on in case of a SIP-DTMF signal and switched off after the timer period
has elapsed.
The configuration of the event dealer is only approved for trained system integrators.
Interfaces
•Ethernet, 10/100BaseT at RJ45 socket
•2 x trigger input (door release button, feedback contact)
•1 x relay changer (door release, light)
•Wiegand or RS485 or UART Rx/Tx
•2-wire interface on spring-loaded terminal (with optional 2-wire kit)
•integrated register server for peer-to-peer operation
Protocols
•SIP RFC 3261, compatible to SIP (video) phones, softphones and Apps
•TCP/UDP/IP, RTP, http, DNS, NTP, DHCP (Client)
Ambient conditions
•temperature range: -20 °C to +60 °C
•humidity up to 95%, non-condensing
•ambient brightness up to 50,000 lx
Power supply
•Power over Ethernet (PoE) 802.3af and 802.3at
•alternative power supply 6-48 V DC 10 W (via 2-wire interface)
Housing
•housing made of solid aluminium
•structured surface refined by hand
•for installation in a flush-mount box
•colour: silver, bronze or black anodised
•tamper contact and acceleration sensor against vandalism

9
Device overview
1
housing made of aluminium
6
locking screw
2
loudspeaker
7
RFID reader
3
wall-mount case for surface- and flush-mount
8
microphone
4
pressure compensation element
9
display with touch screen
5
cable gland
10
camera

10
Technical data
supply voltage
•PoE IEEE 802.3af and 802.3at
•
alternative power supply: 12-55 V DC 10 W (via 2-wire interface)
power consumption, in standby
position
P = 6.6 W
maximum power consumption
P
max
= 9,6 W
housing
aluminium
degree of protection
IP65
dimensions (H x W x D in mm)
CAE3002-IP-015x:
housing dimensions: 345x192x8 (52 mm incl. flush-mount box)
mounting dimensions: 350x192x8 (52 mm incl. flush-mount box)
CAE3102-IP-015x:
housing dimensions: 365x192x8 (52 mm incl. flush-mount box)
mounting dimensions: 370x192x8 (52 mm incl. flush-mount box)
CAE3202-IP-0151:
housing dimensions: 345x150x8 (52 mm incl. flush-mount box)
mounting dimensions: 350x150x8 (52 mm incl. flush-mount box)
weight
CAE3002-IP-015x: 3 kg
CAE3102-IP-015x: 3 kg
CAE3202-IP-0151: 2.9 kg
(incl. installation box)
acceptable ambient temperature
-20 °C ... +60 °C
degree of protection
IP65
Mounting and installation
Installation
Use the enclosed installation kit for installing the flush-mount box.
Installation site
For an optimal operation we recommend a mounting height of
1.57 m (centre of the device above ground,
Fig. 1).
To achieve an optimal vi
deo image quality do not point the
camera to:
• solar ra
diation
• strong sources of light
• bright or strongly reflecting walls
Ensure that the ARGOS CAE3x02-IP-0156 (black
anodised) is not exposed to direct solar radiation. The
housing can heat up too much.
Fig.
1: Mounting height

11
Flush-mount
►
Make a wall cut out for the flush-mount box.
Use the flush-mount box as template for the wall cut
out.
•Do not wall in or foam in the pressure compensa-
tion element.
•Observe that there is a gap between the masonry
and the pressure compensation element.
►
Mark the drilling holes with the help of the flush-mount box
(Fig. 2). For fixing the flush-mount box you can use the out-
er holes (1) or the inner holes, depending on the type of in-
stallation (2).
•Ensure a vertical installation and the installation
position (3).
•For the alignment use the integrated level.
•The alignment of the device cannot be corrected
later.
►
Put the enclosed dowels into the holes.
Use the enclosed
sealing plugs (Fig. 3). There are no warranty claims
due to improper installation.
►
Insert the sealing plug (4) into the flush-mount box.
►
Close the cable gland that is not used with the enclosed
sealing plugs (5).
►
Guide the connection cable through the cable glan
d and the
sealing plug.
►
Fix the flush-mount box with 4 screws (6) to the wall (Fig.
4).
•For marking the inner holes you can puncture the
sealing plugs with a small screwdriver.
•The screws need to be screwed through the seal-
ing plugs. Thus, the device is sealed.
Fig.
2: attachment holes
Fig.
3: sealing plug
Fig. 4: Fixing the flush-mount box

12
Connecting the lines
For connecting external devices the
ARGOS front door station
offers different interfaces. (
Fig. 5).
Pos.
designation
1
ethernet connection (PoE power supply)
Wiegand:
2
GND
3
Dat1
4
Dat0
relays:
5
o.F.
6
COM
7
NO
2 WIRE:
8
+
9
-
10
2x trigger input
For the installation you can remove the screw termi-
nals from the circuit board and pin them back on later.
►Connect the lines according to the labelling.
Fig.
5: Ports
The inputs have to be connected to ground for trigger function.
Fig. 6: overview connection terminals

13
Put on the front plate
►
Hang the clips (1) of the front plate (2) onto the guidance
points (3) of the flush-mount box (4).
►
Push the front plate downwards.
►
Secure the front plate with the locking screws (5).
Fig. 7: Put on the front plate
Remove the front plate
►
Screw out the locking screws (5).
►
Push the front plate upwards.
►
Remove the front plate.
►
Remove the lines.
CAUTION!
Damage of the front plate
•Due to improper handling the front plate can get damaged.
•Place the front plate on a clean and dry surface.

14
Initial operation
WARNING!
Danger to life due to electric shock
Observe the safety regulations according to DIN VDE 0100, when working on main power con-
nections of 230 V.
►Install the devices of the system voltage-free and completely.
►Switch on the mains voltage.
•The device is not equipped with a separate ON/OFF switch.
•After the mains power is connected, the device starts and displays the start screen.
Start screen
Fig. 8: variant 1: groups Fig. 9: variant 2: phone list
►Swipe with your finger upwards to display further groups/persons.
Alternatively you can skip to the contact with the selected initial letter by tapping the initial letter.
►Tap with your finger on a group to display the members of the group.
►Tap the required person. The person is called.
Menu access with PIN code:
►Swipe with your finger to the right to call up menu access via PIN.

15
Configuration via OSD menu
You need the red RFID card for the configuration via OSD
menu (
Fig. 10).
►
Hold the red RFID card in front of the RFID reader. The
configuration menu is displayed (Fig. 11).
•If there is no input within 30 sec, the configuration
mode is left automatically.
Fig. 10: Red RFID card
Overview configuration menu
In the configuration menu you can select the following menus:
•
camera
•
audio
•
display
•
Network
•
tamper protection (no settings possible).
Fig. 11: Configuration menu

16
Camera
•In the menu Camera the Live image (1) of the camera
is displayed (Fig. 12).
•
In the menu Camera you can adjust and store 3 different
detecting areas (wide angle) of the camera.
►
Select the menu Camera from the
configuration menu.
►
Tap on a camera button (3).
►
Slide the zoom controller (2) to the right to zoom into the
video image resp. to the left to zoom out of the video image.
►
Tap on the camera button (3) until an acknowledgement
tone sounds. The coverage is stored.
►
Tap on the Back button to get to the configuration menu.
•In factory setting, the device is set at maximum
wide angle.
•Select the image section in a way,
that you have a clear view on the person in front of
the door.
Fig.
12: camera
Audio
Volume
The volume of the voice and tone output
can be adapted to the local conditions (
Fig. 13).
►
Select the menu Audio from the configuration menu.
►
Slide the volume control of the Voice (1) resp. of the Tones
(2) to the right to increase the volume resp. to the left to re-
duce the volume.
To check the volume, a voice record is played.
►
Tap on the Back button to get to the configuration menu.
Fig. 13: Audio settings

17
Microphone
The microphone sensitivity offers 2 adjustment options:
‐digital control (automatic control)
‐analogue pre-amplification (Fig. 14).
We recommend to switch on the automatic adapta-
tion, if the local acoustic conditions vary greatly.
►
Select the menu Audio from the configuration menu.
►
Slide the slide switch automatic control to ON (3).
The sensitivity of the microphone can be adjusted
independently from the fact, if an automatic control
was selected or not.
►
Slide the microphone control to the right to increase the
microphone sensitivity resp. to the left to reduce it (4).
In factory setting an average value is set.
►
Tap on the Back button to get to the configuration menu.
Fig.
14: Microphone settings

18
Display
Automatic control
•
The bright of the display adapts automatically to the ambi-
ent bright.
•
The measured bright is displayed under the slide (1) switch
(Fig. 15).
►
Select the menu Display from the configuration menu.
►
Slide the slide switch to the position Automatic (1). The
bright of the display is adapted automatically to the ambient
bright.
•In factory setting the slide switch is in position Au-
tomatic.
•The display is dimmed over night to minimise the
power consumption.
Manual control
►
Slide the slide switch to the position Manually (1).
►
Slide the bright control (2) to the right to increase the bright
resp.to the left to reduce it.
►Tap on the Back button to get to the configuration menu.
Fig.
15: Display settings

19
Network
►Select the menu IP address from the configuration menu.
IP address
►
Slide the slide switch (1) to position DHCP ON. The IP ad-
dress is allocated to the device automatically.
•The IP address can change in the mode DHCP ON
during operation.
•The address fields for the direct input of the IP ad-
dress are deactivated.
Manual allocation of the IP address
►
Slide the slide switch (1) to position DHCP OFF.
►
Tap on a number group of the IP address (2). A keyboard
with 10 keys is displayed (Fig. 17).
►
Put in the IP address.
►
Press the C button to correct your input.
►
Confirm your input with OK. The keyboard is faded out.
►
Tap on the Back button to get to the configuration menu.
►
Tap the Scroll-Forward-Button (5), to change the address o
f
the Subnet, the Gateway, the DNS server 1 and DNS serv-
er 2 (Fig. 18).
Fig.
16: IP address
Fig.
17: 10-key keyboard
Fig. 18: Changing addresses

20
Intercom function for visitor communication
The Intercom function can be used to communicate with visitors, further for employees who, e.g. have
forgotten their identification card. Due to the Voice over IP protocol SIP, the device is compatible to
modern (video) telephony infrastructure. Thus, no additional end device is needed on the company side.
The call can be forwarded to every Voice over IP end device that is accessible per network and SIP. The
Intercom function is operated by selecting a contact person from the telephone list.
Further information on Setting up a phone book, you'll find in the chapter User (page 32).
Trigger a call
If only one user is stored in the telephone book, the
user can be called directly by tapping the phone book.
►
Run your finger vertically over the telephone list and select
your required contact.
•
Alternatively you can skip to the contact with the selected
initial letter by tapping the initial letter.
►
Tap with the finger on the required initial letter.
►
Tap the required entry. The required contact is called.
Cancel a call
►
Tap the red handset. The call setup is cancelled resp. an
established connection is terminated. The text Call was
cancelled is displayed.
Accept a c
all
•
If the call is accepted from the other part, the text connect-
ed with: Maxi Mustermann.
End a call
►
Tap the red handset. The text Connection interrupted is
displayed.
If an active call is not accepted within 10 sec from the
call destination, no connection
is established.
Fig.
19: Make a call
