CAS DL-60 User manual

9002-DL1-0033-0
2005. 9
NEWDOLBO
Simple Weighing Scale
OWNER’S MANUAL
DL Series

CONTENTS
PRECAUTIONS 4
PREFACE 6
NAMES AND FUNCTIONS 6
INSTALLATIONS 8
OPERATIONS 9
1. General Weighing 9
2. Weighing with Tare 10
3. Changing Unit of Weight 10
4. HOLD Function 11
5. Comparator Function 11
6. Counting Function 13
7. AUTO Power Off Function 15
BATTERY MAINTENANCE 16
ERROR MESSAGE 16
SPECIFICATIONS 17

45
Keep the scale away from strong EMI noises may cause incorrect weight
readings.
Do not subject the scale to sudden
temperature changes.
PRECAUTIONS
Place the scale on a flat and stable
surface.
If the scale is not properly
level, please adjust the 4 legs
at the bottom of the scale
(turn legs clockwise or
counterclockwise) so as to
center the bubble of the
leveling gauge inside the
indicated circle.
Do not subject the platter to sudden
shocks. This scale must be installed in a dry
and liquid free environment.
Make sure that you plug your scale into the proper power outlet.
Plug into a power outlet 30 minutes before operations.
Leveling gauge

7
6
PREFACE
NAMES AND FUNCTIONS
Thank you for purchasing our CAS DL series.
These series have been designed with CAS reliability, under rigid quality control
and with outstanding performance. Your specialty departments can enjoy these
high quality reliable CAS products.
We believe that your needs will be satisfied and you will have reliability.
This manual will help you with proper operation and care of the DL series.
Please keep this handy for future reference.

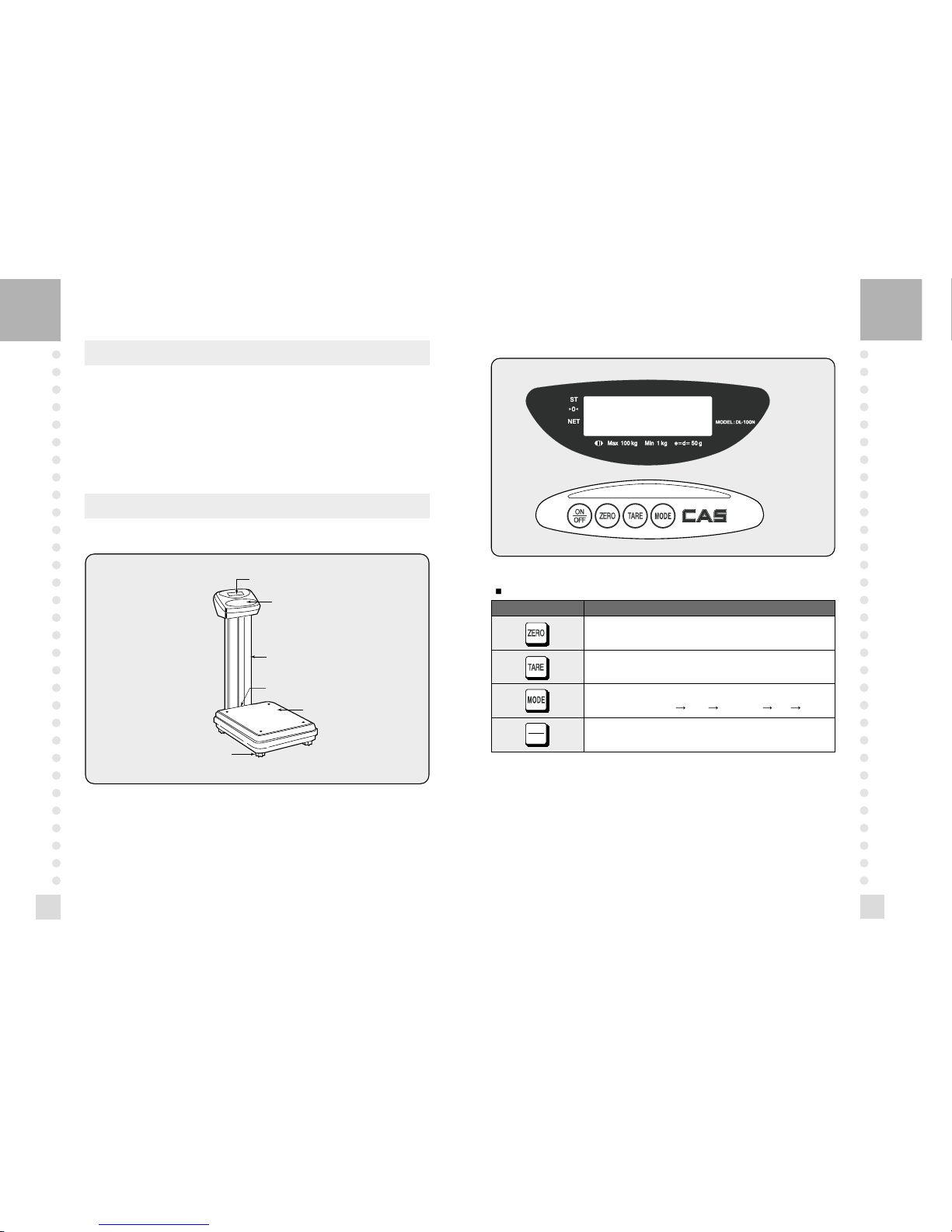

OVERALL VIEW
DISPLAY AND KEYBOARD
PLATTER
LEVELING GAUGE
DISPLAY
KEYBOARD
ADJUSTING BOLT
KEY FUNCTIONS
ON
OFF
Used to set the zero point.
Used to input or cancel the weight of tare.
Used to change the unit of weight, and shown as following sequence
on the display. [WEIGHT] [HOLD] [WL on or off] [PCS] [WEIGHT]
Used to turn on and off the scale.
FUNCTIONSKEYS
POLE

9
Turn on the display by pressing the ON/OFF key. Then the display will show
all the segments and count up "0" to "9". You may stop this automatic counting
by pressing the ZERO key.
When you turn on the display, make sure that platter is empty.
Otherwise, display will show "Err", an error of initial zero range. Please refer
"ERROR MESSAGE" section for more information on page 16.
When the weight becomes stable the display shows the stable sign(0) on.
You may need to make it "0.00" by pressing the ZERO key unless the display
indicate "0.00" under the empty platter.
OPERATIONS
1. General Weighing
8
INSTALLATIONS
1. Insert and fasten the bracket support assembly screws.
2. Connect the load cell wire and power line to head.
3. Insert the support cover into the support.
4. Insert and fasten the screws.
Place a commodity on
the platter. Remove the commodity from the platter.
kg
kg

11
10
kg kg
2. Weighing with Tare
TARE means the weight of container being used for a commodity.
TARE key function is to subtract the weight of the container from full weight
loaded.
4. HOLD Function
When the weight is not stable, press the MODE key.
The display shows the “HOLd” and then press ZERO key.
The display will show average weight.
Place a container on the
platter. Press the TARE key.
Remove container and
commodity, then the display
will show the weight of the
container with "-" symbol.
Press the TARE key, then
display will show the
"0.00".
Place a commodity into the
container, then the display
will show only the weight of
the commodity.
kg kg
kg
kg
kg
When the weight is unstable,
pres the MODE key.
The display shows the "HOLd".
Press ZERO key. Then "HOLd"
display blink for two times.
Then the display will show
the averageweight.
The average weight
blink for two times.
*NOTE : Stable indication(0) will not display in HOLD mode.
kg
Remove the commodity from
the platter.
3. Changing Unit of Weight (kg, lb, oz)
Press the MODE key first. Holding it, press the TARE key in the simple
weighing mode. The display shows the "UnIt" shortly and then you may select
kg, lb, or oz as the unit of weight.
Press ZERO key once to set
up the low limit. The display
shows "0.00" and the first
number flashes.
Press the MODE key until
the display shows "WL
OFF". "WL OFF" means
that comparator function
is not activated.
Press TARE key to activate
this function. The display
shows "WL ON".
5. Comparator Function - HI / LOW Limit Setting

13
12
Press the MODE key to have
number increase. To move
flash to next digit, press
the TARE key.
Press ZERO key to set up HIGH
limit. The display shows
"0.00" and you can change
these numbers by pressing
MODE key. If you want to move
to next digit you can go by
pressing TARE key.
If you set up HIGH limit you
can go out by pressing ZERO
key, and you can see "ENd"
message shortly and "WL
on" message on the display.
If you set up HIGH limit and LOW limit incorrectly, "Err" will be shown on the display.
Then you may need to set it up again. For example, LOW LIMIT=39.90 kg and HIGH
LIMIT=49.90 kg this is incorrect setting because HIGH limit is lower than the LOW limit.
When HIGH and LOW limit are set as the same or above maximum capacity it still shows
"Err" message.
If you want to go back to the
simple weighing mode just
press MODE key twice.
Suppose that the HIGH limit and
LOW limit are set up as 49.90kg
and 39.90kg respectively. If the
weight loaded is 2kg between
HIGH and LOW limit the display
shows "OK" and the scale
continues to beep slowly.
If the weight loaded is above
49.90kg, HIGH limit, the scale
continues to beep rapidly.
6. Counting Function
Counting without Tare
Initial display as above. Press MODE key three times
to go to sample unit
selection mode.
Press ZERO key to select the
number of sample unit. You
can select 10, 20, 30, 40,
50,60, 70, 80, 90, 100, 200,
300,400, or 500 as a sample
unit.
If you select "P_10" as a
sample unit, then please
put 10 sample units on the
scale. Then press TARE key
to set sample units.
Put all of commodities you
wish to count, and then
check the number of pieces
on display.
Remove all of commodities
from the scale.

15
14

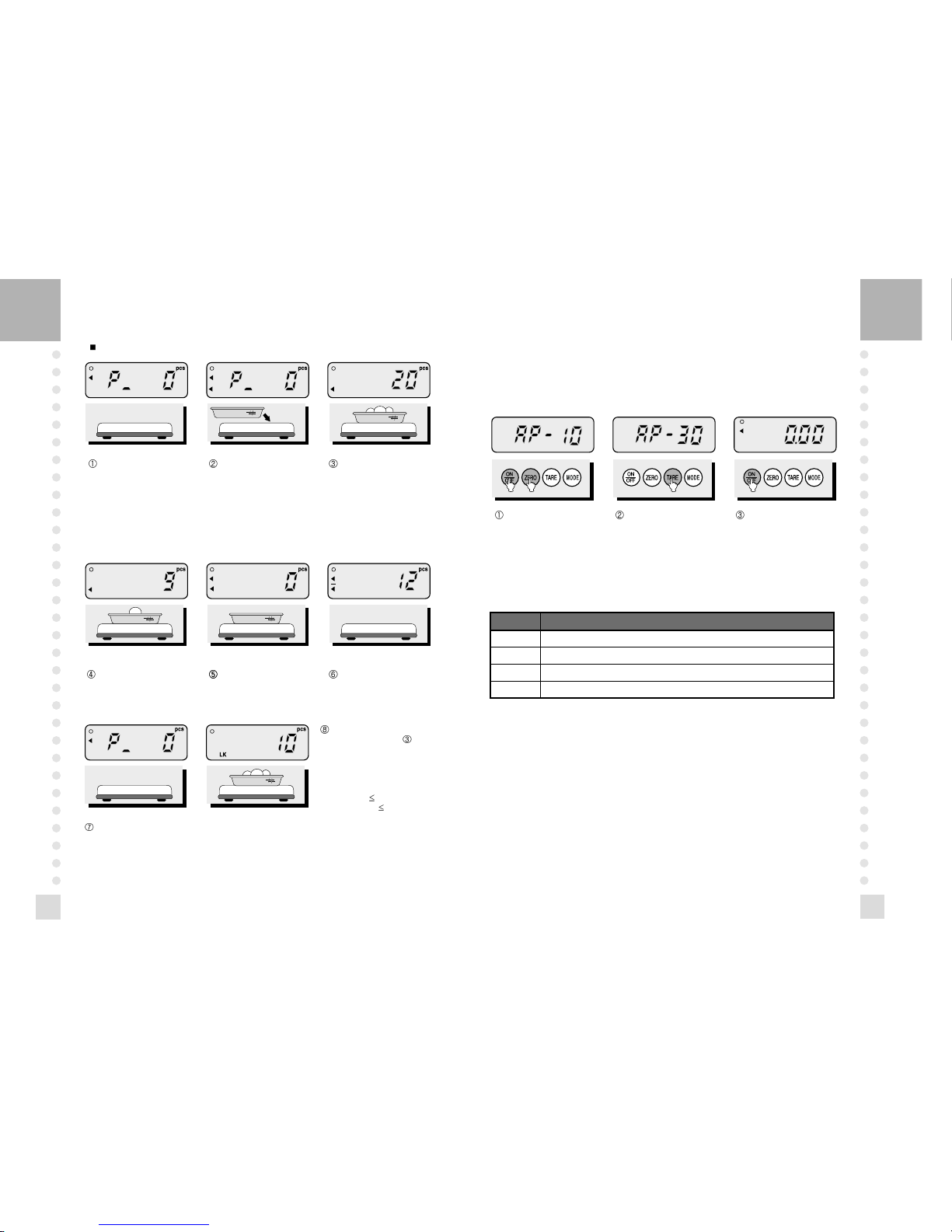

7. Auto Power Off Function
Auto-Power off function is to automatically power off as time is set. This
function is helpful to save battery, which is not in use. The following is the
setting procedure of Auto-power off.
When the scale is turned off
press ON/OFF key, holding
ZERO key. Then you will see
the "AP-10".(If you have set
this before,display will show
previous value.)
Press the TARE key until the
display shows the "AP-x0"
that you wish to take.
(Refer to TABLE 1.)
Press the ON/OFF key, and
then the scale saves what you
programmed and shows all
the segments, counting up
"0" to "9".
DISPLAY FUNCTION
AP-00 This function does not automatically power off.
AP-10 This function does automatically power off when the scale is not in use for 10 minutes.
AP-20 This function does automatically power off when the scale is not in use for 20 minutes.
AP-30 This function does automatically power off when the scale is not in use for 30 minutes.
TABLE 1.
ON
OFF
kg
Put all of commodities you
wish to count, and then
count the number on display.
Remove all of commodities
from the scale.
Remove all of commodities
from the scale. Remove the tare from the platter.
Counting with Tare
Press MODE key twice to go to
sample unit selection mode.
"PCS" is shown on the display,
then press ZERO key to select
the number of sample unit.
Put the container on the
scale and press TARE key to
set weight of tare.You can
select 10, 20, 30, 40, 50,
60, 70, 80, 90, 100,200,
300,400, or 500 as a sample
unit, by pressing ZERO key.
If the number of selected
sample unit is 20, please
put 20 sample units on the
scale.Then press TARE key
to set unit weight.
When you try to set the number
of sample unit at the stage the
display may show "LACK"
message shortly.
The result of counting may be
incorrect in the following cases.
a.unit weight 1/2 e *
b. weight loaded 2% of maximum
weighing capacity.
Press "Zero" key and then press
"Tare" key to exit from
tare function.
*"e" value may be various on capacity of product model.
Please refer to "SPECIFICATION" on page 18. For example, a product model
which capacity is 60.00kg has 0.02kg as "e" value

17
16

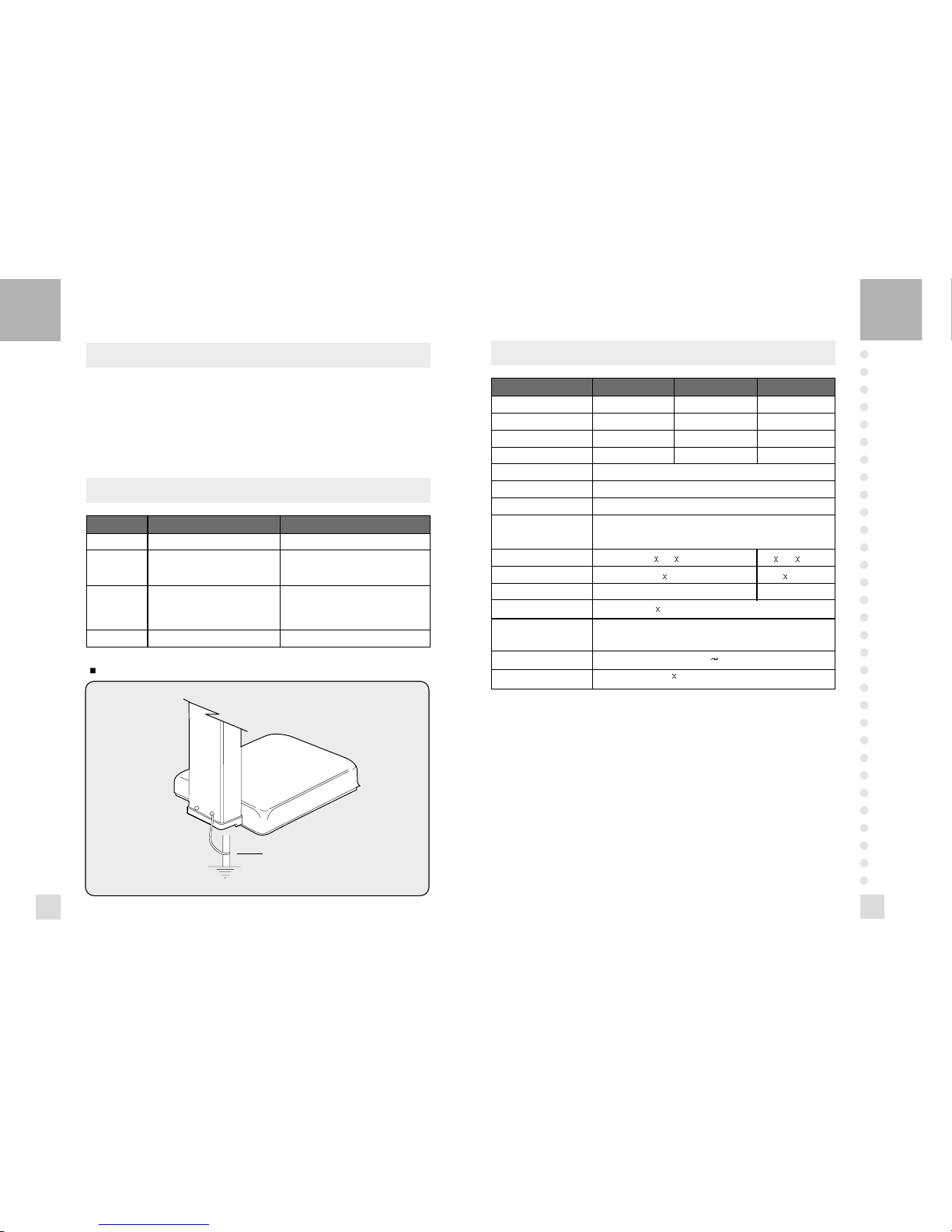

ERROR MESSAGE
An error of the initial zero range
Problems on Analog Module
Overload on the platter
Unstable conditions of scale
Set the platter empty.
Try to turn OFF and ON the scale.
Call your CAS dealer if still problems.
Remove it from the platter
Do not put somthing exceeding maximum
capacity on the platter
Make the scale stable conditions
ERROR REASONS SOLUTIONS
Err
Init
OFL
UNStA
BATTERY MAINTENANCE
LOW BATTERY WARNING
When the battery is low the display shows the "BAT" sign.
You can replace the battery new one.
If you still use the scale without replacing the battery the scale may provide
incorrect result on measurement.
How to connect the ground wire.
Connect ground wire to external ground
*Connect ground wire with washer hex bolt
from pole connection.
*NOTE : Specifications are subject to change for improvement without notice
DL-60 DL-100 DL-150
60.00kg 100.00kg 150.00kg
20g 50g 50g
1/30,000 1/20,000 1/30,000
1/3,000 1/2,000 1/3,000
5 digit LCD
STABLE, ZERO, kg, lb, oz, BAT
ZERO, TARE, MODE, ON/OFF
General Weighing, Hold Function
Counting Function, Comparator Function
365 620 730mm 420 655 710mm
355 465mm 395 520mm
18kg 15kg
1.5V 6 (option C size battery) or 9V adapter
about 5.8V
-10°C 40°C
1.5V 6 (C size battery is optional)
SPECIFICATIONS
MODEL
CAPACITY
MIN. DIVISION
INTERNAL RESOLUTION
EXTERNAL RESOLUTION
DISPLAY
SYMBOLS
KEYS
FUNCTIONS
DIMENSIONS
PLATTER SIZE
WEIGHT
POWER
MINIMUM VOLTAGE
OF THE BATTERY
TEMPERATURE
OPTION

19
18
