CAS CBL Series User manual

2

3
CONTENTS
PRECAUTIONS.................................................. 4
COMPONENTSANDTHEIR NAMES..... 6
INSTALLATION.................................................. 8
WARM-UP ............................................................10
MESURINGPROCEDURE...........................11
MENU SELECTION........................................12
1. Menu selection when “ ” is selected 14
2. Menu selection when “ ” is selected ..... 16
SENSITIVITYCALIBRATION...................17
1. Setting the value of sensitivity calibration weight......... 17
2. Sensitivity Calibration.............................................. 19
REGISTRATION,CANCEL,ANDCHANGEOFUNIT 20
% SETTING.........................................................21
PCS (No. of pieces) SETTING........................22
PERFORMANCE CHECKS........................23
MAINTENANCE...............................................24
TROUBLESHOOTING..................................25
SPECIFICATIONS............................................ 26
PARTS LIST.........................................................27
PERIPHERALDEVICES.............................. 28
1. The EP-60A Electronic Printer.................................. 28
2. The IFB-102A RS-232C Interface............................. 29
3. Input/output Format................................................. 31
4. Command Code ..................................................... 32

4

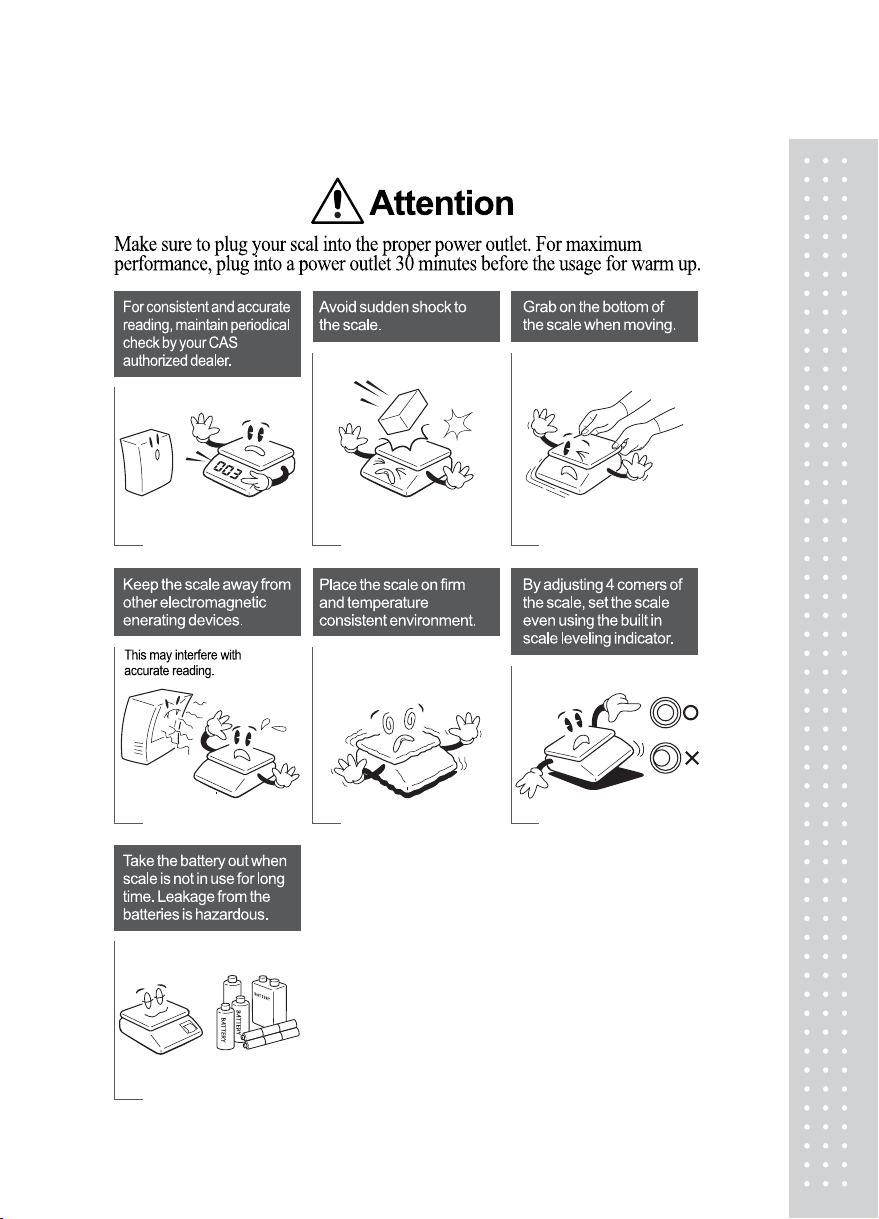

PRECAUTIONS

5

6
COMPONENTS AND THEIR NAMES
Components
- Included with every balance are one of the following items.
● Balance body ● AC adapter(Option) ● Protection cover ● Pan
● Pan supporter ●Instruction manual ● Inspection certificate
● Breeze guard (Only type CBL120H, CBL 220HandCBL320H).
① Balance body ② Pan ③ Pan supporter ④ Pan shaft ⑤ Level gauge
⑥ Power jack ⑦ Level screws (3 places) ⑧ Protection cover
⑨ AC adapter (option) ⑩ Data I/O connector
⑪ Breeze guard (Only CBL120H, CBL220H and CBL320H)
⑫ Breeze guard cover(Only CBL120H, CBL220H and CBL320H)

7
Display and keypad
Display
Sensitivity calibration mark
Stability mark Communication mark
Analog indicator Auto print mark Standby mark Unit mark
Keypad
KEY FUNCTION
POWER/BAK Selects Operation / Warm-up.
Cancels calibration or menu.
CAL/MENU Performs calibration.
Selects a menu.
TARE Clears the displayto zero.
Sets a menu.
UNIT Selects a unit. Sets % or No. ofpieces.
Sets a value ofsensitivity calibration weight.
PRINT Outputs the displayed value to a printer or ortherextemal equipment.
Sets a value ofsensitivity calibration weight.
]

8
INSTALLATION
Check power voltage
▶ Use only the AC adapter that supplys the output of 12VDC or theAC adapter provided by the
distributor who is authorized by CAS Corporation.
▶ Check the power supply voltage.
▶ Check that the supplied power voltage satisfies the displayed value on the AC adaptor.
▶ In order to prevent electric shock when connecting the power, use a 3P plug with a grounding
line or a 2P plug after connecting the grounding wire to the screw at the back of the case.
▶ Do not place anything that makes it difficult to pull theAC adapter off the outlet.
Site
Avoid installing the balance in a place where:
▶ It is exposed to corrosive gas or flammable gas;
▶ It is exposed dust, wind, vibration, electromagnetic waves, or a magnetic field;
▶ It is exposed to direct sunlight or a sudden change in temperature; or
▶ It is exposed to extremely high or low temperature or humidity.
Installation

9
(1) Remove the protection seals (4 places) from the protection
cover and then put it on the balance body.
(2) Turn the level screw so that the air bubble on the level gauge is
positioned at the center of the red circle. Make sure that the
balance never jolt.
For easy adjustment, insert the level screw on the right back
forcibly to the balance body. Then while lightly pressing the
balance top with your hand, adjust the horizontal level with the
level screws on the right front and left front.
Finally, in order to make the balance stable, adjust the right back
screw to touch the floor.
This procedure allows you to level the balance quickly.
(3) Place the pan supporter on the pan shaft and then the pan on the
pan supporter.
(4) Plug the AC adapter into the outlet. The balance shows
“”after self-checking.
(5) Press the POWER/BRK key. All displays light for one
minute. Then the display automatically shows "zero" and the
balance enters measurement ready state.
(6) Press the POWER/BRK key again. The standby mark lights
up and the balance enters standby state.
(7) Warm up the balance.
(8) Calibrate the sensitivity.
Refer to “7. SENSITIVITY CALIBRATION”.
(9) Check the performance.
Refer to “11. PERFORMANCE CHECKS”

10
WARM-UP
▶ Apply power in advance for one hour or more. This will allow you to immediately make an
accurate measurement.
▶ Even if the balance is not used, keep the standby mark lit (warm-up state) by pressing the
POWER/BRK key without disconnecting theAC adapter.
▶ If the balance is not used for one month or more, disconnect the AC adapter.
CAUTION NOTES
▶ put water, metal pin or any thing in the balance;
▶ open the balance case;
▶leave anything exceeding the weighing capacity on the pan;
▶ expose the balance to anything magnetized;
▶ connect anything other than the specified equipment to the connector on the rear side of the
balance; and.
▶ give a shock to the pan.

11
MEASUREMENT PROCEDURE
Warm up the balance.
Preparation forWeighing Making a measure-ment mode
(1) Press the POWER/BRK key. The standby mark goes off
and all displays light. Check that there is no segment which is
not lit.
(2) The balance shows zero and enters the measurement mode
Measurement
(1) When using a tare, load the tare on the pan and press the
TARE key after a stability mark is lit.
(2) Check that the display shows zero.
(3) Load a sample. When the stability mark is lit, read the display.
If the total mass of the sample and tare exceeds the weighing
capacity, “ ” will be displayed.
※ Tare : Asamplecontainer orother.
Stability mark( ) : Lightswhen thedisplayedvalue fallswithinthe stabilityband. Whenthe
loadchange isslow,thedisplayed valuewill fluctuatewiththe stabilitymark
lit.

12
MENU SELECTION
This balance is designed to permit selection of the measuring conditions to compensate for vibration
and other conditions present at the installation site. This feather permits greater weighing efficiency
and accuracy, and is referred to as “Menu Selection”.
Also in CBL series, setting the balance to “ ” (standard measurement mode) makes a
normal measurement and requires no other setting.
The menu in the CBL series consists of three classifications. Basically press the TARE
key to go to lower hierarchy, and press the POWER/BRK key to return to upper
hierarchy. Continuously pressing the POWER/BRK key returns the display to weight
display from each hierarchy with single operation.
Step
(1) Press the CAL/MENU key during the weight display.
(2)“ ”
will be displayed.
(3) Every time the CAL/MENU key is subsequently pressed, the display be changed in the order
shown below.
(4) Select the desired condition and press the TARE key. Then, it will be set or enter into the lower
hierarchy.

13
Weight display
Sensitivity calibration mode
Currently set condition
Standard mode
Sample pouring mode
High stability mode
Enters second hierarchy menu.Advanced measurement, unit
registration, and individual setting mode
☞Refer to Section 6.1 “Menu selection when “ ”
is selected”.
Enter second hierarchy menu. Setting the value of sensitivity calibration weight
☞Refer to Section 7.2 “ Setting the value of sensitivity calibration weight”.
Enter second hierarchy menu. Input/output format setting mode
☞Refer to Section 6.2 “ Menu selection when “ ” is selected”.
Weight display
▶ If the measurement is done at severe measurement environment and the stability of the display is
not so good, set the balance to “ ” (high-stability mode).
▶ When the high-speed sample pouring mode is executed, or the small mount of sample pouring is
done, set the balance to “ ” (sample mode).

1
4
1. Menu selection when “ ” is selected
Pressing the TARE key when the “ ” is displayed at 1st hierarchy menu enters
2nd hierarchy menu.
In this menu, ON/OFF of zero tracking, setting the stability detection band, registration/cancel of unit,
ON/OFF of auto print, and ON/OFF of analog display are made.
Key operation and each setting are made as follows.

15
(→) : Press the TARE key.
(←) : Press the POWER/BRK key.
(↓) : Press the CAL/MENU key.
◆ When set to , satisfactory for most use, the stability mark lights when the display stays
within +/-1 unit (the resolution value of the balance) for a fixed period time.
◆ When the display shows “ **, *, **, **”, the
currently set conditions are displayed on **.
◆ Zero tracking eliminates zero drift, and should be on ( )for normal weighing.
When measuring weight changes over time, or when slowly adding a liquid or powder to the
balance, turn off ( ) the zero tracking feature.

16
2. Menu display when is selected
Pressing the TARE key when the “ ” is displayed at 1st hierarchy menu enters
2nd hierarchy menu.
In this menu, the input/output format can be set.
Baud rate 300
Baud rate 600
Baud rate 1200
Baud rate 2400
Baud rate 4800
Baud rate 9600
Delimiter C/R
Delimiter L/F
Delimiter C/R+L/F
Delimiter Comma
Parity, even
Parity, odd
Parity, none
Stop bit 1
Stop bit 2
(→) : Press the TARE key.
(←) : Press the POWER/BRK key.
(↓) : Press the CAL/MENU key.
◆ When the display shows **, **, **, ** , the currently
set conditions are displayed on **.

1
7
SENSITIVITY CALIBRATION
The electronic balance measures mass by electronicity compensating for terrestrial gravitation.
Since gravitation varies slightly in different regions, span calibration (sensitivity calibration) is required
when the balance is installed. Temperature also effects balance accuracy, and calibration must be
performed whenever a significant change occurs. It is good practice to calibrate the balance whenever
the balance is moved or unexpected shock is applied to the balance such that an article drops on the pan.
1. Setting the value of sensitivity calibration weight
In this balance, the value for sensitivity calibration weight can be set freely within the specified range.
Using the weight having known value, sensitivity calibration can be made.
Set the weight value using at sensitivity calibration as follows.
Step
(1) Following the menu selection, press the CAL/MENU key to
make the display “ ”.
(2) Press the TARE key to set the balance to weight set mode.
(3) The weight value currently set is displayed and the digit to be set
blinks. When the weight value is not changed, press the TARE key.
(4) Pressing the PRINTkey shifts the blinking digit.
(5) Pressing the UNITkey counts up the blinking displayed value.
(6) Repeats the steps (4) and (5) to set the weight value.
(7) When aborting the setting, press the POWER/BRK key. Then
“” is displayed for several seconds, the balance stops
the setting of weight value and returns to weight display.
(8) After the setting of weight value is completed, press the TARE key.
(9) “ ” is displayed for several seconds and the balance returns
to weight display.
(10) When setting the weight value exceeding the specified range,
“” is displayed and then the balance returns to weight
display.

1
8
The settable weight value is follows.
CBL-220S More than 100g and less
thanweighingcapacity. CBL-220H More than 100g and less than weighingcapacity.
CBL-320S More than 150g and less
thanweighingcapacity. CBL-320H More than 150g and less than weighingcapacity.
CBL-620S More than 300g and less
thanweighingcapacity. CBL-1200H More than 500g and less than weighingcapacity.
CBL-2200S More than 1000g and less
thanweighingcapacity. CBL-2200H More than 1000g and less thanweighingcapacity.
CBL-3200S More than 1500g and less
thanweighingcapacity. CBL-3200H
CBL-3200HL More than 1500g and less
thanweighingcapacity.
CBL-120H More than 50g and less
thanweighingcapacity.

19
2. Sensitivity Calibration
Perform the sensitivity calibration as follows.
Step
(1) Warm up the balance well. Refer to “3. WARM-UP”.
(2) Check leveling.
(3) Unload the sample on the pan and press the TAREkey to zero the
display
(4) Following the menu selection, press the CAL/MENUkey to
display “ ”.
(5) Press the TARE key to start the sensitivity calibration.
(6) The set weight value appears and blinks
(7) Make sure that the stability mark is lit.
(8) Place the calibration weight on the pan. At this time, the stability
mark will once disappear.
(9) When the stability mark is lit again, press the TARE key.
(10) The display shows zero and blinks. Make sure that the stability
mark is lit.
(11) Unload the weight.
(12) When the stability mark is lit again, press the TARE key.
(13) “ ” is displayed for several seconds and the
balance returns to weight display. This completes the sensitivity
calibration.
(14) If the different weight is used for this sensitivity calibration,
“” is displayed for several seconds and the balance
returns to weight display. Check the weight and retry the
sensitivity calibration.

20
REGISTRATION, CANCEL, AND CHANGE OF UNIT
Step for registration
(1) Press the CAL/MENU key and select “ ” display.
(Press the TARE key.)
(2) Press the CAL/MENU key and select “ ” display.
(Press the TARE key.)
(3) The registrable unit is displayed by every pressing the CAL/MENU key. The registerable
units are three kinds which are selected from the following 14 kinds.
g, kg, ct. pcs, %, oz, ozt, dwt, GN, Hong-kong tail, Singapore tail, Taiwan tail, Maraysia tail, and
Japanese "monme"
However, % and pcs (No. of pieces) cannot be registered simultaneously.
The stability mark is lit on the unit display currently registered.
(4) Press the TARE key on the unit display to be registered. That unit is registered.
When three kinds of unit are already registered, a new registration deletes the oldest
registration among the three registered units. However, % and pcs (No. of pieces)
cannot be registered simultaneously. Then deletes unnecessary one.
(5) Continuously pressing the POWER/BRK key returns the display to weight display.
Step for cancel
(1) Carry out the same operation described (1) to (3) above to set unit display. Selecting the same
one of the unit display which is currently registered (stability mark is lit) cancels the registration.
Step for change
(1) Pressing the UNITkey changes the unit which is already registered.
However, even if the unit of % and pcs is already registered, the display does not change to this
unit unless making a setting of reference value.

21
% SETTING
This balance serves percent (%) display by setting the reference sample to 100%.
Step
(1) Register the % unit. (Refer to “8. Registration, cancel, and change of
unit”. When % unit has been already registered, it is not necessary to
register again.
(2) Place the tare on the pan and press the TAREkey.
(3) Load the reference sample.
(4) Continuously press the UNITkey to display “ ”.
(5) After the stability mark is lit, press the TAREkey.
(6) “ ” is displayed for several seconds and the balance enters
the % unit display. Minimum displayed value changes as follows
depending on reference sample weight (REF.)
If the % conversion is not possible, “ ” is displayed for
several seconds and the balance returns to weight display.
H Type
REF. <Minimum displayedvalue ×100 % conversionimpossible
Minimumdisplayed value× 100
<REF. <Minimum displayedvalue ×1000 100%
Minimumdisplayed value× 1000
<REF. <Minimum displayedvalue ×10000 100.0%
Minimumdisplayed value× 10000
<REF. <Minimum displayedvalue ×100000 100.00%
Minimumdisplayed value× 100000< REF. 100.000%
S Type
REF. <Minimum displayedvalue ×100 % conversionimpossible
Minimumdisplayed value× 100
<REF. <Minimum displayedvalue ×1000 100%
Minimumdisplayed value× 1000
<REF. <Minimum displayedvalue ×10000 100.0%
Minimumdisplayed value× 10000< REF. 100.00%
