Casall INFINITY 1.2X 93008 User manual
1
Casall INFINITY 1.2X
CROSSTRAINER
93008
2
Important: Please locate your serial number and record in the box below for service
support purposes.
Serial number here:
3
S
c
r
e
w
M
3
*
1
4
L
(
2
)
a
l
l
e
n
b
o
l
t
M
8
*
3
0
L
(
2
)
C
u
r
v
e
w
a
s
h
e
r
1
7
.
5
*
2
5
*
0
.
3
T
(
2
)
F
l
a
t
W
a
s
h
e
r
1
6
f
o
r
M
8
b
o
l
t
(
4
)
A
l
l
e
n
B
o
l
t
(
m
o
v
a
b
l
e
h
a
n
d
l
e
b
a
r
)
M
8
*
5
5
(
2
)
S
c
r
e
w
M
3
*
2
5
L
(
8
)
a
l
l
e
n
b
o
l
t
M
8
*
1
2
L
(
8
)
AllenBolt M7*P1. 0*30L(2)

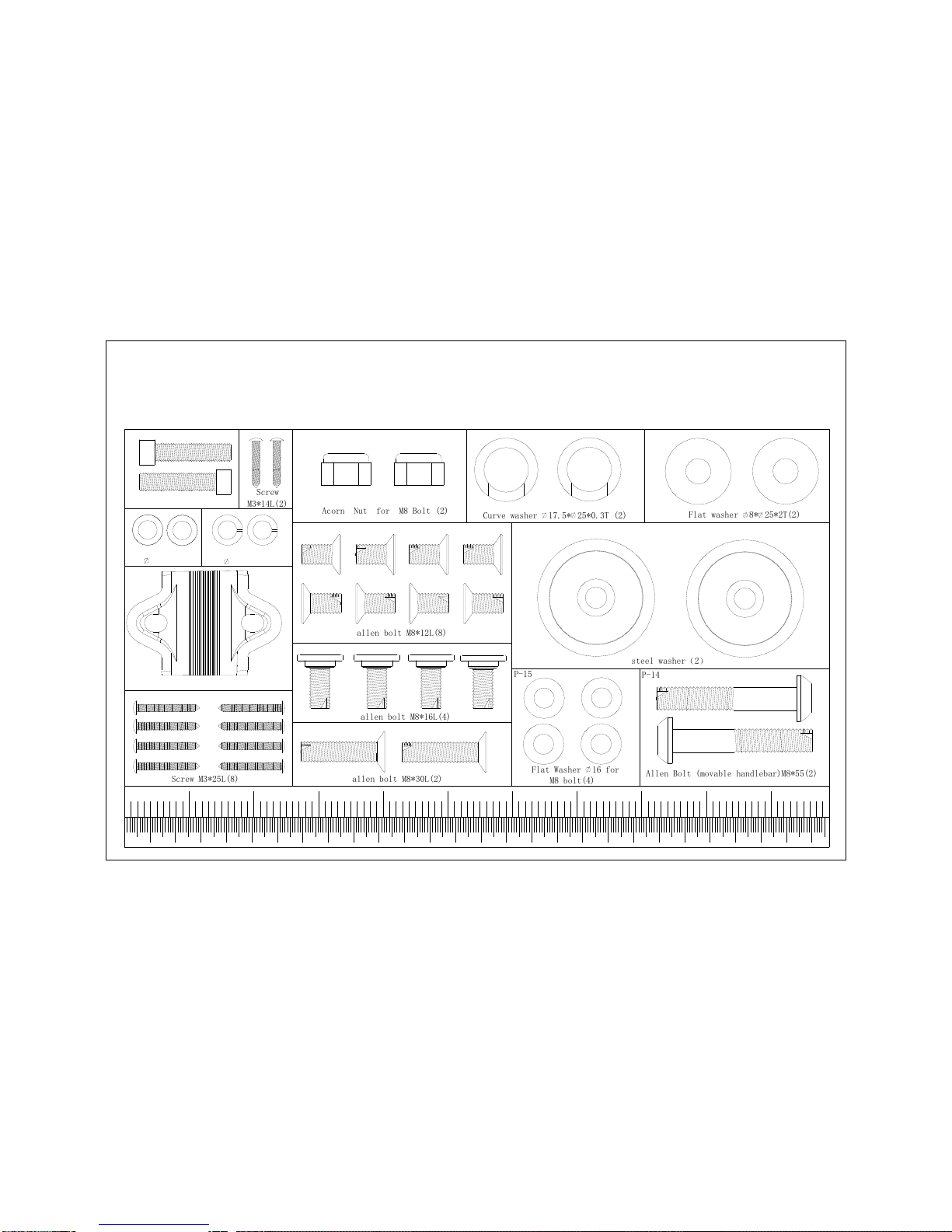

P-1
Regul ar Washer
7*1t(2)
P-2
Metal cover (1)
P-3
Spri ng Washer
7*2t(2)
P-4
P-5
P-6
P-8
P-10
s
t
e
e
l
w
a
s
h
e
r
（
2
）
P-11
F
l
a
t
w
a
s
h
e
r
8
*
2
5
*
2
T
(
2
)
P-12P-13
P
-
1
5P
-
1
4
a
l
l
e
n
b
o
l
t
M
8
*
1
6
L
(
4
)
P-7
A
c
o
r
n
N
u
t
f
o
r
M
8
B
o
l
t
(
2
)
P-9
INFINITY 1.2X
4
Knob ( f oot pedal )M6*P1. 0 (4)
Spri ng Washer f or handl ebar bol t 6(black)(4) Carrage bolt M6*P1. 0*40L (bl ack) (4)
P-16
P
i
v
o
t
T
u
b
e
(
4
)
P-18
P-17 P-19
A
l
l
e
n
K
e
y
(
2
)
B
o
x
S
p
a
n
n
e
r
(
1
)
INFINITY 1.2X
5

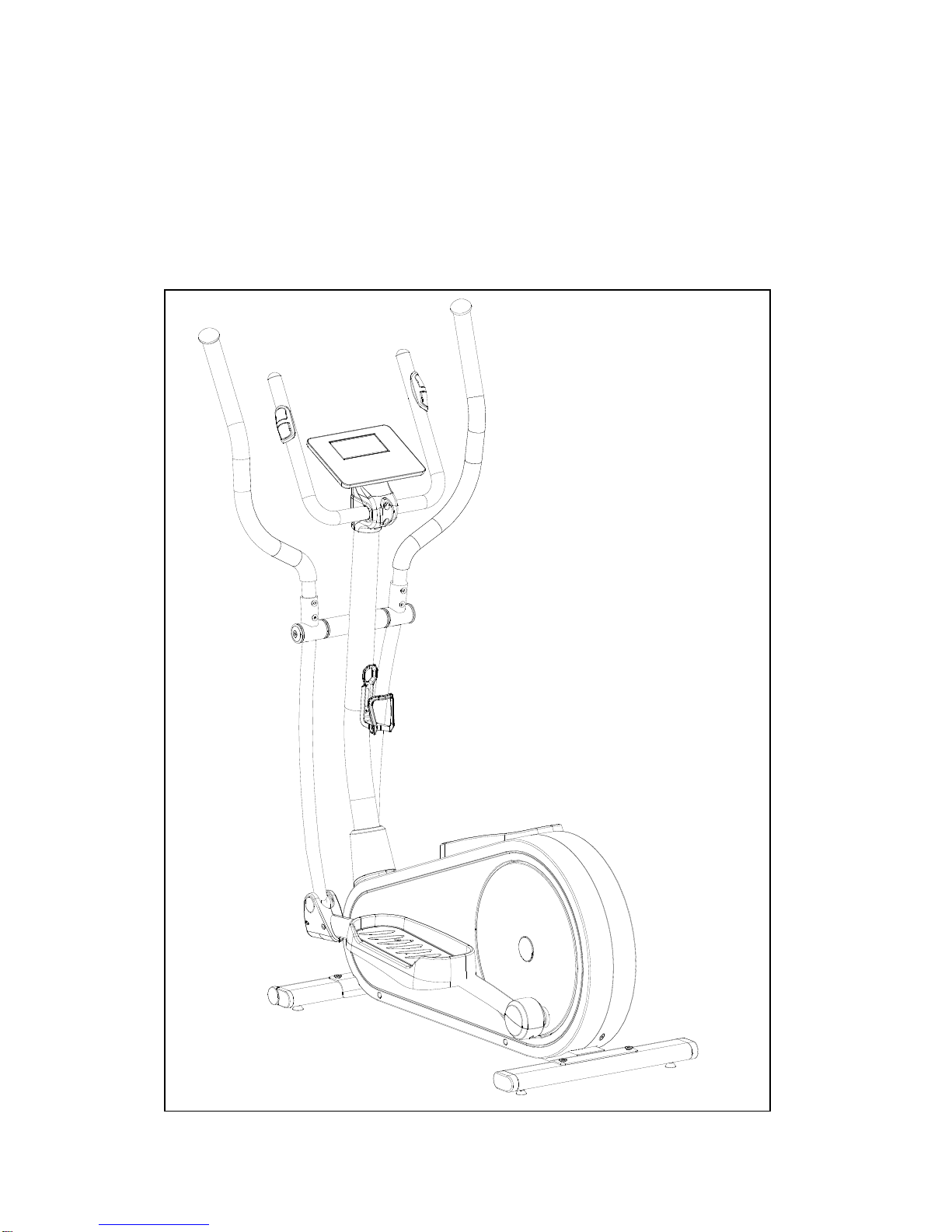

Assembly Diagram
6
EXPLODED DIAGRAM
H- 8
7
PARTS LIST
No. Item spec. Q'ty
A , A-1 Computer & Screw for computer 1SET
B-1 Front handlebar 1PC
B-2 Foam grip for front handlebar 2PCS
B-3 End cap for foam grip φ7/8" 2PCS
B-4 Hand pulse WP1007-33B 1SET
B-5 Screw M3x20L 2 PCS
B-6 Wire for hand pulse 1 PC
C-1 Upper handlebar ( L) 1SET
C-2 End cap for upper handlebar (R&L) φ1 1/4" 2PCS
C-3 Foam grip for upper handlebar 2PCS
C-4 Upper handlebar ( R) 1PC
D-1 Handlebar post 1PC
D-2 Upper computer cable 1PC
D-3 Screw for computer cover M5x14L 2PCS
D-4 Bushing 2PCS
D-5 Allen bolt M8x16 4PCS
D-6 Flat washer φ12xφ19x1t 4PCS
D-7 Screw for bottle holder M5x20L 4PCS
E-1~E7 First-lower handlebar (R& L) 1SET
F-1 Main frame 1SET
F-2 C-type ring φ12 1PC
F-3 Wave washer φ20xφ30x0.3t 1PC
F-4 Flat washer φ20.3xφ30x1t 1PC
F-5 Sensor box 1PC
F-6 Sensor holder 1PC
F-7 DC cable 1PC
F-8 Screw M4x10L 1PC
F-9 Bearing 6004RS 2PC
G1~G-8 Flywheel set 1SET
H Magnetic set & Gear box 1SET
I-1 Pedal post (Left) 1PC
I-2 Screw M5x14L 4PC
I-3 Pedal post (Right) 1PC
J-1~J-3 Front stabilizer set 1SET
K-1~K-3 Rear stabilizer set 1SET
8
L-1~L-11 Idler wheel set 1SET
M-1 Front cover for computer 1PC
M-2 Rear cover for computer 1PC
M-3 Bottle holder 1PC
M-4 Front cover (Left) for pedal post 2PCS
M-5 Front cover (Right) for pedal post 2PCS
M-6 Pedal (Left) 1PC
M-7,M8 Left rear cover (upper/down) for pedal post 1SET
M-9 Pedal (Right) 1PC
M-10,M-11 Right rear cover (upper/down) for pedal post 1SET
M-12 Screw for chain cover M4x50L 5PCS
M-13 Screw for chain cover M5x16L 6PCS
M-14 Left chain cover 1PC
M-15 Right chain cover 1PC
M-16 Cap for chain cover screw holes Oval 5PC
M-17 Cap for chain cover screw holes Round 4PC
M-18 Cover for handlebar post 1PC
M-19 Axle for first-lower handlebar 1PC
N Adaptor 1PC
P-1~P-19 Bolts & nuts pack 1SET
Q-1 Shaft 1PC
Q-2 Bushing φ20.5xφ25x7.5mmL 1PC
Q-3 Hexagonal screws M8xP1.25x12Lx5t 3PCS
Q-4 Big pulley 1PC
Q-5 Belt J6 1219m/m 1PC
R-1 Nut M10xP1.25x10T 2PC
R-2 Cross disc 2PCS
R-3 Round disc 2PCS
R-4 Screw M4x14L 8PCS
R-5 Flat washer φ5xφ16x1t 9PCS
R-6 Cap for round disc 2PCS
S-1~S-8 Crank connation set 2SET
9
ASSEMBLY STEPS
STEP 1
Attach the Front Stabilizer (pt.J-1) to the Main Frame (pt.F-1) using two Allen bolt (pt.P-7)
Attach the Rear Stabilizer (pt.K-1) to the Main Frame (pt.F-1) using two Allen bolt (pt.P-7).
STEP 2
1. Please remove four sets of the M8x16 Allen bolt (pt.D-5) and Flat Washer (pt.D-6)from
the Main Frame (pt.F-1)
2. Take the Handlebar post (pt.D-1) and pass it through the Handlebar post cover (pt.M-
18).
3. Hold the Handlebar Post (pt.D-1) and connect the Lower Computer Cable (pt.H-14)
and the Upper Computer Cable (pt. D-2)
4. Slide the Handlebar Post (pt.D-1) into the Main Frame then fix with four sets of M8x16
Allen bolt (pt.D-5) and Flat Washers (pt.D-6)
.
M8*16L
4* 1* K
-
1
12* 19*1T M8*16L
4* 1*
10
STEP 3

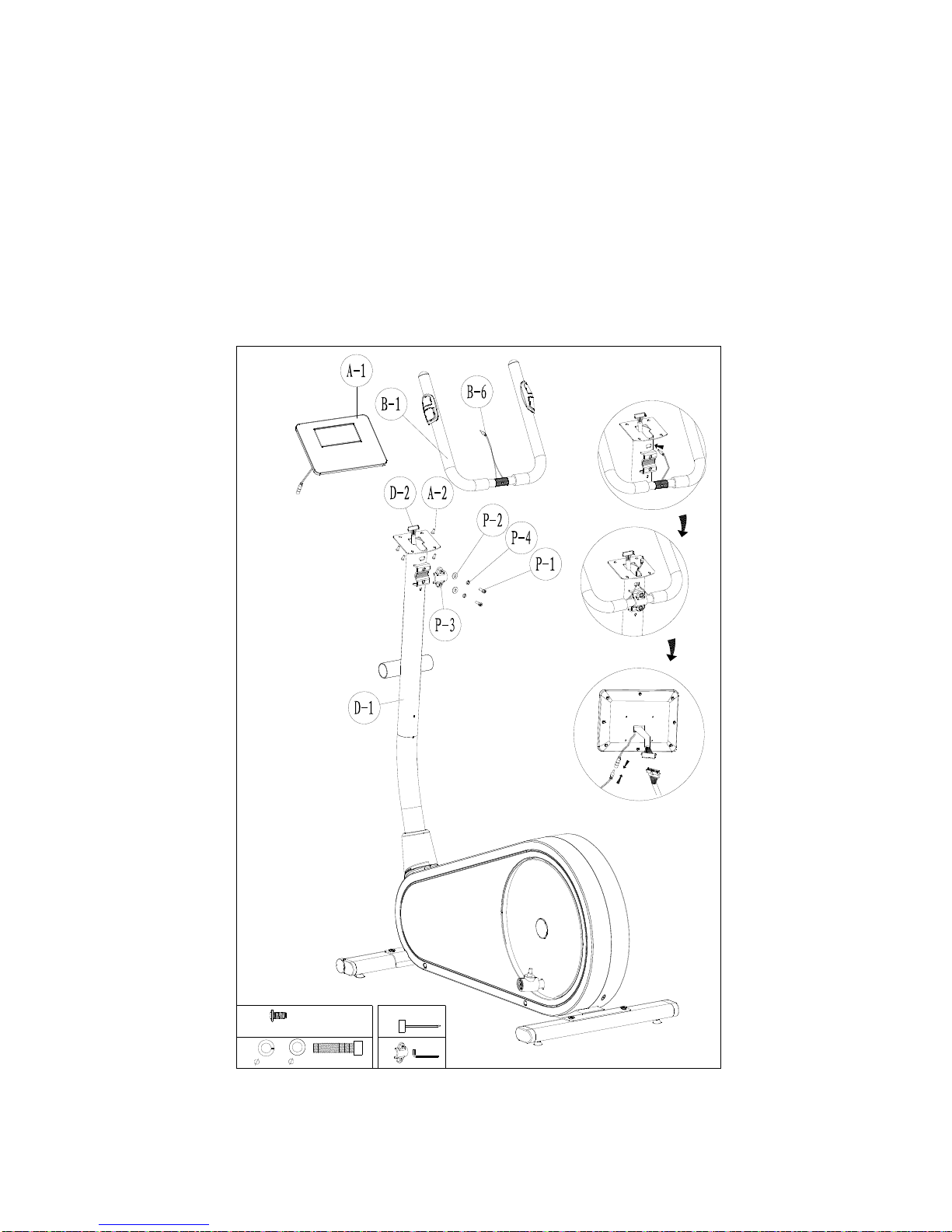

1. Attach the Front handlebar (pt.B-1) to the Handlebar post (pt.D-1) using the clamp
cover (pt.P-3), and then fix with two Flat Washers (pt.P-2), two Spring Washers (pt.P-4),
two Fixing Bolt (pt.P-1).
2. Pass the hand-pulse wire (pt.B-6) through the hole.
3. Connect the Computer cables (pt .D-2) and connect the Hand pulse wire (pt.B-6), then
attach the Computer (pt .A-1) to the Computer bracket with the enclosed Screws (pt .A-
2).
2* 7*2T 7*1T M7*30
M5*10
4*1*
1*
11
STEP 4
1. Remove the pre-installed Screws (pt.D-3) on the handlebar post first.
2. Attach the Rear cover (pt.M-2) using two of Screws (pt.P-6) and one of Screws
(pt.D-3) .
3. Attach the Front cover (pt.M-1) using Screws (pt.D-3)
4. Remove the pre-installed Screws (pt.D-7) on the handlebar post, and then assemble
the Bottle holder (pt.M-3) by Screw (pt. D-7).
1*
M5*14
2* M5*20
2*
12
STEP 5 Fix the two Lower handlebar (pt.E-1) to the Handlebar Post (pt.D-1) with
one Axle (pt.M-19), two sets of Wave washer (pt.P-13), Flat washers (pt.P-
12) and Gasket (pt.P-11) and Allen bolt (pt.P-10).
Pay attention : Please use two allen key tools to fix bolt ( P-10 ) on both side at the same
time.
M8*30L
17.5* 25*0.3T
10* 26*2T
steel washer
2* 2*
13
STEP 6

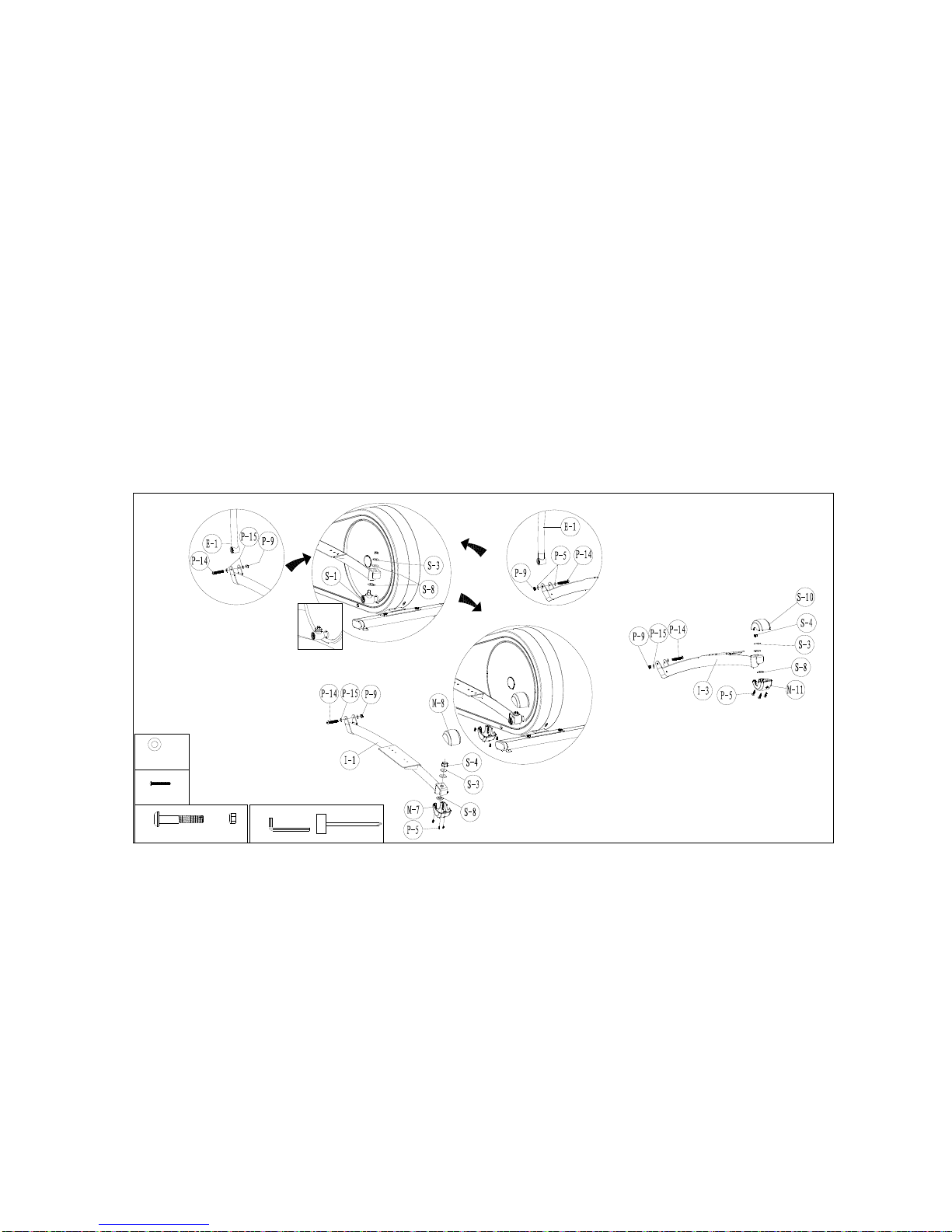

1. Attach the Left and Right lower Handlebar (pt.E-1 L/R) to the Left and Right pedal
post (pt.I-1 & I-3) using two Allen bolt (pt.P-14), four Flat washers (pt.P-15) and two
Nylon nuts (pt.P-9). --- Figure A
2. Attach the Pedal post (pt.I-1 & I-3) onto the Crank connation set using one of Nylon
nuts (pt.S-4), Flat washers (pt.S-3) and Plastic washers (pt.S-8). --- Figure B
3. Connect the Right rear cover (upper) (pt.M-8) and Right rear cover (lower) (pt.M-7) to
the Left pedal post (pt.I-1) using screw (pt.P-5). --- Figure C
4. Connect the Left rear cover (upper) (pt.M-10) and Left rear cover (lower) (pt.M-11) to
the Right pedal post (pt.I-3) Using screw (pt.P-5).
.
M8*55
M3*25L
M8
M8
2*
4*
6*
1*
AB
C
D
14
STEP 7
1. Remove the pre-installed screws (pt.I-2) on the Pedal post first.
2. Attach the Lower handlebar (E-1 R/L) to the left and right pedal post (I-1), and then
close the cover (M-4 & M-5) using screws (pt.P-5 & I-2).
3. Assemble the Right pedal (pt.M-9) onto the Pedal post (pt. I-3) with 2 Knobs (pt. P-16),
2 Spring washers (pt.P-18),2 Bushings (pt.P-19) and 2 Carriage bolts (pt.P-17).
4. Assemble the Left pedal (pt.M-6) onto the Pedal post (pt. I-3) with 2 Knob (pt. P-16), 2
Spring washers (pt.P-18),2 Bushings (pt.P-19) and 2 Carriage bolts (pt.P-17).
M5*14
M3*25L
6M6*P1. 0*40L M6 7X 12X25
4* 2* 4* 1*
E-1
15

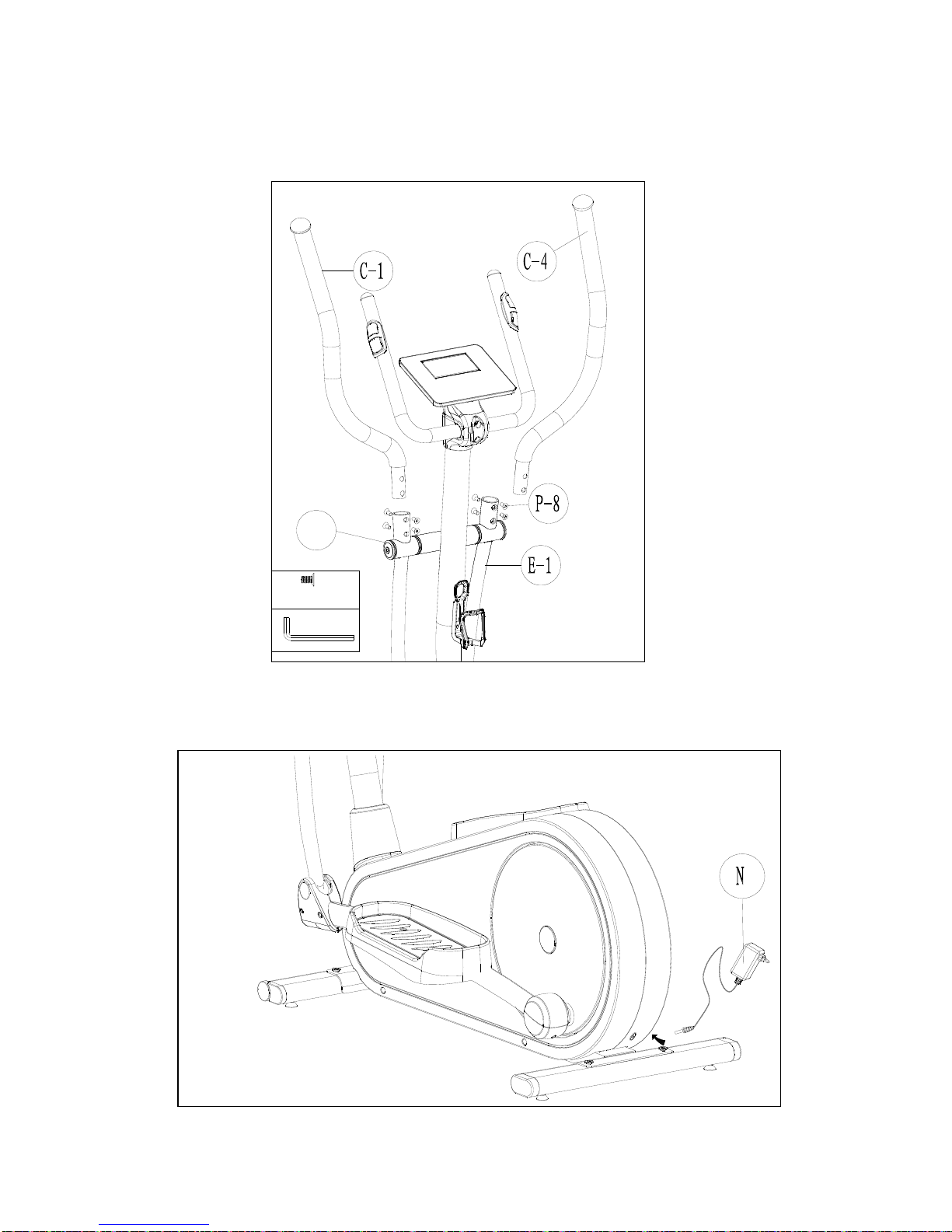

STEP 8 Slide the Upper handlebar post (C-1,C-4) (R/L) into the Lower handlebar (E-1)
and then fix with the eight Allen bolts (P-8)
STEP 9
Connect the adaptor (N) to the DC hole (located on the back of the chain cover).
M8*12L
8*
1*
E-1
16
INSTRUCTIONAL MANUAL FOR CASALL
INFINITY 1.2X CONSOLE
Manual mode Program 1 Program 2
Program 3 Program 4
Program 5 Program 6 Program 7
Program 8 Program 9 Program 10
Program 11 Program 12
H.R.C. Watt control
User program
17
【BUTTON FUNCTION】
UP ‧Increase resistance level
‧Setting selection.
DOWN ‧Decrease resistance level
‧Setting selection.
ENTER ‧Confirm setting or selection.
RESET ‧Press and hold for 2 seconds to reboot the computer and start from user
setting.
‧Return to main menu during preset workout value or stop mode.
START/ STOP ‧Start or stop workout.
RECOVERY ‧Test heart rate recovery status.
BODY FAT ‧Test body fat% and BMI.
【DISPLAY FUNCTION】
ITEM DESCRIPTION
TIME .Current workout time.
.Range 0:00 ~ 99:59
SPEED .Current workout speed.
.Range 0.0 ~ 99.9 KM/Hour
DISTANCE .Current workout distance.
.Range 0.0 ~ 99.9 KM
CALORIES .Current calories burned.
. Display Range 0 ~ 999 Cals
. Setting Range 0~990 Cals
* Calorie count on the display only serves as a general guideline. For detail calorie
consumption for each individual please consult a physician or a nutritionist.
PULSE .Pulse beats per minute (bpm) during workout.
.Pulse alarm will sound when current workout pulse is over target pulse value.
RPM .Rotation (of flywheel) per minute
. Range 0 ~ 999
*RPM may fluctuate up and down when workout intensity changes.
WATTS .Workout power consumption
.Display watt range 0 ~ 999
.Setting range in Watt control program 0 ~ 350
【OPERATING PROCEDURE】

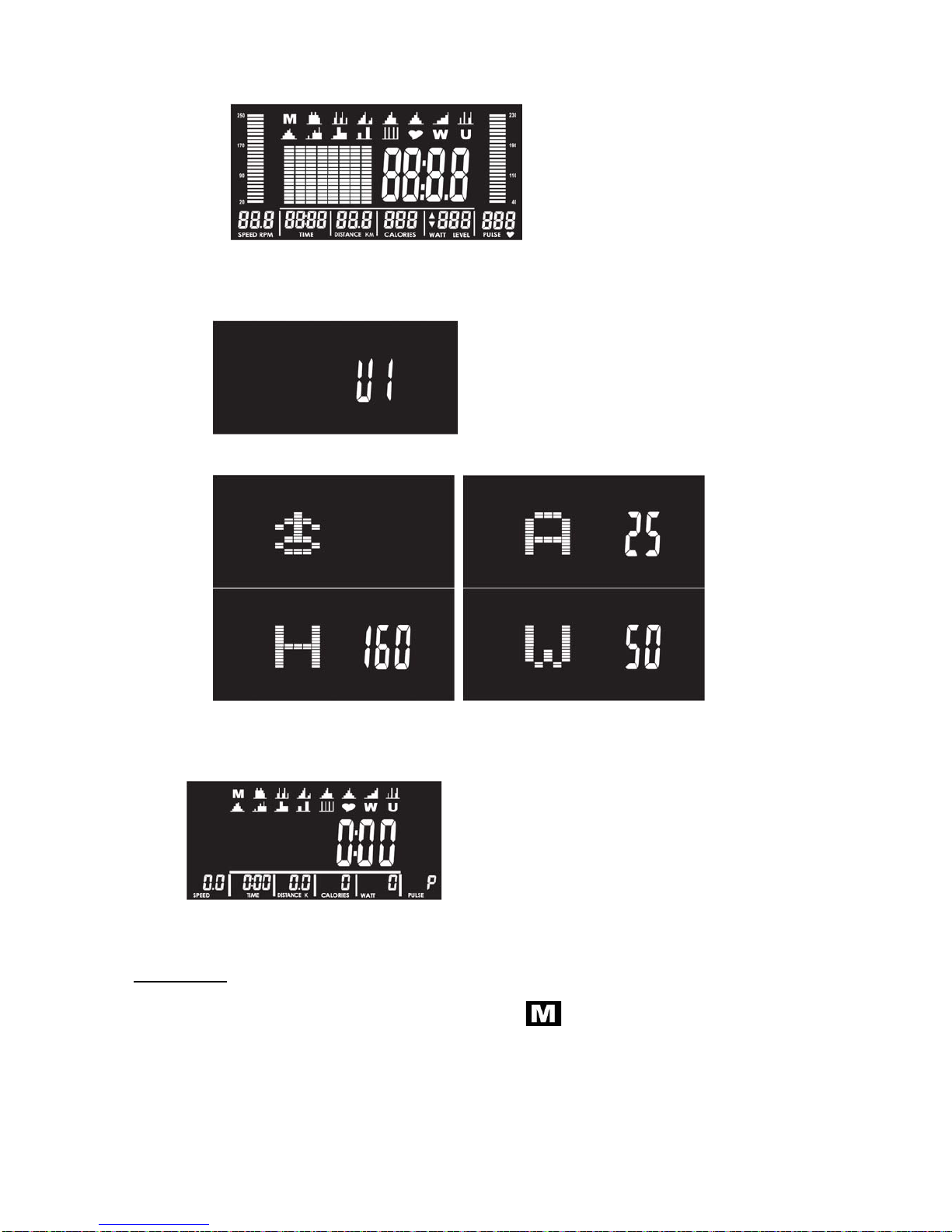

(1) POWER ON –
1-1 Plug in adaptor to power on console, system will have buzzer beeping as a cue.
1-2 LCD will have all segments displaying for two seconds along with “78.0” (wheel diameter), “E” (EU),
and “K” (KM) for one second.
18
(2) USER PROFILE SET UP –
2-1Use UP (▲) and DOWN (▼) key to select a user profile from U1~U4. Press
“ENTER” to confirm when a user profile is chosen.
2-2Press “ENTER” each time when data is determined for Sex(♀♂), Age(A),
Height(H), and Weight(W). All entered data will be saved in user profile U1~U4.
(3) WORKOUT SELECTION –
3-1 Programs are displayed on LCD screen in sequence the of MANUAL→12
PROGRAMS→H.R.C.→WATT→USER PROGRAM→MANUAL
3-2 Use UP (▲) and DOWN (▼) key to select a program and press “ENTER” to
confirm.
Manual mode
Adjust resistance during workout manually.
1. Press UP or DOWN to select workout program. Choose (Manual) and press ENTER to confirm.
2. Press UP or DOWN to set LEVEL, TIME, DISTANCE, CALORIES, and PULSE. Press ENTER to
confirm.
3. Press START/STOP button to start workout. Press UP or DOWN to adjust resistance level.
19
4. Press START/STOP button to pause workout. Press RESET to return to main menu.
(Manual Mode)

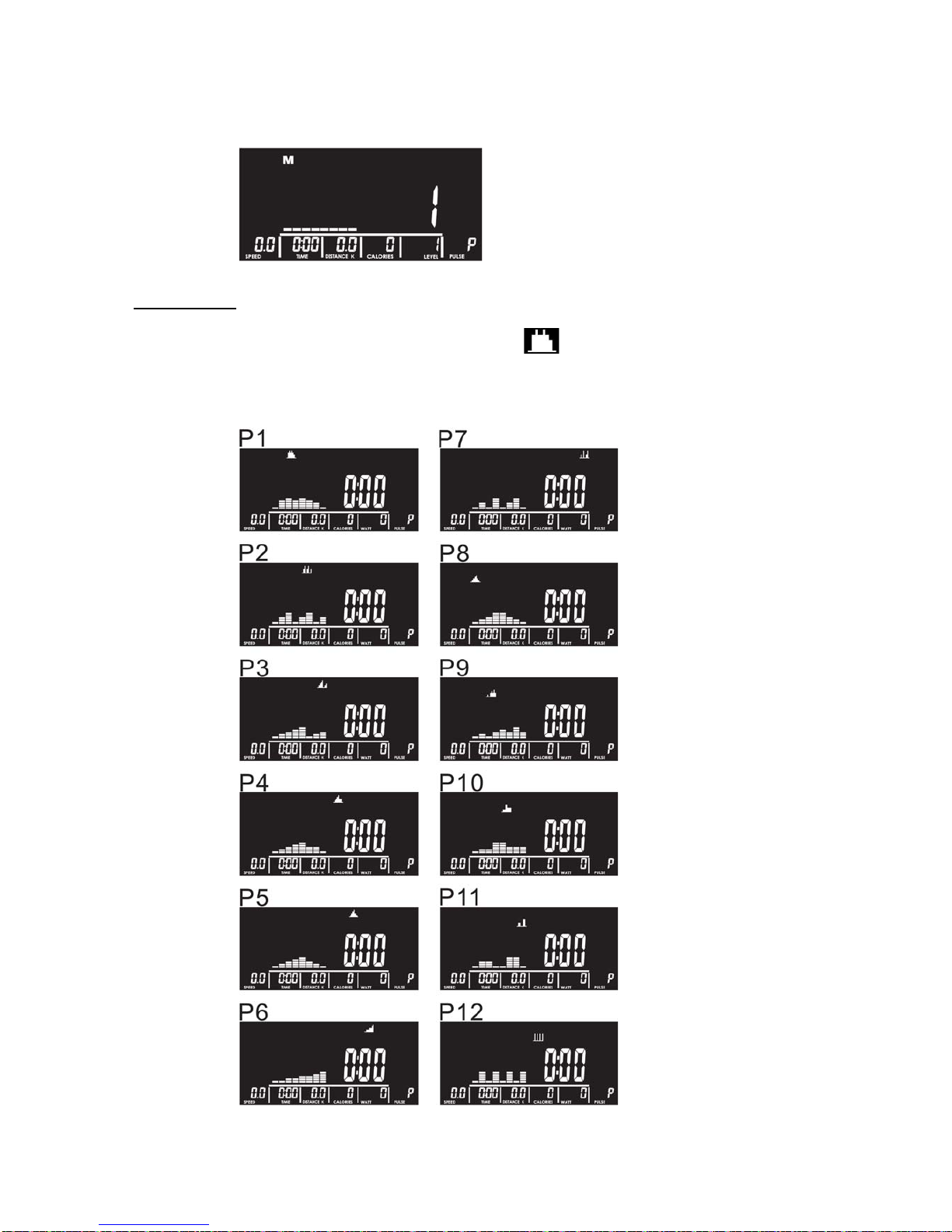

Program Mode
Choose a preset workout program.
1. Press UP or DOWN to select workout program. Choose (Program) and press ENTER to confirm.
2. Press UP or DOWN to set workout LEVEL and TIME.
3. Press START/STOP button to start workout. Press UP or DOWN to adjust resistance level.
4. Press START/STOP button to pause workout. Press RESET to return to main menu.
(Program Mode)
20
H.R.C mode
Target a heart rate for the workout.
1. Press UP or DOWN to select workout program, choose (H.R.C.) and press ENTER to confirm.
2. Press UP or Down to select 55%.75%.90% or TA (Target heart rate.). (default: 100).
*Formula: (220-Age) X ___%
*Example: Age 25 choosing 75%, you will target your heart rate to (220-25) x 75%= 146/min
3. Press UP or DOWN to set workout TIME.
4. Press START/STOP button to start or stop workout.
(H.R.C Mode)
User Mode
Preset your own workout profile.
1. Press UP or DOWN to select workout program. Choose (User) and press ENTER to confirm.
2. Press UP or DOWN to set resistance of each column, and press ENTER to move to the next column.
Press and hold MODE to finish the setting.
3. Press UP or DOWN to set workout TIME.
4. Press START/STOP button to start workout. Press UP or DOWN to adjust resistance level.
5. Press START/STOP button to pause workout. Press RESET to return to main menu.
(User Mode)
Watt Constant
Monitor the energy output of workout.
1. Press UP or DOWN to select workout program. Choose (Watt) and press ENTER to confirm.
2. Press UP or DOWN to set WATT target.
3. Press UP or DOWN to set TIME.
4. Press START/STOP button to start or stop workout.
(Watt Constant)
Body Fat Mode
Determine body fat and BMI
1. When workout stops, press BODY FAT key.
Table of contents
Other Casall Elliptical Trainer manuals
