Casall X200 User manual

1
Casall X200
CROSSTRAINER
93001

2

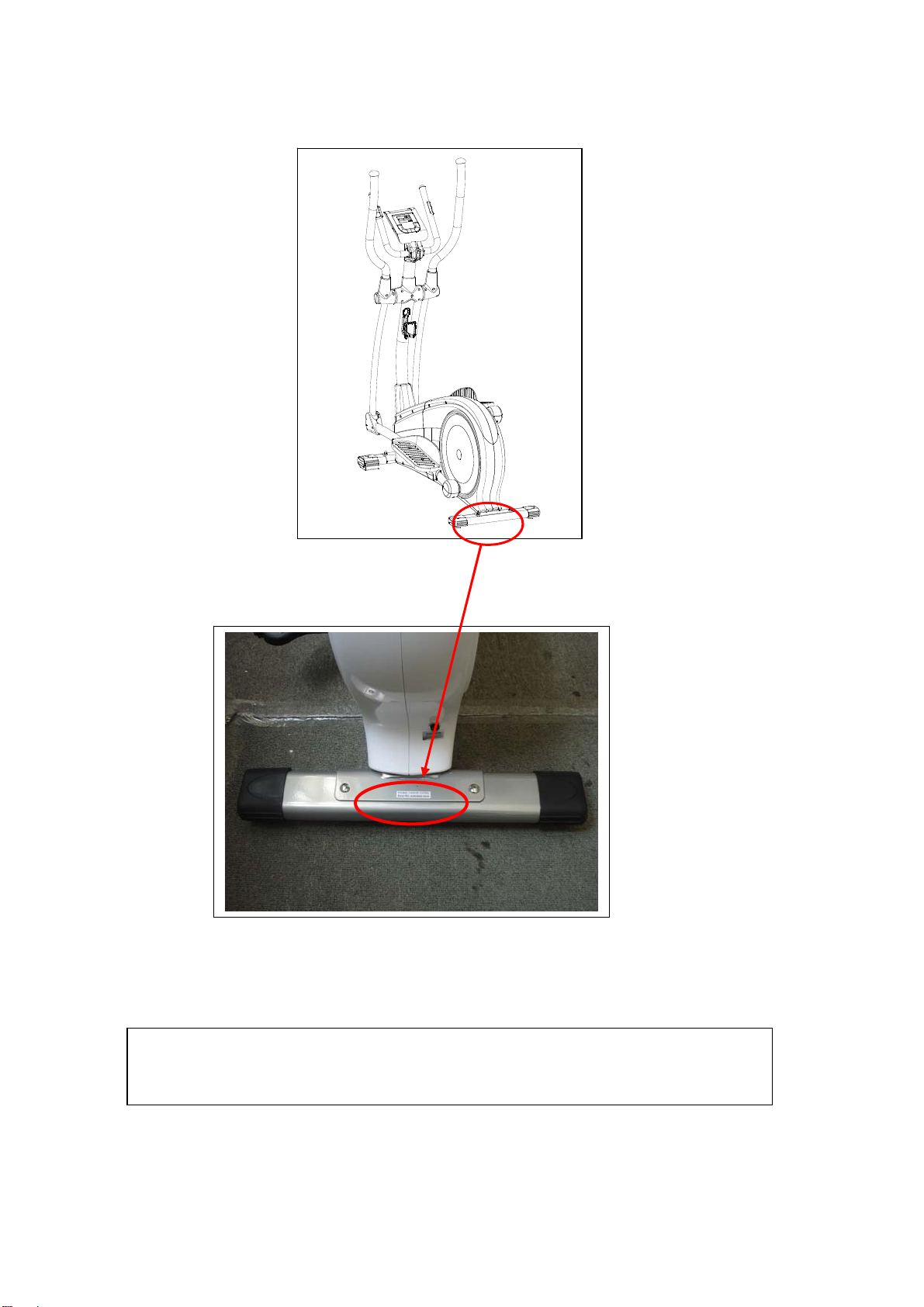

zImportant: Please locate your serial number and record in the box below for service
support purposes.
zSerial number here:


3
X200

4
NO.P-18 Knob (foot pedal)M6*P1.0 (4)
NO.P-19 Spring Washer for
handlebar bolt 6(black)(4)
NO.P-17 Carrage bolt
M6*P1.0*40L (black)(4)
NO.P-9Carrage Bolt
M8x40mm (4)
NO.P-11 lock nut for M8 bolt (6)
Allen Key(1)
NO.P-16 Flat Washer
16 for M8 bolt(4)
Box Spanner (2)
X200
No:P-1 Allen Bolt M7*P1.0*30L (2)
No:P-2 Regular Washer
7*1t(2)
No:P-4 Spring Washer
7*2t(2)
No:P-3 Metal cover (1)

5

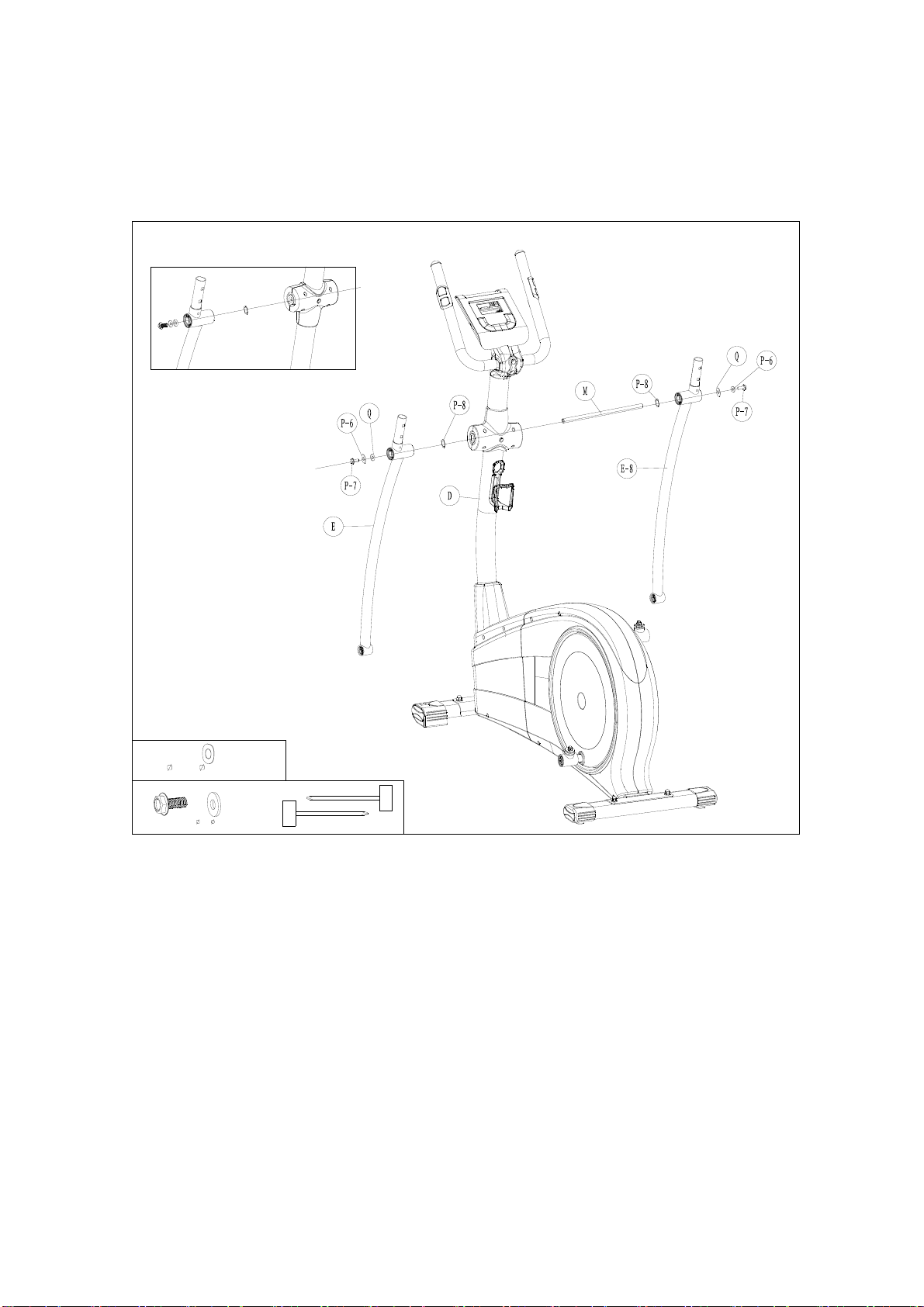

Assembly Diagram
B-5
C-3
M-1
D-2
P
A-1
P-1
P-2
P-4
P-3
E
E-7
E-7
M-2
D-2
E-8
D-1
F-4
F-5
F-1
F-3
F-2
L-1
P-5
P-20
P-5
P-5
P-5
L-2

6

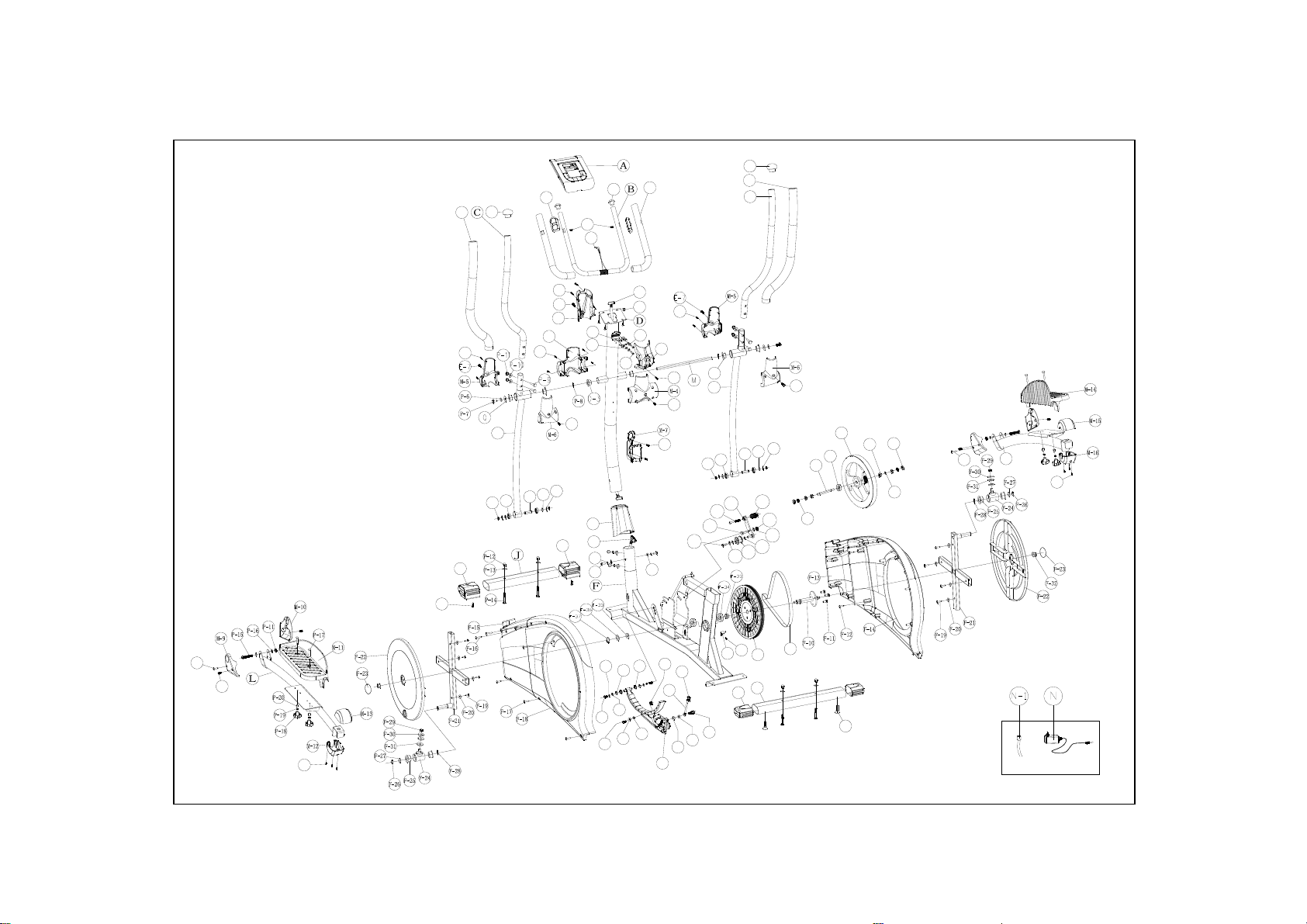

EXPLODED DIAGRAM
A-1
B-2 B-1
B-3
B-4
B-5
C-1
C-2
C-1
C-2
C-3
D-1
D-2
D-2
E
E-1
E-2 E-3 E-4 E-5
E-2 E-3 E-4 E-5
E-8
E-7
E-7
E-6
E-6
D-2
D-2
F-1
F-2
F-5
F-8
F-9
F-3
J-1
J-3
J-5 J-4
J-7
J-2
L-1
L-2
P
M-1
P-4
P-3
P-2
P-1
M-2
M-3
P-5
P-5
P-5
P-5
P-5
P-5
P-5
F-4
F-6 F-7
K
K-1
K-8
K-9
K-6
K-5
K-3
K-2
K-4
K-7
G
G-5
G-1
G-4
G-3
H
H-1
H-3
H-2
H-4 H-5
H-6
H-7
H-8
H-9 H-10 H-11
H-12
H-13 H-14
G-6
G-2

7
PARTS LIST
No. Item spec. Q'ty
A , A-1 Computer & Screw for computer 1SET
B Front handlebar 1PC
B-1 Foam grip for front handlebar 2PCS
B-2 End cap for foam grip φ7/8" 2PCS
B-3 Hand pulse WP1007-33B 1SET
B-4 Screw M3x20L 2 PCS
B-5 Wire for hand pulse 1 PC
C Upper handlebar ( L) 1PC
C-1 End cap for upper handlebar (R&L) φ1 1/4" 2PCS
C-2 Foam grip for upper handlebar 2PCS
C-3 Upper handlebar ( R) 1PC
D Handlebar post 1PC
D-1 Upper computer cable 1PC
D-2 Screw for computer cover M5xP0.8x14L 5PCS
D-3 Bushing φ26.7xφ17.12x15L 2PCS
E~E8 First-lower handlebar (R& L) 1SET
F Main frame 1SET
F-1 Allen bolt for handlebar post M8xP1.25x16L 4PCS
F-2 Spring washer for handlebar post φ8.1*φ12.9*2.4T 4PCS
F-3 Semicircle washer for handlebar post φ8xφ19x2t 4PCS
F-5 Cover for handlebar post 1PCS
F-6 Sensor box 1PC
F-7 Screw for sensor box M4x10L 1PC
F-8 Big pulley 1PC
F-9 Belt J6 1143m/m 1PC
F-10 Shaft 1PC
F-11 Hexagonal screws M8xP1.25x12Lx5t 3PC
F-12 Screw for chain cover M4x20L 4PCS
F-13 Right chain cover for front 1PC
F-14 Right chain cover for rear 1PC
F-15 Left chain cover for front 1PC
F-16 Screw for chain cover M4x50L 8PCS
F-17 Screw for chain cover 3/16″8PCS
F-18 Left chain cover for rear 1PC
F-19 Screw for cross disc M4x14L 8PCS

8
F-20 Flat washer φ5xφ16x1t 8PCS
F-21 Cross disc 2PCS
F-22 Round disc 2PCS
F-23 Cap for round disc 2PCS
F-24~F-31 Crank connation set 2PCS
F-32 Nuts for cross disc M10xP1.25x10T 2PCS
F-33 Bushing φ20.5xφ25x7.5mm 1PC
F-34 Bearing 6004RS 2PCS
F-35 Wave washer φ20xφ30x0.3t 1PC
F-36 Flat washer φ20.3xφ30x1t 1PC
F-37 C-type ring φ20 1PC
G~G-6 Flywheel set 1SET
H ~H14,F-4 Magnetic set & Gear box 1SET
J Front stabilizer 1PC
J-1 Front transportation wheel (Right) 1PC
J-2 Front transportation wheel (Left) 1PC
J-3 Screw 3/16″2PC
J-4 Rear stabilizer 1PC
J-5 End cap for rear stabilize 2PCS
J-7 Adjustment cap for rear stabilizer 2PCS
K~K-9 Idler wheel set 1SET
L Pedal post (Left) 1PC
L-1 Screw M5xP0.8x14L 4PCS
L-2 Pedal post (Right) 1PC
M Axle for handlebar post 1PC
M-1 Front cover for front post 1PC
M-2 Rear cover for front post 1PC
M-3 Front cover for handlebar post 1PC
M-4 Rear cover for handlebar post 1PC
M-5 Cover for first-lower handlebar 2PCS
M-6 Cover for first-lower handlebar 2PCS
M-7 Bottle holder 1PC
M-9 Front cover (Left) for pedal post 2PCS
M-10 Rear cover (Right) for pedal post 2PCS
M-11 Pedal (Left) 1PC
M-12,M-13 Left rear cover (upper/down) for pedal post 1PC
M-14 Pedal (Right) 1PC

9
M-15,M-16 Right rear cover (upper/down) for pedal post 1SET
N Adaptor 1PC
N-1 DC Cable 1PC
P~P-20,Q Bolts & nuts pack 1SET

10
ASSEMBLY STEPS
STEP 1
1. Attach the Front Stabilizer (pt.J) to the Main Frame (pt.F) using two M8x55L carriage bolts (pt.P-
14),Flat washer (pt.P-13) and nuts (pt.P-12).
2. Attach the Rear Stabilizer (pt.J-4) to the Main Frame (pt.F) using two M8x55L carriage bolts (pt.P-
14),Flat washer (pt.P-13) and nuts (pt.P-12).
STEP 2
1. Please remove four sets of the M8x16 Allen bolt (pt.F-1) and Semicircle washers (pt.F-3) and
Spring washers (pt.F-2) from the Main Frame (pt.F)
2. Take the Handlebar post (pt.D) and pass it through the Handlebar post cover (pt.F-5).
3. Hold the Handlebar Post (pt.D) and connect the Lower Computer Cable (pt.F-4) and the Upper
Computer Cable (pt. D-1)
4. Slide the Handlebar Post (pt.D) into the Main Frame then fix with four sets of M8x16 Allen bolt
(pt.F-1) and Semicircle washers (pt.F-3) and Spring washers (pt.F-2) from the Main Frame
(pt.F).
M8*16L 8*2T
*4
8*2.4
F-1 F-2
F-3
F-4
D-1
