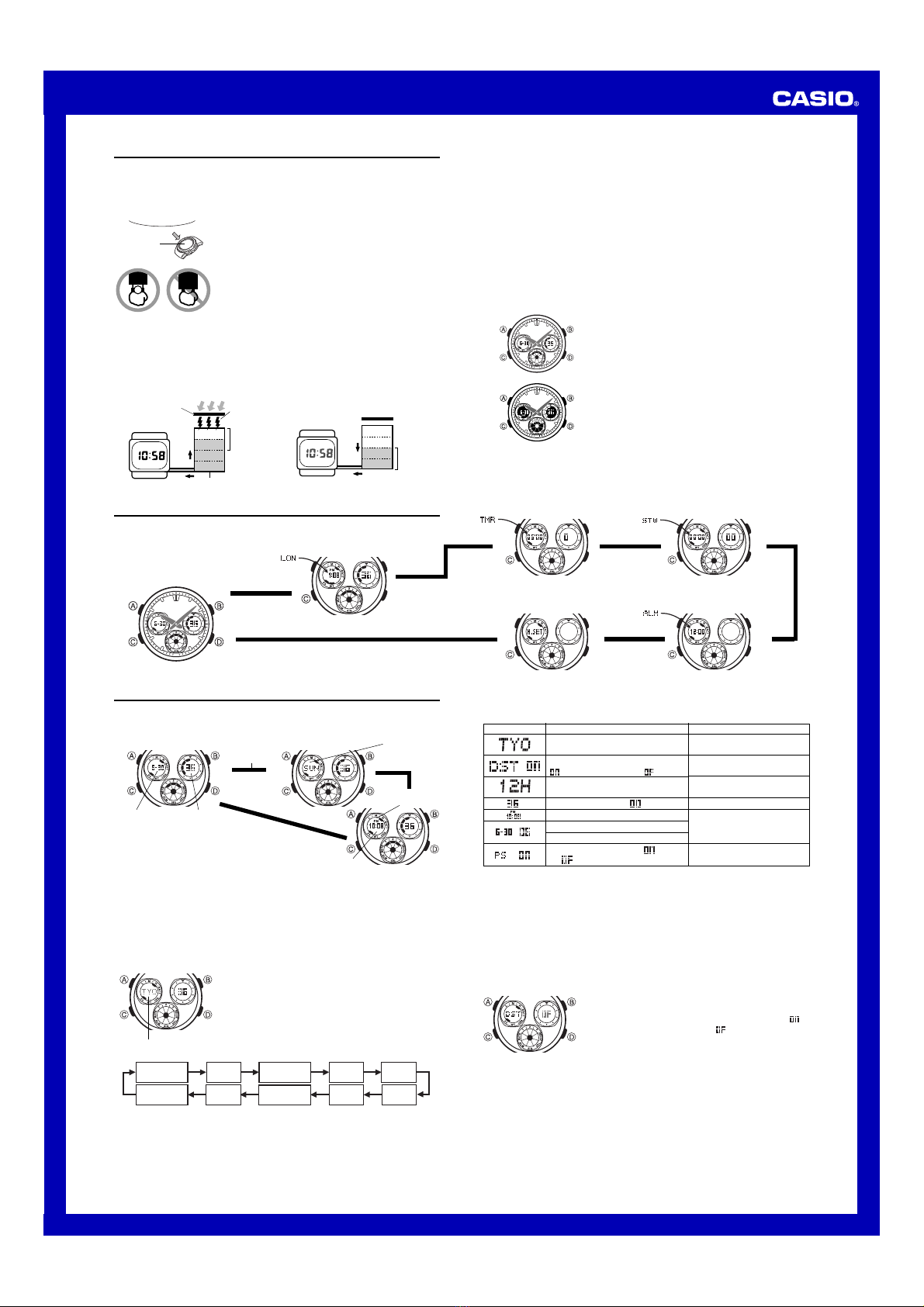

Operation Guide 4362
1
MO0601-EA
Getting Acquainted
Congratulations upon your selection of this CASIO watch. To get the most out of your
purchase, be sure to read this manual carefully.
Keep the watch exposed to bright light
The electricity generated by the solar cell of the watch is
stored by a built-in battery. Leaving or using the watch
where it is not exposed to light causes the battery to run
down. Make sure the watch is exposed to light as much as
possible.
•When you are not wearing the watch on your wrist,
position the face so it is pointed at a source of bright
light.
•You should try to keep the watch outside of your sleeve
as much as possible. Charging is reduced significantly if
the face is only partially covered.
l
l
l
l
l
l
l
l
l
l
l
Bright Light
Solar cell
•The watch continues to operate, even when it is not exposed to light. Leaving the
watch in the dark can cause the battery to run down, which will result in some watch
functions to be disabled. If the battery goes dead, you will have to re-configure watch
settings after recharging. To ensure normal watch operation, be sure to keep it
exposed to light as much as possible.
All
functions
enabled
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
Charge
Rechargeable battery
Bright Light
Electrical
energy
Solar cell
(Converts light to
electrical power.)
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
Some or all
functions
disabled
Dis-
charge
Battery charges in the light. Battery discharges in the dark.
•The actual level at which some functions are disabled depends on the watch model.
•Frequent display illumination can run down the battery quickly and require charging.
The following guidelines give an idea of the charging time required to recover from a
single illumination operation.
Approximately 5 minutes exposure to bright sunlight coming in through a window
Approximately 50 minutes exposure to indoor fluorescent lighting
•Be sure to read “Power Supply” for important information you need to know
when exposing the watch to bright light.
If the display of the watch is blank...
If the display of the watch is blank, it means that the watch’s Power Saving function
has turned off the display to conserve power.
•See “Power Saving Function” for more information.
About This Manual
•Depending on the model of your watch, display text
appears either as dark figures on a light background, or
light figures on a dark background. All sample displays
in this manual are shown using dark figures on a light
background.
•Button operations are indicated using the letters shown
in the illustration.
•Most of the display examples in this manual show only
the digital display, without the analog hands.
•Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the “Reference” section.
▲
▲
▲
Stopwatch ModeCountdown Timer Mode
Alarm Mode
▲
Timekeeping Mode Press C.
▲
▲
World Time Mode
Hand Setting Mode
General Guide
•Press Cto change from mode to mode.
•In any mode (except when a setting screen is on the display), press Bto illuminate
the face of the watch.
Timekeeping
Use the Timekeeping Mode to set and view the current time and date.
•When setting the time, you can also configure settings for the 12/24-hour format.
•All of the operations in this section are performed in the Timekeeping Mode, which
you can enter by pressing C.
▲
Press A.
Hour : Minutes
PM indicator
A
Month – Day Second
Day of week
▲
A
▼
Setting the Digital Time and Date
This watch is preset with a number of city codes, each of which represents the time
zone where that city is located. When setting the digital time, it is important that you
select the correct city code for your Home City (the city where you normally use the
watch). If your location is not included in the preset city codes, select the preset city
code that is in the same time zone as your location.
•Note that all of the times for the World Time Mode city codes are displayed in
accordance with the digital time and date settings you configure in the Timekeeping
Mode.
To set the digital time and date
1. In the Timekeeping Mode, hold down Auntil the city
code starts to flash, which indicates the setting screen.
2. Press Bor Dto select the city code you want.
•Make sure you select your Home City code before
changing any other setting.
•See “City Code Table” for a complete list of available
city codes.
3. Press Cto move the flashing in the sequence shown
below to select other settings.
|
|
|
|
|
|
|
|
|
|
|
|
City code
Seconds Hour
12/24-Hour
Format
Minutes
Year
DST
Day Month
City Code
Power Saving
4. When the setting you want to change is flashing, use Band/or Dto change it as
described below.
Screen: To do this:
Change the city code
Cycle between Daylight Saving Time
(), and Standard Time ( )
Toggle between 12-hour (12H) and
24-hour (24H) timekeeping
Do this:
Use D(east) and B(west).
Press D.
Press D.
Reset the seconds to
Change the hour or minutes
Change the year
Change the month or day
Toggle Power Saving on ( ) and
off ( )
Press D.
Use D(+) and B(–).
Press D.
•For information about settings other than the time and date, see the following.
Power Saving: Power Saving Function
5. Press Ato exit the setting screen.
•When you exit the setting screen, the analog hands are adjusted automatically to
match the digital time. See “Analog Timekeeping”for more information.
•See “Daylight Saving Time (DST)”below for details about the DST setting.
Daylight Saving Time (DST)
Daylight Saving Time (summer time) advances the time setting by one hour from
Standard Time. Remember that not all countries or even local areas use Daylight
Saving Time.
To toggle the Timekeeping Mode digital time between DST and Standard Time
1. In the Timekeeping Mode, hold down Auntil the city
code starts to flash, which indicates the setting screen.
2. Press Conce and the DST setting screen appears.
3. Press Dto toggle between Daylight Saving Time (
displayed) and Standard Time ( displayed).
4. Press Ato exit the setting screen.
•The DST indicator appears on the display to indicate
that Daylight Saving Time is turned on.
|
|
|
|
|
|
|
|
|
|
|
|

Operation Guide 4362
2
Analog Timekeeping
The analog time of this watch is synchronized with the digital time. The analog time
setting is adjusted automatically whenever you change the digital time.
Note
•The hands for the analog timepiece move to adjust to a new setting whenever any of
the following occurs.
When you change the digital time setting
When you change the Home City code and/or DST setting
•If the analog time does not match the digital time for any reason, use the procedure
described under “To adjust the analog time”to match the analog setting to the digital
setting.
•Whenever you need to adjust both the digital and the analog time settings manually,
make sure you adjust the digital setting first.
•Depending on how much the hands have to move in order to adjust to the digital
time, it may take some time before they stop moving.
When you want to do this:
Move the hand setting
forward 20 seconds
Move the hand setting a short
way forward at high speed
Perform this button operation:
•Press D.
•Hold down D.
•Release Dwhen the hands reach the setting
you want.
To adjust the analog time
1. In the Timekeeping Mode, press Cfive times to enter
the Hand Setting Mode.
2. Hold down Auntil the current digital time starts to
flash, which indicates the setting screen.
3. Use Dand Bto adjust the analog setting as
described below.
|
|
|
|
|
|
|
|
|
|
|
|
Move the hand setting a
long way forward at high
speed
•While holding down Dto move the hands at
high speed, press Bto lock the high-speed
hand movement.
•To stop the hand movement, press any
button.
•Hand movement stops automatically if the hour
hand makes one full (12-hour) revolution.
4. Press Ato exit the setting screen.
•The minute hand will be adjusted slightly to match the seconds when you exit the
setting screen.
•To return to the Timekeeping Mode, press C.
World Time
The World Time Mode digitally displays the current time in
48 cities (29 time zones) around the world.
•If the current time shown for a city is wrong, check your
Home City time settings and make the necessary
changes.
•All of the operations in this section are performed in the
World Time Mode, which you enter by pressing C.
City code
Current time in
selected city
To view the time in another city
While in the World Time Mode, press Dto scroll through the city codes (time zones)
to the east.
•For full information on city codes, see the “City Code Table”.
To toggle a city code time between Standard Time and Daylight Saving Time
1. In the World Time Mode, use Dto display the city code
(time zone) whose Standard Time/Daylight Saving Time
setting you want to change.
2. Hold down Ato toggle Daylight Saving Time (DST
indicator displayed) and Standard Time (DST indicator
not displayed).
•Note that you cannot use the World Time Mode to
change the DST setting of the Home City code you
currently have selected in the Timekeeping Mode. See
“To set the digital time and date”for information about
turning the Home City code DST setting on and off.
•The DST indicator will appear on the display whenever
you display a city code for which Daylight Saving Time is
turned on.
•Note that the DST/Standard Time setting affects only the
currently displayed city code. Other city codes are not
affected.
DST indicator
Countdown Timer
You can set the countdown timer within a range of one to
60 minutes. An alarm sounds when the countdown
reaches zero.
•All of the operations in this section are performed in the
Countdown Timer Mode, which you enter by pressing
C.
Minutes
Seconds 1/10 second
To set the countdown start time
1. While the countdown start time is on the display in the Countdown Timer Mode,
hold down Auntil the current countdown start time starts to flash, which indicates
the setting screen.
•If the countdown start time is not displayed, use the procedure under “To use the
countdown timer”to display it.
2. While a setting is flashing, use D(+) and B(–) to change it.
3. Press Ato exit the setting screen.
To use the countdown timer
Press Dwhile in the Countdown Timer Mode to start the countdown timer.
•When the end of the countdown is reached, the alarm sounds for 10 seconds or until
you stop it by pressing any button. The countdown time is automatically reset to its
starting value after the alarm stops.
•Press Dwhile a countdown operation is in progress to pause it. Press Dagain to
resume the countdown.
•To completely stop a countdown operation, first pause it (by pressing D), and then
press A. This returns the countdown time to its starting value.
Stopwatch
The stopwatch lets you measure elapsed time, split times,
and two finishes.
•The display range of the stopwatch is 59 minutes, 59.99
seconds.
•The stopwatch continues to run, restarting from zero
after it reaches its limit, until you stop it.
•Exiting the Stopwatch Mode while a split time is frozen
on the display clears the split time and returns to
elapsed time measurement.
•The stopwatch measurement operation continues even
if you exit the Stopwatch Mode.
•All of the operations in this section are performed in the
Stopwatch Mode, which you enter by pressing C.
1/100 second
Minutes
Seconds
D
Start Stop
Elapsed Time
➤
Re-start Clear
D➤
Stop
D➤D➤A
Split Time
D
Start Split
➤
Split release Clear
A➤
Stop
A➤D➤A
Two Finishes
D
Start Split
➤
Stop Clear
A➤
Split release
D➤A➤A
First runner
finishes.
Display time of
first runner.
Second runner
finishes.
Display time of
second runner.
To measure times with the stopwatch
(displayed)
Alarm
When the alarm is turned on, the alarm sounds when the
alarm time is reached. You can also turn on an Hourly
Time Signal, which will cause the watch to beep twice
every hour on the hour.
•All of the operations in this section are performed in the
Alarm Mode, which you enter by pressing C.
Alarm on indicator
PM indicator
Hourly time signal
on indicator
Alarm time
(Hour : Minutes)
To set the alarm time
1. In the Alarm Mode, hold down Auntil the hour setting of the alarm time starts to
flash, which indicates the setting screen.
•This operation automatically turns on the alarm.
2. Press Cto move the flashing between the hour and minute settings.
3. While a setting is flashing, use D(+) and B(–) to change it.
•When setting the alarm time using the 12-hour format, take care to set the time
correctly as a.m. (no indicator) or p.m. (PM indicator).
4. Press Ato exit the setting screen.
Alarm Operation
The alarm sounds at the preset time for about 10 seconds, regardless of the mode the
watch is in.
•To stop the alarm tone after it starts to sound, press any button.
To test the alarm
In the Alarm Mode, hold down Dto sound the alarm.
To turn the Daily alarm and the Hourly Time Signal on and off
In the Alarm Mode, press Dto cycle through the settings shown below.
•The alarm on indicator and the Hourly Time Signal on indicator are shown on the
display in all modes while these functions are turned on.
Alarm Off
Signal Off
Alarm On
Signal Off
Alarm Off
Signal On
Alarm On
Signal On
Alarm On Indicator / Hourly Time Signal On Indicator

Operation Guide 4362
3
Illumination
An LED (light-emitting diode) and light guide panel
illuminate the digital display for easy reading in the dark.
•See “Illumination Precautions”for other important
information.
To turn on illumination
In any mode (except when a setting is on the display),
press Bto illuminate the display.
Power Supply
This watch is equipped with a solar cell and a special rechargeable battery (secondary
battery) that is charged by the electrical power produced by the solar cell. The
illustration shown below shows how you should position the watch for charging.
Example: Orient the watch so its face
is pointing at a light source.
•The illustration shows how to position
a watch with a resin band.
•Note that charging efficiency drops
when any part of the solar cell is
blocked by clothing, etc.
•You should try to keep the watch
outside of your sleeve as much as
possible. Charging is reduced
significantly if the face is only partially
covered.
Solar cell
Important!
•Storing the watch for long periods in an area where there is no light or wearing it in
such a way that it is blocked from exposure to light can cause rechargeable battery
power to run down. Make sure that the watch is normally exposed to bright light
whenever possible.
•This watch uses a special rechargeable battery to store power produced by the solar
cell, so regular battery replacement is not required. However, after very long use, the
rechargeable battery may lose its ability to achieve a full charge. If you experience
problems getting the special rechargeable battery to charge fully, contact your dealer
or CASIO distributor about having it replaced.
•Never try to remove or replace the watch’s special battery yourself. Use of the wrong
type of battery can damage the watch.
•The current time and all other settings return to their initial factory defaults whenever
battery power drops to Level 5 and when you have the battery replaced.
•Turn on the watch’s Power Saving function and keep it in an area normally exposed
to bright light when storing it for long periods. This helps to keep the rechargeable
battery from going dead.
Battery Power Indicator and Recover Indicator
The battery power indicator shows you the current power level of the rechargeable
battery.
Function Status
All functions enabled.
All functions enabled.
Alarm, hourly time signal,
and illumination disabled.
All functions disabled.
Display disabled and
initialized.
Level
1
2
3
4
5
Battery Power Indicator
Battery power indicator
Recover indicator
(Charge Soon Alert)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(Charge Soon Alert)
•The LOW indicator flashes on the display in the Timekeeping Mode when battery is
at Level 3.
•The LOW indicator at Level 3 and the flashing charge indicator (CHG) at Level 4 tell
you that battery power is very low, and that exposure to bright light for charging is
required as soon as possible.
•At Level 5, all functions are disabled and settings return to their initial factory
defaults. Functions are enabled once again after the rechargeable battery is
charged, but you need to set the time and date, after the battery reaches Level 4
(indicated by the flashing charge indicator) from Level 5. You will not be able to
configure any of the other settings until the battery reaches Level 3 (no charge
indicator) after dropping to Level 5.
•
Leaving the watch in direct sunlight or some other very strong light source can cause the
battery power indicator to show a reading that is momentarily higher than the actual
battery level. The correct battery power indicator should appear after a few minutes.
•If you use the light or alarms a number of times during a short period, the recover
indicator ( ) appears and the following operations become disabled until battery
power recovers.
Illumination
Beeper tone
After some time, battery power will recover and the recover indicator will disappear,
indicating that the above functions are enabled again.
Charging Precautions
Certain charging conditions can cause the watch to become very hot. Avoid leaving
the watch in the areas described below whenever charging its rechargeable battery.
Also note that allowing the watch to become very hot can cause its liquid crystal
display to black out. The appearance of the LCD should become normal again when
the watch returns to a lower temperature.
Warning!
Leaving the watch in bright light to charge its rechargeable battery can cause it
to become quite hot. Take care when handling the watch to avoid burn injury.
The watch can become particularly hot when exposed to the following
conditions for long periods.
•On the dashboard of a car parked in direct sunlight
•Too close to an incandescent lamp
•Under direct sunlight
Exposure Level (Brightness)
Outdoor Sunlight (50,000 lux)
Sunlight Through a Window (10,000 lux)
Daylight Through a Window on a Cloudy Day
(5,000 lux)
Indoor Fluorescent Lighting (500 lux)
Approximate Exposure Time
6 minutes
22 minutes
36 minutes
6 hours
•Since these are the specs, we can include all the technical details.
•Display on 18 hours per day, sleep state 6 hours per day
•1 illumination operation (1.5 seconds) per day
•10 seconds of alarm operation per day
•16 minutes of signal reception per day
•Stable operation is promoted by frequent exposure to light.
Charging Guide
After a full charge, timekeeping remains enabled for up to about 8 months.
•The following table shows the amount of time the watch needs to be exposed to light
each day in order to generate enough power for normal daily operations.
–––
Recovery Times
The table below shows the amount exposure that is required to take the battery from
one level to the next.
•The above exposure time values are all for reference only. Actual required exposure
times depend on lighting conditions.
5 hours
18 hours
29 hours
Exposure Level
(Brightness)
Outdoor Sunlight
(50,000 lux)
Sunlight Through a Window
(10,000 lux)
Daylight Through a Window
on a Cloudy Day (5,000 lux)
Indoor Fluorescent Lighting
(500 lux)
Approximate Exposure Time
Level 5 Level 4 Level 3 Level 2 Level 1
2 hours
6 hours
9 hours
97 hours
21 hours
79 hours
127 hours
▲ ▲ ▲ ▲ ▲
Reference
This section contains more detailed and technical information about watch operation.
It also contains important precautions and notes about the various features and
functions of this watch.
Power Saving Function
When turned on, the Power Saving function enters a sleep
state automatically whenever the watch is left in an area
where it is dark for a certain period. The table below
shows how watch functions are affected by the Power
Saving function.
Power saving
indicator
•Wearing the watch inside the sleeve of clothing can cause it to enter the sleep state.
•The watch will not enter the sleep state between 6:00 AM and 9:59 PM. If the watch
is already in the sleep state when 6:00 AM arrives, however, it will remain in the
sleep state.
To recover from the sleep state
Perform any one of the following operations.
•Move the watch to a well-lit area.
•Press any button.
Elapsed Time
in Dark
60 to 70 minutes
6 or 7 days
Display
Blank, with Power saving
indicator ( ) flashing
Blank, with Power saving
indicator ( ) not flashing
Operation
All functions enabled, except
for the display
Beeper tone, illumination, and
display are disabled.
To turn Power Saving on and off
1. In the Timekeeping Mode, hold down Auntil the city
code starts to flash, which indicates the setting screen.
2. Press Cnine times until the Power Saving on/off
screen appears.
3. Press Dto toggle Power Saving on ( ) and off ( ).
4. Press Ato exit the setting screen.
•The Power Saving indicator ( ) is on the display in all
modes while Power Saving is turned on.
Button Operation Tone
In any mode (except when a setting screen is on the display), hold down Cfor about
three seconds to toggle the button operation tone on and off. The button operation
tone off indicator ( ) is displayed while the tone is turned off.
•Even if the button operation tone is turned off, the daily alarm and countdown timer
alarm continue to sound when required.
|
|
|
|
|
|
|
|
|
|
|
|
On/Off status
Auto Return Features
•If you leave the watch in the Alarm or Hand Setting Mode for two or three minutes
without performing any operation, it automatically returns to the Timekeeping Mode.
•If you leave the watch with a flashing setting on the display for two or three minutes
without performing any operation, the watch automatically exits the setting screen.
Scrolling
The Band Dbuttons are used in various modes and setting screens to scroll
through data on the display. In most cases, holding down these buttons during a scroll
operation scrolls through the data at high speed.

Operation Guide 4362
4
Initial Screens
When you enter the World Time Mode, the data you were viewing when you last exited
the mode appears first.
Timekeeping
•Resetting the seconds to 00 while the current count is in the range of 30 to 59
causes the minutes to be increased by 1. In the range of 00 to 29, the seconds are
reset to 00 without changing the minutes.
•The day of the week is automatically displayed in accordance with the date (year,
month, and day) settings.
•The year can be set in the range of 2000 to 2099.
•The watch’s built-in full automatic calendar makes allowances for different month
lengths and leap years. Once you set the date, there should be no reason to change
it except after you have the watch’s battery replaced or when battery power drops to
Level 5.
•The current time for all city codes in the Timekeeping Mode and World Time Mode is
calculated in accordance with the Greenwich Mean Time (GMT) differential for each
city, based on your Home City time setting.
•The times for the Timekeeping Mode and all the city codes of the World Time Mode
are calculated in accordance with each city’s UTC differential.
•The UTC differential is a value that indicates the time difference between a
reference point in Greenwich, England and the time zone where a city is located.
•The letters “UTC”is the abbreviation for “Universal Time Coordinated”, which is the
world-wide scientific standard of timekeeping. It is based upon carefully maintained
atomic (cesium) clocks that keep time accurately to within microseconds. Leap
seconds are added or subtracted as necessary to keep UTC in sync with the Earth’s
rotation.
12-hour/24-hour Timekeeping Formats
The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is also
applied in all other modes.
•With the 12-hour format, the PM indicator (PM) appears on the display for times in
the range of noon to 11:59 p.m. and no indicator appears for times in the range of
midnight to 11:59 a.m.
•With the 24-hour format, times are displayed in the range of 0:00 to 23:59, without
any indicator.
Illumination Precautions
•Illumination may be hard to see when viewed under direct sunlight.
•Illumination automatically turns off whenever an alarm sounds.
•Frequent use of illumination runs down the battery.
Pago Pago
Honolulu
Anchorage
Vancouver
Los Angeles
Edmonton
Denver
Mexico City
Winnipeg
Chicago
Miami
Toronto
New York
Caracas
Halifax
St. Johns
Rio De Janeiro
Praia
City City GMT Other major cities in same time zone
Code Differential
City Code Table
PPG
HNL
ANC
YVR
LAX
YEA
DEN
MEX
YWG
CHI
MIA
YTO
NYC
CCS
YHZ
YYT
RIO
RAI
–11.0
–10.0
–09.0
–08.0
–07.0
–06.0
–05.0
–04.0
–03.5
–03.0
–01.0
Papeete
Nome
San Francisco, Las Vegas,
Seattle/Tacoma, Dawson City
El Paso
Houston, Dallas/Fort Worth, New Orleans
Montreal, Detroit, Boston,
Panama City, Havana, Lima, Bogota
La Paz, Santiago, Port Of Spain
Sao Paulo, Buenos Aires, Brasilia, Montevideo
Lisbon
London
Barcelona
Madrid
Par is
Milan
Rome
Berlin
Stockholm
Athens
Cairo
Jerusalem
Moscow
Jeddah
Tehran
Dubai
Kabul
Karachi
Delhi
+00.0
+01.0
+02.0
+03.0
+03.5
+04.0
+04.5
+05.0
+05.5
Dublin, Casablanca, Dakar, Abidjan
Amsterdam, Algiers, Hamburg, Frankfurt, Vienna
Helsinki, Istanbul, Beirut, Damascus,
Cape Town
Kuwait, Riyadh, Aden, Addis Ababa, Nairobi
Shiraz
Abu Dhabi, Muscat
Male
Mumbai, Kolkata
LIS
LON
BCN
MAD
PA R
MIL
ROM
BER
STO
AT H
CAI
JRS
MOW
JED
THR
DXB
KBL
KHI
DEL
Dhaka
Yangon
Bangkok
Hong Kong
Seoul
Tokyo
Adelaide
Guam
Sydney
Noumea
Wellington
+06.0
+06.5
+07.0
+08.0
+09.0
+09.5
+10.0
+11.0
+12.0
Colombo
Jakarta, Phnom Penh, Hanoi, Vientiane
Singapore, Kuala Lumpur, Beijing, Taipei, Manila, Perth,
Ulaanbaatar
Pyongyang
Darwin
Melbourne, Rabaul
Port Vila
Christchurch, Nadi, Nauru Island
DAC
RGN
BKK
HKG
SEL
TYO
ADL
GUM
SYD
NOU
WLG
•Based on data as of June 2005.
