Catler ES 8011 SE User manual

ES 8011 SE
ESPRESSO MACHINE
Instructions for use
ESPRESSO

ESPRESSO
MACHINE

CONTENT 3
CONTENT
4 Congratulations
5 Catler recommends safety rst
10 Know your espresso machine ES 8011 SE
14 Operating your espresso machine ES 8011 SE
22 Coee making tips
27 Care & Cleaning
33 Trouble shooting guide
38 Coees to try

CONGRATULATIONS
Congratulations
on the purchase of your new espresso machine ES 8011 SE.
4

5
CATLER RECOMMENDS SAFETY FIRST
CATLER RECOMMENDS SAFETY FIRST
At Catler we are very safety conscious. We design and manufacture
consumer products with the safety of you, our valued customer, foremost
in mind. In addition we ask that you exercise a degree of care when using
any electrical appliance and adhere to the following precautions.
IMPORTANT SAFEGUARDS FOR YOUR ESPRESSO MACHINE
ES 8011 SE
 Carefully read all instructions
before operating and save for
future reference.
 Remove any packaging
material and promotional
labels or stickers before using
the espresso machine for the
rst time.
 To eliminate a choking
hazard for young children,
remove and safely discard the
protective cover tted to the
power plug of this appliance.
 Do not place the espresso
machine near the edge of
a bench or table during
operation. Ensure the surface
is level, clean and free of water
and other substances.
 Do not place the espresso
machine on or near a hot gas
or electric burner, or where it
could touch a heated oven.
 Do not use the espresso
machine on a metal surface,
e.g. sink drain board.
 Always ensure the espresso
machine is properly assembled
before connecting to power
outlet and operating.
 WARNING: The espresso
machine is not intended to
be operated by means of an
external timer or separate
remote control system.
 Use only the accessories
provided with the espresso
machine.
 Use only cold tap water in
the water tank. Do not use
any other liquid. We do not
recommend the use of highly
ltered, de-mineralised or
distilled water as this may
aect the taste of the coee
and how the espresso machine
is designed to function.

6CATLER RECOMMENDS SAFETY FIRST
 Never use the espresso
machine without water in the
water tank.
 Ensure the lter holder is rmly
inserted and secured into the
brewing head before using the
machine.
 Never remove the lter holder
during the brewing operation
as the machine is under
pressure.
 Do not leave the espresso
machine unattended when in
use.
 Do not touch hot surfaces.
Allow the espresso machine to
cool down before moving or
cleaning any parts.
 Do not place anything, other
than cups for warming, on top
of the espresso machine.
 Always switch o the espresso
machine by pressing the
POWER button‘O ’, switch
o at the power outlet and
unplug if appliance is to be
left unattended, if not in
use, before cleaning, before
attempting to move the
appliance, disassembling,
assembling and when storing
the appliance.
 Keep the espresso machine
and accessories clean. Follow
the cleaning instructions
provided in this book. Follow
the instructions provided
in this book. Any procedure
not listed in this instruction
booklet should be performed
at an authorised Service
Centre.
 Keep away from hot gas or
electric burner, or where it
could touch a heated oven.
 Use caution when using the
de-scale feature as hot steam
may be released. Before de-
scaling, ensure drip tray is
inserted. Read the instructions
further in this book.

7
CATLER RECOMMENDS SAFETY FIRST
 This appliance can be used
by children aged from
8 years and above if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved. Cleaning and user
maintenance shall not be
made by children unless they
are aged from 8 years and
above and supervised.
 This appliance is for household
use only.
 Unwind the cord before use.
 To protect against electric
shock, do not immerse cord,
plug or appliance in water or
any other liquid.
 Do not let the cord hang over
the edge of a bench or table,
touch hot surfaces, or become
knotted.
 This appliance is not intended
for use by persons [including
children] with reduce physical
sensory or mental capabilities,
or lack of experience and
knowledge unless they are
supervised or have been given
instruction concerning use
of the appliance by a person
responsible for their safety.
 Children should be supervised
to ensure they do not play with
the appliance.
 It is recommended to inspect
the appliance regularly. Do
not use the appliance if power
supply cord, plug or appliance
becomes damaged in anyway.
Return the entire appliance to
the nearest authorized service
center for examination and/or
repair.
 Any maintenance other than
cleaning should be performed
at an authorized service center.
 Do not use this appliance
for anything other than its
intended use. Do not use in
moving vehicles or boats.
Do not use outdoors.
IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

8
 The installation of a residual
current device (safety switch)
is recommended to provide
additional safety protection
when using electrical
appliances. It is advisable that
a safety switch with a rated
residual operating current not
exceeding 30mA be installed in
the electrical circuit supplying
the appliance. See your
electrician for professional
advice.
 For the security reasons, we
recommend to plug the Catler
Espresso Machine directly to
its own circuit, separate from
other appliances. It is not
recommended using hub or
extension cord.
CATLER RECOMMENDS SAFETY FIRST

9
CATLER RECOMMENDS SAFETY FIRST
WARNING:
ONLY FOR HOUSEHOLD USE.
DO NOT IMMERSE IN ANY LIQUID.
WARNING:
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.
DO NOT OPERATE THE APPLIANCE ON AN INCLINED
SURFACE.
DO NOT MOVE THE APPLIANCE WHILE IT IS SWITCHED ON.
THE POWER PLUG WHEN PLUGGED MUST REMAIN
ACCESSIBLE FOR EASY REMOVING.
KEEP THE MANUAL ON A SAFE PLACE.
WARNING:
BURN HAZARD
PRESSURISED STEAM
Children must always be supervised!

10 CATLER RECOMMENDS SAFETY FIRSTASSEMBLING YOUR FOOD PROCESSOR FP 8010
Know your espresso
machine ES 8011 SE

11
FEATURES OF ESPRESSO MACHINE ES 8011 SE
FEATURES OF ESPRESSO MACHINE ES 8011 SE
PID Temperature Control
Electronic PID temperature control for
increased temperature stability.
Auto Purge
Automatically adjusts water temperature
after steam for optimal coee temperature.
Thermocoil Heating System
Integrated stainless steel water coil
accurately controls water temperature.
Commercial Style Steam Wand
360˚ swivel action for eortless milk
texturing.
Instant hot water outlet
Dedicated hot water outlet for making long
blacks & pre-heating cups.
Low Pressure Pre-infusion
Applies low pressure at the start of the
extraction to gently expand grinds for an
even extraction.
Espresso pressure gauge
Indicates the water pressure delivered to the
portalter during extraction.
Volumetric Control
Programmed 1 & 2 cup shot volumes with
manual over-ride.
Dry Puck Feature
Removes excess water from the ground
coee in the lter basket after extraction for
easy disposal of the coee puck.

12 KNOW YOUR ESPRESSO MACHINE ES 8011 SE
KNOW YOUR ESPRESSO MACHINE ES 8011 SE
A
B
C
D
E
F
P O M N L
K
J
I
H
G

13
KNOW YOUR ESPRESSO MACHINE ES 8011 SE

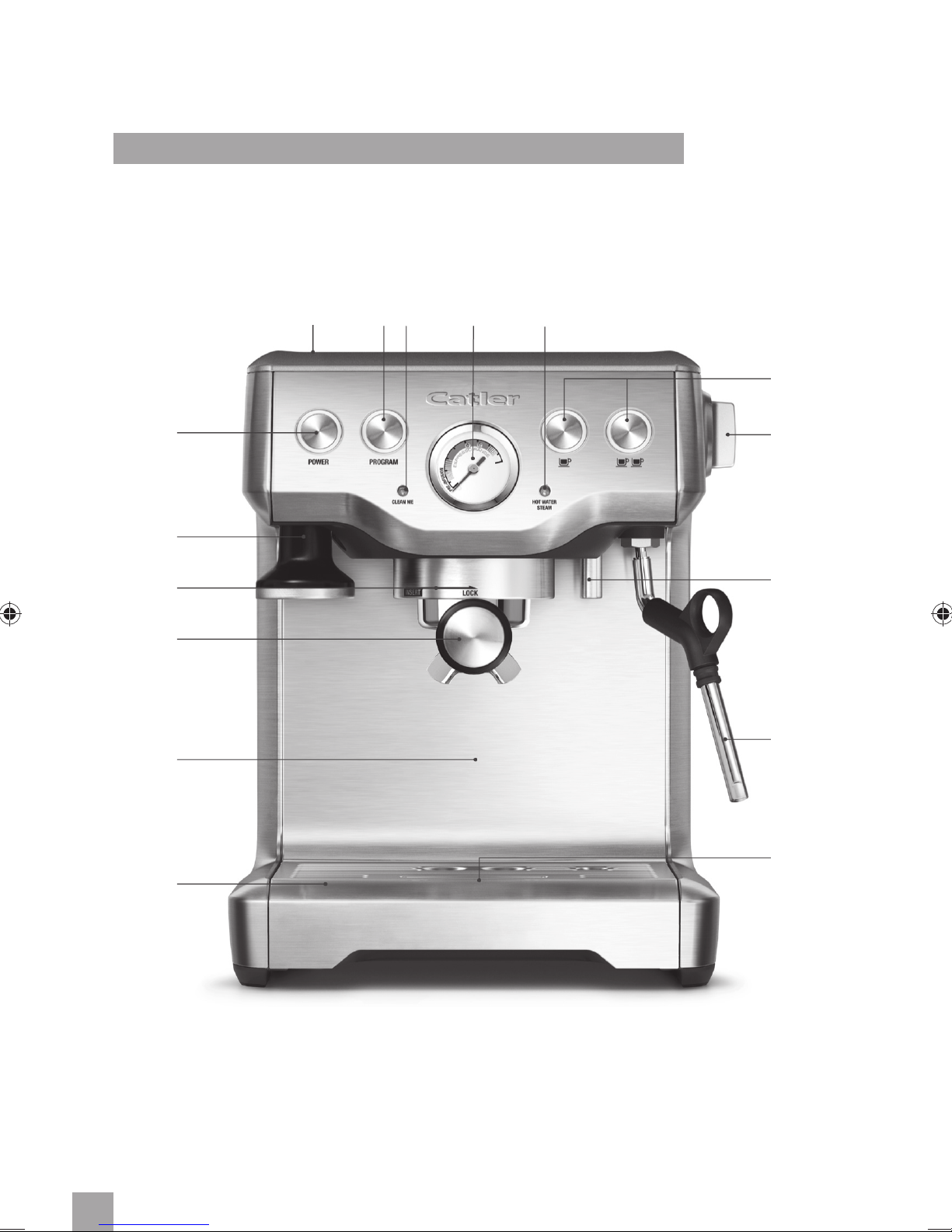

A. Power button surround illuminates
when machine is switched on.
B. Integrated removable tamper for
tamping control.
C. Group head for easy positioning of the
portalter.
D. 54mm stainless steel portalter with
commercial style spouts.
E. Extra-tall cup height for coee mugs
F. Removable drip tray
G. Drip tray full indicator
H. 360° swivel action steam wand easily
adjusts to perfect position for texturing.
I. Dedicated hot water outlet
J. Steam/Hot Water selector control for
steam and hot water
K. Programmable 1 CUP and 2 CUP
button
L. Steam/Hot Water light illuminates
to indicate that the steam/hot water
function is selected.
M. CLEAN ME light indicates when
a cleaning cycle is required.
N. Espresso pressure gauge monitors
espresso extraction pressure.
O. Program button programmable function
that can be personalised with your
favourite espresso volume.
P. Cup warming tray
NOT SHOWN
• Removable 1.8 litre water tank lled
from the top with integrated water
ltration.
• Storage tray located behind the drip tray
for storage of accessories.
CUSTOM DESIGNED ACCESSORIES
• Razor Precision Dose Trimming Tool
• Single wall lter baskets for freshly
ground coee.
• Advanced dual wall lter baskets for
pre-ground coee.
• Stainless steel jug
• Measuring spoon
CLEANING ACCESSORIES
• Cleaning tool
• Cleaning cycle disc
• Allen key

14
Operating your
espresso machine
ES 8011 SE

15
OPERATING YOUR ESPRESSO MACHINE ES 8011 SE
OPERATING YOUR ESPRESSO MACHINE ES 8011 SE
BEFORE FIRST USE
Machine Preparation
Remove and discard all labeling and
packaging materials attached to your
espresso machine. Ensure you have removed
all parts and accessories before discarding
the packaging.
Clean parts and accessories (water tank,
portalter, lter baskets and jug) using warm
water and a gentle dish washing liquid
and rinse well. Wipe the outer housing and
drip tray with a soft damp cloth and dry
thoroughly.
Do not immerse the outer housing, power
cord or power plug in water or any other
liquid.
The water lter located inside the water tank
will need to be removed before washing the
water tank.
Conditioning the Water Filter
• Remove lter from the plastic bag and
soak in a cup of water for 5 minutes.
• Rinse lter under cold running water.
• Wash the stainless steel mesh in the
plastic lter compartment with cold
water.
• Insert the lter into the lter holder.
• Set the dial date 2 months ahead.
• To install lter, push down to lock into
place.
• Slide the water tank into position and
lock into place.
NOTE:
To purchase the water lter contact
your dealer.
FIRST USE
Initial start up
• Fill tank with water
• Press POWER on
• A pumping sound will be heard.
The machine will reach operating
temperature and go into Standby mode.
Duritn the heating the POWER button will
ash. Once all buttons are illuminated,
the coee machine is ready to use.
NOTE:
If the POWER button ashes for
example during the extraction, it is
a normal behaviour. The system is
heated up.
Flushing the Machine
It is recommended to complete a water
ushing operation, without ground coee, to
ensure the machine has been conditioned.
When the machine has reached STANDBY
mode, run the following 2 steps.
• Press the 2 CUP button to run hot water
through the group head for 30 seconds.
• Activate hot water for 10 seconds.
• Repeat this cycle until the water tank
is empty
NOTE:
Do not clean any of the parts or
accessories in the dishwasher.

16 OPERATING YOUR ESPRESSO MACHINE ES 8011 SE
FILLING THE WATER TANK
• • Ensure the water lter is securely tted
inside the tank.
• Fill the water tank with cold tap water to
the maximum mark on the side of the
tank and slide the water tank back into
position at the back of the machine.
• Plug the power cord into power outlet
and switch On at power point.
• Press the POWER button to On. The
POWER button surround will ash while
the machine is heating. When the correct
temperature has been reached, all the
button surrounds on the control panel
will illuminate.
NOTE:
Check the water level before use and
replace the water daily. The water
tank should be lled with fresh, cold
tap water before each use. Do not use
mineral or distilled water or any other
liquid.
TAMPING THE GROUND COFFEE
Place an adequate amount of coee into
the basket, tap down to collapse and using
the integrated tamper, tamp down rmly
(approx. 15–20 kg of pressure).
TRIMMING THE DOSE
The Razor™ precision dose trimming tool
allows you to trim the puck to the right level
for a consistent extraction.
Insert the Razor™ into the coee basket until
the shoulders of the tool rest on the rim of
the lter basket. The blade of the dosing tool
should penetrate the surface of the tamped
coee.
Rotate the Razor™ dosing tool back and forth
while holding the portalter on an angle over
the knock box to trim o excess coee.
Your coee lter basket is now dosed with
the correct amount of coee.
NOTE:
When using a ner espresso grind for
the Single Wall Filter basket, you will
need to increase the grind amount to
ensure the lter is correctly dosed.

17
OPERATING YOUR ESPRESSO MACHINE ES 8011 SE
PREPROGRAMMED SHOT VOLUME
 1 CUP
Press the 1 CUP once. A preset volume of
approximately 30mls will be extracted. The
machine will automatically stop once the
preset volume has been extracted.
NOTE:
The amount of espresso extracted in
the cup will vary depending on your
grind size and dose amount.
PREPROGRAMMED SHOT VOLUME
 2 CUPS
Press the 2 CUP button once. A preset
volume of approx. 60mls will be extracted.
The machine will automatically stop once the
preset volume has been extracted.
NOTE:
Pressing the 1 CUP or 2 CUP buttons
during a programmed espresso will
immediately stop the extraction.
PROGRAMMING SINGLE ESPRESSO
1. To begin programming, press the
PROGRAM button once. The machine will
beep once and the program button will
begin to ash. This indicates the machine
is in programming mode.
2. Press 1 CUP button to start espresso
extraction. Press 1 CUP again once
desired volume of espresso has been
extracted. The machine will beep twice
to indicate the new 1 CUP volume has
been set.
PROGRAMMING DOUBLE ESPRESSO
1. To begin programming, press the
PROGRAM button once. The machine will
beep once and the program button will
begin to ash. This indicates the machine
is in programming mode.
2. Press 2 CUP button to start espresso
extraction. Press 2 CUP again once
desired volume of espresso has been
extracted. The machine will beep twice to
indicate the new 2 CUP volume has been
set.

18 OPERATING YOUR ESPRESSO MACHINE ES 8011 SE
ADVANCED TEMPERATURE SETTING
The water temperature can be increased or
decreased by 1°C or 2°C if desired.
Coee of dierent origins or roast proles
may need a dierent espresso brew water
temperature to optimise their avour. If your
espresso is tasting slightly“ashy” decrease
the brew water temperature by 1°C. If your
espresso is tasting slightly“sour” increase
your brew water temperature by 1°C.
To amend temperature settings:
• With the machine OFF, press and hold the
1 cup button and then simultaneously
press and hold the POWER button. It is
necessary to press the 1 cup button rst.
• A beep will sound to indicate that
the temperature settings can now be
changed.
• The LED of the last saved setting will be
illuminated. See table on left.
• Pressing the 2 cup button to allows you
to toggle between the dierent settings.
• Please note that if the 2 cup button is not
pressed within 10 seconds, the machine
will return to STANDBY mode and the
above steps will have to be repeated
• After you have made a selection, 2 beeps
will sound to indicate that your setting
has been saved.
• The machine will then return to STANDBY
mode.
Indicator Description
Default temperature
-2°C
+2°C
Setting
-1°C
+1°C
RESETTING DEFAULT VOLUMES
To reset the machine to the default 1 CUP
and 2 CUP shot volumes, press and hold the
PROGRAM button until the machine beeps
three times. Release the PROGRAM button.
The machine will return to its original default
setting.
NOTE:
Default settings: 1 CUP shot volume is
approx. 30ml. 2 CUP is approx. 60ml.

19
OPERATING YOUR ESPRESSO MACHINE ES 8011 SE
MANUAL SHOT VOLUME
Manually control low pressure
pre-infusion time and shot volume without
re-programming the pre-set shot volume.
• Press and hold the 1 CUP or 2 CUP
button. The extraction will enter low
pressure pre-infusion until the button
is released
• When the 1 CUP or 2 CUP button is
released, extraction will continue at full
pressure.
• Press the 1 CUP or 2 CUP button again
once the desired volume of espresso has
been extracted
OR
NOTE:
For optimal avour when using
a 1 CUP lter, you should extract
approx. 30ml. When using a 2 cup
lter, you should extract approx. 60ml.
WARNING:
The metal parts of the portalter will
be very hot.
ESPRESSO PRESSURE GAUGE  LOW
PRESSURE PREINFUSION
The gauge needle will be positioned in
the pre-infusion zone at the start of the
extraction indicating the machine is in low
pressure pre-infusion mode. The low pressure
pre-infusion gradually increases water
pressure to gently expand grinds for an even
extraction before increasing to full pressure.
IDEAL ESPRESSO ZONE
During extraction, the gauge needle when
positioned in the middle zone, indicates
the espresso will be extracted at the ideal
pressure.

20 OPERATING YOUR ESPRESSO MACHINE ES 8011 SE
UNDER EXTRACTED ZONE
During extraction, the gauge needle when
positioned in the lower zone, indicates the
espresso has been extracted with insucient
pressure.
This occurs when the water ow through the
ground coee is too fast and results in an
under extracted espresso that is watery and
lacks crema and avour.
Causes for under extraction include the grind
being too coarse and/or insucient coee in
lter and/or under tamping.
OVER EXTRACTED ZONE
The gauge needle, when positioned in the
upper zone during extraction, indicates the
espresso has been extracted with too much
pressure.
This occurs when the water ow through the
ground coee is too slow and results in an
over extracted espresso that is very dark and
bitter with a mottled and uneven crema.
Causes for over extraction include the grind
being too ne and/or too much ground
coee in lter and/or over tamping
TEXTURING MILK
The coee maker Catler ES 8011 SE comes
with a commercial style steam wand.
• Turn the STEAM/HOT WATER selector
dial to the steam position. The STEAM/
HOT WATER light will ash to indicate the
machine is heating to create steam.
• When the STEAM/HOT WATER light stops
ashing the steam wand is ready for use.
• Before inserting the steam wand into the
milk, pause the steam by returning the
dial back to the I position. This will avoid
the milk splashing out of the jug (this
pause function lasts for 6 seconds before
exiting steam mode).
• Insert the wand into the milk and return
the dial back to the position to
texture milk.
• To stop the steam return the Steam dial
to the I position and remove the jug.
NOTE:
When the espresso machine creates
steam, a pumping noise can be heard.
This is the normal operation of the
15 bar Italian pump.
