CATLINK SCOOPER User Manual2.0
for AI Litter Box-PRO
Link every thing for cat’s life.

【Unpacking operation】
【Packing list】
【Product structure & Function differences】
【Working mode & Protection Mechanism】
【Control panel&Mode Description&Button Operation】
【Indicator conditions】
【Wi-Fi Connection】
【Cat litter Replacement】
【Product Cleaning and Attentions】
【Exception Dealing】
【Product Specifications】
【Catlink Features】
【Afer-sale Service】
1
3
4
5
8
11
12
15
16
18
20
20
23
【Contents】

【 Unpacking operation】
Check whether the items are complete according to the 【Product List】(Page 3).
Place the product properly according to the【Product structure】（Page 4）.
Insert the power adapter into the power port at the back of the product.
-------------------------------------------------------------------------------------------please refer to picture 3.1
Check whether the waste bag is properly inserted, and properly push the waste bin back to its
original position.---------------------------------------------------------------------please refer to picture 4.1
Use environment check:
1）Make sure that the device is placed on a flat and solid ground with no other object at the
bottom-----------------------------------------------------------------------------please refer to picture 5.1
2）Make sure that the device is not dependent on any object around, and there is no other
objects are placed on the top.-----------------------------------------------please refer to picture 5.2
【Picture 3.1】 【Picture 4.1】
1
2
3
4
5
p1
3）Make sure that the device is close to the Wi-Fi signal and far away from electrical appliances
with strong interference..-----------------------------------------------------please refer to picture 5.3

1）Make sure that the device is placed on a flat and solid ground with no other object at the
bottom-----------------------------------------------------------------------------please refer to picture 5.1
2）Make sure that the device is not dependent on any object around, and there is no other
objects are placed on the top.-----------------------------------------------please refer to picture 5.2
When the power is turned on, the device will automatically turn on and wait for the device to
complete the self-check (the ball cabin will reset and stop after turning counterclockwise and
clockwise each half a turn).
【Picture 5.1】 【Picture 5.2】 【Picture 5.3】
6
p2
3）Make sure that the device is close to the Wi-Fi signal and far away from electrical appliances
with strong interference..-----------------------------------------------------please refer to picture 5.3

【Packing list】
Download the CATLINK APP and refer to
【Wi-Fi Connection】(Page12 ) for network
connection.
Add enough cat litter to the ball cabin,
paying attention to be below the Max line.
The litter box can be used normally when the above steps are completed.
Note: Pro version is suitable for bentonite cat litter, mixed cat litter (bentonite & tofu
litter)Standard/Luxury/Young version is suitable for bentonite cat litter only.
One Power
Adapter *1
One Roll
of Garbage Bags *1
Activated carbon filter cotton
The filter cotton has been placed in the waste box.
Catlink recommends taking it out and shining it once
a month and replacing it every two months
Start Instructions *1
(Service Card included)
One CATLINK
AI litter Box*1
7
8
9
p3

【Product structure】
Cover
Ball Cabin
Base
Waste Box
1
2
3
4
p4

【Function differences】
The ambient light sensor above the panel can enable or disable the ambient light
based on the ambient light
You can set the function on your CATLINK
The ambient light on the lid helps cats find the device in a dark room and prevent
people from bumping into the device in the dark.
1.
2.
3.
Ambient light
Temperature and humidity sensing
Cat litter volume monitoring
Protection from weighing sensors
Anti-pinch protection
Radar protection
UV sterilization
StandardFunction Luxury Standard
Pro
Luxury
pro
Note:
The ambient light needs to be turned on CATLINK APPafter the connection to the network
×
×
×
✓
✓
×
×
✓
✓
✓
✓
✓
×
×
×
×
×
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
p5

【Working mode】
p6
Mode Icon of App
&Control panel Operation method Notifications
Auto mode
Manual Mode
Timer Mode
Empty Mode
"In this mode, if the device detects
a cat's entering and leaving, it will
automatically cleanthe ball cabin
once after the safe time has
passed."
In this mode, you can start or
pause the filter cat litter by manual
In this mode, you can set a time
to start cleaning automatically
(Wi-Fi connection only)
In this mode, you can press the
Start/Pause button to empty the
cat litter
Operation through APP
&Control panel button

【Protection Method】
【Note】The larger the number, the higher the priority level
Protective
function
Priority
level Notifications
Radar protection
*Only supported
by Pro version
Protection
from weighing
Anti-pinch
protection
Anti-blocking
protection
1st
2ed
3rd
4th
The radar protection will be activated when a moving object enters
the ball cabin, and the ball cabin will stop rotating; The ball cabin will
rotation again when the object is confirmed to leave.
The ball cabin will stop rotating when an object larger than 1.5kg
enters the ball cabin and the gravity protection is activated;The ball
cabin will rotation again when the object is confirmed to leave.
When the ball cabin's litter outlet is facing downwards and the anti-pinch
device is started during rotation, the ball cabin will release the maximum
litter outlet space and stop running. This protection can only be lifted
after human intervention.
The ball cabin will stop rotating when the motor resistance suddenly
increases during the rotation of the ball cabin. This protection can only be
cancelled with human intervention.
p7

Mode button
The mode will be switched in order from Cat, Manual, Timer, Empty in a cyclicThe mode will
be switched in order from Cat, Manual, Timer, Empty in a cyclic manner each time you press
the button.
Note: The timer mode only works with Wi-Fi connection
1
2.Start/Pause button
Press the button to start or stop the operation.
Note: This button only works in the Manual mode and the Empty mode
2
【Control panel】
【Button Functions】
Error
indicator Wi-Fi indicator Child safety lock indicator
Auto mode
indicator Timer Mode indicator Start/Pause button
Manual Mode
indicator Empty Mode indicator Mode button
p8

Panel locking button
Press and hold the Mode button and the Start/Pause button for three seconds. Release the
buttons when you hear a beep. If the Panel lock indicator is on, the panel locking is
successfully enabled. If you want to disable the panel locking, repeat the above-men-
tioned operations. If the Panel lock indicator is off, the panel locking is successfully
disabled.
Note: This key can also be turned on or off on CATLINK APP
3
Wi-Fi connection button
Press and hold the Mode button and the Start/Pause button. Release the button when you
hear the second beeping sound. If the Wi-Fi connection indicator blinks, the device is
ready for network configuration.
Note: This function only works when there is no Wi-Fi connection.
3
p9

【Indicator conditions】
Indicator Lighting
conditions Notifications
Constantly on
Constantly on
Constantly on
Constantly on
Auto mode indicator
Manual Mode indicator
Timer Mode indicator
Empty Mode indicator
The device is in the Auto mode. the device is
available for cat to use and will sense the cat's
entering and leaving and operate automatically.
The device is in the Manual mode. The device is
available for a cat to use and needs to be
manually operated.
The device is in the Timer mode. The device is
available for a cat to use and will operated
automatically at the set time.
The device is in the Empty mode. The device is
operating and not available for a cat to use until
the emptying is complete.
Constantly on
Fast flashing
Slow flashing
During weighing, the device is suspended
During radar protection, the device is suspended
Full waste box
Error indicator
p10
After the machine is powered on, certain lights on the control panel will always be on. If
all lights are off, contact professional after-sales personnel for detection and treatment.

【Indicator conditions】
p11
Indicator Lighting
conditions Notifications
Note: Cat Sensor
1. It can detect a cat's entering and leaving the ball cabin;It can detect the weigh of the remaining cat litter
2. Make sure that the device is placed on a solid level floor. If it is placed on a soft floor or a thick carpet, the sensor
sensitivity will be affected.
3. In the Auto mode, the device will start a leaning countdown of five minutes by default starting from the moment
the cat leaves."
4. The countdown will be restarted if the sensor detects a cat during the countdown.
"Note: The sensor will only be triggered when the cat's weight is 1.5kg or heavier.（this device does not apply to
cats that weigh less than 1.5kg）"
Fast flashing
Slow flashing
Lights off
Constantly on
Flashing
Lights off
Constantly on
During weighing, the device is suspended
During radar protection, the device is suspended
Not connected
Wi-Fi connection
Connecting
Not locked
Locked
Error indicator+
Child safety lock
indicator
Wi-Fi indicator
Child safety lock
indicator
+

【Wi-Fi Connection】
Activate/Zeroing Program(It must be operated under the condition that there is no cat litter in
the ball cabin and the trash box is empty)
*After the machine is powered on,the Start indicator flashes and the ball cabin does not rorate.
Press and hold the Mode button, then after hearing a beep twice, release the button to activate
the zeroing program
Download the CATLINK in the application market of your phone after the self-checking (lasting
for 2 minutes) is ended.
Connect your phone to 2.4GHz WiFi, it does not currently support 5GHz and WiFi that requires
special certification
Note: Name of WiFi cannot contain Chinese, spaces, or special characters, so asnot to affect the
WiFi connection.
Open the CATLINK to register and log in. Find and click "Add Device" -> "AI Litter Box" and follow
the instructions.
*Please authorize location information. Android need to turn on GPS.
Press and hold the Mode button and the Start/Pause button at the same time until youhear the
second beeping sound. Then, the Wi-Fi connection indicator will blink, showing the device is
ready for network configuration.Use CATLINK to configure the network."
*Please keep the AI litter box as close as possible to the router.
1
2
3
4
5
p12

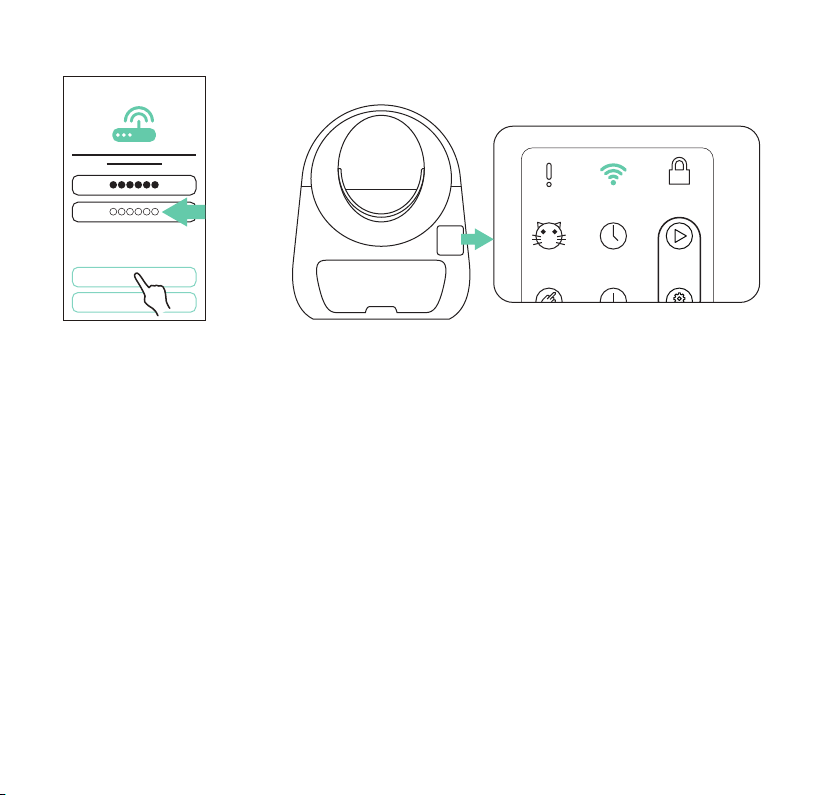

Operate according to the instructions on the CATLINK----------------------please refer to picture 6.1
"If the Wi-Fi connection indicator is constantly ON, the device already has Wi-Fi connection and
can be controlled from the APP."
*If there is a network connection failure, please patiently re-operate it again, and pay attention
to check whether the WiFi password is correct. There may be a problem of poor network
connection for some Android users. If possible, please use other phones for network connec-
tion.After the network is successfully connection, log in to the CATLINK on your original phone
and you can use it normally."
"In the case of multiple confirmations that your operation is correct, but the network connec-
tion still fails, please contact after-sales assistance in time."
After the connection is successful, the WiFi indicator of the device keeps constantly on.
---------------------------------------------------------------------------------------------please refer to picture 7.1
After completing the above steps, the functions of CATLINK can be used normally.
6
7
8
p13

【Picture 6.1】 【Picture 7.1】
Manu Empty
Mode
p14

【Cat litter Replacement】
Short press the mode button once until
it switches to the empty mode
The ball cabin starts to rotate clockwise when a
single short press of the start/pause button
After the ball cabin's litter drop port faces
downwards and all the cat litter has fallen into the
waste box, short press the start/pause button once
again to restore the ball cabin to the original
position
After the ball cabin is reset, take out the waster
box, seal and discard the waste cat litter, put on a
new waste bag, and push the waste box back to its
original position
Add new cat litter to the ball cabin
1 2
3 4
1
2
3
4
5
p15

【Product Cleaning and Attentions】
Refer to the steps of 【Cat litter
Replacement】(Page 15) , and
power off after the cat litter is
empty
Take out the waste box and the filter cotton
(The filter cotton is recommended to expose
to the sunshine once a month and replace it
once every two months)
Parts can be washed directly (be sure to wipe
and dry thoroughly after washing)
Open the cover---------
1
4 5
2 3
p16
Take out the ball cabin (pay
attention to remove the support-
ing rod of the rotating shaft on
the back of the ball cabin)

Parts can be wiped with wet wipes ( contains
electronic parts and cannot be washed directly)
After cleaning up, install a new filter cotton
back to the waste box, and follow the reverse
steps to assemble the device properly
7
6
p17
