CB2 MONOLITH User manual

monolith WARDROBE
Thank you for purchasing the Monolith Wardrobe.This page lists all the contents included in the box.
Please take the time to identify the hardware as well as the individual components to this product. As
you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect
them from damage.
Note: 2 people are required to safely assemble this product.
NOTE: Wardrobe doors and storage can be configured in two orientations:
Left or Right. Please refer to the following instructions appropriate to your
preferred orientation.
Monolith Wardrobe (Left) Monolith Wardrobe (Right)

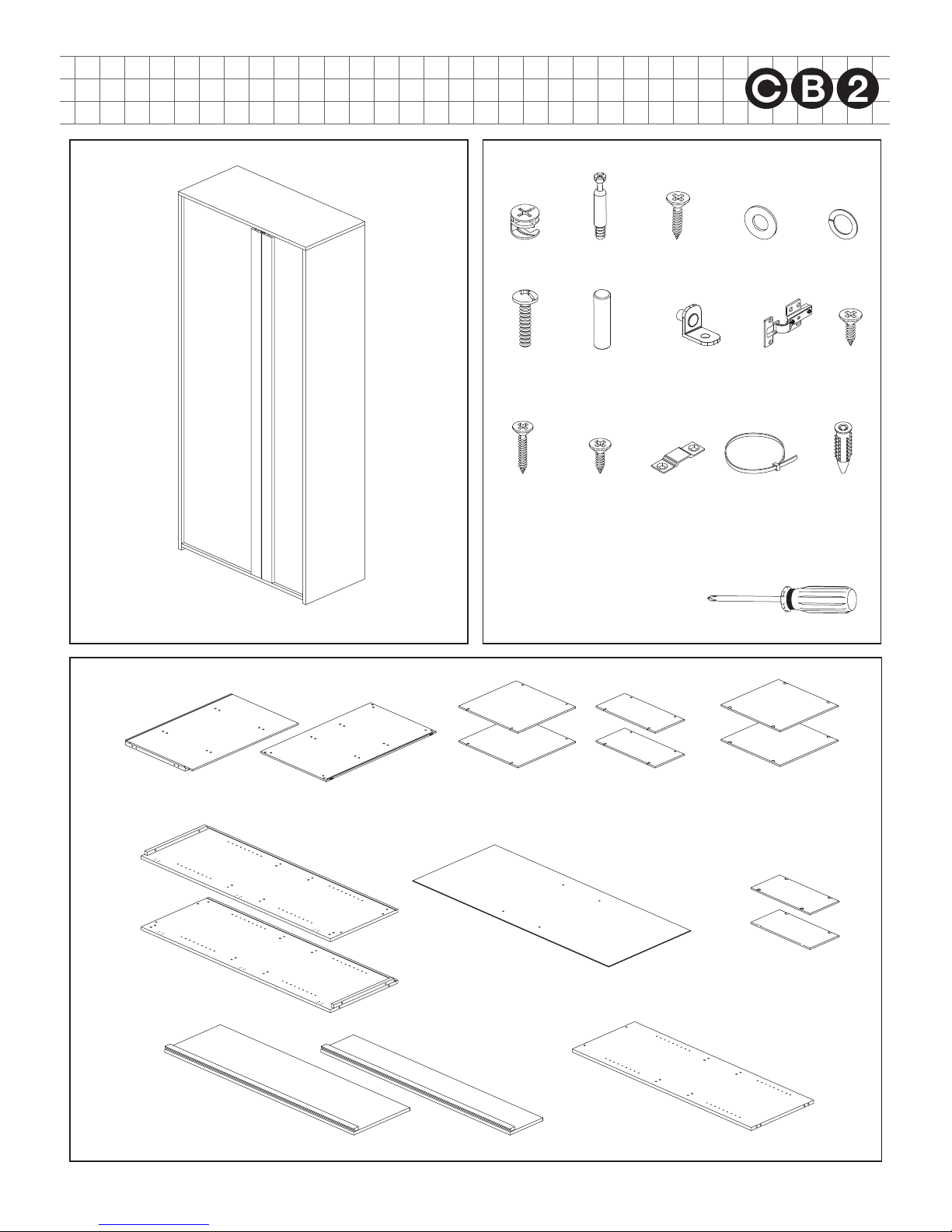

mounting hardware
tools required
(We recommend the use of hand tools instead of power tools)
phillips head screwdriver
20 - cams 20- cam
screws
36 - hinge
screws
10 - flat
washers
10 - spring
washers
4 - small
screws
4 - large
screws
4 - wall
brackets
2 - wall
straps
4 - plastic
anchors
32 - wood
dowels
10 - bolts 16 - shelf
supports
6 - hinges 4 - back
screws
Made in Vietnam - r03 Page 1 of 6
monolith WARDROBE (LEFT)
assembly hardware
components
Missing hardware?
Please call 800.606.6387 for replacements.
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
1 - top panel1 - base 2 - large fixed
shelves
2 - large adjustable
shelves
2 - small adjustable
shelves
2 - small fixed
shelves
1 - partition
2 - side panels
(1 left, 1 right)
1 - back panel
1 - large
door
1 - small
door

monolith WARDROBE (LEFT)
43
2
MadeinVietnam -r03 Page2of6
CustomerService800.606.6252|Latestinstructionsavailableatwww.cb2.com
A
B
large fixed
shelf
1
A. Insert 2 cams into base as shown.
B. Insert 2 cam screws into top panel as
shown.
A. Insert 4 cams into large fixed shelf as
shown. Make sure arrows of each cam points
towards nearest edge with holes.
B. Insert 4 cams into small fixed shelf as
shown.
small fixed
shelf
NOTE:Make sure arrows
of each cam points towards
nearest edge with holes
NOTE:Do not
over tighten the
cam screws
base
top panel
A. Insert 10 wood dowels and 5 cam screws
into right and left side panels as shown, using
a phillips head screwdriver. Do not over
tighten the cam screws.
B. Insert 12 wood dowels, 8 cam screws, 2
cams into partition as shown.
left and right
side panels
Fit 2 small fixed shelves and 2 large fixed
shelves onto corresponding dowels of partiton
as shown. Using a screwdriver, turn each cam
clockwise until it securely engages each cam
screw.
A
B
A
Bpartition
small fixed
shelf
large fixed
shelf
partition

monolith WARDROBE (LEFT)
87
6
MadeinVietnam -r03 Page 3of6
CustomerService800.606.6252|Latestinstructionsavailableatwww.cb2.com
5
A. Fit dowels and cam screws of left side panel
into corresponding holes of assembly as shown.
Secure cams.
B. Secure base to left side panel with 2 bolts, 2
spring washers and 2 flat washers, using a
screwdriver. Secure cam.
With assistance of another adult, position
assembly on its left side as shown. Fit back
panel into corresponding grooves of base and
left side panel as shown.
left side
panel
back panel
A
B
B
Fit dowels of assembly into corresponding holes
of base, and secure with 2 bolts, 2 spring
washers and 2 flat washers, using a screw-
driver. Do not over tighten the bolts.
partition
base
small fixed
shelf
NOTE:Do not over
tighten the bolts
large fixed
shelf
base
partition
large fixed
shelf
small fixed
shelf
A. Fit dowels and cam screws of right side
panel into corresponding holes of assembly.
Secure cams.
B. Secure base to right side panel with 2 bolts,
2 spring washers and 2 flat washers. Secure
cam.
B
right side
panel
B
A

monolith WARDROBE (LEFT)
10
MadeinVietnam -r03 Page4of6
CustomerService800.606.6252|Latestinstructionsavailableatwww.cb2.com
9

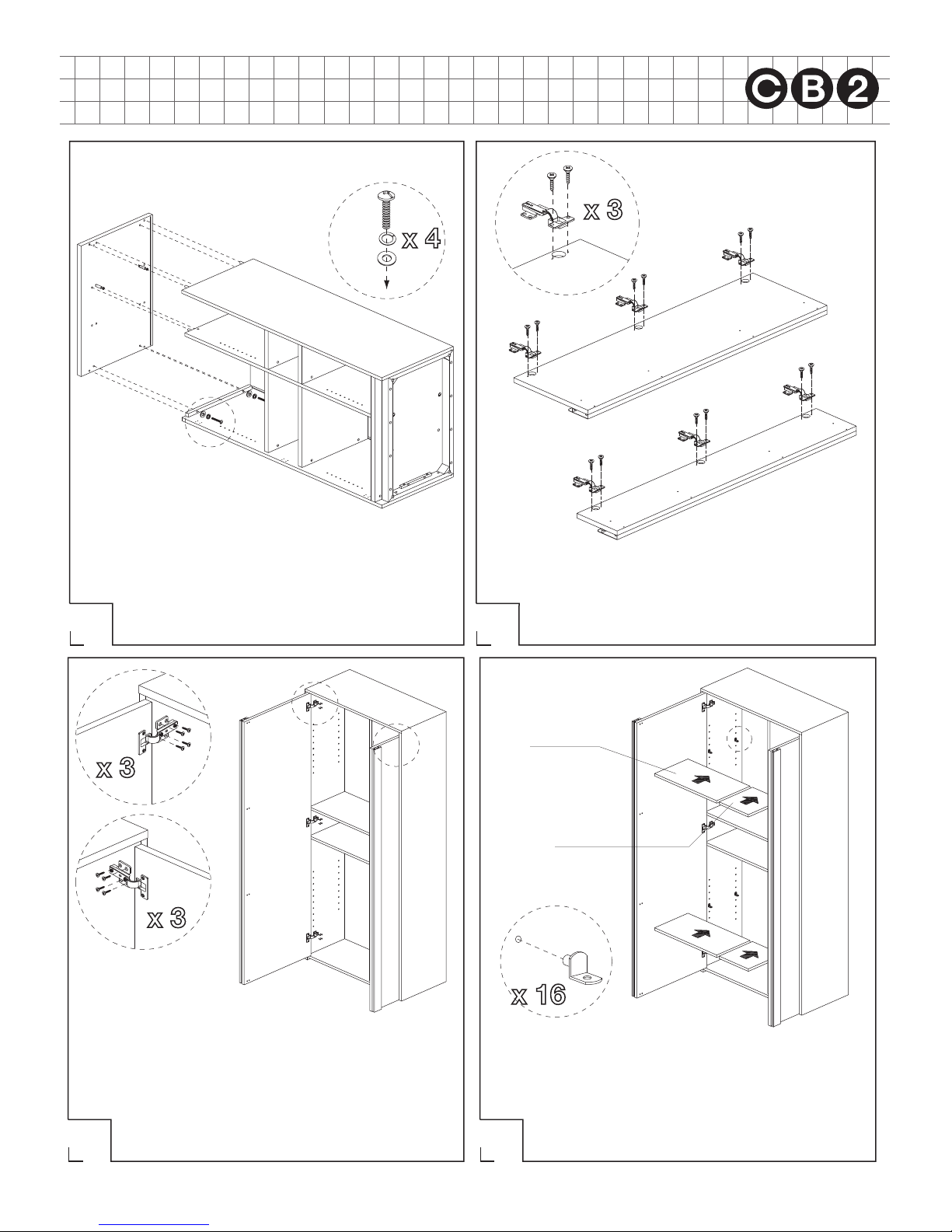

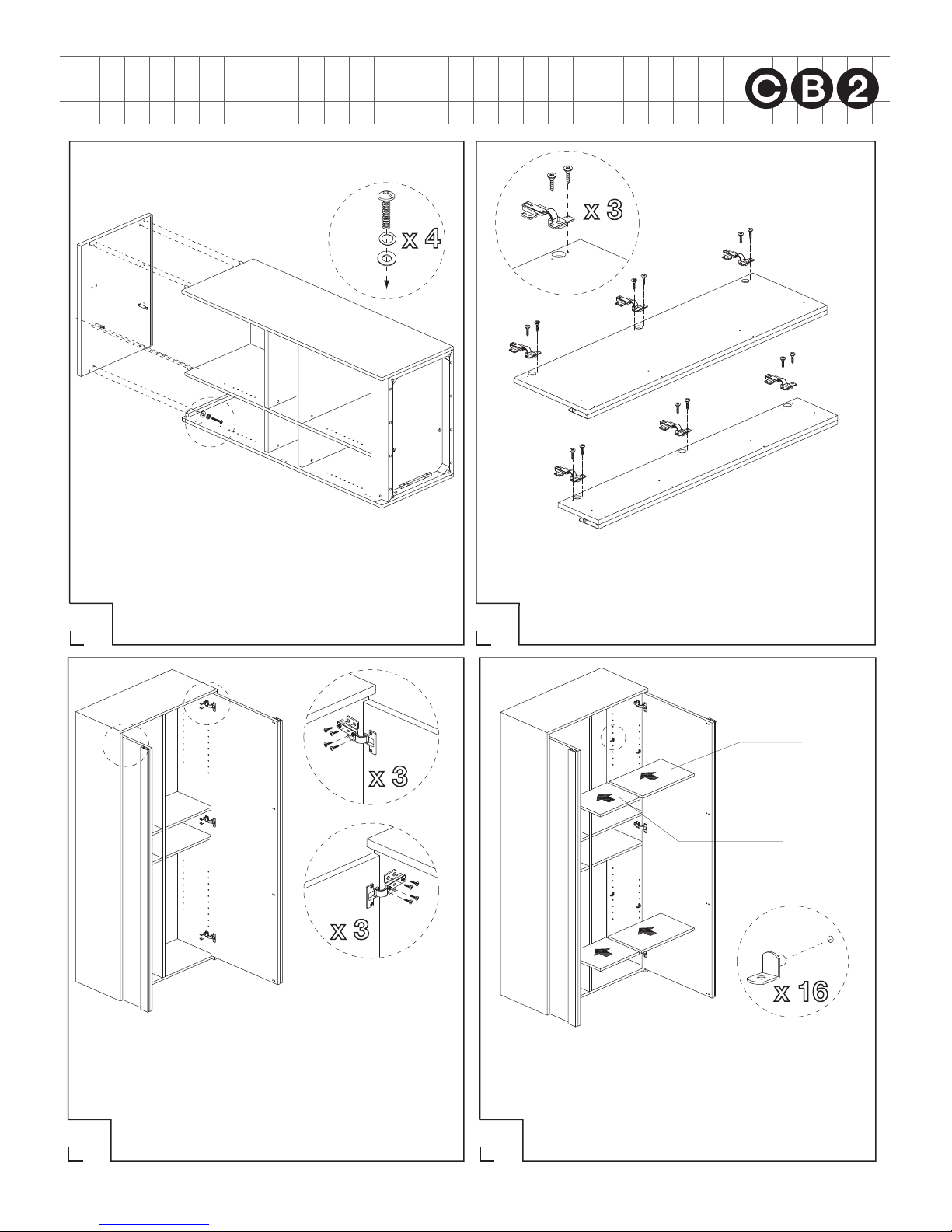

A. Attach 3 hinges to large door with 2 hinge
screws per hinge as shown, using a screw-
driver. Do not over tighten the screws.
B. Attach 3 hinges to small door with 2 hinge
screws per hinge.
large
door
NOTE: Do not over
tighten the screws
1211
A. With assistance of another adult, position unit
upright. Attach hinges of large door to right
side panel with 4 hinge screws per hinge.
B. Attach hinges of small door to left side
panel with 4 hinge screws per hinge.
top
panel
B
A. Fit cam screws of top panel into correspond-
ing holes of partition shown. Secure cams.
B. Secure left and right side panels to top
panel with 2 bolts, 2 spring washers and 2 flat
washers.
B
A
small
door
A
B
A
B
A
B
large
door
small
door
A. Insert 16 shelf supports at desired shelf
heights.
B. Place 2 large adjustable shelves and 2
small adjustable shelves into assembly. Make
sure shelves are securely supported by shelf
supports.
large
adjustable
shelf
small
adjustable
shelf
A
A
B
Refer to Hinge Adjustment
diagram for adjusting the
alignment of the door hinges.

monolith WARDROBE (LEFT)
Made in Vietnam - r03 Page 5 of 6
14
Secure back panel
with 4 back screws
as shown.
Assembly is now
complete.
cleaning & care
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the unit is finished with a protective clear lacquer.
back panel
hinge adjustment
If the doors do not appear square or aligned,loosen or tighten the appropriate screws on each case hinge as illustrated.
Depth adjustment:
Loosen screw A, push hinge arm
forwards or backwards, re-tighten
screw Aand secure screw Bwith
a 1/4 turn clockwise
Height adjustment:
Loosen screw C, adjust door
height and re-tighten screw C
1 2 3
Side to side adjustment:
Loosen screw A, adjust gap with
screw Band re-tighten screw A
C
C
A
B
A
B
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com

monolith WARDROBE (LEFT)
Made in Vietnam - r03 Page 6 of 6

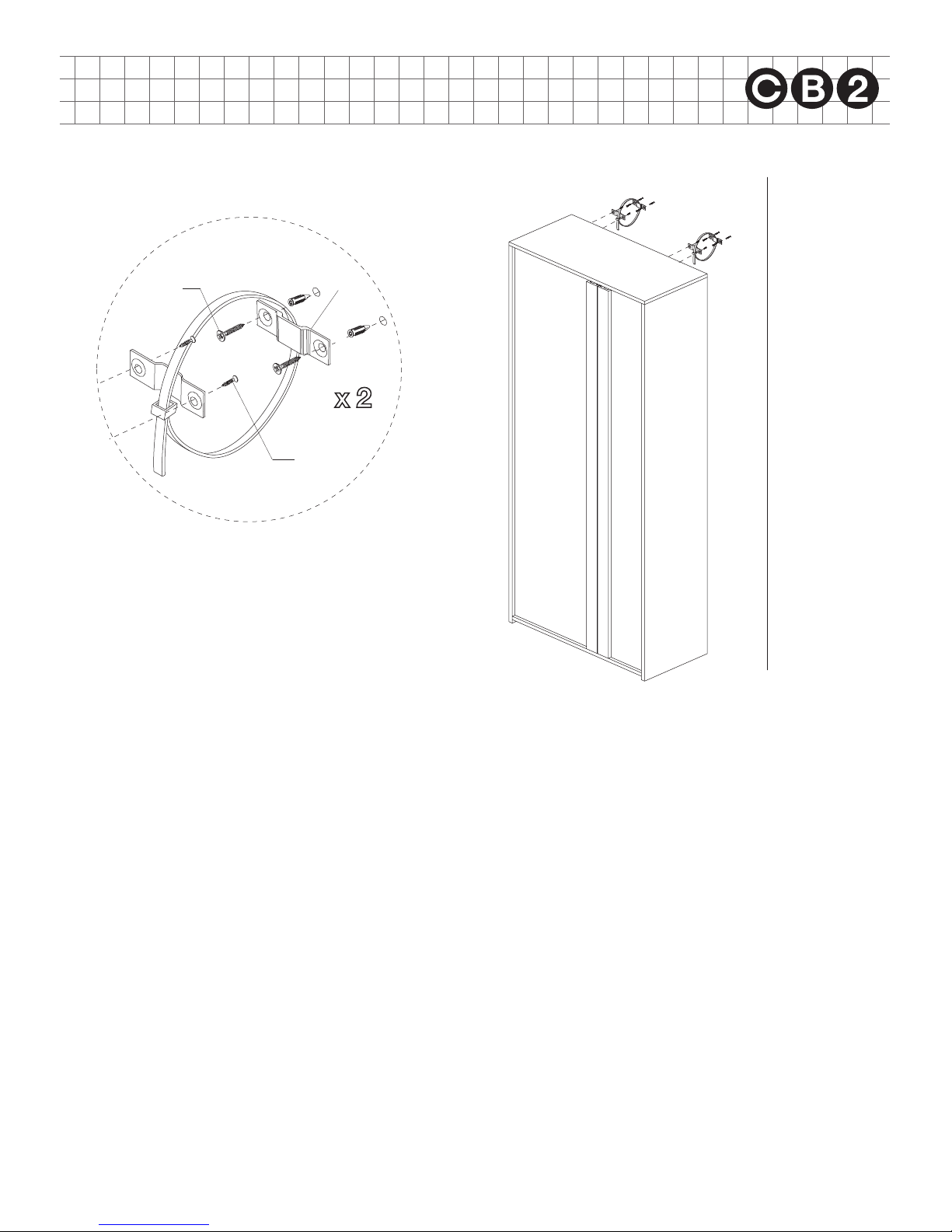

For added safety and stability, it is recommended that the wall mounting hardware be installed.
For safe mounting, it is essential to use wall anchors appropriate to your wall type (i.e. plaster,
drywall, concrete, etc.). Mount to wood studs whenever possible.
A) Attach 2 mounting brackets to top of unit using 2 small screws per bracket.
B) Determine the final location of unit. Mark position on the wall, approximately 2" below each
mounting brackets mounted to the back of the unit.
C) Drill a hole in the wall stud. If the wall stud is not available, drill a hole in the wall that is slightly
smaller in diameter than the anchor. Gently tap the plastic anchor until the flange of the anchor is
flush with the wall.
D) Attach the mounting brackets to the wall by inserting 2 large screws through each mounting
bracket and into the wall anchor in the wall.
E) Position the unit so the mounting bracket on the back edge is allowed with the wall bracket.
F) Lace one end of each wall strap through corresponding brackets, and into the other end of the
strap.
G) Pull the straps tightly until secure.
Wall mounting assembly is now complete.
NOTE:
If you are unsure about your wall type or what
mounting method you should use, consult a
qualified professional or your local hardware store.
wall mounting assembly
A
C
D
small
screw
mounting
bracket
plastic
anchor
large
screw
wall
strap
mounting
bracket
WALL
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com

Made in Vietnam - r06 Page 1 of 6
monolith WARDROBE (RIGHT)
assembly hardware
mounting hardware
components
tools required
Missing hardware?
Please call 800.606.6387 for replacements.
(We recommend the use of hand tools instead of power tools)
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
phillips head screwdriver
20 - cams
1 - top panel
20- cam
screws
36 - hinge
screws
10 - flat
washers
10 - spring
washers
4 - small
screws
4 - large
screws
4 - wall
brackets
2 - wall
straps
4 - plastic
anchors
32 - wood
dowels
10 - bolts 16 - shelf
supports
6 - hinges
1 - base 2 - large fixed
shelves
2 - large adjustable
shelves
2 - small adjustable
shelves
2 - small fixed
shelves
1 - partition
2 - side panels
(1 left, 1 right)
1 - back panel
1 - large
door
1 - small
door
4 - back
screws

monolith WARDROBE (RIGHT)
43
2
MadeinVietnam -r06 Page2of6
CustomerService800.606.6252|Latestinstructionsavailableatwww.cb2.com
A
B
large fixed
shelf
1
A. Insert 2 cams into base as shown.
B. Insert 2 cam screws into top panel as
shown.
A. Insert 4 cams into large fixed shelf as
shown. Make sure arrows of each cam points
towards nearest edge with holes.
B. Insert 4 cams into small fixed shelf as
shown.
small fixed
shelf
NOTE:Make sure arrows
of each cam points towards
nearest edge with holes
NOTE:Do not
over tighten the
cam screws
base
top panel
A. Insert 10 wood dowels and 5 cam screws
into right and left side panels as shown, using
a phillips head screwdriver. Do not over
tighten the cam screws.
B. Insert 12 wood dowels, 8 cam screws, 2
cams into partition as shown.
left and right
side panels
Fit 2 small fixed shelves and 2 large fixed
shelves onto corresponding dowels of partiton
as shown. Using a screwdriver, turn each cam
clockwise until it securely engages each cam
screw.
A
B
A
Bpartition
small fixed
shelf
large fixed
shelf
partition

monolith WARDROBE (RIGHT)
87
6
MadeinVietnam -r06 Page 3of6
CustomerService800.606.6252|Latestinstructionsavailableatwww.cb2.com
5
A. Fit dowels and cam screws of left side panel
into corresponding holes of assembly as shown.
Secure cams.
B. Secure base to left side panel with 2 bolts, 2
spring washers and 2 flat washers, using a
screwdriver. Secure cam.
With assistance of another adult, position
assembly on its left side as shown. Fit back
panel into corresponding grooves of base and
left side panel as shown.
left side
panel
back panel
A
B
B
Fit dowels of assembly into corresponding holes
of base, and secure with 2 bolts, 2 spring
washers and 2 flat washers, using a screw-
driver. Do not over tighten the bolts.
partition
base
small fixed
shelf
NOTE:Do not over
tighten the bolts
large fixed
shelf
base
partition
large fixed
shelf
small fixed
shelf
A. Fit dowels and cam screws of right side
panel into corresponding holes of assembly.
Secure cams.
B. Secure base to right side panel with 2 bolts,
2 spring washers and 2 flat washers. Secure
cam.
B
right side
panel
B
A

monolith WARDROBE (RIGHT)
10
MadeinVietnam -r06 Page4of6
CustomerService800.606.6252|Latestinstructionsavailableatwww.cb2.com
9
A. Attach 3 hinges to large door with 2 hinge
screws per hinge as shown, using a screw-
driver. Do not over tighten the screws.
B. Attach 3 hinges to small door with 2 hinge
screws per hinge.
large
door
NOTE: Do not over
tighten the screws
1211
A. With assistance of another adult, position unit
upright. Attach hinges of large door to left side
panel with 4 hinge screws per hinge.
B. Attach hinges of small door to right side
panel with 4 hinge screws per hinge.
top
panel
B
A. Fit cam screws of top panel into correspond-
ing holes of partition shown. Secure cams.
B. Secure left and right side panels to top
panel with 2 bolts, 2 spring washers and 2 flat
washers.
B
A
small
door
A
B
A
B
A
B
small
door
large
door
A. Insert 16 shelf supports at desired shelf
heights.
B. Place 2 large adjustable shelves and 2
small adjustable shelves into assembly. Make
sure shelves are securely supported by shelf
supports.
large
adjustable
shelf
small
adjustable
shelf
A
A
B
Refer to Hinge Adjustment
diagram for adjusting the
alignment of the door hinges.

monolith WARDROBE (RIGHT)
Made in Vietnam - r06 Page 5 of 6
14
Secure back panel
with 4 back screws as
shown.
Assembly is now
complete.
cleaning & care
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the unit is finished with a protective clear lacquer.
back panel
hinge adjustment
If the doors do not appear square or aligned,loosen or tighten the appropriate screws on each case hinge as illustrated.
Depth adjustment:
Loosen screw A, push hinge arm
forwards or backwards, re-tighten
screw Aand secure screw Bwith
a 1/4 turn clockwise
Height adjustment:
Loosen screw C, adjust door
height and re-tighten screw C
1 2 3
Side to side adjustment:
Loosen screw A, adjust gap with
screw Band re-tighten screw A
C
C
A
B
A
B
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com

monolith WARDROBE (RIGHT)
Made in Vietnam - r06 Page 6 of 6
For added safety and stability, it is recommended that the wall mounting hardware
be installed. For safe mounting, it is essential to use wall anchors appropriate to
your wall type (i.e. plaster, drywall, concrete, etc.). Mount to wood studs whenever
possible.
A) Attach 2 mounting brackets to top of unit using 2 small screws per bracket.
B) Determine the final location of unit. Mark position on the wall, approximately 2"
below each mounting brackets mounted to the back of the unit.
C) Drill a hole in the wall stud. If the wall stud is not available, drill a hole in the wall
that is slightly smaller in diameter than the anchor. Gently tap the plastic anchor
until the flange of the anchor is flush with the wall.
D) Attach the mounting brackets to the wall by inserting 2 large screws through
each mounting bracket and into the wall anchor in the wall.
E) Position the unit so the mounting bracket on the back edge is allowed with the
wall bracket.
F) Lace one end of each wall strap through corresponding brackets, and into the
other end of the strap.
G) Pull the straps tightly until secure.
Wall mounting assembly is now complete.
NOTE:
If you are unsure about your wall type or what mounting
method you should use, consult a qualified professional or
your local hardware store.
wall mounting assembly
A
C
D
small
screw
mounting
bracket
plastic
anchor
large
screw
wall
strap
mounting
bracket
WALL
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
