public HIGH DINING TABLE
hardware
components
tools required
Thank you for purchasing the Public High Dining Table.
This page lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components to this product. As you unpack and
prepare for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are recommended to safely assemble this product.
Missing hardware?
Please call 800.606.6387
for replacements.
12 - small
bolts
12 - flat
washers
12 - spring
washers
23 - cam
covers
4 - medium
bolts
23 - cam
screws
23 - cams43 - wood
dowels
allen wrench (included)
phillips head screwdriver
1 - top panel
1 - middle panel
1 - top partition
1 - top right
side panel
1 - left side
panel
1 - side bottom
panel
1 - right side
panel
1 - leg
frame
1 - center
partition
1 - crossbar 4 - fixed
shelves
1 - bracket
6 - large
bolts
(We recommend the use of hand tools instead of power tools)
BOTTOM
L
R

A. Insert 8 wood dowels and 2 cam screws
into top panel as shown. Using a phillips head
screwdriver, secure but do not over tighten the
cam screws.
B. Insert 5 wood dowels into middle panel as
shown.
A. Fit dowels of top partition and top right
side panel into top panel and middle panel as
shown.
B. Secure middle panel, top partition, top
right side panel and top panel with 6 large
bolts, using an allen wrench.
A. Insert 9 cam screws, 2 cams and 12 wood
dowels into left side panel.
B. Insert 9 cam screws and 12 wood dowels
into right side panel.4
3
1 2
Made in Vietnam - r05 Page 2 of 4
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
public HIGH DINING TABLE
Atop panel
Bmiddle panel
A
B
Ccenter
partition
Aleft side panel
NOTE: Make sure arrows
on each cam points toward
nearest edge with holes
NOTE: Do not over
tighten the cam screws
NOTE: Do not over
tighten the bolts
top
partition
top right
side panel
middle panel
top panel
Aside bottom
panel
Bfixed shelf
A. Insert 6 cams into side bottom panel.
B. Insert 2 cams into 4 fixed shelves.
C. Insert 4 cams into center partition.
Bright side
panel
L
R
BOTTOM
L
R

Made in Vietnam - r05
A. Insert 3 cams into right side panel of
bottom assembly as shown.
B. Insert 6 wood dowels and 3 cam screws
into middle panel of top assembly as shown.
8
Fit fixed shelves and side bottom panel onto
corresponding dowels and cam screws of left
side panel as shown. Secure cams.
7
5 6
Fit dowels and cam screws of right side panel
into corresponding holes of left side assembly as
shown. Secure cams.
Page 3 of 4
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
public HIGH DINING TABLE
right side
panel
Btop
assembly
Abottom
assembly
fixed shelf
side bottom
panel
left side
panel
right side
panel
middle panel
Fit center partition onto dowels and cam
screws of left side panel as shown. Using a
screwdriver, turn each cam clockwise until it
securely engages each cam screw.
left side panel
center
partition

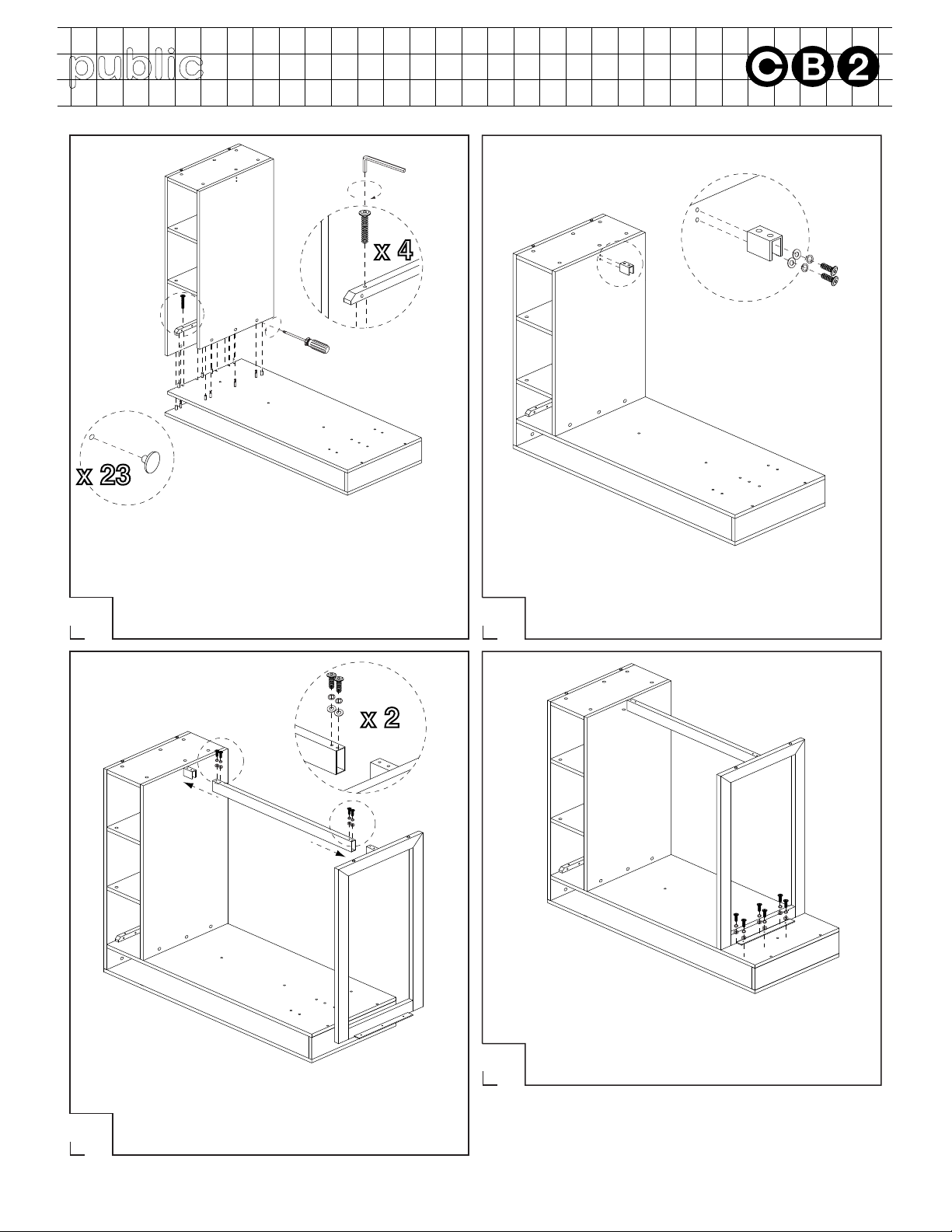

Attach leg frame to top assembly with 6 small
bolts, 6 spring washers and 6 flat washers as
shown. With assitance, position unit upright.
Assembly is now complete.
12
Attach bracket to bottom assembly with 2
small bolts, 2 spring washers and 2 flat
washers.
11
9 10
Fit crossbar onto corresponding brackets of
bottom assembly and leg frame as shown.
Secure crossbar to each bracket with 2 small
bolts, 2 spring washers and 2 flat washers.
Made in Vietnam - r05 Page 4 of 4
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
public HIGH DINING TABLE
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.
It is recommended to use coasters to protect surface from heat and water.
A. With assistance of another adult, fit bottom
assembly onto corresponding dowels and cam
screws of top assembly as shown. Secure cams.
At this point, cover all cams with cam covers.
B. Secure bottom assembly to top assembly with
4 medium bolts, using an allen wrench.
A
B
B
top assembly
bottom
assembly
crossbar
leg
frame
A
