CBC PT127N User manual

P
PT T1 12 27 7N N
Indoor Vandal Proof 27x PTZ Dome
User Manual
NY: 55 Mall Drive • Commack, NY 11725 [phone]
CA: 20521 Earl Street • Torrance, CA 90503 [phone]
www.computarganz.com
I
NSTRUCTION
M
ANUAL
All manuals and user guides at all-guides.com
all-guides.com

This lightning flash with arrowhead symbol is intended to alert the user to the
presence of un-insulated "dangerous voltage" within the product's enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to persons.
This exclamation point symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
2/47
Speed Dome Camera Instruction Manual
All manuals and user guides at all-guides.com

Speed Dome Camera Instruction Manual 3/47
Important Safeguard
1. Read Instructions
Read all of the safety and operating instructions before using the product.
2. Retain Instructions
Save these instructions for future reference.
3. Attachments / Accessories
Do not use attachments or accessories unless recommended by the appliance manufacturer as they may
cause hazards, damage product and void warranty.
4. Water and Moisture
Do not use this product near water or moisture.
Installation
Do not place or moun
installed product may f y
with a mounting devic oper
mounting, follow the manufacturer's instructions and use only mounting accessories recommended by
manufacturer.
Power source
This product should be
5.
t this product in or on an unstable or improperly supported location. Improperly
all, causing serious injury to a child or adult, and damage to the product. Use onl
e recommended by the manufacturer, or sold with the product. To insure pr
6.
operated only from the type of power source indicated on the marking label.
Precautions
Operating
zBefore using, make sure power supply and others are properly connected.
zWhile operating, if any abnormal condition or malfunction is observed, stop using the camera
immediately and then contact your local dealer.
Handling
zDo not disassemble or tamper with parts in he camera.
zDo not drop or subject the camera to shock and vibration as this can damage camera.
zCare must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your
quality of camera.
Installation and Storage
zDo not install the camera in areas of extreme temperature, which exceed the allowable range.
zAvoid installing in humid or dusty places.
zAvoid installing in places where radiation is present.
zAvoid installing in places where there are strong magnetic fields and electric signals.
zAvoid installing in places where the camera would be subject to strong vibrations.
zNever expose the camera to rain and water.
NOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICE
side t
All manuals and user guides at all-guides.com

Speed Dome Camera Instruction Manual 4/47
○
1Introduction
Features
5
Product & Accessories
7
Parts Name & Functions
8
○
2Installation
assembling / AssemblingTerminal Cover Dis
9
DIP Switch Setup
10
Direct Installation on the Ceiling
13
Installation using In-Ceiling Mount Bracket
15
Installation using Ceiling Mount Bracket
16
sing Wall Mount BracketInstallation u
17
Cabling
18
○
3Operation
Checking Before Operation
20
Preset and Pattern Function Pre-Check
20
Start OSD Menu
21
Reserved Preset
21
Preset
22
Swing
22
Pattern
23
Group
24
Other Motion Functions
25
OSD Display of Main Screen
26
○
4How to use OSD Menu
General Rules of Menu Operation
27
Main Menu
27
Display Menu for Main Screen
28
Privacy Zone Mask Setup
29
Camera Module Setup
30
Motion Setup
34
Preset Setup
36
Swing Setup
39
Pattern Setup
40
Group Setup
41
System Initialize
43
○
5Specifications
44
Dimension
45
CONTENTS
All manuals and user guides at all-guides.com

Speed Dome Camera Instruction Manual 5/47
Feat ure s
Camera Specifications
zCCD Sensor : 1/4" Super HAD color
zZoom Magnification : ×27 Optical Zoom, ×12 Di
zDay & Night Functi
zVarious Focus Mode : Auto-Focus / Manual Focus /
zIndependent & Simul
Powerful Pan/Tilt Functions
zMax. 360°/sec high speed Pan/Tilt Motion
zUsing Vector Drive Technology, Pan/Tilt motions d in a shortest path. As a result,
time to target view is reduced drama
zFor jog operation using a
to locate camera to desired target view. Addition
with zoom-proportional pan/tilt movement.
Preset, Pattern, Swing, Group, Privacy Mask and More…
zMAX. 127 Presets are assignable and characteristics of e ,
such as White Balance, Auto Exposure, La
zMax. 8 set of Swing action can be sto o
preset positions with designated sp
zMax. 4 of Patterns can be rec
trajectory operated by joystick as closely as possible
zMax. 8 set of Group action can be h
combination of Preset or Pattern or Swing
Preset/Pattern/Swings.
zPrivacy Masks are assignable, not to intrude on othe
INTR 1 ODUCTION
CCD
gital Zoom (Max ×324 Zoom)
on
Semi-Auto Focus.
taneous Camera Characteristic Setup in Preset operation
are accomplishe
tically and the video on the monitor is very natural to watch.
controller, since ultra slow speed 0.05°/sec can be reached, it is very easy
ally it is easy to move camera to a desired position
ach preset can be set up independently
bel, Digital Outputs and so on.
red. This enables to move camera repetitively between tw
eed.
orded and played back. This enables to move camera to follow any
.
stored. This enables to move camera repetitively wit
. A Group is composed of max. 20 entities of
r’s privacy. (8 Privacy Zones)
All manuals and user guides at all-guides.com

1
INTRODUCTION
/Zoom) Control
zWith RS-485 communication, max. 255 of cameras can be controlled at the same time.
o-P protocol can be selected as a control protocol in the current version of firmware.
to display the status of camera and to configure the functions interactively.
d Preset can be displayed on
elays are available.
n be set to move to the corresponding Preset position.
Meanwhile, the output relay can be matched to some specific Preset positions to do counteractions
such as turning on the light or sound the alarm.
zMost camera characteristics can be set up easily and directly with reserved preset, not entering
PTZ(Pan/Tilt
zPelco-D or Pelc
OSD(On Screen Display) Menu
zOSD menu is provided
zThe information such as Camera ID, Pan/Tilt Angle, Alarm I/O an
screen.
Alarm I/O Functions
z4 alarm sensor Inputs and 2 alarm Output r
zTo reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo
coupler and the relay is used for alarm output.
zThe signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various applications.
Meanwhile, the maximum load of relay contact is AC 250V, 3A or DC 28V, 3A.
zIf an external sensor is activated, camera ca
Reserved Presets for Special Purpose
into OSD menu. For more information, refer to “Reserved Preset” in this manual.
6/47
Speed Dome Camera Instruction Manual
All manuals and user guides at all-guides.com
all-guides.com

1
INTRODUCTION
Product & Accessories
Product & Accessories
zScrews
Options
zMain Body / Terminal Cover zDome Cover
zFflush Mount Model(FMK4) zPendant Mount Model(PMK4) zWall mount Model(WMK4)
7/47
Speed Dome Camera Instruction Manual
All manuals and user guides at all-guides.com

INTRODUCTION 1
Parts Name & Functions
Dome Cover
Lockup Scre
w
Drop Prevention
Spring
Terminal Cover
Drop Prevention
Hook
Fuse
Cabling
Terminal Bloc
k
Main Body
Connector
Mounting Hole
zMain Body / Terminal Cover zTerminal Cover
zDome Cover Do not detach protection vinyl from dome cover before finishing all
installation process to protect dome cover from scratches or dust.
zTerminal Cover This is used to install the camera directly on the ceiling or attach to the
other brackets such as in-ceiling, ceiling and wall mount. After
separating this cover first and then attach this directly to ceiling o to
the other bracket. Camera m st be assembled at the last stage.
z
Drop Prevention Hook
his ro
maintenance. After install the Terminal Cover, please, hang the spring
to the drop prevention hook of main body as shown in picture for
further tasks.
zLockup Screw After assembling Terminal Cover to main body, screw Terminal Cover
to main body to protect them from separation by vibration and so on.
zFuse If the fuse is burnt to protect your came from over-current damage, the
fuse have to be replace with new one. The fuse specification is 250V 2A.
However, we recommend consulting with supplier to remove the cause
of over-current.
zCabling Terminal Block During installation, Power, Video, Communication, Alarm I/O cables are
connected on to this cabling terminal block.
r
u
Drop Prevention Spring T part keeps the camera from d pping during installation and
8/47
Speed Dome Camera Instruction Manual
All manuals and user guides at all-guides.com

2
INSTALLATION
Terminal Cover Disassembling
①Remove the Lockup Screw as shown bellow. ②Turn main body on its axis in CCW(Counter-
clockwise) direction and separate it from
Terminal Cover.
Terminal Cover Assembling
①Check if the su ated
at the arrow mark as shown in the dotted circle.

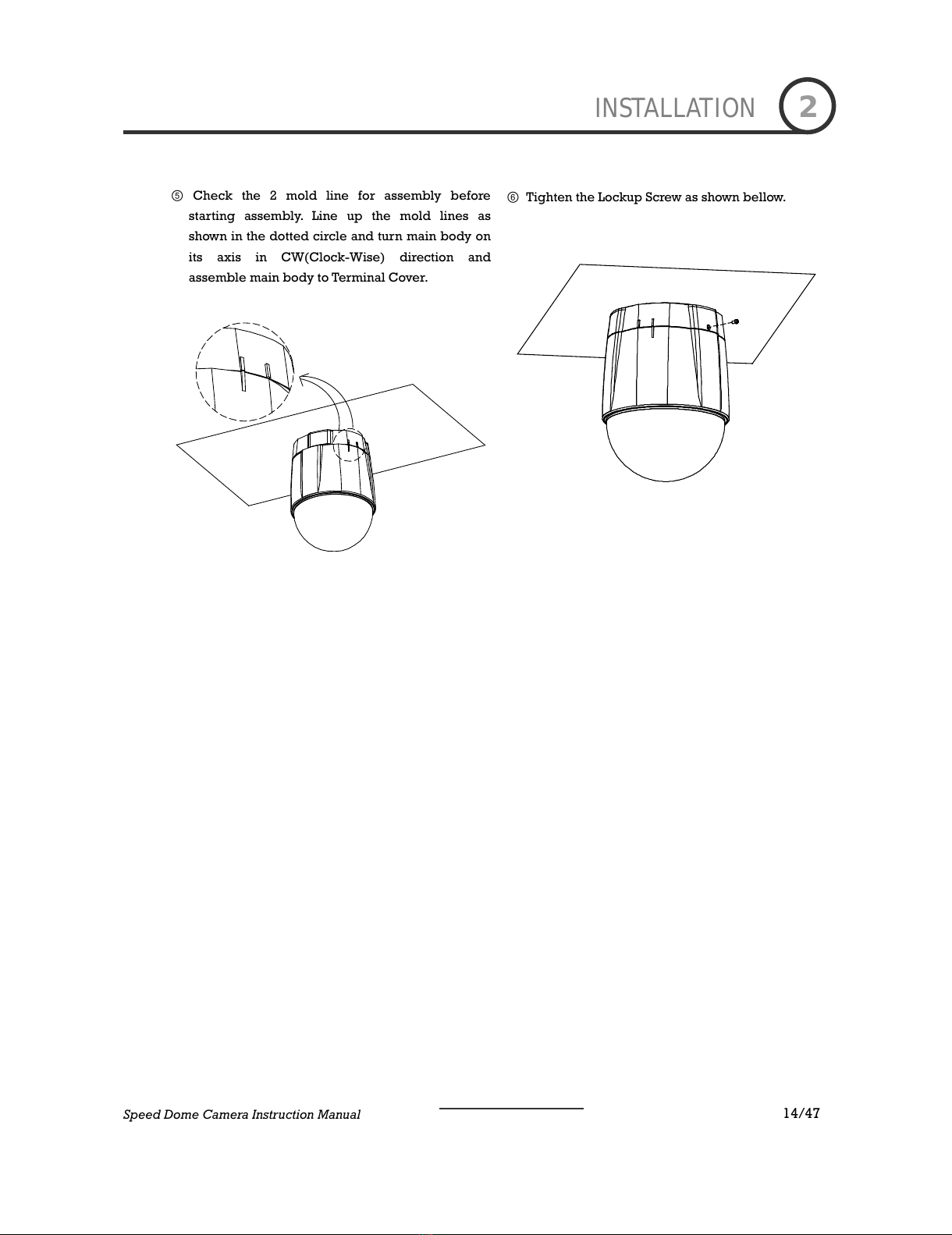

②Check the 2 m bly before
starting assembly. Line up the mold lines as
and
assemble main body to Terminal Cover. After
mmit of the Plate Spring is loc old line for assem
shown in the dotted circle and turn main body on
its axis in CW(Clockwise) direction
assembling them, screw main body to Terminal
Cover to protect them from separation by
vibration and so on.
9/47
Speed Dome Camera Instruction Manual
All manuals and user guides at all-guides.com

2
INSTALLATION
DIP Switch Setup
Be e DIP s
protocol. Do not use the ISP connector. (Authorized person
fore you install the camera, you should set th witches to configure the camera ID, communication
only !)
Communication
Protocol Camera ID
ON ON
ADDRESS (ID) OPTIONS
1 2 4 8 16 32 64 128
00000000
Refer to
the Manual
N.C
N.O
ISP connector
(for System Upgrade)
(Normal Close)
(Normal Open)
Terminal
Resistor
Camera ID Setup
Speed Dome Camera Instruction Manual 10/47
123456
ON
zID number of camera is set using binary number. The example is
zThe range of ID is
ON
shown bellow.
1~255. Do not use 0 as camera ID. Factory
D is 1.
ol a certain camera, you must match the camera
ing of DVR or Controller.
78
default of Camera I
zIf you want to contr
ID with Cam ID sett
1 2 3 4Pin 1 2 3 4 5 6 7 8 Pin
5 6 7 8
ID 1 2 4 8 16 32 64
128
ID 1 2 4 8 16 32 64 128
1 on off off off off off off off 11 on
on
off
on off off off off
2 off on off off off off off
off 12 off
off
on
on off off off off
3 on on off off off off off off 13 on
off
on
on off off off off
4 off off on off off off off
off 14 off
on
on
on off off off off
5 on off on off off off off off 15 on
on
on
on off off off Off
6 off on on off off off off
off 16 off
off
off
off on off off off
7 on on on off off off off off 17 on
off
off
off on off off off
8 off off off on off off off
off 18 off
on
off
off on off off off
9 on off off on off off off off 19 on
on
off
Off
on off off off
off 20 off10 off on off on off off off on off on off off off
off
All manuals and user guides at all-guides.com

2
INSTALLATION
Communication Protocol Setup
zSelect the appropriate Protocol with DIP switch combination.
ON
Speed Dome Camera Instruction Manual 11/47
123456
ON
78
Sensor Type Setup
123456
ON
ON
78
Switch State
P0
(Pin 1)
Protocol/Baud rate
P1 P2
(Pin 2) (Pin 3)
OFF OFF OFF PELCO-D, 2400 bps
ON OFF OFF PELCO-D, 9600 bps
OFF ON OFF PELCO-P, 4800 bps
ON ON OFF PELCO-P, 9600 bps
Otherwise Reserved
zIf you want to control using DVR or P/T controller, their protocol must
be identical to camera. Otherwise, you can not control the camera.
zIf you changed camera protocol by changing DIP S/W, the change
will be effective after you reboot the camera.
zFactory default of protocol is “Pelco-D, 2400 bps”.
zIf you want to use Alarm Input, the types of sensor must be selected.
The sensor types are Normal Open and Normal.
state when sensor is
activated.
~rm l l tp Vo ge hig a wh se s not
va
~Normal Open Output Voltage is high
No a C ose Ou ut lta is h st te en nsor i
acti ted.
Pin oN Switch State S r eenso Typ
O S r a s peN enso 1 : Norm l Clo e Ty
ST1 (Pin 4)
OFF S r a e peenso 1 : Norm l Op n Ty
O S r a s peN enso 2 : Norm l Clo e Ty
ST2 ( n 5)
OFF Sensor 2 : e
Pi
Normal Open Typ
ON Sensor 3 : Normal Close Type
ST3 ( n 6)
OFF Sensor 3 : e
Pi
Normal Open Typ
ON Sensor 4 : ose eNormal Cl Typ
ST4 ( n 7)
S r a e pe
Pi
OFF enso 4 : Norm l Op n Ty
zIf sensor type is not selected properly, the alarm can be activated
v lre erse y.
All manuals and user guides at all-guides.com
all-guides.com

2
INSTALLATION
Terminal resistor Setup
123456
ON
ON
78
T
erminal resistor is used if your system is one of following two cases.
zCase ontrol c between camera and co
rela ery lo onne
If communication c very lo elec d
in th minal p his refl gn of
origi nal. Acc gly, the c can b is
case, the terminal resistor of both sides i.e. camera and controller
must be set to ‘ON’ s
zCase2: Multiple cameras are controlled at the same time
f
the terminal resistor
1: C able ntroller is
tively v ng (1:1 c ction)
able is ng, the trical signal will boun
e ter oint. T ected si al cause distortion
nal sig ordin amera e out of control. In th
tate.
Due to similar reasons with case 1, the terminal resisters o
controller and the last camera must be set to ‘ON’ state. Last camera
means decided by cable length. Do not turn on
of all cameras.
Controller
#1
Terminal Resistor ON
RS-485
#2 #n
Terminal Resis
OFF
st Terminal Resistotor Terminal Resi or
r
OFF ON
12/47
Speed Dome Camera Instruction Manual
All manuals and user guides at all-guides.com

2
INSTALLATION
Direct Installation on the Ceiling
①To pass cables to upside of ceiling
about 50~60mm hole on the ceiling panel.
②For cable connection, remove the pre-defined
hole mark on the Rubber Gasket and locate the
cle.
, please, make
summit of the Plate Spring at the arrow mark as
shown in the dotted cir
Rubber Gasket
③After assembling the Rubber Gasket to the
Terminal Cover, install Terminal Cover on ceiling
tex and connect cables to terminal blocks.
④Connect the “Drop Prevention Spring” to the main
body to prevent camera from drop.
13/47
Speed Dome Camera Instruction Manual
All manuals and user guides at all-guides.com

2
INSTALLATION
before
starting assembly. Line up the mold lines as
and
assemble main body to Terminal Cover.
⑤ Check the 2 mold line for assembly ⑥Tighten the Lockup Screw as shown bellow.
shown in the dotted circle and turn main body on
its axis in CW(Clock-Wise) direction
14/47
Speed Dome Camera Instruction Manual
All manuals and user guides at all-guides.com

2
INSTALLATION
Installation using Flush Mount Bracket
Cut the panel of ceiling as shown bellow.
Speed Dome Camera Instruction Manual 15/47
①
170
80
②Assemble Terminal C er of camera to the In-
Ceiling Mount Bracket as shown bellow.
ov
3-
75
Hole Dimension(mm)
③Locate the summit of the plate spring at the arrow
mark as shown in the dotted circle.
④Assemble main body to Terminal Cover and
insert the assembly into ceiling tex.
⑤ Screw camera to ceiling tex with 3 screws tightly.
⑥Assemble Deco. Ring with camera and turn Deco.
Ring on its axis in CW(Clockwise) direction.
All manuals and user guides at all-guides.com

2
INSTALLATION
Installation using Pendant Mount Bracket
①To pass cables to upside of ceiling, please ②Assemble Terminal Cover to Ceiling Mount
racket with 3 screws. (
make
about 50~60mm hole on the ceiling panel and
attach the Ceiling mount bracket on it.
BRubberDo not use
Gasket !)
Locate the summit of the Plate Spring at the arrow
mark. (For more information, refer to the “Terminal
Cover Assembling” section)
③Connect “Drop Prevention Spring” to main body
to prevent camera from drop. Line up the mold
lines and turn main body on its axis in
CW(Clockwise) direction and assemble main
body to Terminal Cover.
④ After assembling them, screw main body to
Terminal Cover to protect them from separation
by vibration and so on.
16/47
Speed Dome Camera Instruction Manual
All manuals and user guides at all-guides.com
all-guides.com

2
INSTALLATION
Installation using Wall Mount Bracket
①Install Wall Mount Bracket on wall. ②Assemble Terminal Cover to Wall Mount Bracket
with 3 screws. (Do not use Rubber Gasket !)
Locate the summit of the Plate Spring at the arrow
mark. (For more information, refer to the “Terminal
Cover Assembling” section)
③Connect “Drop Prevention Spring” to main body
to prevent camera from drop. Line up the mold
④ After assembling them, screw main body to
Terminal Cover to protect them from separation
by vibration and so on. lines and turn main body on its axis in
CW(Clockwise) direction and assemble main
body to Terminal Cover.
17/47
Speed Dome Camera Instruction Manual
All manuals and user guides at all-guides.com

2
INSTALLATION
Cabling
Light
Alarm
Buzzer
Sensor
Output Devices
Moinitor
Controller
/ DVR
RS-485
BNC
Power
IrDA
Sensor
Door
Switch
PWR(+)
PWR(-)
VIDEO(+)
VIDEO(-)
RS-485(+)
RS-485(-)
RELAY2
Speed Dome Camera Instruction Manual 18/47
RELAY1
IN COM+
IN1
IN2
IN3
IN4
Terminal Cover
Power Connection
zPlease, check the voltage and current capacity of rated power carefully. Rated power is indicated in the
back of main unit.
Rated Power Input Voltage Range Current Consumption
AC 24V AC 17V ~ 29V 0.6 A
eo ConnectionVid
zConnect with BNC coaxial cable.

RS-485 Communication
zFor PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the same time,
RS-485 communication lines of them is connected in parallel as shown below.
Keyboard Controller / DVR
RS-485
+
-
#1
+
-
#2
+
-
#n
+
-
All manuals and user guides at all-guides.com

2INSTALLATION
Alarm I/O Connection
zSensor Input
Before connecting sensors, check driving voltage and output signal type of the sensor. Since output
gnal types of the sensors are divided into Open Collector and Voltage Output type in general, the
be done properly after considering these typed. Also, the sensor type, i.e. “Normal Open”
IN COM+
Internal +5V~12V
IN 1-
IN 4-
Sensor 1 Output
+
+
-
-
+
-
Sensor 4 Output
si
cabling must
or “Normal Close” in Dip switch in main body of camera must be set properly.
Signal Description
IN COM+ Connect (+) c power source fo ors to this port as
shown in the circuit above.
able of electric r Sens
IN1−, IN2−, IN3−, In4−Connect output of sensors for each port as shown in the circuit above.
zRelay Output
OUT 1
AC or DC
Speed Dome Camera Instruction Manual 19/47
OUT 2
AC or DC
Internal
LOAD
LOAD
Maximum allowable electrical load of relay is shown bellow table.
Drive Power DC Power AC 110V Power AC220V Power
Max. Load DC 28V, 3A AC110V, 3A C250V, 3AA
All manuals and user guides at all-guides.com

Speed Dome Camera Instruction Manual 20/47
All manuals and user guides at all-guides.com
