cecotec Conga 3790 User manual

Manual de instrucciones
Instruction manual
Manuel d’instructions
Bedienungsanleitung
Manuale di istruzioni
Manual de instruções
Handleiding



ÍNDICE
1. Instrucciones de seguridad 9
2. Piezas y componentes 11

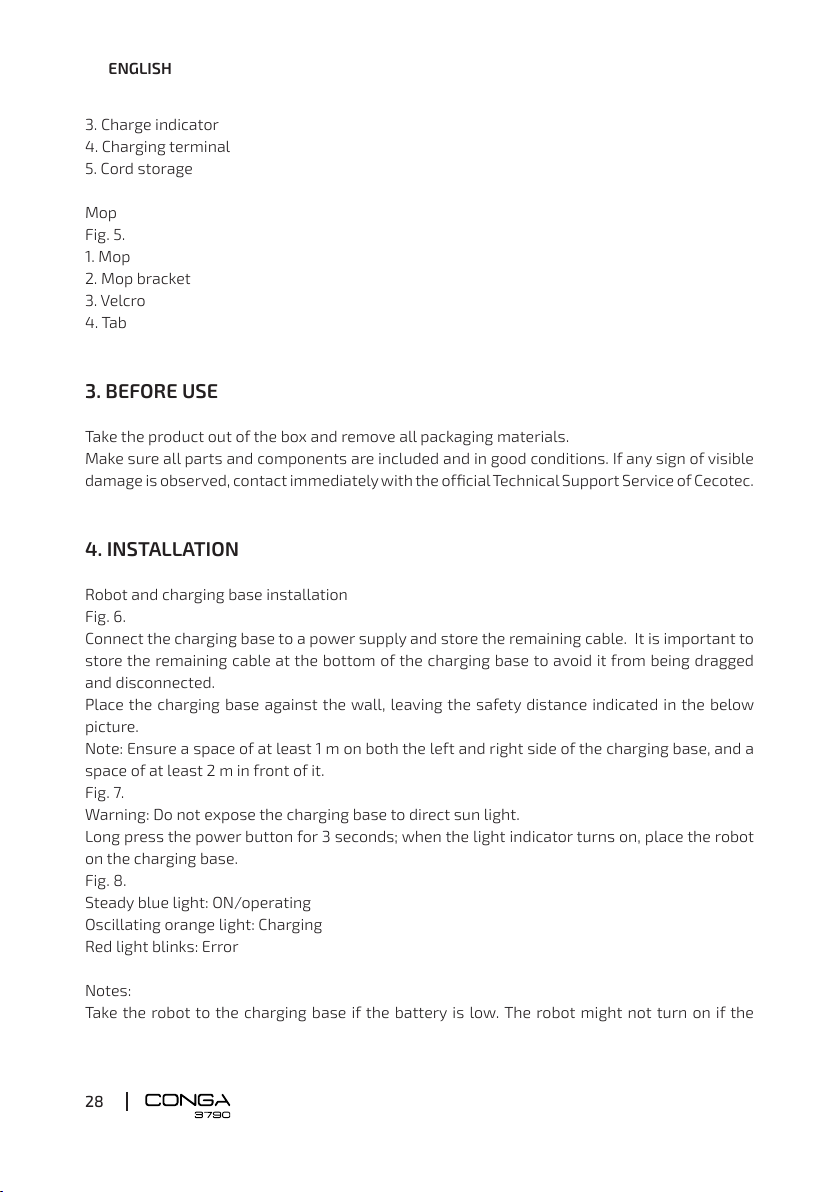

3. Antes de usar 12

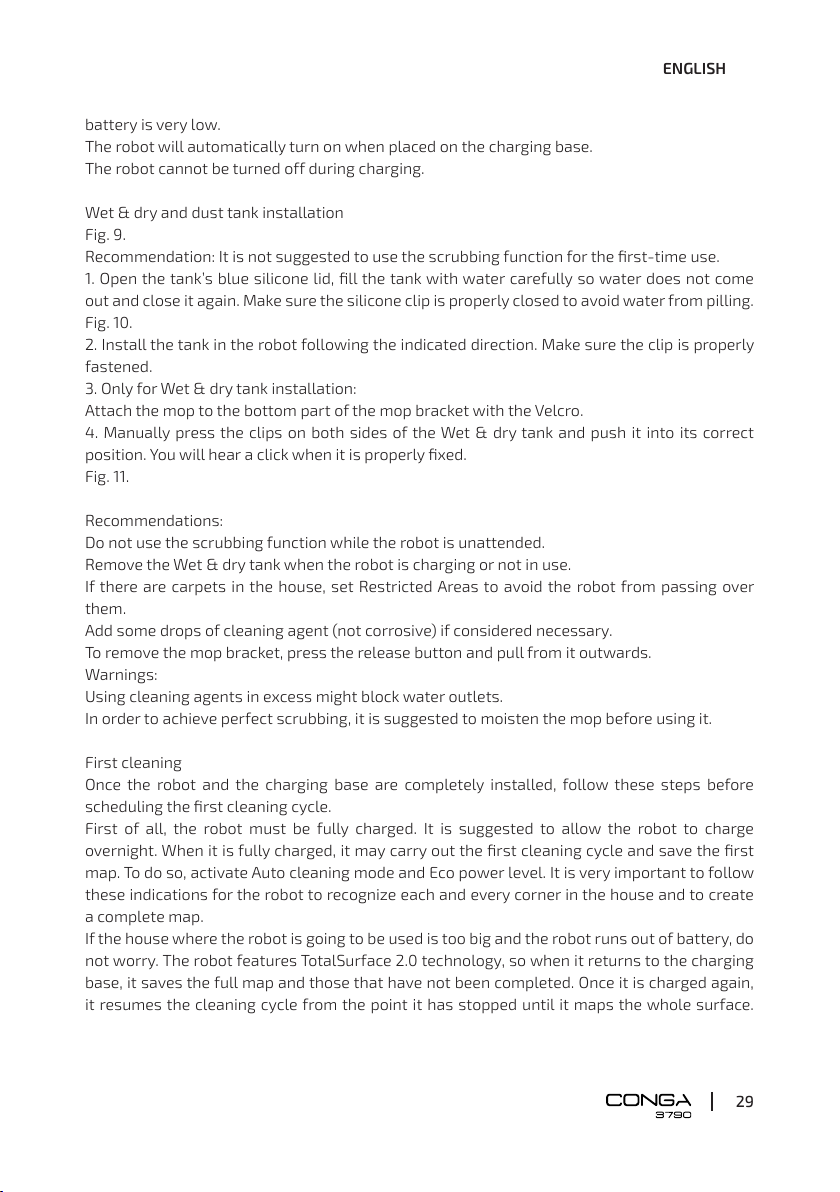

4. Instalación 12
5. Funcionamiento 14
 
7. Limpieza y mantenimiento 20
 
9. Resolución de problemas 22
 
 
 
INDEX
 
2. Parts and components 27
 
 

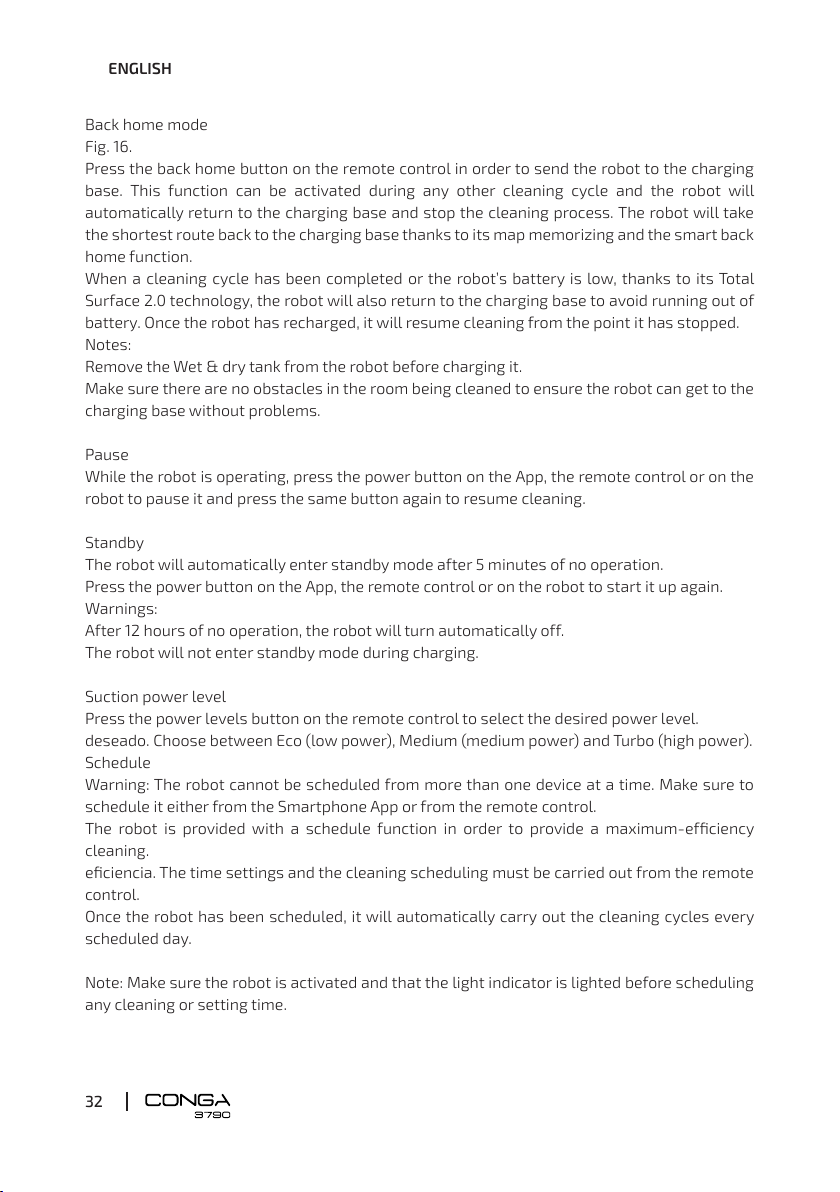

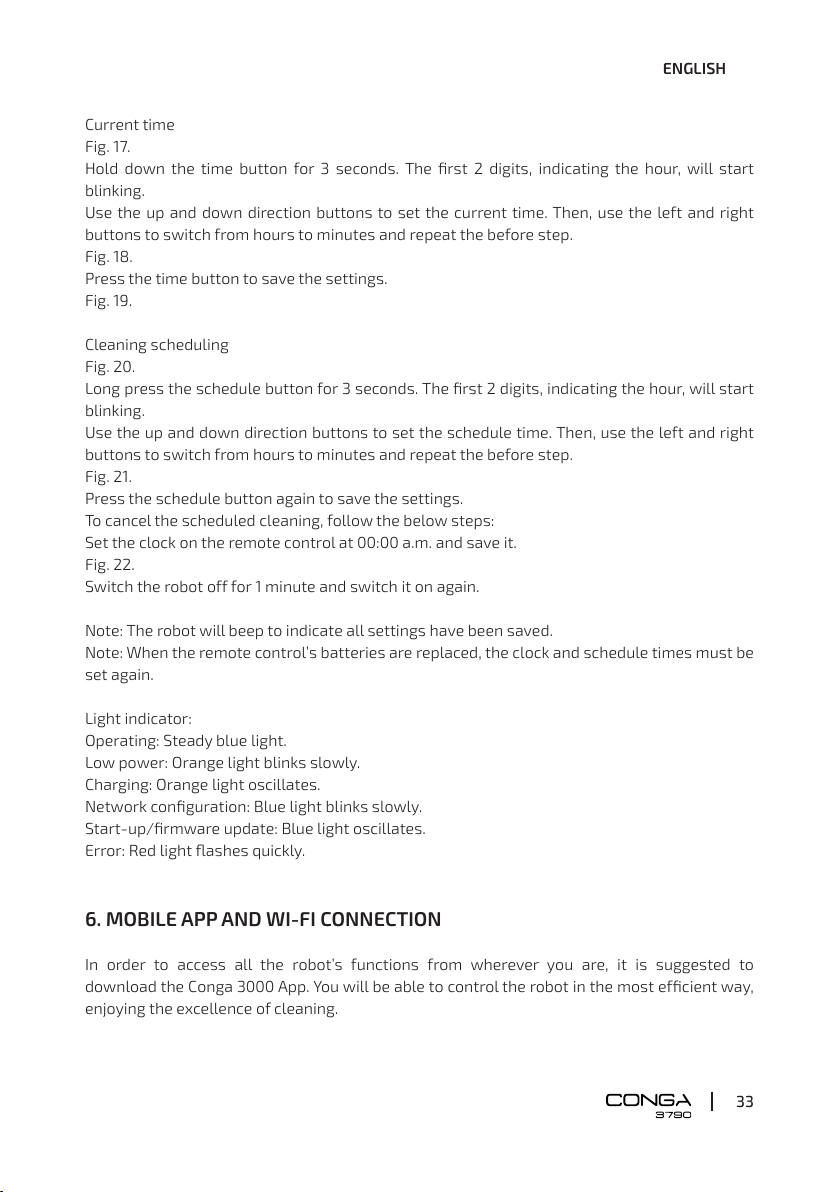

5. Operation 30

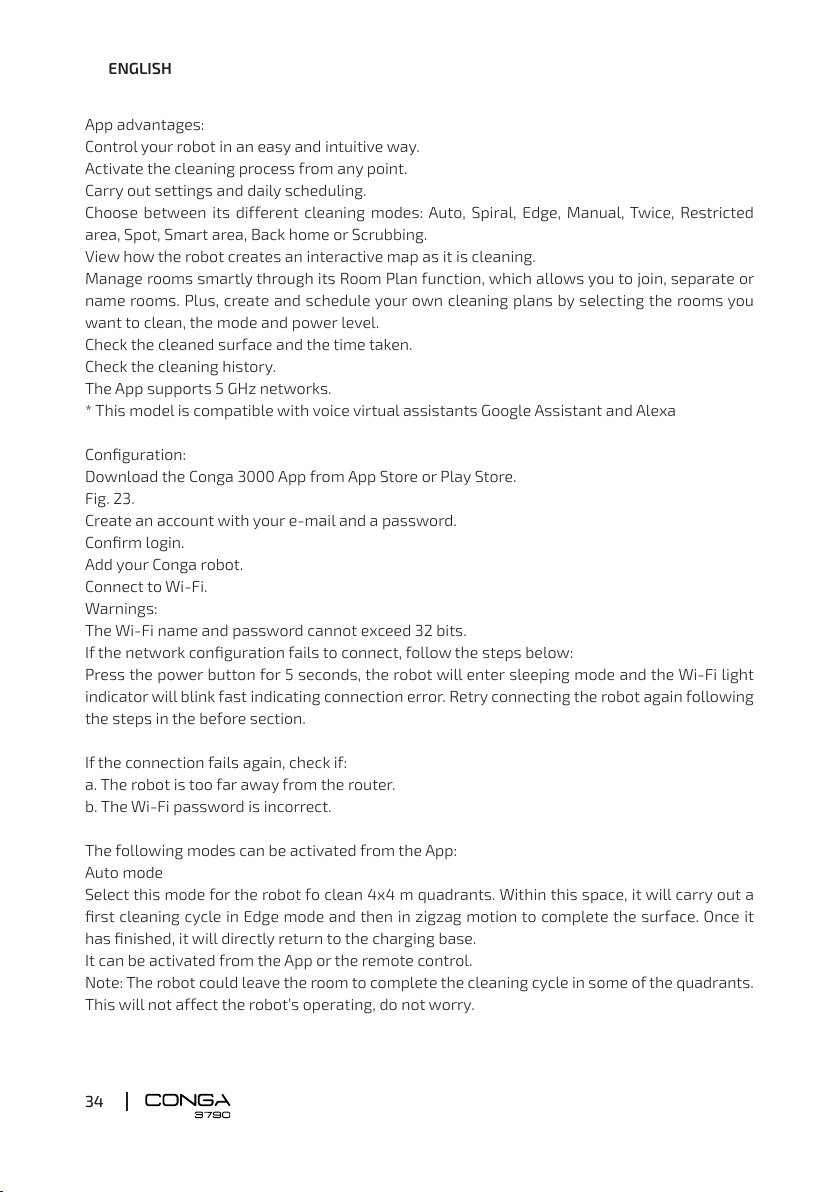

6. Mobile App and Wi-Fi connection 33

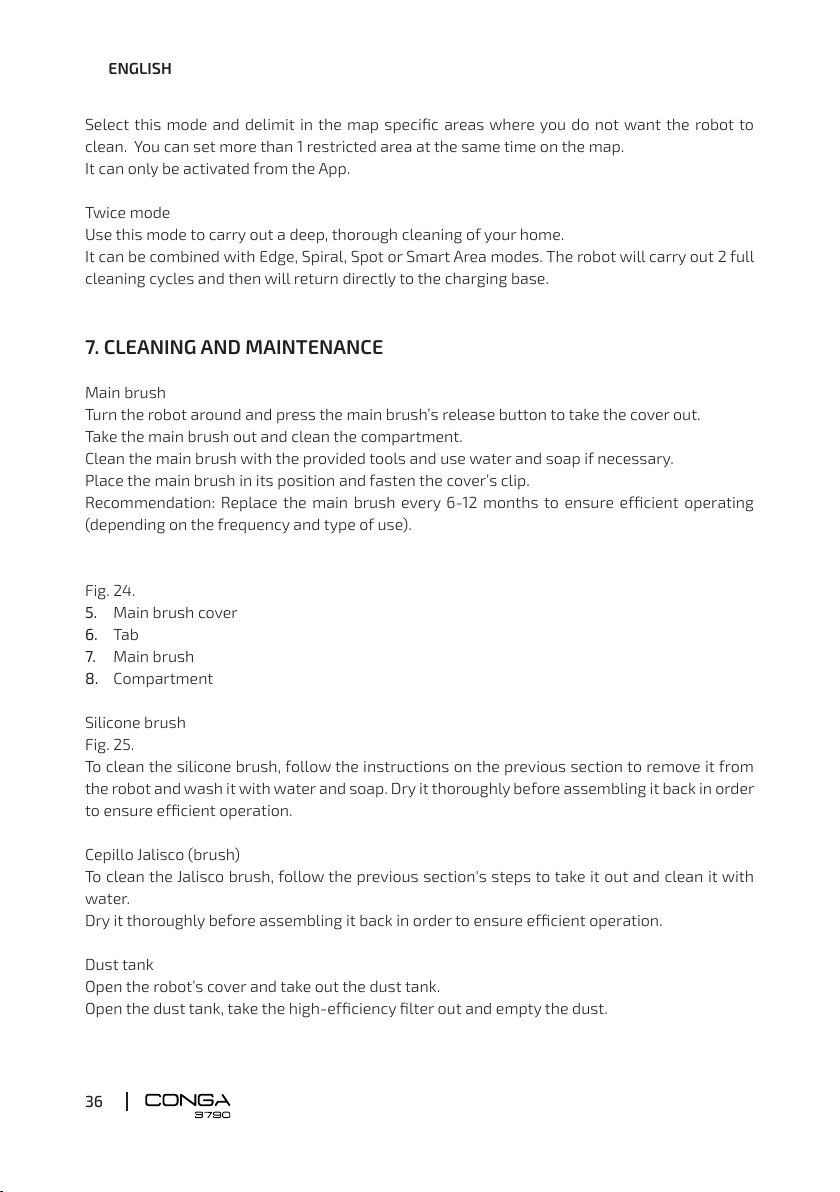

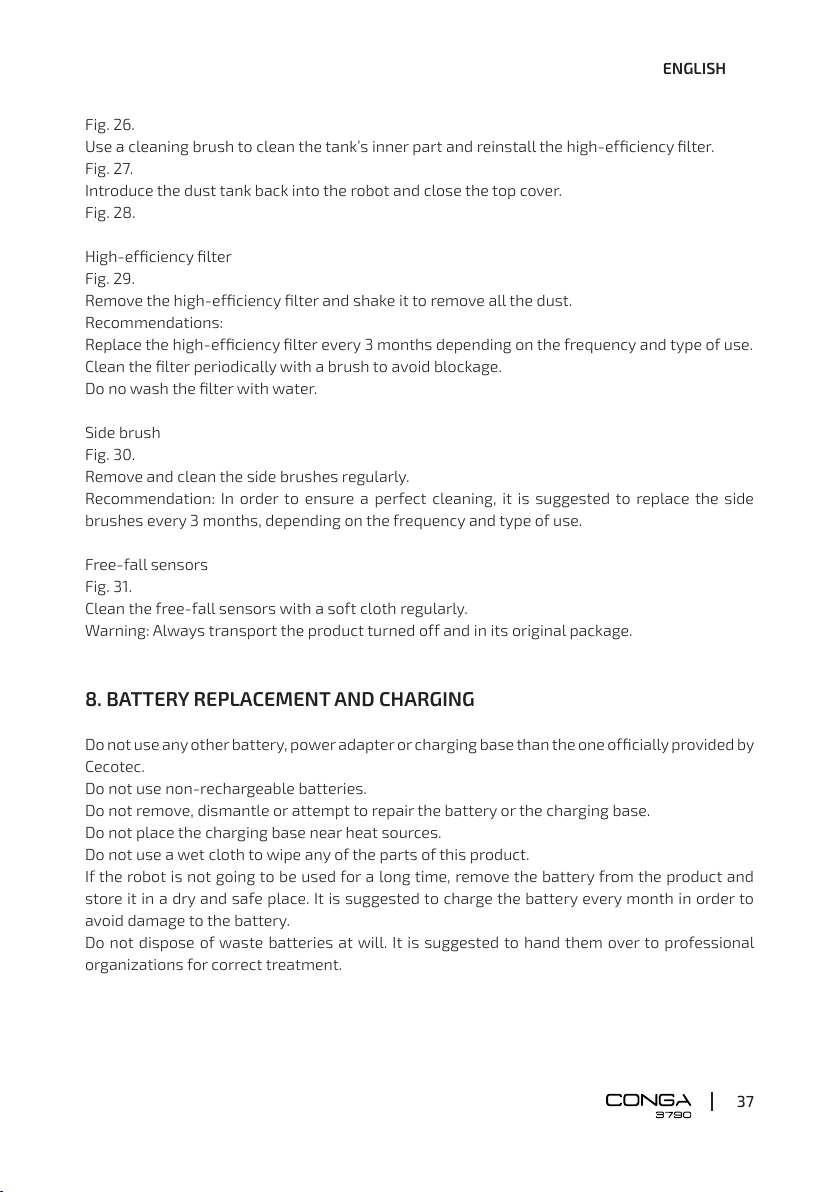

7. Cleaning and maintenance 36
 
 
 
 
 

Fig./Img./Abb./Afb./ Rys./Obr. 1
10
14
14
14
14
16
12
13
17
15
20
19

Fig./Img./Abb./Afb./ Rys./Obr. 2 Fig./Img./Abb./Afb./ Rys./Obr. 3
Fig./Img./Abb./Afb./ Rys./Obr. 4 Fig./Img./Abb./Afb./ Rys./Obr. 5
1
2
1
2
3
4
2
3
5
4
11
2
3
4
2m
1m
1m
Fig./Img./Abb./Afb./ Rys./Obr.6 Fig./Img./Abb./Afb./ Rys./Obr.7
Fig./Img./Abb./Afb./ Rys./Obr.8

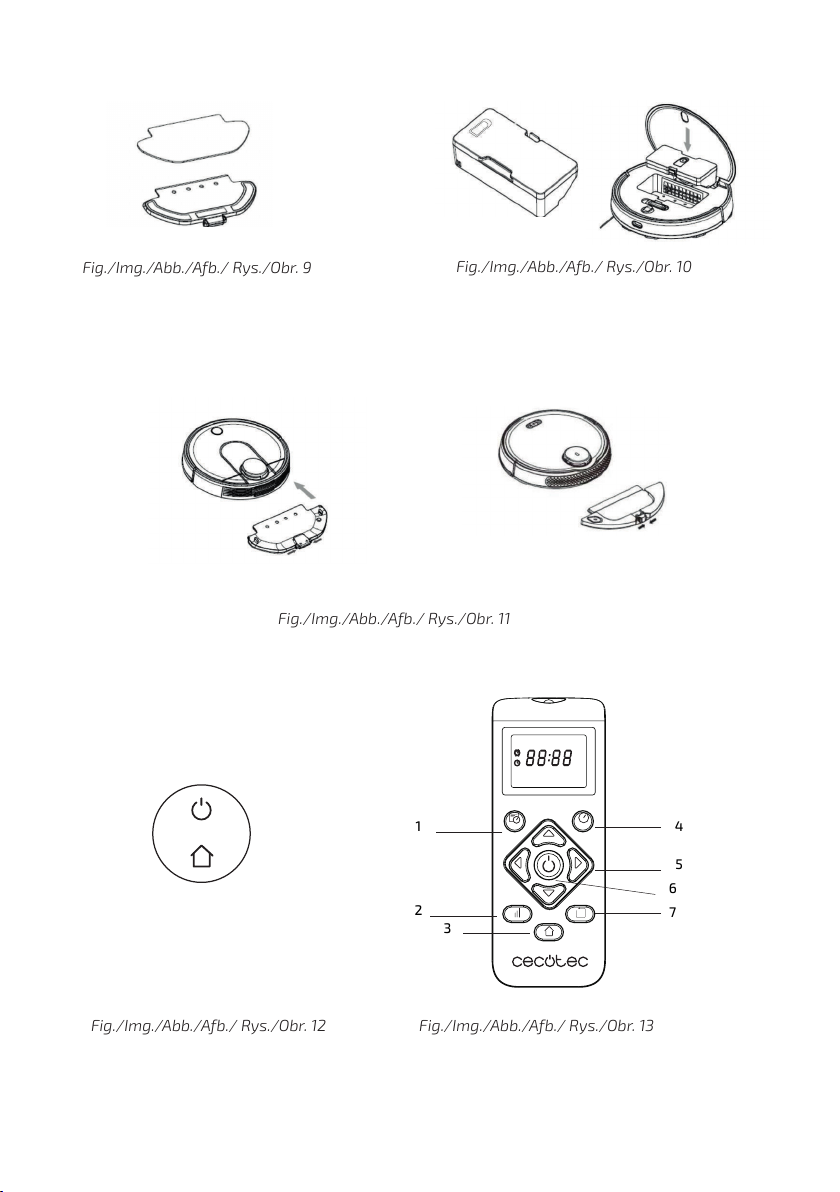

Fig./Img./Abb./Afb./ Rys./Obr. 9
Fig./Img./Abb./Afb./ Rys./Obr. 12
Fig./Img./Abb./Afb./ Rys./Obr. 10
Fig./Img./Abb./Afb./ Rys./Obr. 11
5
1
2
3
4
6
7

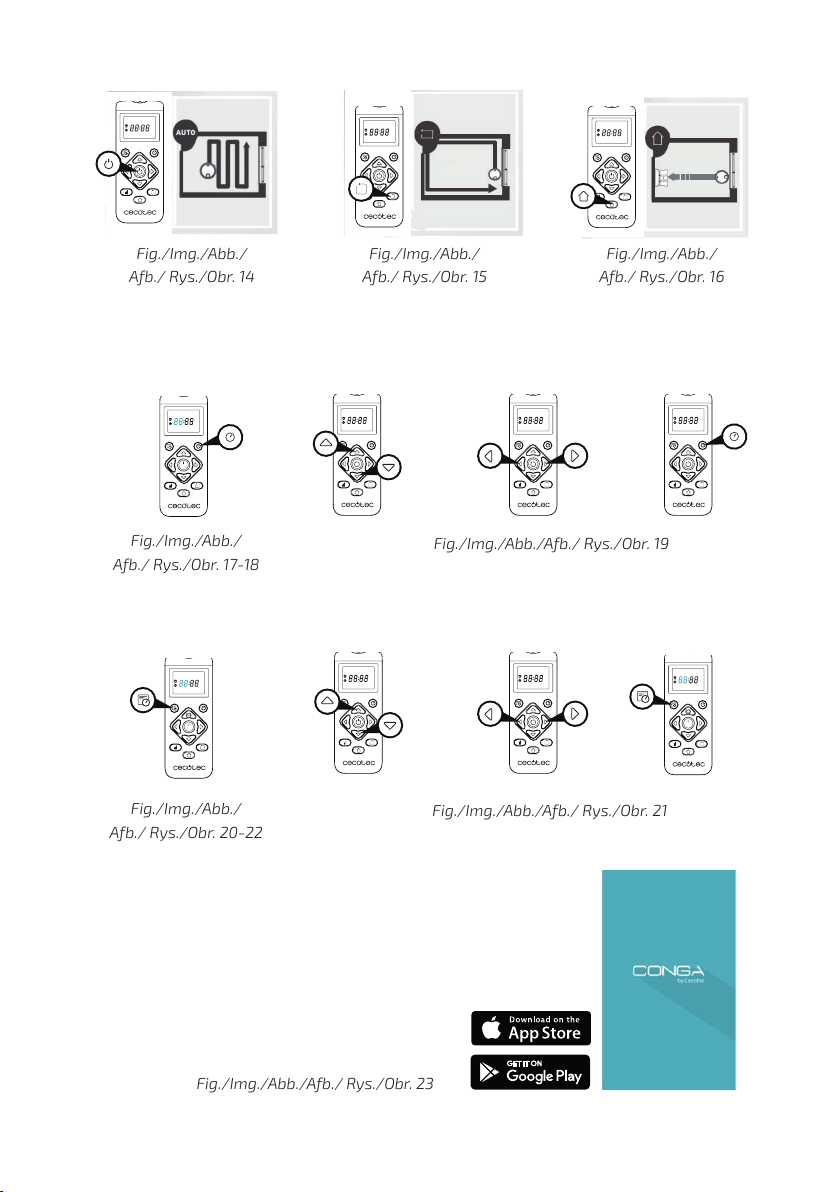

Fig./Img./Abb./Afb./ Rys./Obr. 13

Fig./Img./Abb./
Afb./ Rys./Obr. 14
Fig./Img./Abb./
Afb./ Rys./Obr. 15
Fig./Img./Abb./
Afb./ Rys./Obr. 16
Fig./Img./Abb./
Afb./ Rys./Obr. 17-18
Fig./Img./Abb./Afb./ Rys./Obr. 19
Fig./Img./Abb./
Afb./ Rys./Obr. 20-22
Fig./Img./Abb./Afb./ Rys./Obr. 21
Fig./Img./Abb./Afb./ Rys./Obr. 23

Fig./Img./Abb./Afb./ Rys./Obr. 24
1
2
3
4
Fig./Img./Abb./Afb./ Rys./Obr. 25
Fig./Img./Abb./Afb./ Rys./Obr. 26 Fig./Img./Abb./Afb./ Rys./Obr. 27
Fig./Img./Abb./Afb./ Rys./Obr. 28 Fig./Img./Abb./Afb./ Rys./Obr. 29
Fig./Img./Abb./Afb./ Rys./Obr. 30 Fig./Img./Abb./Afb./ Rys./Obr. 31

25
ENGLISH
1. SAFETY INSTRUCTIONS


 
         
       
use.


grounded.

       

         
similar materials.

appliance.
                
         





          

          

         

26
ENGLISH














          



        
        


27
ENGLISH

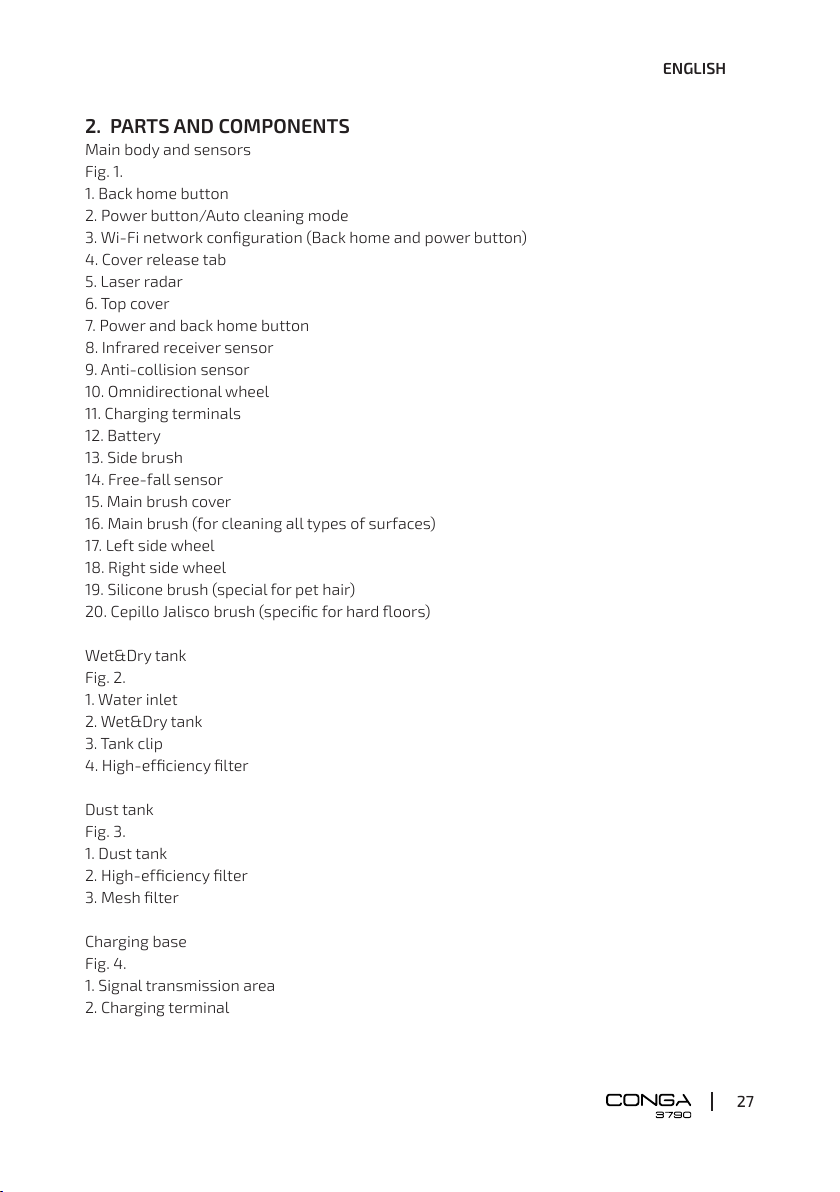

2. PARTS AND COMPONENTS
Main body and sensors

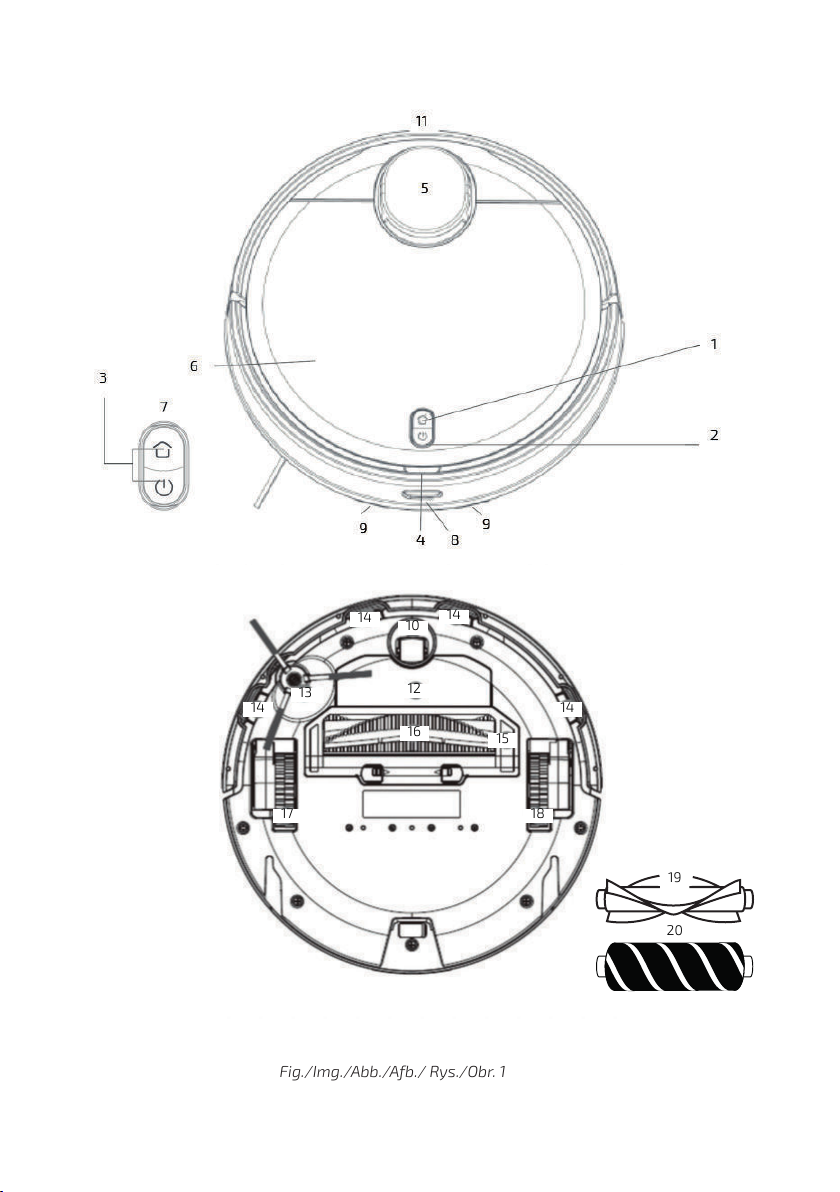

Fig. 1.



4. Cover release tab
5. Laser radar



9. Anti-collision sensor


12. Battery








Wet&Dry tank
Fig. 2.
1. Water inlet
2. Wet&Dry tank


Dust tank
Fig. 3.
1. Dust tank



Fig. 4.


