Centurion D2 Turbo User manual

DOMESTIC
SLIDING GATE
OPERATOR
FOR 250KG GATES
D2 Turbo and D2 Turbo Low-Voltage
Installation Manual
e
g
a
t
l
o
V
-
w
o
L

Company Profile
Centurion Systems (Pty) Ltd reserves the right to make changes to the products described in this manual without notice
and without obligation of Centurion Systems (Pty) Ltd to notify any persons of any such revisions or changes.
Additionally, Centurion Systems (Pty) Ltd makes no representations or warranties with respect to this manual.
No part of this document may be copied, stored in a retrieval system or transmitted in any form or by any means electronic,
mechanical, optical or photographic, without the express prior written consent of Centurion Systems (Pty) Ltd.
Sales and technical support
to over 50 countries
worldwide
1986 1990 1995 1999 Centurion Systems (Pty) Ltd
Today
100%
testing of
products
In-house
R & D
development
team
Manufacture to
international
quality standard
ISO 9001:2008
After-sales
technical support
from 07h00 - 18h00
Monday to Friday

Contents
Mechanical Setup
Electrical Setup
Commissioning and Handover
IMPORTANT SAFETY FEATURES
1. Declaration of Conformity
2. General Description
3. Specifications
Physical Dimensions
Technical Specifications

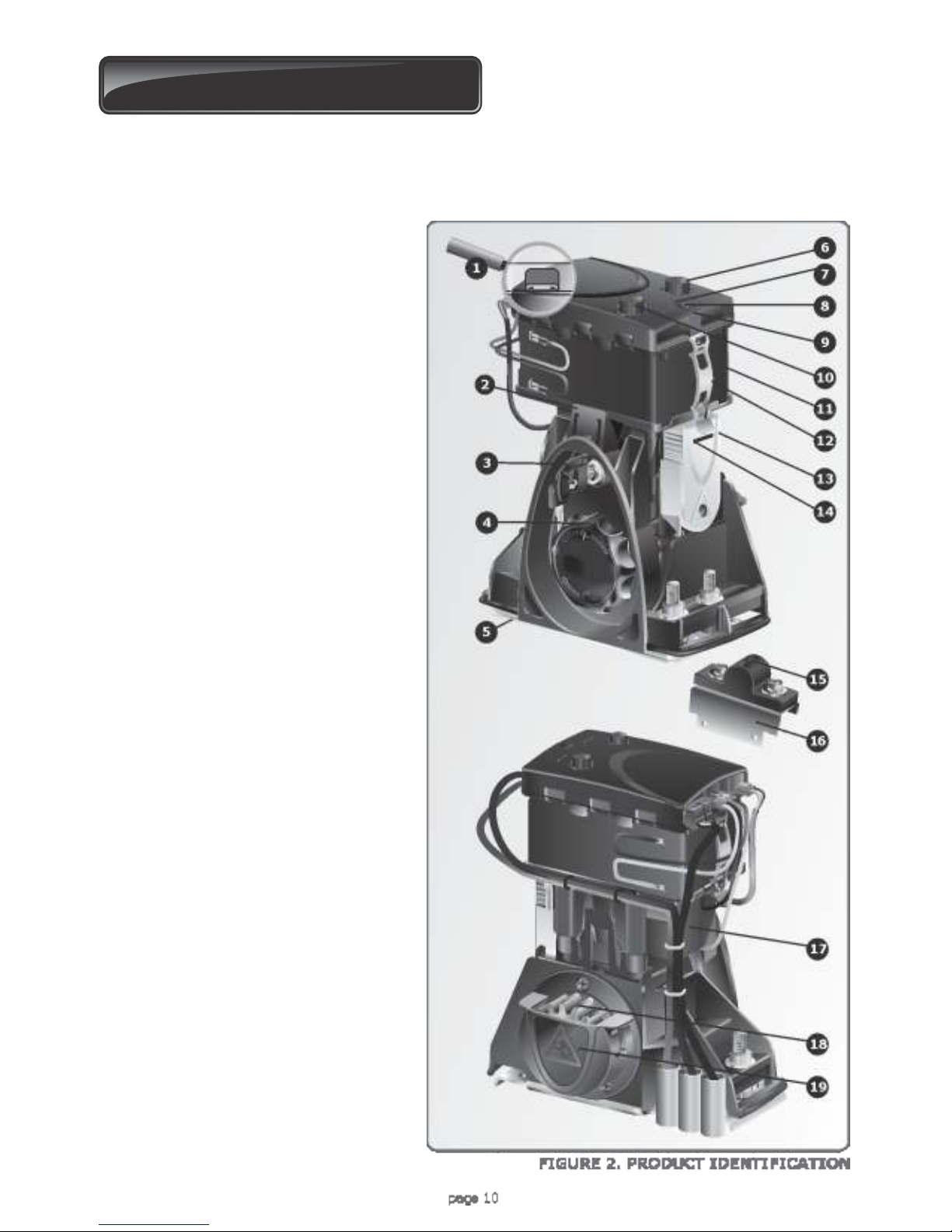

4. Product Identification
5. Required Tools and Equipment
6. Glossary
7. Preparation of Site
8. Cabling Requirements
9. Lubrication
10. Operator Installation
Foundation plate installation
Cast foundation plate into concrete
Bolt foundation plate onto an existing concrete plinth
Retrofitting to an existing D3 foundation plate
11. Electrical Setup
12. Wiring Diagram for Closing Safety Beams
13. Wiring Diagram for Opening Safety Beams
14. Wiring Diagrams for External Radio Receiver
15. Wiring Diagrams for Other Inputs
16. Wiring Diagram for Pillar Light to the D2 Turbo Controller
17. Wiring Diagram for Pillar Light to the D2 Turbo Low-Voltage
Controller
18. Mains Supply and Battery Connections
19. Earthing for Effective Lightning Protections
20. Commissioning the System
Setting up the gate Limits
21. Features and Functions
22. Customising the Features and Functions
page 1
page 2
page 2
page 3
page 6
page 7
page 8
page 8
page 8
page 10
page 11
page 12
page 13
page 17
page 18
page 19
page 21
page 21
page 23
page 25
page 38
page 39
page 40
page 41
page 42
page 43
page 44
page 45
page 46
page 47
page 47
page 49
page 60

page 77
page 79
page 80
page 84
page 85
page 86
page 87
page 88
23. Description of Terminal Functions
24. Diagnostics
25. Troubleshooting
26. Manual Operation
27. Additional Features
28. Basic Maintenance
29. Servicing the Operator
30. Installation Handover

Mechanical Setup
Required tools and equipment page 11
Site considerations page 12
Cabling requirements page 15
Lubrication page 17
Operator installation page 17
Foundation plate installation page 19
Route cables page 26
Mount gearbox page 27
Mount the rack page 29
These abbreviated instructions are for the experienced
installer who needs a checklist to get a standard installation
up and running in the minimum of time.
Detailed installation features and functions are referred to
later in this manual.
page 1

Connect all wiring
page 48
page 87
page 90
step
10
Electrical Setup
step
1
1
Set the gate limits
step
13
Carry out professional
handover to client
Commissioning
and Handover
step
1
2
Set additional features
page 38-45
page 2

Warnings for the Installer
CAREFULLY READ AND FOLLOW ALL INSTRUCTIONS before
beginning to install the product.
All installation, repair, and service work to this product must be done
by a suitably qualified person
Do not activate your gate opener unless you can see it and can
determine that its area of travel is clear of people, pets, or other
obstructions
NO ONE MAY CROSS THE PATH OF A MOVING GATE. Always keep
people and objects away from the gate and its area of travel
NEVER LET CHILDREN OPERATE OR PLAY WITH THE GATE
CONTROLS, and do not allow children or pets near the gate area
Secure all easily-accessed gate opener controls in order to prevent
unauthorised operation of the gate
Do not in any way modify the components of the automated system
Do not install the equipment in an explosive atmosphere: the
presence of flammable gas or fumes is a serious danger to safety
Before attempting any work on the system, isolate electrical power
and disconnect the batteries
The mains power supply of the automated system must be fitted with
an all-pole switch with contact opening distance of 3mm or greater.
The use of a 5A thermal breaker with all-pole circuit break is
recommended
Make sure that an earth leakage circuit breaker with a threshold of
30mA is fitted upstream of the system
Never short-circuit the battery and do not try to recharge the
batteries with power supply units other than that supplied with the
product, or supplied by Centurion Systems
Make sure that the earthing system is correctly constructed, and that
all metal parts of the system are suitably earthed
IMPORTANT
Safety Instructions
ATTENTION
To ensure the safety of people, it is important that
you read all the following instructions.
Incorrect installation or incorrect use of the product could
cause serious harm to people.
The installer, being either professional or DIY, is the last
person on the site who can ensure that the operator is safely
installed, and that the whole system can be operated safely.
page 3

1
2
page 4
Safety devices such as gate safety infrared beams must be fitted to
the installation to guard against mechanical movement risks such as
crushing, dragging and shearing
It is recommended that at least one warning indicator light be fitted
to every system
Always fit the warning signs visibly to the inside and outside of the
gate
The installer must explain and demonstrate the manual override
operation of the gate in case of an emergency, and must hand the
User Guides and Safety/Warning documents over to the end-user
Explain these safety instructions to all persons authorised to use this
gate, and be sure that they understand the hazards associated with
automated gates
Do not leave packing materials (plastic, polystyrene, etc.) within
reach of children as such materials are potential sources of danger
Dispose of all waste products like packaging materials, worn-out
batteries, etc, according to local regulations.
Always check the obstruction detection system, and/or safety devices
for correct operation prior to handover. During the handover of the
system, explain to the end-user how to perform these checks to
confirm that all safety devices are operating correctly
Centurion Systems does not accept any liability caused by improper
use of the product, or for use other than that for which the
automated system was intended
This product was designed and built strictly for the use indicated in
the documentation provided with the product. Any other use, not
expressly indicated within the documentation, could be a source of
danger and/or compromise the service life/operation of the product
Everything not expressly specified in these instructions is not
permitted.
MOVING GATE
CAN CAUSE
INJURY
www.centsys.com
KEEP CLEAR. GATE MAY MOVE
AT ANY TIME. DO NOT ALLOW
CHILDREN TO PLAY IN AREA OR
OPERATE GATE

page 5
Icons used in this Manual
This icon indicates tips and other information that could be
useful during the installation.
This icon indicates warning, caution or attention! Please
take special note of critical aspects that MUST be
adhered to in order to prevent injury.
This icon denotes variations and other aspects that should be
considered during installation.
Before you attempt to use your new gate motor for the first time, you
should know:
At no point must 220V be supplied to the system! This is a
low-voltage model and connecting a voltage supply that
exceeds its maximum specifications will irreparably damage
the electronics
No earth terminal is provided for the incoming power, and is
not necessary, but the earthing lead must still be grounded to
the motor base plate as this serves as lightning protection
The diameter of the cable needed to supply power to the
system will depend on the distance between the transformer
and the motor, as well as on the output voltage of the
transformer used. The table below shows the typical cable
thicknesses for corresponding distance and assumes a 16V AC
transformer output
Distance from the transformer
to the motor
Up to 20m
20m - 40m
40m - 60m
Minimum cable
thickness required
1mm²
1.5mm²
2.5mm²
TABLE 1.
IMPORTANT Site Considerations
for the D2 Turbo Low-Voltage

page 6
Manufacturer
Centurion Systems (Pty) Ltd
Unit 13 Production Park
Intersection Newmarket Road & Epsom Avenue
North Riding
Gauteng
South Africa
Declares that the product
Product name: D2 Turbo/D2 Turbo Low-Voltage Sliding gate operator
Conforms with the following specifications
Safety: SANS 60335-1:2007
IEC 60335-1:2006
Emissions: CISPR 11 CLASS A - Radiated and conducted Interference field
strength (emission tests) – 150KHz TO 6GHz
Immunity: IEC 61000-4-2 – Electrostatic discharge
IEC 61000-4-3 – Radiated immunity – 80MHz TO 1000MHz
IEC 61000-4-4 – Electrical fast transients/burst
IEC 61000-4-5 – Surges
IEC 61000-4-6 – Conducted immunity – 150KHz TO 80MHz
IEC 61000-4-11– Voltage dips and interruption
Standard to which conformity is declared
IEC 60335-1:2006 Safety
IEC 61000-6-4:2006 Emissions
IEC 61000-6-2:2005 Immunity
Signed at North Riding, South Africa on April 14, 2010
Ian Rozowsky
Research & Development Director
1. Declaration of Conformity

page 7
The D2 Turbo is designed to open and close domestic sliding gates weighing up to
250kg. The gearbox, moulded from a high-tech engineering polymer not only looks good,
but is corrosion-free and guarantees that even if you live on the coast, your D2 Turbo
will just keep on going. A robust steel pinion ensures that your D2 Turbo can easily be
retrofitted on sites with existing steel rack and will deliver years of reliable service.
The D2 Turbo Low-Voltage is a cost-effective domestic sliding gate motor for gates
weighing up to 250kg. Its logic controller and onboard charger require only a low-voltage
AC or DC input, which means there is no need for costly high-voltage cable runs or
expensive isolators.
The integral 12V 5Ah battery (charged by an internal charger) comes with full battery
backup and advanced lightning protection so you can always get in – even when the
power is out. For increased power capacity you can install a larger, 7Ah battery
(your D2 Turbo was designed to cater for this), or you can even use a solar panel to
power it (See the section on Solar Panels, for more details about solar charging).
Advanced features of the D2 Turbo logic controller:
The D2 Turbo has various useful features and functions, all easily-accessible from a
user-friendly dial-based setup system:
Opening and closing safety beam inputs with beam circuit functional test
High-security cleared-beam Autoclose in conjunction with safety beam (PIRAC)
Multiple Modes of Operation: Standard Mode, Open only Mode (multi-user), Reversing
Mode, and two Pre-flashing Modes
Automatic closing with adjustable time delay, and pushbutton override
Remote gate-status indicator (gate position, power failure, low battery, multiple
collision detection and Pillar Light status indication)
Pedestrian Opening (with adjustable Autoclose time)
Holiday Lockout
Courtesy/Pillar-Light timer (fixed duration), with pre-delays and two
Pre-flashing Modes
Selectable gate speed modes - Low Speed/High Speed (High Speed is the default)
Positive Close Mode (e.g. ensure activation of electric fence contact switch)
Onboard multichannel CENTURION code-hopping receiver with the ability to learn
transmitter buttons to specific functions (e.g. Gate trigger, Pedestrian Opening,
Holiday Lockout)
2. General Description
Infrared Safety Beams or equivalent detection device must be fitted
Remote LED must be fitted
Onboard receiver must be used or external access control device such as a keypad
or keyswitch that must be fitted
Pillar Lights/Pre-flash warning light must be fitted

Physical dimensions
3. Specifications
D2 Turbo D2 Turbo Low-Voltage
Input voltage
Battery charger amperage output
(dependant on PSU input voltage)
Motor voltage
Motor power supply
Current consumption (mains)
90V - 240V AC ±
10%, 50Hz
90V AC
input
240V AC
input
70mA NA
1A
output
10V AC
input
10V DC
input
20V AC
input
20V DC
input
400mA
output
200mA
output
1A
output
1A
output
1.2A
output
Voltage output: 13.76V DC
10V - 20V AC
10V - 28V DC
12V DC
Battery-driven (standard capacity - 12V 5Ah)
Technical specifications
page 8

Can operate off a solar supply, consult your local dealer for assistance
Can increase battery capacity to 7Ah for longer standby times
Gate operating speed can be configured to run slower depending on the requirements
of individual installations
Based on 25°C ambient temperature and unit not in direct sunlight
Based on an operator push force of less than 50% of rated
Based on four metre gate, excluding infrared Safety Beams
page 9
D2 Turbo D2 Turbo Low-Voltage
Technical specifications
Current consumption
(motor at rated load)
Operator push force - starting
Operator push force - rated
Gate mass - maximum
Gate length - maximum
Gate speed (varies with load)
Manual Override
Life expectancy of electric motor
Duty cycle - mains present
Operations in standby with
5Ah battery
Half day
Full day
Collision Sensing
Operating temperature range
Onboard receiver type
Receiver code storage capacity
Receiver frequency
Degree of protection
Mass of unit packed (with
standard kit, but excl. rack and
battery)
Packaging dimensions (with
standard kit, but excl. rack and
battery)
8A
18kgf
9kgf
250kg
20m
24m/min
Lockable with key release
Ten years (based on ten operations per day)
50%
30
15
Electronic
-15°C to +50°C
Code-hopping multichannel
receiver with selective add and delete
32 transmitter buttons
433MHz
IP54
4.83kg
255mm wide x 188mm deep x 333mm high
TABLE 2.

Refer to the drawings below, for how to identify your D2 Turbo/D2 Turbo Low-Voltage
motor and its parts.
4. Product Identification
1. Motor fuse
2. Motor enclosure unit
3. Camlock cover
4. Manual elease humbwheel R t
5. Foundation plate
6 . Function Dial
7 . Status LED
8 . Pushbutton
9 D2 Turbo 220V orange .
controller
D2 Turbo Low-Voltage
dark-green controller
1 . 0 Selection knob
1 . 5Ah battery1 12V 7.2Ah or
1 . Battery strap2
1 . Pulley guard3
14. Spare fuse
15. Gate mounted origin marker-
16. Origin marker bracket
17. Motor housing
18. Pinion
19. Pinion guard

page 11
5. Required Tools and Equipment
Pull scale - 50kg
Spanner - 17mm; 10mm
Screwdriver - 3.5mm flat
Allen key - 6mm; 4mm
Crimping tool and pin lugs
Side cutters
Hacksaw
Spirit level
Measuring tape
If casting foundation plate into concrete:
Pick
Spade
Long-nosed pliers
If bolting foundation plate onto existing plinth:
Drilling equipment
Masonry bits to suit rawlbolts being used
If retrofitting foundation plate to an existing D3 foundation plate:
Grinder
If welding foundation plate and/or rack to gate:
Welding equipment
G-clamp, 6 inch x 2
If left-hand side of gearbox is mounted close to a post:
Socket wrench
Extension piece
17mm socket
If fastening rack to gate:
Drilling equipment
TEK screw socket

6. Glossary
DOSS: Digital Origin Seeking System. An opto-electronic system that counts pulses in
order to determine the position of the gate and the distance that it needs to travel to
its respective endstops
IRBO: Opening infrared Safety Beams. If the opening beams are interrupted while the
gate is in the closed position, it will prevent the gate from opening. If they are
interrupted while the gate is travelling in the open direction, it will stop and close the
gate. It will have no effect upon a closing gate
IRBC: Closing infrared Safety Beams. If the closing beams are interrupted while the
gate is in the open position, it will prevent the gate from closing. If they are
interrupted while the gate is closing, it will stop and open the gate. It will have no
effect upon an opening gate
PIRAC Mode: Passive infrared Autoclose Mode. This feature allows the gate to close
automatically as soon as a vehicle or pedestrian has passed through the closing beam.
This security feature ensures that the gate stays open for the minimum amount of time
possible
page 12

page 13
Endstops
Fit endstops capable of stopping the gate at rated speed. Refer to specifications at the
beginning of this manual for the operating speed
Make H>h to ensure gate will not jump over endstop
WARNING!
Endstops are mandatory and must be fitted to prevent death
or accidental injury should the gate overrun its limits
7. Preparation of Site

page 14
General considerations for the installation
Always recommend the fitment of additional safety equipment such as Safety Edges
and Safety Beams, for additional protection against entrapment or other mechanical
risks
Check that no pipes or electrical cables are in the way of the intended installation
Check that enough space is available for the gate operator with the gate in the
required open position
Check for loose, sandy soil if installing foundations, as the soil condition may require a
larger foundation
Never fit the operator on the outside of the gate, where the public has access to it
Install the gate operator only if
It will not pose a hazard to the public
There is sufficient clearance to a roadway and/or public thoroughfares
The installation will meet all municipal and/or local authority requirements once
completed
The gate mass, length and application is within the operator specifications
The gate is in good working order, meaning:
that it moves freely
does not move on its own if left in any position
it can be installed to have sufficient clearance between moving parts when opening
and closing to reduce the risk of personal injury and entrapment
Pushbuttons or keyswitches, when required, can be positioned so that the gate is in
line of sight of the operator

Guide-rollers and anti-lift brackets
Guide-rollers must ensure that the gate is held vertically
For improved safety, fit additional support post to prevent gate from falling over if
guide-rollers fail
To prevent unauthorised access fit anti-lift brackets as shown
The gap between the anti-lift bracket and the gate must be less than 5mm
Ensure that the gate cannot be lifted off the motor pinion with the anti-lift
bracket fitted
page 15

page 16

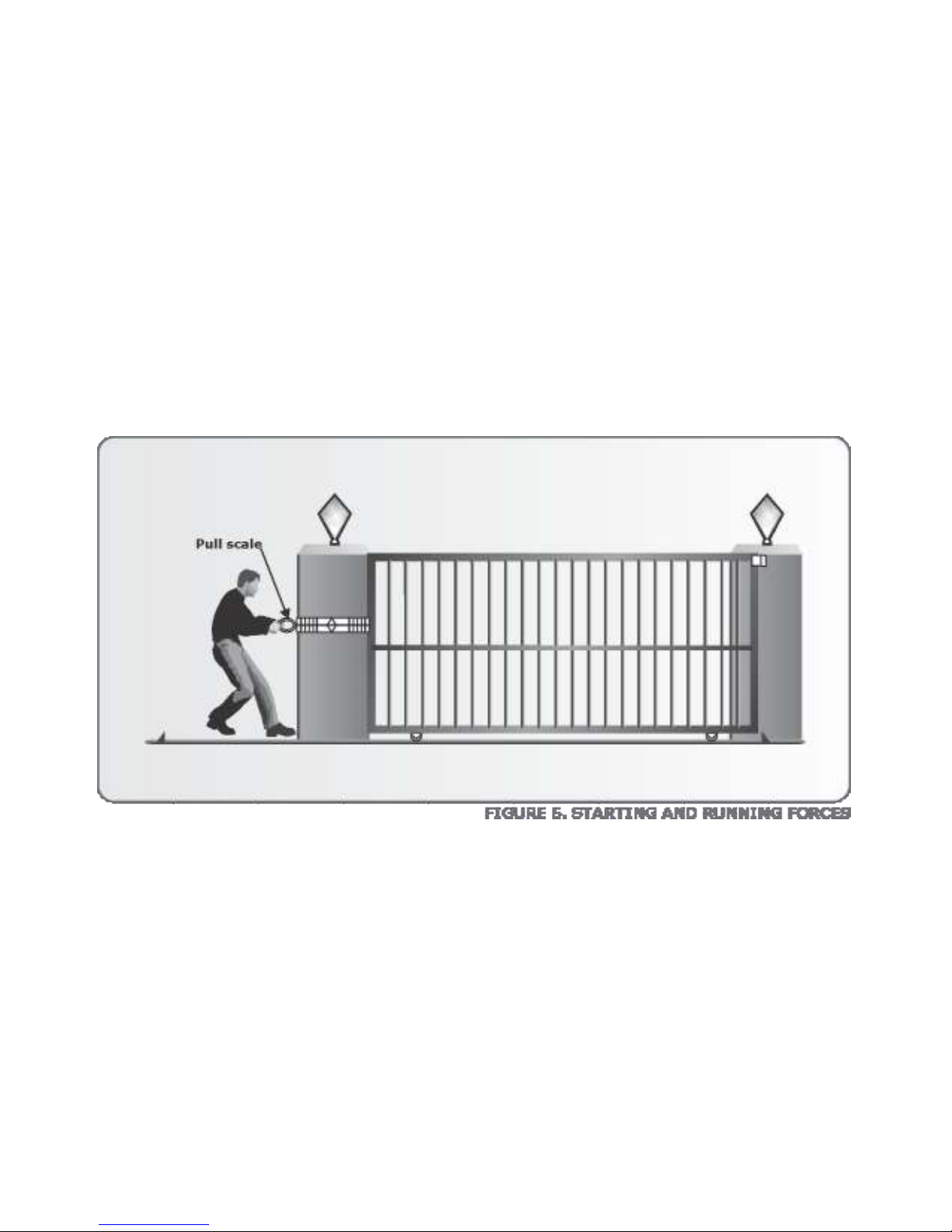

Starting and running forces
Test the starting force of the gate as per the diagram. Use a pull scale to determine
the maximum amount of pull force required to get the gate moving
Determine the running force of the gate by continuing to pull on the scale with just
sufficient force to keep it running and read off the maximum value in kgf shown on the
scale
Where possible determine the gate mass
The warranty will be void if the pull force and/or gate mass exceed the operator
specification as below:
Starting force - 18kgf
Running (rated) force - 9kgf
Maximum gate mass - 250kgf

