Challenger Lifts 4018XFX Instruction manual

Rev.05/03/2021

Installation, Operation & Maintenance Manual
Four Post
Surface Mounted Lift

Model 4018XFX
Closed Front
(18,000 lb Capacity)
2311 South Park Rd Louisville, Kentucky 40219
Email:[email protected] Web site:www.challengerlifts.com

Office 800-648-5438 /502-625-0700 Fax [phone]
IMPORTANT: READTHISMANUALCOMPLETELYBEFORE
INSTALLINGorOPERATINGLIFT

Rev. 05/03/2021
Owner / Employer Obligations
1. The Owner/Employer shall ensure that lift operators are qualified and that they are
trained in the safe use and operation of the lift using the manufacturer’s operating
instructions; ALI/SM 93-1, ALI Lifting it Right safety manual; ALI/ST-90 ALI Safety
Tips card; ANSI/ALI ALOIM-2008, American National Standard for Automotive Lifts
- Safety Requirements for Operation, Inspection and Maintenance; ALI/WL Series,
ALI Uniform Warning Label Decals/Placards; and in the case of frame engaging lifts,
ALI/LP-GUIDE, Vehicle Lifting Points/Quick Reference Guide for Frame Engaging
Lifts.
2. The Owner/Employer shall establish procedures to periodically inspect the lift in
accordance with the lift manufacturer’s instructions or ANSI/ALI ALOIM-2008, American
National Standard for Automotive Lifts - Safety Requirements for Operation,
Inspection and Maintenance; and the Employer shall ensure that the lift inspectors are
qualified and that they are adequately trained in the inspection of the lift.
3. The Owner/Employer shall establish procedures to periodically maintain the lift in
accordance with the lift manufacturer’s instructions or ANSI/ALI ALOIM-2008, American
National Standard for Automotive Lifts - Safety Requirements for Operation,
Inspection and Maintenance; and the Employer shall ensure that the lift maintenance
personnel are qualified and that they are adequately trained in the maintenance of the
lift.
4. The Owner/Employer shall maintain the periodic inspection and maintenance records
recommended by the lift manufacturer’s instructions or ANSI/ALI ALOIM-2008,
American National Standard for Automotive Lifts - Safety Requirements for
Operation, Inspection and Maintenance.
5. The Owner/Employer shall display the lift manufacturer’s operating instructions; ALI/SM
93-1, ALI Lifting it Right safety manual; ALI/ST-90 ALI Safety Tips card; ANSI/ALI
ALOIM-2008, American National Standard for Automotive Lifts - Safety
Requirements for Operation, Inspection and Maintenance; ALI/WL Series, ALI
Uniform Warning Label Decals/Placards; and in the case of frame engaging lifts,
ALI/LP-GUIDE, Vehicle Lifting Points/Quick Reference Guide for Frame Engaging
Lifts in a conspicuous location in the lift area convenient to the operator.
6. The Owner/Operator shall provide necessary lockout/tagout means for energy sources
per ANSI Z244.1-1982 (R1993), Safety Requirements for the Lockout/Tagout of
Energy Sources, before beginning any lift repairs and maintenance.
7. The Owner/Employer shall not modify the lift in any manner without the prior written
consent of the manufacturer.

3

DO NOT ATTEMPT TO OPERATE THIS LIFT IF ANY PART
IS NOT WORKING PROPERLY OR YOU HAVE NOT READ THE COMPLETE OPERATING
INSTRUCTION MANUAL.

Important Safety Instructions
1. When using this lift, basic safety precautions should
always be followed, including the following:
2. Read all instructions in this manual and on the lift thoroughly before installing, operating,
servicing or maintaining the lift.
3. Care must be taken as burns can occur from touching hot parts.
4. Do not operate equipment with a damaged cord or if the equipment has been dropped
or damaged – until it has been examined by a qualified service person.
5. Do not let a cord hang over the edge of the table, bench, or counter or come in contact
with hot manifolds or moving fan blades.
6. If an extension cord is necessary, a cord with a current rating equal to or more than that
of the equipment should be used. Cords rated for less current than the equipment may
overheat. Care should be taken to arrange the cord so that it will not be tripped over or
pulled.
7. Always unplug equipment from electrical outlet when not in use. Never use the cord to
pull the plug from the outlet. Grasp plug and pull to disconnect.
8. Let equipment cool completely before putting away. Loop cord loosely around equipment
when storing.
9. To reduce the risk of fire, do not operate equipment in the vicinity of open containers of
flammable liquids (gasoline).

4

10. Adequate ventilation should be provided when working on operating internal combustion
engines.
11. Keep hair, loose clothing, fingers, and all parts of body away from moving parts.
12. To reduce the risk of electric shock, do not use on wet surfaces or expose to rain.
13. Use only as described in this manual. Use only manufacturer’s recommended
attachments.
14. ALWAYS WEAR PERSONAL PROTECTIVE EQUIPMENT. Everyday eyeglasses only
have impact resistant lenses, they are not safety glasses.
15. Inspect lift daily. Do not operate if it malfunctions or problems have been encountered.
16. Never attempt to overload the lift. The manufacturer’s rated capacity is shown on the
identification label on the power side column. Do not override the operating controls or
the warranty will be void.
17. Before driving vehicle between the towers, position the arms to the drive-through
position to ensure unobstructed clearance. Do not hit or run over arms as this could
damage the lift and/or vehicle.
18. Only trained and authorized personnel should operate the lift. Do not allow customers or
bystanders to operate the lift or be in the lift area.
19. Position the lift support pads to contact the vehicle manufacturers recommended lifting
points. Raise the lift until the pads contact the vehicle. Check pads for secure contact
with the vehicle. Check all arm restraints and insure they are properly engaged. Raise
the lift to the desired working height.
20. Some pickup trucks may require an optional truck adapter to clear running boards or
other accessories.
21. NOTE: Always use all 4 arms to raise and support vehicle.
22. Caution! Never work under the lift unless the mechanical safety locks are engaged.
23. Note that the removal or installation of some vehicle parts may cause a critical load shift
in the center of gravity and may cause the vehicle to become unstable. Refer to the
vehicle manufacturer’s service manual for recommended procedures.

5

24. Always keep the lift area free of obstruction and debris. Grease and oil spills should
always be cleaned up immediately.
25. Never raise vehicle with passengers inside.
26. Before lowering check area for any obstructions.
27. Before removing the vehicle from the lift area, position the arms to the drive-thru position
to prevent damage to the lift and /or vehicle.
28. Do not remove hydraulic fittings while under pressure.
For additional safety instructions regarding lifting, lift types, warning labels, preparing to lift,
vehicle spotting, vehicle lifting, maintaining load stability, emergency procedures, vehicle
lowering, lift limitations, lift maintenance, good shop practices, installation, operator training and
owner/employer responsibilities, please refer to “Lifting It Right” (ALI/SM) and “Safety Tips”
(ALI/ST) and vehicle lift points for service garage lifting SAE J2184.
For additional instruction on general requirements for lift operation, please refer to “Automotive
Lift-Safety Requirements For Operation, Inspection and Maintenance” (ANSI/ALI ALOIM).
Installation shall be performed in accordance with ANSO/ALI ALIS, Safety Requirements for
Installation and Service of Automotive Lifts.
ATTENTION! This lift is intended for indoor installation only. It is prohibited to
install this product outdoors. Operating environment temperature range
should be 41 – 104 °F (5 – 40 °C). Failure to adhere will result in decertification,
loss of warranty, and possible damage to the equipment.



6

Safety Warning Labels

7

SAVE THESE INSTRUCTIONS
General Specifications
Maximum Capacity 18,000 lb 8165 kg
Maximum Wheelbase – General Service 220” 5588 mm
Overall Length 303-3/8” 7706 mm
Overall Width 152-1/8" 3864 mm
Lowered Runway Height 9-1/2" 241 mm
Maximum Lifting Height (to runway surface) 72” 1829 mm
Rise Time 70 Seconds
Ramp approach angle (no shims) 10°
Power Requirements 230VAC, 1PH., 20A, 60 Hz
Shipping Weight 5465 lb 2484 kg
Maximum Operating Pressure (Full Load): 2650 psi 183 bar
Air Supply Requirements: 90 - 120 psi 6 - 8 bar
Figure 1 – General Specifications
Figure 2 – Service & Alignment Wheelbase Specifications

8

Installation Requirements & Tools
Foundation
It is the user’s responsibility to provide a satisfactory installation area for the lift. Lifts should
only be installed on level concrete floors with a minimum thickness of six inches (6") or 152 mm.
Concrete must have a minimum strength of 4000 psi or 28 MPa and should be aged thirty (30)
days prior to installation. Please consult with an architect, contractor or engineer if doubt exists
as to the strength and feasibility of the floor to enable proper lift installation and operation.
A qualified person should be consulted to address seismic loads and other local or state
requirements.
It is the user’s responsibility to provide all wiring for electrical hook-up prior to installation and to
insure that the electrical installation conforms to local building codes. Where required, it is the
user’s responsibility to provide an electrical isolation switch located in close proximity to the lift
that will enable emergency stop capability and isolate electrical power from the lift for any
servicing requirements.
Tools
ROTARY HAMMER DRILL
3/4” CONCRETE DRILL BIT
SELF LEVELING LASER OR 4’ LEVEL
HAMMER (for anchor installation)
PRY BAR (for shim installation)
CHALK LINE (lift location)
TAPE MEASURE
ELECTRICAL TAPE
STEP LADDER (adjusting cables and/or safety ladder in posts)
SIDE CUTTERS (for cutting shipping straps)
(8) JACK STANDS (set up)
STANDARD SOCKETS AND WRENCHES
ALLAN KEY SET
SCREWDRIVER SET
FLOOR JACK OR ENGINE HOIST
BOX CUTTER / SNIPS (to remove packaging)
RUBBER OR PLASTIC MALLET

9

Contents
The lift is packaged to protect it from any damage that may occur during shipping. The
two deck assemblies and crossmembers are packaged together with the accessory
boxes strapped to them.

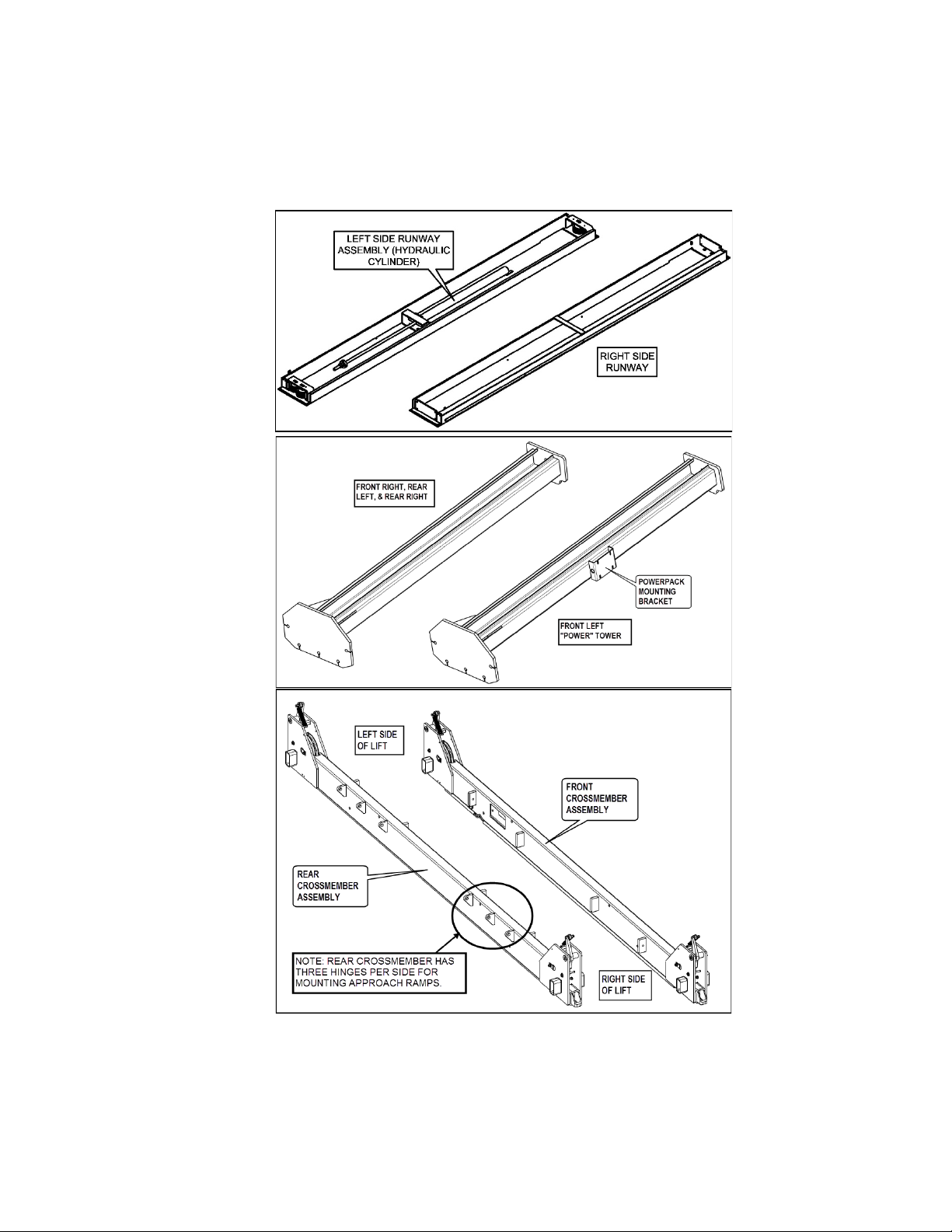

Main Structural Components:
1 - Left Side Deck Assembly (complete with hydraulic cylinder, sheaves and cables)
1 - Right Side Deck Assembly
1 - Front Crossmember Assembly (with air cylinder release locks and sheaves)
1 - Rear Crossmember Assembly (with air cylinder release locks and sheaves)
Accessory Box Components
Box 1 Contents:
1 - Power Post (with safety ladder)
3 - Post (with safety ladder)
Box 2 Contents:
1 - Hardware Kit (with separate packaging list)
2 - Ramp pin
2 - Front Wheel Stop
4 - Sheave Cover
2 - Approach Ramp
1 - Coupler, ¼”NPT
2 - Recoil Hose
1 - Power Unit 220v/1Ph/3hp
10ft - 1/4” DIA. Polytube
10ft - 3/8” DIA. Polytube
1 - Hose Guard
1 - Hydraulic Hose Assembly (16ft. lg.)
2 - Cable Tie
1 - Air Valve & Filter Assembly
1 - Flow Control
1 - Installation & Operation Manual
1 - Lift it Right Manual “ALI”
1 - Lift it Right Safety Tips
1 - “ALI” Standards
1 - “ALI” Quick Reference Guide
8 - Glide Bearing
4 - Lifting cables

10

Bay Layout
PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS COMPLETELY.
A QUICK CHECK OF THE CONTENTS OF THE ACCESSORY BOX WOULD
ALSO DECREASE THE INSTALLATION TIME.
1. Gather the tools and materials required for the installation.
2. Select the location best suited for your lift.
NOTE: In determining lift area check for the following:
Ease of driving a vehicle on and off the lift.
Overhead obstructions, low ceiling height, overhead doors, overhead heaters etc.
Floor obstructions, uneven floor in lift area, floor drains, work benches, electrical
wiring in floor, etc.
Anchor locations must be a minimum of 6" from any cracks
An outline matching the dimensions shown in Figure 2 will need to be marked on
the floor. Refer to Figure 3 for outline dimensions. Refer to General Lift
Specifications for overall lift dimensions.
Recommended minimum clearance around the lift is three (3) feet. Ensure
clearance conforms to local building and fire codes.
Recommended overhead clearance is a minimum twelve (12) foot ceiling
providing 6 feet for the maximum lift height and 6 feet for the supported vehicle.
For vehicles taller than 6 feet it is recommended that the user provides additional
overhead clearance or a shut off mechanism to stop the lift from raising the
vehicle too high.
DO NOT install the lift on asphalt or other unstable surfaces. Lift
columns are supported only by anchors in floor.
INSTALLER: PLEASE RETURN THIS BOOKLET TO LIFT OWNER/OPERATOR
AFTER COMPLETING INSTALLATION

11

Typical Bay Layout

12

Figure 3 – Typical Bay Layout
Chalk Line Layout
None of the anchors shall be closer than 4-3/4" to any edge of a
concrete slab, expansion joint or crack in the garage floor. Review
position of front towers, base plates and anchors, and relocate lines "1", "A", "D" if
needed.
1. Refer to Figure 2 & 3. Make a chalk line parallel to the doorway at least 321-
3/8” in from the doorway. This will be the location for the front face of the tower
baseplate. Call this line "1".
2. Determine the center of the doorway and bay. Make a centerline to intersect with
line "1".
3. Make a chalk line parallel to line “1”, 263” back toward the door. Call this line “4”.
4. Make a chalk like parallel to line "1", 10-1/2" towards door. Call this line "2".
5. Make a chalk like parallel to line "4", 10-1/2" towards front. Call this line "3".
Lines "2" and "3" will be the lines that the front and rear of the runways
align to.
6. Make a chalk lines parallel to the center line 76-1/16” to the left side and
intersecting line “1” and line ”4”. Call this line “A”.
7. Make a chalk line parallel to line "A" 152-1/8" to the right, intersecting lines "1"
and 4". Call this line "D".
Lines "A" & "D" and "1" & "2" will be the lines that the outside edge of the
tower baseplates align to.
8. Make two chalk lines spaced 20" to the left and right side of the centerline
intersecting line “1” and line ”4”. Call these lines, line “B” & "C".
Lines "B" & "C" will be the lines that the inside edge of the runways align
to.

13

Figure 4 – Chalk Line Layout

14

Identification of Components
1. Identify and unpack major lift components (Towers, Crossmembers & Runways) and
place them where they belong according Figure 1.
Figure 5. Component Identification

15

2. Locate and identify the coiled cables as follows, place close to the rear of the left side of
the chalk outlines. (Table 2):
Cable P/N Location Length
2-1360 Front Left 407.5"
2-1361 Front Right 473.5"
2-1362 Rear Left 162"
2-1363 Rear Right 228"
Installation Instructions

1.1 Assembly of Cables to Left Side Deck
1. Place the left deck assembly so that the inside edge lies along chalk line “B”.
2. Place the right deck assembly so that the inside edge lies along chalk line “C”.
3. Position both decks so that the front edge lies along chalk line “2”.
4. Using a floor jack or engine hoist, lift the left side runway and support with (4)
jack stands (see Figure 6) or other means of support. Use the floor jack or
engine hoist as addition support.
5. If possible, repeat for the right side deck.
Figure 6: LS Deck Support
Table2:Cable
Identification

16

NOTE: THE CYLINDER ROD MUST BE FULLY EXTENDED IN ORDER TO ATTACH
THE NON-THREADED ENDS (SLEEVES) OF THE CABLES TO THE CABLE FLANGE
ON CYLINDER ROD. USE COMPRESSED AIR IN THE SHOP AND AN AIR NOZZLE
AT THE BREATHER END TO EXTEND THE CYLINDER ROD. USE CAUTION AND
PROTECTIVE EQUIPMENT WHEN WORKING WITH COMPRESSED AIR.
6. Loosen the hose clamp on the cable flange and assemble the studded end of
each cable to the flange as shown in Figure 7. Ensure the cable studs are
seated properly in the counterbore. Tighten the hose clamp.
Figure 7. Cable Flange and Cable Assembly
7. Use Figure 7 as reference during the rear pulley stack and cable assembly.
Each cable will enter the pulley stack in the middle of the runway and wrap
around the pulley 90 degree (for rear) or 180 degrees (for front).
8. Remove the pulley pins and hardware from rear of runway.

17

9. Referring to Figure 8 and Figure 9, assemble the left side of the pulley stack, as
shown, with cables 2-1363 & 2-1360 starting from the bottom of the stack and
working to the top.
Assemble lower thrust washer and pulley and reinstall the pulley pin to
hold these in place.
Assemble four more thrust washers (as shown) and the top pulley with
front left cable 2-1360 wrapped around the pulley. Push pulley pin further
up to hold these in place.
Install remaining thrust washers and 1" spacer then complete assembly of
pulley pin and lock in place with hardware.
Install rear right cable 2-1363 around the lower pulley.
Figure 8. Rear Pulley Stack Assembly
Figure 9. Front Left and Rear Right Cable Installed at Rear

18

10.Referring to Figure 8 and Figure 10, assemble the right side of the pulley stack,
as shown, with cables 2-1362 & 2-1361.
Pass the rear left cable 2-1362 between the two pulleys on the left side
(shown above).
Starting from the bottom right side of the pulley stack, assemble the 1"
spacer, lower thrust washers and pulley. Reinstall the pulley pin to hold
these in place. Wrap around the front right cable 2-1362 on to the pulley.
Assemble four thrust washers as shown and the top pulley with front right
cable 2-1361 wrapped around the pulley. Push pulley pin further up to
hold these in place.
Add remaining single thrust washer and complete installation of pulley
pin and hardware to secure.
Note: If top thrust washer does not fit, remove one thrust washer from
middle of assembly.
Figure 10. Front Right and Rear Left Cable Installed at Rear

19

11. Use Figure 11 as reference during the front pulley stack and cable assembly.
Figure 11. Front Pulley Stack Assembly
12.Remove the pulley pin and hardware from front of runway.
13.Referring to Figure 11 and Figure 12, assemble the pulley stack with cables as
shown.
Assemble lower thrust washer and spacer. Insert pulley pin to hold these
in place. Leave 1" of the pulley pin exposed above thrust washer.
Wrap the front left cable 2-1360 around pulley and insert onto pulley pin.
Push pulley pin further up to hold these in place.
Install two more thrust washers.
Wrap the front right cable 2-1361 around pulley and align with rest of
assembly. Push pulley pin further up to hold these in place.
install four thrust washers and complete the installation of the pulley.
Secure with hardware.
Figure 12. Front Right and Rea Left Cable Installed at Front

20

Assembly of Front & Rear Crossmember
1. Move the front crossmember and rear crossmembers into position. Do not assemble
yet. Refer to
2. Figure 5 to identify the front and rear crossmembers.
3. Starting at the front pulley stack assembly, route the front cables thru the window in the
front crossmember and out past the safety locks on each side of the crossmember.
Figure 13.
Figure 13. Front Right and Left Cable Installed in Crossmember
4. At the end of each crossmember, remove the 3/8" cable retaining bolt and hardware.
5. Route the cable around the pulley then around the auxiliary safety pulley as shown.
Reinstall the retaining bolt and hardware. See Figure 14.
NOTE:Ensureretainingbolt
isinstalledbehindcable,
notbetweencableand
pulley.
