Channel Vision A0602 User manual

A0602

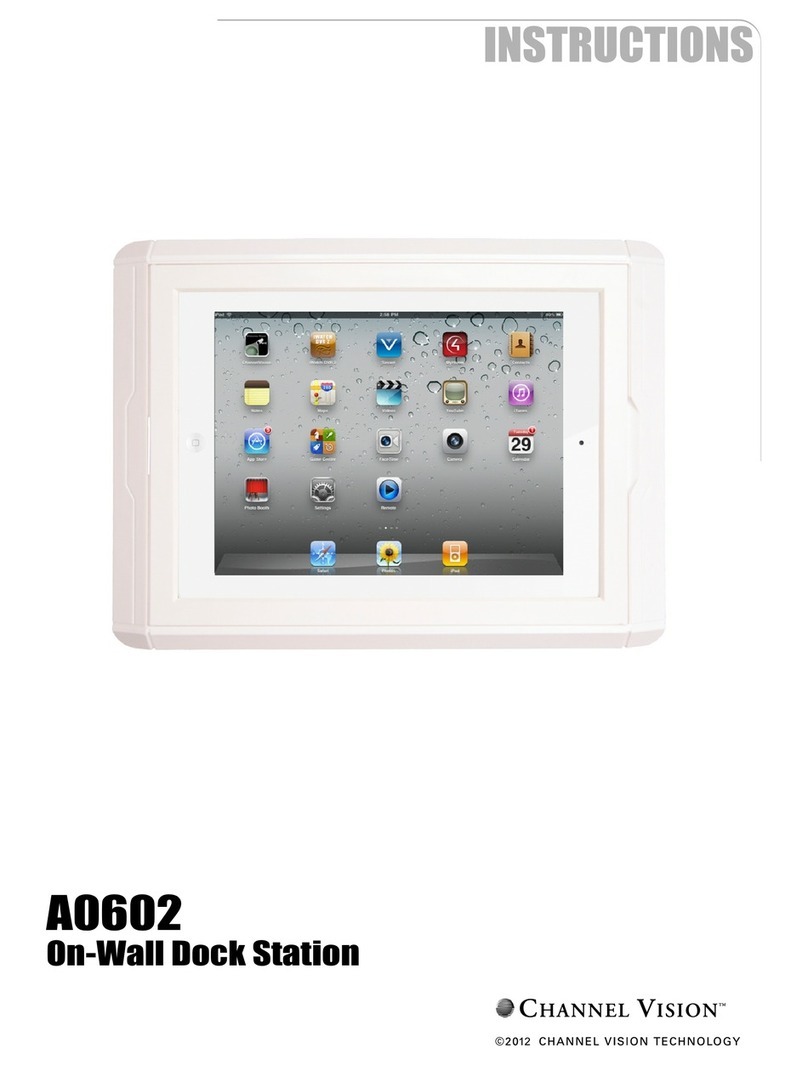

On-Wall Dock Station
12

Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions for future reference.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with a dry cloth.
6. Install in accordance with these instructions.
7 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
that produce heat.
8. Only use attachments/accessories specified by Channel Vision.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the inside of the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
11. Inside of apparatus shall not be exposed to dripping or splashing and objects filled with liquids.
Introduction
Thank you for purchasing Channel Vision's A0602 on wall dock. Please take the time to read over these instructions to ensure
proper installation and usage.
Features
•
•
•
•
Creates a command and control - perfect for home automation and control
Securely mount your iPad on the wall - either portrait or landscape
iPad is always charged and ready to go - charges when mounted (cable not included)
Quickly remove your iPad - hinged cover and spring loaded grips allows easy access
Dock for iPad 2 & 3
Power Supply
Power Plate
Box Contents
Items Included:
(1) Dock
(1) Power plate
(1) 15vDC 800mA power supply
(6) Mounting screws
(1) Picture backing
Tools & Accessories
Required (Not included):
(1) USB to iPad® charging cable
(1) Punch down tool
(1) Wire stripper
(1) Small flathead screwdriver
(1) iPad® 2nd or 3rd generation
(1) 3 Gang backbox (see page 4)
(1) 1 Gang backbox
(1) CAT5 wire or 18/2 wire
2

Installation
Screw & 110
Connectors
Sends voltage
to the wall dock
via Category 5/6 or
18/2 cable.
Back
Up to 350 ft.
of
CAT5/6 cable
Front Front
Front
Back
Note:
Example below illustrates using CAT5 cable.
18/2 wire can be used instead of CAT type cable.
3
Use 6 screws
(included)
to mount to
3-gang box
Plug USB charging cable
into USB connector
To open dock, place fingers
between tab, and open gently
Door hinges

500-312 Rev C
w w w . c h a n n e l v i s i o n . c o m
234 Fischer Avenue, Costa Mesa, California 92626 USA
[phone] [phone] [phone] fax
email: [email protected]
1
Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this
product with new or rebuilt parts, free of charge in the USA, for one year from the date of original purchase. This is a no hassle
warranty with no mail in warranty card needed. This warranty does not cover damages in shipment, failures caused by other
products not supplied by Channel Vision Technology, or failures due to accident, misuse, abuse, or alteration of the equipment.
This warranty is extended only to the original purchaser when purchased through an authorized reseller. A purchase receipt,
invoice, or other proof of original purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling [phone] toll free. A Return Authorization number
must be obtained in advance and can be marked on the outside of the shipping carton.
This warranty gives you specific legal rights and you may have other rights (which vary from state to state). If a problem with
this product develops during or after the warranty period, please contact Channel Vision Technology, your dealer or any
factory-authorized service center.
Channel Vision products are not intended for use in medical, lifesaving, life sustaining or critical environment applications.
Channel Vision customers using or selling Channel Vision products for use in such applications do so at their own risk and
agree to fully indemnify Channel Vision for any damages resulting from such improper use or sale.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired
Tested To Comply
With FCC Standards
Operating Voltage:12vDC 800mA
CAT5/6 Distance : 350’ 8 conductor
18/2 Distance: 350’ 2 conductor
Dock box required: 3 gang box; 0TW2-34; Southwire Remex box recommended, not compatible
with Arlington brand boxes
Breakout box required: 1 gang (standard)
Charging Voltage: 5.10vDC +/- 0.3V
Specifications
Troubleshooting
Not charging
Problem
Power supply is disconnected or
damaged
Power supply voltage is too low
Faulty cable connections
Battery drained, turn of iPad and
plug into dock, let charge for 30
minutes before turning iPad on
Check power supply (15vDC at
dock)
Verify distance of 350’ or less
Check with cable tester or verify cable (18/2
or CAT5/6)
Match color code of wires on both sides of
cable.
Set up both items on a bench with a test
cable to check functionality.
Possible Cause Solution
