Chauvet SPOT LED 450 User manual

Quick Reference Guide

Intimidator™ Spot LED 450 QRG EN
2
About This
Guide
The Intimidator™ Spot LED 450
Quick Reference Guide (QRG) has basic
product information such as mounting, menu options, and DMX values.
Download the User Manual from www.chauvetlighting.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change
without notice.
Safety Notes
These Safety Notes include important safety information about installation, use,
and maintenance.
•This product is not intended for permanent installation.
•ONLY connect this product to a grounded and protected circuit.
•Always disconnect from power before cleaning or replacing the fuse.
•DO NOT look at the light source when the product is on.
•Make sure the power cord is not crimped or damaged.
•Never disconnect this product from power by pulling on the cord.
•When mounting this product overhead, use a safety cable.
•
DO NOT allow flammable materials close to the unit while operating.
•DO NOT touch this product when it is operating because it may be hot.
•The voltage of the outlet to which you are connecting this product must
be within the range stated on the decal or rear panel of the product.
•This product is for indoor use only! (IP20) To prevent risk of fire or
shock, do not expose this product to rain or moisture.
•
Always mount this product in a location with adequate ventilation, at
least 20 in (50 cm) from adjacent surfaces.
•Be sure that no ventilation slots on the unit’s housing are blocked.
•Never connect this product to a dimmer or rheostat.
•Replace the fuse with the same type and rating.
•ONLY use the hanging/mounting bracket or the handles to carry this
product.
•The maximum ambient temperature is 104° F (40° C). Do not operate
this product at higher temperatures.
•In the event of a serious operating problem, stop using immediately.
•
DO NOT open this product. It contains no user-serviceable parts.
Contact
Outside the U.S., United Kingdom, or Ireland, contact your distributor to request
support or return a product. Visit www.chauvetlighting.com
for contact
information.

EN Intimidator™ Spot LED 450 QRG
3
What Is
Included
•Intimidator™ Spot LED 450
•Hanging Bracket with Mounting
Hardware
•Power Cord
•Warranty Card
•
Quick Reference Guide
To Begin
Unpack your Intimidator™ Spot LED 450 and make sure you have received all
parts in good condition. If the box or contents appear damaged, notify the carrier
immediately, not CHAUVET®.
Description
The Intimidator™ Spot LED 450 is an LED moving-
head spot that has a
motorized focus for crisp gobo effects. Built-in effect macros and move-in-black
features minimize programming time and auto programs generate easy shows.

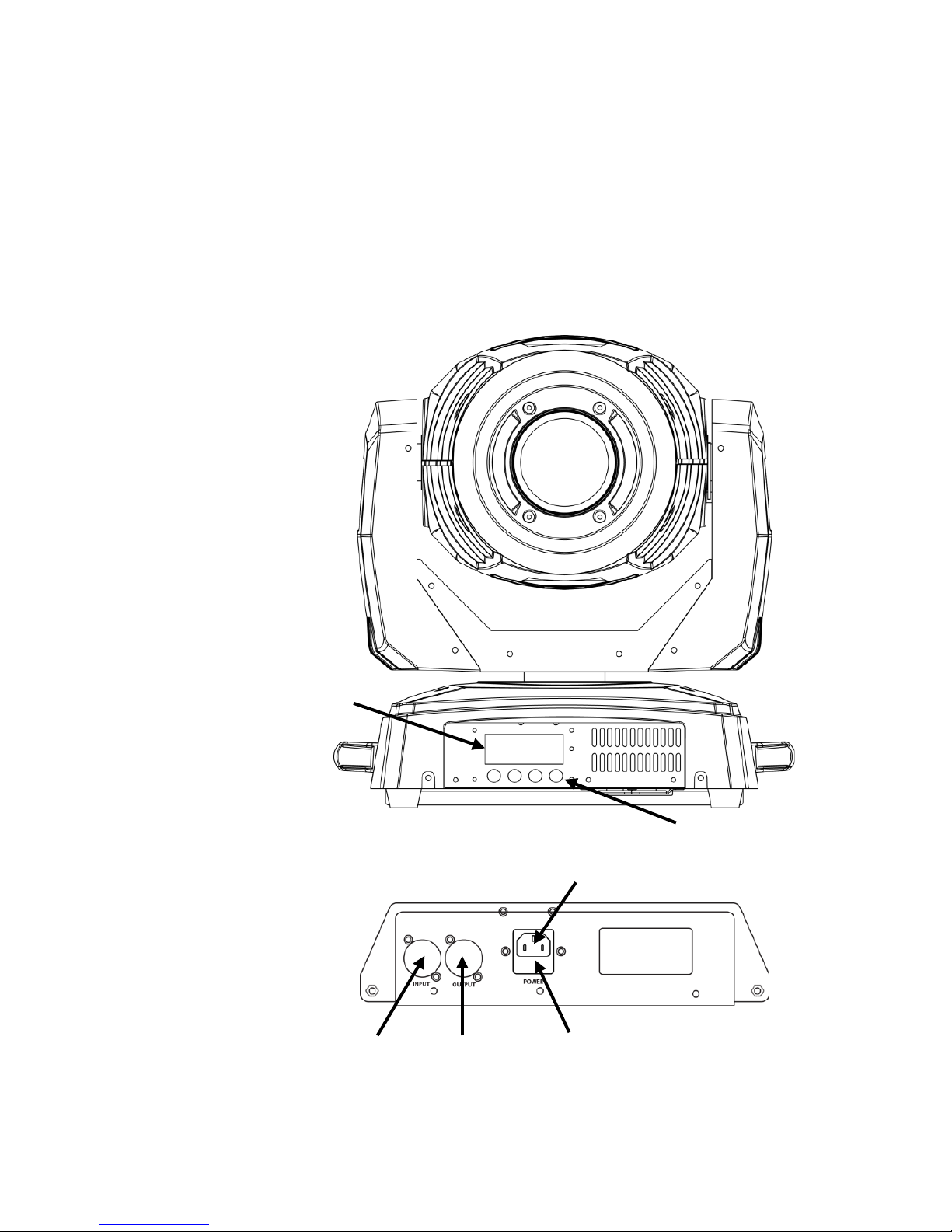

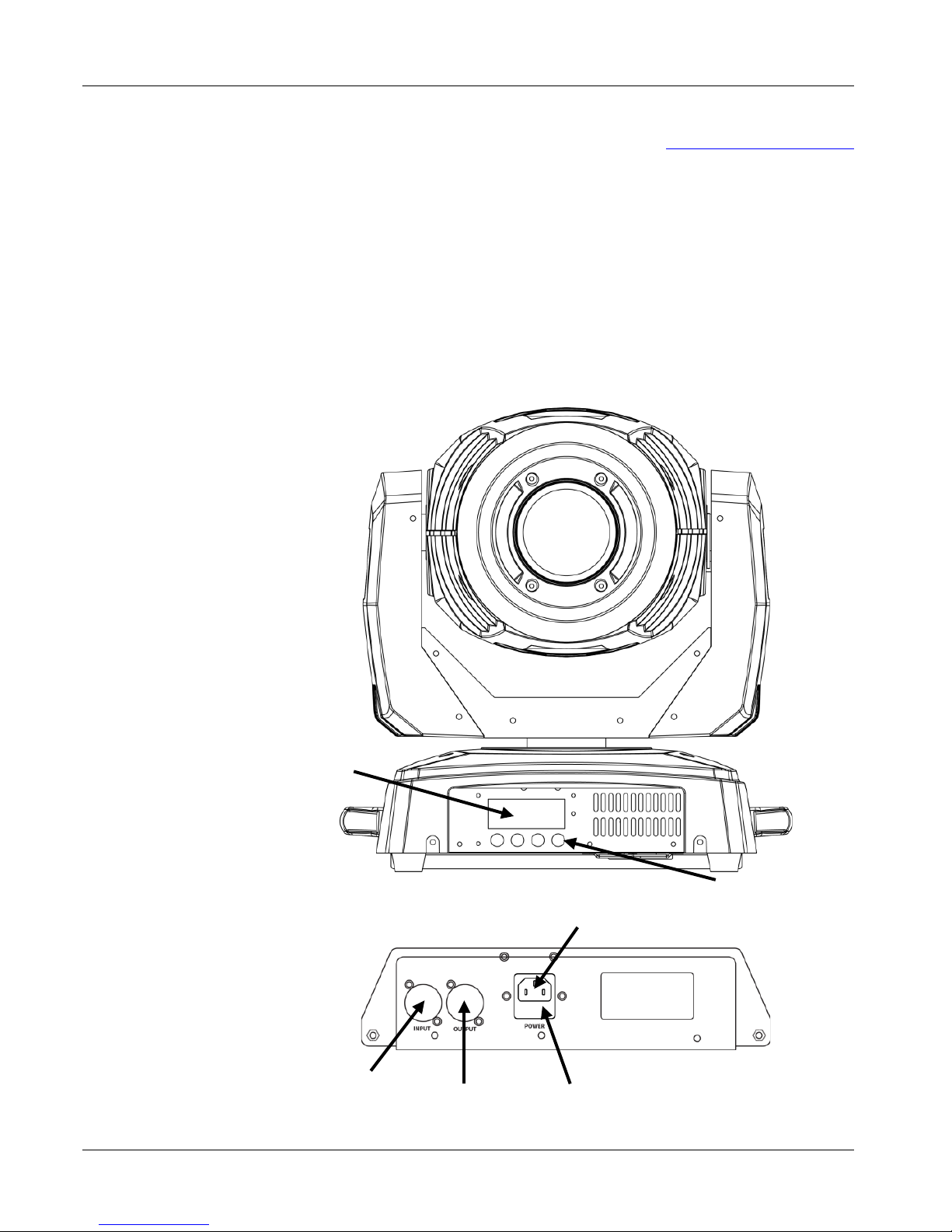

Overview
Back Panel View
Power In
Fuse Holder
LCD Screen
DMX Out
DMX In
Front Panel
Button Menu

Intimidator™ Spot LED 450 QRG EN
4
AC Power
This product has an auto-ranging power supply that can work with an input
voltage range of 100~240 VAC, 50/60 Hz.
Fuse
Replacement
1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and
replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.
Mounting
Before mounting this product, read the SafetyNotes.
Mounting
Diagram
Control Panel
Description
Button
Function
<MODE/ESC>
Exits from the current menu or function
<UP>
Navigates upwards through the menu list and increases
the numeric value when in a function
<DOWN>
Navigates downwards through the menu list and
decreases the numeric value when in a function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
Bracket Attachment
Rubber Feet (x4)

EN Intimidator™ Spot LED 450 QRG
5
Menu Options
Main Level
Programming Level
Description
DMX Address
001~512
Sets the DMX starting address
Run
Slave
Slave operating mode
Fast
Automatic mode, fast program
Slow
Automatic mode, slow program
Sound
Sound-Active mode
Pan
Normal
Normal pan operation
Reverse
Reverse pan operation
Tilt
Normal
Normal tilt operation
Reverse
Reverse tilt operation
Display
Bright
Display backlight remains on
30Close
Display backlight turns off after 30 seconds
of control panel inactivity
Pan Angle
540
Pan angle restricted to 540°
360
Pan angle restricted to 360°
180
Pan angle restricted to 180°
Tilt Angle
270
Tilt angle restricted to 270°
180
Tilt angle restricted to 180°
90
Tilt angle restricted to 90°
Channel
ADVANCED
14-channel mode
Basic
8-channel mode
Temp. Disp
Displays LED temperature
ResetSystem
No
Does not reset fixture
Ok
Resets fixture
Load Set
No
Does not load factory defaults
Ok
Loads factory defaults
DMX Linking
The Intimidator™ Spot LED 450 can work with a DMX controller when linked
by DMX serial connections.
Instructions for connecting and configuring this
product for DMX operation are in the User Manual.
If you are not familiar with
DMX, download the DMX Primer from www.chauvetlighting.com.
Starting Address
To ensure full access to all channels in each DMX mode, the highest
recommended DMX address is 499.
Master/Slave
Connection
The Intimidator™ Spot LED 450 uses the DMX data connection for its
Master/Slave mode. Instructions for connecting and configuring this product for
Master/Slave operation are in the User Manual.

Intimidator™ Spot LED 450 QRG EN
6
DMX Values
Advanced
Mode
Channel Function Value
Percent/Setting
1
Pan
000 255
0~540°
2
Fine Pan
000 255
Fine control of panning
3
Tilt
000 255
0~270°
4
Fine Tilt
000 255
Fine control of tilting
5
Speed
000 255
Pan/Tilt speed (fast to slow)
6 Color Wheel
000 007
White
008 015
Blue
016 023
Yellow
024 031
Pink
032 039
Green
040 047
Red
048 055
Light Blue
056 063
Orange Red
064 066
White
067 078
From White to Blue
079 092
From Blue to Yellow
093 107
From Yellow to Pink
108 120
From Pink to Green
121 136
From Green to Red
137 152
From Red to Light Blue
153 170
From Light Blue to Orange Red
171 212
Rainbow effect with increasing speed
213 255
Reverse rainbow effect with increasing speed

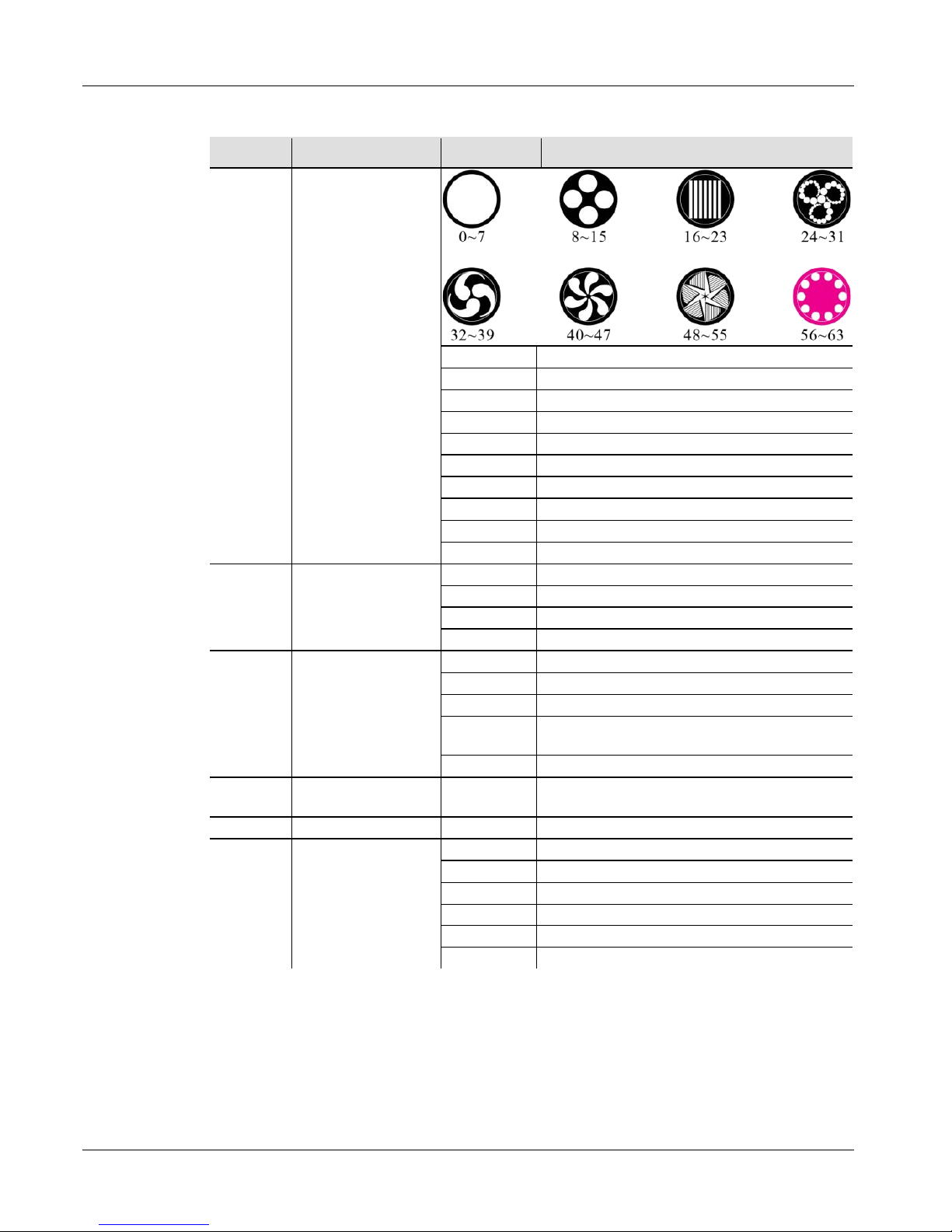

7 Gobo Wheel
064 071
Gobo 7 shake with increasing speed
072 079
Gobo 6 shake with increasing speed
080 087
Gobo 5 shake with increasing speed
088 095
Gobo 4 shake with increasing speed
096103
Gobo 3 shake with increasing speed
104111
Gobo 2 shake with increasing speed
112 119
Gobo 1 shake with increasing speed
120 127
Open
128 191
Rainbow effect with increasing speed
192 255
Reverse rainbow effect with increasing speed

EN Intimidator™ Spot LED 450 QRG
7
DMX Values (cont.)
Advanced
Mode
(cont.)
Channel
Function
Value
Percent/Setting
8 Gobo Rotation
000 063
Indexing
064 147
Rotation with increasing speed
148 231
Reverse rotation with increasing speed
232 255
Boomerang with increasing speed
9 Prism
000 007
Open
008 012
Prism on
013 130
Prism rotation with increasing speed
131 247
Reverse prism rotation with increasing speed
248 255
Static prism effect
10
Focus
000 255
Motorized focus, zoom out to zoom in
11
Dimmer
000 255
0~100%
12 Shutter
000 003
Closed
004 007
Open
008 076
Strobe effect with increasing speed
077 145
Pulse strobe
146 215
Random shutter
216 255
Open
13 Control Functions
000 007
No function
008 015
Blackout while pan/tilt moving
016 023
Blackout while moving color wheel
024 031
Blackout while moving gobo wheel
032 039
Disable blackout while pan/tilt/moving color
wheel
040 047
Disable blackout while pan/tilt/moving gobo
wheel
048 055
Disable blackout while moving all options
056 095
No function
096 103
Reset pan
104 111
Reset tilt
112 119
Reset color wheel
120 127
Reset gobo wheel
128 135
Reset gobo rotation
136 143
Reset prism
144 151
Reset focus
152 159
Rest all channels
160 255
No function

Intimidator™ Spot LED 450 QRG EN
8
DMX Values (cont.)
Advanced
Mode
(cont.)
Channel
Function
Value
Percent/Setting
14 Auto Programs
000 007
No function
008 023
Auto program 1
024 039
Auto program 2
040 055
Auto program 3
056 071
Auto program 4
072 087
Auto program 5
088 103
Auto program 6
104 119
Auto program 7
120 135
Auto program 8
136 151
Sound-activated program 1
152 167
Sound-activated program 2
168 183
Sound-activated program 3
184 199
Sound-activated program 4
200 215
Sound-activated program 5
216 231
Sound-activated program 6
232 247
Sound-activated program 7
248 255
Sound-activated program 8
Basic
Mode
Channel
Function
Value
Percent/Setting
1
Pan
000 255
0~540°
2
Tilt
000 255
0~270°
3 Color Wheel
000 007
White
008 015
Blue
016 023
Yellow
024 031
Pink
032 039
Green
040 047
Red
048 055
Light Blue
056 063
Orange Red
064 066
White
067 078
From White to Blue
079 092
From Blue to Yellow
093 107
From Yellow to Pink
108 120
From Pink to Green
121 136
From Green to Red
137 152
From Red to Light Blue
153 170
From Light Blue to Orange Red
171 212
Rainbow effect with increasing speed
213 255
Reverse rainbow effect with increasing speed

EN Intimidator™ Spot LED 450 QRG
9
DMX Values (cont.)
Basic
Mode
(cont.)
Channel
Function
Value
Percent/Setting

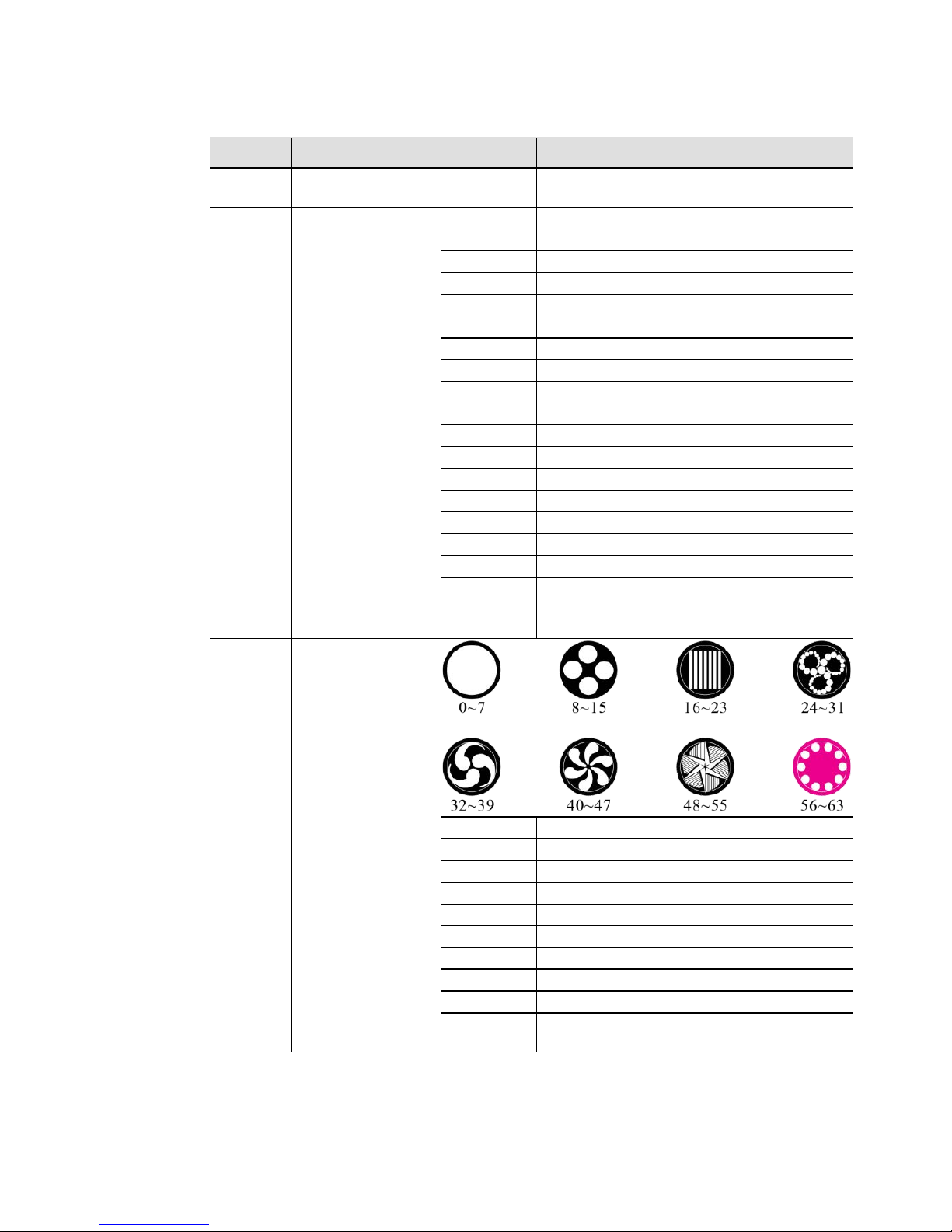

4 Gobo Wheel
064 071
Gobo 7 shake with increasing speed
072 079
Gobo 6 shake with increasing speed
080 087
Gobo 5 shake with increasing speed
088 095
Gobo 4 shake with increasing speed
096103
Gobo 3 shake with increasing speed
104111
Gobo 2 shake with increasing speed
112 119
Gobo 1 shake with increasing speed
120 127
Open
128 191
Rainbow effect with increasing speed
192 255
Reverse rainbow effect with increasing speed
5 Gobo Rotation
000 063
Indexing
064 147
Rotation with increasing speed
148 231
Reverse rotation with increasing speed
232 255
Boomerang with increasing speed
6 Prism
000 007
Open
008 012
Prism on
013 130
Prism rotation with increasing speed
131 247
Reverse prism rotation with increasing speed
248 255
Prism effect
7
Focus
000 255
Motorized focus, zoom out to zoom in
8 Shutter
000 003
Closed
004 007
Open
008 076
Strobe effect with increasing speed
077 145
Pulse strobe
146 215
Random shutter
216 255
Open

Intimidator™ Spot LED 450 GRR ES
10
Acerca de Esta
Guía
La Guía de Referencia Rápida (GRR) del Intimidator™ Spot LED 450
contiene
información básica sobre el producto, como montaje, opciones de menú y
valores DMX. Descargue el manual de usuario de
www.chauvetlighting.com
para una información más detallada.
Exención de
Responsabilidad
La información y especificaciones contenidas en esta GRR están sujetas a
cambio sin previo aviso.
Notas de
Seguridad
Estas notas de seguridad incluyen información de seguridad importante sobre el
montaje, uso ymantenimiento.
•Este producto no está cocebido para una instalación permanente.
•Conecte este producto SOLO a un circuito con toma de tierra y
protegido.
•Desconecte siempre de la alimentación antes de la limpieza o
sustitución del fusible.
•NO mire a la fuente de luz cuando el producto esté encendido.
•Asegúrese de que el cable de alimentación no está retorcido ni
estropeado.
•
Nunca desconecte este producto del cable de alimentación agarrando o
tirando del cable.
•Cuando monte este producto en alto, use un cable de seguridad.
•NO permita la presencia de materiales inflamables cerca de la unidad
cuando esté en funcionamiento.
•NO toque este producto cuando esté en funcionamiento, pues podría
estar caliente.
•La tensión del enchufe al que conecte este producto ha de estar en el
rango establecido en el grabado o en el panel posterior de producto.
•¡Este producto es para uso en interiores solamente! (IP20) Para evitar
riesgos de incendio o descarga, no exponga este producto a la lluvia o
la humedad.
•Monte siempre este producto en una ubicación con ventilación
adecuada, al menos a 20'' (50 cm) de superficies adyacentes.
•Asegúrese de que ninguna ranura de ventilación en la carcasa de la
unidad queda bloqueada.
•Nunca conecte este producto a un atenuador o reostato.
•Sustituya el fusible con uno del mismo tipo y categoría.
•Use SOLAMENTE los soportes de colgar/montar o las asas para mover
este producto.
•La máxima temperatura ambiente es de 104º F (40º C). No haga
funcionar este producto a temperaturas más altas.
•En caso de un problema grave de funcionamiento, deje de usarlo
inmediatamente.
•NO abra este producto. No contiene piezas reparables por el usuario.
