DJ Bank™
USER MANUAL

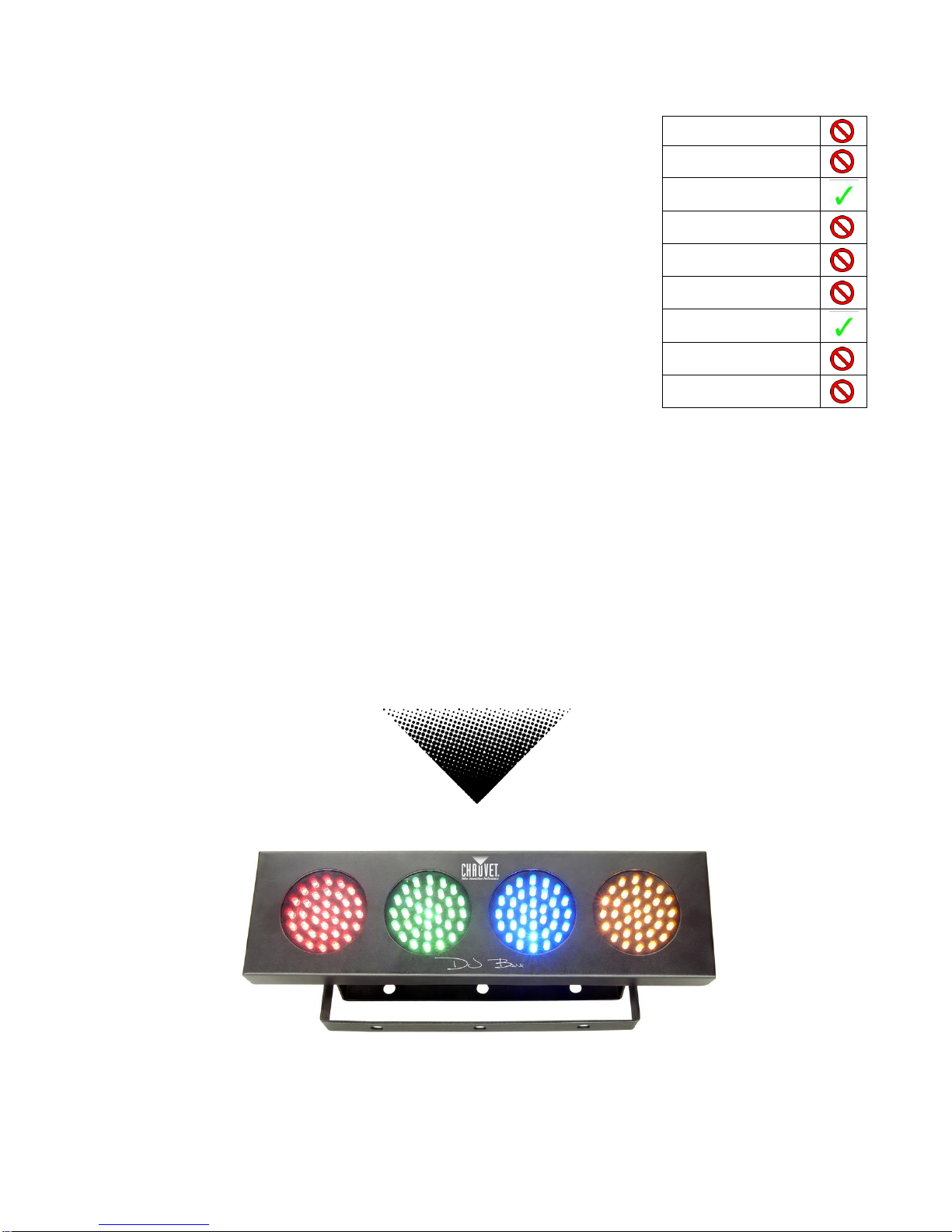

Snapshot
OK on Dimmer
Outdoor OK
Sound Activated
DMX512
Master/Slave
115/220 SWITCH
Replaceable Fuse
User Serviceable
Duty Cycle

DJ Bank™ User Manual 2 1/30/2009 10:45 AM
TABLE OF CONTENTS
1. Before You Begin...................................................................................................... 2
What is included............................................................................................................. 2
Unpacking Instructions ................................................................................................... 2
Safety Instructions.......................................................................................................... 3
2. Introduction............................................................................................................... 4
Features......................................................................................................................... 4
Product Overview........................................................................................................... 4
3. SETUP ....................................................................................................................... 5
AC Power....................................................................................................................... 5
Mounting ........................................................................................................................ 5
Orientation...................................................................................................................... 5
Rigging........................................................................................................................... 5
6. Appendix................................................................................................................... 6
General Maintenance ..................................................................................................... 6
Returns Procedure ......................................................................................................... 6
Claims............................................................................................................................ 6
DJ Bank Service Maintenance Guide ............................................................................. 7
Technical Support........................................................................................................... 7
Contact Us...................................................................................................................... 7
Technical Specifications................................................................................................. 8
1. BEFORE YOU BEGIN
What is included
1 x DJ Bank™
1 x Power cable with plug
1 x Warranty Card
1 x User Manual
Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all
parts are present, and have been received in good condition. Notify the shipper immediately and retain
packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs
of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned to
the factory, it is important that the fixture be returned in the original factory box and packing.

DJ Bank™ User Manual 3 1/30/2009 10:45 AM
Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
Always make sure that you are connecting to the proper voltage, and that the line voltage
you are connecting to is not higher than that stated on the decal or rear panel of the fixture.
The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from
adjacent surfaces. Be sure that no ventilation slots are blocked.
Always disconnect from power source before servicing or replacing lamp or fuse and be sure
to replace with same lamp source.
Secure fixture to fastening device using a safety chain. Never carry the fixture solely by its
head. Use its carrying handles.
Maximum ambient temperature (Ta) is 104°F (40°C). Do not operate fixture at temperatures
higher than this.
In the event of a serious operating problem, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center. Always use
the same type spare parts.
Never connect the device to a dimmer pack.
Make sure the power cord is never crimped or damaged.
Never disconnect the power cord by pulling or tugging on the cord.
Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the housing or
attempt any repairs yourself. In the unlikely event your unit may require
service, please contact CHAUVET at: 954-929-1115.
Caution! After prolonged periods of operation, the fixture chassis may reach high
temperatures. Use caution when handling this fixture.
Please read these instructions carefully, which includes important
information about the installation, usage and maintenance of this
product.

DJ Bank™ User Manual 4 1/30/2009 10:45 AM
2. INTRODUCTION
Features
Compact border, strip or cyc light
Sound activated
Fully automatic

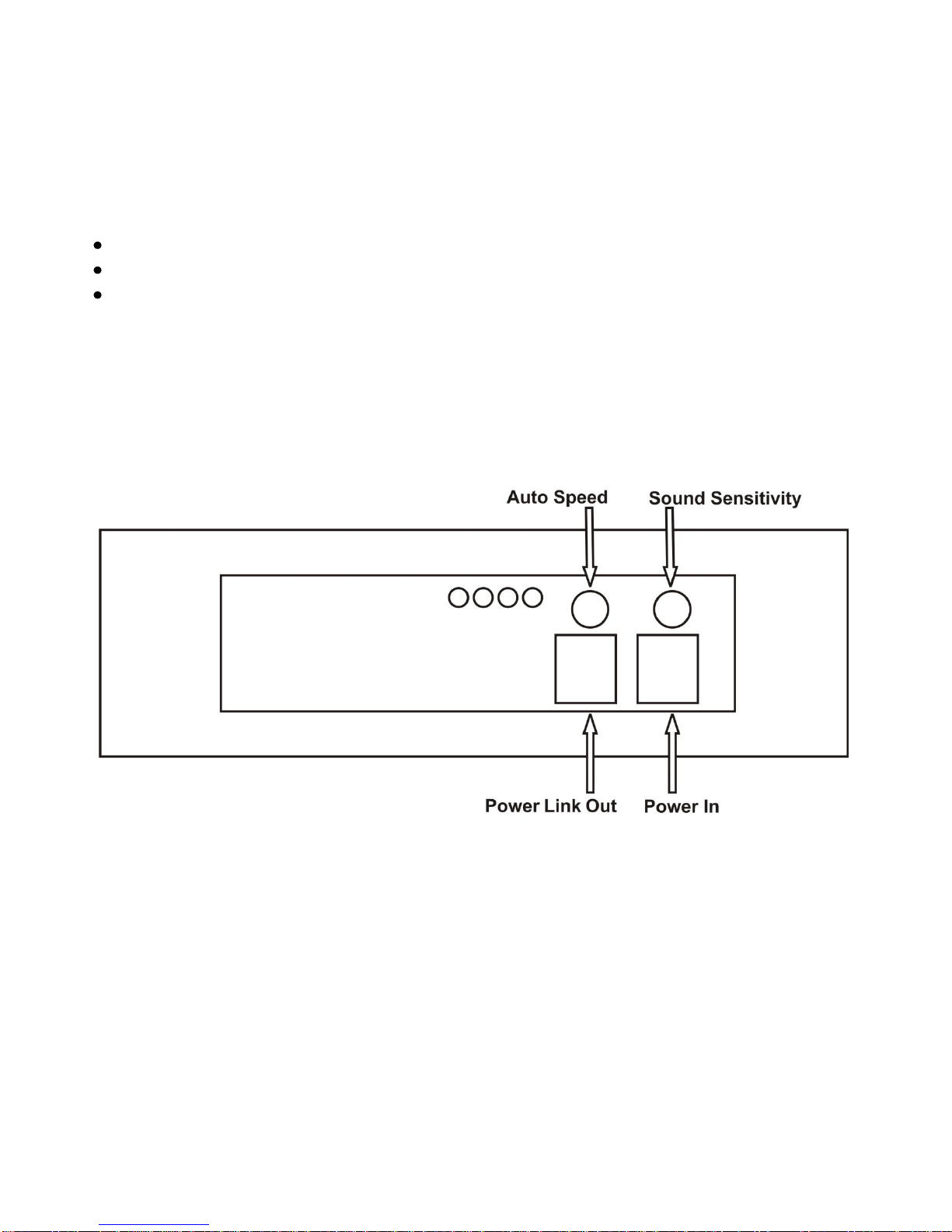

Product Overview
This fixture can operate in automatic mode with the speed adjustment or in sound
triggering mode with the sound sensitivity adjustment.
Note: theauto speed adjustment takes priority over the sound sensitivity
adjustment.
Power Link Out

DJ Bank™ User Manual 5 1/30/2009 10:45 AM
3. SETUP
AC Power
To determine the power requirements for a particular fixture, see the label affixed to the back
plate of the fixture or refer to the fixture’s specifications chart. All fixtures must be powered
directly off a switched circuit and cannot be run off a rheostat (variable resistor) or dimmer
circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch. Before
applying power to a fixture, check that the source voltage matches the fixture’s requirement.
Warning! All fixtures must be connected to circuits with a suitable Earth Ground.
Mounting
Orientation
This fixture may be mounted in any safe position.
Rigging The fixture includes a mounting yoke to which a rigging clamp can be attached. You
must supply your own clamp and make sure the clamp is capable of supporting the
weight of this fixture. It is recommended to use at least 2 mounting points per fixture.
You can order “C” and “O”-clamps from any CHAUVET dealer or distributor (CLP-15,
CLP-06 recommended).
Note: There are 2 types of applications for this fixture: floor stand for up lighting, and
overhead use for down lighting. If you are using this fixture for up lighting, then you must use
at least 1 safety cable/chain for each fixture in addition to the mounting brackets.
If hanging the fixture for over head use, then please follow the below steps.
1. Block access below the work area and use suitable and stable platform when
installing or servicing fixture.
2. Safety cables must always be used, secured through the heat sink ventilation
passageway. The safety cable must be capable of holding 10 times the weight
of the fixture.
3. Verify the structure can hold 10 times the weight of all to-be installed fixtures.

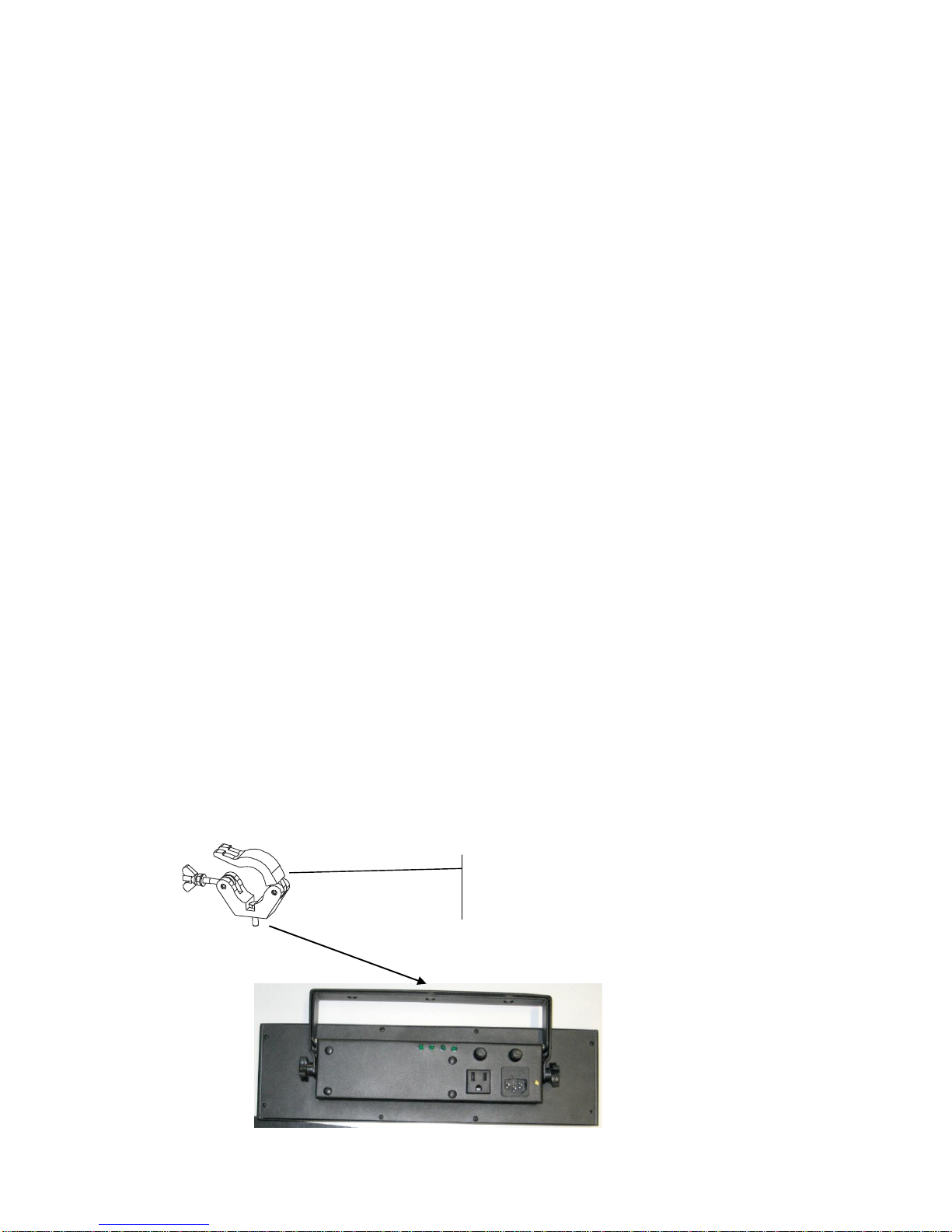

Hanging Clamp
Note: sold separately

DJ Bank™ User Manual 6 1/30/2009 10:45 AM
6. APPENDIX
General Maintenance
To maintain optimum performance and minimize wear fixtures should be cleaned frequently. Usage
and environment are contributing factors in determining frequency. As a general rule, fixtures should
be cleaned at least twice a month. Dust build up reduces light output performance and can cause
overheating. This can lead to reduced lamp life and increased mechanical wear. Be sure to power off
fixture before conducting maintenance.
Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust collected
on external vents and internal components. Clean all glass when the fixture is cold with a mild
solution of glass cleaner or Isopropyl Alcohol and a soft lint free cotton cloth or lens tissue. Apply
solution to the cloth or tissue and drag dirt and grime to the outside of the lens. Gently polish optical
surfaces until they are free of haze and lint.
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates:
damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s
optics. Clean with soft cloth using normal glass cleaning fluid. - Always dry the parts carefully. - Clean
the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
Returns Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products
returned without an RMA # will be refused. Call CHAUVET and request RA # prior to shipping the
fixture. Be prepared to provide themodel number, serial number and a brief description of the cause
for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate
packaging is the customer’s responsibility. CHAUVET reserves the right to use its own discretion to
repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe
method to use.
Note: If you are given an RMA #, please include the following information on a piece of paper
inside the box:
1) Your name
2) Your address
3) Your phone number
4) The RMA #
5) A brief description of the symptoms
Claims
Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and
submit claims with the shipper in the event that a fixture is damaged due to shipping. Any other claim
for items such as missing component/part, damage not related to shipping, and concealed damage,
must be made within seven (7) days of receiving merchandise.

DJ Bank™ User Manual 7 1/30/2009 10:45 AM
DJ Bank Service Maintenance Guide
Symptom(s)
Possible Solution(s)
1 or more LED’s are not
illuminating
Clean the fixture regularly to avoid any such failure. This fixture is convection
cooled, which means that if the surface is kept clean and free of debris, then
proper cooling will be allowed to occur
An LED may have failed, resulting in an open circuit. In this event, all of the red,
green, or blue in a single module may no longer illuminate. This does not mean
that all of the LEDs have failed, but the circuit may be wired in series.
An LED may have failed, resulting in a short circuit. In this event, only the single
LED which has failed will no longer function.
-Note: In the event of LED failure, a replacement LED PCB assembly may be
purchased directly from Chauvet Part#: P222-DJBANK
Breaker/Fuse keeps blowing
Check total load placed on the electrical circuit
Check for a short in the electrical wiring: internal and/or external
Device has no power
Check device’s fuse (internal)
Check for power on Mains
If you still have a problem after trying the above solutions, please contact CHAUVET Technical
Support at the location below.
Technical Support
Address: Service Dept.
3000 N 29th Ct, Hollywood, FL 33020 (U.S.A.)
Support (Email): [e-mail]
Telephone: [phone] - (Press 4)
Fax: [phone] - (Attention: Service)
Website: http://www.chauvetlighting.com
Contact Us
World Wide
General Information Chauvet Lighting
3000 North 29th Court
Hollywood, FL 33020
voice: 954.929.1115
fax: [phone]
toll free: 800.762.1084)
World Wide Web www.chauvetlighting.com

DJ Bank™ User Manual 8 1/30/2009 10:45 AM
Technical Specifications
WEIGHT & DIMENSIONS
Length .......................................................................................15.8 in (401 mm)
Width...........................................................................................4.5 in (114 mm)
Height..........................................................................................5.5 in (140 mm)
Weight..........................................................................................2.7 lbs (1.2 kg)
POWER
AC Power ...........................................................115VAC 60Hz or 230VAC 50Hz
Power Consumption............................................. 6W (0.89A) max @ 120V 60Hz
LIGHT SOURCE
Quantity............................................140 (35 Red, 35 Blue, 35 Green, 35 Yellow)
PHOTOOPTICS
Beam angle.....................................................................................................12
Field angle......................................................................................................24
Luminance @ 1M........................................................................................47 lux
COOLING..................................................................... CONVECTION COOLED
STANDARD ORDERING INFORMATION
DJ Bank ™............................................................................................ DJBANK
SPARE PARTS ORDERING INFORMATION
Master PCB (Part).........................................................................P170-DJBANK
LED PCB (Part).............................................................................P222-DJBANK
Bracket kit (Part)...........................................................................P111-DJBANK
Front plastic lens (Part).................................................................P114-BANKDJ
WARRANTY INFORMATION
Warranty...........................................................................1-year limited warranty
