Chenzhu CZ3383.11 User manual

CZ3383.11
CZ3383.13
CZ3383
Isolator
CZ.CZ3383.11(S)E-3.0/18.10
M3
8.0
1
2
Mount the module on a 35mm DIN rail
(1) Make the upside of the isolator to the rail;
(2) Push the downside of the isolator towards the rail.
(1) Every product has been tested strictly before delivery.If users find
any abnormality,please contact the nearest agent or our company.
(2) In 5 years from delivery date,if the product performs abnormally
under normal use conditions,we will repair it for free.
(1) Use a screwdriver (edge length≤6mm）insert the metal lock which
at the downside of the isolator;
(2) Push the screwdriver upwards,and pull the metal lock downwards;
(3) Take out the isolator from the rail.
5
4
Connections
(1)The isolators adopt knock-down terminals.
(2)The wires are single or multiple cables with cross section of 0.5
2 2
mm ~2.5mm .
(3)A length of 8mm bared wire is locked by the M3 bolt, As shown in
figure.
Installation
Disassembly
Maintenance
User Manual
Please read the instruction manual carefully before use the product,
and please safekeeping.
Caution
Please check whether the product type on the package accords
to the ordering contract;
Read this manual carefully before installation or using. If there is
something unclear,please dial technic support hotline-400 881 0780;
Supply voltage is 24VDC, 220VAC is forbidden;
Users are not allowed to dismantle or repair the Isolator otherwise
it will induce malfunction.
1
2
3
YEAR
YEAR
WARRANTY
WARRANTY
Add: Building 6, 201 Minyi Road, Caohejing Hi-Tech Park
Songjiang New Industrial Park, Shanghai 201612, P.R. China
Tel : [phone] Fax : [phone]
Email：[e-mail]
http://www.chenzhu-inst.com

114.5mm×99.0mm×22.5mm
1 2 3
Summarize
Specification
Operation Conditions
(1). The air should not contain any medium corrupting the coat of
chrome, nickel and silver. Moreover, violent quiver and impact or any
cause of electromagnetic induction (such as big current or spark, etc.)
must be avoided when using.
(2). Operating temperature: -20℃~+60℃
(3). Storage temperature: -40℃~+80℃
(4). Relative humidity: 10%~90%
Number of channels: 1/1(CZ3383.11)
1/3(CZ3383.13)
1/4(CZ3383)
Supply voltage: 20~35V DC
Current consumption: (at 24V DC supply, 20mA available voltage,
20mA output)
≤70mA(CZ3383.11)
≤100mA(CZ3383.13)
≤110mA(CZ3383)
Input: Current: 0/4~20mA; Impedance: ≤100Ω
Voltage: 0/1~5V; Impedance: ≥100kΩ
0/2~10V; Impedance: ≥300kΩ
Available voltage: Open circuit voltage: ≤20V
Voltage: ≥15.5V at 20mA
Normal working current: ≤30mA
Output: Current: 0/4~20mA; Load resistance: RL≤300Ω
Voltage: 0/1~5V; Load resistance: RL≥2kΩ
0/2~10V; Load resistance: Rl≥2kΩ
Alarm indication:
Break line or short circuit, LED is flashing,output current is 0mA
Note: Alarm function only for 4~20mA, 1~5V or 2~10V input and output.
Output accuracy: 0.1%F.S.
Temperature drift: 0.01%F.S./℃
Response time: Reach 90% of final value in 0.5ms
Power supply protection:
Protect the product from reverse supply voltge destroy
Electromagnetic compatibility: According to IEC 61326-1(GB/T 18268)
Dielectric strength:
1500V AC;1minute(among power supply ,input and output )
Insulation resistance:
≥100MΩ;500V DC(among power supply,input,output and the shell)
Weight: Approx.100g(CZ3383.11)
Approx.120g(CZ3383.13,CZ3383)
Suitable IS apparatus:
2-wire transmitter、3-wire transmitter current source, Voltage source

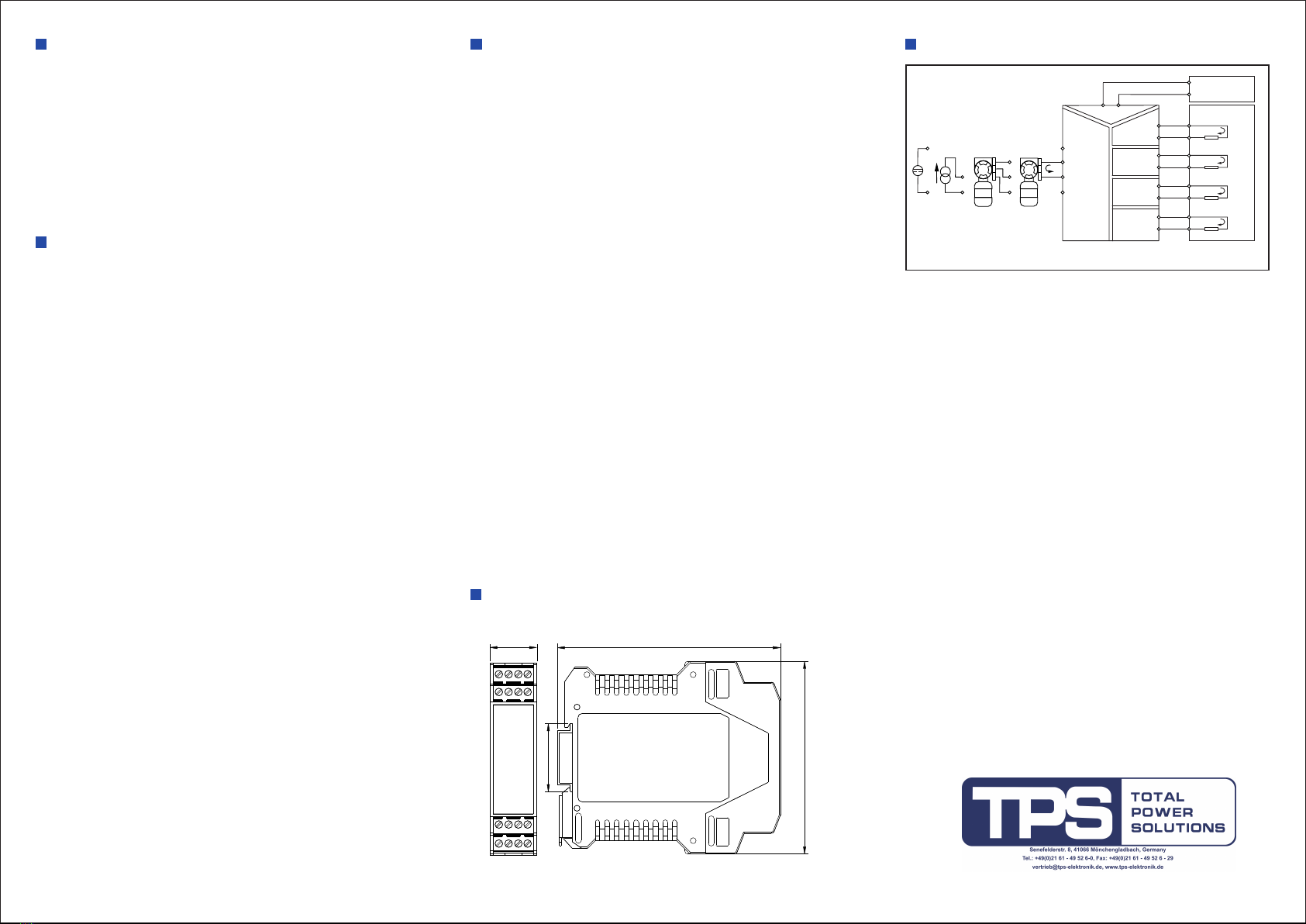

Application
Dimensions
Isolator,can convert 2-wire or 3-wire transmitter,current source,voltage
source signals mounted in field into 0/4~20mA current signal or
0/1~5V,0/2~10V voltage signal for driving a load.This product need be
supplied independently,and the power supply,input and output are isolated
from each other.
22.5mm 114.5mm
99.0mm
35.0mm
3-wire
transmitter
2-wire
transmitter
Voltage
source
Current
source
+
-
+
-
14
15
16
S
- -
+
+
15
1616
13
14(+)
13(+)
15(-)
16(-)
CZ3383
1(+) 2(-)
+
-
24V DC
3(+)
4(-)
5(+)
6(-)
7(+)
8(-)
OUT1
DCS、PLC
+
-
4~20mA
+
-
+
-
10(-)
9(+)
+
-
OUT2
OUT3
OUT4
4~20mA
4~20mA
4~20mA
Note：CZ3383.11, output only contains output1;
CZ3383.13, output only contains output1、output2、output3.
