Safety and operating instructions
Red Hawk

CP Red HawkSafety and operating instructions
9800 0658 93
2006-08
No. 9800 0658 93
©Copyright
STOCKHOLM • SWEDEN

Safety and operating instructionsContents
9800 0658 93 3
Contents
SAFETY INSTRUCTIONS.......................................................5
Safety symbols used .........................................................5
Machine and tool operating hazards ............................................5
Fume and exhaust hazard ....................................................6
Explosion and fire hazard .....................................................6
Explosion and fire hazard, continued ............................................7
Electrical/Concealed object hazards .............................................7
Projectile hazard ............................................................7
Noise hazard...............................................................8
Silica/Dust hazard...........................................................8
Vibration hazard ............................................................9
Machine modification hazard..................................................9
Additional safety instructions ................................................ 10
Protective equipment ...................................................... 10
Service and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Machine tools ............................................................ 10
OPERATING INSTRUCTIONS ..................................................11
Design and function ....................................................... 11
Main parts .............................................................. 11
Preparations before starting ................................................. 11
Starting and stopping...................................................... 12
Regular care ............................................................. 14
Maintenance............................................................. 15
Trouble shooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Scrapping worn-out machines ............................................... 16
Technical data............................................................ 17
Noice and Vibration Declaration Statement..................................... 17

4
Red HawkSafety and operating instructions
9800 0658 93
Introduction
Thank you for choosing Chicago Pneumatic as a supplier for tools and services.
Chicago Pneumatic is a global company offering a wide range of pneumatic and
hydraulic tools that include breakers, rock drills, chipping hammers, clay-diggers,
picks and busters, scabblers, pumps and a whole lot more.
In 2001 Chicago Pneumatic Tool Company celebrated 100 years as a pioneer
and market-leader in the pneumatic tool industry. Chicago Pneumatic has always
focused on providing powerful and reliable products that are easy to maintain and
that give good value for money. It’s a philosophy that has made us the market-
leader for air tools in the USA.
Read more at www.cp.com
About the Safety and operating
instructions
The aim of these instructions is to provide you with a full understanding of how
to use the pneumatic breaker in an efficient, safe way. The instructions also give
you advice and tell you how to perform regular maintenance on the pneumatic
breaker.
Before using the pneumatic breaker for the first time you must read these
instructions carefully and understand all of them.

Safety and operating instructionsRed Hawk
59800 0658 93
SAFETY INSTRUCTIONS
To reduce the risk of serious injury or death to
yourself or others, read these safety instructions
before operating the machine.
Post these safety instructions at work locations,
provide copies to employees, and make sure that
everyone reads the safety instructions before
operating or servicing the machine.
Comply with all safety regulations.
Safety symbols used
The indications Danger, Warning and Caution
have the following meanings:
Danger Indicates an imminently
hazardous situation
which, if not avoided,
will result in death or
serious injury.
Warning Indicates a potentially
hazardous situation
which, if not avoided,
could result in death or
serious injury.
Caution Indicates a potentially
hazardous situation
which, if not avoided,
may result in minor or
moderate injury.
Machine and tool
operating hazards
Warning
Sudden or unexpected movement of the machine
may occur during operation, which may cause
injuries. In addition loosing your balance or
slipping may cause injury. To reduce such risks:
Make sure that you always keep a stable position
with your feet as wide apart as your shoulder
width, and keep a balanced body weight.
Stand firmly and always hold on to the machine
with both hands.
Do not start the machine when it is laying on
the ground.
Make sure that the handles are clean and free of
grease and oil.




Warning
Unintended start of the machine may cause injury.
Keep your hands away from the start and stop
device until you are about to start work.
Warning
The working tool is exposed to heavy strains when
the machine is used and after a certain amount
of use the tool may break due to fatugue. If
the tool breaks, there may be sudden or strong
movements. Such sudden or strong movements
may cause serious injury.
Make sure that you always keep a stable position
with your feet as wide apart as your shoulder
width, and keep a balanced body weight.
Keep your feet away from the working tool.
Do not ’ride’ on the machine with one leg over
the handle, since you could be seriously injured
if the tool suddenly were to break.
Check regulary for any wear on the working
tool, and if there are any risks for damage or
fractures.
Do not use worn out or damaged working tools.
Warning
An incorrect dimension of the working tool's shank
can result in the working tool being dropped or
ejected. A dropped or ejected working tool can
cause personal injury.
Before the working tool is mounted, make sure
that the shank is correct for the machine.
An working tool without a collar should not be
used.
Warning
If the working tool retainer on the machine is not
in a locked position, the tool can be ejected with
great force, which can cause serious injury.
After the working tool is mounted and locked,
the lock function must be checked by pulling
the working tool sharply downwards.
Make sure that the tool is fully inserted and the
tool retainer is in a locked position before the
machine is started.











6
Red HawkSafety and operating instructions
9800 0658 93
Warning
Changing the inserted tool while the machine is
running may cause serious injury.
Before changing the working tool, always stop
the machine and close down the machine by
pushing the start and stop device.
Warning
The exhaust pipe and the bottom of the machine
can become very hot during operation, and can
remain hot during a period of time after the
machine has been shut off.
To reduce the risk of burns or related injuries,
avoid contact with the exhaust pipe or the
bottom of the machine.
Fume and exhaust hazard
Danger
The exhaust fumes from the machine’s combustion
engine contain carbon monoxide which is
poisonous. Inhalation of exhaust fumes can cause
serious injury or death.
Do not inhale exhaust fumes.
Never operate the machine indoors or in poorly
ventilated areas.
Explosion and fire hazard
Danger
If the machine comes in contact with explosives,
an explosion may occur. Explosions may cause
serious injury or death.
To reduce such risks of explosion:
Never operate the equipment near any
explosives, including dynamite or other
explosives in the rock.
Make sure that there are no explosives in the
rock.
Never break or drill in an old hole.







Warning
Breaking and working with certain materials can
cause sparks, which may ignite explosive gases
which can cause explosions. Explosions may cause
serious injury or death.
To reduce such risks of explosion:
Never operate the equipment in any explosive
environment.
Do not use the machine near flammable
materials, fumes or dust.
Make sure that there are no undetected sources
of gas.
Warning
During operation of the machine, the exhaust pipe
gets very hot and may stay hot for a period of time
even after you have shut off the engine. Materials
that come into contact with a hot exhaust pipe
may ignite and cause a fire or an explosion, which
can cause serious injury. To reduce such risks of fire
or explosion:
Do not use the machine near flammable
materials, fumes or dust. During breaks in
work, remember not to place the machine near
flammable materials.
Do not operate the machine in explosive
environments.
Keep the workplace clean and free from foreign
objects.







Safety and operating instructionsRed Hawk
79800 0658 93
Explosion and fire hazard,
continued
Warning
Fuel is highly flammable, and it's vapors can
explode if ignited, which can cause serious injury
or death. To reduce such risks of fire or explosion:
Store fuel only in containers that are specifically
designed and approved for storage of fuel.
Empty fuel containers must be properly taken
care of and sent back to the retailer.
Operate the machine with the fuel cap securely
in place. Never remove the fuel cap or add
fuel when the engine is hot. Stop the engine
and allow it to cool before adding fuel. When
opening the fuel cap, always loosen the cap
slowly to relieve any pressure in the tank. Do not
overfill the tank.
Always mix and add fuel in a clean and well-
ventilated area. Make sure that this outdoor
area is free from any flames or sparks. Never
smoke while fuelling, mixing fuel, operating or
servicing the machine. Avoid spilling fuel. Wipe
up any fuel that is spilled on the machine. Fill
the tank at least ten meters (30 feet) away from
where you intend to use the machine.
Do not use a machine that is leaking fuel. Check
regularly for any leakage.
To minimize the risk of fuel leakage during
transportation, ensure that the machine is in an
upright position during transportation.
Do not use the machine near flammable
materials, fumes or dust. During breaks in work,
do not place the machine near flammable
materials.
Do not operate the machine near any materials
that create sparks. Remove all hot objects
and objects that create sparks prior to using
machine.
Do not operate the machine in an explosive
environment.
Protect your skin from contact with fuel.









Electrical/Concealed object
hazards
Warning
The machine is not electrically insulated. If the
machine comes in contact with electricity, serious
injuries or death may result.
To reduce the risk of injury or death, never
break near any electric wiring or other source of
electricity.
Make sure that there are no concealed wires or
other sources of electricity.
Warning
During breaking or hammering, concealed wires
and pipes constitute a danger that can result in
serious injury.
Before you start breaking, check the
composition of the material you are to work on.
Watch out for concealed electrical wiring, water,
sewage and gas pipes and phone lines.
If the tool seems to have hit a concealed object,
immediately switch off the machine.
Make sure that there is no danger before
continuing.
Projectile hazard
Warning
During breaking or hammering, splinters or other
particles of rock may become projectiles and cause
bodily injury by striking the operator or other
persons.
Use approved personal protective equipment,
including impact resistant safety glasses with
side protection, to reduce the risk of being
injured by a projectile.








8
Red HawkSafety and operating instructions
9800 0658 93
Noise hazard
Warning
High sound levels may cause permanent hearing
loss.
Use hearing protection in accordance with
occupational health and safety regulations.
Silica/Dust hazard
Warning
Exposure to crystalline silica (sometimes called
“silica dust”) as a result of breaking, drilling, or
hammering of rock, concrete, asphalt or other
materials may cause silicosis (a serious lung
disease), silicosis-related illnesses, cancer, or death.
Silica is a major component of rock, sand and
mineral ores.
To reduce silica exposure:
Use proper engineering controls to reduce the
amount of silica in the air and the build-up of
dust on equipment and surfaces. Examples of
such controls include: exhaust ventilation and
dust collection systems, water sprays, and wet
drilling. Make sure that controls are properly
installed and maintained.
Wear, maintain, and correctly use approved
particulate respirators when engineering
controls alone are not adequate to reduce
exposure below permissible levels.
Participate in air monitoring, medical exams,
and training programs offered by your employer
and when required by law.
Wear washable or disposable protective clothes
at the worksite; shower and change into clean
clothes before leaving the worksite to reduce
exposure of silica to yourself, other persons,
cars, homes, and other areas.
Do not eat, drink, or use tobacco products in
areas where there is dust containing crystalline
silica.
Wash your hands and face before eating,
drinking, or using tobacco products outside of
the exposure area.
Work with your employer to reduce silica
exposure at your worksite.








Warning
Some dust or other airborne material created
during use of the machine may contain chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Some examples of such chemicals are:
Crystalline silica and cement and other masonry
products.
Arsenic and chromium from chemically-treated
rubber.
Lead from lead-based paints.
To reduce your exposure to these chemicals,
work in a well ventilated area, and work with
approved safety equipment, such as dust masks
that are specially designed to filter out microscopic
particles.




Safety and operating instructionsRed Hawk
99800 0658 93
Vibration hazard
Warning
Normal and proper use of the machine exposes
the operator to vibration. Regular and frequent
exposure to vibration may cause, contribute to,
or aggravate injury or disorders to the operator’s
fingers, hands, wrists, arms, shoulders and/or
other body parts, including debilitating and/or
permanent injuries or disorders that may develop
gradually over periods of weeks, months, or years.
Such injury or disorder may include damage to the
blood circulatory system, damage to the nervous
system, damage to joints, and possibly damage to
other body structures.
If numbness, tingling, pain, clumsiness, weakened
grip, whitening of the skin, or other symptoms
occur at any time, when operating the machine
or when not operating the machine, do not
resume operating the machine and seek medical
attention. Continued use of the machine after the
occurrence of any such symptom may increase the
risk of symptoms becoming more severe and/or
permanent.
The following may help to reduce exposure to
vibration for the operator:
Let the tool do the job. Use a minimum hand
grip consistent with proper control and safe
operation.
When the percussion mechanism is activated,
the only body contact with the machine you
should have is your hands on the handles. Avoid
any other contact, e.g. supporting any part of
the body against the machine or leaning onto
the machine trying to increase the feed force.
It is also important not to keep the trigger
engaged while extracting the tool from the
broken work surface.
Make sure that the inserted tool is well-
maintained (including sharpness, if a cutting
tool), not worn out, and of the proper size.
Working tools that are not well-maintained, or
that are worn out, or that are not of the proper
size result in longer time to complete a task (and
a longer period of exposure to vibration) and
may result in or contribute to higher levels of
vibration exposure.
Stop working immediately if the machine
suddenly starts to vibrate strongly. Before
resuming the work, find and remove the cause
of the increased vibrations.




Do not grab, hold or touch the inserted tool
when using the machine.
Participate in health surveillance or monitoring,
medical exams, and training programs offered
by your employer and when required by law.
Note! See the "Noise & Vibration Declaration
Statement" for the machine, including the
declared vibration values and "Additional
Vibration Information". These can be found
at the end of the Safety and Operating
instructions.
Machine modification
hazard
Warning
Any machine modification not approved by
Chicago Pneumatic may result in serious injuries to
yourself or others.
The machine must not be modified without
Chicago Pneumatic's permission.
Use only original parts and accessories approved
by Chicago Pneumatic.





10
Red HawkSafety and operating instructions
9800 0658 93
Additional safety
instructions
Machines and accessories must only be used for
their intended purpose.
Only qualified and trained persons may operate
or maintain the machine.
Keep your hand away from the start and stop
device until work is to begin.
Learn how the machine is switched off in the
event of an emergency.
The machine should be operated at reduced
power when drilling is started.
Release the start and stop device in case of
interruption of the energy supply.
Always inspect the equipment prior to use.
Do not use equipment if you suspect that it
could be damaged.
Check the working tools for wear or damage
at regular intervals. Do not use worn out or
damaged working tools.
Always use your common sense and good
judgment.
Do not use the machine when you are tired
or under the influence of drugs, alcohol or
anything else that may affect your vision,
reactions or judgement.
Participate in safety and training courses.
Never strike or abuse any equipment.
Keep the machine and tools in a safe and locked
place out of the reach of children.
Make sure that the all attached and related
equipment is properly maintained.
Signs and stickers that are important for your
safety and the care of the machine are included
with every machine. New signs and stickers can
be ordered using the spare parts list.
Protective equipment
Always use approved personal protective
equipment. Operators and other persons in the
work area must wear protective equipment,
including at a minimum:
Protective helmet
Hearing protection

















Impact resistant eye protection with side
protection
Respiratory protection when appropriate
Protective gloves
Protective boots
Service and maintenance
Regular maintenance is a prerequisite for keeping
the machine a safe tool. Carefully follow the
operating instructions.
Use only authorized parts. Any damage or
malfunction caused by the use of unauthorized
parts is not covered by Warranty or Product
Liability.
Change damaged parts immediately.
Replace worn out components in good time.
For major service to the machine, contact
your nearest authorized Chicago Pneumatic
workshop.
When cleaning mechanical parts with solvent,
make sure that current health and safety
regulations are complied with and that
ventilation is satisfactory.
Machine tools
Keep the tools clean and in a good condition.
Check tools regulary and make sure that they
are sharp.











Safety and operating instructionsRed Hawk
119800 0658 93
OPERATING
INSTRUCTIONS
Design and function
Red Hawk is a hammering machine. It is intended
to be used for breaking asphalt and concrete.
Main parts
A Choke
B Throttle lever
C Vibration-dampening handle
D Engine piston
E Silencer
F Intake valve for flushing air
G Compression chamber for flushing air
H Rotation mechanism
I Tool retainer
J Air filter cover
K Tank cap
L Starting handle
M Power take-off (PTO)
N Spark plug cover
O Percussion piston
P Gas duct
Q Gas duct valve
R Function selector (Red Hawk)
S Venturi
T Stop-button
U Fuel filter
Preparations before
starting
Tool shank
Warning
An incorrrect dimension of the working tool's
shank can result in that the working tool may
being dropped or ejected. A dropped or ejected
working tool can cause personal injury.
Before the working tool is mounted, make sure
that the shank is correct for the machine.
An working tool without a collar should not be
used.
Warning
If the working tool retainer on the machine is not
in a locked position, the tool can be ejected with
great force, which can cause serious injury.
After the working tool is mounted and locked,
the lock function must be checked by pulling
the working tool sharply downwards.
Make sure that the tool is fully inserted and the
tool retainer is in a locked position before the
machine is started.

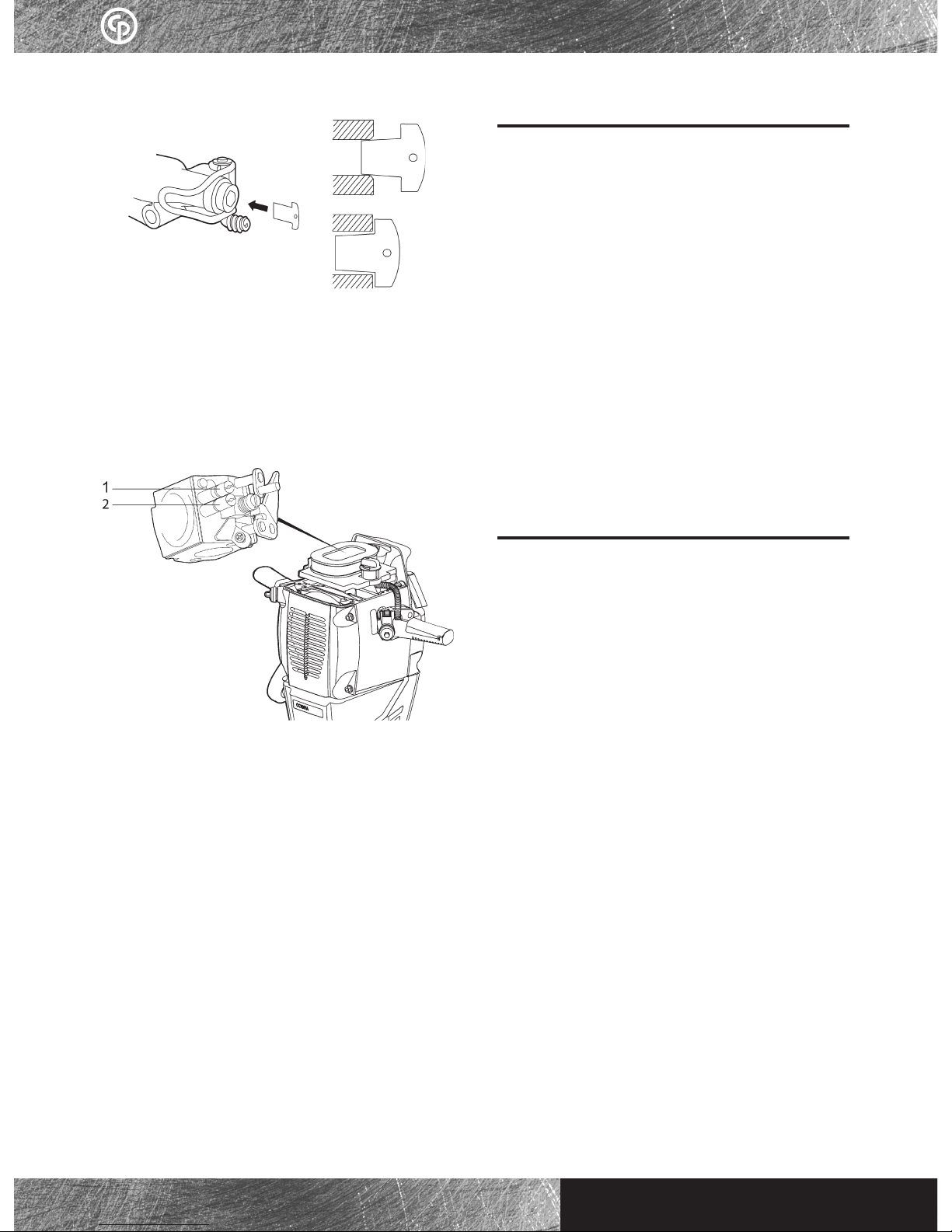

Use a shank gauge to check that the tool shank is of
the correct size, i.e. 7/8” x 4 1/4” (H 22x108 mm).
The shank must be clean and the tool must be in good
condition.





12
Red HawkSafety and operating instructions
9800 0658 93
Fuel
Red Hawk uses a mixture of gasoline and two-stroke oil,
1 part oil to 50 parts gasoline (2%).
Two-stroke oil
Use a high-quality two-stroke oil for air-cooled
two-stroke motors (not two-stroke oil for outboard
motors). Contact your nearest Chicago Pneumatic
representative for advice on the correct
two-stroke oil.
Starting and stopping
Warning
Unintended start of the machine may cause injury.
Keep your hands away from the start and stop
device until you are about to start work.
A Vibration-dampening handle
B Throttle lever
C Stop button
D Choke
E Fuel filler
F Starting handle

Cold start
Close the choke (turn the choke control
counter clockwise).
Push the throttle lever down and pull the
starter handle.
1.
2.

Safety and operating instructionsRed Hawk
139800 0658 93

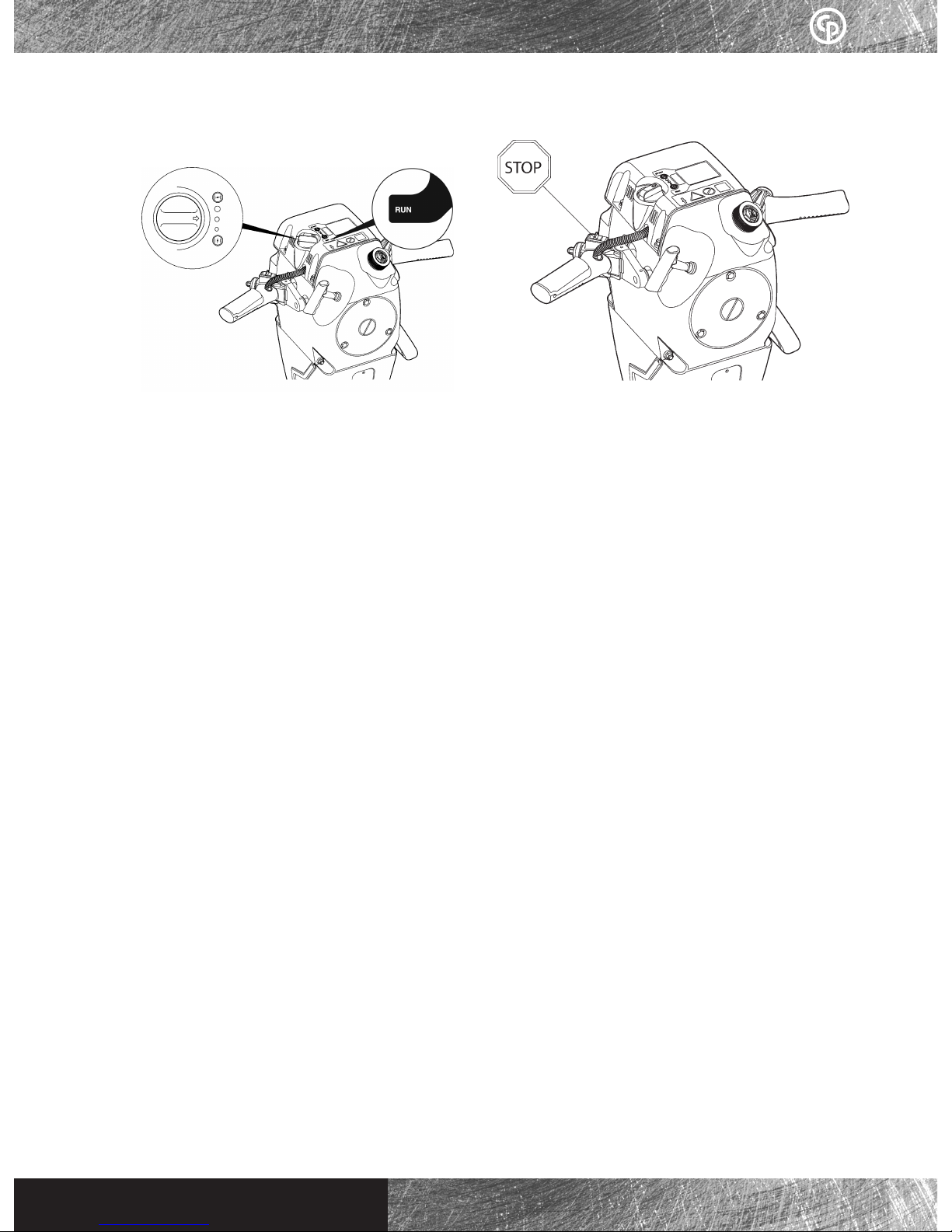

When the machine starts, slowly turn the
choke clockwise towards position (RUN)
during a 2–3 minutes warm-up period.
Restarting a warm machine
Check that the choke is open (i.e. knob in
position RUN).
Pull the starter handle.
If the machine stops after a short while, or does
not start at all, follow the procedure for cold
starting.
If the machine does not start, it may have been
flooded (i.e. too much fuel in the combustion
chamber).
Open the choke (RUN position) and try starting
the engine again.
If the machine still does not start, see the section
entitled "Trouble shooting".
Number of revs
The engine speed is regulated by means of the
throttle lever:
Lever released – idling speed
Lever depressed – full engine speed
Ground probing
If the machine is started on top of long tools such
as probing rods, a starter-cord bracket must be
used to prevent the cord from damaging the fuel
tank.
3.
1.
2.
Stopping the engine
Stop the engine by depressing the stop button.
Drain the fuel tank before transporting the
machine, also drain the fuel tank when the
machine is not to be used for a long period of
time.

14
Red HawkSafety and operating instructions
9800 0658 93
Regular care
Air filter
In the event of continuous use, check and change
the filter at least every shift.
Unscrew the filter cover.
Carefully strike the filter against the palm of
your hand. Extremely dirty filters must be
replaced. The filter must never be washed.
Gas duct
The gas duct must be checked regularly for carbon
deposits, and cleaned if necessary.
Pull the starting handle until the arrow in the
centre of the flywheel (which can be seen
through the fan cover) points upwards. This
indicates that the engine piston is in the
upper position.
1.
2.
1.
Unscrew the gas duct valve and take out the
cleaning rod. Clean the duct and cleaning
rod using the cleaning needle provided.
Clean the cleaning thread.
Clean the channel using the cleaning needle
provided.
Check that the ball in the gas duct valve is
not stuck.
Decals
Replace damaged or worn decals. Order numbers
can be found in the spare parts list.
2.
3.
4.
5.

Safety and operating instructionsRed Hawk
159800 0658 93
Maintenance
Spark plug
Lift the spark plug cover by the lower lip, and
turn it up to one side.
Use a plug spanner to remove the spark
plug.
If the spark plug is dirty or burned, it must
be replaced. Use original Bosch WR7AC spark
plugs.
If the pin has been dampened by fuel, dry
it off, check the ignition spark, and pull the
starter handle 2–3 times to ventilate off any
excess fuel.
Fit the spark plug back into the cylinder.
Note! The electrode gap should be 0.060 in. (1.5
mm).
Changing the starting cord
Remove the PTO screw-cap (See image
under "Main parts"). Remove the three bolts
from the protective cover of the starting
mechanism.
1.
2.
3.
4.
5.
1.
Lift off the cover, grasping the starter pulley
as well. Let the cover rotate carefully against
the starter pulley, to release the spring
tension.
Remove the old starting cord.
Fitting a new cord
Oil the needle bearing in the starter pulley.
Fit together the starter pulley and protective
cover, so that the starting spring locates in
the starter pulley.
Wind the full length of the cord onto the
pulley.
Pre-tension the starting spring by about one
turn (clockwise) before fitting the assembly
into place.
Pull the starting handle carefully, in order to
locate the cover correctly.
Fit and tighten the hexagonal bolts and the
PTO screw-cap.
2.
3.
1.
2.
3.
4.
5.
6.

16
Red HawkSafety and operating instructions
9800 0658 93
Tool chuck
If the chuck gauge provided can be inserted
fully across the flats of the hexagonal chuck, this
indicates that the chuck is worn out and must be
replaced.
Carburettor
On delivery the carburettor is adjusted and locked
so it meets EPA’s exhaust-gas standard.
The carburettor nozzle does not normally need to
be adjusted.
Normal setting:
Main nozzle (1)............................................... 2.0 turns open
Idling nozzle (2) .............................................. 2.0 turns open
When loaded, the maximum revs should be
2500–2650 rpm. The idling revs should be
1600–1800 rpm.
Trouble shooting
If the engine does not start, is difficult to start, runs
unevenly or has poor output, check the points
mentioned below (See image under "Main parts").
Check that the Stop button (See C under
"Starting and stopping") is in the ON
position.
Check the fuel level.
Check the spark plug’s electrode gap.
Check that the air filter is not blocked.
Check that the fuel filter (See U under "Main
parts") is not blocked.
If the machine still does not work satisfactorily
following this procedure, please contact your
nearest authorized Chicago Pneumatic workshop.
Scrapping worn-out
machines
Worn-out machines must be dealt with and
deposited in such a way that the maximum
amount of material can be recycled and the
environment is affected as little as possible.
Note: Before a motor-driven breaker is deposited
or thrown-away it must be emptied and
cleaned of petrol. Remaining petrol must be
dealt with in a way that does not affect the
environment.
1.
2.
3.
4.
5.

Safety and operating instructionsRed Hawk
17
9800 0658 93
Technical data
Red Hawk
Engine
Type 1 cylinder, two-stroke, air cooled
Cylinder displacement 11.3 ci (185 cc)
Speed, crankshaft
(rpm)
Full speed 2500–2650 rpm
Idling 1600–1800 rpm
Carburettor Membran type (Walbro)
Ignition system Thyristor type, breakerless
Spark plug (recommended) Bosch WR7AC
Spark plug gap 0.060 in (1.5 mm)
Starter Magnapull
Fuel type Gasoline 90–100 octane,
unleaded only
Oil type Use a high-quality two-stroke oil for air-cooled two-
stroke motors (not two-stroke oil for outboard motors)
Fuel mixture 2% (1:50)
Fuel consumption Approx. 0.29–0.37 US gallons/hour (1.1–1.4 litres/hour)
Other data
Tool shank H 7/8 x 4 1/4 in. (22x108 mm)
Machine weight 51.6 lb (23.4 kg)
Service weight (machine incl. fuel and tools) 56.4 lb (25.6 kg)
Length 27 1/3 in. (694 mm)
Width, max 18 1/2 in. (470 mm)
Noise and Vibration Declaration Statement
Sound effect according to EN ISO 3744 in accordance with directive 2000/14/EG
Lp measured, r = 1m dB (A) rel 20 µPa 105
Lw guaranteed dB (A) rel 20 µPa 107
Vibration according to EN28662-5
Measured vibration value (a m/s2) 5.0
Spread in method and production (ka m/s2) 3.5
These declared values were obtained by laboratory type testing in compliance with the stated standards and are not
adequate for use in risk assessments. Values measured in individual work places may be higher than the declared values.
The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way the
user works, the workpiece and work station design, as well as upon the exposure time and the physical condition of the
user. We, Chicago Pneumatic, cannot be held liable for the consequences of using the declared values, instead of values
reflecting the actual exposure, in an individual risk assessment in a work place situation over which we have no control.

18
Red HawkSafety and operating instructions
9800 0658 93

Safety and operating instructionsRed Hawk
199800 0658 93

2006-08
No. 9800 0658 93
©Copyright
STOCKHOLM • SWEDEN
