Chore-Time LIBERTY 53476 Setup guide

Manual Feeder
Installation and Operators Manual
LIBERTY®Assembly
(53476)
C2®PLUS Deep (56200) and
C2®PLUS Shallow (56208)
ATFTM Plus (53477)
REVOLUTION®8 Spoke (56211)
and 12 Spoke (56210)
FLOOR FLOOD REVOLUTION® (FFR)
8 Spoke (56213) and 12 Spoke (56212)
KONAVI®(56209)
MF2380BJanuary 2022
Installation and Operators Manual
Installation and Operators Manual

Contents
Topic Page
MF2380B
2
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Follow Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Decal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
DANGER: Moving Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
DANGER: Electrical Hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Feeder Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
KONAVI® (56209) Feeder Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LIBERTY® Manual Feeder Assembly (53476) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
REVOLUTION®, and FLOOR FLOOD REVOLUTION® Feeder Assemblies . . . . . . . . . . . . . . . . . 9
C2® Plus Deep (56200) and Shallow (56208) Feeder Assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . .10
ATFTM Plus (53477) Feeder Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Hopper Assembly and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
ST60036 Hopper for ATF Feeder Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Hopper Assembly 35019-3 (for all models except ATF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Assembling Hopper to Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

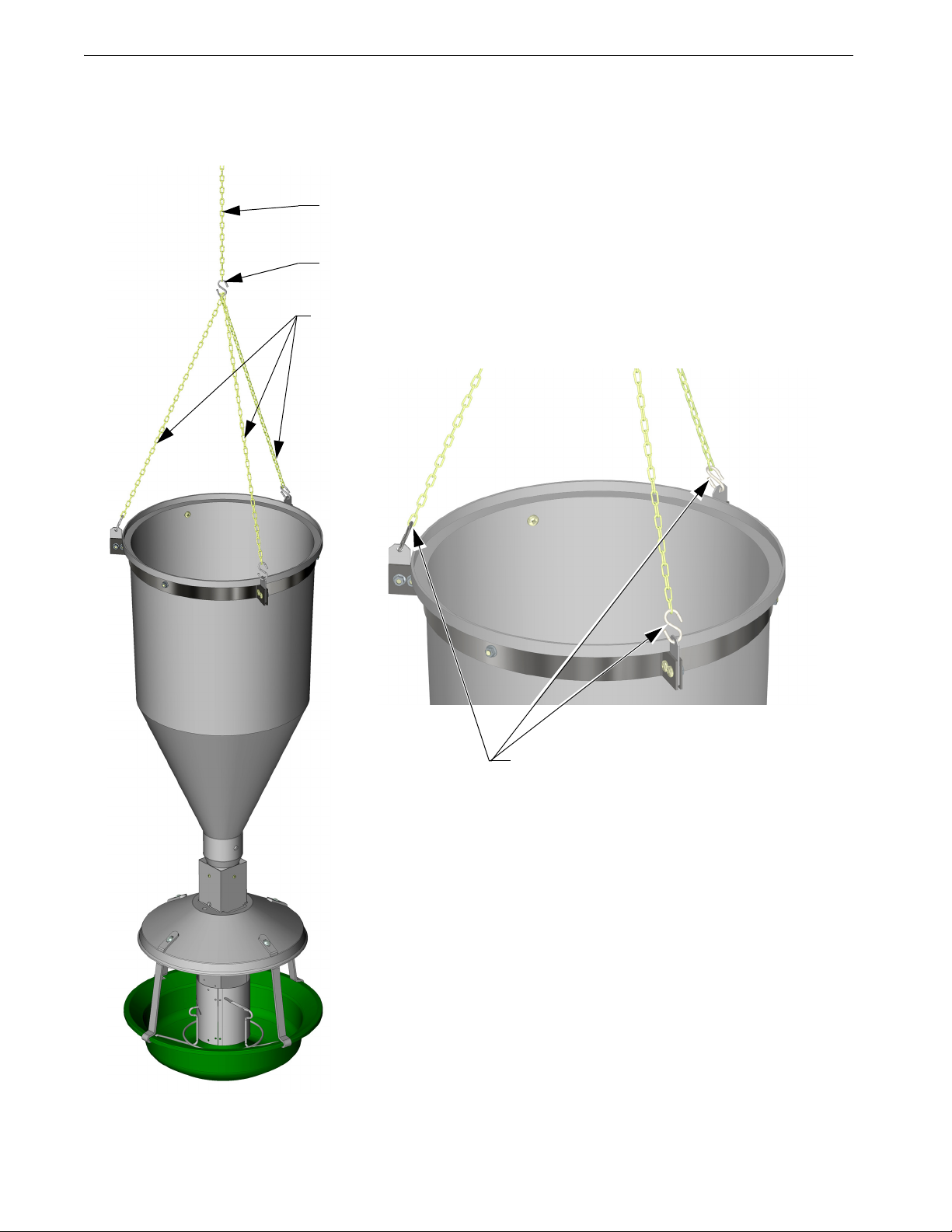

Feeder Suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

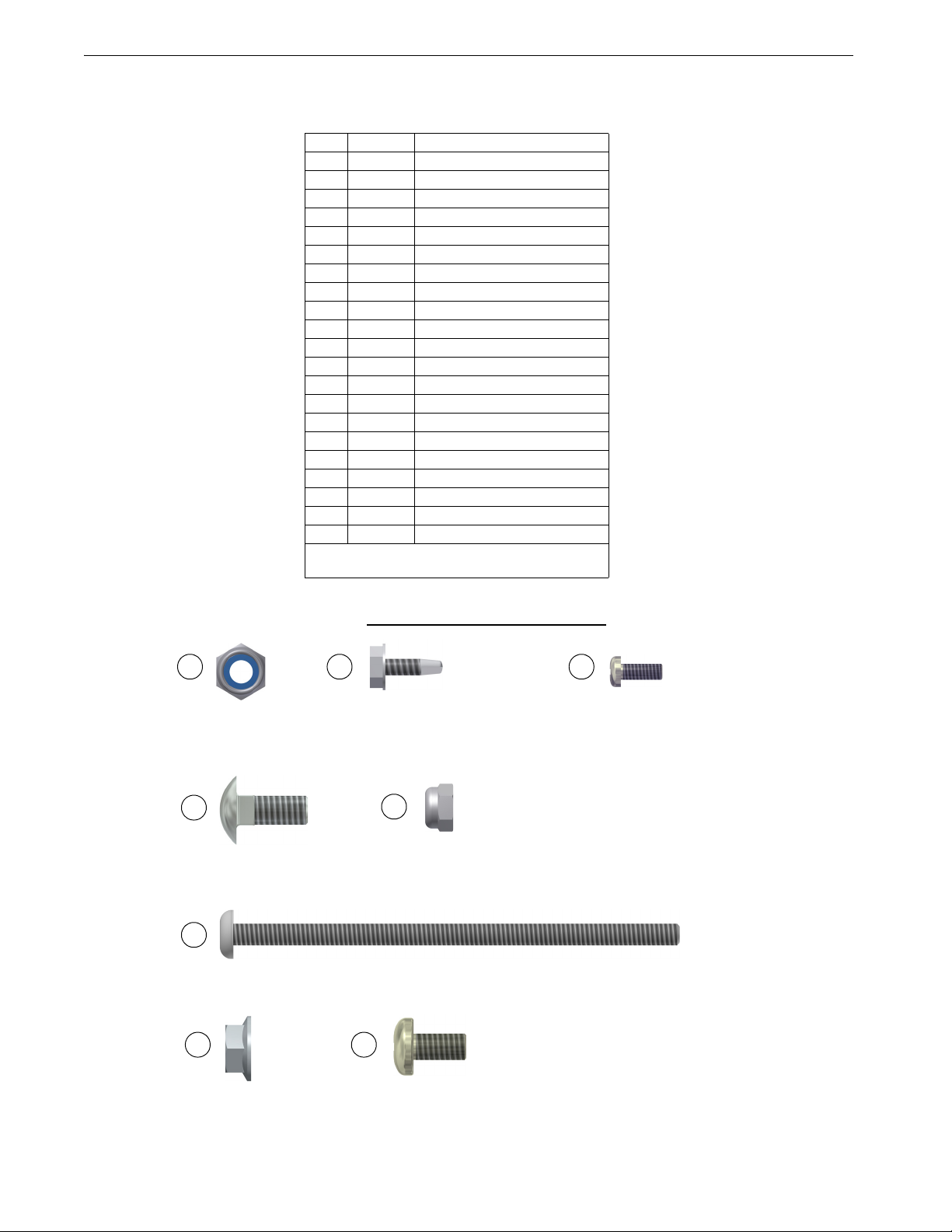

Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
LIBERTY® Manual Feeder Assembly (53476). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
C2® PLUS Deep (56200) and C2® PLUS Shallow (56208) Feeder Assemblies . . . . . . . . . . . . . . . . . . . .18
ATF Plus (53477) Feeder Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
REVOLUTION® 8 Spoke (56211) and 12 Spoke (56210) Feeder Assemblies . . . . . . . . . . . . . . . . . . . . .21
FFR 8 Spoke (56213) and 12 Spoke (56212) Feeder Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
KONAVI® (56209) Feeder Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Manual Feeder Introduction
MF2380B 3
Warranty
CTB, Inc. (“Chore-Time”) warrants new Manual Feeders manufactured by Chore-Time to be free from defects in material or
workmanship under normal usage and conditions, for One (1) year from the date of installation by the original purchaser
(“Warranty”). If such a defect is determined by Chore-Time to exist within the applicable period, Chore-Time will, at its
option, (a) repair the Product or Component Part free of charge, F.O.B. the factory of manufacture or (b) replace the Product
or Component Part free of charge, F.O.B. the factory of manufacture. This Warranty is not transferable, and applies only to
the original purchaser of the Product.
CONDITIONS AND LIMITATIONS. THIS WARRANTY CONSTITUTES CHORE-TIME’S ENTIRE AND
SOLE WARRANTY AND CHORE-TIME EXPRESSLY DISCLAIMS ANY AND ALL OTHER WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, EXPRESS AND IMPLIED WARRANTIES, INCLUDING, WITHOUT
LIMITATION, WARRANTIES AS TO MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSES.
CHORE-TIME shall not be liable for any direct, indirect, incidental, consequential or special damages which any purchaser
may suffer or claim to suffer as a result of any defect in the Product. Consequential or Special Damages as used herein
include, but are not limited to, lost or damaged products or goods, costs of transportation, lost sales, lost orders, lost income,
increased overhead, labor and incidental costs, and operational inefficiencies. Some jurisdictions prohibit limitations on
implied warranties and/or the exclusion or limitation of such damages, so these limitations and exclusions may not apply to
you. This warranty gives the original purchaser specific legal rights. You may also have other rights based upon your
specific jurisdiction.
Compliance with federal, state and local rules which apply to the location, installation and use of the Product are the
responsibility of the original purchaser, and CHORE-TIME shall not be liable for any damages which may result from non-
compliance with such rules.
The following circumstances shall render this Warranty void:
· Modifications made to the Product not specifically delineated in the Product manual.
· Product not installed and/or operated in accordance with the instructions published by the CHORE-TIME.
· All components of the Product are not original equipment supplied by CHORE-TIME.
· Product was not purchased from and/or installed by a CHORE-TIME authorized distributor or certified
representative.
· Product experienced malfunction or failure resulting from misuse, abuse, mismanagement, negligence, alteration,
accident, or lack of proper maintenance, or from lightning strikes, electrical power surges or interruption of
electricity.
· Product experienced corrosion, material deterioration and/or equipment malfunction caused by or consistent with
the application of chemicals, minerals, sediments or other foreign elements.
· Product was used for any purpose other than for the care of poultry and livestock.
The Warranty may only be modified in writing by an officer of CHORE-TIME. CHORE-TIME shall have no obligation or
responsibility for any representations or warranties made by or on behalf of any distributor, dealer, agent or certified
representative.
CTB, Inc.
PO Box 2000
Milford, Indiana 46542-2000 USA
Phone [phone] Fax [phone]
Email: [e-mail]
Internet: www.choretime.com
Introduction
Effective: April 2014

Manual Feeder
4MF2380B

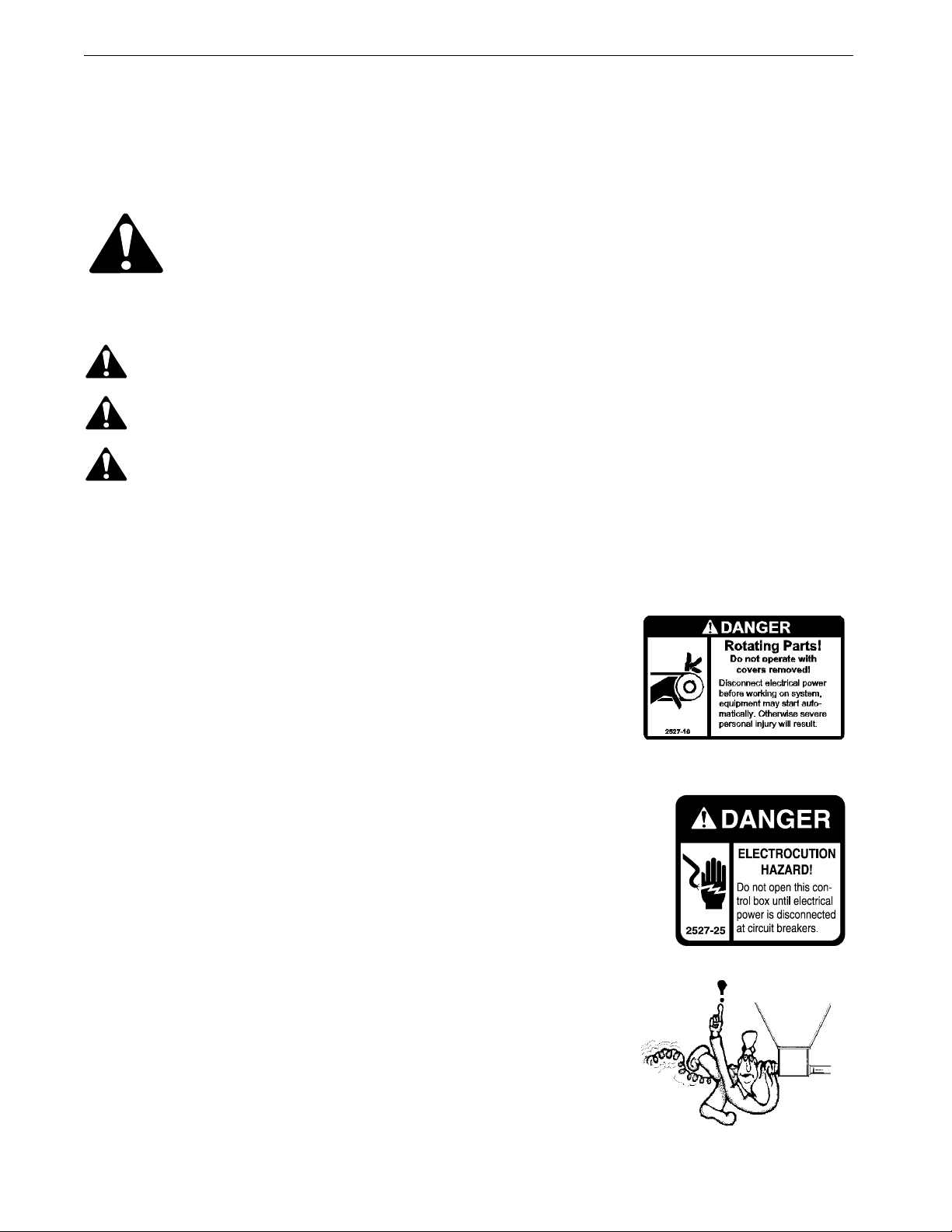

Safety
Caution, Warning and Danger Decals have been placed on the equipment to warn of potentially dangerous
situations. Care should be taken to keep this information intact and easy to read at all times. Replace missing or
damaged safety decals immediately.
Safety–Alert Symbol
This is a safety–alert symbol. When you see this symbol on your equipment, be alert to the potential
for personal injury. This equipment is designed to be installed and operated as safely as
possible...however, hazards do exist.
Understanding Signal Words
Signal words are used in conjunction with the safety–alert symbol to identify the severity of the warning.
DANGER indicates an imminently hazardous situation which, if not avoided, WILL result in death or
serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, COULD result in death or
serious injury.
CAUTION indicates a hazardous situation which, if not avoided, MAY result in minor or moderate
injury.
Follow Safety Instructions
Carefully read all safety messages in this manual and on your equipment safety signs. Follow recommended
precautions and safe operating practices.
Keep safety signs in good condition. Replace missing or damaged safety signs.
Decal Descriptions
DANGER: Moving Parts
Disconnect electrical power before working on system, equipment may
start automatically. Otherwise personal injury will result.
Severe personal injury will result if the equipment is operated without
covers properly installed.
DANGER: Electrical Hazard
Disconnect electrical power before inspecting or servicing equipment unless
maintenance instructions specifically state otherwise.
Ground all electrical equipment for safety.
All electrical wiring must be done by a qualified electrician in accordance with local
and national electric codes.
Ground all non-current carrying metal parts to guard against electrical shock.
Electrical disconnects and over current protection are not supplied with the
equipment.CAUTION:
Use caution when working with the Auger—springing Auger may cause personal
injury.
Manboot 3/98

Manual Feeder
MF2380B 5
General Information
The Chore-Time Manual Feeders have been designed to feed poultry. Using this equipment for any other purpose
or in a way not within the operating recommendations specified in this manual will void the warranty and may
cause personal injury.
This manual is designed to provide comprehensive planning and Management Guidelines. The Table of Contents
provides a convenient overview of the information in this manual.
Important: Read ALL instructions carefully before starting construction.
Important: Pay particular attention to all SAFETY information.
• Metric measurements are shown in millimeters and in brackets, unless otherwise specified. “ " ” equals inches
and “ ' ” equals feet in English measurements.
Examples:
1" [25.4]
4' [1 219]
• Optional equipment contains necessary instructions for assembly or operation.
• Very small numbers near an illustration (i.e., 1257-48) are identification of the graphic, not a part number.
Note: The original, authoritative version of this manual is the English version produced by CTB, Inc. or any of
its subsidiaries or divisions, (hereafter collectively referred to as "CTB"). Subsequent changes to any manual
made by any third party have not been reviewed nor authenticated by CTB. Such changes may include, but are
not limited to, translation into languages other than English, and additions to or deletions from the original
content. CTB disclaims responsibility for any and all damages, injuries, warranty claims and/or any other
claims associated with such changes, inasmuch as such changes result in content that is different from the
authoritative CTB-published English version of the manual. For current product installation and operation
information, please contact the customer service and/or technical service departments of the appropriate CTB
subsidiary or division. Should you observe any questionable content in any manual, please notify CTB
immediately in writing to: CTB Legal Department, P.O. Box 2000, Milford, IN 46542-2000 USA.

Installation Manual Feeder
6MF2380B
Feeder Assembly

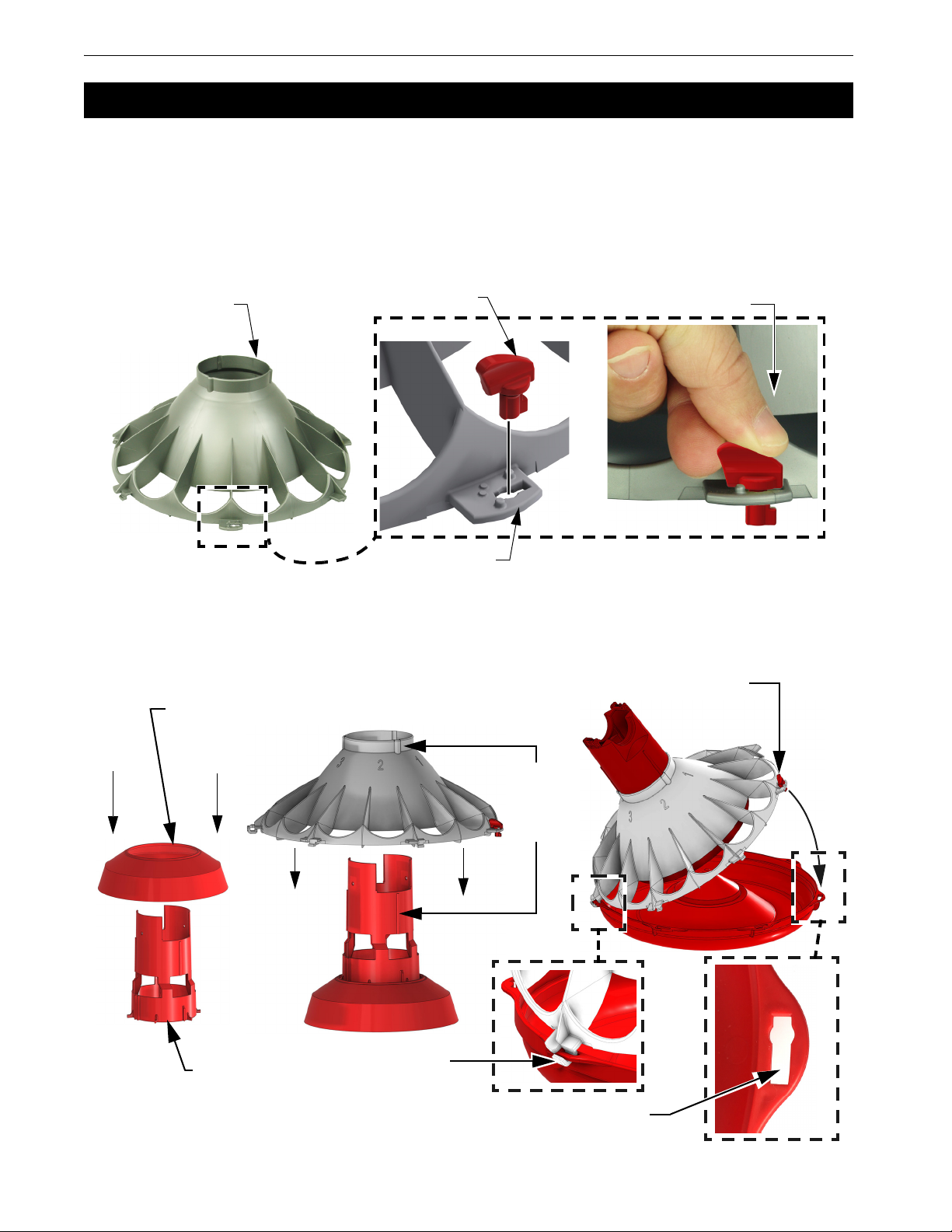

KONAVI®(56209) Feeder Assembly
1.Insert the Quarter Turn Key (55818) into the Key-hole of the Chick Excluder (55821).
Note: Only one leg of the Chick Excluder has the Key-hole.
2.Push on the Quarter Turn Key until it snaps into place.
3.Line up and slide the Cone Skirt (55816) over the Feed Cone (56207).
4.Line up the Feed Cone Quarter Turn Key with the Key-hole (See Figure) in the Feed Pan. Insert the Hook
into the Feed Pan and rotate down as shown.
Installation
Figure 1.Installing Quarter Turn Key
Quarter Turn Key (55818)
(55821)
Chick Excluder
Snap into place
Key-hole
Figure 2.Installing the Feed Skirt and Cone
(55816)
Feed Cone Skirt
(56207) Feed Cone
Line Up
Hook
Key-hole
Quarter Turn Key (55818)

Manual Feeder Installation
MF2380B 7
5.Push down and Rotate the Chick Excluder until it snaps in place and turn the Quarter turn Key
Clockwise 90°.
Chick Excluder
Quarter Turn Key
Key-way

Installation Manual Feeder
8MF2380B

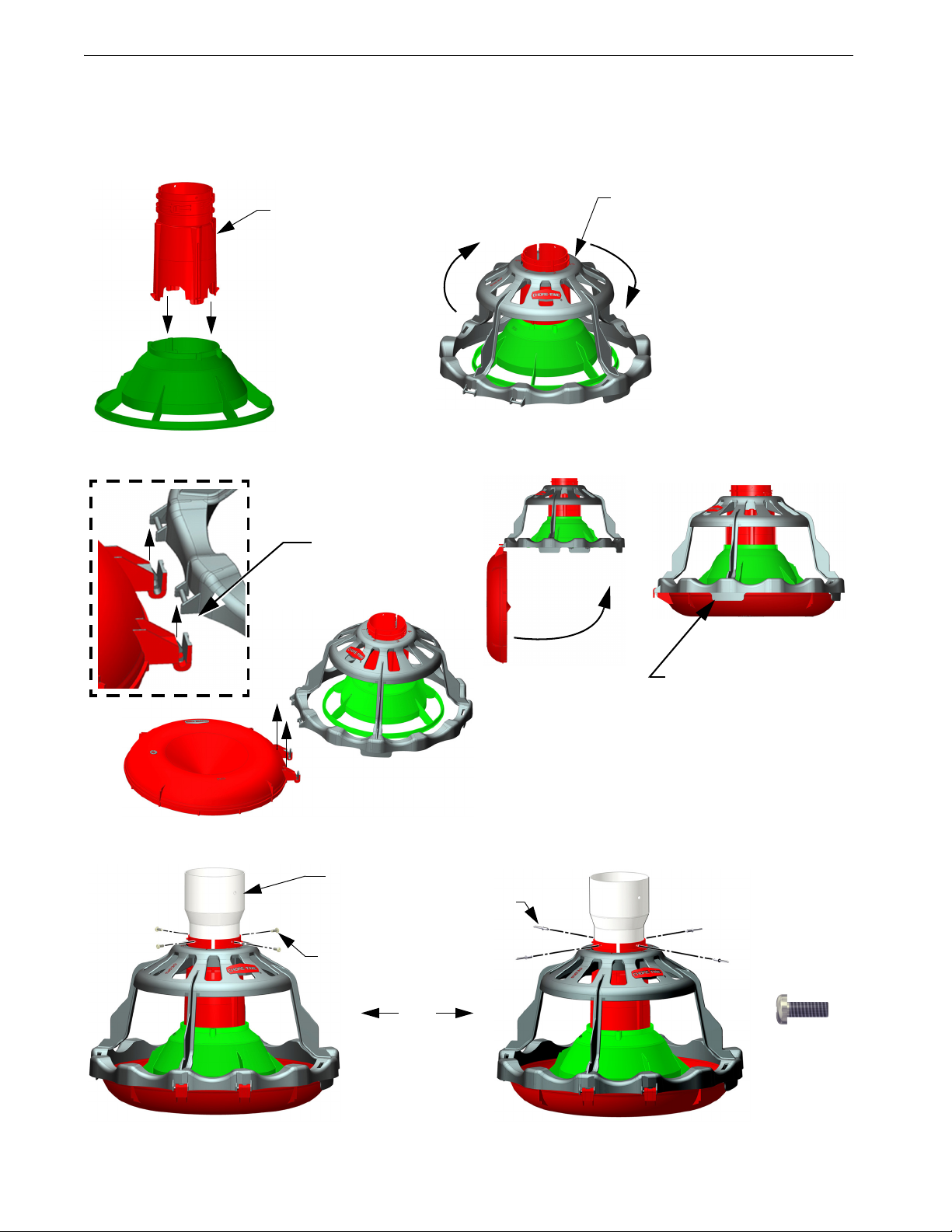

LIBERTY®Manual Feeder Assembly (53476)
1.Insert the Feed Level Cone (53479) into the Machined Adjustment Cone (51629) as shown in Figure 4. They
will only slide together when they are lined up correctly.
2.Screw the LIBERTY Grill onto the Feed level Cone.
3.Fasten the Pan (51631) onto the Grill as shown in Figure 5. Rotate the Pan and snap the Grill in place.
4.Attach the Adapter (53480) to the Feed Level Cone with four #6-32x 3/8 Screws (34660), or Pop Rivets as
shown in Figure 6.
(53479)
Feed Level Cone
(51630)
LIBERTY®Grill
Figure 4.LIBERTY Feed Level Cone and Grill Assembly
Snap Grill to Pan at each
Rotate Pan
Tab all the way around
Fasten Grill to Pan by
snapping together at
the Hinges.
Figure 5.LIBERTY Grill Installation
4x (34660) #6-32 x .375
Phil. Panhead Screw
(53480)
Adapter
OR
4x Rivet
(34660)
#6-32 x .375
Phil. P.H.
Screw
Figure 6.LIBERTY Adapter Installation

Manual Feeder Installation
MF2380B 9

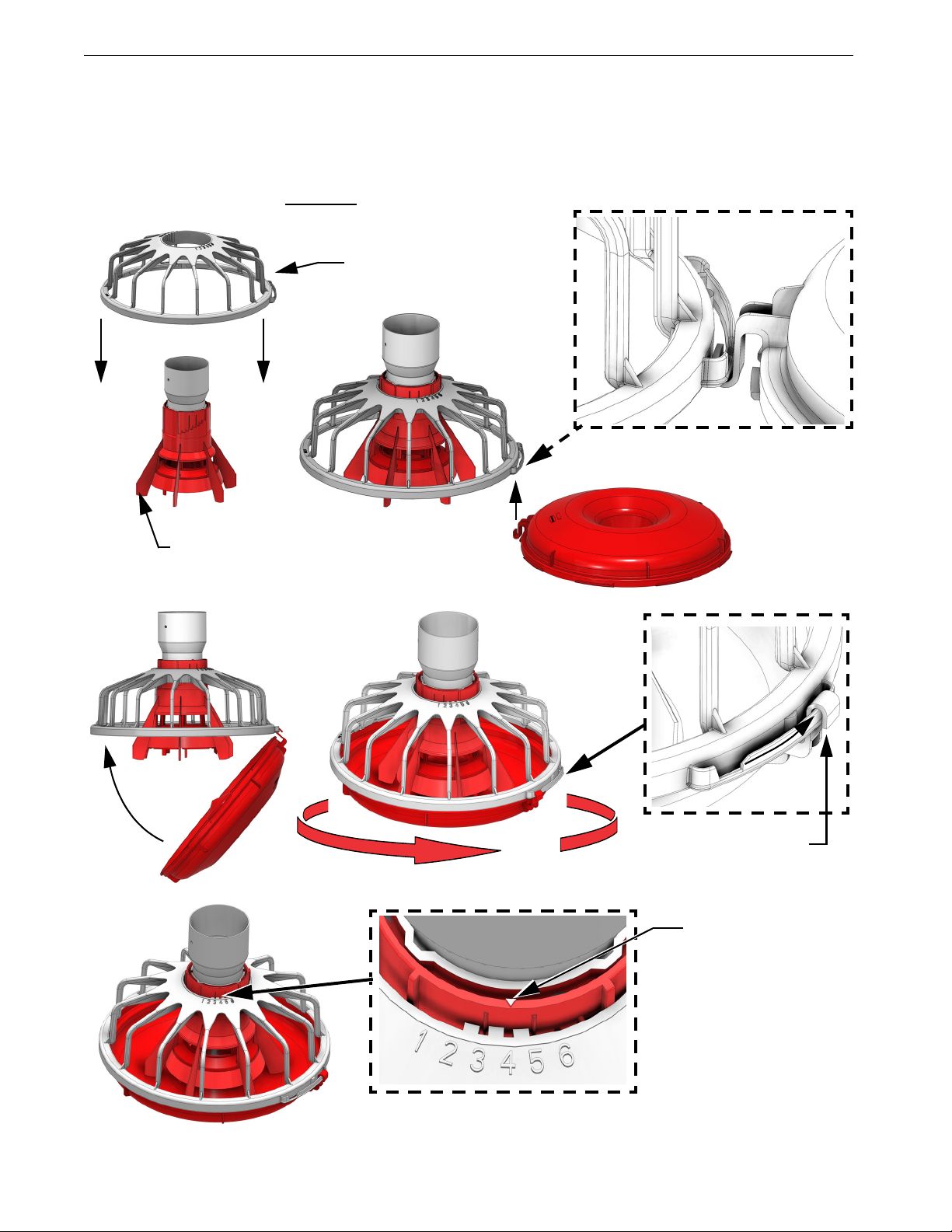

REVOLUTION®, and FLOOR FLOOD REVOLUTION® Feeder Assemblies
REVOLUTION: 8 spoke (56211) and 12 Spoke (56210)
FLOOR FLOOD REVOLUTION: 8 spoke (56213) and 12 Spoke (56212)
The REVOLUTION and FLOOR FLOOD REVOLUTION Feeders assemble in the same manner.
1.Set the Grill (46837 or 46834) on the Cone Assembly (56214) and Rotate the Grill until it reaches Position 4.
(See Figure 7.).
2.Install the Feeder Pan (46840) by Rotating Clockwise until it snaps in place.
Figure 7.REVOLUTION, & REVOLUTION FLOOR FLOOD 8 and 12 Feeder Assembly
(46837) 12 Spoke Grill
(46834) 8 Spoke Grill
(46840) Feeder Pan
(56214) REVOLUTION®Cone Assembly
(56215) REVOLUTION®FLOOR FLOOD Cone Assembly

Installation Manual Feeder
10 MF2380B

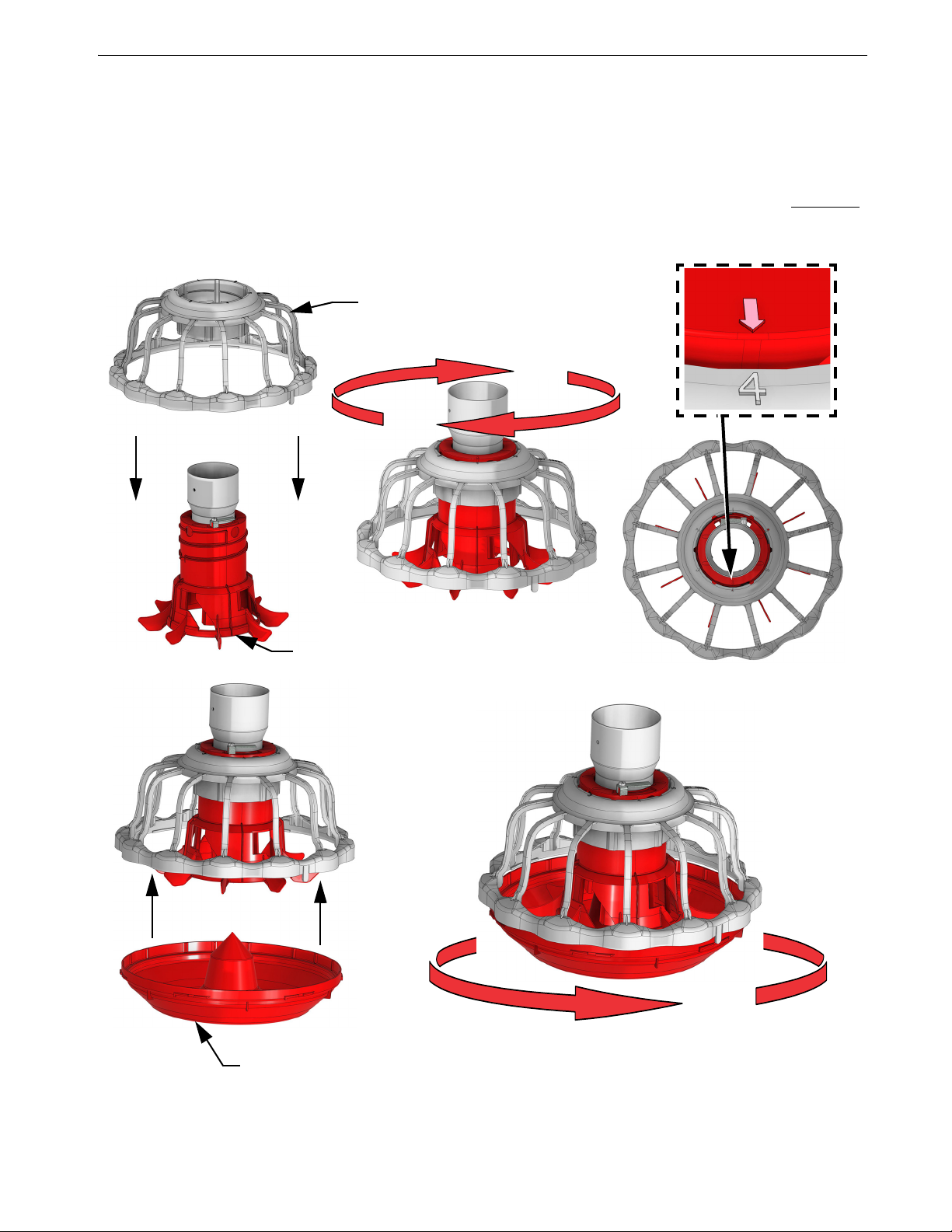

C2®Plus Deep (56200) and Shallow (56208) Feeder Assemblies
1.Set the Grill (39567) on the Cone Assembly (56205-Shallow, or 56206-Deep) (See Figure 8.).
2.Insert the Hook of the Feeder Pan into the slot in the Grill.
3.Rotate the Pan up until it is engaged with the Grill.
4.Rotate the Grill until it snaps in place as shown.
5.Adjust the Feeder Pan to Position 4.
(39567) Grill
(56205) C2®Plus Shallow Cone Assembly
(56206) C2®Plus Deep Cone Assembly
Grill Snapped in place
Adjustment Arrow
Figure 8.C2 PLUS Feeder Assembly

Manual Feeder Installation
MF2380B 11

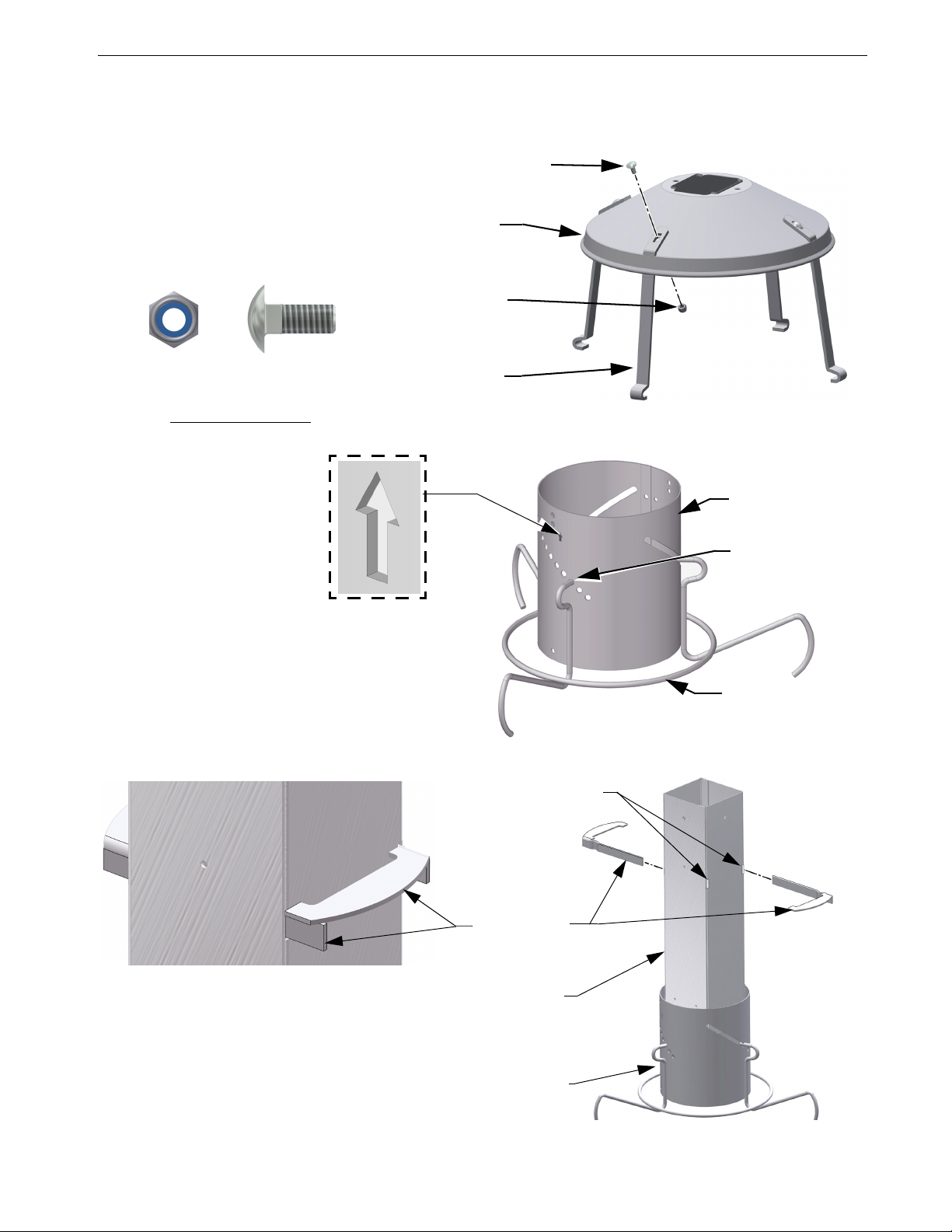

ATFTM Plus (53477) Feeder Assembly
1.Attach four ATF Struts (49171) to the Pan Shield (49137) with 1/4-20 Carriage Bolts (22692) and 1/4-20
Lock Nuts (1269) as shown in Figure 9.
2.Attach the Feed Level
Tube (4194) to the Feed
Level Ring (29320) as
shown in (See Figure 10.)
Note the direction of the
arrow on the side of the Feed
Level Tube.
3.Position the Feed Level
Ring in the third hole from
the bottom for adult
turkeys.
4.Insert the Drop Tube
(53478) into Feed Level
Ring Assembly (note the
direction), (See Figure
11.) Install the Pan Shield
Supports (44733U) in the
slots in the Drop Tube.
4x (22692)
Carriage Bolt
4x (49137)
Pan Shield
4x (1269)
Lock Nut
4x (49171)
ATF Strut
Figure 9.Attaching Pan Shield
4x (22692)
Carriage Bolt
4x (1269)
Lock Nut
Full Scale Hardware
(4194)
Feed Level Tube
(29320)
Feed Level Ring
Figure 10.Feed Level Tube and Ring
Third Hole from
bottom (Adult
Turkeys)
Figure 11.Pan Shield Supports
View after Assembled
2x (44733U)
Pan Shield
Support
(53478)
Drop Tube
Feed Level
Ring Ass’y.
Drop Tube oriented
with vertical slots
toward top

Installation Manual Feeder
12 MF2380B

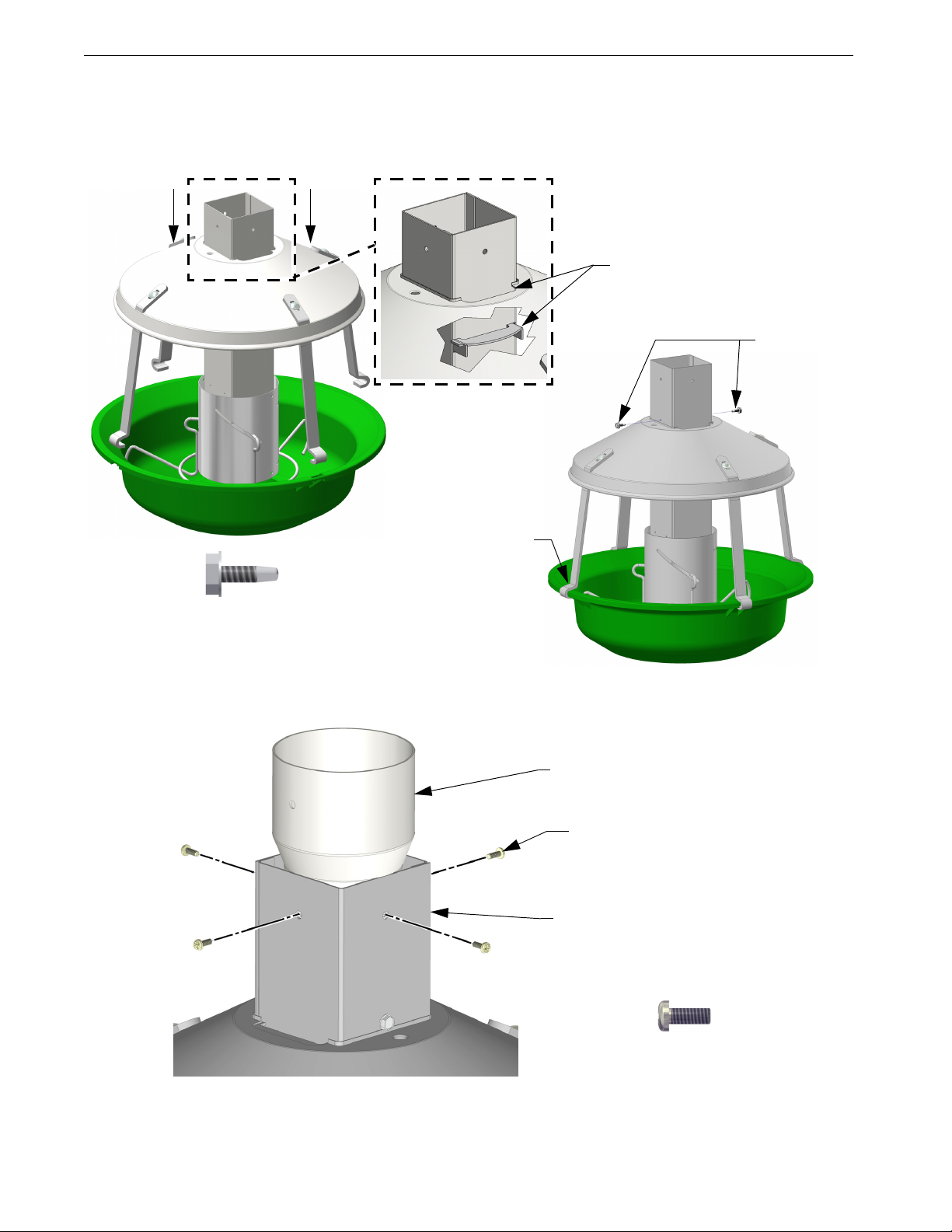

5.Set the Feed Level Ring Assembly in the Pan, insert the Drop Tube, and slide the Pan Shield Assembly onto
the Drop Tube. Note that the orientation of the Pan Shield Assembly is important in relationship to the Drop
Tube Assembly, Figure 12.
6.Snap the Struts onto the Pan at the four cut-outs in the Pan as shown.
7.Install two #10-16x .50 Self Drilling Screws (1876) in the holes in the Drop Tube, Figure 12.
8.Attach the Adapter (53480) to the Feeder Tube with four #6-32x 3/8 Screws (34660) as shown in Figure 13.
Important!
Line up cut-outs in
Snap Struts
onto the Pan
(3037)
Self Drilling
Screws
Pan Shield with
Pan Shield Supports
(3037)
#10-16 x 1/2 Self Drilling Screw
Figure 12.Pan Shield and Pan Assembly
Figure 13.Adapter
(34660) #6-32 x .375
Phil. Panhead Screw
Adapter
4x (34660) #6-32 x .375
Phil. Panhead Screw
Drop Tube

Manual Feeder Installation
MF2380B 13

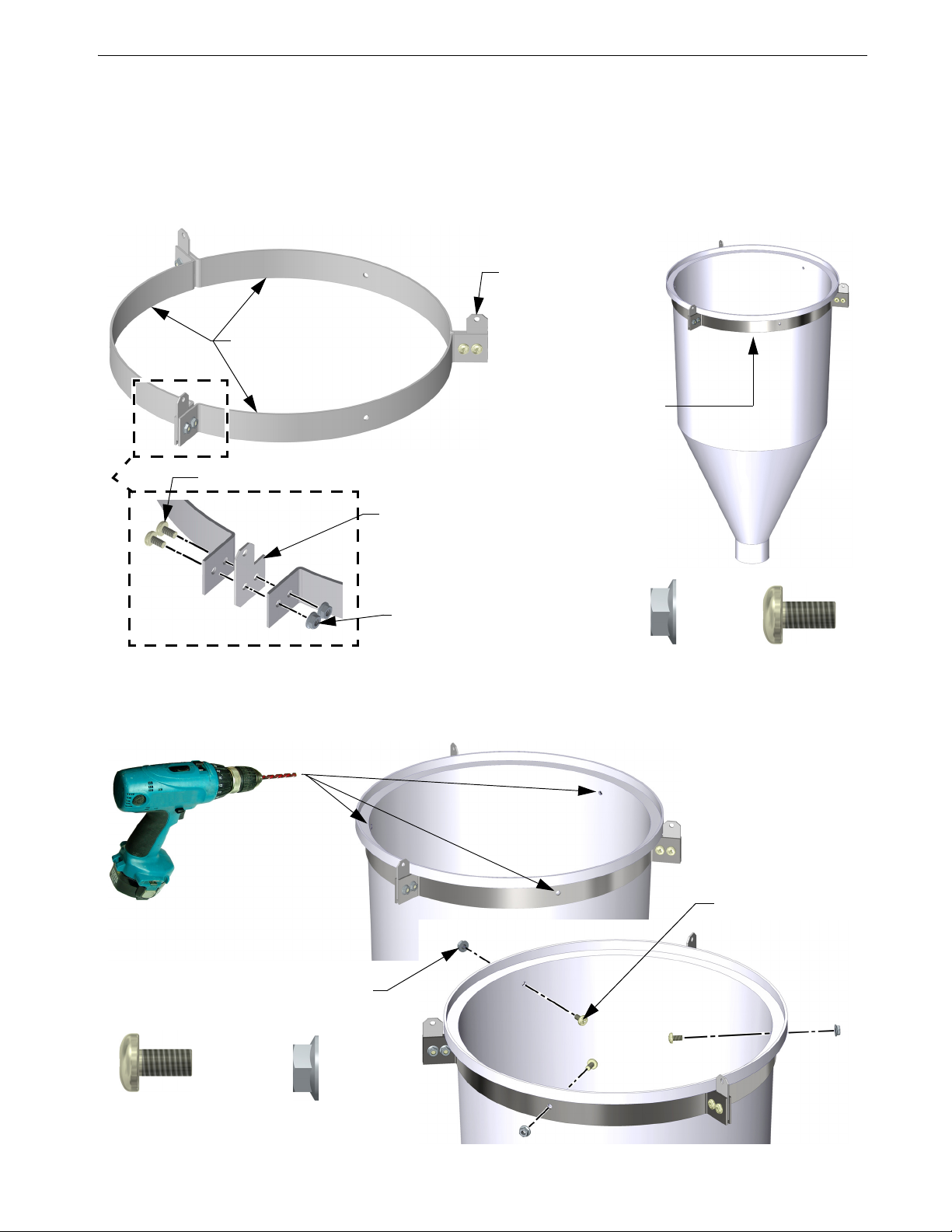

Hopper Assembly and Installation
ST60036 Hopper for ATF Feeder Model
1.Assemble the Hopper Support Straps (53469) and Hopper Hangers as shown in Figure 14. Do not tighten
hardware at this time. The Straps will be tightened in the next step.
2.Slide the Support Straps up onto the Hopper (ST60036) until it is against the upper Hopper flange and
tighten the Hardware.
3.Using the holes in the Straps as a guide, drill three 1/4" [6.35mm] holes in the Hopper, Figure 15.
4.fasten the Straps to the Hopper with 1/4-20 Machine Screws (4424-1) and Flange Nuts (46460).
5.Tighten down all the hardware.
Figure 14.Hopper Hanger Assembly
3x (53469)
Support Straps
Hopper
3x (53470)
Hopper Hanger
6x (46460)
1/4-20 Flange Nut
6x (4424-1) 1/4 Machine Screw
(Note orientation)
Support Straps all the way up
against flange of the Hopper.
Note: Hopper Hangers
point up as shown
(4424-1) 1/4-20
Machine Screw
(46460)
1/4-20 Flange Nut
3x (46460)
1/4-20 Flange Nut
3x (4424-1) 1/4-20
Machine Screw
(4424-1) 1/4-20
Machine Screw (46460)
1/4-20 Flange Nut

Installation Manual Feeder
14 MF2380B

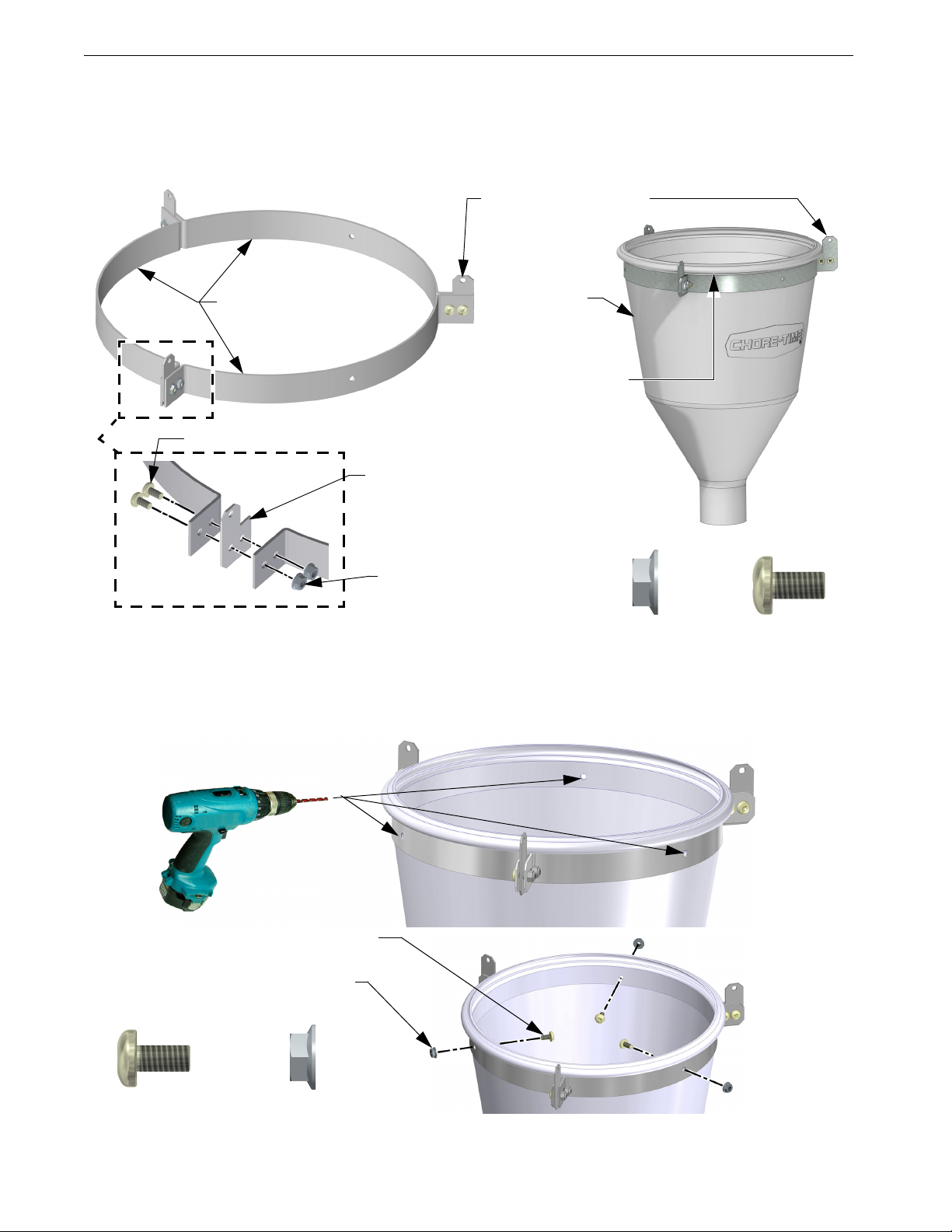

Hopper Assembly 35019-3 (for all models except ATF)
1.Assemble the Hopper Support Straps (53472) and Hopper Hangers as shown in Figure 16. Do not tighten
hardware at this time. The Straps will be tightened in the next step.
2.Slide the Support Straps up onto the Hopper (35019-3) until it is against the upper Hopper flange and tighten
the Hardware.
3.Using the holes in the Straps as a guide, drill three 1/4" [6.35mm] holes in the Hopper, Figure 15.
4. fasten the Straps to the Hopper with 1/4-20 Machine Screws (4424-1) and Flange Nuts (46460).
5.Tighten down all the hardware.
Figure 16.Hopper Hanger Assembly
3x (53472)
Support Straps
Hopper
3x (53470)
Hopper Hanger
6x (46460)
1/4-20 Flange Nut
6x (4424-1) 1/4 Machine Screw
(Note orientation)
Support Straps all the way up
against flange of Hopper.
Note: Hopper Hangers
point up as shown
(4424-1) 1/4-20
Machine Screw
(46460)
1/4-20 Flange Nut
(35019-3)
Hopper
3x (46460)
1/4-20 Flange Nut
3x (4424-1) 1/4-20
Machine Screw
(4424-1) 1/4-20
Machine Screw
(46460)
1/4-20 Flange Nut Figure 17.Fastening Straps to Hopper

Manual Feeder Installation
MF2380B 15

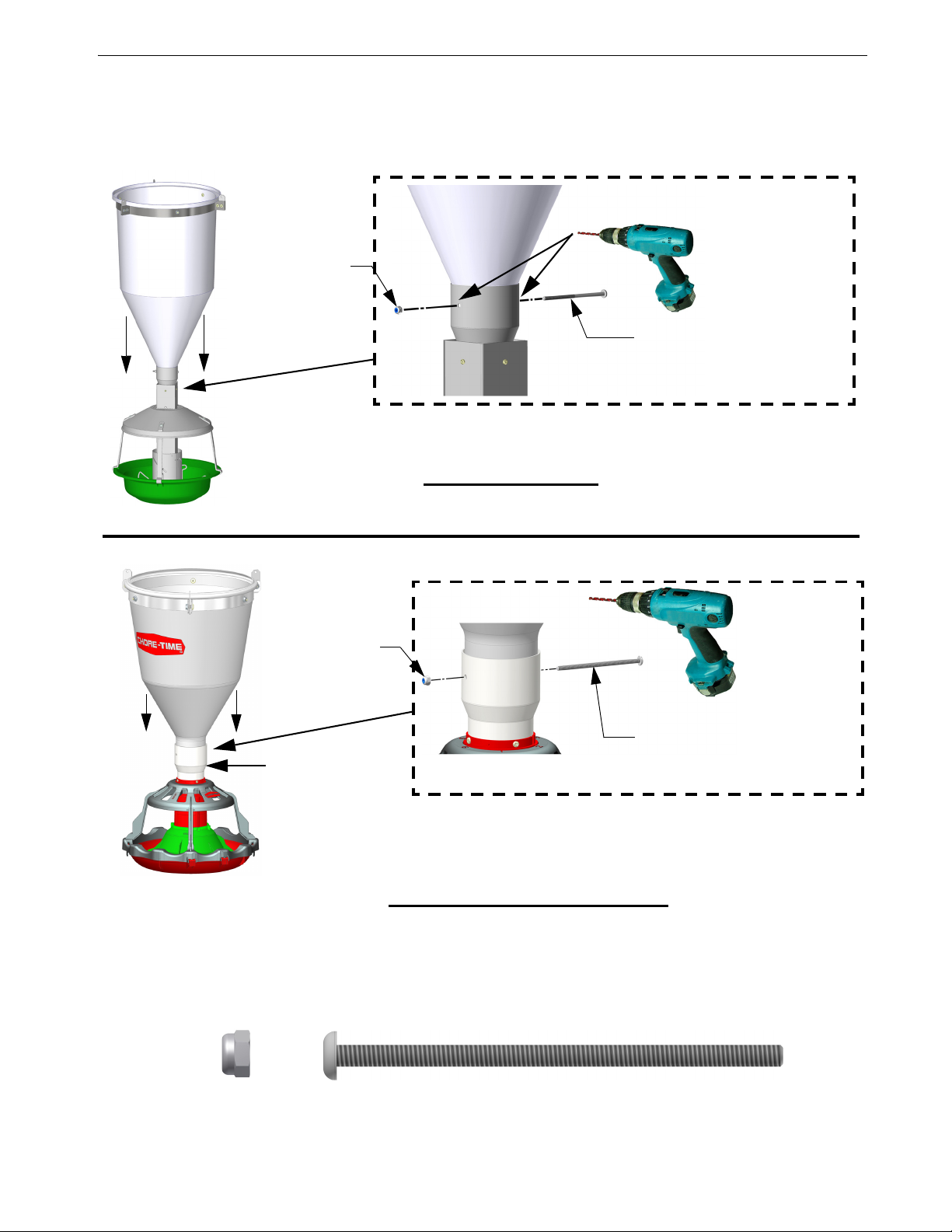

Assembling Hopper to Feeder
1.Insert the Hopper into the Adapter.
2.Using the holes in the Adapter as a guide, drill two 7/32 [5.56mm] holes in the Hopper. (See Figure 18.)
3.Attach with a #10-24 x 4 Slot Head Screw (53481) and a #10-24 Lock Nut (34019).
(46460)
#10-24 Lock Nut
(53481)
#10-24 x 4.00
Slot Head Screw
(34019)
#10-24 Lock Nut
Figure 18.ATF Feeder Hopper Installation
(53481)
#10-24 x 4.00 Slot Head Screw
Drill two 7/32"
[5.56mm] holes
ATF Model Feeder
All Feeder Models except ATF
(46460)
#10-24 Lock Nut
LIBERTY Feeder Shown.
Installation same for all
Models. (Except ATF
shown above)
(53481)
#10-24 x 4.00 Slot
Head Screw
Drill two 7/32"
[5.56mm] holes
Adapter

Installation Manual Feeder
16 MF2380B
Feeder Suspension
1.Use the provided S-Hooks (2805) and Chains to suspend the Feeder as shown below in Figure 19. The ATF
Plus Feeder is shown. All Feeders are Suspended the same way.
Figure 19.Suspending the Feeder
(2128-250) Approximately 5’ [1.52m] Chain
(2805) S-Hook
3x (2128-250) approximately 2’ [.61m] length
(2805) S-Hook

Manual Feeder Part Numbers
MF2380B 17
LIBERTY®Manual Feeder Assembly (53476)
Part Numbers
Item Part No Description
1 35019-3 35# Hopper (Lid not shown)
2 53479 LIBERTY Support Cone
3 51630 LIBERTY Grill
4 51629-3 Green Feed Level Cone
5 51631 LIBERTY Pan
6 2946 .125 x .250 Pop Rivet
7 53480 Adapter Tube
8* 34660 #6-32 x .375 Phil Pan Hd Screw
*Included in 53473 Hopper Hanger Package
Item Part No Description
9* 53470 Support Bracket
10* 53472 35# Hopper Strap
11* 34019 #10-24 Lock Nut
12* 53481 #10-24 x 4" Screw
13* 2128-250 Link Chain
14* 2805 9 Ga. S Hook
15* 46460 1/4-20 Flange Nut
16* 4424-1 1/4-20 x .5 Pan Hd. Phil. Screw
8
11
12
1
4
2
3
5
7
9
10
16
15
16
15
14
13
(34660) #6-32 x .375
Phil. Panhead Screw
(46460)
1/4-20 Flange Nut
(53481) #10-24 x 4.00
(34019)
#10-24 Lock Nut
11
8
12
15
Slot Head Screw
(4424-1) 1/4-20
Machine Screw
16
All Hardware below is Full Scale
6
Or

Part Numbers Manual Feeder
18 MF2380B

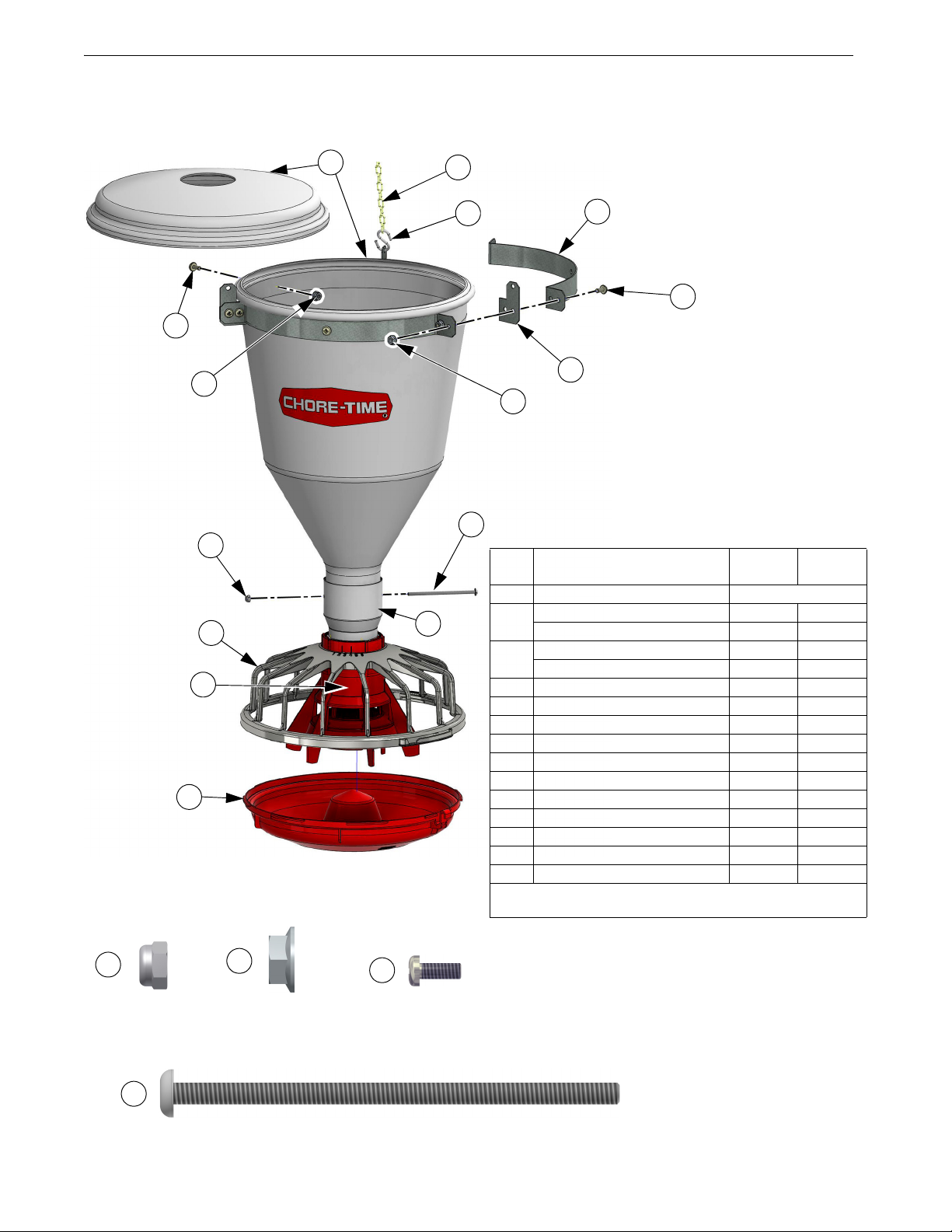

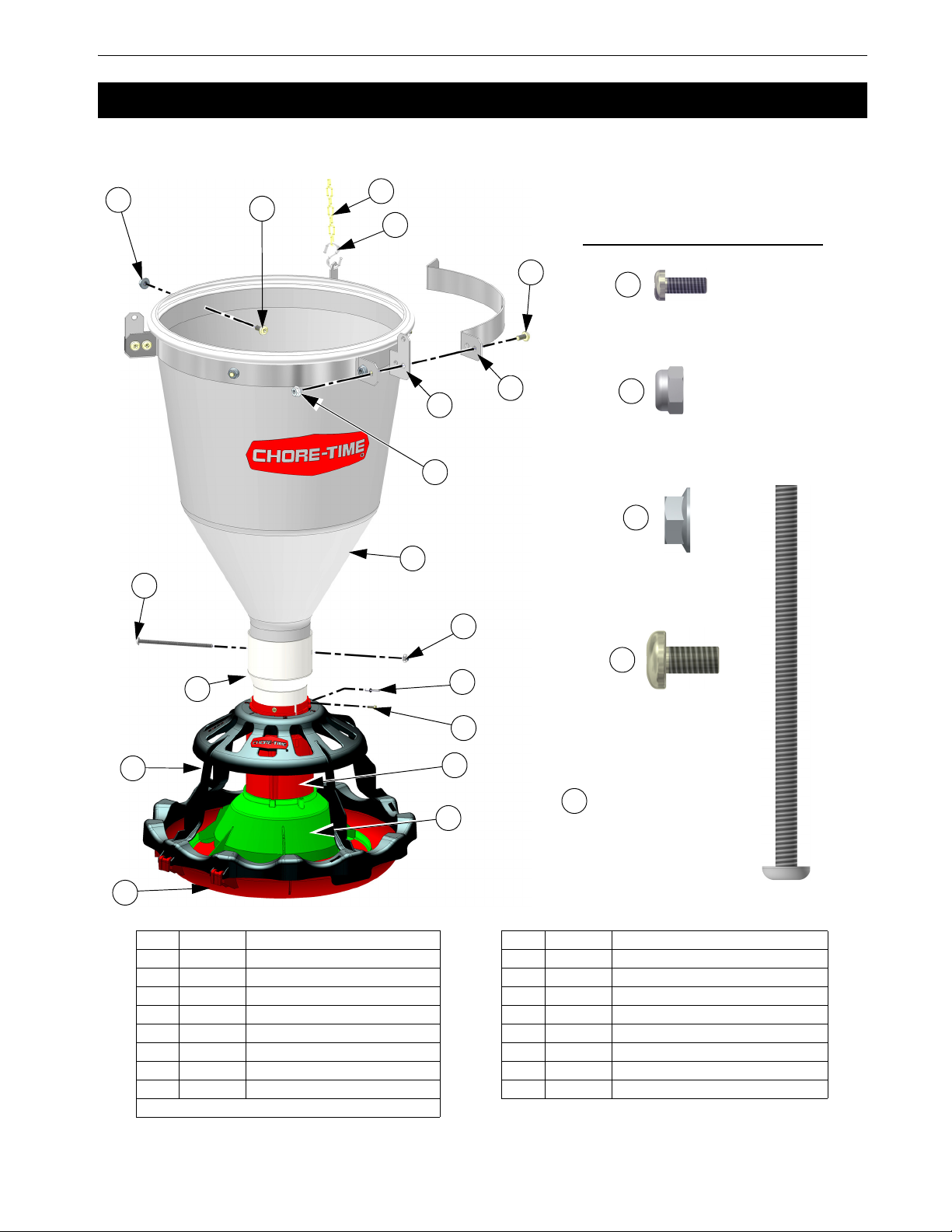

C2®PLUS Deep (56200) and C2®PLUS Shallow (56208) Feeder Assemblies
1
3
5
5
6
6
7
4
8
9
10
11
12
(53481) #10-24 x 4.00 Slot Head Screw
9
(34019)
#10-24 Lock Nut
10
(34660) #6-32 x .375
Phil. P. hd. Screw
5
(46460)
1/4-20 Flange Nut
2
6
56200
Deep
56208
Shallow
Item Description Part No
1 C2 PLUS Deep Feed Pan 41501 --
C2 PLUS Shallow Feed Pan -- 41500
2 C2 PLUS Cone Assembly 56206 --
C2 PLUS Shallow Cone Ass’y -- 56205
3 C2 PLUS Grill 39567 39567
4 Plastic 35lb. Hopper w/Lid 35019-3 35019-3
5* 1/4-20 x .50 Phil. Screw 4424-1 4424-1
6* 1/4-20 Serrated Flange Nut 46460 46460
7* 9 Ga. Stainless Hook 2805 2805
8* Chain 2128-250 2128-250
9* 10-24 x 4" Screw 53481 53481
10* 10-24 Lock Nut 34019 34019
11* 35 lb. Hopper Strap 53472 53472
12* Support Bracket 53470 53470
13** Adapter 53480 53480
*Included in 53473 Hopper Hanger Kit
**Included with the 56205 or 56206 Cone Assemblies
13

Manual Feeder Part Numbers
MF2380B 19
ATF Plus (53477) Feeder Assembly
1
2
9
4
5
6
7
8
3
10
11
20
19
12
21
14
16
15
17 18
13
20
19

Part Numbers Manual Feeder
20 MF2380B
Item Part No Description
1 ST60036 100# Hopper
2 49137 Pan Shield
3 53478 ATF Drop Tube
4 4194 Feed Level Cone
5 29320 Feed Level Ring
6 29000G ATF Pan (Green)
7* 1269 1/4-20 Lock Nut
8* 49171A ATF Strut
9* 53480 Machined Adapter
10* 3037 #10-16 x 1/2 Self Drilling Screw
11* 34660 #6-32 x .375 Phil. PH Screw
12* 22692 1/4-20 x .625 Carriage Bolt
13* 53470 Support Bracket
14* 53469 100# Hopper Strap
15* 34019 #10-24 Lock Nut
16* 53481 #10-24 x 4" Screw
17* 2128-250 Link Chain
18* 2805 9 Ga. S Hook
19* 46460 1/4-20 Flange Nut
20* 4424-1 1/4-20 x .5 Pan Hd. Phil. Screw
21** 44733U Pan Shield Support
*Included in 53471 Hopper Hanger Package
**Included with 53478 ATF Drop Tube Assembly
(3037) (34660) #6-32 x .375
Phil. Panhead Screw
#10-16x 1/2 Self Drilling Screw
(1269)
Lock Nut
(34019)
#10-24 Lock Nut
(53481) #10-24 x 4.00 Slot Head Screw
(4424-1)
1/4-20 Machine Screw
(46460)
1/4-20 Flange Nut
10 117
15
16
2019
(22692)
Carriage Bolt
12
All Hardware below is Full Scale
