Bin Fill Cap Kit Introduction
3
MA1038D
Safety
Caution, Warning and Danger Decals have been placed on the equipment to warn of potentially dangerous situations. Care
should be taken to keep this information intact and easy to read at all times. Replace missing or damaged safety decals
immediately.
Safety–Alert Symbol
This is a safety–alert symbol. When you see this symbol on your equipment, be alert to the potential for
personal injury. This equipment is designed to be installed and operated as safely as possible...however,
hazards do exist.
Understanding Signal Words
Signal words are used in conjunction with the safety–alert symbol to identify the severity of the warning.
DANGER indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious
injury.
WARNING indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious
injury.
CAUTION indicates a hazardous situation which, if not avoided, MAY result in minor or moderate injury.
Follow Safety Instructions
Carefully read all safety messages in this manual and on your equipment safety signs. Follow recommended precautions and
safe operating practices.
Keep safety signs in good condition. Replace missing or damaged safety signs.
Decal Descriptions
DANGER: Moving Auger
This decal is placed on the End Cap Weldment and Clean-out cover. Severe
personal injury will result, if the electrical power is not disconnected, prior to
servicing the equipment.
DANGER: Electrical Hazard
Disconnect electrical power before inspecting or servicing equipment unless
maintenance instructions specifically state otherwise.
Ground all electrical equipment for safety.
All electrical wiring must be done by a qualified electrician in accordance with local and
national electric codes.
Ground all non-current carrying metal parts to guard against electrical shock.
Electrical disconnects and over current protection are not supplied with the equipment.
DANGER: Springing Auger
Use caution when working with Auger. Springing Auger may cause personal injury.
Attention: Read the Manual
See the manual for detailed installation instructions.
Introduction
Manboot 3/98

Introduction Bin Fill Cap Kit
4MA1038D
General
Single or Twin Fill Cap Kit
The Single or Twin Fill Cap Kits replaces the existing lid on top of the
receiving bin of a bin fill system.
The Fill Cap Kit includes a removable lid. This allows the receiving bin
to be filled from a feed truck, etc., without disrupting the bin fill system.
108 Bin to Bin Fill Cap Kit
The Model 108 Bin-to-Bin Fill Cap Kit is designed to accommodate filling or bypassing a hopper bin in a multiple
bin application.
Single or Twin Intermediate Fill Cap Kit
The Single or Twin Intermediate Fill Cap
Kits replace the existing lid on top of an
Intermediate Bin in a multiple bin fill
system.
The Intermediate Fill Cap Kits include a
removable lid. This allows the bin to be
filled from a feed truck, etc., without
disrupting the bin fill system. The
Intermediate Fill Cap Kits allows the bin to
be filled or bypassed by the fill system.
1038-5 6/01
MA1019-2 9/97

Bin Fill Cap Kit Installation
5
MA1038D
Single Bin Fill Cap Kit (Model 108, 90, & 75)

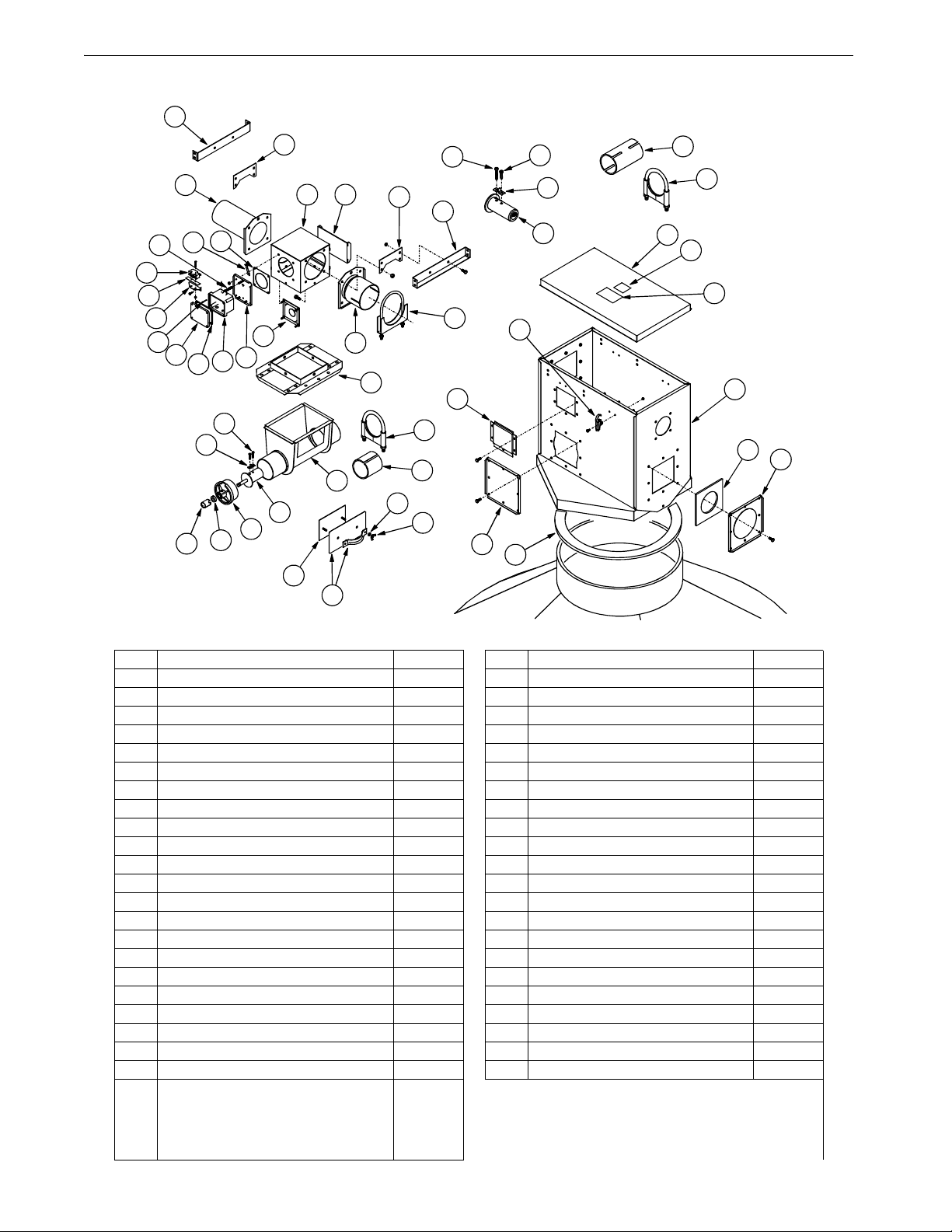

Refer to the parts list drawing on page 2 as required for assembly.
1.Place the Sponge Tubing (Item 9) over the lip of the bin fill collar.
2.Install the Tube Anchor Weldment (Item 5) on the outside of the Bin Cover Weldment (Item 10).
3.Install the Tube Anchor Weldment (Item 5) on the inside of the Cover Weldment (Item 10). The long Tube
Anchor Weldment (Item 11) is only required on Model 108 Single Bin Fill Cap Kits.
4.Set the Cover Weldment over the bin opening in line with the supply bin.
5.Install the auger tubes from the boot on the supply bin to the Cover Weldment.
6.Use a Tube Clamp (Item 6) to secure the auger tube(s) to the Tube Anchor Weldment(s).
7.Attach the Driver Assembly (Item 8) to the gearhead output shaft. DO NOT TIGHTEN THE BOLTS.
8.Bolt the Gearhead Assembly to the Cover Weldment.
9.Drill holes and fasten the Cover Weldment to the bin fill collar with the 5/16" x 1-1/2" bolts and locknuts
supplied.
10.Install the auger as specified in the fill system installation manual.
DANGER: Springing Auger
Use caution when working with Auger. Springing Auger may cause
personal injury.
11.Place the Lid Assembly (Item 2) on the Cover Weldment and secure using
the over center clamps (Item 4).
12.Model 90 Fill Cap Kit and the Model 75 Fill Cap Kit, mount the Junction
Box Assembly to a bin leg using the supplied hardware.
13.Wire the Junction Box Assembly to the system according to the wiring diagram. See “Single and Twin Bin
Fill Cap Wiring” on page 13.
Installation
Manboot 3/98
Model 108
34635
Model 90
25806
Model 75
6563
Item Description Part No.
1 Danger Electrical Decal 2527-25 2527-25 2527-25
2 Lid Ass’y 7689 7689 7689
3 Danger Moving Auger Decal 2527-9 2527-9 2527-9
4 Over Center Clamp 2536 2536 2536
5 Tube Anchor Wldm’t (Mod. 108) 34543 -- --
Tube Anchor Wldm’t (Mod. 90) -- 5069 --
Tube Anchor Wldm’t (Mod. 75) -- -- 6518
6 Tube Clamp (Mod. 108) 14373 -- --
Tube Clamp (Mod. 90) -- 6721-1 --
Tube Clamp (Mod. 75) -- -- 6515-1
7 Tube Insert (Mod. 108 steel) 34337 -- --
Tube Insert (Mod. 75 steel) -- -- 6524
8 Driver Assembly (Mod. 108) 30313 -- --
Driver Assembly (Mod. 90) -- 6861 --
Driver Assembly (Mod. 75) -- -- 6862
9 Sponge Tubing 5928 -- --
10 Cover Weldment (Mod. 108) 9489 -- --
Cover Weldment (Mod. 90 & 75) -- 7690 7690
11* Tube Anchor Weldment (Mod. 108) 34636 -- --
*This Tube Anchor Weldment is required only on Model 108 Single Bin Fill
Cap Kit installations.

Installation Bin Fill Cap Kit
6MA1038D
Twin Bin Fill Cap Kit (Model 108, 90, & 75)
1.Place the Sponge Tubing (Item 9) over the lip of the bin fill collar.
2.Bolt the two Tube Anchor Weldments (Item 5) to the same side of the Cover Weldment (Item 10).
3.Install the Tube Anchor Weldment (Item 5) on the outside of the Bin Cover Weldment (Item 10).
4.Set the Cover Weldment over the bin opening in line with the supply bin.
5.Install the auger tubes from the boot on the supply bin to the Cover Weldment.
6.Use a Tube Clamp (Item 6) to secure the auger tube(s) to the Tube Anchor Weldment(s).
7.Attach the Driver Assembly (Item 8) to the gearhead output shaft. DO NOT TIGHTEN THE BOLTS.
8.Bolt the Gearhead Assembly to the Cover Weldment.
9.Drill holes and fasten the Cover Weldment to the bin fill collar with the 5/16" x 1-1/2" bolts and locknuts
supplied.
10.Install the auger as specified in the fill system installation manual.
DANGER: Springing Auger
Use caution when working with Auger. Springing Auger may cause
personal injury.
11.Place the Lid Assembly (Item 2) on the Cover Weldment and secure using
the over center clamps (Item 4).
12.Model 90 Fill Cap Kit and the Model 75 Fill Cap Kit, mount the Junction
Box Assembly to a bin leg using the supplied hardware.
13.Wire the Junction Box Assembly to the system according to the diagram. See “Single and Twin Bin Fill
Cap Wiring” on page 13.
Manboot 3/98
Model 108
34635
Model 90
25806
Model 75
6563
Item Description Part No.
1 Danger Electrical Decal 2527-25 2527-25 2527-25
2 Lid Ass’y 7689 7689 7689
3 Danger Moving Auger Decal 2527-9 2527-9 2527-9
4 Over Center Clamp 2536 2536 2536
5 Tube Anchor Wldm’t (Mod. 108) 34543 -- --
Tube Anchor Wldm’t (Mod. 90) -- 5069 --
Tube Anchor Wldm’t (Mod. 75) -- -- 6518
6 Tube Clamp (Mod. 108) 14373 -- --
Tube Clamp (Mod. 90) -- 6721-1 --
Tube Clamp (Mod. 75) -- -- 6515-1
7 Tube Insert (Mod. 108 steel) 34337 -- --
Tube Insert (Mod. 75 steel) -- -- 6524
8 Driver Assembly (Mod. 108) 30313 -- --
Driver Assembly (Mod. 90) -- 6861 --
Driver Assembly (Mod. 75) -- -- 6862
9 Sponge Tubing 5928
10 Cover Weldment (Mod. 108) 9489 -- --
Cover Weldment (Mod. 90 & 75) -- 7690 7690

Bin Fill Cap Kit Installation
7
MA1038D
Model 108 Bin to Bin Fill Cap Kit
The Model 108 Bin-to-Bin Fill Cap Kit is designed to accommodate filling or bypassing a hopper bin in a multiple
bin application.
Example: Units 1, 2, and 3 would be Bin-to-Bin Fill Cap Kits and unit 4 would be a Terminal Bin Fill Cap Kit.
(See Figure 1.)
The Bin-to-Bin Fill Cap Kits replace the existing lid or lids on top of an intermediate bin in a multiple bin fill
system. The Bin-to-Bin Fill Cap Kit allows inline, right hand, or left hand turns in the fill system layout. (See
Figure 2.)
1582-01 5/99
5
1 2 3 4

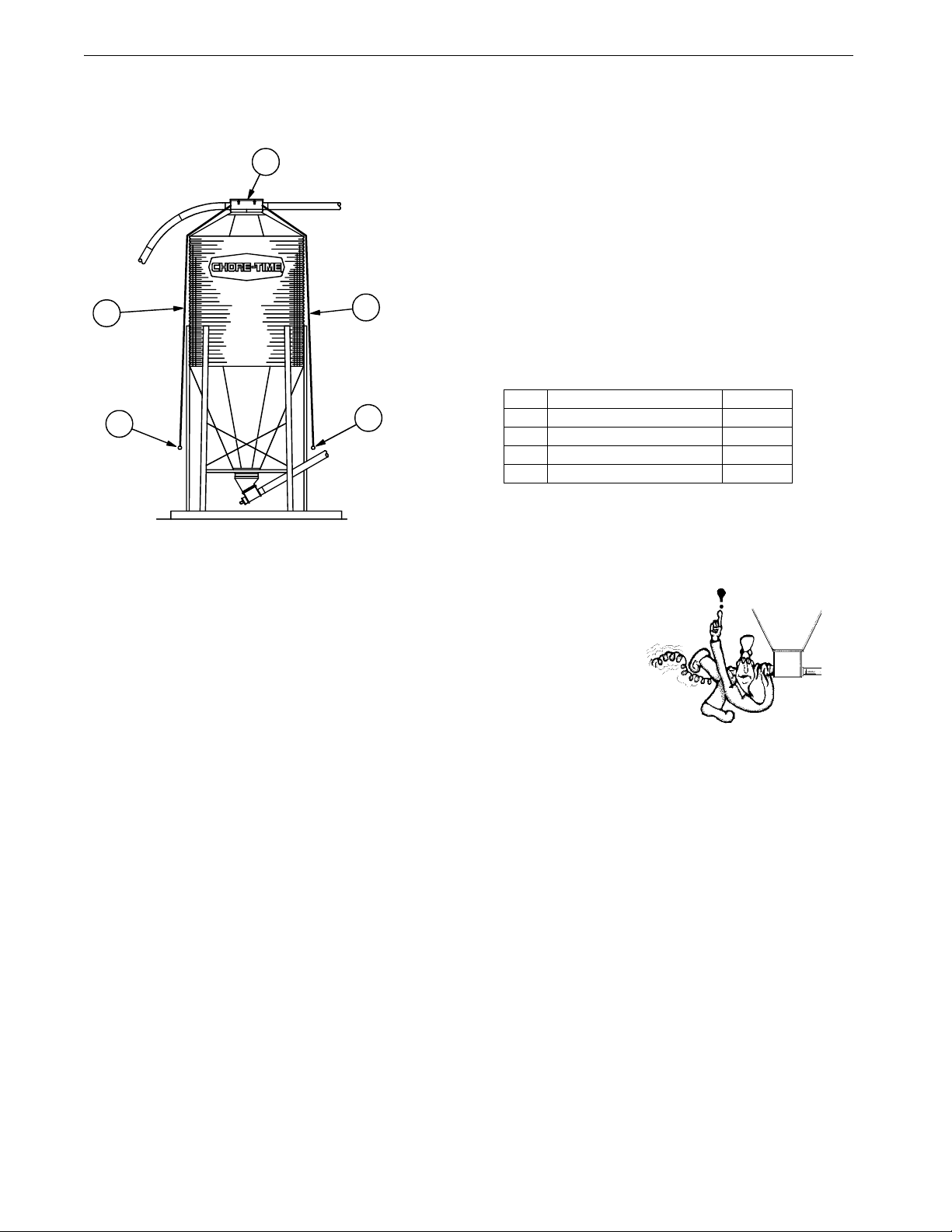

Figure 1.108 Bin to Bin Examples
Item Description
1 Intermediate Hopper Bin Number 1
2 Intermediate Hopper Bin Number 2
3 Intermediate Hopper Bin Number 3
4 Terminal Hopper Bin
5FeedMill
1582-02 4/99
1
2
3
4
Item Description
1 Inline Cap
2 Right Hand Turn Cap
3 Left Hand Turn Cap
4 Terminal Cap

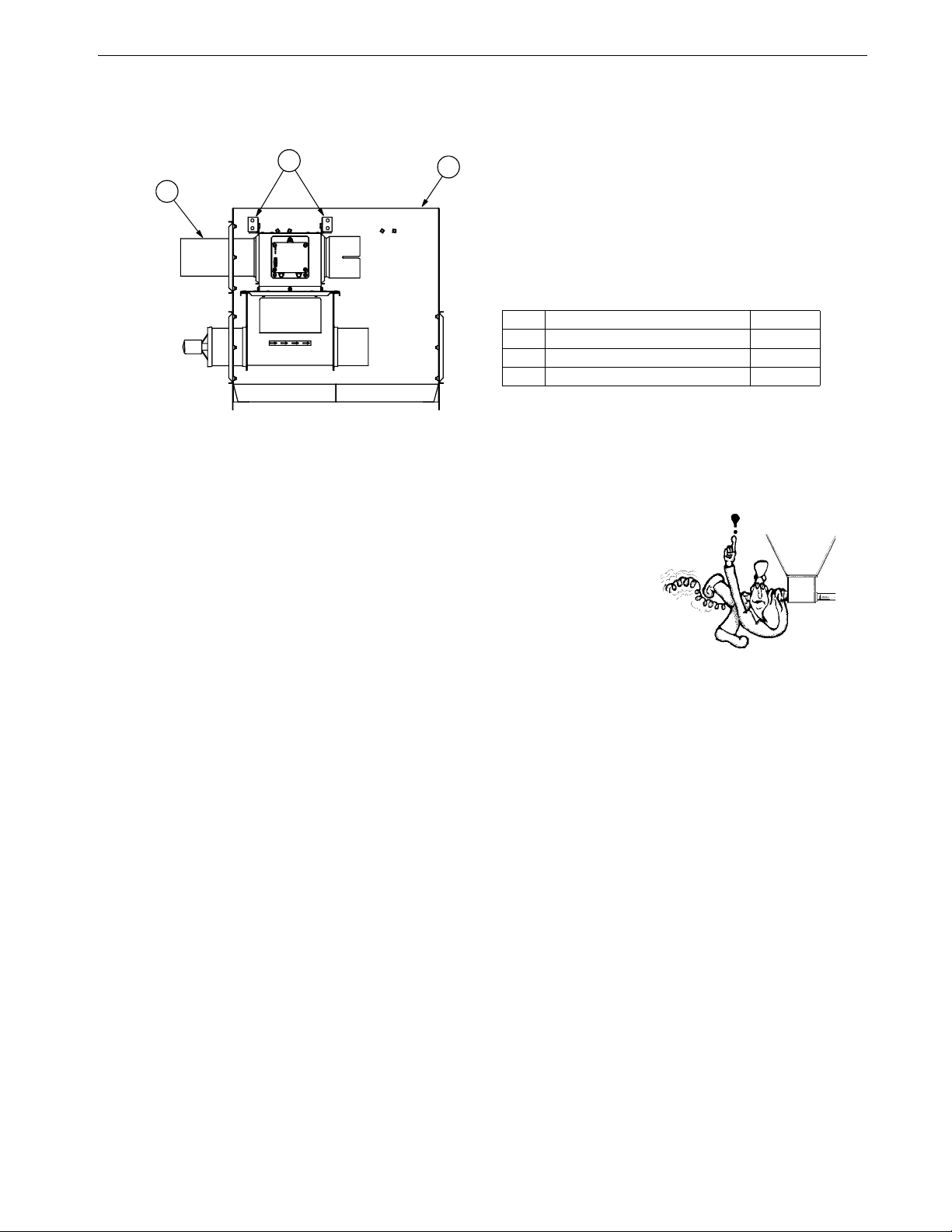

Figure 2.108 Bin to Bin Examples

Installation Bin Fill Cap Kit
8MA1038D
The Extension Boot can be rotated in the desired direction when assembling with the Control Unit. Figure 3 shows
each configuration along with the direction the feed flows inside the Bin-to-Bin Fill Cap Kit.
1.Place the Sponge Tubing over the lip of the bin opening.
2.Assemble Extension Boot (Item 3) to the Adapter Plate (Item 2) and Control Unit (Item 1) in desired inline,
right hand, or left hand position, as shown in Figure 4. The Cover Weldment is shipped assembled for an
inline installation.
3.Reposition the seals and cover plates as needed.
1582-03 5/99
STRETCHFLEX-AUGER
8INCHESPER50FEET OF LEN GTH R
1 2 3
4 4 4 4
444
4
4
4
Item Description
1 Inline Cap
2 Right Hand Turn Cap
3 Left Hand Turn Cap
4 Direction of Feed Flow

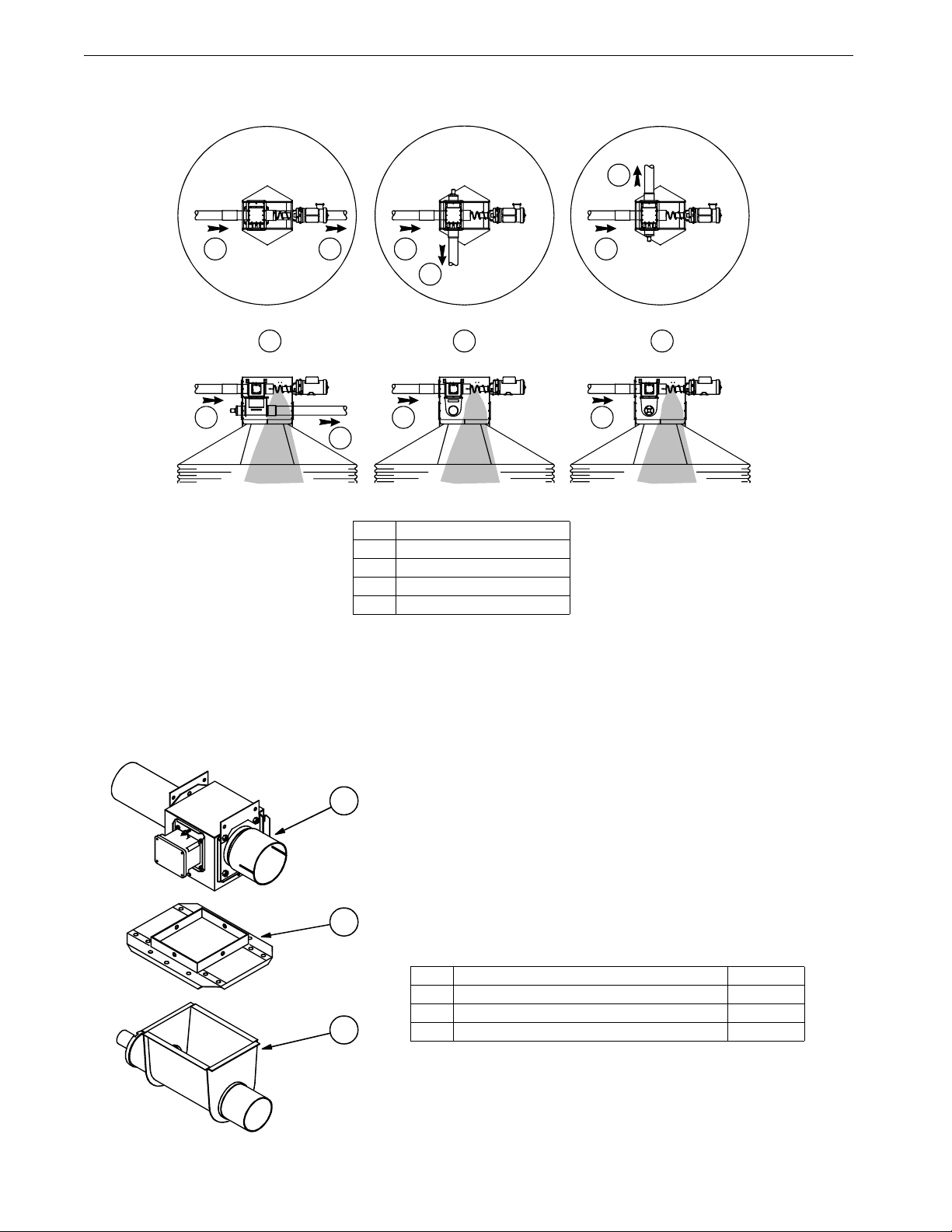

Figure 3.Top and Side views of bin layouts showing feed flow
1582-05 4/99
1
2
3
Item Description Part No.
1 Control Unit 42288
2 Adapter Plate (included with Extension boot) 7856
3 Extension Boot 34372
Figure 4.Extension Boot, Adapter Plate, & Control Unit

Bin Fill Cap Kit Installation
9
MA1038D
4.Assemble the Control Unit with long Tube Anchor Weldment (Item 1) in the upper inlet hole of the Cover
Weldment (Item 3).
5.Use the hardware provide to bolt the Control Unit brackets to the support rails (Item 2). (See Figure 5.)
6.Set the cover weldment over the bin opening in line with the other bins.
7.Install the auger as specified in the fill system installation manuals (MA1032 and MA1102).
DANGER: Springing Auger
Use caution when working with Auger. Springing Auger may cause
personal injury.
8.Set the Lid Assembly on the Cover Weldment and secure using the over
center clamps.
Level Switching and Control Panel (not supplied) can be configured
to best suit the application. The wiring and controls should be
planned to minimize any empty running time on the Augers.
1582-06 5/99
1
23
Item Description Part No.
1 Long Tube Anchor Weldment 34636
2 Support Rails 9851
3 Cover Weldment 42289
Figure 5.Assembling Control unit and Boot Assembly to Cover Weldment (inline assembly shown)
Manboot 3/98
Note:

Installation Bin Fill Cap Kit
10 MA1038D
Model 108 Single and Twin Intermediate Fill Cap Kit
1.Place the Sponge Tubing (Item 12) over the lip of the bin fill collar.
2.Install the short Tube Anchor Weldment (Item 8) on the outside of the Bin Cover Weldment (Item 11).
3.Caulk or silicone the Anchor Tube Weldments against the Cover Weldment.
4.Install the Slide Shut-offs on the Tube Anchor Weldments. See Figure 7 (on page 11)
5.Install the Tube Anchor Weldment (Item 5) on the inside of the Cover Weldment (Item 11).
6.Set the Cover Weldment over the bin opening in line with the supply bin.
7.Install the Auger Tubes from the boot on the supply bin to the Cover Weldment.
8.Use a Tube Clamp (Item 9) to secure the Auger Tube(s) to the Tube Anchor Weldment(s).
9.Drill holes and fasten the Cover Weldment (Item 11) to the bin fill collar with the 5/16" x 1-1/2" bolts and
locknuts supplied.
(40526) Twin Fill Kit (40527) Single Fill Kit
40526 40527
Item Description Part No.
1 Danger Electrical Decal 2527-25 2527-25
2 Danger Moving Auger Decal 2527-9 2527-9
3 Lid Assembly 7689 7689
4 Shut-off Half 40530 40530
5 Twin Tube Fill Weldment 40522 --
Single Tube Fill Weldment -- 40523
6 Over Center Clamp 2536 2536
7 Double Insulated Bushing 6343 6343
8 Tube Anchor Weldment 4-37332 4-37332
40526 40527
Item Description Part No.
9 Tube Clamp 14373 14373
10 Tube Insert 34337 34337
11 Twin Cover Weldment 40533 --
Single Cover Weldment -- 40534
12 Sponge Tubing 5928 5928
-- Cord 3085-8 3085-8
-- Red Indicator Ball 24393-1 24393-1
-- Green Indicator Ball 24393-2 24393-2
Figure 6.Single and Twin Intermediate Fill Cap Assembly

Bin Fill Cap Kit Installation
11
MA1038D
10.Assemble the Shut-Off using (6) 1/4-20 bolts and nuts provided into (3) center holes on each flanged side.
This leaves the end holes for activator cord attachment.
11. Set the cover weldment over the bin opening in line with the other bins. The outlet hole in the fill tube
(inside the cover weldment) should be on the inlet side of system. This allows feed to fall more centered
in the bin.
12. Determine proper pull cord arrangement for the hopper bin set up. Insert cord thru bushings on both ends
(single) or sides (twin) and attach to opposite ends of the shut-off slide. Insert cords thru holes provided on
ends of shut-off and tie a secure knot in cord ends.
MA1019-3 9/97
1
2
3
4
5
64
Item Description Part No.
1 Fill Tube Weldment (Twin)
Fill Tube Weldment (Single)
40522
40523
2 Shut-Off Half 40530
3 1/4-20 x 1/2 Bolt 1487
4 Possible Cord Position
5 Bolt Locations
6 1/4-20 Lock Nut 1269
Figure 7.Shuttoff Assembly
MA1019-4 9/97
1
2
1
3
4
Item Description Part No.
1 Cord 3085-8
2 Intermediate Fill Cap (Twin) --
3 Shut-Off 40530
4 Intermediate Fill Cap (Single) --
Figure 8.Cord arrangement

Installation Bin Fill Cap Kit
12 MA1038D
13. Attach red (closed side) and green (open side) indicator balls (Items 3 & 4) to the bottom ends of the cords.
The cord should be routed over roof panels and side panels so as not to contact any sharp edges or hardware,
and be able to be secured (tied off) to a leg or brace to hold slide in the open or closed position.
14. Install the Auger as specified in the fill system installation manual.
DANGER: Springing Auger
Use caution when working with Auger. Springing Auger may cause
personal injury.
15. Set the Lid Assembly on the Cover Weldment and secure using the over
center clamps.
MA1019-5 9/97
4
2
2
3
1
Item Description Part No.
1 Intermediate Fill Cap
2 Cord 3085-8
3 Red Indicator Ball (Close) 24393-1
4 Green Indicator Ball (Open) 24393-2
Figure 9.Cord arrangement
Manboot 3/98

Bin Fill Cap Kit
13
MA1038D
Wiring
DANGER: Electrical Hazard
Disconnect electrical power before inspecting or servicing equipment unless
maintenance instructions specifically state otherwise.
Ground all electrical equipment for safety.
All electrical wiring must be done by a qualified electrician in accordance with local and
national electric codes.
Ground all non-current carrying metal parts to guard against electrical shock.
Electrical disconnects and over current protection are not supplied with the equipment.
Single and Twin Bin Fill Cap Wiring
1038-6 6/01
Red
12 6345
Black
Red
Red
Black
Black
Red
Red
M
L1
L2
Ground
230 V
Supply
230 V Motor
1-1/2 HP Max. P/N 46071 Junction Box Assembly
Jumper
Wire

Parts Listing Bin Fill Cap Kit
14 MA1038D
Junction Box Assembly Part Number 46071

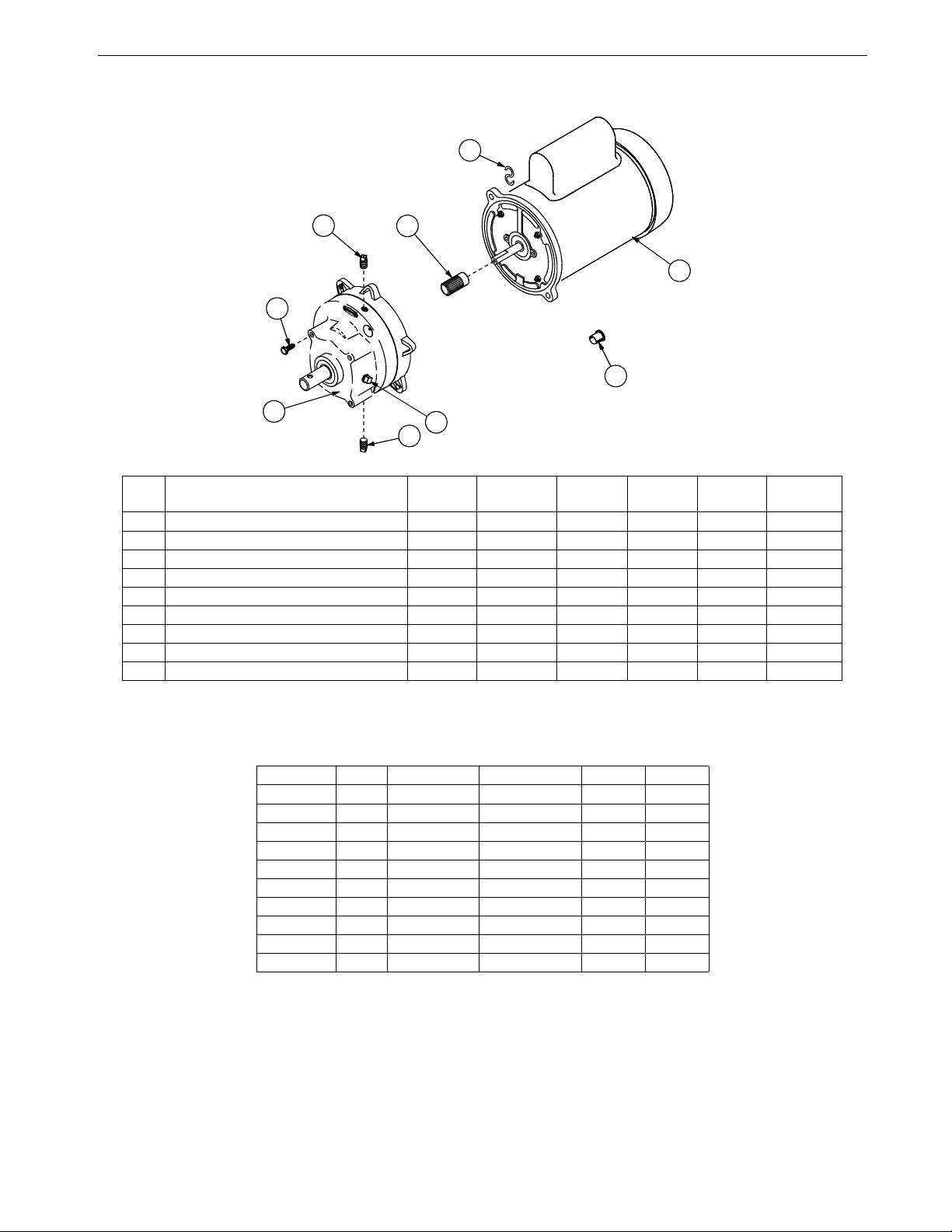

60 Hz Fill System Power Units
Parts Listing
Item Description Part No.
1 Gasket 42854
2 Control Decal 2529-261
3 Plastic Screw 42849
4 Electric Box Cover 42851
5 Mount Panel 46072
6 Machined Electrical Box 43883-1
7 Toggle Switch 7767
8 Box Mount Panel 46069
9 Shoulder Nut 13407
10 Switch Boot 13406
11 Pilot Light 46047
12 6 Position Terminal Block 34925-6
MF827-112 2/95
9
10
1
2
34
5
6
7
8
Item Description 3259-51
Part No.
3259-52
Part No.
3259-49
Part No.
3259-66
Part No.
1 Gearhead Assembly 3261-7 3261-7 3261-7 3261-7
2 5/16-18 x 5/8'' Hex Head Machine Screw 4412-1 4412-1 4412-1 4412-1
3 Vent Plug 3523 3523 3523 3523
4 Pinion Assembly 5046 5046 6104 6104
5 “S” Hook 4270 4270 4270 4270
6 Motor 5050 5051 6857 8782
7 90 Degree Connector 4228 4228 4228 4228
8 Anti-Short Bushing 6304 6304 6304 6304
9 Pipe Plug 2755 2755 2755 2755
10 Magnetic Pipe Plug 30160 30160 30160 30160

Bin Fill Cap Kit Parts Listing
15
MA1038D
50 Hz Fill System Power Units
Power Unit Assembly Specifications:
Part No. HP RPM Phase Hz Voltage
3259-51 1/2 348 1 60 230
3259-52 3/4 348 1 60 230
3259-49 1 348 1 60 230
3259-66 1-1/2 348 1 60 230
3259-88 3/4 348 1 50 220-240
3259-104 3/4 348 3 50 220/380
3259-89 1 348 1 50 220-240
3259-105 1 348 3 50 220/380
3259-90 1-1/2 348 1 50 224-240
3259-106 1-1/2 348 3 50 220/380
1038-4 6/01
8
9
1
2
34
5
6
7
Item Description 3259-88
Part No.
3259-104
Part No.
3259-89
Part No.
3259-105
Part No.
3259-90
Part No.
3259-106
Part No.
1 Gearhead Assembly 3261-10 3261-10 3261-10 3261-10 3261-10 3261-10
2 5/16-18 x 5/8'' Hex Head Machine Screw 4412-1 4412-1 4412-1 4412-1 4412-1 4412-1
3 Vent Plug 3523 3523 3523 3523 3523 3523
4 Pinion Assembly 5046 5046 6104 6104 6104 6104
5 “S” Hook 4270 4270 4270 4270 4270 4270
6 Motor 6305 28034EUR 26157 28035 25782 28036EUR
7 Anti-Short Bushing 6304 6304 6304 6304 6304 6304
8 Pipe Plug 2755 2755 2755 2755 2755 2755
9 Magnetic Pipe Plug 30160 30160 30160 30160 30160 30160

Parts Listing Bin Fill Cap Kit
16 MA1038D
3259-49 3259-50 3259-51 3259-52 3259-89 3259-102 3259-67
Item Description Part Number
1 Motor 6857 5050 5050 5051 26157 38033 5703
4 Pipe Plug 2755 2755 2755 2755 2755 2755 2755
5 Gearhead 3261-7 3261-6 3261-7 3261-7 3261-10 3261-6 3261-8
6 Vent Plug 3523 3523 3523 3523 3523 3523 3523
7 S Hook 4270 4270 4270 4270 4270 4270 4270
8 Pinion Assembly 6104 3249 5046 5046 6104 3249 3249
9 Magnetic Pipe Plug 30160 30160 30160 30160 30160 30160 30160
3259-34 3259-39 3259-98 3259-88 3259-107 3259-108 3259-109
Item Description Part Number
1 Motor 4229 5703 5977 6305 28035 26157 5977
2 90 deg. Connector 4228 4228 ---- ---- ---- ---- ----
3 Anti-Short Bushing 6304 6304 ---- ---- ---- ---- ----
4 Pipe Plug 2755 2755 2755 2755 2755 2755 2755
5 Gearhead 3261-5 3261-5 3261-11 3261-10 3261-13 3261-13 3261-6
6 Vent Plug 3523 3523 3523 3523 3523 3523 3523
7 S Hook 4270 4270 4270 4270 4270 4270 4270
8 Pinion Assembly 5046 5046 5046 5046 6104 6104 3249
9 Magnetic Pipe Plug 30160 30160 30160 30160 30160 30160 30160
3259-117 3259-119 3259-105 3259-77 3259-78 3259-79 3259-80 3259-136
Item Description Part Number
1 Motor 34101 34102 28035 5050 5051 26157 8782 5051
4 Pipe Plug 2755 2755 2755 2755 2755 2755 2755 2755
5 Gearhead 3261-7 3261-7 3261-10 3261-10 3261-10 3261-13 3261-10 3261-6
6 Vent Plug 3523 3523 3523 3523 3523 3523 3523 3523
7 S Hook 4270 4270 4270 4270 4270 4270 4270 4270
8 Pinion Assembly 6104 5046 6104 5046 6104 5046 6104 3249
9 Magnetic Pipe Plug 30160 30160 30160 30160 30160 30160 30160 30160
3259-122 3259-123 3259-124 3259-137 3259-118 3259-120
Item Description Part Number
1 Motor 5051 6857 8782 28036EUR 34101 34102
4 Pipe Plug 2755 2755 2755 2755 2755 2755
5 Gearhead 3261-13 3261-13 3261-13 3261-13 3261-10 3261-10
6 Vent Plug 3523 3523 3523 3523 3523 3523
7 S Hook 4270 4270 4270 4270 4270 4270
8 Pinion Assembly 5046 6104 6104 5046 5046 6104
9 Magnetic Pipe Plug 30160 30160 30160 30160 30160 30160
3259-134 3259-137 3259-148 3259-150 3259-151 3259-152
Item Description Part Number
1 Motor 28031EUR 28036EUR 26157 28035EUR 28036EUR 28035EUR
4 Pipe Plug 2755 2755 2755 2755 2755 2755
5 Gearhead 3261-5 3261-13 3261-16 3261-16 3261-16 3261-13
6 Vent Plug 3523 3523 3523 3523 3523 3523
7 S Hook 4270 4270 4270 4270 4270 4270
8 Pinion Assembly 5046 6104 6104 6104 6104 6104
9 Magnetic Pipe Plug 30160 30160 30160 30160 30160 30160

Bin Fill Cap Kit Parts Listing
17
MA1038D
Models 75, 90, & 108 Single and Twin Bin Fill Cap Kit Parts List
Model 108
34635
Model 90
25806
Model 75
6563
Item Description Part No.
1 Danger Electrical Decal 2527-25 2527-25 2527-25
2 Lid Ass’y 7689 7689 7689
3 Danger Moving Auger Decal 2527-9 2527-9 2527-9
4 Over Center Clamp 2536 2536 2536
5 Tube Anchor Wldm’t (Mod. 108) 34543 -- --
Tube Anchor Wldm’t (Mod. 90) -- 5069 --
Tube Anchor Wldm’t (Mod. 75) -- -- 6518
6 Tube Clamp (Mod. 108) 14373 -- --
Tube Clamp (Mod. 90) -- 6721-1 --
Tube Clamp (Mod. 75) -- -- 6515-1
7 Tube Insert (Mod. 108 steel) 34337 -- --
Tube Insert (Mod. 75 steel) -- -- 6524
8 Driver Assembly (Mod. 108) 30313 -- --
Driver Assembly (Mod. 90) -- 6861 --
Driver Assembly (Mod. 75) -- -- 6862
9 Sponge Tubing 5928
10 Cover Weldment (Mod. 108) 9489 -- --
Cover Weldment (Mod. 90 & 75) -- 7690 7690

Parts Listing Bin Fill Cap Kit
18 MA1038D
Model 108 Bin-to-Bin Fill Cap Kit Parts List
Item Description Part No. Item Description Part No.
1 Support Rail 9851 24** Cover Weldment 6301
2* Gusset 9948 25** Back Plate Assembly 6298
3* Body Assembly 9857 26** Boot Body Weldment 30386
4* Outlet Assembly Slide 5073 27** Anchor Weldment 34369
5 5/16-18 x 2-3/4 Socket Head Cap Screw 6850-2 28** Bearing Cap Assembly 30314
6 5/16-18 x 7/8 Socket Head Cap Screw 6850-1 29** 5/8” Set Collar 1386
7 Anchor Clamp 7703 30** Safety Cap 29703
8 Driver Weldment 30312 31* Diaphragm Assembly 7900
9 Steel Connector 30277 32* Mounting Plate Assembly 7908
10 4-7/16” Tube Clamp 34338 33* Switch Box 7841
11 Lid Assembly 7689 34* Gasket 6777
12 Seal Plate 9849 35* Switch Box Cover 6776
13 Seal 34334 36* Rivet 8757
14 Cover Weldment 42289 37* Switch Bracket 7068
15 Sponge Tubing 5928 38* Switch Insulation 1907-5
16 Cover Plate 9852 39* Actuator Switch 7114
17 Cover 13329 40* Spring 6972
18 Over Center Clamp 2536 41* Paddle 7896
19* Tube Anchor Weldment 34543 42* Seal 4873
20** Adapter Plate 7856 43* Long Tube Anchor Weldment 34636
21** Tube Insert 34337 44 Danger Electrical Decal 2527-9
22** Sealing Washer 8491 45 Danger Moving Auger Decal 2527-9
23** 5/16-18 Wing Nut 2146 *These items are included with part number 42288
Control Unit.
**These items are included with part number 34372
Extension Boot Assembly.
1
1582-04 4/99
30 29 28
27
6
7
26
10
22
23
24
25
20
17
16
14
12
11
6
7
8
9
2
43 3 4 2
1
10
19
31
42
41
32
33
34
35
37
38
39
40
15
18
36
13
5
21
10
44
45

Bin Fill Cap Kit Parts Listing
19
MA1038D
Model 108 Single & Twin Intermediate Fill Cap Kit
40526 40527
Item Description Part No.
1 Danger Electrical Decal 2527-25 2527-25
2 Danger Moving Auger Decal 2527-9 2527-9
3 Lid Assembly 7689 7689
4 Shut-off Half 40530 40530
5 Twin Tube Fill Weldment 40522 --
Single Tube Fill Weldment -- 40523
6 Over Center Clamp 2536 2536
7 Double Insulated Bushing 6343 6343
8 Tube Anchor Weldment 4-37332 4-37332
40526 40527
Item Description Part No.
9 Tube Clamp 14373 14373
10 Tube Insert 34337 34337
11 Twin Cover Weldment 40533 --
Single Cover Weldment -- 40534
12 Sponge Tubing 5928 5928
-- Cord 3085-8 3085-8
-- Red Indicator Ball 24393-1 24393-1
-- Green Indicator Ball 24393-2 24393-2
(40526) Twin Fill Kit (40527) Single Fill Kit

MADE TO WORK.
BUILT TO LAST.®
Revisions to this Manual
Page No. Description of Change ECO
Various Combined MA1019 and MA1582 with this one. 35671
For additional parts and information, contact your nearest Chore-Time distributor or representative.
Find your nearest distributor at: www.choretime.com/contacts
CTB, Inc.
PO Box 2000
Milford, Indiana 46542-2000 USA
Phone [phone]
Email: [e-mail]
Internet: www.choretime.com
