Cincoze DA-1100 Series User manual

Intel® Pentium® N4200/ Celeron® N3350 Processor
Affordable Fanless Embedded Computer
DA-1100 Series
Fanless Computing Solution

DA-1100 Series Rugged Embedded Computer | User’s Manual
2
Contents
Prefaces
Revision …………………………………………………..……………….………… 04
Copyright Notice ……………………………………………………………………. 04
Acknowledgement …..………………………………………………..................... 04
Disclaimer …………………………………………………………………………… 04
Declaration of Conformity …………………………………………………………. 04
Product Warranty Statement ……………………………………………………… 05
Technical Support and Assistance ……………………………………………….. 06
Conventions Used in this Manual ………………………………………………… 06
Safety Precaution ……...…………………………………………………………… 07
Package Content …..………………………………………………………………. 08
Ordering Information …………………….………………………………………… 08
Optional Modules & Accessories ……..……………………………..................... 09
Chapter 1 Product Introductions
1.1 Overview ……………………………………………….……………….. 11
1.2 Highlights ………………………………………………………………… 11

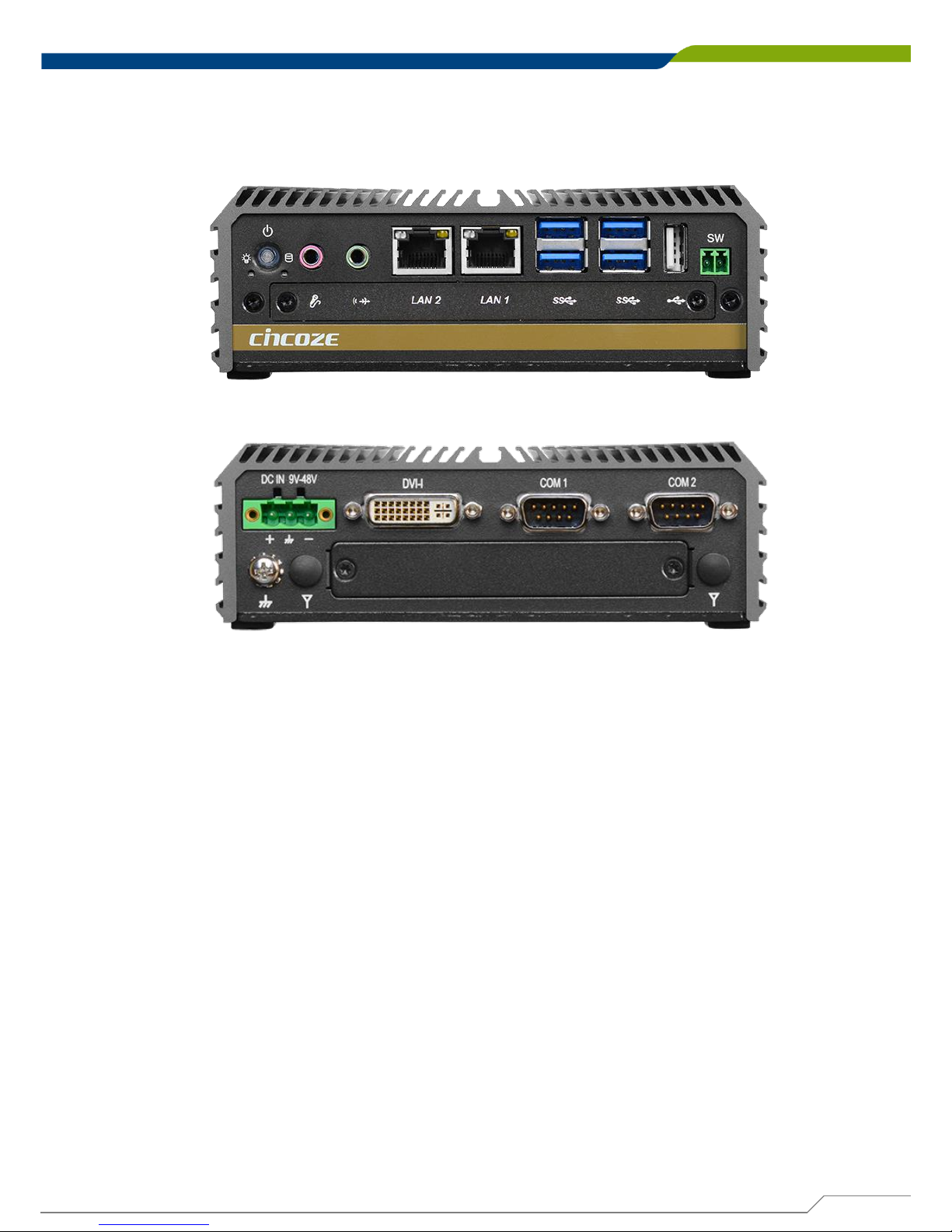

1.3 Product Pictures ………………………………………………………… 12
1.4 Key Features …………………………………………………………… 12
1.5 Hardware Specification ………………………………………………… 13
1.6 System I/O .……………………………………………………………… 14
1.7 Mechanical Dimension .………………………………………………… 16
Chapter 2 Switches and Connectors
2.1 Jumper Settings ………………………………………………………… 18
2.2 Location of the Switches and Connectors ……..…………………….. 18

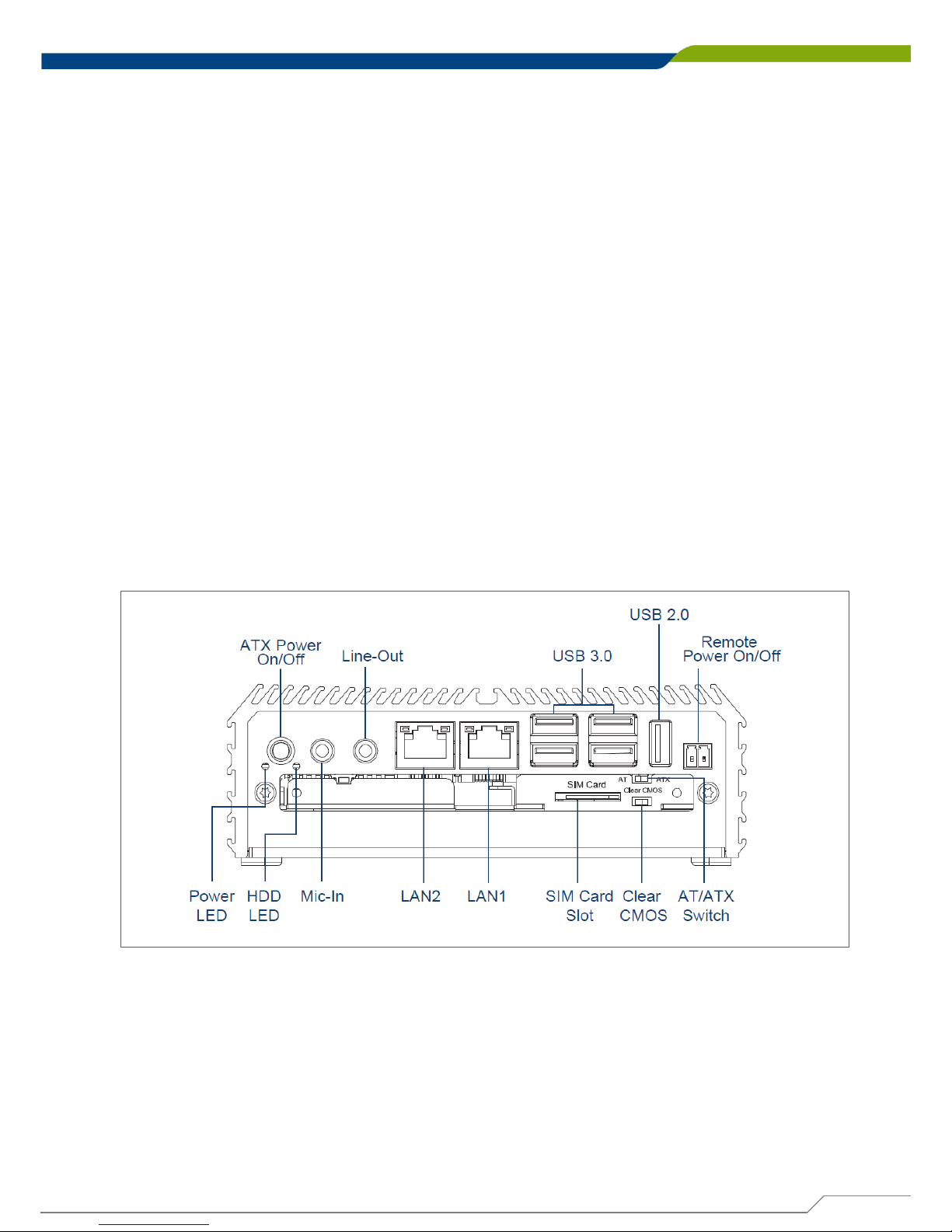

2.2.1 Top View ………………………………………………………… 18
2.2.2 Bottom View …………………………………………………….. 19
2.3 Switch and Connector Definition .......................................................20
2.4 Definition of Switches ..……………………....................................... 21
2.5 Definition of Connectors ……………………….................................. 22
Chapter 3 System Setup
3.1 Removing the Chassis Bottom Cover ……...………………………... 27
3.2 Removing the Chassis …………………….…..…….……………….... 28
3.3 Installing the Antennas…………………………………………………. 29
3.4 Installing a Full-Size Mini PCIe Card on Bottom Side …....………... 31
3.5 Installing a SATA Hard Drive…………………………………………… 33
3.6 Installing a SODIMM……….……………………..….……………....... 34
3.7 Installing the Chassis ………….…………..………..….…………….... 35
3.8 Installing the Chassis Bottom Cover …..…………..….……………... 36
3.9 Installing a SIM Card ………………………………..…………………. 37
3.10 Wall Mount Brackets ..……….………………….…..….…………….... 38
3.11 Side Mount Bracket ……………………………………………………. 39
3.12 VESA Mount Bracket ………………………………………………….. 41
3.13 DIN-Rail Mount Bracket ……………………………………………….. 43

DA-1100 Series Rugged Embedded Computer | User’s Manual
3
Chapter 4 BIOS Setup
4.1 BIOS Introduction …….……….……….…….…….…..….…………... 45
4.2 Main Setup ……..……….…………….…….…..….………………...... 46
4.3 Advanced Setup ……………………….……….……………………….. 47
4.3.1 ACPI Settings ……..…………….……….………………………. 47
4.3.2 F81866 Super IO Configuration ..…….………………………... 48
4.3.3 Hardware Monitor ………………..…………………………….... 50
4.3.4 S5 RTC Wake Setting …….……..……………..……………..... 50
4.3.5 Serial Port Console Redirection ..……………..….……….….... 51
4.3.6 CPU Configuration ....……………………….……..…………..... 52
4.3.7 Network Stack Configuration ..……………….……………….... 53
4.3.8 CSM Configuration …………………………….………..………. 53
4.3.9 USB Configuration ………………………..…………………….. 55
4.4 Chipset Setup …...……….………………….……….…..……………... 56
4.4.1 North Bridge ………….…………………….…………………….. 56
4.4.2 South Bridge ………….………………………………………….. 57
4.4.3 South Cluster Configuration …………………………………….. 58
4.5 Security Setup …...……….………………….……….…..……………... 61
4.6 Boot Setup …..……….….………………….……….…..….…………... 62
4.7 Save & Exit …...……….….………………….…..….…..…………….... 63
Chapter 5 Product Application (For CMI-DIO100 Only)
5.1 Digital I/O (DIO) application……………………….…..….…………….. 65
5.1.1 Digital I/O Programming Guide ………………………………... 65
5.2 Digital I/O (DIO) Hardware Specification………………………..……. 70
5.2.1 DIO Connector Definitions ………………………..……………. 71
Chapter 6 Optional Module Pin Definitions and Settings
6.1 Location of the Connectors and Switches ……………..…………… 73
6.2 Installing a CMI-COM Module .………………..………..………….… 74
6.3 Installing a CMI-DIO Module ………………..……………………….. 76
6.4 Installing a CMI-DP Module ..………………..……………………….. 77
6.5 Installing a CMI-DVI Module .………………..……………………….. 78
6.6 Installing a CMI-VGA Module .………………..……………………… 79
6.7 Installing a CMI-HDMI Module .……………..……………………….. 80
6.8 Installing a CMI-LPPS Module .……………..……………………….. 81
6.9 Installing a CFM-PoE Control Module .……..……………………….. 82

DA-1100 Series Rugged Embedded Computer | User’s Manual
4
Prefaces
Revision
Description
Date
1.0 First Release 2019/01/08
Copyright Notice
© 2017 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified,
or reproduced in any form or by any means for commercial use without the prior written permission of
Cincoze Co., Ltd.All information and specification provided in this manual are for reference only and
remain subject to change without prior notice.
Acknowledgement
Cincoze is a registered trademark of Cincoze Co., Ltd. All registered trademarks and product names
mentioned herein are used for identification purposes only and may be trademarks and/or registered
trademarks of their respective owners.
Disclaimer
This manual is intended to be used as a practical and informative guide only and is subject to change
without notice. It does not represent a commitment on the part of Cincoze. This product might include
unintentional technical or typographical errors. Changes are periodically made to the information
herein to correct such errors, and these changes are incorporated into new editions of the publication.
Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CE
The product(s) described in this manual complies with all application European Union
(CE) directives if it has a CE marking. For computer systems to remain CE compliant,
only CE-compliant parts may be used. Maintaining CE compliance also requires proper
cable and cabling techniques.
Revision

DA-1100 Series Rugged Embedded Computer | User’s Manual
5
Product Warranty Statement
Warranty
Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and
workmanship for 2 years from the date of purchase by the original purchaser.
During the warranty period, we shall, at our option, either repair or replace any product that proves to
be defective under normal operation.
Defects, malfunctions, or failures of the warranted product caused by damage resulting from natural
disasters (such as by lightening, flood, earthquake, etc.), environmental and atmospheric disturbances,
other external forces such as power line disturbances, plugging the board in under power, or incorrect
cabling, and damage caused by misuse, abuse, and unauthorized alteration or repair, and the product
in question is either software, or an expendable item (such as a fuse, battery, etc.), re not warranted.
RMA
Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA
number from us. Our staff is available at any time to provide you with the most friendly and immediate
service.
◼RMA Instruction
⚫Customers must fill in Cincoze Return MerchandiseAuthorization (RMA) Request Form and
obtain a RMAnumber prior to returning a defective product to Cincoze for service.
⚫Customers must collect all the information about the problems encountered and note anything
abnormal and describe the problems on the “Cincoze Service Form” for the RMA number apply
process.
⚫Charges may be incurred for certain repairs. Cincoze will charge for repairs to products whose
warranty period has expired. Cincoze will also charge for repairs to products if the damage
resulted from acts of God, environmental or atmospheric disturbances, or other external forces
through misuse, abuse, or unauthorized alteration or repair. If charges will be incurred for a
repair, Cincoze lists all charges, and will wait for customer’s approval before performing the
repair.
⚫Customers agree to insure the product or assume the risk of loss or damage during transit, to
prepay shipping charges, and to use the original shipping container or equivalent.
⚫Customers can be send back the faulty products with or without accessories (manuals, cable,
etc.) and any components from the system. If the components were suspected as part of the
problems, please note clearly which components are included. Otherwise, Cincoze is not
responsible for the devices/parts.
⚫Repaired items will be shipped along with a "Repair Report" detailing the findings and actions
taken.
Limitation of Liability
Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether
based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original
selling price of the product. The remedies provided herein are the customer’s sole and exclusive
remedies. In no event shall Cincoze be liable for direct, indirect, special or consequential damages
whether based on contract of any other legal theory.

DA-1100 Series Rugged Embedded Computer | User’s Manual
6
Technical Support and Assistance
1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about the
product.
2. Contact your distributor or our technical support team or sales representative for technical support
if you need additional assistance. Please have following information ready before you call:
⚫Product name and serial number
⚫Description of your peripheral attachments
⚫Description of your software (operating system, version, application software, etc.)
⚫A complete description of the problem
⚫The exact wording of any error messages
Conventions Used in this Manual
This indication alerts operators to an operation that, if not strictly
observed, may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly
observed, may result in safety hazards to personnel or damage to
equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE

DA-1100 Series Rugged Embedded Computer | User’s Manual
7
Safety Precautions
Before installing and using this device, please note the following precautions:
1. Read these safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Disconnected this equipment from any AC outlet before cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be
easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause
damage.
7. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
8. Use a power cord that has been approved for using with the product and that it matches the
voltage and current marked on the product’s electrical range label. The voltage and current rating
of the cord must be greater than the voltage and current rating marked on the product.
9. Position the power cord so that people cannot step on it. Do not place anything over the power
cord.
10.All cautions and warnings on the equipment should be noted.
11.If the equipment is not used for a long time, disconnect it from the power source to avoid damage
by transient overvoltage.
12.Never pour any liquid into an opening. This may cause fire or electrical shock.
13.Never open the equipment. For safety reasons, the equipment should be opened only by qualified
service personnel.
If one of the following situations arises, get the equipment checked by service personnel:
⚫The power cord or plug is damaged.
⚫Liquid has penetrated into the equipment.
⚫The equipment has been exposed to moisture.
⚫The equipment does not work well, or you cannot get it work according to the user's manual.
⚫The equipment has been dropped and damaged.
⚫The equipment has obvious signs of breakage.
14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer.

DA-1100 Series Rugged Embedded Computer | User’s Manual
8
Package Contents
Before installation, please ensure all the items listed in the following table are included in the
package.
Item Description Q’ty
1DA-1100Affordable Fanless Embedded Computer 1
2 Utility DVD Driver 1
3 Thermal Pad (for CPU Thermal Block) 1
4 DVI-I to VGAAdapter 1
5 Power Terminal Block Connector 1
6 Screw Pack 1
7 Remote Power On/Off Terminal Block Connector 1
8 Wall Mounting Kit 1
Note: Notify your sales representative if any of the above items are missing or damaged.
Ordering Information
Model Name Product Description
DA-1100-N42
Intel® Pentium®™ Processor N4200 Affordable Fanless Embedded Computer
DA-1100-N33 Intel® Celeron® Processor N3350Affordable Fanless Embedded Computer

DA-1100 Series Rugged Embedded Computer | User’s Manual
9
Model No. Description
CMI-DP101/UB0406 CMI Module with 1x Display Port / 1x Universal Bracket with DP Cutout for
DA Series
CMI-DVI101/UB0407 CMI Module with 1x DVI-D Connector / 1x Universal Bracket with DVI-D
Cutout for DA Series
CMI-HDMI01/UB0408 CMI Module with 1x HDMI Port / 1x Universal Bracket with HDMI Cutout for
DA Series
CMI-VGA101/UB0416
CMI Module with 1x VGA Port / 1x Universal Bracket with VGACutout for DA
Series
CMI-COM102/UB0403 CMI Module with 2x RS232/422/485 / 1x Universal Bracket with 2x DB9
Cutout for DA Series
CMI-DIO100/UB0415 CMI Module with 8x Optical Isolated DIO (4 in/4 out) / 1xUniversal Bracket
with DIO Cutout for DASeries
CMI-LPPS102/UB0409
CMI Module with 1x LPT Port, 1x PS/2 / 1x Universal Bracket with PS/2, LPT
Cutout for DA Series
CFM-PoE02 CFM Module with PoE Control Function, Individual Port 25.5W
MEC-LAN-M002-15/
UB0411 Mini-PCIe Module with 2x LAN Ports, 2x 15cm cable / 1x Universal Bracket
with 2x RJ45 Cutout for DA Series
SIDE02 Side Mount Kit for DA Series, with KMRH-K175 for DIN-Rail option
DINRAIL Diamond series DIN-RAIL Mount Kit
GST60A12-CIN Adapter AC/DC 12V 5A 60W, GST60A12-CIN, wide temp (-30°C ~ +70°C),
level VI
GST120A24-CIN Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°
C),
level VI
SL2-SL3 US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M
SL-2+SL-3
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G
Black 1.8M SL-6+SL-3
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black
1.8M QP026+SL-3
Optional Modules & Accessories

Product Introductions
Chapter 1

DA-1100 Series Rugged Embedded Computer | User’s Manual
11
1.1 Overview
Cincoze’ DA-1100 affordable fanless embedded computer is based on the
Intel® Pentium® N4200 / Celeron® N3350 processor. This mainstream Intel®
SoC (Apollo Lake) integrates the Intel® Gen 9 graphics architecture with triple
display support in 4K/2K UHD resolution. DA-1100 supports both Combined
Multiple I/O (CMI) and Control Function Module (CFM) which are specially
designed for flexible I/O and function expandabilities, such as COM ports,
optical isolated digital I/O, LPT/PS2, HDMI, DisplayPort, DVI-D, VGA, and
Power over Ethernet (PoE).
Leveraging a reliable fanless and durable cable-free design in an ultra-
compact aluminum housing, DA-1100 is ideally for deployment in space-
constrained place and continuous operation under harsh environments.
1.2 Highlights
Triple Displays
DA-1100 offers enhanced graphics
performance to enable three
simultaneous displays and support
4K/2K UHD resolution. The third
display output can be added via CMI
module and is available with VGA,
DisplayPort, HDMI, or DVI-D.
Ultra Compact & Powerful Power over Ethernet
By utilizing optional Cincoze
Control Function Module (CFM),
the system can add power over
ethernet (PoE+) function with up
to 25.5W per port. It is ideal for
applications like machine vision
or video surveillance.
DA-1100 is powered by Intel Apollo
Lake SoC (up to 4 core, 2.5 GHz)
and constructed with a palm-sized
aluminum housing.
It can be easily installed into a
control cabinet or any other space-
limited environments.

DA-1100 Series Rugged Embedded Computer | User’s Manual
12
1.3 Product Pictures
• Onboard Intel®Pentium® N4200 / Celeron®N3350 Processors
• Supports Triple Independent Display
• Supports PoE+ Function (with optional CFM Module)
• Supports CMI Interface for I/O Expandability
• 1 x 2.5’’ SATA Drive Bay, 1x mSATA Socket
• 2 x Full Size Mini-PCIe Socket, 1 x SIM Card Socket
• Ultra Compact Size (150x 105 x 52.3mm)
• Wide Operating Temperature -40°C to 70°C
• Safety: LVD EN60950-1
1.4 Key Features

DA-1100 Series Rugged Embedded Computer | User’s Manual
13
Processor
• Onboard Intel®Pentium®N4200 Quad Core Processor,
up to 2.50 GHz
• Onboard Intel®Celeron®N3350 Dual Core Processor,
up to 2.40 GHz
BIOS
• AMI 8MB SPI BIOS
Memory
• 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
• Support up to 8GB (un-buffered and non-ECC)
Graphics
• Integrated Intel® HD Graphics 505 (N4200)
• Integrated Intel® HD Graphics 500 (N3350)
• Supports Triple Independent Display
(DVI+VGA from DVI-I, one output from optional CMI module)
Audio Codec
• Realtek ALC888-GR
External I/O Interface
• 1x DVI-I (1920 x 1080 @ 60 Hz)
• 2x GbE LAN (Support WoL, Teaming, Jumbo Frame & PXE),
RJ45
- GbE1: Intel®I210AT
- GbE2: Intel®I210AT
• 4x USB 3.0 (Type A)
• 1x USB 2.0 (Type A)
• 2x RS232/422/485 with Auto Flow Control, DB9
• 1x Line-out and 1x Mic-in, Phone Jack 3.5mm
• 1x ATX Power On/Off Button
• 1x AT/ATX Mode Switch
• 1x Clear CMOS Switch
• 1x Remote Power On/Off Connector (2-pin Terminal Block)
Storage
• 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
• 1x 2.5" HDD/SSD Drive Bay (SATA 3.0)
* The 2.5” HDD/SSD bracket has to be removed when installing
Mini-PCIe MEC LAN Module.
Expansion
• 2x Full-size Mini-PCIe Socket
• 1x Control Function Module (CFM) Interface
• 1x Combined Multiple I/O (CMI) Interface
• 1x SIM Socket
• 2x Antenna Holes
Other Functions
• Watchdog Timer: Software Programmable Supports
1~255 sec. System Reset
• Supports Instant Reboot Technology (0.2 sec)
Power Requirement
• Supports AT/ATX Power Type
• Power Input Voltage 9~48VDC
• 1x 3-pin Terminal Block
• Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional)
Physical
• Dimensions (WxDxH, mm): 150 x 105 x 52.3 mm
• Weight: 0.87 kg
• Construction: Extruded Aluminum with Heavy Duty Metal
• Mounting: Wall / VESA (Optional DIN-Rail / Side Mounting)
• Unibody Chassis
• Fanless Design
• Jumper-less Design
• Cable-less Design
Protection
•Reverse Power Input Protection
• Over Voltage Protection: 58V
• Over Current Protection: 20A
• ESD Protection: +/- 15kV (air), +/- 8kV (contact)
• Surge Protection: 3.84kV
(impedance 12 ohm 1.2/50us waveform)
Operating System
• Windows® 10
• Linux: Supports by project
Environment
• Operating Temperature: -40°C to 70°C
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 95% RH @ 70˚C (non-Condensing)
• Shock: Operating, 50 Grms, Half-sine 11 ms Duration
* w/ SSD, according to IEC 60068-2-27
• Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes
* w/ SSD according to IEC 60068-2-64
• MTBF: 632,353 Hours
Certification
• EMC: CE, FCC Class A
• Safety: LVD (EN60950-1)
1.5 Hardware Specification

DA-1100 Series Rugged Embedded Computer | User’s Manual
14
Front Panel
ATX Power On/Off Switch
Press to power-on or power-off the system
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
Mic-In
Used to connect a microphone
Line-Out
Used to connect a speaker
LAN Port 1 & 2
Used to connect the system to a local area network
USB 3.0 Port
Used to connect USB 3.0/2.0/1.1 device
USB 2.0 Port
Used to connect USB 2.0/1.1 device
Remote Power Terminal Block
Used to plug a remote power on/off switch with
terminal block
SIM Card Slot
Used to insert a SIM Card
Clear CMOS
Used to clear CMOS to reset BIOS
AT/ATX Mode Select Switch
Used to select AT or ATX power mode
1.6 System I/O

DA-1100 Series Rugged Embedded Computer | User’s Manual
15
Rear Panel
Universal I/O Bracket
This expansion area is reserved for Mini-PCIe expansion or Cincoze
own pin-defined interface (CMI). CMI interfaces supports various type
of I/O modules such as COM / DIO / DisplayPort / DVI / LPT & PS2 /
VGA / HDMI.
Do not change the CMI module by yourself, it may cause damage to
your DA-1100. Please contact with your regional dealer for more
information about it.
DC IN Terminal Block
Used to plug a DC power input with terminal block
DVI-I Port
Used to connect a DVI monitor or connect optional
split cable for dual display mode
COM Port
COM 1 ~ COM 2 support RS232/422/485 serial
device
Antenna Hole
Used to connect an antenna for optional Mini-PCIe
WiFi module

DA-1100 Series Rugged Embedded Computer | User’s Manual
16
1.7 Mechanical Dimensions
Each of DA-1100 series computers has the same mechanical dimension.
Unit: mm

Switches and Connectors
Chapter 2

DA-1100 Series Rugged Embedded Computer | User’s Manual
18
2.1 Jumpers Settings
DA-1100 is featured with jumper-free design.
2.2 Location of the Switches and Connectors
2.2.1 Top View

DA-1100 Series Rugged Embedded Computer | User’s Manual
19
2.2.2 Bottom View

DA-1100 Series Rugged Embedded Computer | User’s Manual
20
2.3 Switch and Connector Definition
List of Switch & Connector
Connector Location Definition
PWR_SW2
Power Button
AT_ATX
AT
/ ATX Power Mode Switch
CLR_CMOS
Clear CMOS Mode Switch
MINIPCIE
1
Mini PCI
-Express Socket + 4G Module
MINIPCIE
2
Mini PCI
-Express Socket + mSATA
PWR_SW1
Remote Power Button Connector
DC_IN1
3
-PIN DC 9~48V Power Input Connector
MIC_IN1
Microphone
-in Jack
LINE_OUT1
Audio Line
-out Jack
LAN1, LAN2
RJ45 with LED Connector
USB3_1, USB3_2,
USB3_3, USB3_4
USB 3.0 Ports
USB2_1
USB 2.0 Port
SIM
SIM Card Socket (apply with MINIPCIE1)
DVI_I
1
DVI
-I Connector
COM1_1,
COM2_1
RS232 / RS422 / RS485 Connectors
SODIMM1
SODIMM DDR3L Socket
POE_PH
1
POE
Board to Board Connector
BTB_FH
1
CMI Module Board to Board Connector
SATA
1
SATA with Power Connector
POWER
1
Power Connector with +5V/ +12V Power Output
