Cincoze DS-1300 Series User manual

Rugged Embedded Computer
DS-1300 Series
User Manual
Rugged Embedded Computer
10th Generation Intel® Xeon/Core™ Series Processors, High
Performance, Expandable and Modular Rugged Embedded
Computer
Version: V1.00

DS-1300 Series | User Manual 2
Contents
Preface.................................................................................................................................5
Revision....................................................................................................................................5
Copyright Notice.......................................................................................................................5
Acknowledgement ....................................................................................................................5
Disclaimer.................................................................................................................................5
Declaration of Conformity .........................................................................................................5
Product Warranty Statement.....................................................................................................6
Technical Support and Assistance............................................................................................8
Conventions Used in this Manual..............................................................................................8
Safety Precautions....................................................................................................................9
Ordering information...............................................................................................................10
Chapter 1 Product Introductions..................................................................................11
1.1 Overview..........................................................................................................................12
1.2 Highlights.........................................................................................................................12

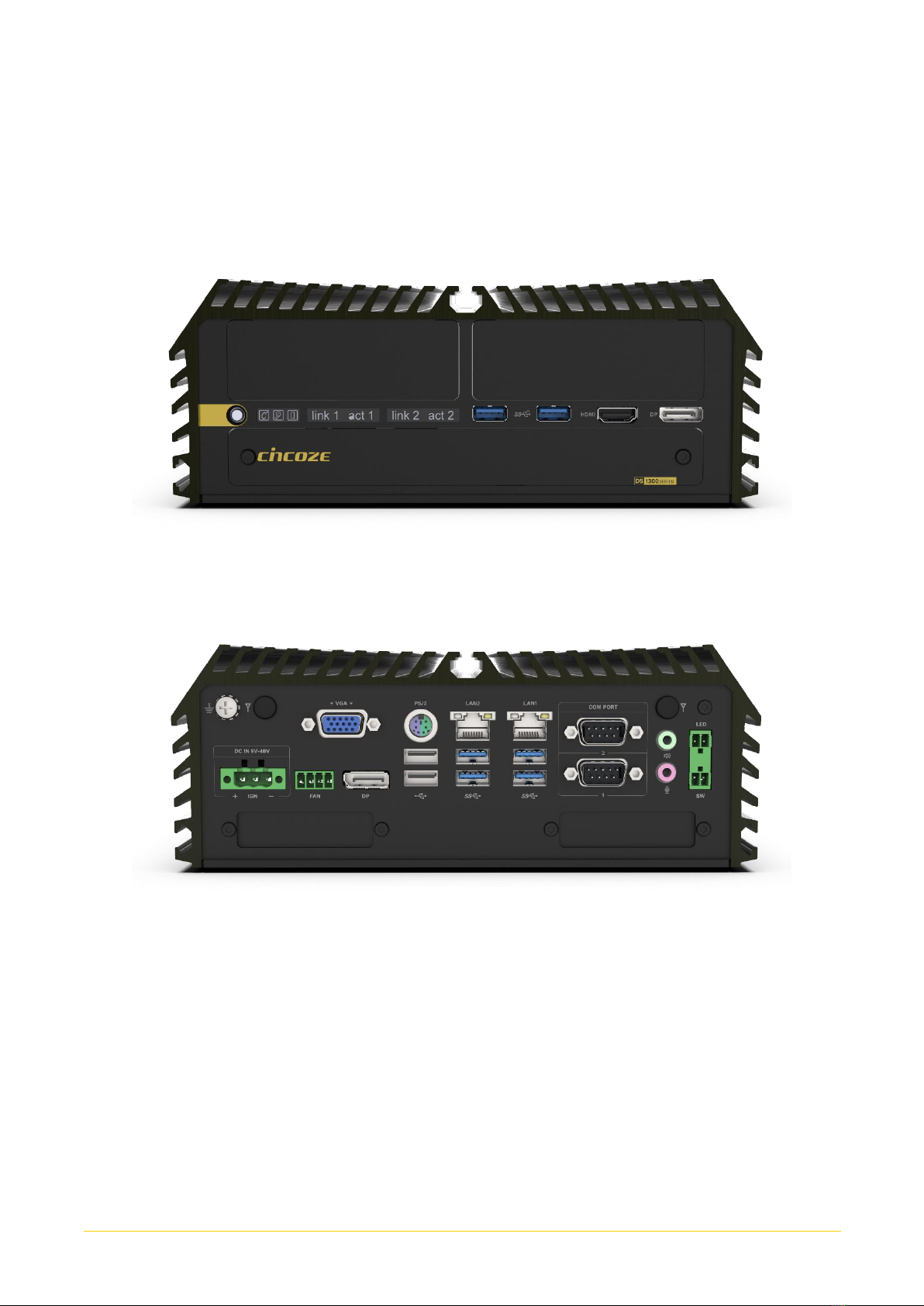

1.3 Product Pictures...............................................................................................................14
1.4 Key Features....................................................................................................................17
1.5 Hardware Specification ....................................................................................................18
1.6 System I/O.......................................................................................................................22
1.7 Mechanical Dimension.....................................................................................................26
Chapter 2 Switches & Connectors................................................................................28
2.1 Location of Switches and Connectors ..............................................................................29
2.1.1 Top View.................................................................................................................29
2.1.2 Bottom View............................................................................................................30
2.2 Switches and Connectors Definition.................................................................................31
2.3 Definition of Switches.......................................................................................................33
2.4 Definition of Connectors...................................................................................................35
Chapter 3 System Setup................................................................................................41
3.1 Removing Top Cover .......................................................................................................42
3.2 Installing CPU..................................................................................................................44
3.3 Installing SO-DIMM..........................................................................................................47
3.4 Installing Mini-PCIe Card..................................................................................................48
3.5 Installing M.2 M Key Card................................................................................................50
3.6 Installing Antenna.............................................................................................................51
3.7 Installing SATA Hard Drive on Top Side...........................................................................53
3.8 Installing PCI/PCIe Add-on Card......................................................................................54
3.9 Assembling Top Cover.....................................................................................................55
3.10 Installing SATA Hard Drives at Front Panel ....................................................................61
3.11 Installing SIM Card .........................................................................................................63
3.12 Replacing CMOS Battery................................................................................................64

DS-1300 Series | User Manual 3
3.13 Installing Wall Mount.......................................................................................................66
3.14 Connecting to Power Supply...........................................................................................68
Chapter 4 BIOS Setup ................................................................................................69
4.1 BIOS Introduction.............................................................................................................70
4.2 Main Setup.......................................................................................................................71
4.3 Advanced Setup...............................................................................................................72
4.3.1 CPU Configuration..................................................................................................72
4.3.2 Power & Performance.............................................................................................72
4.3.3 SATA Configuration................................................................................................73
4.3.4 PCH-FW Configuration ...........................................................................................74
4.3.5 Trusted Computing .................................................................................................75
4.3.6 ACPI Settings .........................................................................................................76
4.3.7 F81866 Super IO Configuration ..............................................................................76
4.3.8 Hardware Monitor ...................................................................................................78
4.3.9 S5 RTC Wake Settings...........................................................................................79
4.3.10 Serial Port Console Redirection............................................................................79
4.3.11 AMI Graphic Output Protocol Policy......................................................................80
4.3.12 USB Configuration................................................................................................80
4.3.13 Network Stack Configuration.................................................................................81
4.3.14 CSM Configuration................................................................................................82
4.3.15 NVMe Configuration..............................................................................................83
4.4 Chipset Setup ..................................................................................................................84
4.4.1 System Agent (SA) Configuration ...........................................................................84
4.4.2 PCH-IO Configuration.............................................................................................86
4.5 Security Setup..................................................................................................................89
4.5.1 Administrator Password..........................................................................................89
4.5.2 User Password .......................................................................................................89
4.5.3 Security Boot ..........................................................................................................89
4.6 Boot Setup.......................................................................................................................90
4.6.1 Setup Prompt Timeout [1].......................................................................................90
4.6.2 Bootup NumLock State [Off] ...................................................................................90
4.6.3 Quiet Boot [Disabled]..............................................................................................90
4.6.4 Fast Boot [Disabled]................................................................................................90
4.7 Save & Exit ......................................................................................................................91
4.7.1 Save Changes and Exit ..........................................................................................91
4.7.2 Discard Changes and Exit.......................................................................................91
4.7.3 Save Changes and Reset.......................................................................................91
4.7.4 Discard Changes and Reset...................................................................................91
4.7.5 Save Changes........................................................................................................91
4.7.6 Discard Changes....................................................................................................91
4.7.7 Restore Defaults.....................................................................................................91

DS-1300 Series | User Manual 4
4.7.8 Save as User Defaults............................................................................................91
4.7.9 Restore User Defaults.............................................................................................91
Chapter 5 Product Application......................................................................................92
5.1 Digital I/O (DIO) application..............................................................................................93
5.1.1 Digital I/O Programming Guide...............................................................................93
5.2 DIO Hardware Specification............................................................................................107
5.2.1 DIO Connector Definition......................................................................................108
5.3 GPIO LED application.....................................................................................................111
5.3.1 GPIO LED Programming Guide............................................................................111
5.4 GPIO LED Status Definition............................................................................................117
Chapter 6 Optional Modules & Accessories..............................................................118
6.1 Optional Module Pin Definition & Settings......................................................................119
6.1.1 CMI-M12LAN01-R12/UB1010 Module................................................................119
6.1.2 CMI-COM02/UB1004 Module.............................................................................120
6.1.3 CMI-ICOM01/UB1004 Module............................................................................121
6.1.4 CFM-IGN101 Module..........................................................................................122
6.2 Installing High Speed CMI Module.................................................................................123
6.2.1 CMI-LAN01-R12/UB1012 Module.......................................................................123
6.2.2 CMI-M12LAN01-R12/UB1010 Module................................................................124
6.2.3 CMI-10GLAN03-R10/UB1028 Module................................................................127
6.3 Installing Low Speed CMI Module..................................................................................130
6.3.1 CMI-DIO02/UB1018 Module...............................................................................130
6.3.2 CMI-COM02/UB1004 Module.............................................................................131
6.3.3 CMI-ICOM01/UB1004 Module............................................................................133
6.4 Installing CFM Module....................................................................................................135
6.4.1 CFM-PoE03 Module ...........................................................................................135
6.4.2 CFM-IGN101 Module..........................................................................................138
6.5 Installing MEC Module ...................................................................................................139
6.5.1 MEC-COM-M212-DB9/UB0303 Module..............................................................139
6.5.2 MEC-USB-M102-15/UB0314 Module..................................................................142
6.5.3 MEC-LAN-M002-15/UB0311 Module..................................................................145
6.6 Installing External FAN...................................................................................................148
6.7 Installing Internal FAN (For DS-1302 only).....................................................................150

DS-1300 Series | User Manual 5
Preface
Revision
Revision
Description
Date
1.00
First Release
2021/06/01
Copyright Notice
© 2021 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified,
or reproduced in any form or by any means for commercial use without the prior written permission of
Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and
remain subject to change without prior notice.
Acknowledgement
Cincoze is a registered trademark of Cincoze Co., Ltd. All registered trademarks and product names
mentioned herein are used for identification purposes only and may be trademarks and/or registered
trademarks of their respective owners.
Disclaimer
This manual is intended to be used as a practical and informative guide only and is subject to change
without notice. It does not represent a commitment on the part of Cincoze. This product might include
unintentional technical or typographical errors. Changes are periodically made to the information
herein to correct such errors, and these changes are incorporated into new editions of the
publication.
Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.

DS-1300 Series | User Manual 6
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
CE
The product(s) described in this manual complies with all application European Union
(CE) directives if it has a CE marking. For computer systems to remain CE compliant,
only CE-compliant parts may be used. Maintaining CE compliance also requires
proper cable and cabling techniques.
Product Warranty Statement
Warranty
Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and
workmanship for 2 years from the date of purchase by the original purchaser. During the warranty
period, we shall, at our option, either repair or replace any product that proves to be defective under
normal operation. Defects, malfunctions, or failures of the warranted product caused by damage
resulting from natural disasters (such as by lightening, flood, earthquake, etc.), environmental and
atmospheric disturbances, other external forces such as power line disturbances, plugging the board
in under power, or incorrect cabling, and damage caused by misuse, abuse, and unauthorized
alteration or repair, and the product in question is either software, or an expendable item (such as a
fuse, battery, etc.), are not warranted.

DS-1300 Series | User Manual 7
RMA
Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an
RMA number from us. Our staff is available at any time to provide you with the most friendly and
immediate service.
◼RMA Instruction
⚫Customers must fill in Cincoze Return Merchandise Authorization (RMA) Request
Form and obtain a RMA number prior to returning a defective product to Cincoze for
service.
⚫Customers must collect all the information about the problems encountered and note
anything abnormal and describe the problems on the “Cincoze Service Form” for the
RMA number apply process.
⚫Charges may be incurred for certain repairs. Cincoze will charge for repairs to
products whose warranty period has expired. Cincoze will also charge for repairs to
products if the damage resulted from acts of God, environmental or atmospheric
disturbances, or other external forces through misuse, abuse, or unauthorized
alteration or repair. If charges will be incurred for a repair, Cincoze lists all charges,
and will wait for customer’s approval before performing the repair.
⚫Customers agree to ensure the product or assume the risk of loss or damage during
transit, to prepay shipping charges, and to use the original shipping container or
equivalent.
⚫Customers can be sent back the faulty products with or without accessories (manuals,
cable, etc.) and any components from the system. If the components were suspected
as part of the problems, please note clearly which components are included.
Otherwise, Cincoze is not responsible for the devices/parts.
⚫Repaired items will be shipped along with a "Repair Report" detailing the findings and
actions taken.
Limitation of Liability
Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether
based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original
selling price of the product. The remedies provided herein are the customer’s sole and exclusive
remedies. In no event shall Cincoze be liable for direct, indirect, special or consequential damages
whether based on contract of any other legal theory.

DS-1300 Series | User Manual 8
Technical Support and Assistance
1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about
the product.
2. Contact your distributor or our technical support team or sales representative for technical
support if you need additional assistance. Please have following information ready before you
call:
⚫Product name and serial number
⚫Description of your peripheral attachments
⚫Description of your software (operating system, version, application software, etc.)
⚫A complete description of the problem
⚫The exact wording of any error messages
Conventions Used in this Manual
This indication alerts operators to an operation that, if not strictly observed, may
result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly observed, may
result in safety hazards to personnel or damage to equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE

DS-1300 Series | User Manual 9
Safety Precautions
Before installing and using this device, please note the following precautions.
1. Read these safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Disconnected this equipment from any AC outlet before cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must
be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause
damage.
7. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
8. Use a power cord that has been approved for using with the product and that it matches the
voltage and current marked on the product’s electrical range label. The voltage and current
rating of the cord must be greater than the voltage and current rating marked on the product.
9. Position the power cord so that people cannot step on it. Do not place anything over the power
cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by
qualified service personnel.
If one of the following situations arises, get the equipment checked by service personnel:
⚫The power cord or plug is damaged.
⚫Liquid has penetrated into the equipment.
⚫The equipment has been exposed to moisture.
⚫The equipment does not work well, or you cannot get it work according to the user's
manual.
⚫The equipment has been dropped and damaged.
⚫The equipment has obvious signs of breakage.
14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer.
15. Equipment intended only for use in a RESTRICTED ACCESS AREA.

DS-1300 Series | User Manual 10
Ordering information
Before installation, please ensure all the items listed in the following table are included in the
package. Notify your sales representative if any of the above items are missing or damaged.
Available Models
Model No.
Product Description
DS-1300
10th Generation Intel® Xeon/Core™ Series Processors, High
Performance, Expandable and Modular Rugged Embedded Computer
DS-1301
10th Generation Intel Xeon/Core Series Processors, High Performance,
Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe
Expansion Slot
DS-1302
10th Generation Intel Xeon/Core Series Processors, High Performance,
Expandable and Modular Rugged Embedded Computer with 2 PCI/PCIe
Expansion Slot
Package Checklist
Item
Description
Q’ty
1
Heatsink Pack
1
2
Utility DVD Driver
1
3
Screw Pack
1
4
Wall Mount Kit
1
5
Power Terminal Block Connector
1
6
Remote Function Terminal Block Connector
2
7
Fan Terminal Block Connector
1

DS-1300 Series | User Manual 11
Chapter 1
Product Introductions

DS-1300 Series | User Manual 12
1.1 Overview
The DS-1300 series is a powerful embedded computer and brings unrivalled performance. It has
versatile functionalities and rich industrial I/O. And most importantly, it has one PCI/PCIe expansion
capability (DS-1301 and DS-1302). Equipped with Cincoze’s CMI, CFM, MEC modular expansion,
customization for additional I/O or other functionality to fulfill different applications couldn’t be easier.
The DS-1301 meets the requirements of industrial environments and is certified with industry
standards. It delivers ultimate and reliable performance for factory automation, industrial automation
and rolling stock applications.
1.2 Highlights

DS-1300 Series | User Manual 13

DS-1300 Series | User Manual 14
1.3 Product Pictures
DS-1300
Front
Rear

DS-1300 Series | User Manual 15
DS-1301
Front
Rear

DS-1300 Series | User Manual 16
DS-1302
Front
Rear

DS-1300 Series | User Manual 17
1.4 Key Features
⚫10-core 10th-gen Intel® Xeon® and Core™ i9/i7/i5/i3 CPU (max 80 W TDP)
⚫2x GbE LAN and optional 2x 10GbE LAN
⚫2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
⚫2x PCI/PCIe expansion slots
⚫3x full-size Mini PCIe sockets, 2x SIM card slots
⚫Optional CMI modules for I/O expansion
⚫Optional CFM modules for ignition sensing & PoE
⚫Wide operating temperature -40°C to 70°C
⚫MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)

DS-1300 Series | User Manual 18
1.5 Hardware Specification
System
Processor
Intel® Xeon® Series Processor (80W / 35W):
•Intel® Xeon® W-1270E 8 Cores Up to 4.8 GHz, TDP 80W
•Intel® Xeon® W-1250E 6 Cores Up to 4.7 GHz, TDP 80W
•Intel® Xeon® W-1290TE 10 Cores Up to 4.5 GHz, TDP 35W
•Intel® Xeon® W-1270TE 8 Cores Up to 4.4 GHz, TDP 35W
•Intel® Xeon® W-1250TE 6 Cores Up to 3.8 GHz, TDP 35W
Intel® Core® Series Processor (65W / 35W):
•Intel® Core™ i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W
•Intel® Core™ i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W
•Intel® Core™ i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W
•Intel® Core™ i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W
•Intel® Core™ i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W
•Intel® Core™ i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W
•Intel® Core™ i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W
•Intel® Core™ i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W
Intel® Pentium® Series Processor (58W / 35W):
•Intel® Pentium® G6400E 2 Cores Up to 3.8 GHz, TDP 58W
•Intel® Pentium® G6400TE 2 Cores Up to 3.2 GHz, TDP 35W
Intel® Celeron® Series Processor (58W / 35W):
•Intel® Celeron® G5900E 2 Cores Up to 3.2 GHz, TDP 58W
•Intel® Celeron® G5900TE 2 Cores Up to 3.0 GHz, TDP 35W
Chipset
•Intel® W480E Chipset
Memory
•2x DDR4 SO-DIMM Socket, Support Up to 64GB (Un-buffered and
non-ECC)
•Xeon / i9 / i7 Processor Supports Up to 2933MHz
•i5 / i3 Processor Supports Up to 2666 MHz
•Pentium / Celeron Processor Supports Up to 2400MHz
BIOS
•AMI BIOS
Graphics
Graphics Engine
•Integrated Intel® UHD-630 Graphics
Maximum Display Output
•Supports Triple Independent Display
HDMI
•1x HDMI Connector (4096 x 2160@30Hz)
DP
•2x DisplayPort Connector (4096 x 2340@60Hz)
VGA
•1x VGA Connector (1920 x 1200 @60Hz)
Audio
Audio Codec
•Realtek® ALC888, High Definition Audio
Line-out
•1x Line-out, Phone Jack 3.5mm
Mic-in
•1x Mic-in, Phone Jack 3.5mm
I/O

DS-1300 Series | User Manual 19
LAN
•2x GbE LAN, RJ45
- GbE1: Intel® I219-LM
- GbE2: Intel® I210-IT
COM
•2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
•2x 10Gbps USB 3.2 Gen2, Type A
•4x 5Gbps USB 3.2 Gen1, Type A
•2x 480Mbps USB 2.0, Type A
PS/2
•1x PS/2, 6 Pin Mini-DIN Female Connector
Storage
SSD/HDD
•1x 2.5” Front Accessible SATA HDD/SSD Bay (SATA3.0)
•1x 2.5” Internal SATA HDD/SSD Bay (SATA3.0)
mSATA
•3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
M.2 SSD
•1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD
(SATA3.0)
RAID
•Support RAID 0/1/5/10
Expansion
PCI Express
•1 x PCI/PCIe Expansion Slot with Optional Riser Card (DS-1301)
•2x PCI/PCIe Expansion Slot with Optional Riser Card (DS-1302)
* Supports maximum dimensions of add-on card (H x L):111.15 x 235mm
Mini PCI Express
•3x Full-size Mini-PCIe Socket
SIM Socket
•2x SIM Socket
CMI (Combined Multiple I/O)
Interface
•2x High Speed CMI Interface for optional CMI Module Expansion
•2x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module)
Interface
•1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function
External FAN Connector
•1x External FAN Connector, 4-pin Terminal Block
(Support Smart Fan by BIOS)
Power Ignition Sensing
•Support Power Ignition Sensing Function with Delay Time Management and
Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch
•1x Clear CMOS Switch

DS-1300 Series | User Manual 20
Reset Button
•1x Rest Button
Instant Reboot
•Support 0.2sec Instant Reboot Technology
Watchdog Timer
•Software Programmable Supports 256 Levels System Reset
Power
Power Button
•1x ATX Power On/Off Button
Power Mode Switch
•1x AT/ATX Mode Switch
Power Input
•9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off
•1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED
•1x Remote Power LED, 2-pin Terminal Block
Total Power Budget
•180W
Physical
Dimension (W x D x H)
•227 x 261 x 88 mm (DS-1300)
•227 x 261 x 108 mm (DS-1301)
•227 x 261 x 128 mm (DS-1302)
Weight Information
•4.3 KG (DS-1300)
•4.92 KG (DS-1301)
•5.14 KG (DS-1302)
Mechanical Construction
•Extruded Aluminum with Heavy Duty Metal
Mounting
•Wall Mount
Physical Design
•Fanless Design
•Cableless Design
•Jumper-less Design
•Unibody Design
Reliability & Protection
Reverse Power Input Protection
•Yes
Over Voltage Protection
•Protection Range: 51~58V
•Protection Type: shut down operating voltage, re-power on at the present
level to recover
Over Current Protection
•15A
Surge Protection
•3.84 kV (impedance 12 ohm 1.2/50us waveform)
