Cincoze DS-1202-R10 User manual

CN-TB-QP22-44_V1.0
Rugged Embedded Computer
8th Generation Intel® Core™ Series Processors
High Performance, Expandable and Modular Rugged Embedded Computer
DS-1200 Series

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 2
Contents
Preface
Revision …………………………………………….……..……………….……….. 04
Copyright Notice …………………………………………………………………… 04
Acknowledgement …………………………………………….………................... 04
Disclaimer ………………………………………………………….……………….. 04
Declaration of Conformity ……………………………………….………………… 05
Product Warranty Statement ……………………………………….…………….. 06
Technical Support and Assistance ………………………………….……………. 07
Conventions Used in this Manual …………………………………….………….. 07
Safety Precaution …..…………………………………….…………….………….. 08
Package Contents ……………………………………………….……….………… 09
Ordering Information …………………………………………….……….………… 09
Optional Modules & Accessories …..………………………………...................... 10
Chapter 1 Product Introductions
1.1 Overview ………………………………………….…………………….. 13
1.2 Highlights ………………………………………….…………………….. 13

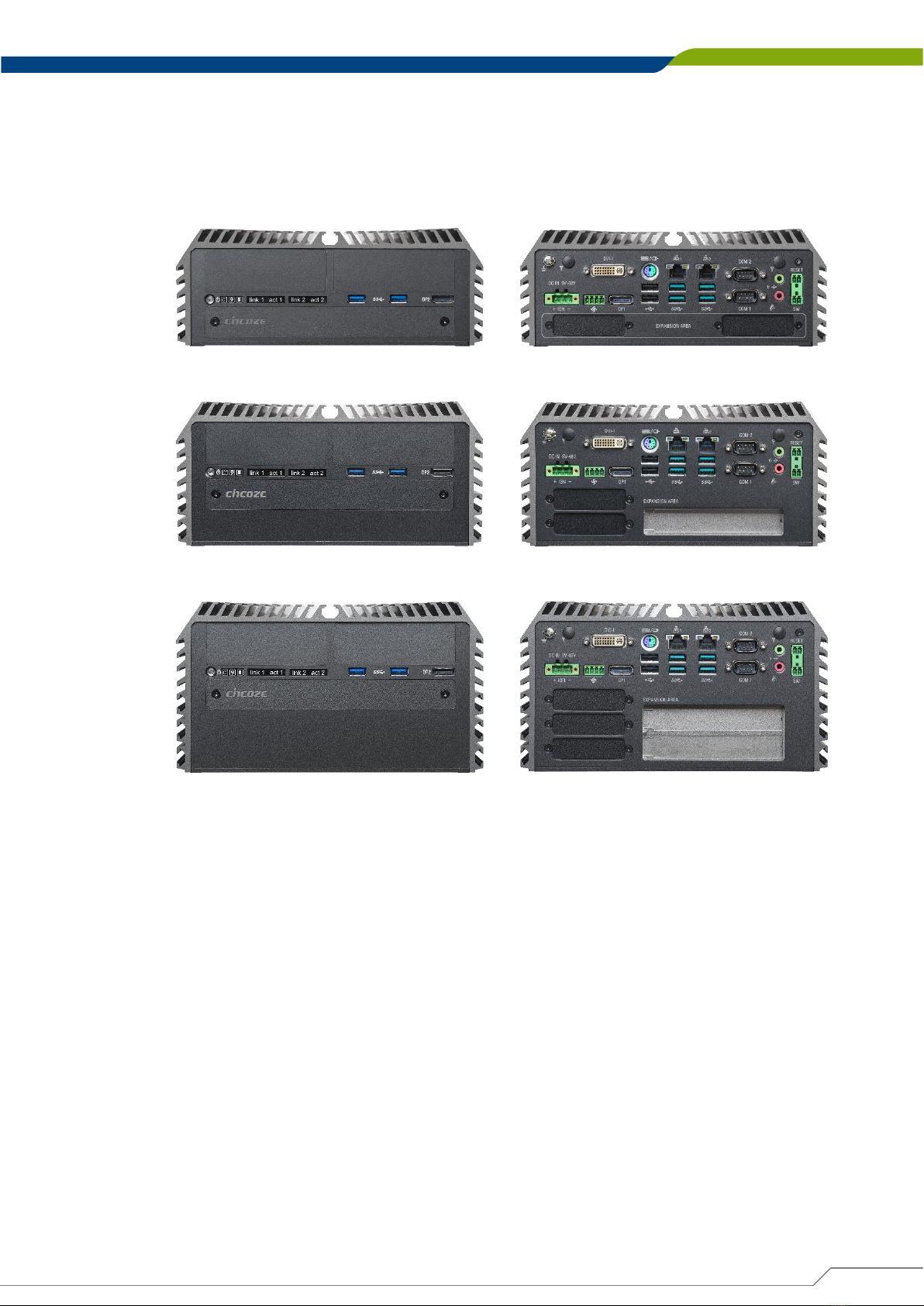

1.3 Product Pictures……..…………………………….…………………….. 14
1.4 Key Features …………………..………………….…………………….. 14
1.5 Hardware Specification ………………………….……..……………… 15
1.6 System I/O ……………………………………….……………………… 16

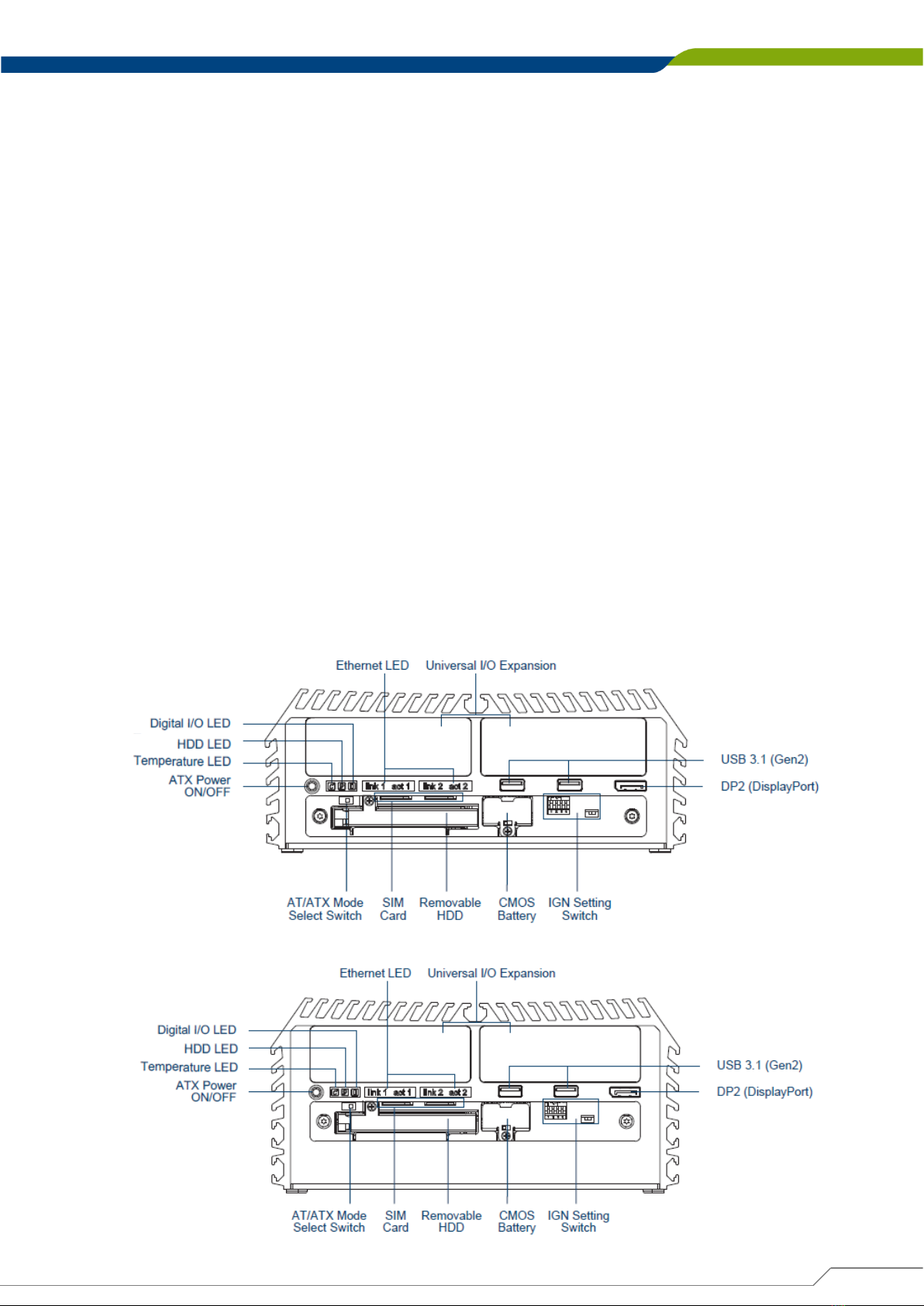

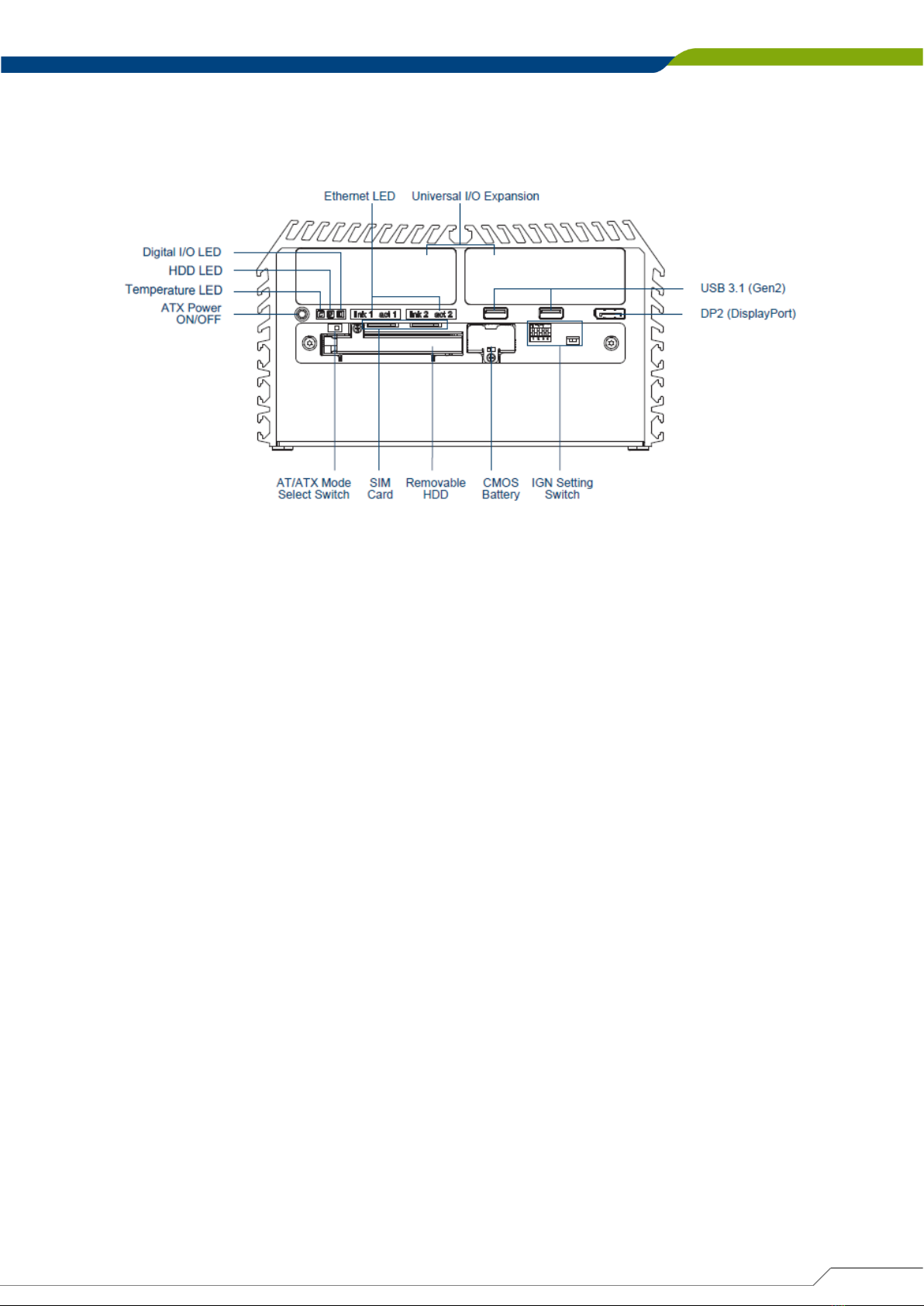

1.6.1 Front ……………………………………………………………… 16
1.6.2 Rear ………….………………………………….………………... 17

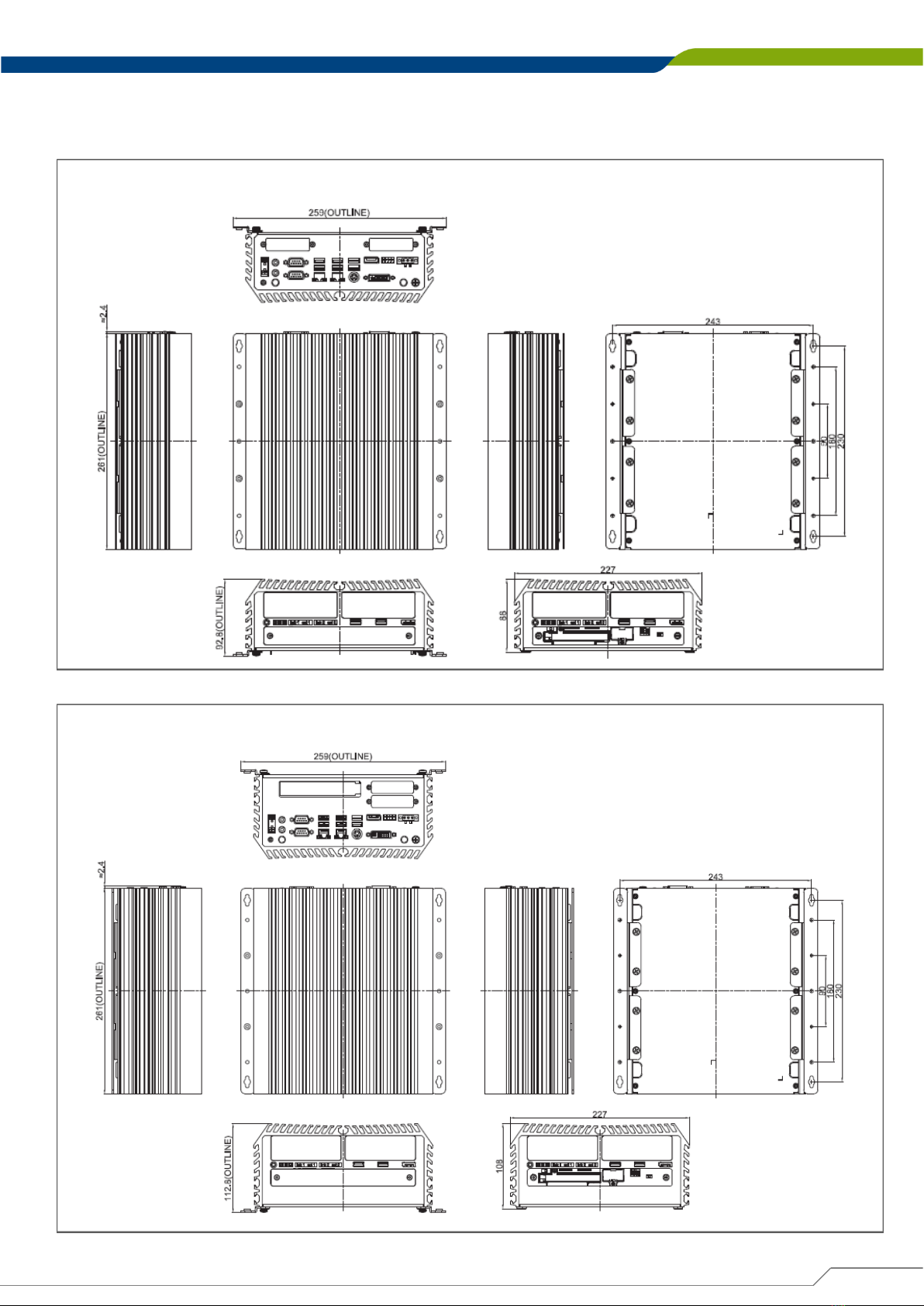

1.7 Mechanical Dimension ………………………….………..……………. 19
Chapter 2 Pin Definitions and Settings
2.1 Location of Connectors and Switches ………….………….……….... 22
2.1.1 Top View ……………………………….………………………… 22
2.1.2 Bottom View …………………………………………………….. 23
2.2 Connector / Switch Definition ………….………..….…..….………..... 24
2.3 Definition of Switches .……...……………........................................ 25
2.4 Definition of Connectors …..….……..………................................... 26
Chapter 3 System Setup
3.1 Disassembling the System for Installation …………..…..…………... 35
3.2 Installing the CPU ……………………………………....…………….... 38
3.3 Installing a Mini-PCIe / mSATA Card on Top Side ......…………….... 42
3.4 Installing Antennas …………………………………..….…………….... 44
3.5 Installing a SATA Hard Drive on Top Side ………………....…….….... 46
3.6 Installing a Mini-PCIe / mSATA Card on Bottom Side ..….………... 48
3.7 Installing a M.2 Card ……………….……………..……..……………… 50
3.8 Installing SO-DIMM Memory……………………..……..……………… 52
3.9 Installing a PCI / PCIe Add-on Card ..………………………….……... 55
3.10 Assembling the System ………………...…………..….…………….... 60
3.11 Installing a SATA Hard Drive at Front Side ....….………………..…... 63
3.12 Installing SIM Card …...…………………….………..….……………... 66
3.13 Installing the CMOS Battery ………………………..….…………….... 67
3.14 Fasten the Cover …………..……....……….…..….…………………... 69
3.15 Wall Mount Brackets ……..……....……….…..….…………….……... 70

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 3
Chapter 4 BIOS Setup
4.1 BIOS Introduction …….……….……….…….…….…..….…………... 73
4.2 Main Setup ……..……….…………….…….…..….………………...... 74
4.3 Advanced Setup ……………………….……….……………………….. 75
4.3.1 CPU Configuration ....……………………….……..…………..... 75
4.3.2 SATA Configuration ……………...…….………………………... 76
4.3.3 PCH-FW Configuration …..……..…………………………….... 78
4.3.4 Trusted Computing ….…….……..……………..……………..... 79
4.3.5 ACPI Setting ……………………...……………..….……….….... 80
4.3.6 F81866 Super IO Configuration ..………….……..…………..... 81
4.3.7 Hardware Monitor …………….……………….……………….... 83
4.3.8 S5 RTC Wake Settings ..…….……………….……………….... 84
4.3.9 Serial Port Console Redirection .…………….……………….... 85
4.3.10 USB Configuration ………………………..……………………..86
4.3.11 Network Stack Configuration .……………….……………….... 87
4.3.12 CSM Configuration ..………………………….………..………. 87
4.3.13 NVMe Configuration ……………………..…………………….. 89
4.4 Chipset Setup …...……….………………….……….…..……………... 90
4.4.1 System Agent (SA) Configuration ……….…………………….. 90
4.4.2 PCH-IO Configuration .………………………………………….. 92
4.5 Security Setup …...……….………………….……….…..……………... 95
4.6 Boot Setup …..……….….………………….……….…..….…………... 96
4.7 Save & Exit …...……….….………………….…..….…..…………….... 97
Chapter 5 Product Application
5.1 Digital I/O (DIO) Application .…………………….…..….…………….. 99
5.1.1 Digital I/O Programming Guide ………………………………... 99
5.2 Digital I/O (DIO) Hardware Specification …………………………….. 112
5.2.1 Digital I/O (DIO) Connector Definitions …..….………………... 113
Chapter 6 Optional Module Pin Definitions and Settings
6.1 CMI-COM Module Connector Definition and Settings .…….……….. 116
6.2 CMI-M12 Module Connector Definition and Settings ....…………….. 118
6.3 CFM-IGN Module Connector Definition and Settings ...…………….. 119
6.4 Installing a Low Speed CMI Module …………..……….…….……….. 120
6.5 Installing a High Speed CMI Module …………..……….…….……….. 123
6.6 Installing a CFM-PoE Module ...………………..……….…….……….. 127
6.7 Installing a CFM-IGN Power Ignition Module ………….…….……….. 132
6.8 Installing an External Fan …..…………………..……….…….……….. 133
6.9 Installing an Internal Fan .…..…………………..……….…….……….. 135

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 4
Revision
Preface
Revision
Description
Date
1.00
First
Release
2018/10/23
1.10
Correction Made
2018/11/20
Copyright Notice
© 2016 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified,
or reproduced in any form or by any means for commercial use without the prior written permission of
Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and
remain subject to change without prior notice.
Acknowledgement
Cincoze is a registered trademark of Cincoze Co., Ltd. All registered trademarks and product names
mentioned herein are used for identification purposes only and may be trademarks and/or registered
trademarks of their respective owners.
Disclaimer
This manual is intended to be used as a practical and informative guide only and is subject to change
without notice. It does not represent a commitment on the part of Cincoze. This product might include
unintentional technical or typographical errors. Changes are periodically made to the information
herein to correct such errors, and these changes are incorporated into new editions of the publication.

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 5
Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CE
The product(s) described in this manual complies with all application European Union
(CE) directives if it has aCE marking. For computer systems to remain CE compliant,
only CE-compliant parts may be used. Maintaining CE compliance also requires proper
cable and cabling techniques.
E-Mark
The "E" mark is based on ECE regulations issued by the Economic Commission for
Europe. It is an organizational part of the UN and the members are EU countries and
many others. Therefore, the acceptance of approved components is much broader,
especially in the eastern part of Europe. It is necessary to confirm whether a particular
country has accepted (signed) the application of an ECE-regulation; as the application it
is not mandatory for the countries.

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 6
Product Warranty Statement
Warranty
Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and
workmanship for 2 years from the date of purchase by the original purchaser.
During the warranty period, we shall, at our option, either repair or replace any product that proves to
be defective under normal operation.
Defects, malfunctions, or failures of the warranted product caused by damage resulting from natural
disasters (such as by lightening, flood, earthquake, etc.), environmental and atmospheric disturbances,
other external forces such as power line disturbances, plugging the board in under power, or incorrect
cabling, and damage caused by misuse, abuse, and unauthorized alteration or repair, and the product
in question is either software, or an expendable item (such as a fuse, battery, etc.), are not warranted.
RMA
Before sending your product in, you will need to fill in Cincoze RMARequest Form and obtain a RMA
number from us. Our staff is available at any time to provide you with the most friendly and immediate
service.
◼RMA Instruction
⚫Customers must fill in Cincoze Return MerchandiseAuthorization (RMA) Request Form and
obtain a RMA number prior to returning a defective product to Cincoze for service.
⚫Customers must collect all the information about the problems encountered and note anything
abnormal and describe the problems on the “Cincoze Service Form” for the RMA number apply
process.
⚫Charges may be incurred for certain repairs. Cincoze will charge for repairs to products whose
warranty period has expired. Cincoze will also charge for repairs to products if the damage
resulted from acts of God, environmental or atmospheric disturbances, or other external forces
through misuse, abuse, or unauthorized alteration or repair. If charges will be incurred for a
repair, Cincoze lists all charges, and will wait for customer’s approval before performing the
repair.
⚫Customers agree to insure the product or assume the risk of loss or damage during transit, to
prepay shipping charges, and to use the original shipping container or equivalent.
⚫Customers can be send back the faulty products with or without accessories (manuals, cable,
etc.) and any components from the system. If the components were suspected as part of the
problems, please note clearly which components are included. Otherwise, Cincoze is not
responsible for the devices/parts.
⚫Repaired items will be shipped along with a "Repair Report" detailing the findings and actions
taken.
Limitation of Liability
Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether
based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original
selling price of the product. The remedies provided herein are the customer’s sole and exclusive
remedies. In no event shall Cincoze be liable for direct, indirect, special or consequential damages
whether based on contract of any other legal theory.

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 7
Technical Support and Assistance
1. Visit the Cincoze website at www.cincoze.com/warranty.php where you can find the latest
information about the product.
2. Contact your distributor or our technical support team or sales representative for technical support
if you need additional assistance. Please have following information ready before you call:
⚫Product name and serial number
⚫Description of your peripheral attachments
⚫Description of your software (operating system, version, application software, etc.)
⚫A complete description of the problem
⚫The exact wording of any error messages
Conventions Used in this Manual
This indication alerts operators to an operation that, if not strictly
observed, may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly
observed, may result in safety hazards to personnel or damage to
equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 8
Safety Precautions
Before installing and using this device, please note the following precautions:
1. Read these safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Disconnected this equipment from any AC outlet before cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be
easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause
damage.
7. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
8. Use a power cord that has been approved for using with the product and that it matches the
voltage and current marked on the product’s electrical range label. The voltage and current rating
of the cord must be greater than the voltage and current rating marked on the product.
9. Position the power cord so that people cannot step on it. Do not place anything over the power
cord.
10.All cautions and warnings on the equipment should be noted.
11.If the equipment is not used for a long time, disconnect it from the power source to avoid damage
by transient overvoltage.
12.Never pour any liquid into an opening. This may cause fire or electrical shock.
13.Never open the equipment. For safety reasons, the equipment should be opened only by qualified
service personnel.
If one of the following situations arises, get the equipment checked by service personnel:
⚫The power cord or plug is damaged.
⚫Liquid has penetrated into the equipment.
⚫The equipment has been exposed to moisture.
⚫The equipment does not work well, or you cannot get it work according to the user's manual.
⚫The equipment has been dropped and damaged.
⚫The equipment has obvious signs of breakage.
14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer.

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 9
Package Contents
Before installation, please ensure all the items listed in the following table are included in the package.
Item
Description
Q’ty
1
Embedded System
1
2
Utility DVD Driver
1
3
Heat Sink Pack
1
4
Screw Pack
1
5
Wall Mounting Kit
1
6
Power Terminal Block Connector
1
7
Remote Power On/Off Terminal Block Connector
1
8
Remote Power Reset Terminal Block Connector
1
9
Fan Terminal Block Connector
1
10
DVI
-I to VGAAdaptor 1
Note: Notify your sales representative if any of the above items are missing or damaged.
Ordering Information
Model No.
Product Description
DS
-1200-R10
8th Generation Intel® Core™ Series Processors, High Performance,
Expandable and Modular Rugged Embedded Computer
DS
-1201-R10
8th Generation Intel® Core™ Series Processors, High Performance,
Expandable and Modular Rugged Embedded Computer with 1x
PCI/PCIe Expansion Slots
DS
-1202-R10
8th Generation Intel® Core™ Series Processors, High Performance,
Expandable and Modular Rugged Embedded Computer with 2x
PCI/PCIe Expansion Slots

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 10
Optional Modules & Accessories
Model No.
Description
CFM
-PoE03 CFM Module with PoE Control Function, Individual Port 25.5W
CFM
-IGN101 CFM Module with Power Ignition Sensing Function, 12V/24V
Selectable for DS-1200/ DS-1100/ P1101 Series
CMI
-LAN01/UB1012 CMI Module with 4x Intel I210-AT GbE LAN, RJ45 Port / 1x Universal
Bracket with 4x RJ45 Cutout for DS-1200 Series
CMI
-M12LAN01/UB1010 CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal
Bracket with 4x M12 Cutout for DS-1200 Series
CMI
-DIO02/UB1018 CMI Module with 16DIO (8in 8out), 1x Universal Bracket with DIO
Cutout for DS-1200 Series
CMI
-COM02/UB1004 CMI Module with 4 x RS232/422/485 (Support 5V/12V), 1x Universal
Bracket with 4x DB9 Cutout for DS-1200 Series
CMI
-ICOM01/UB1004 CMI Module with 4 x isolated RS232/422/485 (Support 5V/12V), 1x
Universal Bracket with 4x DB9 Cutout for DS-1200 Series
MEC
-COM-M212-
DB9/UB0303
Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable, 2x
Universal Bracket each with 1x DB9 Cutout for DS / P1000 Series
MEC
-USB-M002-
30/UB0314
Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable, 1xUniversal
Bracket with 2x USB Cutout for DS Series
MEC
-LAN-M002-
30/UB0311
Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable, 1x Universal
Bracket with 2x RJ45 Cutout for DS Series
FAN
-EX101
External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support
Smart Fan
FAN
-UB100 Exhaling Fan with 4pin Connector, Universal Bracket
FAN
-UB101 Inhaling Fan with 4pin Connector, Universal Bracket
PAH01
Power Adapter Holder for GST120A24
PAH02
Power Adapter Holder for GST220A24
GST120A24
-CIN AdapterAC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm
Pitch, with TUBES, level VI

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 11
Model No.
Description
GST220A24
-CIN AdapterAC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm
Pitch, with TUBES, level VI
RC
-E8E8-01 Riser Card with 2x PCIex8 Slots
RC
-E16E1-01 Riser Card with 1x PCIex16 and 1x PCIex1 Slots
RC
-E16PI-01 Riser Card with 1x PCIex16 and 1x PCI Slots
RC
-PIPI-01 Riser Card with 2x PCI Slots

Product Introductions
Chapter 1

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 13
1.1 Overview
1.2 Highlights
DS-1200 series is a high performance fanless embedded computer, powered by 8th generation
Intel® Core™ processor (Coffee Lake) with up to 6 cores and 32GB DDR4 memory capacity for
unprecedented performance to fulfill all kinds of high-end computing requirements. The system
also incorporates rich I/O, such as 2x Intel® GbE ports, 2x USB 3.1 (Gen2), 4x USB 3.0, 1x
DVI-I, 2x DisplayPort, and 1x M.2 Key M 2280 socket for ultra-fast data transfer speed.
Based on Cincoze’innovative CMI & CFM Technology, it allows users to expand I/O and
functionalities through ready-to-use modules, such as GbE/PoE ports, serial ports, optical
isolated digital I/O and power ignition function. Furthermore, DS-1200 series supports maximum
2 PCI(e) expansion slots to accommodate versatile add-on cards.
Designed to operate under harsh conditions, DS-1200 series has passed rigorous testing like
EN50155 (EN50121-3-2) and EN60950-1 to fulfill industrial applications such as rolling stock.
Besides, DS-1200 series features with wide operating temperature (-40°Cto 70°C), wide range
DC power input (from 9V to 48V), high tolerance of shock/vibration (5G/50G), and industrial-
grade protections (OVP, OCP, ESD Surge, ...etc).
High Performance
The new 8th generation Intel® Core™ processor (Coffee Lake)
offers for the first time up to 6 cores, 12 threads and 1.4 times
computing performance improvement comparing to the previous
generation (Kaby Lake).
Fully Modular and Expandable
Featuring PCI/PCIe expansion slots, Mini-PCIe slots, CMI
(Combined Multiple I/O), CFM (Control Function Module), and
versatile ready-to-use modules, DS-1200 series provides great
flexibility to configure the system according to your need.
Wide Temperature
DS-1200 series is designed for continuous operation in wide
temperature range from -40°Cto 70°C. In addition, it also
features with anti-shock/vibration and ESD/surge protection for
tough industrial environments.

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 14
1.3 Product Pictures
• Supports 8th Gen Intel® Core™ / Pentium® / Celeron® Hexa Cores 35W/65W LGA 1151 Processors
• 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 32GB
• Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
• 1x M.2 2280 M Key Socket, Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
• 2x Front Accessible SIM Card Slots for Signal Redundancy
• 2x PCI/PCIe Slots for Add-on Cards (Maximum Length: 235mm) (For DS-1201 & DS-1202 only)
• 4x CMI Slots for Modular I/O Expansions
• 1x CFM Slot for Power Ignition Sensing Function
• Wide Operating Temperature (-40°C to 70°C )
• EN50155 (EN50121-3-2) / EN60950-1 Certified
1.4 Key Features
Rear
Front
DS-1200
DS-1202
DS-1201

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 15
Processor
• Core™ i:
Intel® Core™ i7-8700Hexa Core 12M Cache, up to 4.6 GHz, TDP 65W
Intel® Core™ i5-8500Hexa Core 9M Cache,up to 4.1 GHz, TDP 65W
Intel® Core™ i3-8100 Quad Core 6M Cache, 3.60 GHz, TDP 65W
Intel® Core™ i7-8700T Hexa Core 12M Cache, up to 4.0 GHz, TDP 35W
Intel® Core™ i5-8500T Hexa Core 9M Cache, up to 3.5 GHz, TDP 35W
Intel® Core™ i3-8100T Quad Core 6M Cache, 3.10 GHz, TDP 35W
• Pentium®:
Intel® Pentium® G5400 Quad Core 4M Cache, 3.70 GHz, TDP 58W
Intel® Pentium® G5400T Quad Core 4M Cache, 3.10 GHz, TDP 35W
• Celeron®:
Intel® Celeron® G4900 Quad Core 2M Cache, 3.10 GHz, TDP 54W
Intel® Celeron® G4900T Quad Core 2M Cache, 2.90 GHz, TDP 35W
Chipset
Intel® Q370
BIOS
AMI 32MB SPI BIOS
Memory
• 2x DDR4-2400/2666 MHz SO-DIMM Sockets, Supports up to 32 GB
(Un-buffered and Non-ECC Type)
* DDR4 2666MHz memory modules are only for Core™ i7/i5 Processors
Graphics
• Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3
• Integrated Intel® UHD Graphics 610: Pentium® /Celeron®
• Supports Triple Independent Display (1x DVI-I, 2x DisplayPort)
Audio
• Realtek® ALC888
• High Definition Audio
External I/O Interface
• 1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz)
• 2x DisplayPort (DisplayPort: 4096 x 2304 @60Hz)
• 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I219
- GbE2: Intel® I210
• 2x USB 3.1 Gen2 (Type A)
• 4x USB 3.0 (Type A)
• 2x USB 2.0 (Type A)
• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
• 1x PS/2, 6-pin mini-DINFemale Connector
• 1x Line-out & 1x Mic-in, Phone Jack 3.5mm
• 1x ATX Power On/Off Button
• 1x AT/ATX Mode Switch
• 1x Clear CMOS Switch
• 1x Remote Reset Connector, 2-pin Terminal Block
• 1x Remote Power On/Off Connector, 2-pin Terminal Block
• 1x External Fan Connector, 4-Pin Terminal Block (Supports smart fan by BIOS)
Storage
• 2x 2.5" SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessible Supports
RAID 0/1
• 3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable
• 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
Operating System
• Windows® 10 • Linux: Supports by project
1.5 Hardware Specification Expansion
• 3x Full-size Mini-PCIe Socket
• 2x SIM Socket
• 1x CFM (Control Function Module) Interface
• 2x CMI (Combined Multiple I/O) High Speed Interface
• 2x CMI (Combined Multiple I/O) Low Speed Interface
• 2x Antenna Hole
• 1x PCI/PCIe Expansion slot (with Optional Riser Card) (For DS-1201)
* Supports maximum dimensionsof add-oncard (H x L):111.15 x 235mm
• 2x PCI/PCIe Expansion slot (with Optional Riser Card) (For DS-1202)
* Supports maximum dimensionsof add-oncard (H x L):111.15 x 235mm
Other Functions
• Supports Instant Reboot Technology (0.2 sec)
• SuperCap Integrated for CMOS Battery Maintenance-free Operation
• Watchdog Timer: Software Programmable Supports 1~255 sec. System Reset
Power Requirement
• Supports AT/ATX Power Type
• Power Input Voltage 9~48VDC
• 1x 3-Pin Terminal Block
• Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional)
Physical
• Dimensions(WxDxH):
227 x 261 x 88 mm(DS-1200)
227 x 261 x 108 mm(DS-1201)
227 x 261 x 126 mm (DS-1202)
• Weight: 4.3 kg (DS-1200), 4.92 kg (DS-1201), 5.14 kg (DS-1202)
• Construction: Extruded Aluminum with Heavy Duty Metal
• Mounting: Wall Mount
• Unibody Chassis
• Fanless Design
• Jumper-less Design
Protection
• Reverse Power Input Protection
• Over Voltage Protection: 58V
• Over Current Protection: 15A
• ESD Protection: +/-15kV (air), +/-8kV (contact)
• Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50us waveform)
Environment
• Operating Temperature:
35W TDP Processor: -40°C to 70°C
51~65W TDP Processor: -40°C to 45°C
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 95%RH @ 70°C (non-Condensing)
• Shock: Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
• Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes (With SSD, according to IEC60068-2-64)
• MTBF: 396,565 Hours
Certification
• EMC: CE, FCC Class A
• Safety: LVD, EN60950-1
• Railway: EN50155, EN50121-3-2

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0
1.6.1 Front
16
1.6 System I/O
ATX power on/off switch
Press to power-on or power-off the system
AT/ATX Mode Select Switch
Used to select AT or ATX power mode
Power LED
Indicates the power status of the system
Temperature LED
Indicates the temperature of the system
HDD LED
Indicates the status of the hard drive
Digital I/O LED
Indicates the working status of digital
input/ output
Ethernet LED
Indicates the status of the LAN ports
USB 3.1 Port
Used to connect USB 3.1/3.0/2.0/1.1 device
DisplayPort Port
Used to connect the system with DisplayPort
monitor
SIM card, CMOS Battery, and 2.5”
Removable HDD Bay
Used to insert a SIM card, CMOS battery,
and 2.5” HDD
DS-1200
DS-1201

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0
1.6.2 Rear
17
DS-1202
DC IN Terminal Block
Used to plug a DC power input with terminal
block
External Fan Terminal Block
Used to plug a external fan with terminal block
DVI-I Port
Used to connect a DVI monitor or connect
optional split cable for dual display mode
PS/2 Port
Used to connect the PS/2 device
LAN Port
Used to connect the system to a local area
network
DisplayPort
Used to connect the system with DisplayPort
Monitor
USB 3.0 Port
Used to connect USB 3.0/2.0/1.1 device
USB 2.0 Port
Used to connect USB 2.0/1.1 device
Antenna Hole
Used to install an antenna jack
COM Port
COM 1 ~ COM 2 support RS232/422/485
serial device
Mic-in
Used to connect a microphone
Line-out
Used to connect a speaker
Remote Power on/off and Remote Power
Reset Terminal Block
Used to plug a remote power on/off and
remote power reset with terminal block
Universal I/O Bracket
Used to customized I/O output

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 18
DS-1201
DS-1202
DS-1200

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0
Unit: mm
19
1.7 Mechanical Dimension
DS-1200
Unit: mm
DS-1201

DS-1200 Series Rugged Embedded Computer | User’s Manual
CN-TB-QP22-44_V1.0 20
DS-1202 Unit: mm
