CIRCLE FITNESS M7 User manual

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 2 of 31
2
Table of Contents
1. Engineering Mode: How to entry -------------- Page 3
1.1. Wi-Fi Settings ---------------- Page 3
1.2. Ethernet: Reserved ---------------- Page 4
1.3. TV Settings-CVBS
1.3.1 Scan Channel-Europe Tuner (Pal / DVB-T) ---------------- Page 4
1.4. Preference: Unit、Speed、Incline Settings ---------------- Page 5
1.5. Heart Rate Control: Control mode selection ---------------- Page 5
1.6. System: ---------------- Page 6
1.7. Error Log ----------------Page 6
1.8. Testing: ----------------Page 7
1.9. Update
1.9.1. Update App (software update) ----------------Page 8
1.9.2. Update Bookmarks (update website link) ----------------Page 9
1.9.3. Update video data (update Virtual Connect) ----------------Page 13
1.9.4. Replace Logo (Replace Logo) ----------------Page 16
1.10. About (Machine information) ----------------Page 18
1.11. Advanced ----------------Page 18
2. Firmware Update ----------------Page 20
3. Trouble Shooting ----------------Page 22

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 3 of 31
3
1. Engineering Mode:
Press center of logo for 5 seconds to get in.
1.1. Wi-Fi settings:
ON/OFF Wi-Fi
Re-searching
Useable Wi-Fi
Select a useable
Wi-Fi and enter
the password
then press
Connect button.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 4 of 31
4
1.2. Ethernet: Reserved for further use.
1.3. TV settings: CVBS
1.3.1. Scan Channel-Europe Tuner(Pal / DVB-T)
Press Ch↑or Ch↓select
Auto Tuning then press OK.
Press Ch↑or Ch↓or Vol+ or
Vol- to select Country then
press OK to starting channel
scanning.
Channel scanning

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 5 of 31
5
1.4. Preference
1.5. Heart Rate Control
Unit select
Set Minimum speed.
Setting range: 0.2~1.0 kph / 0.1~0.6mph
Set Maximum speed.
Setting range: 16.0~25.0 kph / 10.0~15.6mph
Speed: Speed auto adjust only
Incline: Incline auto adjust only
Dual: Speed and Incline auto adjust
Set Maximum incline level.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 6 of 31
6
Delete this
record.
1.6. System
1.7. ErrorLog: Error signal records
State:
Total Distance: Total used distance
Total Time: Total used Time
Ave. Speed: Average Speed
Calibration: (parameter settings)
Speed/HZ: Speed parameter, high value, and higher
speed to each speed point.
Incline A/D: incline lowest position parameter.
Settings: (Other settings)
Idle Detection: Auto PAUSE while machine working
but no user on it. Detect time is about 30~40
seconds.
GS Mode:
OFF →incline go to 0 after STOP.
ON →incline go to 0 after Start.
Timezone Offset: Timezone setting, for USB data
saving, file name reference to date and time.
Management Server: Asset Management Local
Host IP.
Error message
Total used
Time when
error occurs.
Total used
distance
when error
occurs.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 7 of 31
7
DC Bus Voltage:
Motor controller internal operating
voltage, usually should be within
290~320V.
1.8. Testing: Control system output test and input information.
Motor (output) Hz
Setting Range: 4~180HZ
Incline AD: Incline position
Setting Range: 100~1000
Output Current:
Motor controller output current, usually
should be within 4~7Amp if the person
weight is under 100kg, test speed is 8
km/h.
OFF: Stop motor.
ON: Run motor.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 8 of 31
8
1.9 Upgrade
1.9.1 Upgrade the app (Software update)

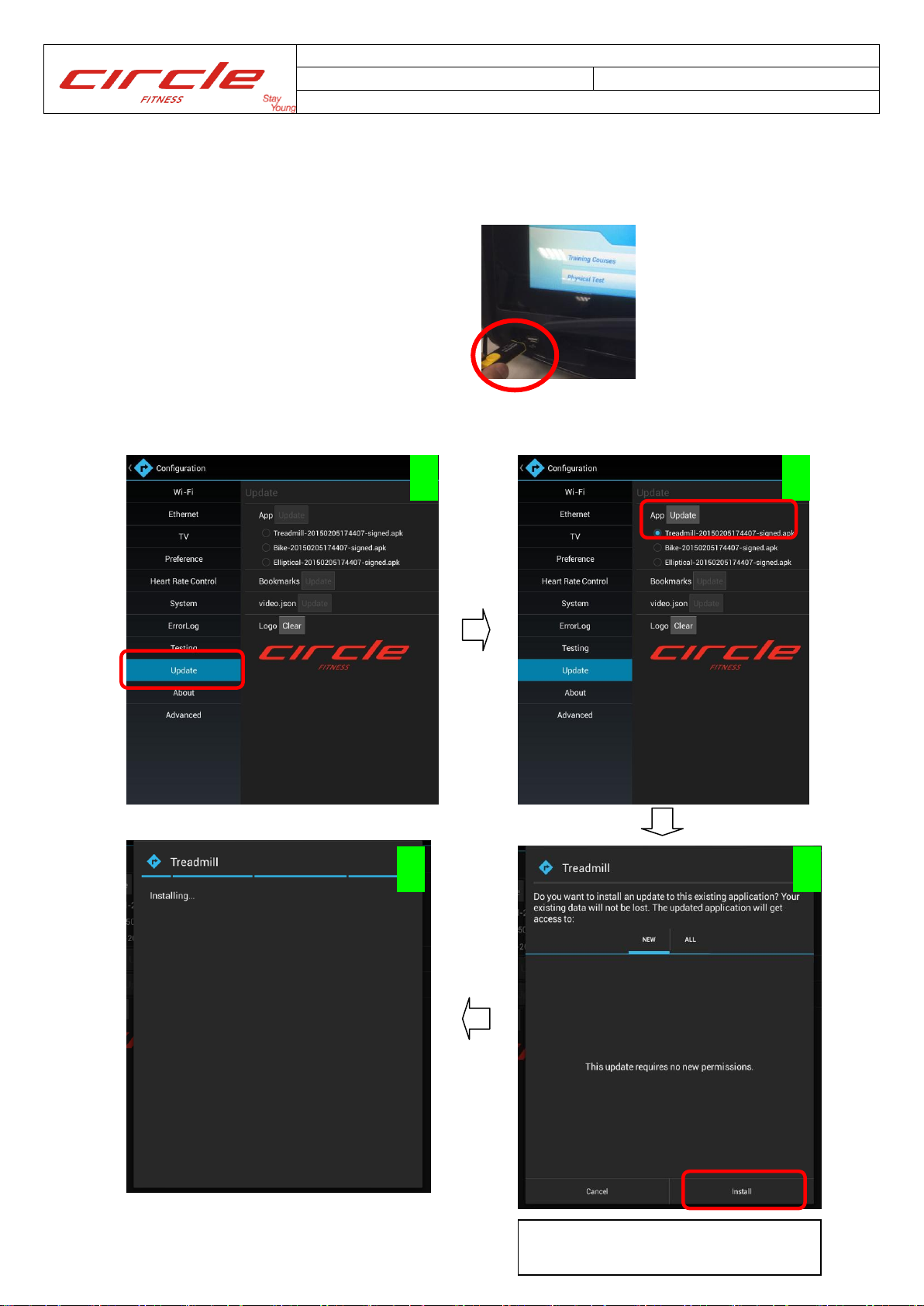

Step 1: Insert the USB device (shall be new software inside. e.g.: Treadmill–20150126170001-
signed.apk) to external USB port of machine.
Step 2: Enter to Engineering Mode –Update page, select new software and press Update.
Back to idle main page when
installation is completed.
○
2
○
4
○
1
○
3

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 9 of 31
9
1.9.2. Update Bookmarks (update internet website icon and address)
Step 1: To create a document, name it “bookmark”.
Step 2: Put website icon to bookmark document, the icon specification shall be 152X152, PNG
format.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 10 of 31
10
Step 3: Create a new note or Notepad file.
Follow the following instructions to type the website information.
Website name
Icon file name
Website address
Use a comma to create another link.
The final link without a comma.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 11 of 31
11
Step 4: save the link information file to a UTF-8 format and change file name to bookmark, change
vice file name to Jason then put it to bookmark document.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 12 of 31
12
Step 5: Put bookmark document to USB device; insert the USB device to external USB Port of
Machine.
Step 6: Enter to Engineering Mode –Update page, press Update key of Bookmarks, will show
update finished after update.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 13 of 31
13
1.9.3 Update video data (update Virtual Connect information, it is not update for video film, only
update for film illustration and interactive scenario.)
Step 1: Createanewnote orWordPadfile.Typingthevirtualconnectinformationaccording to the rules
as below.
file: film file name
thumbnail: film icon file name
title: Multi-language
translate
description: film illustration.
incline: interactive scenario
time: changeinclinetime (insecond,filmtime,
not exercise time)

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 14 of 31
14

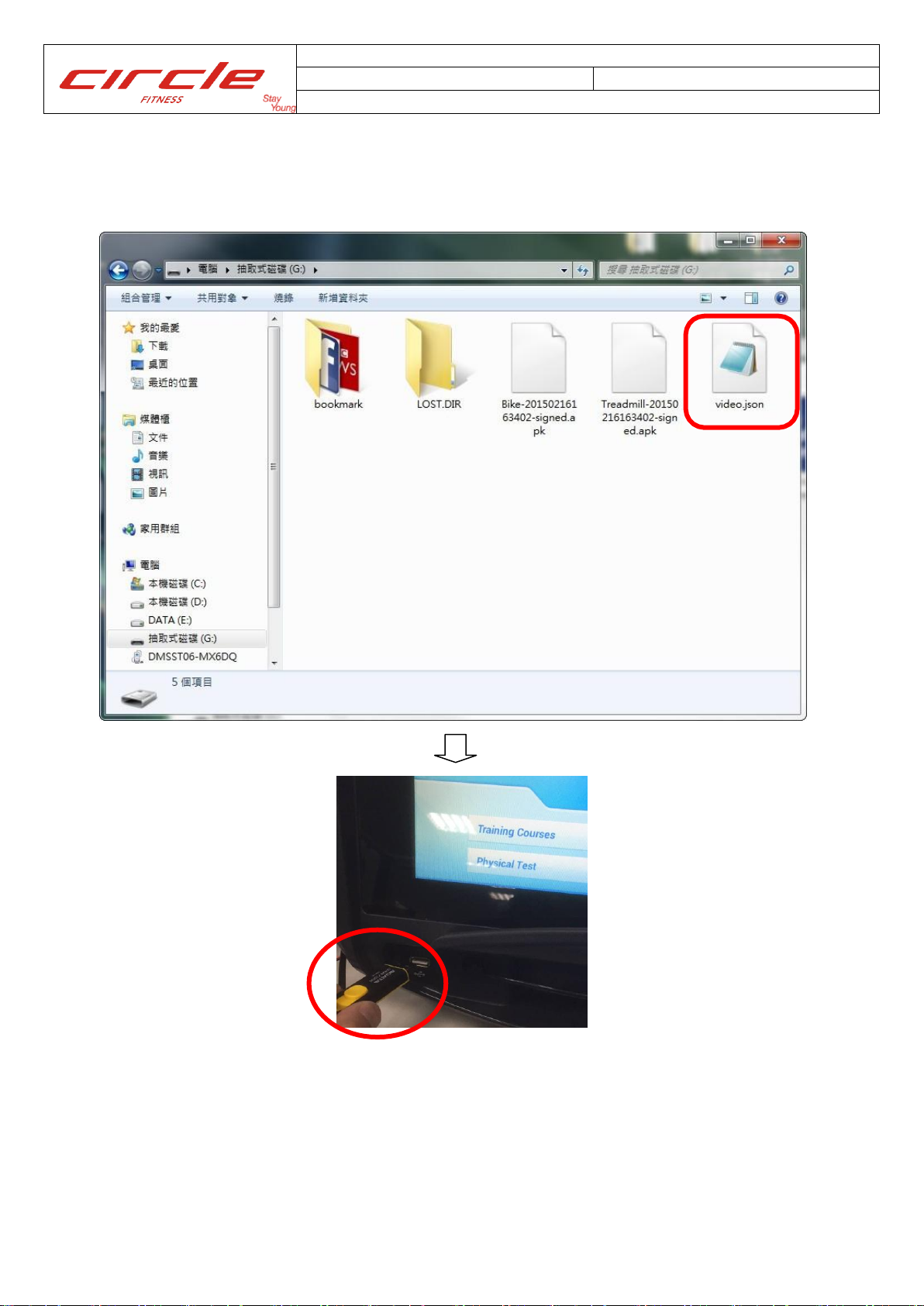

Step 2: Save the link information file to a UTF-8 format and change file name to video, change vice file
name to Jason then put it to USB root content. Insert USB device to external USB port of machine.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 15 of 31
15
Step 3: Enter to Engineering Mode –Update page, press Update key of video.json, will show update
finished after update.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 16 of 31
16
1.9.4 Replace Logo
Step 1: Logo icon size shall be under 330X80 with png format, change icon name to logo then put
into USB device root content. Insert USB device to external USB port of machine.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 17 of 31
17
Step 2: There will be have 2 logos shown at engineering mode-Update page, one is current logo,
another is new logo in USB device, press Update key that next to New Logo to replace the logo. Press
Configuration to exit engineering mode to main page to check the logo.
NOTE: if you do not want to show any Logo, just press Clear to clear logo.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 18 of 31
18
1.10 About (Machine information)
Model: need to insert manually in
Advanced Page.
Serial Number: need to insert manually
in Advanced Page.
APP: Software Version.
Kernel: Firmwareversion,justneedto
check month/date/year (Feb 11 & 2015).
MFi: Apple Device compatibleversion
Machine Type: Treadmill or Bike or
Ellipticaldependonwhatsoftwareyou
installed.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 19 of 31
19
1.11 Advanced:
Password: 1234
○
1
○
2
Machine Type: Treadmill or Bike or
Ellipticaldependonwhatsoftwareyou
installed.
Model: Enter model by numeric keypad
Serial Number: Enter serial number by numeric
keypad (Do not change if not necessary.)
change)
Wi-Fi MAC Address: Wi-Fi unique code
if firmware version less than 2015/2
before update, please press Generate to
change the code after update.
Total Distance & Total Time: Press Clear
to reset value.
Exit to Launcher: Press this key to exit the APP and back to
Android desktop. If you want to enter APP again, please
insert USB device or reset the power.

Document: Service Manual
Description: Treadmill
Model: M7/ M7L E Plus
Page: 20 of 31
20
2. Firmware Update:
2.1. Update Notices:
2.1.1. Please Confirm Firmware Version in powering-on page is the Android or CIRCLE FITNESS.
2.1.2. Firmware Update shall be use the right version to update, e.g.: if firmware version is 12 01 2014,
want to update to Feb 11 2015, shall be use update_141201_150211_native.zip (Android version) or
update_141201_150211_logo.zip(Circle version) update file.
2.1.3. System read update.zip file name only, the update file name we provide with version
information, e.g.: update_141201_150211_logo.zip, you need to change the file name to
update.zip before insert USB device to external USB port of machine.
2.1.4. System will delete update.zip of USB device, if you would like to update next machine, you
need to copy the update.zip file to USB device again.
