Cisco Model EPC3208G EuroDOCSIS 3.0 8x4 Cable
Modem with Embedded Digital Voice Adapter
The Cisco®Model EPC3208G EuroDOCSIS™3.0 8x4 Cable Modem (EPC 3208G) is a
high-speed cable modem with an embedded digital voice adapter and router for use in
the home and small office. The EPC3208G provides a faster connection to the Internet by
incorporating eight bonded downstream channels along with four bonded upstream
channels. These bonded channels can deliver downstream data rates in excess of 440
Mbps and upstream data rates in excess of 120 Mbps. That’s up to eight times faster
downloads than conventional single-channel EuroDOCSIS 2.0 cable modems.
The EPC3208G is designed to meet EuroPacketCable™1.5 and EuroDOCSIS 3.0 specifications,
as well as offering backward compatibility for operation in EuroPacketCable 1.0 and EuroDOCSIS
2.0, 1.1, and 1.0 networks.
Figure 1. EPC3208G EuroDOCSIS 3.0 8x4 Cable Modem with Embedded Digital Voice Adapter (image may
vary from actual product and specification)
The EPC3208G integrated router features a Dynamic Host Configuration Protocol (DHCP) server,
Network Address and Port Translation (NAT/NAPT), and a Stateful Packet Inspection (SPI) firewall.
These features allow the user to share a single high-speed public Internet connection as well as
share files and folders between devices in the home or small office network by attaching multiple
wired devices to the cable modem.

Data Sheet
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 8
Features
EuroDOCSIS
●Eight (8) bonded downstream channels with data rates in excess of 440 Mbps
●Four (4) bonded upstream channels with data rates in excess of 120 Mbps
●Designed to meet EuroDOCSIS 3.0 specifications as well as backward compatibility with
existing EuroDOCSIS 2.0, 1.1 and 1.0 networks
●EuroDOCSIS compliant support for IPv6/IPv4
●Expanded tuning range, 108-1002 MHz
Connections
●One (1) 10/100/1000BASE-T Ethernet port to provide wired connectivity
●Two RJ-11 telephony ports for connecting to in-home wiring or directly to conventional
telephones or fax machines
Design and Function
●Attractive, compact design and versatile orientation to stand vertically, lie flat on the desktop
or shelf, or mount easily on a wall
●Dual color LED status indicators on the front-panel provide easy-to-understand display that
indicates the cable modem operational status
●TR-068 compliant color-coded interface ports and corresponding cables simplify installation
and setup
Management
●Remote manageability using SNMP V1/V2 and V3
●User-configurable Parental Control blocks access to undesirable Internet sites
●Advanced firewall technology deters hackers and protects the home network from
unauthorized access
●Software allows automatic software upgrades by your service provider
Software and Documentation
●CD-ROM containing user guide

Data Sheet
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 8

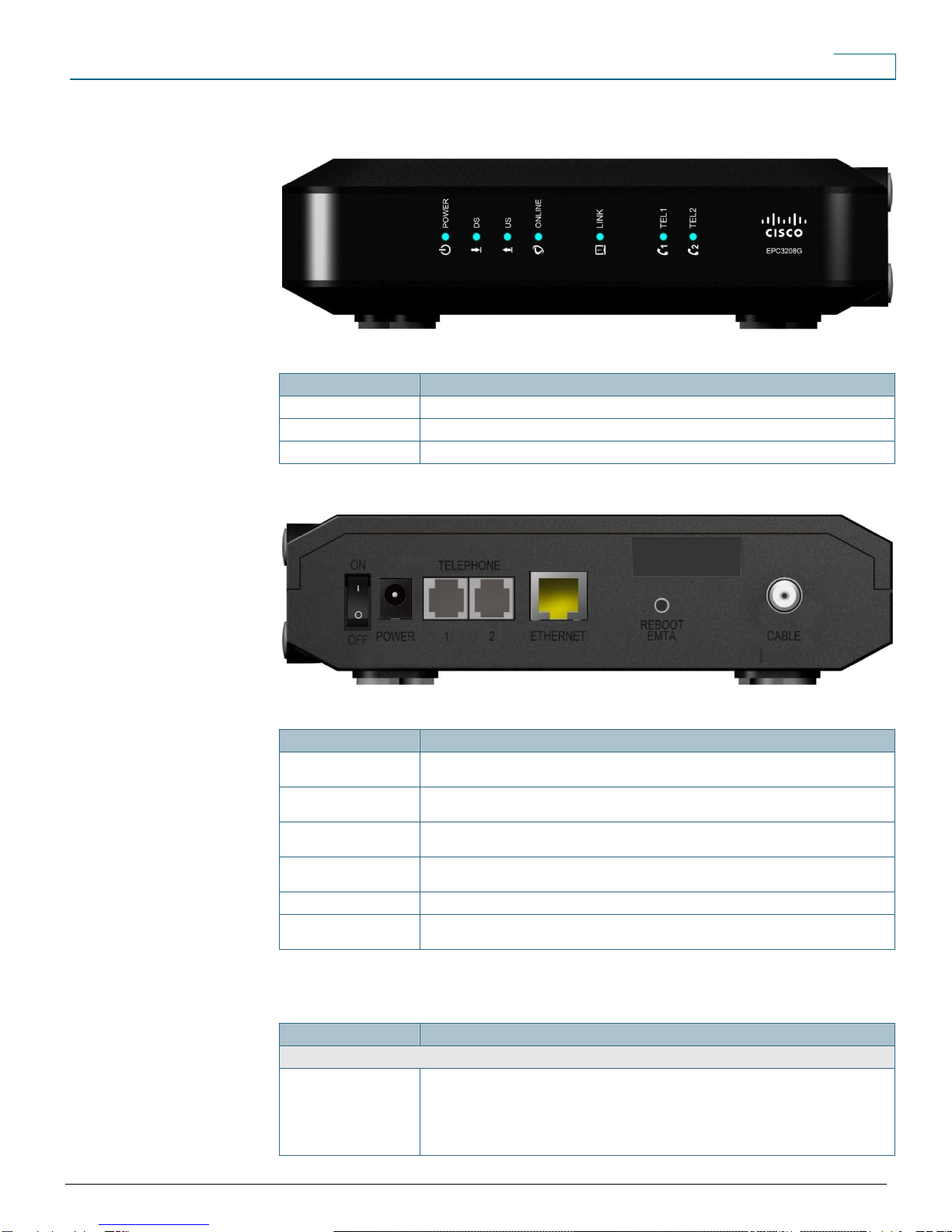

Figure 2. Cisco Model EPC3208G Front Panel (image may vary from actual product and specification)
Table 1. Front Panel Features
Feature
Description
Indicators
POWER, DS, US, ONLINE, LINK, TEL1, TEL2
Color
Black, black lens, silver text, green/amber LEDs
Branding
Cisco logo and model number
Figure 3. Cisco Model EPC3208G Back Panel (image may vary from actual product and specification)
Table 2. Back Panel Features
Feature
Description
Power Switch
Turns power on and off to the device (power switch provided only on products carrying the CE
mark)
POWER
Connector Color: Black
Connects modem to the DC output of the AC power adapter
TELEPHONE 1 and 2
Color: Gray
RJ-11 telephone ports connect to home telephone wiring and to conventional telephones or fax
machines
ETHERNET
Connector Color: Yellow
RJ-45 Ethernet port connects to the Ethernet port on your PC or your home network
REBOOT EMTA
Power cycles the modem
CABLE
Connector Color: White
F-connector connects to an active cable signal from your service provider
Product Specifications
Table 3. Product Specifications
Specification
Value
Voice
Call Signaling Protocol
●MGCP/NCS including configurable IPsec encryption
●Configurable to support RFC 2833 event signaling
●Supports Bell103 detection: Improves alarm panel and Point of Sale (POS) interoperability by
optimizing DSP for Bell103 protocol
●Software upgradeable to support Session Initiation Protocol (SIP)

Data Sheet
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 8
Specification
Value
Voice
●The following SIP standards are supported:
◦RFC 2617 HTTP Authentication: Basic and Digest Access Authentication
◦RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
◦RFC 2976 SIP: INFO Method
◦RFC 3261 SIP: Session Initiation Protocol
◦RFC 3262 Reliability of Provisional Responses in SIP
◦RFC 3263 SIP: Offer / Answer Model with the Session Description Protocol (SDP)
◦RFC 3264 SIP: Locating SIP Servers
◦RFC 3265 SIP: Specific Event Notification
◦RFC 3420 Internet Media Type message/sipfrag
◦RFC 3428 SIP: Instant Messaging
◦RFC 3489 STUN - Simple Traversal of User Datagram Protocol (UDP) Through Network
Address Translators (NATs)
◦RFC 3515 SIP: Refer Method
◦RFC 3842 A Message Summary and Message Waiting Indication Event Package for the
SIP
◦RFC 3892 SIP: Referred-By Mechanism
◦RFC 3903 SIP: Extension for Event State Publication
◦Draft-ietf-mmusic-sdescription-09 Session Description Protocol Security Descriptions for
Media Streams
◦Draft-ietf-mmusic-sdp-new-24 SDP: Session Description Protocol Replacement for RFC
2327
◦Draft-ietf-sip-replaces-02 The SIP "Replaces" Header
◦Draft-ietf-sip-session-timer-08 The SIP Session Timer
◦Draft-ietf-sipping-cc-transfer-01 SIP Call Control –Transfer
◦Draft-ietf-sipping-realtimefax-01 SIP Support for Real-time Fax: Call Flow Examples and
Best Current Practices
◦Draft-johnston-sipping-rtcp-summary-07 SIP Service Quality Reporting Event
◦Draft-rosenberg-sipping-acr-code-00 Rejecting Anonymous Requests in the SIP
Basic Configuration
(per line)
●SIP Signaling Port (local receive and source port)
●SIP Registrar
●SIP Proxy
●SIP Outbound Proxy
●Username
●Password
●Authentication name
Provisioning Modes
●Basic, Secure, Hybrid provisioning
●Full EuroPacketCable secure provisioning
●Kerberos support with NVRAM ticket caching
●Configurable EuroPacketCable-lite (MTA config file provisioning without security)
●Configurable for non-EuroPacketCable (MTA configuration using EuroDOCSIS config file)
Voice CODEC support
Negotiate CODEC to use based on ordered list
CODECs
Standard: G.711, T.38 Fax Relay, iLBC and BV16
Software upgradeable to support other CODEC combinations including:
●G.711 and G.728
●G.711 and G.729
●G.711 and G.729 a/e
●G.711 and BV16 and BV32 (High fidelity –near CD quality)
●G.711 and G.723
●G.711 and G.726
Line Diagnostics
GR-909
CODEC Packetization
Levels
10, 20, or 30 mS
CODEC Synchronization
CODEC synchronization to UGS time clock allows slip-free end-to-end sync to PSTN clock
(minimizes frame slips that can cause Fax/Analog Modem call failures)
CODEC Encryption
Configurable to support AES-128 encryption or no encryption modes
Hearing Impaired Services
Support
TDD support including detection of V.18 including Annex A

Data Sheet
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 8
Specification
Value
Voice
Fax and Analog Modem
support
DSP based Modem/Fax Tone detection and support for Voice Band Data Mode with
auto-CODEC negotiation and auto-control of echo canceller, jitter buffer, and voice activated
detection (VAD)
Jitter Buffer Support
Adaptive dynamically controlled
Latency Control
Configurable min / max jitter buffer size
Audio Gain Levels
Independently configurable transmit and receive audio gains
Silence Suppression
Configurable VAD with comfort noise generation
Packet Loss Concealment
ANSI T1.521-1999
Call Connection Quality
Monitoring
RTCP, RFC 1889, RFC 1890, SNMP MIB for last call quality statistics
Dialing Modes
DTMF and configurable pulse dial support
DTMF Relay
RFC 2833 including fast (40mS) DTMF Relay for alarm system signaling compatibility
Layer 2 Quality of Service
●Full EuroPacketCable secure DQOS with GateID including UGS and UGS/AD
●DQOS Lite support including UGS and UGS/AD
Layer 3 Quality of Service
Configurable DiffServe/TOS support for Signaling, RTP, and RTCP flows
Payload Header
Suppression (PHS)
●Supported for RTP and RTCP packet flows to reduce per-call network bandwidth
●Advanced support for Dynamic Payload Header Suppression using Propane Technology
Management
SNMPv3, SNMPv2, Telnet with configurable user ID and password, internal log, and external
Syslog support
Echo Cancellation
●G.168 with extended echo tail support
●32 mS max tail length
VAD
Voice activity detection
CNG
Comfort noise generation
Voice band data
Machine tone detection used to auto switch to data optimized CODEC configuration
T.38 Fax
Supports V.29 and V.17 Modem
Call Feature Support
●Caller ID
●Call Waiting with Caller ID
●Cancel Call Waiting
●Call Conferencing (3-way calls)
●Configurable Hook-Flash Support
●Distinctive Ringing (Configurable for up to 11 ring patterns per phone line)
●Ring Splash
●Stutter Dial Tone
●Off hook Warning Tone
●Open Switch Interval support to enhance answering machine compatibility
●Configurable Star Codes
●Euro/US Hook-Flash Type
●Call Transfer
●Message Waiting Indicator
●Warm Line
●Call Forwarding Unconditional
●Call Forwarding on Busy
●Call Forwarding No Answer
●Call Return
●Redial Call
●Automatic Redial
●Other call features available with compliant CMS or gateway

Data Sheet
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 6 of 8
Specification
Value
Voice
Networking (non-call)
Services
●Known Good Proxy
●Proxy Failover
●Registration Control
●UDP, TCP
●TLS
●DNS
●DQoS-lite
●STUN
●Static NAT
●NAT Keep Alive
SIP Header Control
●User-Agent Header Control
●Server Header Control
●Accept Language Header Control
●Proxy Require Header Control
●FQDN in URI Control
●To-tag Matching Control
●Escape Star Character in URI Field
Administrative Features
●Call Data Record
●Call Statistics Agent
●Debug Console Logging
●Debug Logger
Telephone Ring Loading
Full 5 REN support on each phone line (10 REN total)
Ring Signal
Configurable balanced ring with configurable DC offset
Max Phone Line Distance
Supports up to 1000 ft of AWG26 wire (0.4mm) on each phone line. Supports operation with
typical in-home telephone wiring
Country-Specific
Telephone Parameters
Supported
Australia, United States, Japan, United Kingdom, Germany, France, Belgium, Netherlands,
Finland, Italy, Switzerland, Sweden, Denmark, Brazil, Poland, Czech, Hungary, Romania, ETSI
101 909-18
IPV6
dual IPV4/IPV6
CM and EMTA
DS-Lite
Residential Gateway
Gateway Configuration
Management
●Extensive custom SNMP MIB for the Gateway
●Provisioning with XML and/or with SNMP
●DS-lite mode only
ICSA (Independent
Computer Security
Association) Firewall
Compliant
●Web filtering: Pop-ups, Cookies, Java & ActiveX scripts
●TCP flags, ICMP types fragmentation
●Connection Creation and Teardown
●Timestamps and Payload Modification
Parental Controls
●Per-User Policies
●Keyword blocking
●Domain name blocking
●Time of day filters
●MAC Address Filtering
Advanced Event Logging
●Filtering Activity
●Session Tracking
Routing Features
●NAT: Operation mode - AFTR
RF Downstream
Operating Frequency
Range
108 to 1002 MHz
Tuner Frequency Range
108 to 1002 MHz
Tuner
(1) Frequency agile block tuners, 96 MHz bandpass each
Demodulation
8 demodulators, 64 QAM or 256 QAM

Data Sheet
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 7 of 8
Specification
Value
RF Downstream
Maximum Data Rate
8 downstream channels, each 8 MHz channel:
●55.62 Mbps for 256 QAM and 41.71 Mbps for 64 QAM
Bandwidth
8 or 6 MHz
Operating Level Range
+43 to +73 dBµV for 64 QAM
+47 to +77 dBµV for 256 QAM
Input Impedance
75 ohms
RF Upstream
Operating Frequency
Range
5 to 65 MHz
Transmitter Frequency
Range
5 to 65 MHz
Upstream Transmission
4 upstream channels
Modulation
QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM at ATDMA mode
QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM, 128 QAM at SCDMA mode
Maximum Data Rate per
channel
Channel Raw
Modulation Bandwidth (MHz) Data Rate (Mbps)
QPSK 1.6 2.56
16 QAM 1.6 5.12
QPSK 3.2 5.12
16 QAM 3.2 10.2
32 QAM 3.2 12.8
64 QAM 3.2 15.4
16 QAM 6.4 20.5
32 QAM 6.4 25.6
64 QAM 6.4 30.7
Bandwidth
200 kHz to 6.4 MHz
Maximum Operating Level
TDMA
SCDMA
Modulation One Channel 2 Channels 3 or 4 Channels
QPSK +121 dBµV +118 dBµV +115 dBµV
8 QAM +118 dBµV +115 dBµV +112 dBµV
16 QAM +118 dBµV +115 dBµV +112 dBµV
32 QAM +117 dBµV +114 dBµV +111 dBµV
64 QAM +117 dBµV +114 dBµV +111 dBµV
QPSK +116 dBµV +113 dBµV +113 dBµV
8 QAM +116 dBµV +113 dBµV +113 dBµV
16 QAM +116 dBµV +113 dBµV +113 dBµV
32 QAM +116 dBµV +113 dBµV +113 dBµV
64 QAM +116 dBµV +113 dBµV +113 dBµV
128 QAM +116 dBµV +113 dBµV +113 dBµV
Electrical
Input Voltage
15 VDC
Power Consumption
(modem module)
~ 5.8 Watts
Data Ports
One (1) Ethernet 10/100/1000 BASE-T
RJ-45 port(Auto-sensing with Auto-MDIX)
RF
Female F-Type
Output Impedance
75 ohms
Mechanical
Dimensions (W x D x H)
(Approximate)
Not including "F" connector:
6.99 in. x 6.15 in. x 1.93 in. (17.75 cm x 15.623 cm x 4.9 cm)
Weight (Approximate)
0.34 kg (11.99 oz)

Data Sheet
© 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 8 of 8
Specification
Value
Mechanical
Operating Temperature
-0˚ to 40˚C (32˚ to 104˚F)
Operating Humidity
0 to 90% RH non-condensing
Storage Temperature
-20˚ to 60˚C (-4˚ to 140˚F)
Standards and Approvals
Designed to meet with the
following standards
EuroDOCSIS 3.0, 2.0, 1.1, 1.0
EuroPacketCable 1.5, 1.0
Regulatory Compliance
Regulatory and Safety
Approvals
As required per country where the EPC3208G will be used
Ordering Information
Table 4. Ordering Information
Description
Part Number
5-65/88-1002 MHz Diplex Filter
32 MB Flash x 128 MB DRAM Memory Configuration
EPC3208G EuroDOCSIS 3.0 8x4 Cable Modem with Embedded Digital Voice Adapter. Includes:
●230 VAC / 50-60 Hz, 15 VDC / 1.5 A wall-mount linear-switching power supply, Europe
●Ethernet cable
●CD-ROM containing user guide
Europe
EPC3208-4042538-K9
Replacement Components
Table 5. Replacement Components
Description
Part Number
Power Supply
Class 2 Linear Switching
230 VAC / 50-60 Hz, 15 VDC / 1 A wall-mount linear switching power supply, Europe
4015455
230 VAC / 50-60 Hz, 15 VDC / 1.5 A wall-mount linear switching power supply, UK
4018795
Data Cable
Ethernet, 1.2 meters
740580
CD-ROM
CD-ROM with user guides
4043615
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and
other countries. A listing of Cisco's trademarks and can be found at www.cisco.com/go/trademarks.
EuroDOCSIS and EuroPacketCable are trademarks of Cable Television Laboratories, Inc.
Other third party trademarks mentioned are the property of their respective owners.
The use of the word partner does not imply a partnership relationship between Cisco and any other company.
(1009R)
Specifications and product availability are subject to change without notice.
2012 Cisco and/or its affiliates. All rights reserved.
Cisco Systems, Inc.
800 722-2009 or 678 277-1120 Part Number OL-26958-01
www.cisco.com March 2012
