Thank you for your purchase of this Citizen watch.
Before using the watch, read this instruction manual carefully to ensure
correct use.
After reading the manual, store it in a safe place for future reference.
Visit the Citizen website (http://www.citizenwatch-global.com/) to view
visual guides for operation of your watch. Some models may be equipped
with external features (calculation scale, tachymeter, etc.). Visual guides for
operation of such external features can also be found on the website.
To check the movement number
A case number—4 alphanumeric characters and
6 or more alphanumeric characters—is engraved
on the case back. (Figure on the right)
The first 4 characters of the case number
represent the movement number of the watch. In
the example on the right, " " is the
movement number.
Engraving position example
The engraving position may differ
depending on watch model.

2
This manual contains instructions that should be strictly followed at all times
not only for optimal use, but to prevent any injuries to yourself, other persons or
property.
We encourage you to read the entire booklet (especially, pages 68 to 79) and
understand the meaning of the following symbols:
■ Safety advisories are categorized and depicted in this manual as follows:
DANGER Highly likely to cause death or serious injury
WARNING Can cause serious injury or death
CAUTION Can or will cause minor or moderate injury or damage
Safety precautions (IMPORTANT)

3
English
■ Important instructions are categorized and depicted in this manual as follows:

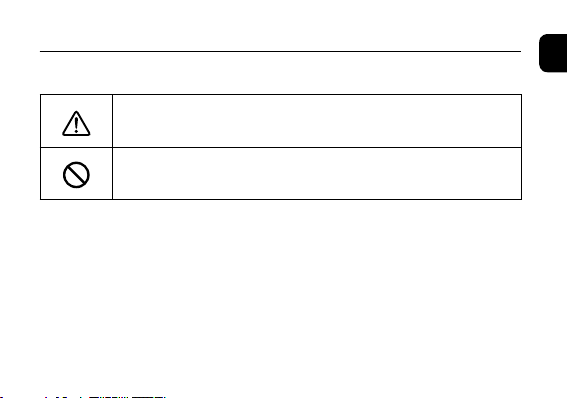

Warning (caution) symbol followed by instructions that should
be followed or precautions that should be observed.
Warning (caution) symbol followed by prohibited matters.
Safety precautions (IMPORTANT)

4
Before using this watch
After unpacking, the following must be carried out before using the watch:
◆ Checking the power reserve Page 17
Check the charge level of the watch.
◆Setting the World Time Page 21
Select the city for which you want to indicate the time and date.
◆ Receiving the satellite time signal Page 28
Correct the time by receiving the satellite time signal.
This watch has a rechargeable cell which is charged
by exposing the dial to light.
Expose the dial to light regularly to charge the watch.
For details of charging, see pages 12 to 19.

5
English
◆Protective stickers
Be sure to remove any protective stickers that may be on your watch (case back,
band, clasp, etc.). Otherwise, perspiration or moisture may enter the gaps between
the protective stickers and the parts, which may result in a skin rash and/or
corrosion of the metal parts.
◆Band adjustment
We recommend seeking the assistance of an experienced watch technician
for sizing of your watch. If adjustment is not done correctly, the bracelet may
unexpectedly become detached leading to loss of your watch or injury.
Consult your nearest authorized Citizen service center.
Before using this watch

6
◆How to use a specially designed crown/push button
Some models are equipped with a specially designed crown and/or push button to
prevent accidental operation.
Screw down crown and screw down push button
Unlock the crown prior to operate your watch.
Unlock Lock
Screw
down
crown
Rotate the crown
counterclockwise until
it releases from the
case.
Push the crown in to
the case. With gentle
pressure towards the
case, rotate the crown
clockwise to secure it
to the case. Be sure to
tighten firmly.
Screw
down push
button
Rotate the
locking screw
counterclockwise, and
loosen until it stops.
Rotate the locking
screw clockwise, and
tighten firmly.
Before using this watch

7
English
Recessed buttons
Press the button with a narrow-tipped object such
as a wooden toothpick.
Before using this watch

8
Table of contents
Features ……………………………………………………………… 10
Component identication ………………………………………… 11
Charging your watch………………………………………………… 12
Using the world time function ……………………………………… 20
Switching summer time and standard time ……………………… 25
Before receiving the satellite time signal ………………………… 28
Turning o the signal reception …………………………………… 34
Receiving the satellite time signal ………………………………… 35
Checking and adjusting leap seconds……………………………… 43
Checking and adjusting the rollover number …………………… 46
Adjusting the time/calendar manually …………………………… 50

9
English
Table of contents
Checking and correcting the current reference position ………… 56
Troubleshooting …………………………………………………… 60
Eco-Drive (solar powered) watch handling precautions ………… 68
Water resistance …………………………………………………… 72
Precautionary items and usage limitations ……………………… 74
Specications………………………………………………………… 80

10
Features
* "Eco-Drive" is Citizen original technologies.
"Satellite controlled watch"
Receives the time information sent from
the satellite and adjusts the time and
calendar on the watch.
* Location information is not acquired.
"World Time"
Easy to see the time and calendar of
cities all over the world.
"Eco-Drive"
No need for periodical changing
of rechargeable cells. The watch is
charged by light.
"Perpetual calendar"
No need for date correction at the
end of each month.
The leap year is also updated
automatically.

11
English
Component identification
LON
PAR
ANT
RUH
DXB
KHI
DEL
DAC
BKK
BJS
TYO
ADL
SYD
NOU
AKL
MDY
HNL
ANC
LAX
DEN
CHI
NYC
SCL
RIO
FEN
PDL
• The illustrations in this instruction manual may differ from the actual appearance of your watch.
• A solar cell is located under the dial.
Minute hand
Upper right button Ⓑ
24-hour hand
Crown
Lower right button Ⓐ
City indication
Hour hand
Reception result
indicator (OK/NO)
Reception-in-progress
indication (RX)
Second hand
Function indication
• Day of the week
• Summer Time
indication (ON/OFF)
• Power reserve level
Date indication

12
This watch has a rechargeable cell which is charged by exposing the dial to light, such
as direct sunlight or fluorescent lamps.
After taking off the watch, put it in a location where the dial is exposed to bright light,
such as by a window.

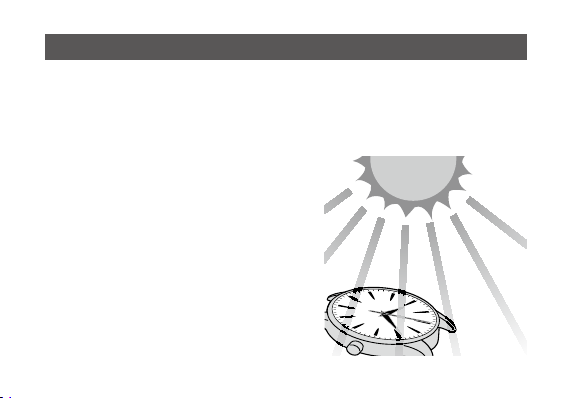

The watch can be charged effectively when the dial is exposed to sunlight as shown in
the figure.
For optimal performance, be sure to:
• Thiswatchcontainsalargecapacitybattery
for performing power-consuming satellite
signal reception. This battery takes some time
until it is fully charged.

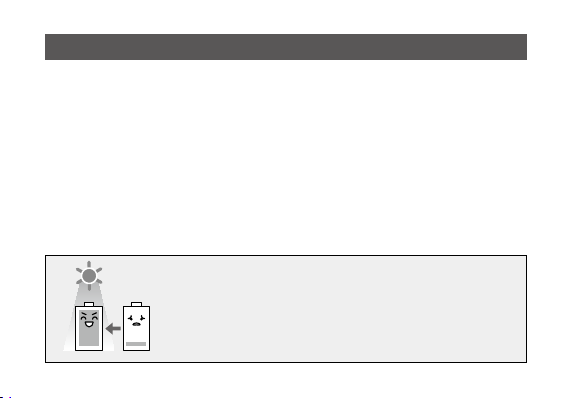

• Chargethewatchbyexposingittodirect
sunlight for five to six hours at least once
every two weeks.
• Avoidleavingthewatchinadarkplacefor
long periods of time.
Charging your watch

13
English
• If the watch is obscured from light by long sleeves frequently, supplemental
charging may be needed to ensure continual operation.
• Do not charge the watch at a high temperature (about 60°C (140°F) or higher) as
doing so may cause movement malfunction.
• If the surrounding temperature falls below 0°C (32°F) or exceeds 40°C (104°F), the
“Charge suspension temperature detection function” will activate and charging will
not be possible.
Charging your watch

14
Charging your watch
◆When the watch reaches a low charge state (insufficient charge
warning function)
When the power reserve becomes low, the second hand moves once every two
seconds. This is the insufficient charge warning function. Be sure to fully charge
your watch.
• Whenthewatchissufficientlycharged,thesecondhandwillmovenormally.
• Ifyoudonotchargethewatchfor10daysorlongeraftertheinsufficientcharge
warning movement has begun, the watch
will be depleted of all power and stop.
Even when the second hand moves
once every two seconds, the current
time and date are indicated, and you
can adjust the time and date. However,
satellite time signal reception and other
operations are not possible.

15
English
Charging your watch
◆Charging time by environment
Below are the approximate times required for charging when exposing the watch
dial to light continuously. Please use this table as a reference only.
Environment Illuminance
(lx)
Charging time (approx.)
To work for one
day
To start working
normally when the
cell is discharged
To become fully
charged when the
cell is discharged
Outdoors (sunny) 100,000 9 minutes 15 hours 150 hours
Outdoors (cloudy) 10,000 25 minutes 45 hours 340 hours
20 cm (7-7/8 inches)
from a fluorescent
lamp (30 W)
3,000 1.5 hours 150 hours —
Interior lighting 500 8 hours — —
• To charge the rechargeable cell, it is recommended to expose the dial to
direct sunlight. A fluorescent lamp or interior lighting does not have sufficient
illumination to charge the rechargeable cell.
•
When the battery is fully charged, the overcharge protection function stops the charging so
that the watch performance and rechargeable cell are not adversely affected by overcharge.

16
Caution: This watch uses a special rechargeable cell.
• If the surrounding temperature falls below 0°C (32°F) or exceeds 40°C (104°F), the
“Charge suspension temperature detection function” will activate and charging will
not be possible.
• If you do not charge the watch for 60 days after it has stopped, the “Over discharge
detection function” will activate and charging will not be possible.
If the watch does not work even after charging for more than one day under direct
sunlight, request replacement of the rechargeable cell.
Fully charged to fully discharged: Approximately 2 years
(When receiving the satellite time signal once every two days)
Power reserve upon insufficient charge warning function (page 14): 10 days
Charging your watch

17
English
Ⓐ
01 2
Charging your watch
◆Checking the power reserve
Check the current power reserve.
1. Ensure that the crown is in position 0.
2. Press the lower right button Ⓐ.

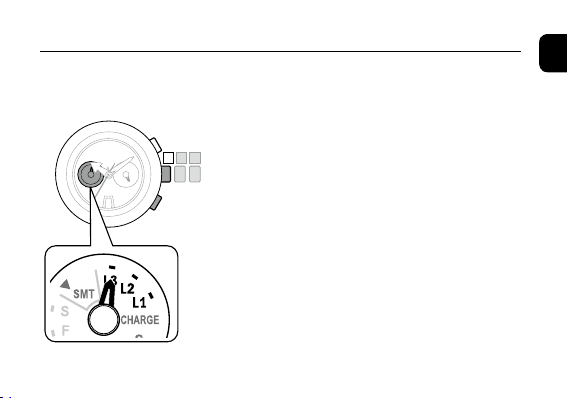

The function indication shows the power reserve
level.
• Fordetailsonthepowerreservelevel,seethe
next page.
3. Press the lower right button Ⓐto finish the
check procedure.
• Thecurrenttimeindicationwillresume
automatically when leaving the watch for
approx.10seconds.

18
Charging your watch
The power reserve level
Level 3210
Power
reserve
level
Approximate
duration of
operation at
each level
Approx. 730 to 365 days Approx. 365 to 16 days Approx. 16 to 10 days Approx. 10 days
Power reserve
is sufficient for
all features and
functions. Optimal
performance is
achieved at this
level.
Power reserve is
sufficient for all
operations at this
level.
Power reserve is
getting low. The
watch should be
fully charged to
ensure optimal
performance.
Power reserve is
not sufficient for
normal operation.
The watch must
be fully charged.
The watch must be charged immediately.
Charging your watch

19
English
Charging your watch
• When the power reserve is at the CHARGE level, the second hand indicates the
insufficient charge warning state (by moving once every two seconds). You can
manually correct the time and calendar, but you cannot perform the other operations
and receive satellite signals.
• When the watch temperature is too high or too low or
when the watch is not sufficiently charged due to low
illuminance, the function indication makes one
clockwise turn to indicate the day of the week. This
indication means the uncharged state (that is, the watch
is not charged). Place the watch in a bright location at a
moderate temperature to charge it.
