INDEX
MW4G※2-T8G※
Serial Transmission Type
Manual No. SM-295301-A
1. PRODUCT
1.1 General outline of the system ················································ 3
1.2 Structure of the System······················································· 5
1.3 specifications···································································· 6
1.4 External dimensions of solenoid valve ···································· 10
1.5 Outside view of valve slave station ······································· 13
1.6 Indications and switches on slave station ································ 14
1.7 Connection connector······················································· 15
2. CAUTION ··········································································· 16
3. OPERATION
3.1 Switch setting ································································· 17
3.2 Correspondence between slave station input/output No.
and PLC address No. ········ 19
3.3 Programming ·································································· 21
4. INSTALLATION
4.1 Installation····································································· 22
4.2 Wiring ·········································································· 24
5. MAINTENANCE
5.1 Disassembling and reassembling
this product (slave station) ············ 30
5.2 Troubleshooting ······························································ 31
6. HOW TO ORDER ································································ 34

[SM-295301-A]
―3―
PRODUCT
１
１． PRODUCT
１．１ General outline of the system
1) MW4G※2-T8G※
This solenoid valve system is equipped with a remote I/O station(NW4G※
2-T8G ※), the CC-Link open field network system. (This is specified by
CC-Link Partner Association. :hereafter referred to as CLPA)
The following features are provided.
(1) It helps to curtail wiring man-hours as it requires twist pair cables only to
connect it with PLC.
(2) This slave station is an environment-proof slave station applicable to the
protection structure IP65 (dust-proof and jet-proof type).
(3) Upper and side wiring directions are provided, ensuring reduction of the
installation space.
(4) The power supply for the slave station is separated from that for the valve,
ensuring easy maintenance work.
(5) The energized status of the valve power supply can be checked by using the
master station through the communication. (Detection function, such as fuse
blow-up)
(6) The slave station output status, if the communication error occurs, can be
set using the switch (holding or all points OFF).
2) CC-Link
The CC-Link is Open field network system for FA including remote I/O devices
(Sensor and valve, etc.) and intelligent devices (high-speed counters, inverters,
etc.), can be configured with reduced wire connections. Moreover, the user can
create programs that control these devices installed away from the master
station without being aware of the communication protocols.
The CC-Link system has following features:
(1) 10Mbps network, the fastest network in the industry, is applicable to a
sensor and large capacity data communication requiring the high-speed
response.
(2) Remote control handling the bit data and data communication handling word
data (analog) can be performed at the same time. The communication is also
stable at a high speed.
(3) “n : n” cyclic transmission can be performed between the controllers,
ensuring easy distributed control.

[SM-295301-A]
－4－
PRODUCT
１
Note: efore using this product, thoroughly red the User’s Manual.
This document mainly describes MW4G※2-T8G※ and slave station(NW4G
※2-T8G※). For details about other units to be connected to the CC-Link,
read relevant User’s Manual. efore operating this manifold solenoid valve,
thoroughly read both this document and above manual to fully understand
its functionality and performance.
If the customer has any question about the CC-Link, contact the following
home page.
CC-Link Association
Home page address: http://www.cc
http://www.cchttp://www.cc
http://www.cc-
--
-link.org
link.orglink.org
link.org

[SM-295301-A]
―5―
PRODUCT
１
１．２ Structure of the System
This system chiefly consists of PLC body, Master unit, Solenoid valve MW4G※
2-T8G※ and peripheral equipment.
 Combination of PLC and Master unit
Type of CPU Type of Master unit
AnN / AnA / AnU series AJ61 T11
AnS / A2US series A1SJ61 T11
QnA series AJ61Q T11
Q2AS series A1SJ61Q T11
Q series QJ61 T11
others Master station applicable to
CC-Link
 Fundamental structure of system
Master station Station controlling remote I/O stations, remote device stations, and local stations.
Remote I/O station······················ Remote station that handles ON/OFF data only.
Remote device station·················· Remote station that handles ON/OFF data and numerical data.
Local station······························· Station that has its own CPU and can communicate with the master station and other local
stations.
Intelligent device station·············· Station informed by the transient transmission (including the local station).
PLC
Master station
Remote device
station
Remote I/O
station
PLC
Loca
l station
ＣＣ－Ｌｉｎｋ system
Remote I/O
station

[SM-295301-A]
－6－
PRODUCT
１
１．３ Specifications
1) Specification of solenoid valve
(1) Common specifications
Model No.
Item W4G2
Media Compressed air
Valve configuration Pilot operation
Applicable solenoid valve Soft spool valve
2 positions 0.2
Minimum working
pressure MPa 3 positions
0.2
Maximum working pressure MPa 0.7
Proof pressure MPa 1.05
Ambient temperature ℃ -5～55
Media temperature ℃ 5～55
Manual override Common (standard) for non-locked and locked types
Internal pilot Common exhaust for main and pilot valves
Pilot air exhaust
method External pilot
Individual exhaust for main and pilot valves
Lubrication ※1 Not required
Protection rating ※2 Dust proof and jet-proof (IP65)
Vibration/Impact m/s
2
49 or less / 249 or less
Atmosphere Operation in the presence of corrosive gas not allowed
※1 : If lubrication is required, use turbine oil ISO VG32 ,1st grade.
Excessive lubrication or intermittent lubrication may cause unstable operation.
※2 : ased on IP65 (IEC60529[IEC529 : 1989-11]) standard test method. The sealing ability must be checked before
starting operation.
Reference The unit of the pressure is MPa. The conversion rate is ”1MPa=10.1972kgf/cm
2
”.
(2)
Electrical specifications
Model No.
Item W4G2
Rated voltage V DC24
The range of rated voltage fluctuation. ±10%
Holding current A 0.025
Power consumption W 0.6
Heat-proof class
Surge absorber Standard device
Indicator Standard

[SM-295301-A]
―7―
PRODUCT
１
(3)
Specifications by model
Item ON OFF
Single 22 24
2 positions
Double 26 －
Response time
ms 3 positions
A R
connection
25 35
The response time shown in the table is with the supply pressure of 0.5 MPa and no lubrication. It changes depending
on the supply pressure and the type of oil in the case of lubrication.
Item Valve specifications Change –over position class P→A/ A/ →R
2 positions 13 13
CC 11 11
A R connection 11 13
Sole unit W4G 2
3
positions
PA connection 15 11
2 positions 11 9 (12)
CC 10 10
A R connection 10 9 (12)
Effective sectional area
mm
2
Manifold MW4G2
series 3
positions
PA connection 12 10
• Values shown in ( ) are those when the exhaust malfunction prevention valve is not installed.
• These values are obtained when the connecting diameter of the A・ port is φ8 push-in joint.
2) Slave station specifications
(1) Transmission specifications
Item Specifications
Transfer rate 156k / 625k / 2.5M / 5M / 10M bps (selectable)
Max. transfer distance(overall cable length) Depends on transfer rate (※1)
Call processing Polling
Synchronization Frame synchronization
Encoding NRZI
us RS485
Data transfer format HDLC
Error detection CRC (X
16
+ X
12
+ X
5
+ 1)
Cable Shielded twist pair cable (See 4.1”Wirng”.)
※1 “Max. transfer distance”
The following explains the relationships between the transfer rate and the maximum transfer distance:

[SM-295301-A]
－8－
PRODUCT
１

System Configuration including local station and intelligent device station
② ① ② ② ②
③ Max. transfer distance
Cable exclusively for CC-Link
(KURAMO DENKO: FANC-S , etc.)
High-performance cable exclusively for CC-Link
(KURAMO DENKO: FANC-S H, etc.)
RATE
Transfer
rate ①※ ② ③
① ※ ② ③
1.0m or more 100m or less 1.0m or more 80m or less
0.6m or more 80m or less 0.7m or more
2m or more
50m or less
4 10Mbps
0.3m or more 50m or less － － －
0.6m or more 150m or less 0.6m or more 150m or less
3 5Mbps 0.3m or more 110m or less
0.3m or more 110m or less
2 2.5Mbps 200m or less 200m or less
1 625kbps 600m or less 600m or less
0 156kbps
0.3m or more
2m or more
1200m or less
0.3m or more
2m or more
1200m or less
※ The length shown in Conditions ① above indicates the length of a cable getting between the remote I/O station or remote device
station, and the cable length when the master station, local station and intelligent station are connected to either one at least is as
shown in Condition.
 System comprising the remote I/O station and remote device station only
1m or more ① ① ①
② Max. transfer distance
Cable exclusively for CC-Link
(KURAMO DENKO: FANC-S , etc.)
High-performance cable exclusively
for CC-Link
(KURAMO DENKO: FANC-S H,
etc.)
RATE
Transfer
rate
No. of
total
remote
①
② ②
1.0m or more 100m or less 100m or less
0.7m or more 80m or less 100m or less
0.6m or more 80m or less 30m or less
0.4m or more 50m or less 30m or less
64 or less
0.3m or more 50m or less 20m or less
0.4m or more 50m or less 100m or less
48 or less
0.3m or more 50m or less 80m or less
4 10Mbps
32 or less 0.3m or more 50m or less 100m or less
0.6m or more 150m or less 160m or less
3 5Mbps
0.3m or more 110m or less 160m or less
2 2.5Mbps 200m or less 400m or less
1 625kbps 600m or less 900m or less
0 156kbps
64 or less
0.3m or more
1200m or less 1200m or less
※ 1. Since the transfer distance varies, depending on the transfer rate and communication cables used or the like, refer
to the CC-Link User’s Manual issued by MITSU ISHI ELECTRIC EQUIPMENT CO, LTD. or check it through the
cable manufacturer, etc.
2. Since the number of stations (remote stations) connected differs, depending on the number of occupied stations and
conditions of transfer distance or the like, refer to the CC-Link User’s Manual issued by MITSU ISHI ELECTRIC
EQUIPMENT CO, LTD. or check it through the cable manufacturer, etc.
3. The CC-Link exclusive cable and CC-Link exclusive high-performance cable should not be mixed with each for use.
Local station
Intelligent
device
station
Local station
Intelligent
device
station
Master
station
Remote I/O
station
Remote device
station
Remote I/O
station
Remote device
station
Remote I/O
station
Remote device
station
Remote I/O
station
Remote device
station
Master
station
Remote I/O
station
Remote device
station
Remote I/O
station
Remote device
station
Remote I/O
station
Remote device
station
Remote I/O
station
Remote device
station
Remote I/O
station
Remote device
station

[SM-295301-A]
―9―
PRODUCT
１
(2) Slave station specification
Item T8G1 T8G2 T8G7
Power voltage (Unit side) DC21.6V～26.4V (DC24V ±10%)
Electric consumption (Unit side) 60mA or lower (While all
points are ON.)
100mA or lower (While all
points are ON.)
70mA or lower (While all
points are ON.)
Power voltage (Valve side) DC22.8V～26.4V (DC24V +10%, -5%)
Electric consumption (Valve side) 15mA or lower (While all points are OFF.)
Insulation resistance etween all external terminals in a lump and Case 30MΩ or more DC500VM
Withstanding voltage etween all external terminals in a lump and Case AC500V for 1minitue
noise proof 600Vp-p Pulse width 100nsce, 1μsec
Durability 10～150～10Hz 1 octave/min. 15 sweeps in the 3 each axis of X, Y and Z while the half
amplitude is 0.75mm or 98m/s
2
whichever smaller.
Vibration proof Wrong
operation
10～150～10Hz 1 octave/min. 4 sweeps in the 3 each axis of X, Y and Z while the half
amplitude is 0.5mm or 68.6m/s
2
whichever smaller.
Shock proof 294m/s
2
3directions 3 times
Ambient temperature -5～55℃
Ambient humidity 30～85%RH (No dew fall)
Working environment No corrosive gas
Communication object In conformity with CC-Link Ver1.10.
Transfer rate 156k/625k/2.5M/5M/10M bps (Selectable)
No. of input and output points
(I/O) (0/16) (0/32) (16/16)
Output insulation type photo coupler insulation
Max. load current 40mA /point
Leak current 0.1mA or lower
Residual voltage 0.5V or lower
Output type NPN transistor open collector output
Fuse Power supply for slave stations：24V 1A / Power supply for valve：24V 2A （not
replaceable）
Action indicator LED (Power supply for slave stations and communication status indicator only)
No. of monopolized stations 1 station

[SM-295301-A]
－10－
PRODUCT
１

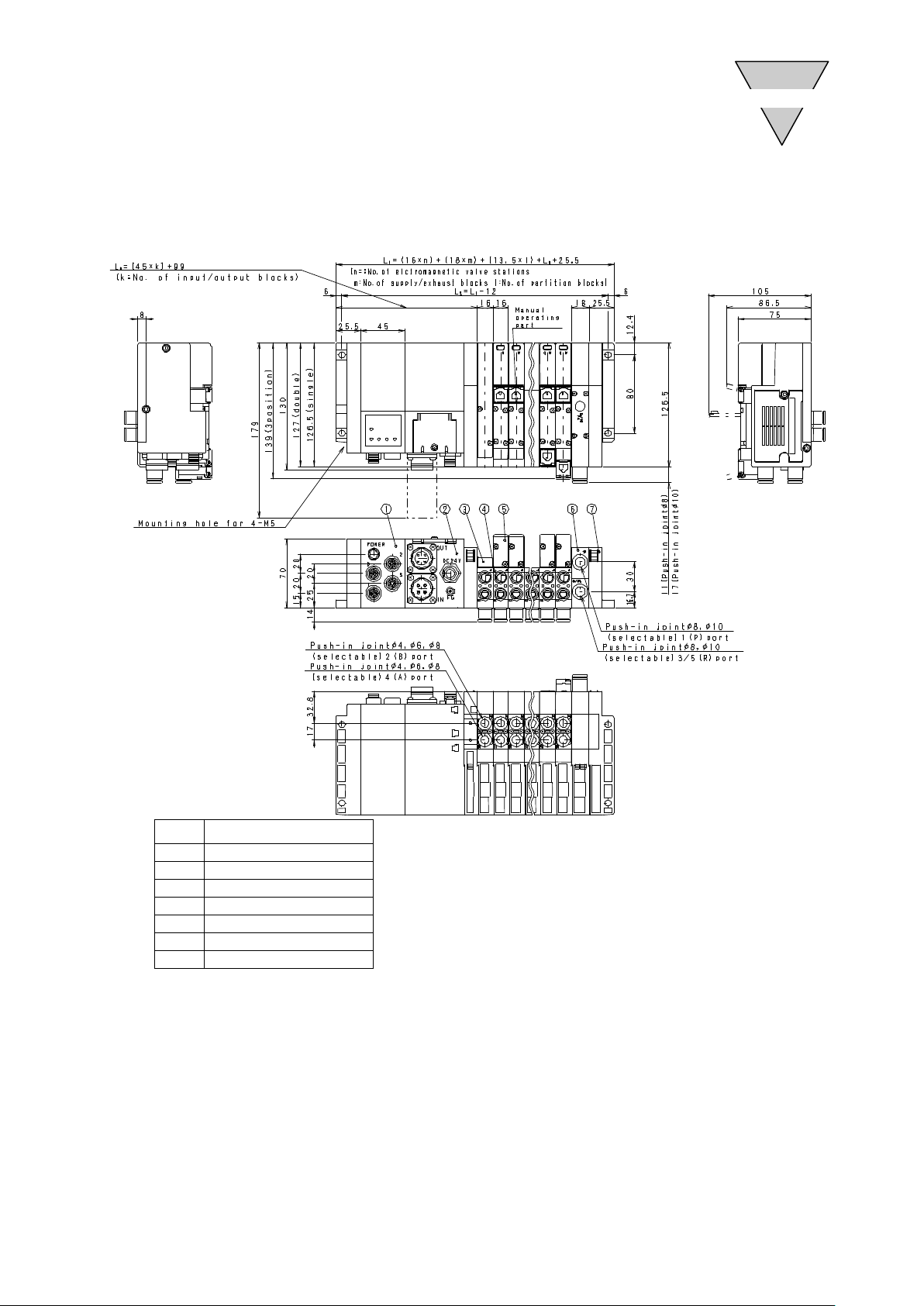

１．４ External dimensions of solenoid valve
1) Upper wiring type
• MW4GA2※0-T8G※
No. Name of parts
1 Input/Output block
2 Electric component
bloockT8G※
3 Masking plate
4 Valve block
5 Solenoid valve main body
6 Supply /exhaust blocks
7 End blocks R

[SM-295301-A]
―11
―
PRODUCT
１
2) Side wiring type
• MW4G 2※0-T8G※
No. Name of parts
1 Input/output unit
2 Electric componentT8G※
3 Masking plate
4 Valve block
5 Solenoid valve main body
6 Supply /exhaust blocks
7 End blocks R

[SM-295301-A]
－12－
PRODUCT
１
3) Side wiring type
MW4GZ2※0-T8G※
No. Name of parts
1 Input/output unit
2 Electric componentT8G※
3 Masking plate
4 Valve block
5 Solenoid valve main body
6 Supply /exhaust blocks
7 End blocks R

[SM-295301-A]
―13―
PRODUCT
１

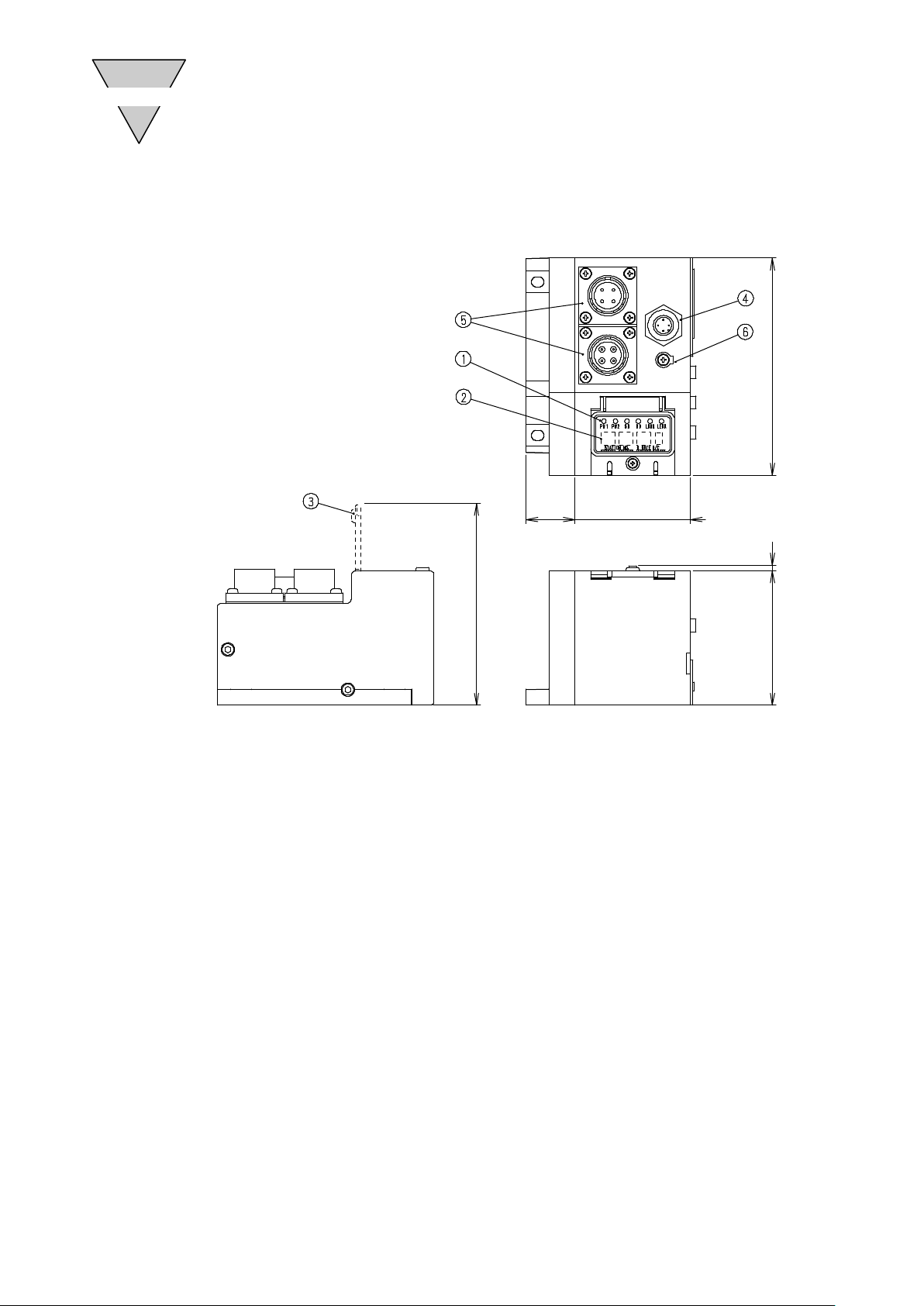

１．５ Outside view of valve slave station
① Monitor lamp
The monitor lamp LED indicates the status of the slave station main body and
network.
② Setting switches
These switches are used to set a station No., transmission speed, and an output of
the slave station when the communication error occurs.
③ Switch cover
This switch cover protects the monitor lamp and setting switches.
④ Power supply connector (M12-connector, male-pin)
The unit power supply and valve power supply are connected to this connector.
⑤ Communication connector
The communication cable of the network is connected to this connector.
⑥ FG terminal (M3)
The grounding work is carried out from this terminal.
25.5 60
113
70
3
105

[SM-295301-A]
－14－
PRODUCT
１
１．６ Indicators and switches on Slave station
1) Monitor lamp
Various LED lamps are installed in front of station to aid visual verification of
operational conditions. Each function is printed on the sheet made of resin.
Make use of them during maintenance works or for verification of operation.
Name of LED Content of indication
PW1 Lit when unit power is ON.
PW2 Lit when valve power is ON.
SD links while Data being output.
RD links while Data being input.
L RUN
This checks whether or not the slave station correctly exchanges the data with the master station. Lit
when data is received normally from the master station. Goes off when data is absent for a preset period
of time.
L ERR
Lit when a transmission error (CRC error) is detected.
Goes off after a preset period of time. (The RUN lamp is also off.)
Lit when the user specifies a value out of range when setting the station number or transfer rate.
(When
the setting is corrected and the power is turned ON again, the lamp will go off.)
links when the station number or transfer rate setting is modified during operation.
(The RUN lamp is lit. The slave station starts operation with the station No. setting and transmission
speed setting made when the power is turned ON.)
2) Setting switch
This switch is used to set a station No. allocated to the slave station and a
transmission speed.
Name of switch Content of setting
Station number setting Sets the slave station numbers within the bounds of 01-64.
Transfer rate setting Sets the transfer rate between the master and slave stations. A value ranging
from 0 to 4 is set.
Setting of output status in case of an
error Specify whether to hold (HDL) or clear (CLR) the output when an error occurs.
 Before changing the switch positions, be sure to cut the power.
 Tighten the switch cover screw with a specified tightening torque (0.3 to 0.4N･m). If the screw is
tightened insufficiently, the protection structure may not be kept.
 Keep the cover closed except when you have to change switch positions or reconnect wires. If
you keep the cover open unnecessarily, foreign matter may enter the circuit board causing an
unexpected failure, or the cover may be broken by accidental contact. While the cover is open as
you change switch positions or reconnect wires, be careful not to cause the entry of foreign
matter.
 Setting switch has been precisely built. Disorderly handling may cause damage of switch. To set
！
CAUTION:
CAUTION:CAUTION:
CAUTION:

[SM-295301-A]
―15―
PRODUCT
１
station number, never touch internal circuit printed board.

[SM-295301-A]
－16－
PRODUCT
１
１．７ connection connector
The wiring of this slave station is performed using the water-proof connector as
shown in the Fig.
Symbol Function Objects to be connected
IN / OUT Communication
connector
Connect to the master station, other remote I･O station,
and communication terminals (DA･D ･DG･SLD) of the
remote device station.
DC24V Power connector
The power connector is connected to the unit power
supply and valve power supply.
Unit power ： DC24V±10%
Valve power ： DC24V+10 / -5%
FG Ground terminal The 3rd grade or higher grounding work specially
designed for the sequencer shall be performed.※1
※ 1: SLD and FG terminals are connected inside the slave station unit.
 Touching the electrical wiring connection part (bare live part) may cause an electric
shock. Before starting the wiring work, always shut-down the power completely.
Additionally, do not touch any electrically live part by wet hand.
 Pay special attention so that any tensile force or impact is not applied to the power
cable and communication cable. Additionally, if the wiring distance is long, unexpected
force due to own weight or shock may be applied, causing the unit to break.
Therefore, to prevent such troubles, take appropriate measures, such as securing of
the wires and cables to the machine.
！
CAUTION:
CAUTION:CAUTION:
CAUTION:
Communication connector
（OUT）
Communication connector
（IN）
Power supply connector
（M12 connector）
FG terminal

[SM-295301-A]
―17―
CAUTION
２
２. CAUTION
•
Refer to User’s manual for the master station concerning to transmission delay
time. The transmission delay within the entire system depends on the scan time
achieved by the PLC unit and on other devices included in the network.
• Solenoid valve responding time, of course, varies depending on model.
It is advisable of referring to valve specification.
• As for OFF time, there is another delay factor of approx. 20ms due to flywheel
diode being used for surge absorbing circuit to valve slave station.
• Connect the power supply cable and signal cable correctly within the
specifications so that any incorrect wiring is not performed.
• Pay special attention so that any tensile force or impact is not applied to the
power supply cable and signal cable.
• efore turning ON the power, make sure that the various connection cables and
connectors are connected firmly.
• Disassembly, modification, and/or repair made by the customer may cause a
trouble or malfunction. Never attempt to disassembly, modify, and/or repair the
unit.
• Many precision devices are mounted inside the unit. Do not drop the unit or
apply vibration or impact to the unit.
• If any connector is disconnected or connected with the electric power supplied,
this may cause a trouble or malfunction. Do not disconnect or connect any
connector with the electric power supplied.

[SM-295301-A]
－18－
OPERATION
３
３． OPERATION
３．１ Switch setting
The switches are used for different kinds of setup: setting the station number,
setting the transfer rate, specifying whether to hold or clear the output during
an error. Since different switches are used for different kinds of setup, you must
correctly identify the switch to be used. efore changing the switch positions, be
sure to cut the power.
SW1 SW2 SW3 SW4
 Before changing the switch positions, be sure to cut the power.
 Tighten the switch cover screw with a specified tightening torque (0.3 to 0.4N･m). If the screw is
tightened insufficiently, the protection structure may not be kept.
 Keep the cover closed except when you have to change switch positions or reconnect wires. If
you keep the cover open unnecessarily, foreign matter may enter the circuit board causing an
unexpected failure, or the cover may be broken by accidental contact. While the cover is open as
you change switch positions or reconnect wires, be careful not to cause the entry of foreign
matter.
 Setting switch has been precisely built. Disorderly handling may cause damage of switch. To set
station number, never touch internal circuit printed board.
1) Station number setting (SW1, 2)
Assign a station number to the slave station using a number between 01 and
64.
• Use the “×10” switch to specify the 10
column digit in the station number.
• Use the “ ×1” switch to specify the 1
column digit in the station number.
2) Transfer rate setting (SW3)
Set the transfer rate for communication between the master and slave
stations
.
Setting Transfer rate
0 156kbps
1 625kbps
2 2.5Mbps
3 5Mbps
4 10Mbps
！
CAUTION:
CAUTION:CAUTION:
CAUTION:
Can’
t use the same
station No.

[SM-295301-A]
―19―
OPERATION
３
 The transfer rate should be set in the same manner as with all master stations, local stations and
remote stations on the network. If this setting differs even in one station, no normal data link is
possible.
3) Other setups (SW4)
The output status (holding or clear) if the communication error occurs is set.
Position
No. Function CLR HLD
No.1
Specifies whether to hold or clear the
output when an error (bus line error,
time over, etc.) occurs.
Clear Hold
№1 №2
！
CAUTION:
CAUTION:CAUTION:
CAUTION:
