Clarke DEVIL 7003 Instruction Manual

OPERATION & MAINTENANCE
INSTRUCTIONS
DL0623 - ISS 9
ORIGINAL INSTRUCTIONS
Only suitable for well insulated areas and not designed
to be the primary heat source
3KW ELECTRIC FAN HEATER
MODEL NO: DEVIL 7003
PART NO: 6935450

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
THE FOLLOWING TABLE ADDRESSES THE INFORMATION
REQUIREMENTS OF REG.2015/1188
Item Symbol Value Unit
Heat output
Measured seasonal space heating energy efficiency 36%
Nominal heat output Pnom 3kW
Minimum heat output (indicative) P min 1.5 kW
Maximum continuous heat output P max 3kW
Auxiliary electricity consumption
At nominal heat output elmax n/a kW
At minimum heat output el min n/a kW
In standby mode elSB n/a kW
Type of heat input for electric storage local heaters only
Manual heat charge control with integrated thermostat No
Manual heat charge control with room and/or outdoor temperature
feedback
No
Electronic heat charge control with room and/or outdoor temperature
feedback
No
Fan assisted output No
Type of heat output/room temperature control (select one)
Single stage heat output, no temperature control No
Two or more manual stages, no temperature control No
With mechanical thermostat temp control Yes
With electronic temperature control No
Electronic temperature control with day timer No
Electronic temperature control with week timer No
Other control options (multiple selections possible)
Room temperature control with presence detection No
Room temperature control with open window detection No
Room temperature control with distance control option No
Room temperature control with adaptive start control No
Room temperature control with working time limitation No
Room temperature control with black bulb sensor No

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SAFETY SYMBOLS
The following symbols appear on the unitt.
SAFETY RULES
Make sure that you read, understand and comply with the following.
ELECTRICAL SAFETY
• Regularly inspect the power cable / plugs and all electrical connections
for signs of damage/looseness. Do not use the heater it the power cable
is damaged.
• Minimise the risk of electric shock by installing a RCCB (Residual Current
Circuit Breaker) and a suitable isolator into the main distribution board.
• Make sure that the voltage on the rating plate is the same as the
voltage of the power supply. If in doubt, consult a qualified electrician.
• Do not abuse the electrical cable. Never use the cable for pulling or
unplugging the heater.
• Keep the cable away from sources of heat, oil, sharp edges or moving
parts. Damaged or tangled cables increase the risk of electric shock.
• Do not use extension cables with this heater.
Hot Surface,
Do Not Touch
Do Not Cover
WARNING: THIS HEATER MUST BE EARTHED

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
MAINTENANCE.
• Check that the heater is in good working order. Take immediate action
to repair or replace damaged parts.
• Do not allow the heating elements to become covered with dust which
could become a fire hazard. If used in a dusty workplace it should be
cleaned as described under Cleaning and Maintenance.
• Use recommended parts only. Unapproved parts may be dangerous
and will invalidate the warranty.
• DO NOT attempt to repair a damaged heater, contact the Clarke
service department.
POSITIONING
• Heater is designed for indoor use only.
• DO NOT place the heater close to a bath, wash basin, shower, swimming
pool or any other water-filled area or wet surface. DO NOT place the
heater up against any surface such as a wall, door or furniture etc.
• DO NOT place the heater immediately below any electrical outlet.
• NEVER place the heater near combustible materials such as curtains,
furniture etc. Allow at least 2 metre clearance.
• DO NOT place the heater on a raised surface or anywhere where it
could topple over
• Take care to ensure that the grille cannot be blocked by curtains or
other fabrics.
• Do not operate fan heaters in explosive atmospheres such as in the
presence of flammable liquids, gasses or dust such as in a paint spray
booth or any explosive environment. Electric motors create sparks which
may ignite dust or fumes.
WARNING: DISCONNECT THE HEATER FROM THE POWER SUPPLY, BEFORE
SERVICING OR PERFORMING ANY MAINTENANCE. SERVICING OR
MAINTENANCE MUST ONLY BE CARRIED OUT BY THE CLARKE SERVICE
DEPARTMENT.
WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,
LIQUIDS, SOLIDS, GASSES OR COMPRESSED GAS CYLINDERS ETC.

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
COMMON SENSE
• DO NOT operate the heater when you are tired or under the influence of
alcohol, drugs or intoxicating medication.
• DO NOT stand on the heater.
• DO NOT use the heater with wet hands or when there is water on the
power cable.
• Turn the heater off when not in use and keep it in a safe, dry, childproof
location.
• The heater is designed to heat enclosed areas larger than 4m3, such as
workshops and other industrial areas. Do not use the heater for any other
function. It is not suitable for drying clothes or laundry.
• Young children must be kept away unless continuously supervised.
OPERATION
• The heater must only be used by people who have read these
instructions and have been trained in its use.
• DO NOT obstruct the air inlet and outlet sections of the heater.
•DONOTcovertheheater.
• DO NOT touch the heater casing or grille when first switched off, as these
will be very hot and will take time to cool.
• DO NOT get the heater wet or use in areas of high condensation.
• DO NOT allow the power lead to touch hot surfaces.
• DO NOT connect other appliances to the same mains socket as the
heater.
• Only use the heater in an level position.
• Do not use this heater with a programmable timer used to switch it on
automatically.
SERVICE & REPAIRS
• Have your appliance repaired by a qualified person using identical
replacement parts. This will ensure that the safety of the appliance is
maintained.

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ELECTRICAL CONNECTIONS
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard.
If the colours of the wires in the power cable do not agree with the markings
on the plug.
• The BLUE wire must be
connected to the
terminal which is
marked N or coloured
black.
•TheBROWNwiremust
be connected to the
terminal which is
marked L or coloured
red.
• The YELLOW AND
GREEN wire must be
connected to the terminal which is marked E or or coloured green.
We strongly recommend that this machine is connected to the mains supply
through a Residual Current Device (RCD)
If you are not sure, consult a qualified electrician. DO NOT try to do any
repairs.
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
a 13 Amp
the cable is firmly held by the clamp
fuse.
Yellow)

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OPERATION
1. Put the heater in a level position on a flat surface and at a safe distance
from flammable materials. Keep a minimum of 2m clearance all round.
2. Connect the heater to a suitable
power supply.
3. Set the thermostat control to the
maximum setting (fully clockwise).
4. Set the mode selector to one of
the 3 settings:
• The heater will take up to three minutes to reach optimum temperature.
5. Once the room reaches the required temperature, turn the thermostat
control slowly counter-clockwise until the thermostat clicks, leave the
control in this position.
WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE
OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR
OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.
CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND
CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE
CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.
Off
Fan Only
Fan + Heat Setting 1
Fan + Heat Setting 2

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
• The room temperature will be maintained at this setting. The heater will
continue to operate until the power switch is turned to the OFF position.
6. For fan only operation, turn the power switch to the fan only setting and set
the thermostat to its minimum setting.
7. When not in use, disconnect the heater from the mains supply. Store it in a
safe, dry, childproof location.
ADJUSTING THE ANGLE
1. Loosen both handwheels.
2. Adjust to the the required angle.
3. Retighten the handwheels.
SAFETY SYSTEMS
THERMOSTATIC PROTECTION
The Devil 7003 has a manual reset thermal cut out to prevent the unit from
overheating.
If the thermal cut out activates, then turn off the power and disconnect from
the power supply. Allow the heater to cool down for several minutes before
pressing the reset button. Reconnect to the power supply and turn on to
resume operation.

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
MAINTENANCE
• Clean the heater with a soft damp cloth, Do not use solvents or
abrasives.
• Make sure that the heater grill is not blocked.
• No other maintenance is required, should you discover any problem
with the heater, return it to the Clarke service department for repair.
SPECIFICATIONS
WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW
THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY
MAINTENANCE TASKS.
Operating Voltage and Frequency: (V/Hz) 230 V / 50Hz
Operating Temperature: (Min/Max) (°C): 0-40°C
Heat Output: (kW): 3 kW
Air Output: (m3/h) 400m3/h
Safety Device: Thermal cut-out / Tip over
switch
Duty Cycle Classification: S1 Continuous duty
Electrical Insulation Class I
Product: Depth x Width x Height 302 x 334 x 390 mm
Product Weight 5.6 kg

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
TROUBLESHOOTING
Problem Possible Cause Remedy
Heater does
not
operate,
although
plugged in
with the
switch and
thermostat
switched on.
Plug is loose/bad
connection.
Pull the plug out & check the connection of
the plug and socket.
Fuse blown or
circuit breaker
trips.
Replace if necessary and investigate
cause. If fuse blows
repeatedly, consult your Clarke dealer.
No power at
socket outlet
Insert the plug in a funtioning socket
Heating
element
glowing hot.
Input voltage too
high.
Use a power supply in accordance with the
rating on the label.
Air inlet grille is
blocked
Ensure the heater is kept away from any
objects which could cover the air inlet or
be drawn into it.
The unit has
failed to heat
up so only the
air fan has
operated.
Control switch not
set at a "HEATING"
level.
Turn switch to a heating level.
Thermostat has
tripped.
Turn the thermostat and listen. If there is no
CLICK and the thermostat is not damaged,
the heater will automatically switch ON
when it has cooled down.
The manually
reset
cut-out has
operated.
Disconnect the power. Take a suitable pin
and insert it into the manual RESET hole in
the control panel. Press the RESET button
and connect the circuit.
Abnormal
noise.
Heater is not level. Stand heater on a level surface

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS DIAGRAM

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS LIST
Part number = (CXDEV7003 + the number of the part)
1 Front Grille 17 Fix Part For Tilt Switch
2 Heating Elements 18 Supply Cable Entry
3 Chassis Panel 19 Power Cable
4 Thermal Cut Out 20 Retaining Clips
5Bush 21Fan
6 Adjustable Knob 22 Motor
7 House Casing 23 Rear Grille
8 Speed Controller 24 Securing Plate
9 Location Part For Switch 25 Spacer
10 Temperature Controller 26 Plastic Handle Upper
11 Securing Rings 27 Plastic Handle Bottom
12 Control Box 28 Frame Handle
13 Fasten Spring 29 Foot Sleeve
14 Thermostat Knob 30 Temperature Control Top Rod
15 Switch Knob 31 Temperature Control Bracket
16 Tilt Over Switch 32 Button

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

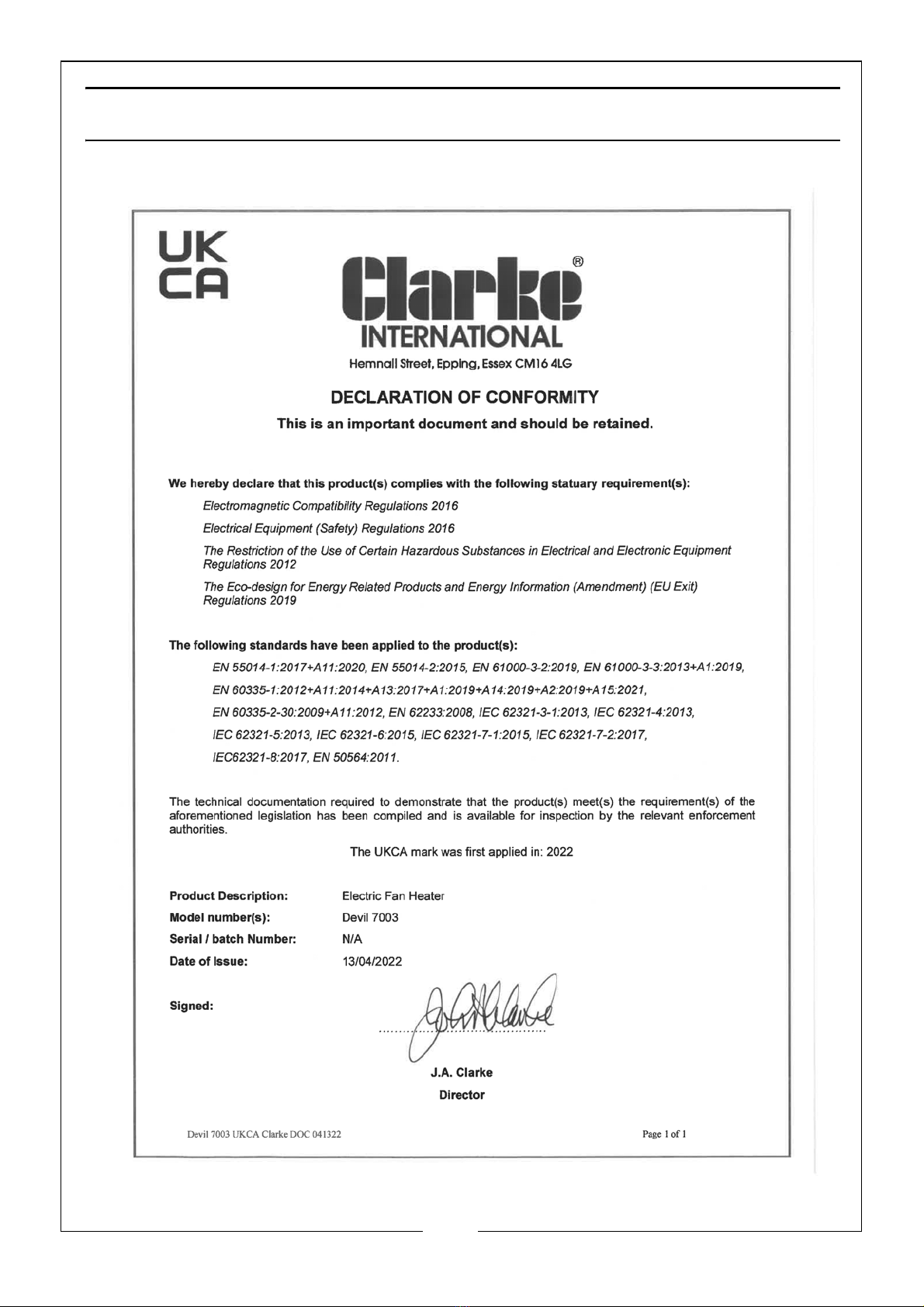

DECLARATION OF CONFORMITY - UKCA

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY - CE
