Clarke DEVIL 7005 Instruction Manual

Only suitable for well insulated areas and not designed
to be the primary heat source
OPERATION & MAINTENANCE
INSTRUCTIONS
DL1122 - ISS 11
ORIGINAL INSTRUCTIONS
5KW ELECTRIC FAN HEATER
MODEL NO: DEVIL 7005
PART NO: 6935452

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
FUNCTION AND OPERATING PARAMETERS
This is a forced air heater. It’s intended use is for drying and the warming of
commercial/industrial buildings and areas where adequate ventilation is
provided.
• It must be operated as prescribed in the operating manual.
• It is not intended to be used for domestic use or for the heating of
habitable areas.
• It is not intended to be used to reach and maintain a certain level of
human thermal comfort within an enclosed space in which the heater is
situated.
• It is not intended to be used in enclosed areas with restricted ventilation.
• It is not intended for warming animals or live stock.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
THE FOLLOWING TABLE ADDRESSES THE INFORMATION
REQUIREMENTS OF REG.2015/1188
Item Symbol Value Unit
Heat output
Measured seasonal space heating energy efficiency 36%
Nominal heat output Pnom 5kW
Minimum heat output (indicative) P min 2.5 kW
Maximum continuous heat output P max 5kW
Auxiliary electricity consumption
At nominal heat output elmax n/a kW
At minimum heat output el min n/a kW
In standby mode elSB n/a kW
Type of heat input for electric storage local heaters only
Manual heat charge control with integrated thermostat No
Manual heat charge control with room and/or outdoor temperature
feedback
No
Electronic heat charge control with room and/or outdoor
temperature feedback
No
Fan assisted output No
Type of heat output/room temperature control (select one)
Single stage heat output, no temperature control No
Two or more manual stages, no temperature control No
With mechanical thermostat temp control Yes
With electronic temperature control No
Electronic temperature control with day timer No
Electronic temperature control with week timer No
Other control options (multiple selections possible)
Room temperature control with presence detection No
Room temperature control with open window detection No
Room temperature control with distance control option No
Room temperature control with adaptive start control No
Room temperature control with working time limitation No
Room temperature control with black bulb sensor No

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SAFETY SYMBOLS
The following symbols appear on the unit.
SAFETY RULES
Make sure that you read, understand and comply with the following.
ELECTRICAL SAFETY
1. Electrical appliances must match the power outlet. NEVER modify the plug
in any way. DO NOT use adaptor plugs with earthed (grounded)
appliances. Correct plugs and outlets will reduce the risk of electric shock.
2. DO NOT abuse the electrical cable. NEVER use the cable for pulling or
unplugging the heater. Keep the cable away from sources of heat, oil,
sharp edges or moving parts. Damaged or tangled cables increase the risk
of electric shock.
3. Keep the power cable well away from machines and ensure an adequate
electrical supply is close at hand so that the operation is not restricted by
the length of the cable.
4. ALWAYS disconnect from the power supply before moving the heater or
performing any cleaning or maintenance tasks.
5. Inspect the mains cable regularly for signs of damage. DO NOT use if it is
damaged, and ALWAYS keep it away from the source of heat.
6. Check the heater for damage before use. DO NOT use if the heater tubes/
elements are damaged or broken. Any damage should be properly
repaired or the part replaced. If in doubt, DO NOT use. Consult your local
CLARKE dealer.
Hot
Surface,
Do Not
Touch
Do Not
Cover
High
Voltage
WARNING: THIS HEATER MUST BE EARTHED

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
MAINTENANCE.
1. Check that the heater is in good working order. Take immediate action to
repair or replace damaged parts.
2. DO NOT allow the heating elements to become covered with dust which
could become a fire hazard. If used in a dusty workplace it should be
cleaned as described under Cleaning and Maintenance.
3. Only recommended parts should be used. Unapproved parts may be
dangerous and will invalidate the warranty.
4. DO NOT attempt to repair a damaged heater, contact the Clarke service
department.
POSITIONING
1. This heater is designed for indoor use only.
2. DO NOT use this heater in small rooms when they are occupied by persons
not capable of leaving the room on their own unless constant supervision is
provided.
3. DO NOT use this heater in the immediate surrounds of a bath, a shower, a
swimming pool or wet surfaces.
4. NEVER place the heater against or near any surface such as a wall, door,
curtains, furniture or combustible material etc. Allow at least 2 metre
clearance.
5. DO NOT place the heater immediately below any electrical outlet.
6. DO NOT place the heater on a raised surface or anywhere where it could
topple over. ALWAYS use on a horizontal and stable surface.
7. ALWAYS ensure that the grille cannot be blocked.
8. DO NOT operate fan heaters in explosive atmospheres such as in the
presence of flammable liquids, gasses or dust such as in a paint spray
booth or any explosive environment. Electric motors create sparks which
may ignite dust or fumes.
WARNING: SERVICING OR INTERNAL MAINTENANCE MUST ONLY BE
CARRIED OUT BY THE CLARKE SERVICE DEPARTMENT.
WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,
LIQUIDS, SOLIDS, GASSES OR COMPRESSED GAS CYLINDERS ETC.

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OPERATION
1. This heater is intended for drying & warming of commercial/industrial
buildings where adequate ventilation is provided. It is NOT for domestic use
or for heating habitable areas.
2. The heater should NOT be used by children or persons with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge.
3. Caution: Some parts of this product can become very hot and cause
burns. Particular attention should be given where, animals, children and
vulnerable people are present.
4. The heater must only be used by people who have read these instructions
and have been trained in its use.
5. DO NOT use if dropped.
6. DO NOT use if there is visible signs of damage.
7. DO NOT obstruct the air inlet and outlet sections of the heater.
8. DO NOT cover the heater with anything that could restrict the air flow.
9. DO NOT touch the heater casing or grille when first switched off, as these
will be very hot and will take time to cool.
10. DO NOT get the heater wet or use in areas of high condensation.
11. DO NOT allow the power lead to touch hot surfaces.
12. DO NOT connect other appliances to the same mains socket as the heater.
13. DO NOT use this heater with a programmable timer used to switch it on
automatically.
14. DO NOT leave the heater unattended.
SERVICE & REPAIRS
1. If necessary, have your heater repaired by a qualified person using
identical replacement parts. This will ensure that the safety of the product is
maintained.
2. Please keep these instructions in a safe place for future reference.

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SAFETY SYSTEMS
THERMOSTATIC PROTECTION
The Devil 7005 has a thermal cut out to prevent the unit from overheating.
The thermal cutout may also operate
if the heater is shut down without
allowing to cool sufficiently. If
subsequently, the heater fails to start,
press the RESET button and try again.
ELECTRICAL CONNECTIONS
The supply cable required is fitted with a red 5 pin 16 amp industrial plug to EN
60309.
This heater MUST be connected to a 400 Volt, 3 phase 50Hz supply through a
suitably rated isolator switch. It cannot be operated from a single phase
supply.
If in any doubt, consult a qualified electrician. DO NOT attempt any electrical
repairs yourself.
WARNING: THE INSTALLATION OF THIS APPLIANCE SHOULD BE CARRIED
OUT BY A COMPETENT ELECTRICIAN AND BE IN ACCORDANCE WITH THE
CURRENT IEE WIRING REGULATIONS (BS7671-2:2008).

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ASSEMBLY
LIST OF PACK CONTENTS
1. Fit the handle to the main body
and secure using the four screws
supplied.
2. Fit the leg frame to the main body
as shown.
3. Secure using the bolt and
handwheel supplied
NOTE: The bolt needs to be inserted
before the handwheel
ADJUSTING THE ANGLE
1. Loosen both handwheels.
2. Adjust to the the required angle.
3. Retighten the handwheels.
1 x Heater 1 x Handle
1 x Support Frame 1 x Fixings Pack

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OPERATION
1. Put the heater in a level position on a flat surface and at a safe distance
from flammable materials. Keep a minimum of 2m clearance all round.
2. Connect the heater to a suitable
power supply.
3. Set the thermostat control to the
maximum setting (fully clockwise).
4. Set the mode selector to one of
the 3 settings:
• The heater will take up to three minutes to reach optimum temperature.
5. Once the room reaches the required temperature, turn the thermostat
control slowly counter-clockwise until the thermostat clicks, leave the
control in this position.
WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE
OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR
OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.
CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND
CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE
CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.
Off
Fan Only
Heat Setting 1
Heat Setting 2

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
• The room temperature will be maintained at this setting. The heater will
continue to operate until the power switch is turned to the OFF position.
6. For fan only operation, turn the power switch to the fan only setting and set
the thermostat to its minimum setting.
7. When not in use, disconnect the heater from the mains supply. Store it in a
safe, dry, childproof location.
MAINTENANCE
• Clean the heater with a soft damp cloth, Do not use solvents or
abrasives.
• Make sure that the heater grill is not blocked.
• No other maintenance is required, should you discover any problem
with the heater, return it to the Clarke service department for repair.
SPECIFICATIONS
WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW
THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY
MAINTENANCE TASKS.
Operating Voltage and Frequency: (V / Hz / Phs) 400 V / 50Hz / 3 Phase
Operating Temperature: (Min/Max) (°C): 0-40°C
Heat Output: (kW): 5 kW
Air Output: (m3/h) 365m3/h
Safety Device: Thermal cut-out
Duty Cycle Classification: Continuous duty
Electrical Insulation Class I
Product: Depth x Width x Height 340 x 368 x 487 mm
Product Weight 7.2 kg

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
TROUBLE SHOOTING
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
Problem Possible Cause Remedy
Heater does not
operate,
although
plugged in with
the switch and
thermostat
switched on.
Plug is loose/bad
connection.
Pull the plug out & check all
connections (cable/plug and socket).
Fuse blown or
circuit breaker
trips.
Replace if necessary and investigate
cause. If fuse blows repeatedly, consult
your Clarke dealer.
No power at
socket outlet
Insert the plug in a suitable socket
Heating element
glowing hot.
Input voltage too
high.
Use a power supply in accordance
with the rating on the label.
Air inlet grille is
blocked
Ensure the heater is kept away from
any objects which could cover the air
inlet or be drawn into it.
The unit has failed
to heat up so only
the air fan has
operated.
Control switch not
set at a "HEATING"
level.
Turn switch to a heating level.
Thermostat has
tripped.
Turn the thermostat and listen. If there is
no CLICK and the thermostat is not
damaged, the heater will
automatically switch ON when it has
cooled down.
Abnormal noise. Heater is not level. Stand heater on a level surface

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

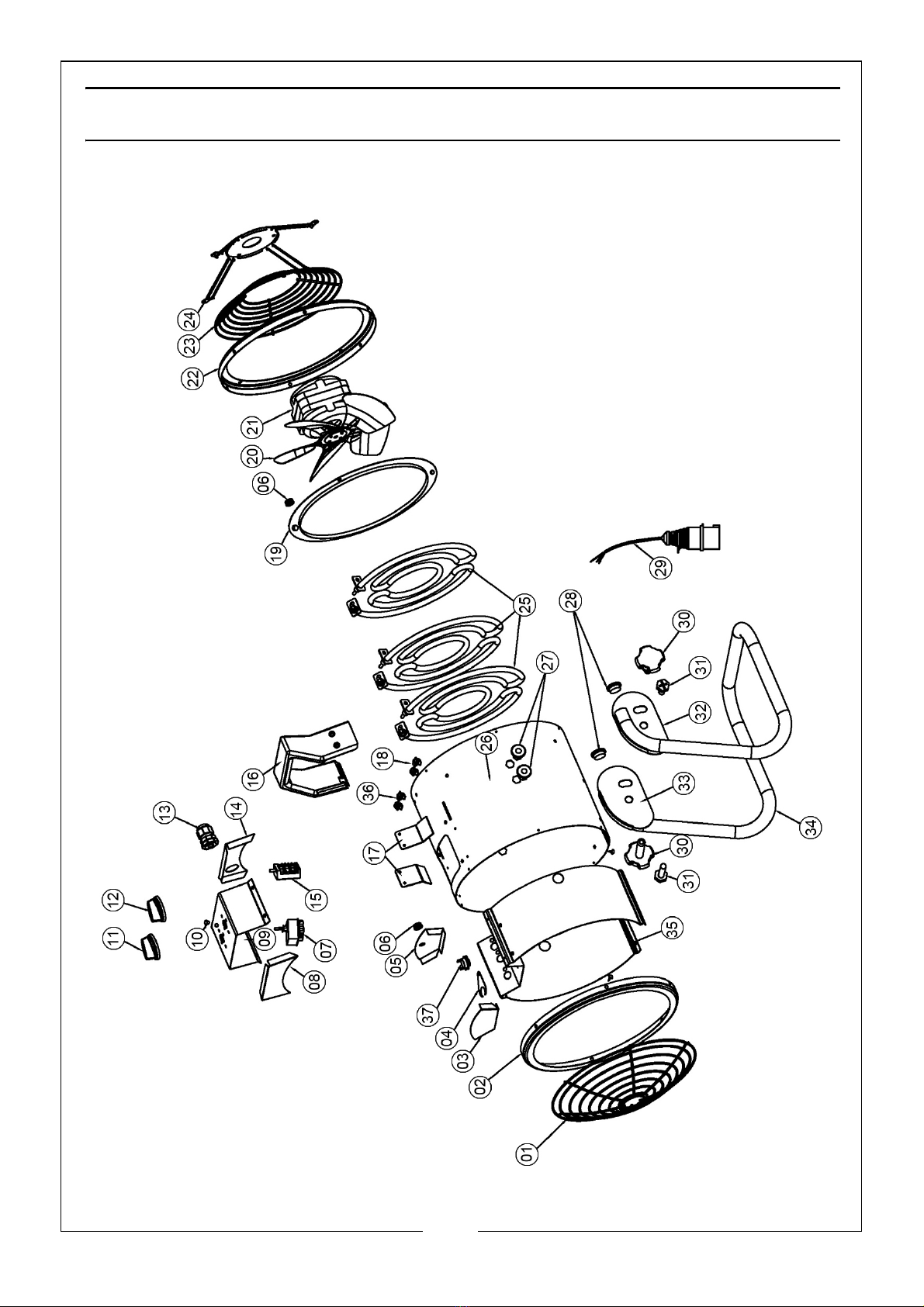

PARTS DIAGRAM

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS LIST
Part number = (CXDEV-7005 + the number of the part)
1 Front Grille 20 Fan
2 Front Rings 21 Motor
3 Chassis Panel Front 22 Rear Rings
4 Temperature Sensor Clip 23 Rear Grille
5 Chassis Panel Rear 24 Motor Retaining Bracket
6 Grommet 25 Heating Elements
7 Temperature Controller 26 House Casing
8 Control Box Front 27 Rivet Nut
9 Control Box 28 Decoration Cap
10 Reset Button 29 Power Socket
11 Thermostat Knob 30 Adjustable Screw
12 Switch Knob 31 Fixing Bolt
13 Supply Cable Entry 32 Securing Plate L
14 Control Box Rear 33 Securing Plate R
15 Speed Controller 34 Frame
16 Plastic Handle 35 Heat Shield
17 Handle Position 36 Retaining Clips
18 Retaining Clips 37 After Cooling Sensor
19 Closing Plate

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY - UKCA

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY - CE
