This instruction manual describes the
CLAUDGEN Recessed Warm Air Ceiling
Heaters. The heater is designed for discreet
positioning in a suspended 600mm ceiling
within retail or commercial premises. It can fit
a recess as shallow as 210mm.
 
All installations must be in accordance with
the regulations in force in the country of use.
These instructions must be handed to the user
on completion of the installation.
Installers and service engineers must be able
to demonstrate competence and be suitably
qualified in accordance with the regulations in
force in the country of use.
To ensure continued and safe operation it is
recommended that the appliance is serviced
annually.
The heater outlet / inlet must not be obstruct-
ed during use.
 
Sole liability rests with the installer to ensure
that all site safety procedures are adhered to
during installation.
Sole liability rests with the installer to ensure
that protective safety wear such as hand, eye,
ear and head protection is used during instal-
lation of the product.
Do not rest anything especially ladders
against the product.
 
Units conform to the European electrical
standard BS EN 60335-2-30
 
Electrical supply is 230/240V single phase,
Neutral and Earth. The maximum cable inlet
size is 4mm².
It is recommended that the electrical supply to
the base unit in the heater is via an appropri-
ate switched isolator in accordance with the
regulations in force in the country of use and
must be via a fused isolator having a contact
separation of greater than 3mm on all
poles..
BMS control, time switches, room thermo-
stats and door interlocks can be installed at
the discretion and responsibility of the in-
staller.
All units must be wired in accordance with
I.E.E regulations for the Electrical Equip-
ment of Buildings and the installer
should ensure that a suitable isolating
switch is connected in the mains supply.

The HE7230SL, HE7245SL, HE7260SL
heaters are supplied without a controller.
The `SL` models will not work without the
controller. See section 5.1 for more details.

The HE7230RX, HE7245RX, HE7260RX
heaters are supplied without a controller.
The `RX` models will not work without the
CRXSL. See section 5.2 for more details
 
All units should be installed horizontally. It is
recommended that the ceiling heater is in-
stalled within the ceiling void or roof space.
Care must be taken to allow complete free
air movement into the inlet grilles of the unit
to ensure the correct working operation
of the heater. If the HE7230SL/RX or
HE7245SL/RX heaters are mounted close to
the wall or corner the discharge opening
should be facing the wall. The minimum dis-
tance from the wall or corner is 0.8m or
1.2m for the HE7260SL/RX.
41001475 Iss 03

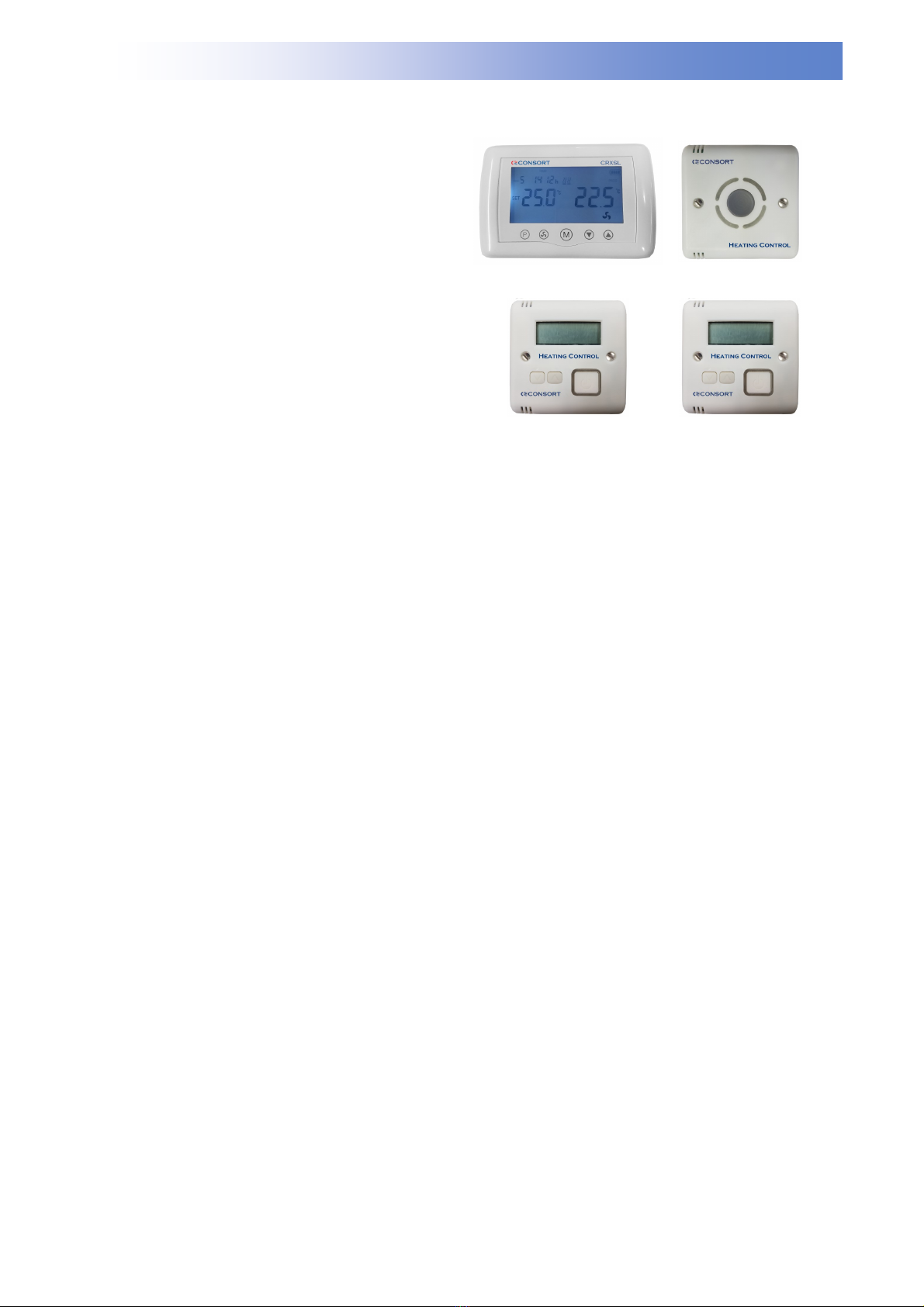

CONSORT CRXSL and SL Controllers
SLPB
SLVT SLVTB
CRXSL

3
 
It is recommended that a minimum clear-
ance of 50mm is allowed around the case
and 30mm above the heater. The clear-
ance allows for cable entry and prevents
combustible surfaces overheating.
The minimum mounting height (floor to
grille) is 2.2m for the HE7230SL/RX,

HE7245SL/RX and 2.5m for the
HE7260SL/RX. The recommended
mounting height is 2.5m for the
HE7230SL/RX, HE7245SL,RX and 3m for
the HE7260SL/RX.

41001475 Iss 03

4



 
The Claudgen recessed ceiling heaters are de-
signed to fit in place of a standard 600mm ceiling
panel.
IT IS ESSENTIAL THAT THE CEILING FRAME IS ADEQUATE
TO SUPPORT THE WEIGHT OF THE HEATER, OR THAT
THE HEATER IS INDIVIDUALLY SUPPORTED. THERE IS
PROVISION ON THE HEATER FOR CHAIN OR WIRE, SUP-
PORT OR MOUNTING.
      


It is the sole responsibility of the installer to ensure
that the points of attachment to the building are
sound. Care must be taken to allow complete free
air movement into the inlet grilles of the unit to
ensure the correct working operation of the heat-
er. Carefully unpack the unit. The unit is supplied
with a length of self-adhesive foam strip. This can
be cut into lengths and is to be laid on the 4 sides
of the ceiling frame . This will ensure that the unit
assembly is free from vibration. The discharge
grille and diffuser assembly can now be fitted into
the ceiling frame.
 
These units are suitable for connection to a
230/240 Volt 50 Hz single phase supply.
The appliance shall be connected to the supply
via an appropriate switched fused double pole
isolator having a contact separation of greater
than 3mm. Test for correct operation and refit the
cover.




TOP OR SIDE CABLE ENTRY
TERMINAL COVER
For connection to the mains supply it will be
necessary to open the terminal cover at the side/
back of the unit to connect the supply from the
controls prior to refitting the cover. Wire in accord-
ance to the wiring diagrams.
For safety reasons, a sound earth connection
must always be made to the unit before it is put to
use. The unit should be wired in accordance with
IEE Regulations for the Electrical Equipment of
Buildings.

41001475 Iss 03

The wire or chain used to mount the heater can be
attached to 4 of the M6 studs or the 4 x M6
threaded inserts as shown in diagram.

5
 
The heaters HE7230SL, HE7245SL and HE7260SL can be controlled by CONSORT CRXSL or any
SL wireless controller. Each CRXSL or SL controller can control any number of heaters providing
they are in the RF range. For more details please follow the instructions supplied with the controller.



 
41001475 Iss 03
 
The heaters HE7230RX, HE7245RX and HE7260RX can be controlled by CONSORT wireless
controller CRXSL. The heaters will not work without a controller. Each controller has unique
identification code, it can control an unlimited number of heaters in the same room and will not
interfere with other controllers within the building. For more details please follow the instructions
supplied with the controller.
SLPB SLVTB
CONSORT CRXSL and SL Controllers
SLVTCRXSL
CONSORT Wireless controller CRXSL

6
    
   
    

To obtain the best results from the heater, it is
essential to avoid the accumulation of dust and
dirt within the unit on the air inlet and discharge
grilles. For this reason regular cleaning is
necessary.
Cleaning of the fan is best carried out with a soft
brush.
The product should be serviced annually.
Servicing shall be undertaken by a competent
person.
 
If the heater does not operate a competent service
engineer should be called to identify the nature of
the fault.
All heaters are fitted with motor thermal protection.
Other faults in relation to the element, motor and
wiring should be identified using conventional fault
finding techniques.
In the event that electrical components are
replaced, please ensure that electrical safety
checks in accordance with the regulations in force
in the country of use are undertaken.
-
The units are protected from overheating in the
event of fan failure or an obstruction of the free
airflow, by thermal cut outs. If this happens the
thermal cut outs switch off the appliance. The ap-
pliance will not operate until the heater is discon-
nected from the mains supply and it has cooled
down.
If this fault occurs again, refer to the section ‘6.4
fault finding’.

  
If the heater will not operate, disconnect it from
the mains and arrange for a certified electrician to
attend and investigate the reason.
 
a) Remove the grille.
b) Disconnect the internal wiring from the blower
c) Remove the four screws fixing the fan heater
assembly to the back of the case.
d) The fan heater assembly can now be eased
forward and removed from the heater case.
e) Fit replacement fan heater and reassemble in
reverse order.
 
It is essential when ordering spares or replace-
ment parts to state the model number and the
serial number on the rating label fixed to the side
of the unit below the terminal cover.
In the interest of progress the Company reserve
the right to vary specifications from time to time
without notice. The material listed is offered sub-
ject to the Company’s General Conditions of Sale,
a copy of which can be obtained on request.
41001475 Iss 03

7

8

