Clemco APOLLO 20 LP User manual

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR
CLEMCO SUPPLIED AIR RESPIRATOR
MODEL 20 LP
O.M. 21991
1193-01/96
04/96
D. 09/99
MC FILE NUMBER:
DATE OF ISSUE:
REVISION:
WARNING
Do not proceed with
these instructions until
you have READ the
orange cover of this
MANUAL and YOU
UNDERSTAND its
content.* These
WARNINGS are
included for the health
and safety of the
operator and those in
the immediate vicinity.
*If you are using a Clemco
Distributor Parts and Maintenance
Guide refer to the orange warnings
insert preceding the Index before
continuing with the following
instructions.
®
© CLEMCO INDUSTRIES CORP.
One Cable Car Drive
Washington, MO 63090
Phone [phone]
Fax [phone]
NOTICE
This supplied air respirator conforms to all NIOSH
specifications and standards and carries NIOSH
approval. As manufactured, this respirator complies
only with those foreign approvals that accept NIOSH
certification.Specifically,ithasnotbeenmanufactured
to European CE standards and does not carry the
European CE-mark.

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 1
Clemco Industries Corp.
Washington, Missouri USA
[phone]
TC#
APL
SA\CF
PROTECTION 1
1 PROTECTION
CF-Continuous Flow
SA-Supplied Air
2 CAUTIONS AND LIMITATIONS
B-Not for use in atmospheres immediately dangerous to life or
health.
C-Do not exceed maximum use concentrations established by
regulatory standards.
D-Air-line respirators can be used only when the respirators are
supplied with respirable air meeting the requirements of
CGA G-7.1 Grade D or higher quality.
E-Use only the pressure ranges and hose lengths specified in the
user's instructions.
J- Failure to properly use and maintain this product could result in
injury or death.
M-All approved respirators shall be selected, fitted, used, and
maintained in accordance with MSHA, OSHA, and other
applicable regulations.
N-Never substitute, modify, add, or omit parts. Use only exact
replacement parts in the configuration as specified by the
manufacturer.
O-Refer to users instructions, and/or maintenance manuals for
information on use and maintenance of these respirators.
S-Special or critical users instructions, and/or specific use
limitations apply. Refer to instruction manual before donning.
MODEL
TYPE C AND CE CONTINUOUS FLOW SUPPLIED-AIR RESPIRATOR IS APPROVED
ONLY IN THE FOLLOWING CONFIGURATIONS:
B C D E J M N O S
Cautions & Limitations 2
19C-339
x 21302 Helmet x 21777 Constant Flow
connector with belt
x 21413 Hose Air LIne 100 Ft. x 22510 Hose Air Line 50 Ft.
1.0 INTRODUCTION
1.1 Scope of Manual
1.1.1 This manual covers setup, operation, mainte-
nance,replacementparts,andimportantwarningsforsafe
operation of the Clemco Apollo 20 LP Supplied-Air Respi-
rator.
1.1.2 OSHA requires the employer to establish a com-
prehensiverespiratoryprotectionprogramperregulations
29 CFR 1910.134(a)(b) and 29 CFR 1926.103, to include
the following:
1. Program coordination by a designated
responsible individual.
2. Evaluation of each worker’s ability to perform the
work while wearing a respirator.
3. Periodic training.
4. Periodic environmental monitoring.
5. Respirator-fit testing.
6. Maintenance, inspectioncleaning,and storage of
the respirators.
7. Selection of the proper NIOSH-approved respira-
tor.
1.1.3 For safe use of the respirator, it is essential that
theuserbeproperlyinstructedinitsuseandmaintenance.
This manual must be made available to all users of the
respirator.[ReferenceOSHARegulations1910.134.]Read
the entire manual before installing or operating the equip-
ment.
1.1.4 Therespiratormustbesuppliedwithrespirableair
meetingrequirements describedherein. Itistheresponsi-
bility of the owner to provide quality breathing-air to the
respirator, and to establish a program to ensure that the
respirator is properly used and maintained.
1.2 Safety Alerts
1.2.1 Clemco uses safety alert signal words, based on
ANSI Z535.4-1998, to alert the user of a potentially haz-
ardous situation that may be encountered while operating
this equipment. ANSI’s definitions of the signal words are
as follows:
This is the safety alert symbol. It is used to alert the user
of this equipment of potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid
possible injury or death.
CAUTION
“Caution” used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
CAUTION
“Caution” used with the safety alert symbol indi-
cates a potentially hazardous situation which, if
not avoided, may result in minor or moderate
injury.

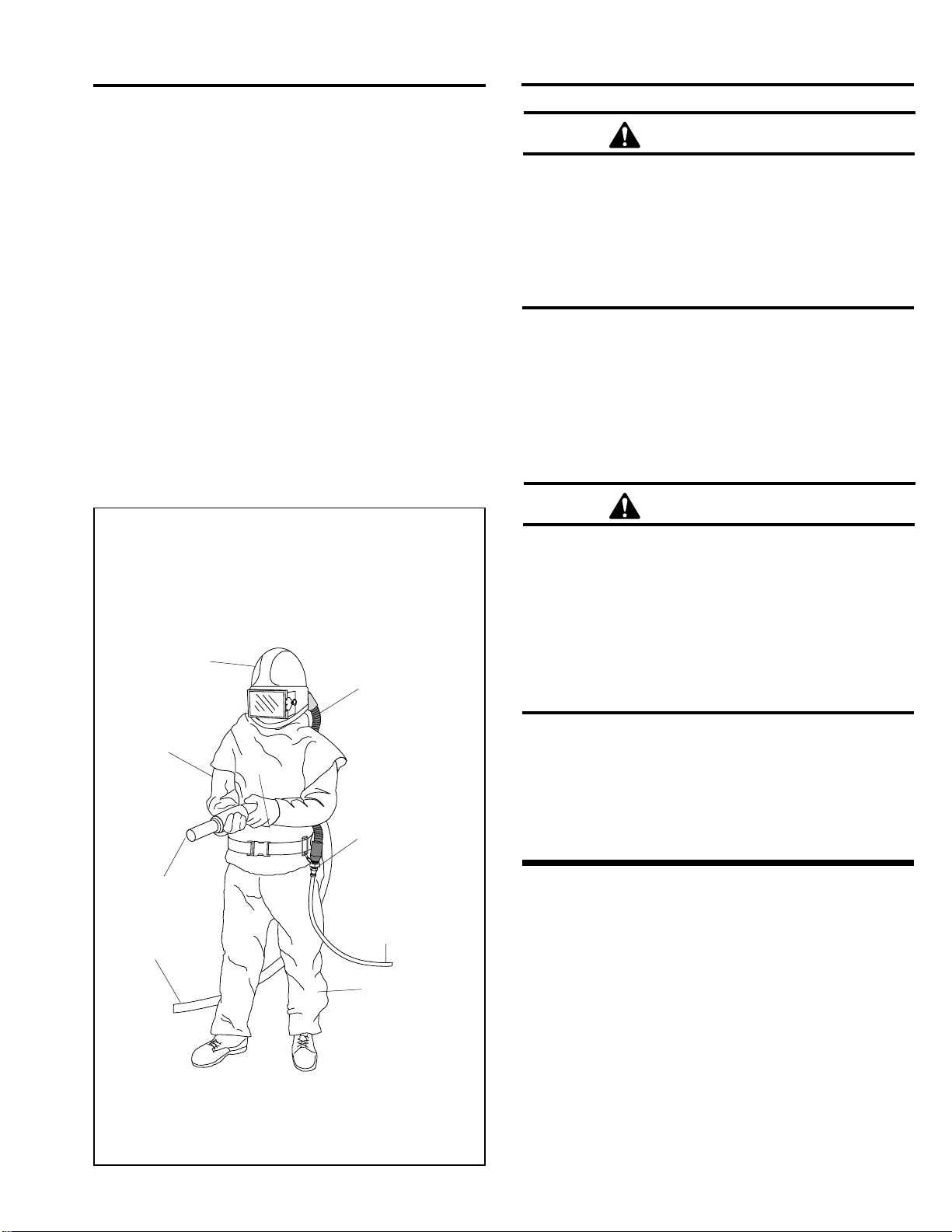

Respirator Components

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 2
WARNING
“Warning” is used to indicate a potentially haz-
ardous situation which, if not avoided, could
result in death or serious injury.
DANGER
“Danger” is used to indicate an imminently haz-
ardous situation which, if not avoided, will result
in death or serious injury.
1.3 Respiratory and Health Alerts
WARNING
TOXIC DUST POISONING
Research by the Occupational Safety and Health
Administration (OSHA) has discovered potential
risks of lead and other heavy metal poisoning to
unprotectedabrasiveblastingoperatorsandother
personnel who may be exposed to toxic dust in
the abrasive blasting vicinity. Toxic dust is pro-
ducedprimarilybytheremovalandbreakdownof
lead or other heavy metal coatings during abra-
sive blasting.
The breakdown of toxic coatings and hazardous
abrasive causes the contaminants to become
airborne. Breathing toxic dust from lead or other
heavy metal coatings may cause health and life
threateningtoxicpoisoningandcandamagevital
organs.Breathinghazardousdustproducedfrom
silica abrasive may cause delayed life threaten-
ing respiratory disease such as silicosis.
Lead is one of several toxic dusts that may be
present in an abrasive blasting operation. It is
imperative that blasting contractors identify all
material being removed by blasting, and obtain
material safety data sheets (MSDS) for the blast-
ingabrasivepriortoblasting.Itistheresponsibil-
ity of the employer to identify all airborne con-
taminantsintheblastvicinity,andensuretheydo
not exceed the permissible exposure limit (PEL)
Ref. 29 CFR 1910.1000 and 29 CFR 1926.62. Thor-
ough examinations should be made by an indus-
trial hygienist or other qualified professional to
identify all contaminants generated by blasting
and in the blasting vicinity.
Exposure to dangerous levels of lead or other
toxic or hazardous dust is not restricted to blast
operators. There may be an equal or greater
dangeraftertheblastingprocessduetolingering
airborne dust particles, and especially from dust
generated during cleanup activity. Heavy metal
paint, asbestos, sand or other silica, and other
toxic material dusts will cause serious lung dis-
ease or death without the use of properly de-
signed, and maintained NIOSH-approved, sup-
plied-air respirator equipment by blasting opera-
tors and all personnel within the work site area.
Leadpoisoningcancausedeath.OSHAhasstated
that the permissible exposure limit of lead is 50
micrograms per cubic meter of air (50 µg/m3),
averaged over an 8-hour workday.
The Apollo supplied-air respirator system is ap-
provedbyNIOSHasaType-CE,continuous-flow,
abrasive blast, supplied-air respirator, in accor-
dancewith title 42CFRPart84.TheNIOSHrecog-
nized assigned protection factor (APF) for any
supplied-air respirator equipped with a loose-
fitting hood or helmet and operated in a continu-
ous flow mode is 25, based upon the NIOSH
Respirator Decision Logic (Pub. No. 87-108). In
other words, any Type-CE respirator should be
used only in atmospheres in which the contami-
nant level does not exceed 25 times the permis-
sible exposure limit. However, in its Memoran-
dum for Regional Administrators dated August
30, 1995, OSHA has stated that select individual
Type-CE continuous-flow, abrasive blast, sup-
plied-air respirator models that pass stringent
tests conducted by independent third party test-
inglaboratorieswillbegrantedAPFvalueshigher
thantheNIOSHrecognized25.Clemcocontracted
with Los Alamos National Laboratory to conduct
the independent testing. Based upon the results
of these tests, OSHA will treat the Apollo Sup-
plied-Air Respirator (NIOSH Approval TC-19C-
339) as having an APF of 1000 times the permis-
sibleexposurelimit,or50,000µg/m3whenusedin
lead removal applications.
The employer must provide and maintain appro-
priateapprovedrespirators,inadditiontoprovid-
ing operator training and employing required
work site safety practices.
To avoid any potential danger of respiratory in-
jury, approved, supplied-air respirators must be
worn at all times in the presence of any type of
dust. The respirator must be maintained as de-
scribed herein. Improper use of any respirator
may cause life threatening respiratory disease,
and immediate poisoning from toxic dust. Respi-
rators should be removed only after the ambient
airhasbeentestedwithadustmonitor,andfound
to be safe to breathe.
Toxic dust poisoning may also occur by eating,
drinking, or smoking in a contaminated area, or
by eating, drinking, or smoking in a non-hazard-
ous area before thorough washing of hands and
face. Do not eat, drink or smoke in the blast area.

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 3
Thoroughly wash hands and face to remove con-
taminants before eating, drinking, or smoking
outside the blast area.
This manual does not contain all the health and
safety requirements regarding toxic and hazard-
ous dust exposure. Obtain copies of the OSHA
regulations and consult a safety professional
and/or industrial hygienist for complete require-
ments.
Within this manual we refer to hazardous or con-
taminatedenvironments.Theseenvironmentscan
be any place around the blast area that could
contain toxic or hazardous dust.
Ifthesewarningsarenotcompletelyunderstood,
or if further information is required, contact a
local OSHA office. If any personnel in the abra-
siveblasting vicinity cannotreador comprehend
these warnings and the entire content of this
instructional material, assign a qualified person
to instruct him/her.
Aphampletaboutabrasiveblastinghazardstitled
“PreventingSilicosisandDeathFromSandblast-
ing”, Publication No. 92-102, is available from
Publications Dissemination, DSDTT
National Institute for Occupational Safety and
Health, 4676 Columbia Parkway
Cincinnati, OH 45226 [phone]
1.4 Cautions and Limitations
1.4.1 Not for use in atmospheres immediately danger-
ous to life or health.
1.4.2 Do not exceed maximum use concentrations es-
tablished by regulatory standards.
1.4.3 Air-line respirators can be used only when the
respirators are supplied with respirable air meeting the
requirements of CGA G-7.1 for Grade D or higher quality.
1.4.4 Use only the pressure ranges and hose lengths
specified in the instruction manual.
1.4.5 Failure to properly use and maintain this product
could result in injury or death.
1.4.6 All approved respirators shall be selected, fitted,
used, and maintained in accordance with MSHA, OSHA,
and other applicable regulations.
1.4.7 Never substitute, modify, add, or omit parts. Use
onlyexactreplacementpartsintheconfigurationasspeci-
fied by the manufacturer.
1.4.8 Refer to users instructions, and/or maintenance
manualsforinformationon use and maintenance of these
respirators.
1.4.9 Special or critical users instructions, and/or spe-
cific use limitations apply. Refer to instruction manual
before donning.
1.5 Special Use Limitations
1.5.1 Air pressure at the point of attachment (the point
of attachment is where the respirator supply hose is
connected to the respirable air source) must be main-
tained between the minimum and maximum pressures as
shown in the table in Section 4.2.2.
WARNING
Failure to maintain the minimum pressure at the
pointofattachmentmayreduceairflowbelowthe
minimum flow required by OSHA. Reduced air
flow may result in ingress of hazardous toxic
dust,subjectingtheusertoimmediatehealthand
lifethreatening poisoningandsubsequent respi-
ratory disease.
1.5.2 Use no more than 3 sections of respirator hose to
obtain a total maximum length of 300 feet as noted in the
table in Section 4.2.2.
1.5.3 The respirator is designed for specific use in
abrasive blasting applications. Do not use in other opera-
tions such as painting or welding.
1.5.4 Do not supply compressed air to this respirator.
Air from compressors poses hazards, especially from
Carbon Monoxide, that are not covered in these instruc-
tions.
1.6 Protection
1.6.1 Assigned Protection Factor (APF): The NIOSH
recognized assigned protection factor for any Type-CE
respirator(theApollorespiratorisaType-CErespirator)is
25 times the permissible exposure limit (PEL). In other
words,CErespiratorsshouldbeusedonlyinatmospheres
in which the contaminant level does not exceed 25 times
thePEL. However,based uponthe resultsofindependent
testing,OSHAwilltreattheApolloSupplied-AirRespirator
ashavinganAPFof1000timesthePELwhenusedinlead
removal applications.
1.6.2 Head: The respirator protects the wearer’s head
and neck from minor impact and from abrasion caused by
rebounding abrasive. However, the respirator does not
meet the requirements for industrial head protection as
stated in ANSI Z89.1-1997.

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 4
1.6.3 Face: The Apollo 20 inner lens meets impact and
penetration requirements under ANSI Z87.1-1989.
1.6.4 Eyes: Apollo respirators do not provide primary
eye protection. Wear approved eye protection with the
respirator.
1.6.5 Hearing:NoisegeneratedbytheApollorespirator
and measured inside the helmet do not exceed 80 deci-
bels. (42 CFR part 84.140) When any exterior noise
causes the internal noise level to exceed 80 decibels, the
user must wear additional hearing protection. A variety of
hearing protectors can be worn with the respirator.
1.7 Description
1.7.1 The Clemco Apollo 20 Supplied-Air Respirator is
approved by the National Institute of Occupational Safety
and Health (NIOSH).
WARNING
OSHA/NIOSH approval applies only when this
supplied-air respirator is used as a complete
system. Do not make any non-approved modifi-
cation, deletion, or substitution. Non-approved
components voids the NIOSH approval and may
permit ingress of toxic and hazardous dust, and
resultintoxic poisoning and respiratory disease.
1.7.2 The respirator comes with a Constant-Flow Con-
nector assembly, that connects the respirator hose to the
breathing tube.
1.7.3 Therespiratorisdesignedforusewithambientair
pumps only, that deliver 6 to 15 cfm within the approved
pressure range as noted in the table in Section 4.2.2.
WARNING
Do not supply compressed air to this respirator.
Air from compressors pose hazards, especially
from carbon monoxide that are not included in
theseinstructions.Compressorsusedforbreath-
ingair require safetyandmonitoringdevicesthat
are not included in these instructions. Using
compressors that are not suitable for breathing
air could result in death. Reference OSHA Regu-
lations 1910.134(d) and 1910.94(6).
1.7.4 High Pressure Conversion Kit: This optional ac-
cessory kit contains parts and instructions to convert the
Apollo 20 LP (respirator for use with ambient air pump), to
Apollo 20 HP (respirator for use with Grade “D” Com-
pressed Air). The kit is listed in Section 10.1.
2.0 INSPECTION
NOTE: A Clemco respirator hose must be used with the
ApolloRespirator.Ifoneisnotavailable,itmustbeordered
from an authorized distributor of Clemco products. Hoses
are not included with respirators, because blast operators
often are assigned personal respirators, while using com-
mon respirator hoses.
2.1 Component Checklist
2.1.1 Make sure that all the respirator components are
present. Each respirator box should contain the following:
Figure 1.
Apollo 20
Supplied-Air
Respirator
Respirator
Hose to Ambient
Air Source
Blast
Suit
Blast Suit
Gloves Constant Flow
Connector
Nozzle and
Nozzle Holder
Blast Hose
Breathing-Air
Tube Assembly
General Arrangement
of
Operator Safety and Comfort Components

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 5
• Helmet with chin strap, suspension and cape
attached
• Breathing tube assembly
• Constant-Flow Connector with belt
NOTE: Respirator hose must be ordered separately.
2.1.2 When all of these components are present, pre-
pare the respirator for operation per Section 3.0. See
Figure 1 for a typical arrangement.
3.0 PREPARATION
3.1 Adjust Helmet Suspension per Section 6.1.
3.2 Lens Assembly
WARNING
Never use the respirator without the fixed inner
lens and middle lens in place. The fixed lens
provides support for the window gasket, and the
middle lens compresses the gasket. If the gasket
is not adequately supported and compressed,
leakscan occur whichcould permit entryof toxic
and hazardous dust or abrasive into the helmet.

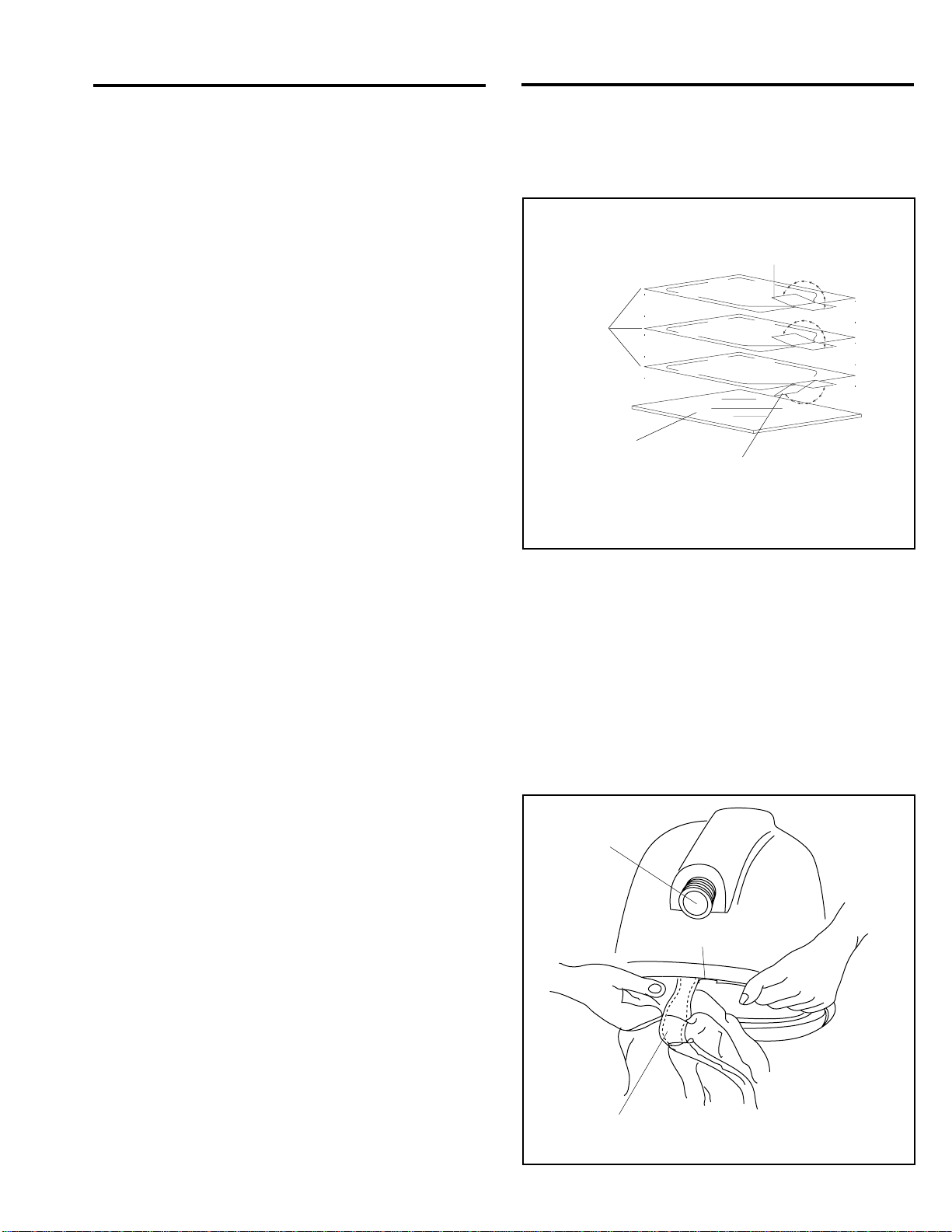

3.2.1 The lens system is an important part of the respi-
rator assembly. The helmet is supplied with an inner lens,
secured by a thick rubber gasket. Held in place on top of
theinnerlensbythelensframe,arethemiddlelensandup
to three perforated cover lenses.
3.2.2 Checkthat the innerlensis inplace.(See Section
9.1)
3.2.3 The middle lens and perforated cover lenses are
secured to the helmet by the lens frame. The middle lens
will not need to be changed often because it is protected
by perforated cover lenses. As one cover lens becomes
frostedduringblasting,itcanbetornofftoexposethenext
lens. Check that the perforated cover lenses are in place.
(See Section 9.2)
3.3 Belt
3.3.1 Using the spring clip attached to the Constant-
Flow Connector, attach the connector to the belt slide.
3.4 Breathing Tube Assembly
3.4.1 Attach the red end of the breathing tube to the
threaded air inlet fitting at the back of the helmet.
3.4.2 Attach the swivel connector on the black end, to
the Constant-Flow Connector, or alternate air control
device.
WARNING
The red end of the breathing tube must attach to
the helmet, and the black end to the Constant-
Flow Connector. Failure to properly attach the
tube may increase noise levels beyond OSHA
limits.
3.4.3 Use the molded-in handle to carry or hang the
respirator. Never hold, carry or hang the respirator by the
breathing tube. Mishandling the respirator in this manner
may damage the tube or helmet inlet. Any leaks or breaks
in the breathing tube will alter the air flow through the
respirator and affect user’s safety and comfort.
3.5 Respirator Hose
3.5.1 RespiratorhosemustbeNIOSH-approvedClemco
respirator hose. Use one or two 50 foot hose(s), or one to
three100 ft.respirator hoseto produceamaximumof300
feet. Attach the female end of the respirator hose to the
Constant-Flow Connector. Attach the other end of the
respirator hose to an ambient air pump. Refer to table in
Section 4.2.2.
4.0 AIR SUPPLY
WARNING
Airsuppliedtothisrespiratorsystemiscritical to
thesafetyoftheuser.Readthissection carefully.
Poor quality air will cause serious respiratory
injury or death to the user. See Toxic Dust Poi-
soning Warning in Section 1.3.
4.1 Air Quality
4.1.1 The quality of air supplied to the respirator is
extremely critical to the safety of the user. Special care
must also be taken to avoid accidental connection to any
other gas lines; such as, oxygen, acetylene, or nitrogen.

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 6
WARNING
Neverconnectabreathingairlinetoanairsource
that has not been tested for gas and particulate
contamination. The presence of unacceptable
levels of carbon monoxide (CO) or other gases in
the breathing air will cause death to the user.
4.1.2 Breathingairusedtosupplytherespiratormustbe
respirable breathing air and contain no less than 19.5
volume-percent of oxygen. Breathing air shall also meet
the requirements for Grade D or higher quality, as de-
scribedinCompressedGasAssociationCommoditySpeci-
fication pamphlet G-7.1., titled Commodity Specification
For Air, published by Compressed Gas Association Inc.,
Arlington, VA. (42 CFR Chapter 1).
4.1.3 Prior to using the respirator, read the owner’s
manual and all instructions, labels, and warnings relating
to the ambient air pump.
4.1.4 Take precautions to prevent contaminants from
entering through the air pump’s inlet filter. Locate the air
pump’s inlet filter away from all sources of contaminants
including carbon monoxide, which is found in engine
exhaust, and in any form of combustion. Place the pump
in an area away from vehicle traffic. Do not locate the
pump’s inlet filter near any exhaust system outlet, ventila-
tion flue, or source of fumes or particles of any kind. If the
ambient air pump cannot be placed in an area where
respirableaircanbeguaranteed,useanairinletextension
hose as specified by the pump manufacturer to bring air
from an area where clean respirable air is ensured.
4.2 Air Volume and Pressure
4.2.1 The Apollo 20 LP respirator is designed for use
with ambient pumps, that provides 6 to 15 cfm of Grade D
breathing air at pressures as noted in the table in Section
4.2.2. According to OSHA regulations, the respirator
provides adequate protection at 6 cfm. While 6 cfm is the
minimumrequired airflow, testdata showthatwhen7cfm
or more is used it provides even greater protection for the
user.
4.2.2 Usethefollowing table to determinetheminimum
and maximum pressure setting and maximum respirator
hose length.
Total Hose
Length Maximum Number of Hose Sections Pressure (psi) Min. Max.
50 feet 1 6 to 10
100 feet 2 8 to 14
200 feet 2 11 to 20
300 feet 3 15 to 20
5.0 OPERATION
WARNING
• With the respirator on, leave the blast area
immediately if any of the following conditions
occur:
• Anypartoftherespiratorsystembecomesdam-
aged.
• Any air monitoring alarm is activated.
• Airflow into the respirator is reduced or stops.
• Breathing becomes difficult.
• At the first sign of dizziness, nausea, fever,
illness or injury.
• Any contamination is noted by taste, smell or
vision inside the respirator.
• Vision becomes impaired.
• Any irritation is noted.
5.1 Prior to operation, thoroughly inspect and clean
thehelmet,breathingtube,respiratorhose,airentryports,
and fittings of all dust and debris. Inspect the helmet
suspension and adjust if necessary per Section 6.1.
5.2 Begin operation of the ambient air pump per the
manufacturer’s instructions.
5.3 Checkairpressureatthepointofattachment. Set
the pressure between the minimum and maxium pres-
sures assigned in Section 4.2.2.
5.4 Checkallsafety,andbreathingequipmentusedin
conjunction with the respirator as recommended by the
manufacturer.
5.5 Check respirator hose and connections for tight-
ness and leaks.
5.6 Put the respirator on in a clean non-hazardous
environment,freeofcontaminants,wheretheairissafeto
breathe. When putting the respirator on or taking it off,
keep it upright to prevent dust and abrasive from falling
inside.

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 7
5.7 Position the chin strap so it fits comfortably under
the chin.
5.8 Positiontheknitcuffontheinnercollarsothatitfits
snugly around the neck in turtleneck fashion, without any
interference from clothing such as shirt collars. When
correctly positioned the smaller elastic end of the collar
must face up.
WARNING
Correctplacementoftheinnercollariscriticalfor
providing the protection for which the respirator
is designed. The collar must be positioned and
maintained without any interference from items
such as hair, facial hair, or shirt collars, between
the collar and user’s neck.
5.9 Pull the cape down to fully extend it and connect
the four elastic straps (two on each side) under the arms,
and tighten using the slides provided.
5.10 PutthebeltandConstant-FlowConnectoronover
thecape.Bucklethebeltaroundthewaist,andtightenitby
pulling the belt end through the buckle insert.
5.11 When finished blasting and with cleanup, remove
the respirator in a clean, non-hazardous environment
where the air is safe to breathe.
WARNING
Do not put the respirator on, or store it in a blast
contaminated environment. Do not remove the
respiratorin acontaminated environment except
for emergency evacuation when the use of the
respirator hinders escape.
NOTE: The quick disconnect coupling on the end of the
respiratorhose isnot equippedwith ashut-off. Therefore,
if the hose is disconnected from the respirator while the
pumpisinoperation,airwillcontinuetoflowfreelyfromthe
hose. After removing the respirator in a clean environ-
ment, the air pump should be shut off.
6.0 ADJUSTMENTS
6.1 Helmet Suspension, Adjustment and Re-
placement, Figure 2
WARNING
The suspension maintains a fixed distance be-
tween the head and the helmet. It is critical that
the suspension is properly installed, and ad-
justed as described, to provide maximum head
protection and comfort.
6.1.1 RemovethecapefromthehelmetperSection9.4.
6.1.2 Remove and discard the old suspension and
suspension strap by extracting the plastic tabs from the
wedge-shaped clefts in the shell.
6.1.3 Unfasten the vinyl sweatband from the two lower,
outside buttons (A and B in Figure 2).
6.1.4 The suspension fits head sizes 6.5 to 8. Head
sizesaremarkedontheheadbandslots.Slidetheheadband
tonguethrough the frontholderuntil thedesiredhead size
is reached. It is important that the adjustment be made
evenly on both sides. Press the selected slots firmly onto
the lugs on the front band.
6.1.5 Fastenthevinylsweatbandontothebuttonsofthe
suspension.
6.1.6 Install the suspension strap before installing the
suspension.Inserttheyellowendtabsintothecleftsonthe
helmetshell.Whencorrectlyinstalledthestrapisbetween
the suspension and helmet shell and above the ears.
Headband
Size Slots
White Plastic
Tabs
(front)
White Plastic Tabs
(rear)
Button B
Suspension Strap
Button A
Vinyl
Sweatband
Head Band
Tongue
Front Holder
Front Band
Lugs Figure 2.

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 8
6.1.7 Install the suspension by inserting the four white
plastic tabs into the clefts on the shell. The tabs must fully
seat in their respective locators.
6.1.8 Try the helmet on for fit and readjust if necessary.
6.1.9 Checkthatthe chinstrapis inplace,then reattach
the cape onto the helmet following the instructions in
Section 9.4.
7.0 MAINTENANCE PROGRAM
7.1 Basic Service
7.1.1 A program for maintenance and care of the respi-
rator must be established based on application, working
conditions, and hazards involved, and include the follow-
ing basic service.
• Inspection for defects (including a leak check)
• Cleaning and disinfecting
• Repair (service maintenance)
• Storage
Equipment must be properly maintained to retain its origi-
naleffectiveness.[ReferenceOSHARegulations1910.134
(f)].
7.2 Inspection
7.2.1 Inspect respirators before and after each use.
Inspection shall include a check for tightness of connec-
tions and the condition of the lenses, suspension, cape
and elastic parts, breathing tube, respirator hose and
connectors, and Constant-Flow Connector. [Reference
OSHA Regulations 1910.134 (f)(2)].
7.2.2 The respirator hose, breathing tube, air entry
ports,andfittingsmustbecheckedfordustcontamination,
and cleaned before making connections.
7.2.3 The helmet suspension is a very important com-
ponent for maintaining maximum head and respiratory
protection. It must be inspected for fit and wear on a daily
basis, and replaced immediately at the first sign of wear.
(See Section 6.1)
7.2.4 The inner collar is a very important factor in
controlling air escape from the helmet and preventing
ingress of dust. The elastic properties of the collar are
intendedtoprovideasnug fitontheuser’sneck.Thecape
mustbe replacedbeforethe collaris stretchedtothe point
where it no longer fits snugly around the neck.
7.2.5 Theoutercapeprovidesprotectionfromrebound-
ing abrasive and from abrasive ingress into the helmet.
Inspect the outer cape frequently for wear. Replace the
cape before holes are worn through, or any wear occurs
that prevents the cape from providing the protection for
which it is intended.
7.3 Cleaning and Disinfecting
7.3.1 Respirators must be cleaned and disinfected as
frequentlyasnecessarytoensurethatproperprotectionis
providedtothewearer.Respiratorsusedbymorethanone
person must be cleaned and disinfected after each use.
See Section 8.0 for cleaning instructions. [Reference
OSHA Regulations 1910.134 (b)(5); 1910.134 (f)(3)].
7.4 Repair (Service Maintenance)
7.4.1 Replacement or repairs shall be done only by
trainedpersons,usinggenuineClemcopartsdesignedfor
the respirator. No attempt shall be made to replace com-
ponents or to make adjustment or repairs beyond the
manufacturer’s recommendations. See Sec. 9.0 for ser-
viceinstructions.[ReferenceOSHARegulations1910.134
(f)(4)].
7.5 Storage
7.5.1 Daily Storage
7.5.1.1 Whentherespiratorisnotinuse,itmustbestored
inaclean, dry area. Hangtherespirator by the handle. Do
not tuck the cape inside the helmet. Let the cape hang
loosetoallowairtocirculate,to drycondensationfromthe
cape and from inside the helmet.
7.5.2 Long-term storage
7.5.2.1 After inspection, cleaning and thorough drying,
andafternecessary repairs aremade, the capeshouldbe
tucked inside the helmet. The respirator shall then be
placedinaplasticbagandthebagsealedtokeepoutdust
andmoisture.Placethebaginaclearlymarkedcartonand
store it in a clean, dry place. [Reference OSHA Regula-
tions 1910.134 (f)(5)].

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 9
8.0 CLEANING
CAUTION
Follow washing instructions as described in this
section. Do not use any caustic chemicals or
solvents that may be irritating or harmful to the
user,or which changethe properties ofthe mate-
rials used in any part of the respirator.
8.1 Outer Cape
8.1.1 The cape can be machine washed using warm
water and mild detergent. Dry in a clothes dryer at the
lowesttemperaturesetting. Do not dry clean.SeeSection
9.4 for removal and installation instructions.
8.2 Sweatband and Suspension
8.2.1 The sweatband, suspension, suspension strap,
and chin strap should be washed using warm water and
mild detergent. See Section 6.1 for removing the suspen-
sion.
8.3 Helmet Assembly
8.3.1 The helmet assembly should be wiped clean with
mild detergent and water. DO NOT IMMERSE THE HEL-
METINWATER!Whilethisdoesnotpermanentlydamage
the helmet, it will require an extended drying period.
8.3.2 Caremustbeusedtopreventabrasiveentrywhen
putting on or removing the respirator and when changing
lenses. Vacuum the inside of the helmet to remove any
abrasive.
8.4 Inner Lens
8.4.1 Innerandmiddlelensesshouldbereplacedwhen
pitted or scratched; however if they become dirty but not
pitted,usemilddetergentandwatertocleanthem.Volatile
solutions such as alcohol, gasoline or ammonia must not
be used to clean these lenses. Allow the lens to air dry;
cloth and towels can scratch the lens surface.
9.0 SERVICE MAINTENANCE
CAUTION
Clean the respirator of dust and media before
maintenance. All maintenance must be done in a
clean environment away from dust and media.
Doing so will help prevent ingress of dust and
contaminants.
9.1 Replacing Inner Lens, Ref. Figure 3
9.1.1 Open the lens frame.
9.1.2 Remove the middle lens and cover lenses.
9.1.3 Pull the lens gasket and inner lens off the window
opening flange. The gasket is held in place by tabs on the
flange, that fit into slots on the gasket.
9.1.4 Removetheoldlensfromthegasketlenschannel,
and clean the gasket.
9.1.5 Placeanewlensintothegasketlenschannel.The
lens must be in place before affixing the gasket to the
window opening.
9.1.6 Identify the retaining slots on the gasket, and the
holdingtabslocatedonthehelmetwindowopeningshown
in Figure 3.
Figure 3.
Retaining Slot
(one on each
side)
Window
Opening Flange
Lens Gasket
with Inner Lens
Holding Tab
(one on each side)

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 10
9.1.7 Slide one end of the gasket (with lens) onto the
window opening flange, so the holding tab on the opening
is inserted into the gasket retaining slot.
9.1.8 Pushthegasket against theflange,while working
from inside the helmet, push the gasket toward the tab,
until the tab is fully inserted into the retaining slot.
9.1.9 Repeat the process on the opposite side. The
gasket must be pushed beyond the holding tab in order to
insert it into the slot.
9.1.10 Repeat the process on the top and bottom to lock
the gasket in place.
9.1.11 Place perforated cover lenses and one middle
lens in the lens frame per Section 9.2 before closing the
frame.
9.1.12 To maximize the wear life of the inner and middle
lenses, do not remove the last perforated cover lens (See
Section 9.2). The respirator must never be used without
the inner and middle lenses in place.
9.2 Replacing Perforated Cover Lenses, Figure 4
9.2.1 Unlatch and open the lens frame, and remove
remnants of old lenses. If the middle lens is not damaged,
save it for reuse.
9.2.2 Inspect the lens frame gasket and replace if worn
or damaged.
9.2.3 Up to three cover lenses may be installed at one
time. For maximum visibility, install only enough lenses to
last during a work period.
9.2.4 Preparing lenses in the following manner will
permit lenses to be pulled off easily by a user wearing
heavy gloves.
9.2.5 Place the middle lens on a clean flat surface.
Place up to three cover lenses on top of it.
9.2.6 Fold the tab of the bottom lens down as shown in
Figure 4.
9.2.7 Fold the tabs of the second, and top lens up.
9.2.8 Place the stack of prepared lenses into the lens
frame so the folded tab of the top lens sticks through the
front of the lens opening. When placed correctly, the
perforatedlenseswillbeagainsttheframe,andthemiddle
lens will be behind them offering additional support.
9.2.9 Installing the lenses in this manner will prevent
unintentional removal of the last perforated lens and
prolong the life of the middle and inner lenses. It will be
easier to remove the cover lens while wearing heavy
gloves, if the tab is bent outward slightly.
9.3 Suspension
9.3.1 To replace and adjust suspension, see Section 6.1
9.4 Outer Cape
9.4.1 When the cape becomes soiled or requires re-
placement, it can easily be removed as follows.
9.4.2 Separate the Velcro tabs on the back of the cape.
See Figure 5.
Figure 4.
Fold all tabs except the one
closest to the middle lens, "up"
Perforated
Outer Lens
Middle Lens
Fold the tab closest to the
middle lens, "down"
Figure 5.
Air Inlet
Fitting
Notch
Cape Removal
Velcro Tab

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 11
9.4.3 Slide the ends of the cape to the notch. Continue
slidingoneendofthecapeoutofthegrooveuntiltheentire
cape is detached from the helmet.
9.4.4 Toinstallthecape,separatetheVelcrotabsonthe
capeandslideoneendintothegrooveonthebottomedge
ofthecapeattachmentstrapatthepointwherethegroove
isnotched.Continueslidingthecapearoundthebottomof
the helmet until the entire cape is completely into the
groove. NOTE: Spraying a non-toxic silicone-base lubri-
cant into the groove will reduce friction and ease assem-
bly.
9.4.5 Join the Velcro tabs at the notch.
9.5 Air Channel Partition
9.5.1 Remove the cape and suspension per Sections
6.1 and 9.4.
9.5.2 Pull the partition from the front, to unsnap it from
the retainers. Remove the back end of the partition from
the tabs.
9.5.3 Place a new partition into the hood, with the slots
in the back end placed behind the tabs.
9.5.4 Apply pressure on the front of the partition, while
working from the back to snap it in place.
9.5.5 Replace the suspension and cape.
9.6 Lens Frame
9.6.1 The lens frame must be replaced at the first sign
of wear, or of cracking around the hinge.
9.6.2 Open the lens frame, and remove the perforated
cover lenses and middle lens.
9.6.3 Remove the two hinge screws, and replace the
frame.
9.6.4 Install a new gasket in the frame before installing
lenses.
9.7 Rubber Latch
9.7.1 Pull the old latch off of the three lugs.
9.7.2 Aligntheholes in thenew latch overthelugs, with
the flat side toward the frame.
9.7.3 Push the latch over each lug, making sure the
rubber is under the lug.
9.8 Chin Strap
9.8.1 Replace the chin strap when worn.
10.0 REPLACEMENT PARTS
10.1 Supplied-Air Respirator Systems, and
Alternate Accessories
Item Description Stock No.
(-) Apollo 20 LP, less respirator hose........... 21299
(-) Apollo 20 LP, complete, with 50 foot
respirator hose .................................. 21423
(-) High pressure conversion kit.
Converts Apollo 20 low pressure
(ambient air) respirator to high
pressure (Grade “D” Compressed Air)
respirator ........................................... 22690

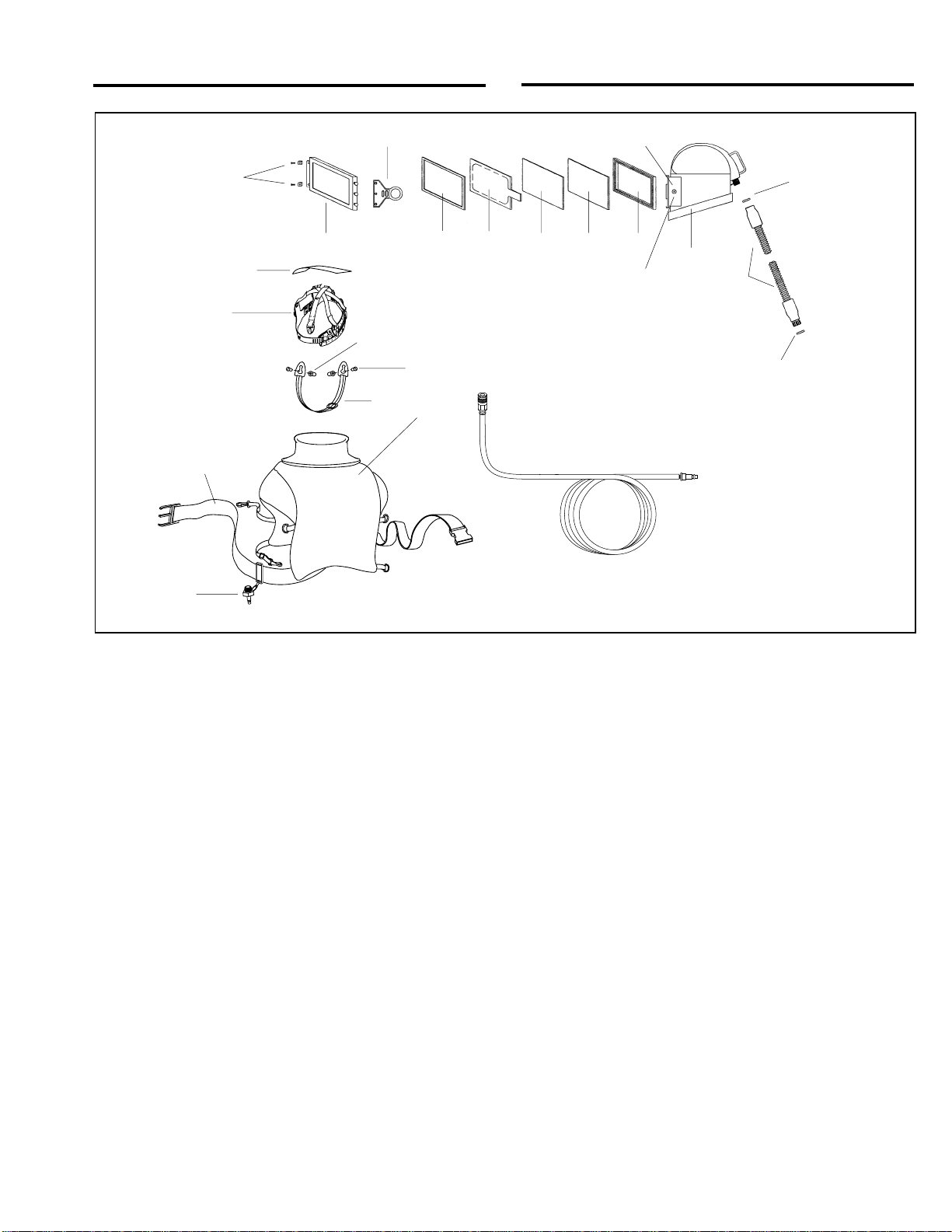

10.2 Supplied-Air Respirator replacement parts,
Figure 6
Item Description Stock No.
1. Gasket, molded window........................... 99996
2. Inner lens, 4-5/8" x 6-5/8" nom.,
Package of 5...................................... 21409
3. Middle lens, 5" x 7" nom.,
package of 5...................................... 21410
4. Cover lens, perforated,
package of 25.................................... 21411
5. Gasket, lens frame.................................. 21041
6. Lens frame ............................................... 20976
7. Latch, lens frame, rubber......................... 21298
8. Button, rubber latch ................................. 21040
9. Suspension .............................................. 10532
10. Air channel partition kit ............................ 21118
11. Cape attachment strap ............................ 10534
12. Cape with inner collar .............................. 21301
13. O-Ring, .864" ID x 1.004" OD .................. 22349
14. Breathing tube assembly w/molded ends 21550
15. Constant-flow connector, LP.................... 21429
16. Belt assembly, 2" ..................................... 04430
17. Respirator hose,
1/2" x 50 ft......................................... 22510
1/2" x 100 ft....................................... 21413
18. Nut, lens frame.........................................90041
19. Screw, lens frame ....................................90295
20. Screw, 8-32 x 1/2" sm.............................. 21402
21. Screw, 8-32 x 1" sm................................. 21403
22. Washer, breathing tube, package of 6.....04370
23. Chin strap................................................. 04460
24. Chin strap holder, 2 required ................... 21696
25. Screw, 8-32 x 1/2” ph hd, 2 required .......21119

APOLLO 20 LP SUPPLIED-AIR RESPIRATOR Page 12
(17)
(16)
(1)
(2)
(3)
(4)
(5)
(6)
(9)
(7)
(11)
(14)
(10)
(8)
(13)
(22)
(18, 19)
(12)
(20, 21)
(15) Figure 6.
(25)
(24)
(23)
