Introduction
PV-ezRack Ascent is widely used for PV-
Module mounting on flat roofs. To make it
robust and longevity, it is manufactured from
aluminium alloy and stainless steel.
Please review this manual thoroughly before
installing PV-ezRack Ascent. This manual
provides:
(1) Simple introduction of the installation
relating to PV-ezRack Ascent Mounting
systems;
(2) Planning and installation instructions for PV-
ezRack Ascent.
The installer is solely responsible for:
• Complying with all applicable local or national
building codes, including any updates that may
supersede this manual;
• Ensuring that PV-ezRack and other products are
appropriate for the particular installation and the
installation environment;
• Using only PV-ezRack parts and installer supplied
parts as specified by PV-ezRack project plan
(substitution of parts may void the warranty and
invalidate the letter of certification);
• During installation, ensure that the self-tapping
screws and metal screw have sufficient strength
and shear force;
• Keep the roof waterproof system intact;
• Recycling: Recycle according to the local relative
statute;
• Removal: Reverse installation process;
• Ensuring that there are no less than two
professionals working on panel installation;
• Ensuring the installation of related electrical
equipment is performed by licenced electricians;
• The upper and lower limit of the torque of the
locking screws must be checked regularly at
least once a year.
• Changes and deviations from the planning
documents must be approved by Clenergy.
The PV-ezRack Ascent parts, when installed in
accordance with this guide. During installation, and
especially when working on the roof, please comply
with the appropriate Occupational Health and
Safety regulations. Please also pay attention to any
other relevant State or Federal regulations. Please
check that you are using the latest version of the
Installation Manual, which you can do by contacting
Clenergy via www.clenergy.com or contacting your
local distributor.
Introduction
Tools & Components
System Overview
Installation Instruction
01
02
03
05
List of Contents
1. Introduction

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 02page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
2.1 Tools
2.2 Components
2. Tools & Components
Tools & Components
Screw Driver
Tape
Torque Wrench
SEB-AC/120
RLE-ACRL-AC/10
ER-AA-50/XXXX/50 GC-DT EZ-GL-B
FL-AC/10 FL-AC/15
SWD-AC
Socket Wrench
MB-AC/SN
WD-AC
Drive BitString
Marker pen
EC-M IC-M
Allen Key 6mm
(M8 Hexagon
Socket Screw)
(M6/M8)
Start and End Base L120End Clamp Inter Clamp
Rear Leg ExtensionRear Leg 10°
Angle AL Grounding Clip Grounding Lug
Front Leg 10°/15°
Side Wind Deflector
(13mm)
Main Base, South-north
Wind Deflector
(6mm, 10mm)
Note:
The tools in this chart are only used for installation of racking system (not included in supply scope), please
consult system installation personnel about installation of electronic parts.

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 03page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
System Overview
3. System Overview
3.1 Overview of PV-ezRack Ascent system
❶End Clamp
❷Inter Clamp
❸Start and End Base L120
❹Main Base L1500, South-north
❺Front Leg
❻Rear Leg 10°
❼Rear Leg Extension
❽Wind Deflector
❾Side Wind Deflector
❿Angle AL
Improper operation may lead to deadlock of Nuts and Bolts. The steps below should be applied to stainless
steel nut and bolt assembly to reduce this risk.
3.2.1 General installation instructions:
(1) Apply force to fasteners in the direction of thread
(2) Apply force uniformly, to maintain the required torque
(3) Professional tools and tool belts are recommended
(4) In some cases, fasteners could be seized over time. As an option, if want to avoid galling or seizing of
thread, apply lubricant (grease or 40# engine oil) to fasteners prior to tightening.
3.2 Precautions during Stainless Steel Fastener Installation
❶
❹
❽
❼
❿
❾
❻
❺
❸
❷

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 04page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
3.2.2 Safe Torques
Please refer to safe torques defined in this guide as shown below. If power tools are required, Clenergy recommends
the use of low speed only. High speed and impact drivers increase the risk of bolt galling (deadlock). If deadlock
occurs and you need to cut fasteners, please make sure that there is no load on the fastener before you cut it. Avoid
damaging the anodized or galvanized surfaces.
System Overview

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 05page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
4.1.1 Mark the position of the Bases according
to your plan.
4.1.2 Lay out the components, such as Start
and End Base ❸, Front Leg ❺and Main Base
❹according to your plan.
The order of components in each row
is: ❸❺❹❺❹
4.1.3 Connect the Base ❸/❹with the Front
Leg ❺using the method shown in the right
figure.
4.1.4 Place the Base on the marked position
after installation.
Installation Instruction
4. Installation Instruction
4.1 Base Installation
X
X= module length+ 20 mm-135 mm
❸
❺
❹
❸/❹
❺❹
Click!!
And always end with Main Base at the end
of the row.

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 06page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
Install the Rear Leg ❻to the Main Base ❹
using the method shown in the right figure.
4.2 Rear Leg Installation
❻
❻
❻
❹
For Panel Width: 1040-1100mm
For Panel Width: 990-1039mm
Click!!
Installation Instruction

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 07page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
Install the Rear Leg Extension ❿to the Rear Leg ❻
using the method shown in the right figure.
And then fix the M6*10 bolt with the torque of 5 N·m
4.3 Rear Leg Extension Installation (For 15°system)
❻
❿
Installation Instruction

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 08page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
4.4.1 Ballast per rail section.
Place the ballast centrally on Main Base.
4.4.2 Ballast on double brace.
Place the ballast centrally on Angle AL when
necessary.
Then fasten the nut with a torque of 10 N·m.
4.4 Placing the Ballast
Installation Instruction

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 09page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
4.5.1 Place the PV modules on the Front and
Rear Leg. Leave a 20mm gap between PV
modules for Inter Clamp.
4.5.2 Incline the Inter and End clamp to fit the
top channel of Front and Rear Leg.
Press the Clamp down to securely fit into top
channel until you hear a clicking sound.
Fasten the hexagon socket screw with a torque
of 10 N·m.
Installation Instruction
4.5 PV Modules Installation

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 10page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
Installation Instruction
4.6.1 Place back Wind Deflectors from left
to right on the Main Base. Adjacent Wind
Deflector are overlapping.
Align the first and last back Wind Deflector with
the edge of the Rear Leg.
4.6.2 Screw the back Wind Deflector tight with
ST6*32 screw.
4.6 Wind Deflector Installation

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 11page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
Installation Instruction
4.7.1 Place Side Wind Deflector on the Main
Base.
Note: Please pay attention to the direction .
Screw the Side Wind Deflector tight with
ST6*32 screw.
4.7 Side Wind Deflector Installation

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 12page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
4.8.1 Hexagon screw Installation
After the installation of Front Leg and Base,
fasten Hexagon screws with the holes of front
leg.
Note: It is required to install two Hexagon
screws per Front Leg.
4.8.2 Grounding Clip Installation
Before module and clamps installation, it is
important to arrange how to position grounding
clips to achieve earthing continuity between
each PV modules.
Place the PV modules on the Front and Rear
Leg.
Incline the Inter and End clamp to fit the top
channel of Front and Rear Leg.
Slightly lift the PV Module and slide Clamps
and Grounding Clips into position. The teeth on
Grounding Clip will automatically align when
the Inter Clamp is properly installed as shown
in figures on the right.
4.8 Grounding System Installation
Installation Instruction
Install with Inter Clamp
Install with End Clamp

Installation Guide_PV-ezRack Ascent-V1.1 (June 2021) 13page of 12
Clenergy China
999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang'an District 361101, Xiamen, Fujian, China
T：[phone]
F：[phone]
E：[e-mail]
Installation Instruction
4.9.1 Check that the complete system and all components have been installed according to the planning documents and
that there are no deviations.
4.9.2 Check that all hexagon socket screws have been fastened according to the recommended torque (middle clamps, end
clamps, Angle AL).
4.9.3 Check whether a sufficient weight of ballast has been applied in accordance with your plan.
4.9.4 Check all ‘click connections’ are correctly locked in place.

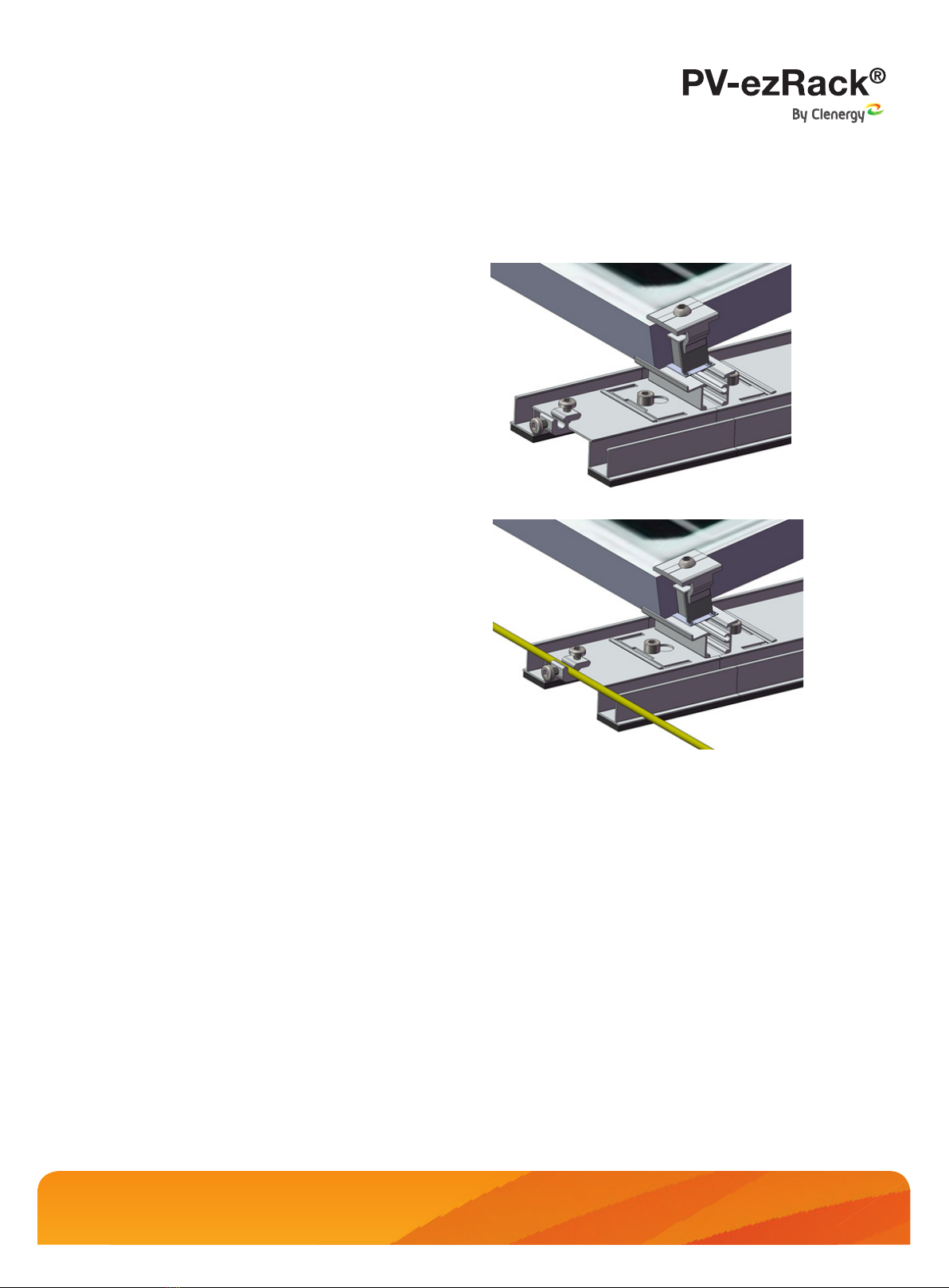

4.8.3 Grounding Lug Installation
It is required to install one Grounding Lug per
row of base. The recommended fasten torque
of the bolt M6*14 is 5~6 N·m.
Fix the Grounding lug on the end of base.
Make sure the inner face of side opening of
Grounding lug is closely attach to the base as
shown in right figure.
Strip earthing cable, insert the conductor into
the Grounding lugs.
Recommended Torque: 5-6N·m
Note: If the earthing cable is less than 4mm,
decrease the Torque to protect it.
4.9 Final Inspection

Clenergy Installation Guide_PV-ezRack Ascent (June 2021)
Warranty*
12 Year
Worldwide Network
China
Singapore
PhilippinesThailand
Vietnam
Australia
Germany
Japan
South Korea
Clenergy Australia
1/10 Duerdin Street, Clayton VIC 3168 Australia
Tel: [phone] Fax: [phone]
E-mail: [e-mail]
www.clenergy.com.au
Clenergy China
999-1009 Min’an Rd, Huoju Hi-tech Ind. Dev. Zone
Xiang’an District 361101, Xiamen, Fujian, China
Tel: [phone] Fax: [phone]
E-mail: [e-mail]
www.clenergy.com.cn
Clenergy EMEA
Esplanade 41, 20354 Hamburg, Germany
Tel: [phone]
E-mail: [e-mail]
Clenergy Japan
Nittochi Yamashita Building 5th Floor
23 Yamashita-cho, Yokohama, 231-0023 Japan
Tel: [phone] Fax: [phone]
E-mail: [e-mail]
www.clenergy.jp
Clenergy Philippines
145 Yakal St., San Antonio village, Makati City, Philippines
Tel: [phone]
E-mail: [e-mail]
www.clenergy.ph
Clenergy Thailand
9/2, 5th Floor, Vorasin Building, Soi Yasoob 2, Viphavadee-Rungsit
Road, Chomphon Sub-district, Chatuchak District, Bangkok 10900
Tel: [phone]
E-mail: [e-mail], [e-mail]
www.clenergythailand.com
Clenergy Singapore
24 Raffles Place #28-01 Clifford Centre Singapore 048621
Tel: [phone]
E-mail: [e-mail]
Clenergy Malaysia
Tel: [phone]
E-mail: [e-mail]
Clenergy Vietnam
Tel: [phone]
E-mail: [e-mail]
Clenergy Korea
Tel: [phone]
E-mail: [e-mail]
