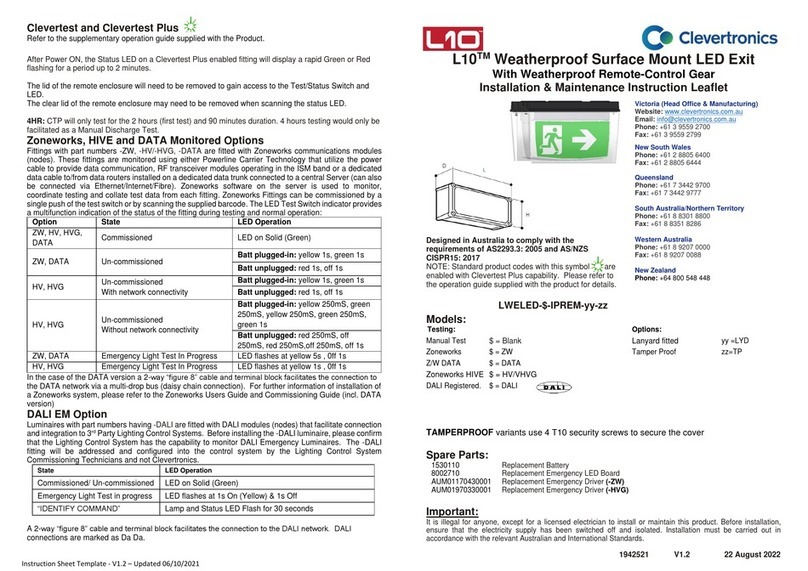

Clevertronics L10 Weatherproof LED Exit Installation and operating instructions

1947471
V1.5
23 June 2022
Instruction Sheet Template - V1.3 –Updated 20/01/2022
Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
The front cover will require removal to gain access to the Test/Status Switch and LED.
Zoneworks, HIVE (HV/HVG) and DATA Monitored Options
Fittings with part numbers -ZW, -HV, - HVG, -DATA are fitted with Zoneworks communications modules
(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power
cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated
data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also
be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,
coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a
single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides
a multifunction indication of the status of the fitting during testing and normal operation:
Option
State
LED Operation
ZW, HV, HVG,
DATA
Commissioned
LED on Solid (Green)
ZW, DATA
Un-commissioned
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
HV, HVG
Un-commissioned
With network connectivity
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
HV, HVG
Un-commissioned
Without network connectivity
Batt plugged-in: yellow 250mS, green
250mS, yellow 250mS, green 250mS,
green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
ZW, DATA
Emergency Light Test In Progress
LED flashes at yellow 5s , 0ff 1s
HV, HVG
Emergency Light Test In Progress
LED flashes at yellow 1s , 0ff 1s
In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)
DALI EM Option
Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate connection
and integration to 3rd Party Lighting Control Systems. Before installing the -DALI luminaire, please confirm
that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI
fitting will be addressed and configured into the control system by the Lighting Control System
Commissioning Technicians and not Clevertronics.
State
LED Operation
Commissioned/ Un-commissioned
LED on Solid (Green)
Emergency Light Test in progress
LED flashes at 1s On (Yellow) & 1s Off
“IDENTIFY COMMAND”
Lamp and Status LED Flash for 30 seconds
A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network. DALI
connections are marked as Da Da.
Caution:
On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during
construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries
discharged or “cycled”. The battery in this fitting has been selected to give excellent long-life
performance in a controlled AS2293 testing environment. Excessive battery cycling will reduce through-
life performance and may lead to premature battery failure. Battery warranty claims, as a result of such
abuse, are specifically EXCLUDED from Clevertronics warranty terms.
L10™ Weatherproof LED Exit with Weatherproof
Remote-Controlled Gear
Installation & Maintenance Instruction Leaflet
Victoria (Head Office &
Manufacturing)
Website: www.clevertronics.com.au
Email: [e-mail]
Phone: [phone]
Fax: [phone]
New South Wales
Phone: [phone]
Fax: [phone]
Queensland
Phone: [phone]
Fax: [phone]
South Australia/Northern Territory
Phone: [phone]
Fax: [phone]
Western Australia
Phone: [phone]
Fax: [phone]
New Zealand
Phone: [phone]
Designed in Australia to comply with the requirements of
AS2293.3: 2005 and AS/NZS CISPR15: 2017
NOTE: Standard product codes with this symbol are enabled
with Clevertest Plus capability. Please refer to the operation
guide supplied with the product for details.
Models:
LWELED-ww-tt-xx-WM-IPREM -uu-yy-vv-zz
Testing:
Options:
Manual Test
xx = Blank
4 Hour Runtime
yy = 4HR
Zoneworks
xx = ZW
Theatre
ww = TH
Z/W DATA
xx = DATA
Tamperproof
uu = TP
Zoneworks HIVE
xx = HV/HVG
Black
zz = BLK
DALI Registered.
xx = DALI
Pressure Equalisation Valve
tt = VENT
Spare Parts:
1530010
Replacement Battery
8002120
Replacement Emergency LED Board
AUM01370350001
Replacement Emergency Driver
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.
Warranty:
For Product Warranty information and Terms and Conditions of Sales please refer to our website
http://clevertronics.com.au/terms-conditions-sale-australia-nz/

1947471
V1.5
23 June 2022
Instruction Sheet Template - V1.3 –Updated 20/01/2022
Installation:
The L10 Weatherproof (WP) LED Exit is a 2-part assembly. The LED light source and EXIT decal is housed in a
separate WP enclosure to the WP control gear enclosure. The EXIT enclosure is suitable for temperature
environments of -40°C to +40°C. The remote-controlgear enclosure is suitable for temperatures of0°C to +40°C.
The enclosure bases are attached to the wall using screws installed through the 4 isolated holes. The remote-
control gear enclosure is connected to the EXIT enclosure via a 2-core cable to be supplied by the installer (not
supplied by Clevertronics with the product). To install the 2-part assembly follow these steps.
Remote Control Gear:
1. Remove the enclosure cover (4 plastic screws at each corner).
2. Remove the gear tray (4 screws holding the gear tray onto 4 mounting posts).
3. Determine power entry hole (typically the back) and separately the hole for the 2-core cable (end/side) to
the EXIT enclosure. Drill the two holes.
4. Position the box base in the mounting position.
5. Mark the 4 holes for mounting. Install the base using appropriate fixings (not supplied).
6. Connect the 240VAC supply to the terminal block labelled L, N, E.
7. Reinstall the gear tray and reinstall the enclosure cover.
EXIT Enclosure:
8. Remove Cover Screws to remove the Enclosure Cover, Diffuser & Decal followed by the Gear Tray
9. Determine the cable entry point for the 2-core cable that will come from the remote-control gear.
10. Drill the 2-core cable access hole in the base/end/side of the enclosure (typically the end).
11. Position the box base in the mounting position.
12. Mark the 4 holes for mounting. Install the base using appropriate fixings (not supplied).
13. Reinstall the Gear Tray, Enclosure Cover, Diffuser & Decal
2 core cable connection between the 2 enclosures:
14. During the installation of each component the installer should consider installing the interconnecting cable
between the two components. This will avoid the need to re-visit each enclosure and opening the covers
and remove the gear trays a second time.
15. The 2-core interconnecting cable should use a conductor size of 1.5mm2to a maximum distance of 2m.
For lengths greater than 2m, a 2.5mm2conductor should be used and the cable should be fire rated to
class WS4X up to a distance of 10m. Please contact Clevertronics for advice on cable lengths and cable
size beyond 10m.
16. Terminate the cable at each end (each enclosure) to the appropriate terminations in the images below
marked LED+ and LED-.
17. If the CTP capabilities are activated, please affix the CTP status label to a visible surface and Four
Segment Marking on the product will include an ‘’F’’ in third segment block.
18. (Applicable to -VENT products only) If the enclosures are installed in a Wall Mounted fashion, please
ensure that the Pressure Equalization Vents are facing downwards upon product installation.
Networking:
When installing the product on a monitored network, (ZONEWORKS, HIVE DATA, DALI) simply insert
the relevant Smart Node PCA.
Dimensions:
Decal Replacement:
Testing:
Once connected to the 240V mains supply, the unit must be allowed to charge the battery for at least 24
hours. Conduct the following tests:
•For the first test, the emergency lamp must remain illuminated for at least 2 hours after
disconnection from the mains supply.
•Subsequent tests require the unit to illuminate for at least 90 minutes. The results of all tests are
required to be recorded in a service logbook, which is to be kept on-site at all times. If the unit fails
to remain illuminated for the requisite time, remedial action must be taken to repair the situation
and once completed, the unit must pass a subsequent test. For more specific information, please
refer to the current edition of the AS 2293.3 Standard.
Maintenance:
Lamp Replacement:
•Use only the lamp(s) recommended on the label
inside the Weatherproof Exit.
•To replace the lamp bar, remove the screws,
disconnect the signal cable and install the new lamp
bar.
Battery Replacement:
•Use only the battery recommended on the
label inside the Exit fitting and on this
instruction.
•Remove thecable ties holdingthe battery, un-
plug the lead from the PCB and remove the
old battery.
•Clip the new battery into the holder, route the
DC cable to the PCB and plugthe new battery
into the PCB.
•Secure the battery using suitable cable ties
Trouble Shooting:
Below are a list of common problems and their possible causes.
Fault: The Green LED Test Switch indicator is not illuminated.
Check: A.C. is connected and is turned on.
Battery is connected
Test Switch for damage.
Fault: Lamp does not illuminate in emergency mode.
Check: A.C. is connected.
Lamp is correctly inserted.
Battery is connected
Fault: Lamp illuminates in emergency mode, but only stays on for a short period.
Check: Battery has been allowed to charge for at least 24 hours.
Battery for damage.
Rated Emergency Lumen Output in accordance with AS2293.1, not applicable
for –TH (theatre) version (refer to spacing tables for installation positions):
Refer to the Technical Label for classification information.
2-core cable termination point –for
connection of the 2 enclosures
2-core cable
termination point –
for connection of
4 x mounting
ports
Same
240V AC
Termination
point L, N,
E
Step 1 - Remove
Enclosure Cover Screws
Step 2 - Remove the
Diffuser from the Cover
Step 3 –
Remove/Replace the
required Decal
NOTE: Once Decals have been replaced, repeat ‘Decal Replacement’ steps in the reverse re-install the Cover,
Diffuser & Decal
