Climax Vesta Series User manual

Sep 3rd, 2019

Table of Contents
1. INTRODUCTION ................................................................................................................................................... 1
1.1. THE GX MEDICAL ALARM................................................................................................................................. 1
1.2. WHAT’S IN THE BOX .......................................................................................................................................... 1
2. SYSTEM OVERVIEW ............................................................................................................................................. 2
2.1. PARTS IDENTIFICATION...................................................................................................................................... 2
2.2. POWER SUPPLY................................................................................................................................................. 4
3. INSTALLATION GUIDE........................................................................................................................................... 5
3.1. HARDWARE INSTALLATION................................................................................................................................ 5
3.2. SOFTWARE INSTALLATION................................................................................................................................. 6

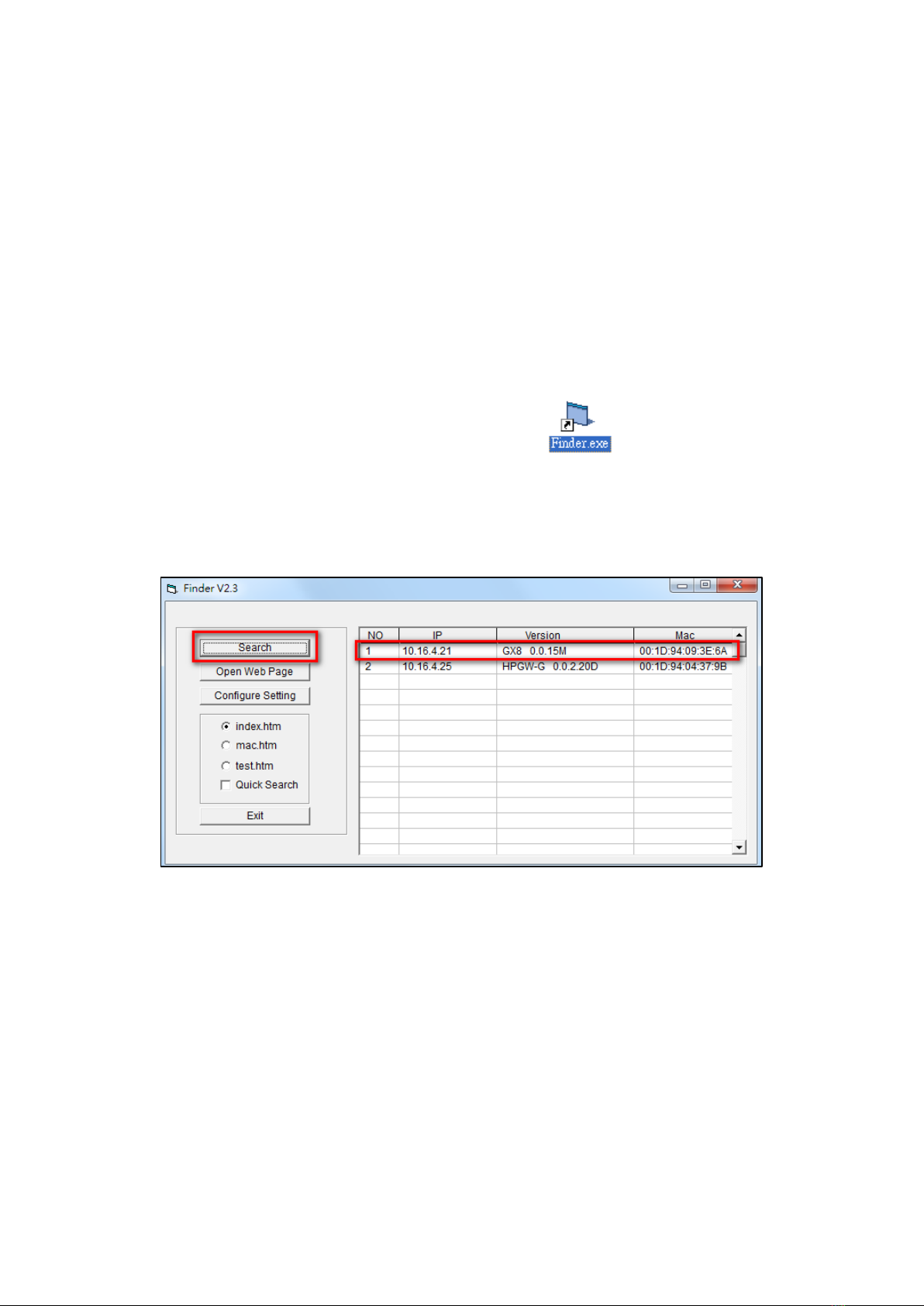

3.2.1. Installing the Finder Software.......................................................................................................... 6

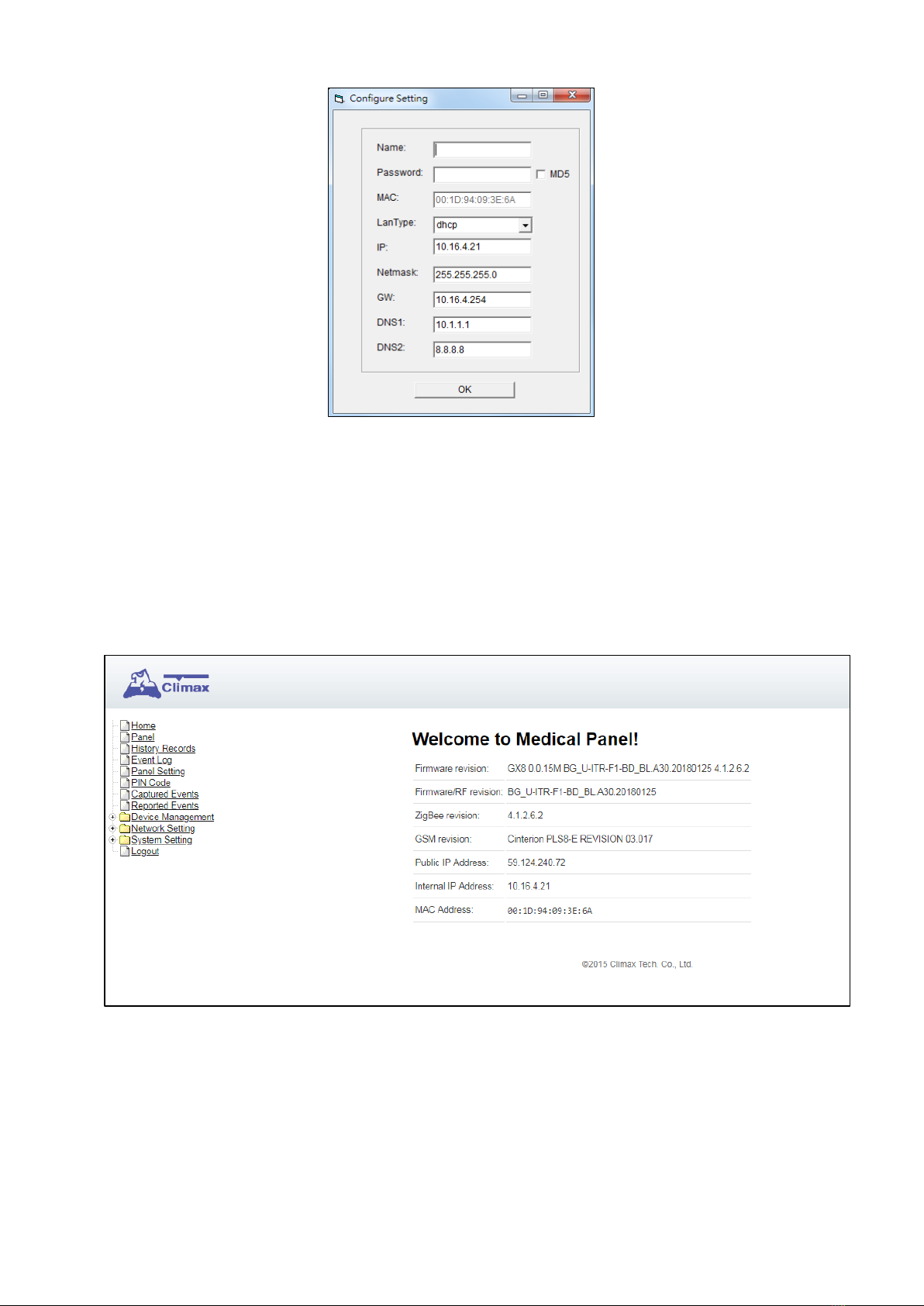

3.2.2. Connecting to Local Programming Webpage.............................................................................. 7
4. DEVICE MANAGEMENT........................................................................................................................................ 8
4.1. DEVICES LEARNING........................................................................................................................................... 8
4.1.1. Local Learning ..................................................................................................................................... 8
4.1.2. Webpage Learning.............................................................................................................................. 9
4.2 ADD RF DEVICES.................................................................................................................................................... 10
4.3 WALK TEST (RANGE TEST).................................................................................................................................... 10
4.3.1 Walk Test.................................................................................................................................................. 10
4.3.2 Webpage Walk Test ............................................................................................................................... 11

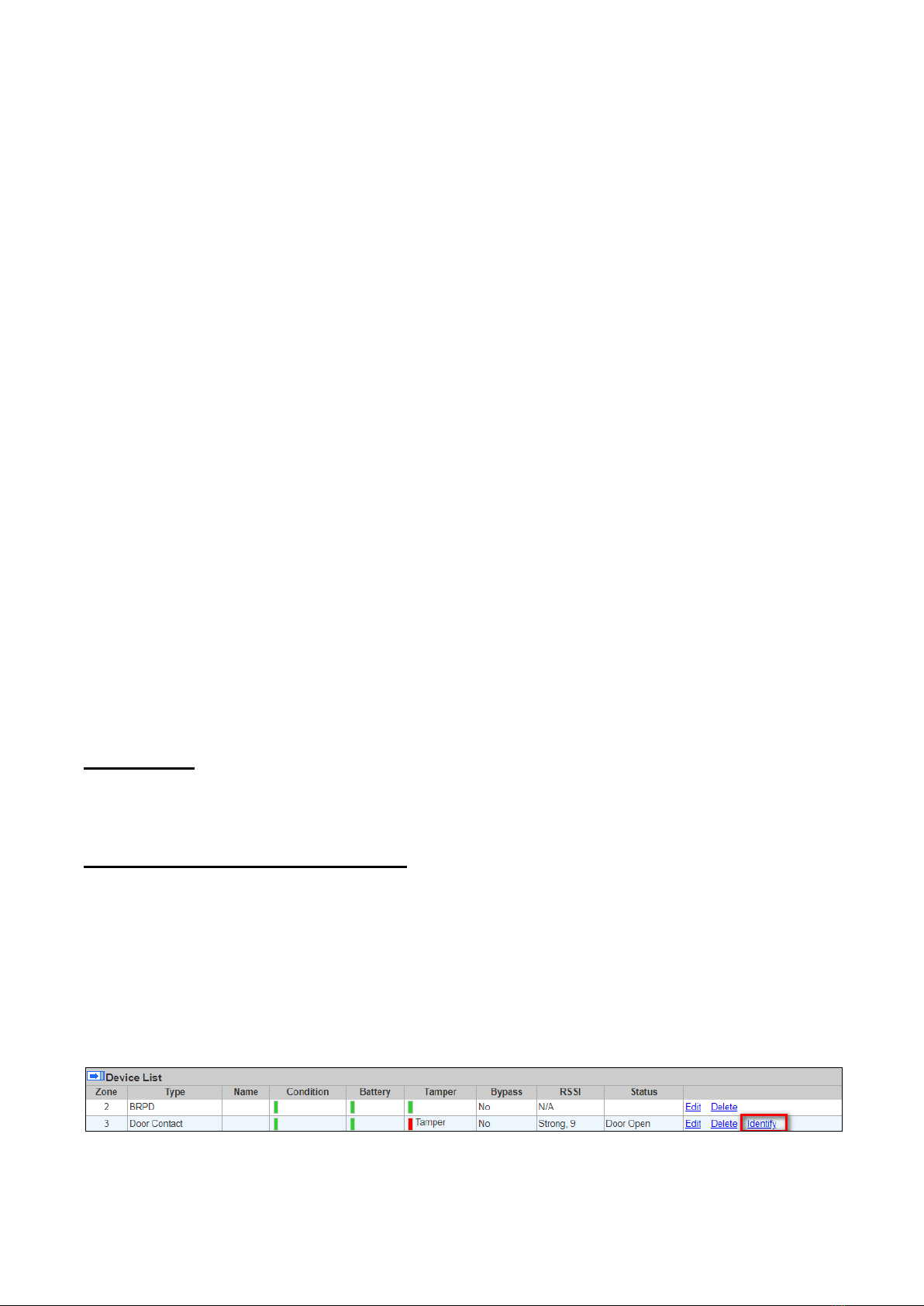

4.4. EDIT /DELETE /IDENTIFY DEVICE .......................................................................................................................... 12

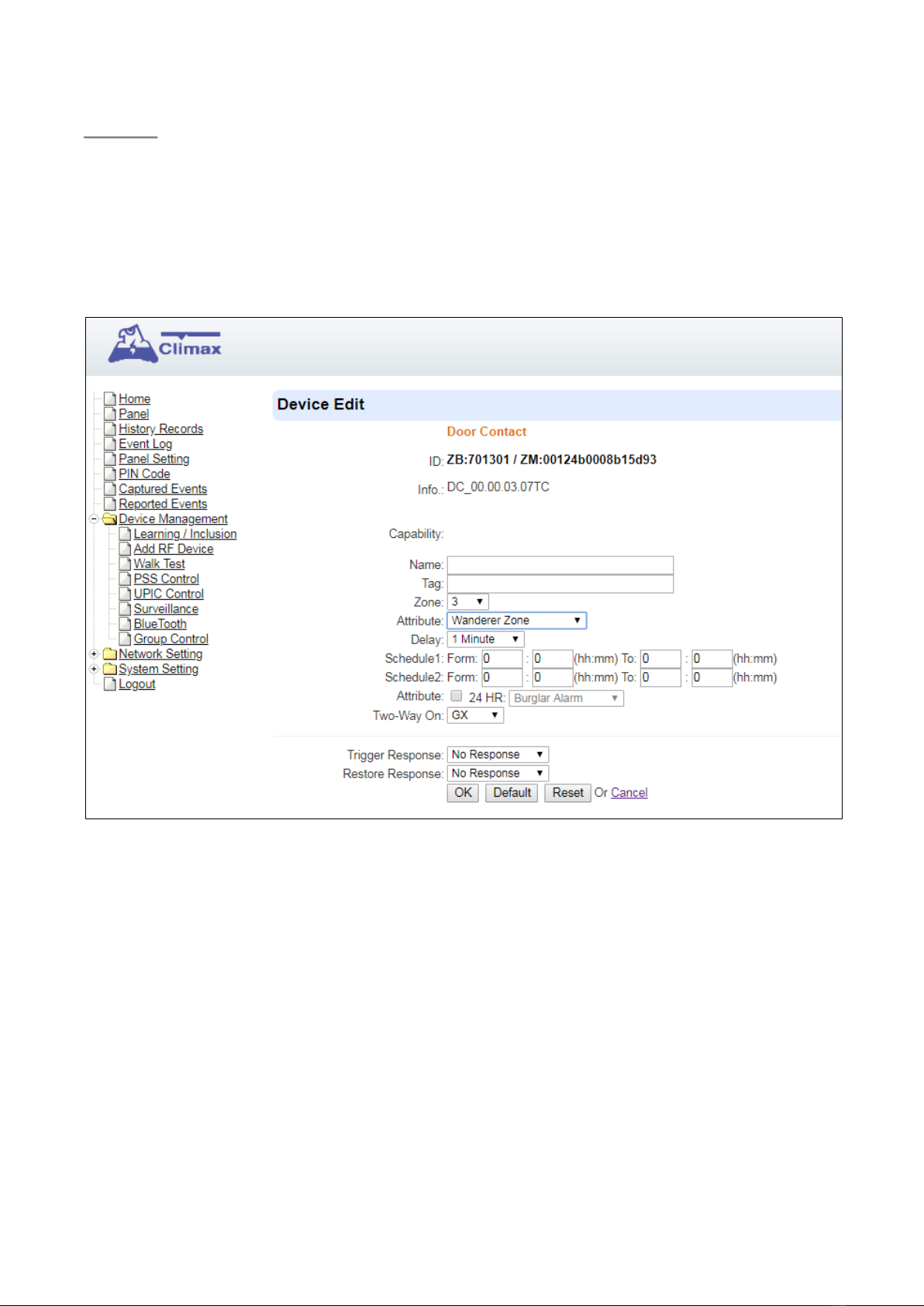

4.4.1 Edit Door Contact Special Attributes................................................................................................ 14

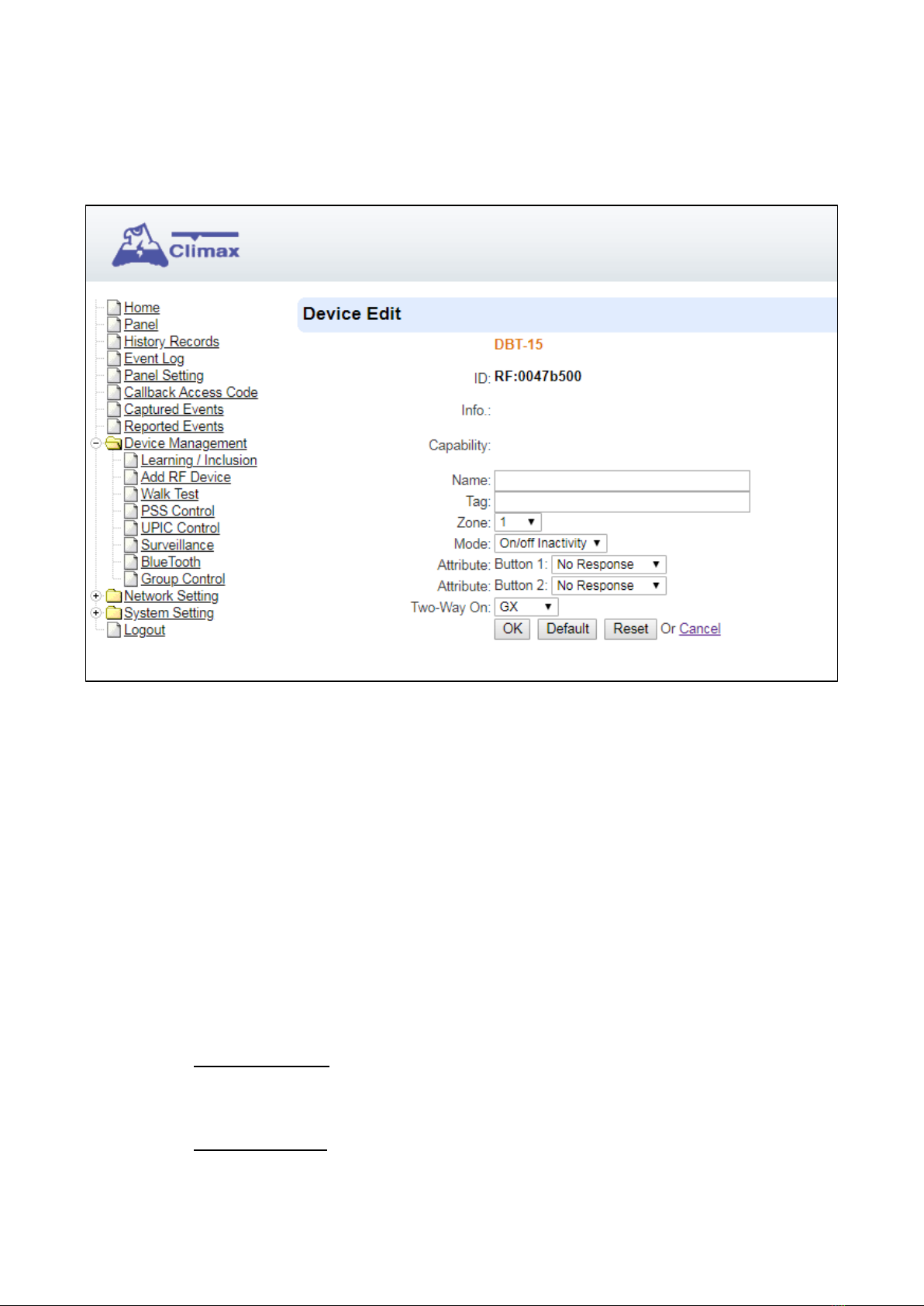

4.4.2 Select DBT-15 (Dual Button Transmitter) Operation Mode ......................................................... 16
4.5. PSS CONTROL....................................................................................................................................................... 17
4.6. UPIC CONTROL ..................................................................................................................................................... 18
4.7. SURVEILLANCE....................................................................................................................................................... 19
4.8. BLUE TOOTH .......................................................................................................................................................... 20
4.9 GROUP CONTROL.................................................................................................................................................... 21
4.9.1 Group Control/Edit................................................................................................................................. 21
4.9.2 Device Edit/Delete.................................................................................................................................. 21
5PANEL STATUS / SETTING ....................................................................................................................................22
5.1 PANEL STATUS ................................................................................................................................................ 22
5.2 PANEL SETTING............................................................................................................................................... 23

5.3 GENERAL SETTING.......................................................................................................................................... 27
5.4 CALLBACK ACCESS CODE.............................................................................................................................. 29
6NETWORK SETTING ............................................................................................................................................30
6.1 GSM................................................................................................................................................................ 30
6.2 NETWORK........................................................................................................................................................ 33
6.3 UPNP............................................................................................................................................................... 34
7SYSTEM CONFIGURATION ...................................................................................................................................35
7.1 CHANGE PASSWORD....................................................................................................................................... 35
7.2 HOME AUTOMATION ........................................................................................................................................ 36
7.3 SCENE.............................................................................................................................................................. 41
7.4 REPORT ........................................................................................................................................................... 42
7.5 SMTP.............................................................................................................................................................. 45
7.6 MEDIA UPLOAD ............................................................................................................................................... 46
7.7 XMPP.............................................................................................................................................................. 47
7.8 VOIP................................................................................................................................................................ 48
7.9 DATE AND TIME ............................................................................................................................................... 49
7.10 DYNAMIC DNS ................................................................................................................................................ 50
7.11 FIRMWARE UPDATE......................................................................................................................................... 51
7.12 RF FIRMWARE UPDATE................................................................................................................................... 52
7.13 FACTORY REST................................................................................................................................................ 53
7.14 BACKUP AND RESTORE................................................................................................................................... 54
7.15 SYSTEM LOG ................................................................................................................................................... 55
8EVENT.................................................................................................................................................................56
8.1 CAPTURED EVENTS......................................................................................................................................... 56
8.2 REPORTED EVENTS......................................................................................................................................... 56
8.3 EVENT LOG...................................................................................................................................................... 57
9APPENDIX...........................................................................................................................................................58
9.1 HELP ARRIVE MODE........................................................................................................................................ 58
9.2 VOICE PROMPT................................................................................................................................................ 59
9.3 SIADIGITAL COMMUNICATION STANDARD..................................................................................................... 60
9.4 CID EVENT CODE............................................................................................................................................ 60
9.5 ALARM SESSION AND CALL SETUP METHODS FOR SCAIP REPORT ........................................................... 67
9.6 SMS PROGRAMMING ...................................................................................................................................... 68

1
1.Introduction
1.1. The GX Medical Alarm
This section covers unpacking your GX VOIP Medical Alarm System. Refer to later chapters for
information on setting up and configuring the system over the Web Page in more details.
The advanced Medical Alarm System with fully integrated TCP/IP technology and Ethernet
connectivity is able to take full advantage of new advances in IP reporting protocol and VOIP
technology to make telephone call over Ethernet to establish two-way voice communication.
The GX Medical Alarm covers the following models:
Name
Reporting Path
Modules
GX-8-(EX)
IP/4G Reporting
IP Gateway with built-in 4G, RF, DECT, ZigBee,
and Bluetooth modules
GX-5-(EX)
IP/4G Reporting
IP Gateway with built-in 4G, RF, DECT, and
ZigBee/Bluetooth (choose 1 between 2) modules
GX-3-(EX)
IP/4G Reporting
IP Gateway with built-in 4G, RF, ZigBee and
Bluetooth modules.
GX-1-(EX)
IP/4G Reporting
IP Gateway with built-in 4G, RF, and
ZigBee/Bluetooth (choose 1 between 2) modules
1.2. What’s in the Box
Your GX panel package includes the following items:
Control Panel
AC adaptor for the Control Panel
An Ethernet Cable

2
2.System Overview

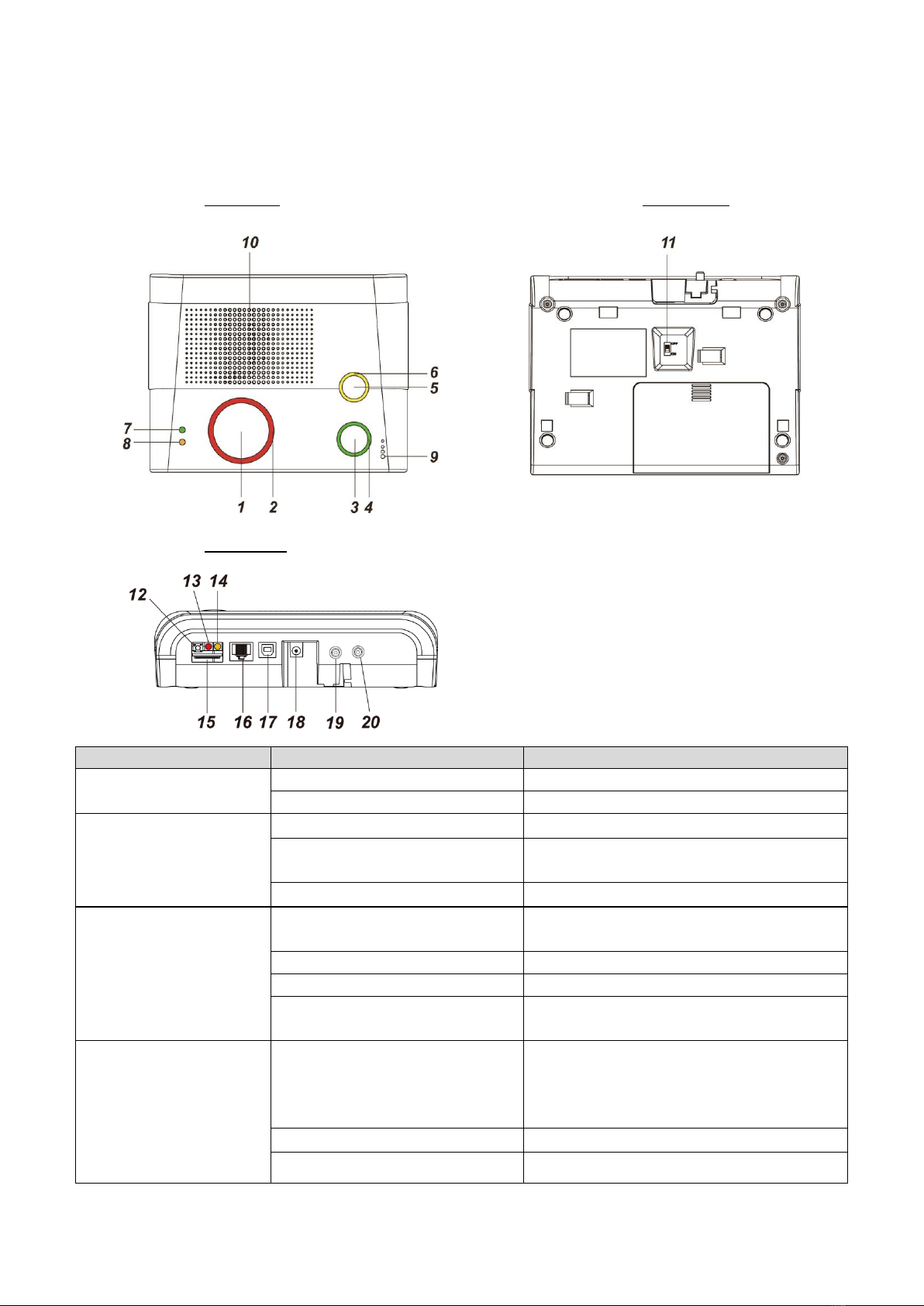

2.1. Parts Identification
Top View Back View
Side View
Button/LED/Component
Behavior
Function/Indication
1 Red Help Button
Press in idle mode
To summon emergency help
Press during incoming call
To answer the call
2 Red Backlight
Off
Idle mode
Flashes
1. During Guard time
2. During Help Arrived Mode
On
Alarm reporting
3 Green Reset Button
Press in idle/normal mode
1. To reset the inactivity timer
2. Dials Non-Emergency call
Press during Guard Time delay
To cancel the alarm reporting
Press during two-way mode
To terminate the two-way communication
Press and hold for 3 seconds in
idle/normal mode
To play voice prompt “GSM Signal (1-5)” to
announce the GSM signal strength for 1 min.
4 Green Backlight
On
1. Status reporting
2. During two-way communication for
non-emergency call, incoming call or call
back after alarm report.
Flashes
Panel in Callback mode
Off
Idle mode

3
5 Yellow Button
Press and hold for 3 seconds
To enter/exit learning mode
5 Yellow Button
When “Inactivity
Monitoring”is enabled
Press once
To toggle on/off the inactivity timer
6 Orange Backlight
On
The inactivity timer is on.
Off
The inactivity timer is off.
Blinking
The Control Panel is under learning mode.
7 Green LED (Volume
Switch)
On
AC power is on.
Flashes once every 2 seconds
AC power fails.
Press once
To increase the speaker volume
8 Orange LED (Volume
Switch)
Press once
To lower the speaker volume
Flashes every 3 seconds
The Control Panel is low on battery or is
having an overvoltage condition.
Flashes every 2 seconds
System has fault or jamming has been
detected
Flashes Every second
Telephone line fault
Off
System normal
9 Microphone
10 Speaker
11 Battery Switch
12 Reset Button
Reserved
13 Cellular Network Status
Indicator (red)
Flashes every second
Cellular network connection successful
Flashes every four
seconds.
Cellular network connection lost
14 Cellular Network Fault
Indicator (orange)
Reserved
15 SIM Card Base
Insert your SIM card in this slot.
16 Ethernet Port
17 USB Port
Reserved for factory use
18 DC Jack
Connects to a DC 12V 1.5A switching power adapter.
19 External Antenna
Terminal
Receiver (RX) only for LTE, please refer to 3.1 Hardware Installation & 6.1
GSM for installation and configuration method. (for GX-EX models only)
20 Main External Antenna
Terminal
Transmitter (TX) and Receiver (RX) for LTE, please refer to 3.1 Hardware
Installation & 6.1 GSM for installation and configuration method. (for GX-EX
models only)

4
2.2. Power Supply
Plug the AC power adapter into the Control Panel’s DC jack and connect to the mains power.
Make sure that you use an adapter with the appropriate AC voltage rating to prevent
component damage. An AC-DC 12V/1.5A switching power adapter is generally used to power
the standard version of the Control Panel.
In addition to the AC power adapter, a rechargeable battery is installed inside the Control Panel
to serve as a backup in case of a power failure.
During normal operation, the AC power adapter is used to supply power to the Control Panel
and at the same time recharge the battery. It takes approximately 72 hours to fully charge the
battery.
If the battery switch is set as OFF, the battery will not be charged when AC power is connected
and nor will it serve as a backup power source when AC power is missing. You need to switch
the battery to ON for it to be charged when AC power is connected and serve as a backup
power source when AC power is missing.
AC Power Check Up
When AC power fails, Green LED will flash once every 2 seconds, and the panel will play voice
prompt “Power failure. Check power cord.” (if Voice Prompt is enabled)
When AC power failure time exceeds the selected AC Fail Report period, GX will send an AC
Failure report to the Monitoring Center.
When AC power resumes, the Green LED will turn steady on again, and the panel will play
voice prompt “Power restored.” (if Voice Prompt is enabled)
Low Battery
When the rechargeable battery is below the selected Low Battery detecting threshold, and the
low battery condition lasts for 30 minutes, GX will send a Low Battery report to the Monitoring
Center.
Battery Disconnection
GX detects the absence of battery in the following cases:
Battery switch OFF
Battery not connected
Battery failure
When the battery disconnection lasts for 30 minutes, GX will report to the Monitoring Center.

5
3.Installation Guide
3.1. Hardware Installation
Step 1. Choose a suitable location for the Control Panel. The Control Panel requires the mains
power and Ethernet connections and should be easily accessible. It should not be placed
in a damp location such as a bathroom or close to a heat source like a microwave oven,
which could reduce signal strength.
Step 2. Plug an Ethernet cable into the Control Panel’s Ethernet port and connect to an Ethernet
network.
Step 3. Plug theAC power adaptor into the Control Panel’s DC jack and connect to the mains
power. The Control Panel will power on and warm up a few seconds. After warm up is
complete, the Green LED will turn on to indicate the panel is now under normal operation.
SIM Card Insertion
The GX Control Panel features cellular network function to report to the Monitoring Station. The
SIM card base is located on the rear side of the unit. Insert the SIM card with the chip side facing
up. SIM Card will delete its SMS message whenever the GX Control Panel is powered on.
<
<N NO OT TE E> >
Please make sure to insert a SIM Card with data plan.
If the SIM Card is changed or removed, please power off the panel then power on again.
If a cellular signal fault occurs, please re-insert the SIM card and then reset the GSM in
GSM page.
External Antenna installation
For GX-EX models, you may choose to install external antenna to improve signal strength.
1) Screw the LTE external antennas onto the antenna terminals of GX-EX.
2) Point the Tilt-Swivel antennas straight up as below.
3) On panel webpage, select Network Setting - GSM, and under GPRS, select "external" for
Antenna type (please refer to 6.1 GSM)

6
3.2. Software Installation
3.2.1. Installing the Finder Software
The Control Panel could be accessed via Local Area Network for programming. The “Finder”
software is provided for user to locate the panel on the LAN for access.
Before you begin web programming, please make sure that you have plugged an IP cable into the
Control Panel’s Ethernet port and connected the cable to an Ethernet network for GX to operate via
Ethernet.
Step 1. Download the “Finder” software from Climax website, and execute the file to install Finder
software on your computer.
Step 2. A new icon will be displayed on your desktop.
Step 3. Click “Finder.exe” to execute Finder. The Finder software will search for your GX control
panel on the LAN and display its information including IPAddress, Firmware Version and
MAC Address.
Step 4. If the GX Control Panel’s information is not displayed, check panel power and Ethernet
connection, then click “Search”for the software to update search result
If you need to program the panel’s network setting manually, click “Configure Setting”. Enter your
network setting, the GX username (default: admin) and password (default: admin1234) and click on
“OK”to confirm the settings. If the username and password are correct, a pop-up window will display
“Status: Configure success!!”

7
3.2.2. Connecting to Local Programming Webpage
Step 1. Select the Control Panel in the Finder software and click on “Open Webpage”or simply
double click on the GX panel to connect to panel webpage.
Alternatively, enter the Control Panel IP address displayed in Finder into your browser’s
address section and proceed.
Step 2. You will enter panel Welcome page. The Welcome page displays current control panel
firmware version information according to different panel model and MAC address.
Step 3. Click on the pages and folders on the left to access the Control Panel’s various functions.
You will be prompted to enter the User name & Password before you can access the other
pages.
Default user name: admin
Default password: admin1234
