CMP DEL AOP-S User manual

4-2535-01 Rev.E
®
DEL AOP®-S
INSTALLATION INSTRUCTIONS & PRODUCT MANUAL
C-M-P.COM/DEL
OR VISIT C-M-P.COM/TECH
®
Scan for
Step-by-step
instructions
SEC-50-XX

IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
• Read this manual completely before attempting installation. Failure to install in accordance
with the installation instructions could void warranty and result in injury or death.
• All permanent electrical connections should be made by a qualied electrician.
• A pressure wire connector, labeled “bonding lug”, is provided on the outside of the unit to
permit connection to a minimum No. 6 AWG (13.3 mm2) solid bonding conductor between
this point and any metal equipment, metal enclosures of electrical equipment, metal water
pipes, or conduit within 5 feet (1.5 meters) of the unit as needed to comply with local
requirements.
• Install at least 5 feet (1.5 meters) from wall of pool. Install ozone generator no less than one
(1) foot above maximum water level to prevent water from contacting electrical equipment.
Install in accordance with the installation instructions.
• Follow all applicable electrical codes.
• DANGER ELECTRIC SHOCK HAZARD: Be sure to turn power OFF and disconnect
from power source before any service work is performed. Failure to do so could result in
serious injury or death.
• The DEL AOP-S must be installed in an outdoor location, or indoors in a forced air ventilated
room, and installed so that the orientation is exactly as shown in Figure 1. Install to provide
water drainage of generator to protect electrical components.
• Mount the DEL AOP-So that it is inaccessible to anyone in the pool. Never attempt any
servicing while unit is wet.
• WARNING Short-term inhalation of high concentrations of ozone and long term
inhalation of low concentrations of ozone can cause serious harmful physiological eects. DO
NOT inhale ozone gas produced by this device.
• DANGER For your safety, do not store or use gasoline, chemicals or other ammable
liquids or vapors near this or any other appliance.
• NOTICE To maintain cosmetic integrity, protect this unit from direct prolonged
sunlight exposure.
• WARNING To reduce the risk of injury, do not permit children to use this product, unless
they are closely supervised at all times.
• WARNING If unit is not operated according to instructions, high dosages of harmful
substances may potentially be released.
• ENVIRONMENTAL NOTICE - Hg-Lamp CONTAINS MERCURY. Manage in accordance with
disposal laws. See: www.lamprecycle.org.
SAVE THESE INSTRUCTIONS!

TABLE OF CONTENTS
SECTION 1 General Information
1A. Description ............................................................................................................1
1B. Specifications ........................................................................................................1
SECTION 2 Installation
2A. Location.................................................................................................................1
2B. Wall Mounting ....................................................................................................2
2C. Plumbing ..............................................................................................................3
2D. Main Power..........................................................................................................5
SECTION 3 Operation
3A. General.................................................................................................................. 6
3B. Initial System Start-Up...................................................................................... 7
3C. System Shut-Down............................................................................................ 7
SECTION 4 Maintenance & Service
4A. System Electro-Mechanical Overview.........................................................7
4B. System Maintenance.........................................................................................8
4C. Ozone Module Service .................................................................................... 9
4D. UV Lamp and Quartz Tube Service.............................................................11
4E. Troubleshooting................................................................................................ 13
Support.......................................................................................................................... 15
DIAGRAMS SHOWN IN THESE INSTRUCTIONS
page 2................................................ MOUNTING LOCATION & NOTATIONS

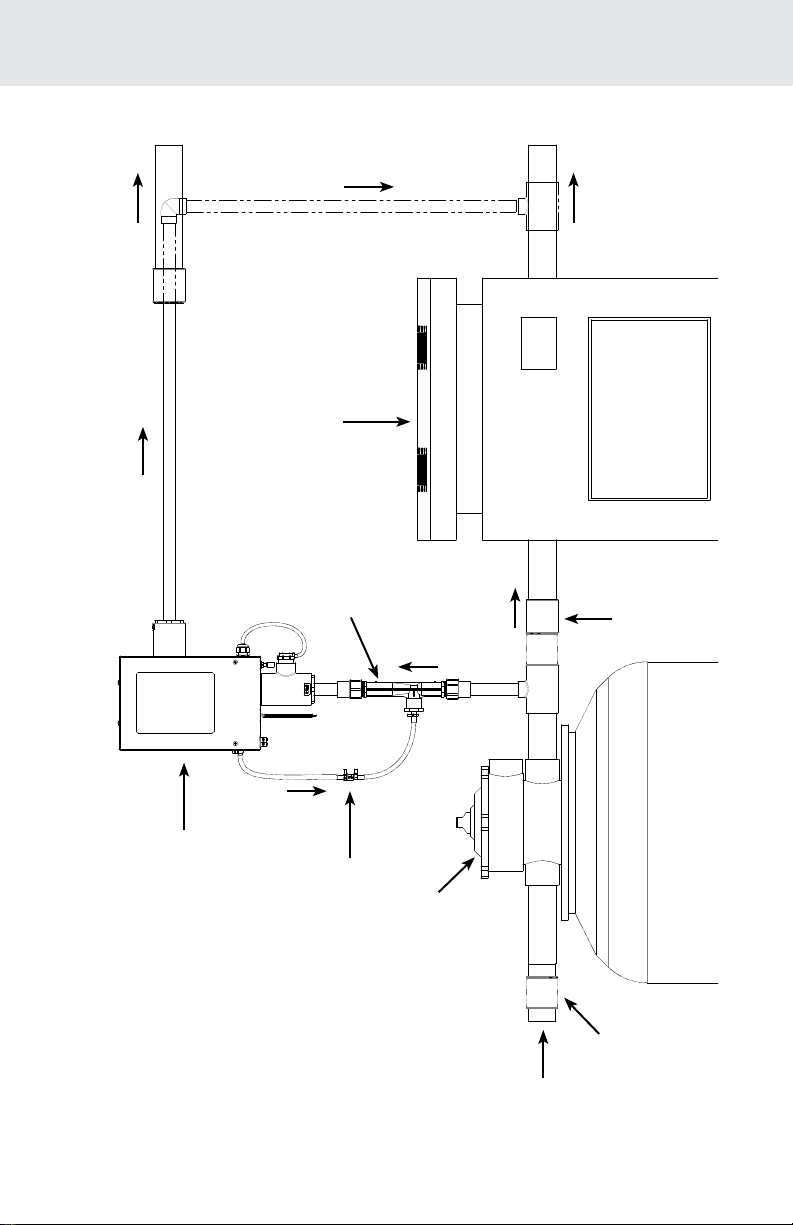

page 4 ....................................................TYPICAL PLUMBING ARRANGEMENT
page 6................................................................................. FLOW TEST DIAGRAM

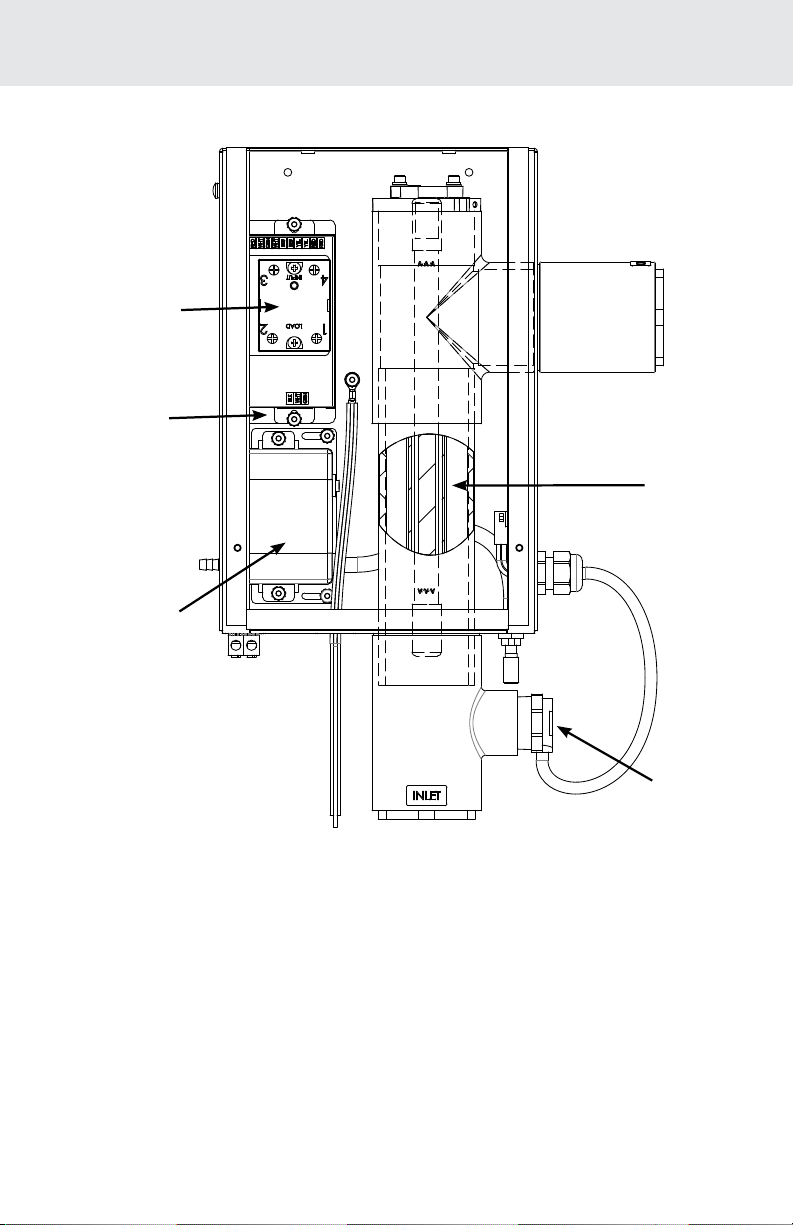

page 8.............................................................................................. COMPONENTS
page 10..........................................................OZONE MODULE REPLACEMENT
page 11 ........................................................LAMP & QUARTZ TUBE REMOVAL

1
SECTION 1 General Information
1A. Description
The DEL AOP®-S described in this manual is designed to provide the
benefits of ozonated and UV sterilized water in an environmentally
safe and effective manner. The high quality, specially engineered
components ensure efficient and reliable performance. As a result
of proper use of the DEL AOP®-S, unpleasant effects of traditional
chemical use are virtually eliminated. It is safe and harmless to your
equipment when installed properly.
1B. Specifications
Power Requirements:
110-240V, 50-60 Hz, 1Ø, 0.3 Amp
Water Flow rate:
5-20 GPM
Location Requirements:
Mounting: Wall or post mount in a clean, protected area.
Ambient Temp.: 35°F - 120°F (2°C - 49°C)
2A. Location
Mount in a clean, protected area out of direct sunlight. The unit
must be installed in an outdoor location, or indoors in a forced
air ventilated room, and installed so that the orientation is exactly
as shown in Figure 1. Locate out of reach of sprinklers or drainage
spouts. Mount in the orientation shown in Figure 1, using the two
mounting holes provided inside the enclosure. Allow sufficient
clearance in front for internal access, and above for service of the UV
lamp and quartz tube (13 inches). The DEL AOP-S should be installed
at least one (1) foot above the maximum water level. See Section 2C-3
Check Valve Assembly, for plumbing instructions based on mounting
location.

2
SECTION 2 Installation
1A. Description
The DEL AOP®-S described in this manual is designed to provide the
benefits of ozonated and UV sterilized water in an environmentally
safe and effective manner. The high quality, specially engineered
components ensure efficient and reliable performance. As a result
of proper use of the DEL AOP®-S, unpleasant effects of traditional
chemical use are virtually eliminated. It is safe and harmless to your
equipment when installed properly.
1B. Specifications
Power Requirements:
110-240V, 50-60 Hz, 1Ø, 0.3 Amp
Water Flow rate:
5-20 GPM
Location Requirements:
Mounting: Wall or post mount in a clean, protected area.
Ambient Temp.: 35°F - 120°F (2°C - 49°C)
2A. Location
Mount in a clean, protected area out of direct sunlight. The unit
must be installed in an outdoor location, or indoors in a forced
air ventilated room, and installed so that the orientation is exactly
as shown in Figure 1. Locate out of reach of sprinklers or drainage
spouts. Mount in the orientation shown in Figure 1, using the two
mounting holes provided inside the enclosure. Allow sufficient
clearance in front for internal access, and above for service of the UV
lamp and quartz tube (13 inches). The DEL AOP-S should be installed
at least one (1) foot above the maximum water level. See Section 2C-3
Check Valve Assembly, for plumbing instructions based on mounting
location.
2B. Wall Mounting
1. Wall mount near pool equipment.
2. Refer to Figure 1 to mark the locations for the two mounting
screws.
3. Install screws (or other hardware appropriate for mounting
surface) through the two mounting holes built into the
enclosure.

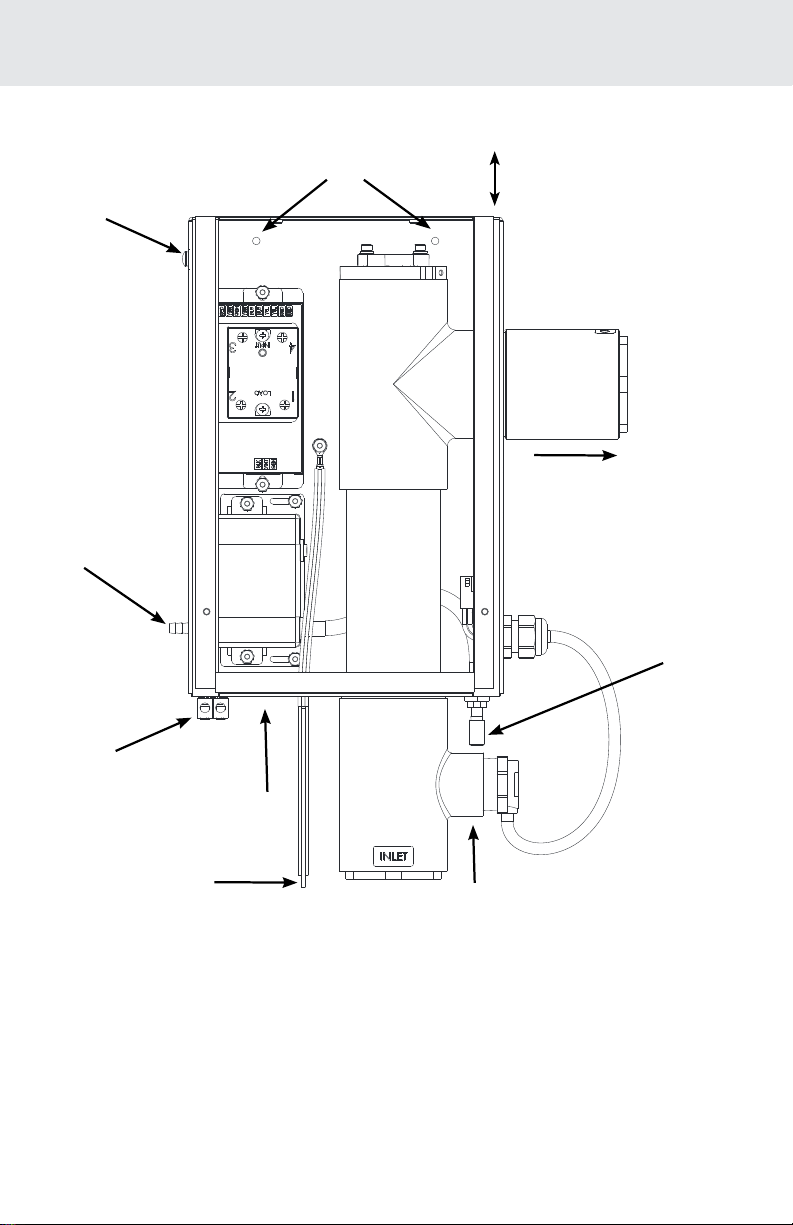

Figure 1: Mounting Location & Notations
(cover removed)
Ozone Output
Barb
Bonding Lugs
½” Knockout
Main Power
Wires
Water Outlet
Mounting Holes
(2x)
Water Inlet
Allow Vertical Clearance
for UV Lamp Removal
System Active
Indicator
Air Intake
Filter
