1. Size & Power Requirements…………………… 1
2. Parts list & Machine Placement…………………2
3. Instructions …………………………………… 3
a.Power Switch Location …………………… 3
b.Coin/Ticket Meters………………………… 3
c.Volume Control …………………………… 3
d.Installing Tickets ………………………… 4
4.Program Setting (Dip Switch Setup) ………… 4--5
5.Troubleshooting and Solutions ………………… 6
6.Wiring Diagram …………………………………7
Contents
Coast to Coast Entertainment
Technical Support - [phone]

1.Insert Coins
2.After coins are inserting the game starts automatically
3.The wolves pop up in a random order
4.Hit the wolves quickly with the hammer provided. Try your best
not to miss any of the wolves.
5.You get 1 point for each of the wolves that you hit down. When the
time is out, and your score is over 60 points (or 80 points), the mach
ine will give you 20 seconds of extended play.
·If the digital display shows a “003”, it means that
the coin mech is out of order. Clear the coin
mech for jams or struck coins.
Instructions

1
Size & Power Requirements:
Number of player(s):1
Apparent size: (W)34in (D)30.5 in (H)61in
**
Weight: 105 LBS
Power supply: AC 110V 50Hz/60Hz
Power: 150W
W 3 4 i n D30.5 in
H 6 1i n
Mr. Wolf
Hits High score

2
Parts list:
machine body
Leveler wheel
1
/
about in
4
Description Quantity Remarks
IRF740
TLP521-2
1PCS
2PCS
*30
2PCS
2PCS
1PCS
1PCS
6
No：027
1PCS
2PCS
5408IN
1PCS
5A Fuse
Sensor
Hammer
Key
Specification
Allen Key(M4)
Included in this machine:
Machine Placement 1
Adjust the 4 levelers to ensure that the wheel are about /
4 inches off the floor.

3
ON
OFF
Power supply and switch location
（Located on the back of the machine）
electric wire
power switch
fuse outlet
coin counter ticket counter
volume button
( turn right for up)
Coin and ticket meters and volume adjustment
Coin ticket meters and volume adjustment can be found by opening
the coin door.
Instructions
Note: Unplug the machine before starting any trouble shooting.

4
SW1 SW2 SW3
Methods of installing the tickets:
(1). Open the ticket door with a key;
(2). Put the whole stack of tickets in the ticket box, keeping its right side up;
(3). Put the tickets in the guide slot of the machine;
(4). Press the micro-switch at the bottom left corner of the ticket dispenser's circuit board
with your hand, until it sends out a ticket;
(5). Lock the ticket door.
Cautions:
1). the tickets can't be folded when being sent in the guide slot;
2). the tickets must be put in accordance with the direction that they come out;
3). the tickets can't touch or intertwine with the wires of the machine.
Note:push up for ON,push down for OFF.
Program setting
(on the bottom right corner of board)

5
Three toggle switches(8 way)
1 2 3 4 5 6 7 8
OFF
ON
OFF
ON
OFF
ON
SW1
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
OFF
ON
OFF OFF OFF OFF OFF OFF OFF ON
OFF
ON
OFF
ON
OFF
ON
OFF OFF
OFF ON
ON OFF
SW2 ON ON
OFF OFF OFF
OFF OFF ON
OFF ON OFF
OFF ON ON
ON OFF OFF
ON OFF ON
ON ON OFF
ON ON ON
OFF OFF OFF OFF OFF OFF OFFON
OFF
ON
SW3
OFF
ON
OFF
ON
OFF OFF OFF OFF OFF OFF OFF OFF
swit ch
program content Situation
inspect
not inspect
no
0
1pieces
3pieces
5pieces
Has been set
Yes
normal
a little shorter
Switch test
Demonstrate music
Insert or not insert coin insert
not insert
Tickets dispensed
each coin
for
3 coins/game
4 coins/game
Coins needed
game
in each
1 coin/game
2 coins/game
Run the machine to
the coin counter
check Yes
No
When will tickets
present come out
right away
game over
Additional tickets dispensed
when over the highest score
0
3 pieces
How many can be
awarded an extended play
in the second inning
points 60
80
decided by points
The most tickets
dispensed in each game
10 pieces
15 pieces
20 pieces
3 points / piece
6 / piecepoints
9 / piecepoints
Tickets dispensed
according to marks
in each game
12 /piecepoints
15 /piecepoints
20 /piecepoints
25 /piecepoints
No ticket
Has been set
Playing time for
each game
how difficult of play
this game
Easy
Difficult
Tickets do all dispense
if it has alert sound
n't Yes
No
Has been set

6
Trouble Shotting Reasons Solutions
Coins can't be
inserted in.
It doesn't work after
inserting the coins
1. The electronic coin-insertadvice is out
of the order.
2. The purpl e or yellow wire isn' t incontact.
1.Replace the electronic coin-insert advice.
2.Inspect the circuit.
Tickets come out
continually.
1. The ticket dispenser is out oforder that
it can't send the feedback-pulse to the
main PCB board.
2. The feedback-pulse of the
the ma in PCB board are not in contact
Greenwire and
1. Replace the ticket dispenser witha new one.
2. Inspect the circuit.
Tickets can't come out.
No sound.
1.The loudspeaker is out of order.
2.The TDA1519C is out of order.
3. No sound,and no display.
1.Test the loudspeaker, and replace it if the
circuit is opened.
2.Touch the POT with your hand. If there is
no buzz the “TDA1915C”is out of order.
You have to replace it with a new one.
3.Check the whether the “+12”power supply
has been supplied to the “TDA1519C”.
The machines can't
record points.
1.Th e power supply hasn't been connected.
2.The power supply box is out of order.
3. 89C52 is out of order.
1.Reset the toggle switch, but the
machine must be reset, too.
1.Reset the toggle switch, and the machine must
be reset, too.
2.Inspect the white wire. When tickets need not
to come out, it is low level, while it must be high
level when tickets come out. Otherwise the
wires haven't been in contact.
3.Clear the ticket dispenser or replace it.
1. “ ”
“ ”
The photo switch for
9014 scoring points is out of order.
TCRT5000
2.The circuit isn't in contact.
1.Replace the “TCRT500”or .“ ”9014
2.Inspect the circuit.
The head of some
Wolf doesn't work.
1.
“ ”
The corresponding electromagnetism
valve is out of order.
2.The corresponding TIP122 is out
of order.
3.The head is jammed by mechanism trouble.
1.The power supply hasn't
been in contact.
2.The IN5408 burns out.
“ ”
“ ”
AC18 1.Check that whether the transformer works
normally.
2.Replace the IN5408 .“ ”
1.Inspect the “AC220v” power supply.
2.The power supply box has no “+5v” or
“+12v” output. Replace it.
3.Replace the corresponding 89C52.
The whole machine
doesn't work.
2.Drivng signal on the motherboard isn't
sent out.
3.Damage of ticket dispenser.
2.The coin-insert device hasn't been
adjusted well.
1.“+12v”power supply isn't connected. 1.Inspect circuit
2.Replace coin
1.Replace the electromagnetism value with
a new one.
2.Replace the TIP122 with a new one.
3.Readjust the machine.
“ ”
All wolves' heads
can't move.

7

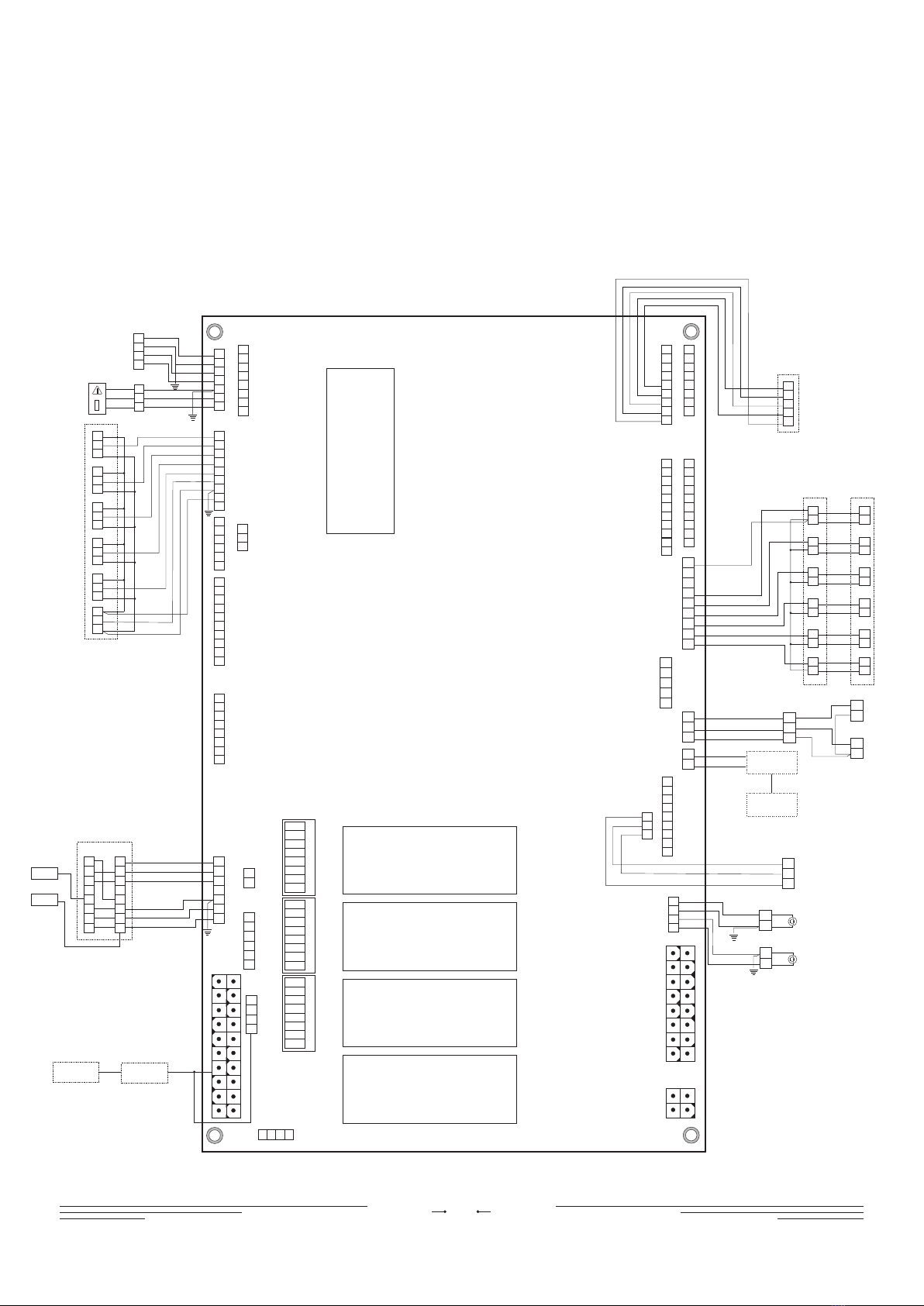

Wiring diagram for Mr.Wolf
U29 U30 U31 U32
Mother board
JP14
J1
J2
J3
R72
P10
JP1
J7
J4 J8
JP11
JP13
U5
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
1
2
3
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
1
2
1
2
3
4
5
6
1 2 34
5V/12V Po wer
Toggle switch
Sound chips
Main chips
Coin selector
Sw1
1
2
3
4
5
6
7
8
ON
Sw2
1
2
3
4
5
6
7
8
ON
SW3
1
2
3
4
5
6
7
8
ON
1
2
3
4
JP11
1
2
3
4
1
2
3
Ticket dispenser
White
Black
Red(12V)
Blue
Black
Purple
Yellow(12V)
Red(5V)
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Digital display
Bro w n
Gre en
B l u e
Brown
Bl a c k
Re d
Ye l l o w (1 2 V )
Red
Golden
White
P1
P2
P3
P4
JP3 JP5
JP10
JP12
J9
P9
JP4
JP9
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
1
2
3
4
5
1
2
3
4
5
6
7
8
9
1
2
3
1
2
1
2
3
1
2
3
1
2
1
2
Coin counter
Ticket counter
Grey
JP2
1
2
3
4
Black
White(red)
1
2
1
2
Speaker 1
Volume adjustment
1
2
3
B r o w n
Orange
Yellow(12V)
Red
Jp8
Yellow（70V）
Brown
Orange
Green
Blue
Purple
Yellow
Solenoid valve
1
2
1
1
1
1
2
2
2
2
1
2
1
1
1
1
2
2
2
2
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
transfo rmer
(55V inpu t）
1
2
3
Red
Brown
Black
1
1
1
1
2
2
2
2
3
3
3
3
Red
Orange
Black
Red
Green
Black
Red
Blue
Black
Red
Purple
Black
Sensor fo r scoring
1
2
3
4
5
888
888
High score
Score
220V Powe r
220V Powe r
1
2
3
Red
Grey
Black
6
1
2
1
2
Grey
Yellow(12V)
Green
Blue
Orange 1
2
3
4
5
12、3、6、9 numerical light
Brown
Orange
Green
Blue
Purple
Grey
Black
brown Orange
Green
Blue
brown
Yellow(12V)
Grey
Red
Yellow
Golden
White
Red
Black
White(red)
White(red)
Black
Black
White(red)
Speaker 2
Score
High scor e
9
10
11
