Coats Vero Series Manual instruction

READ these instructions before placing unit in
service. KEEP these and other materials delivered
with the unit in a binder near the machine for ease
of reference by supervisors and operators.
Safety Instructions
Set-up Instructions
Operation Instructions
Maintenance Instructions
See
ÌBalancing Your
First Tire
on page 3.
Model V200
Vero Series™ Wheel Balancer
1601 J. P. Hennessy Drive, LaVergne, TN USA 37086-3565 615/641-7533 800/688/6359 www.ammcoats.com Manual Part No.: 85608729 01
HENNESSY INDUSTRIES INC. Manufacturer of AMMCO®, COATS®and BADA®Automotive Service Equipment and Tools. Revision: 5/14

ii • Important: Always read and follow instructions.
READ ALL INSTRUCTIONS
1. Eye and face protection recommendations:
“Protective eye and face equipment is required to
be used where there is a reasonable probability
of injury that can be prevented by the use of
such equipment.” O.S.H.A. 1910.133(a) Protective
goggles, safety glasses, or a face shield must be
provided by the owner and worn by the operator
of the equipment. Care should be taken to see
that all eye and face safety precautions are fol-
lowed by the operator. ALWAYS WEAR SAFETY
GLASSES. Everyday glasses only have impact
resistant lenses, they are not safety glasses.
2. Do not disable hood safety interlock system, or in
any way shortcut safety controls and operations.
3. Be sure that wheels are mounted properly, the
hub nut engages the arbor for not less than four
(4) turns, and the hub nut is firmly tightened
before spinning the wheel.
4. Read and understand this manual before operat-
ing. Abuse and misuse will shorten the functional
life.
5. Be sure the balancer is properly connected to the
power supply and electrically grounded.
6. Do not operate equipment with a damaged cord
or if the equipment has been dropped or dam-
aged – until it has been examined and repaired by
a qualified serviceman.
7. Do not let cord hang over edge of table, bench, or
counter or come in contact with hot manifolds or
moving fan blades.
8. If an extension cord is necessary, a cord with a
current rating equal to or more than that of the
equipment should be used. Cords rated for less
current than the equipment may overheat. Care
should be taken to arrange the cord so that it will
not be tripped over or pulled.
9. Keep guards and safety features in place and in
working order.
10. Wear proper clothing. Safety toe, non-slip foot-
wear and protective hair covering to contain hair
is recommended. Do not wear jewelry, loose
clothing, neckties, or gloves when operating the
balancer.
11. Keep work area clean and well lighted. Cluttered
and/or dark areas invite accidents.
12. Avoid dangerous environments. Do not use power
tools or electrical equipment in damp or wet loca-
tions, or expose them to rain.
13. Avoid unintentional starting. Be sure the balancer
is turned off and power disconnected before
servicing.
14. Disconnect the balancer before servicing.
15. Use only manufacturer’s recommended accesso-
ries. Improper accessories may result in personal
injury or property damage.
16. Repair or replace any part that is damaged or worn
and that may cause unsafe balancer operation. Do
not operate damaged equipment until it has been
examined by a qualified service technician.
17. Never overload or stand on the weight tray or any
part of the balancer.
18. Do not allow untrained persons to operate machin-
ery.
19. To reduce the risk of fire, do not operate equip-
ment in the vicinity of open containers or flam-
mable liquids (gasoline).
20. Adequate ventilation should be provided when
working on or operating internal combustion
engines.
21. Keep hair, loose clothing, fingers, and all parts of
body away from moving parts.
22. Use equipment only as described in this manual.
23. Use only manufacturer’s recommended attach-
ments and accessories.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

Important: Always read and follow instructions. • iii
Owner’s Responsibility
To maintain machine and user safety, the responsibility
of the owner is to read and follow these instructions:
• Follow all installation instructions.
• Make sure installation conforms to all applicable
Local, State, and Federal Codes, Rules, and Regula-
tions; such as State and Federal OSHA Regulations
and Electrical Codes.
• Carefully check the unit for correct initial function.
• Read and follow the safety instructions. Keep them
readily available for machine operators.
• Make certain all operators are properly trained,
know how to safely and correctly operate the unit,
and are properly supervised.
• Allow unit operation only with all parts in place and
operating safely.
• Carefully inspect the unit on a regular basis and
perform all maintenance as required.
• Service and maintain the unit only with authorized
or approved replacement parts.
• Keep all instructions permanently with the unit
and all decals/labels/notices on the unit clean and
visible.
• Do not override safety features.
Operator Protective Equipment
Personal protective equipment helps make tire ser-
vicing safer. However, equipment does not take the
place of safe operating practices. Always wear durable
work clothing during tire service activity. Loose fitting
clothing should be avoided. Tight fitting leather gloves
are recommended to protect operator’s hands when
handling worn tires and wheels. Sturdy leather work
shoes with steel toes and oil resistant soles should be
used by tire service personnel to help prevent injury
in typical shop activities. Eye protection is essential
during tire service activity. Safety glasses with side
shields, goggles, or face shields are acceptable. Back
belts provide support during lifting activities and are also
helpful in providing operator protection. Consideration
should also be given to the use of hearing protection if
tire service activity is performed in an enclosed area, or
if noise levels are high.
Definitions of Hazard Levels
Identify the hazard levels used in this manual with the
following definitions and signal words:
DANGER
Watch for this symbol:
DANGER
It Means: Immediate hazards, which will result in
severe personal injury or death.
WARNING
Watch for this symbol:
WARNING
It Means: Hazards or unsafe practices, which could
result in severe personal injury or death.
CAUTION
Watch for this symbol:
CAUTION
It Means: Hazards or unsafe practices, which may
result in minor personal injury or product or property
damage.
Watch for this symbol! It means BE ALERT! Your
safety, or the safety of others, is involved!

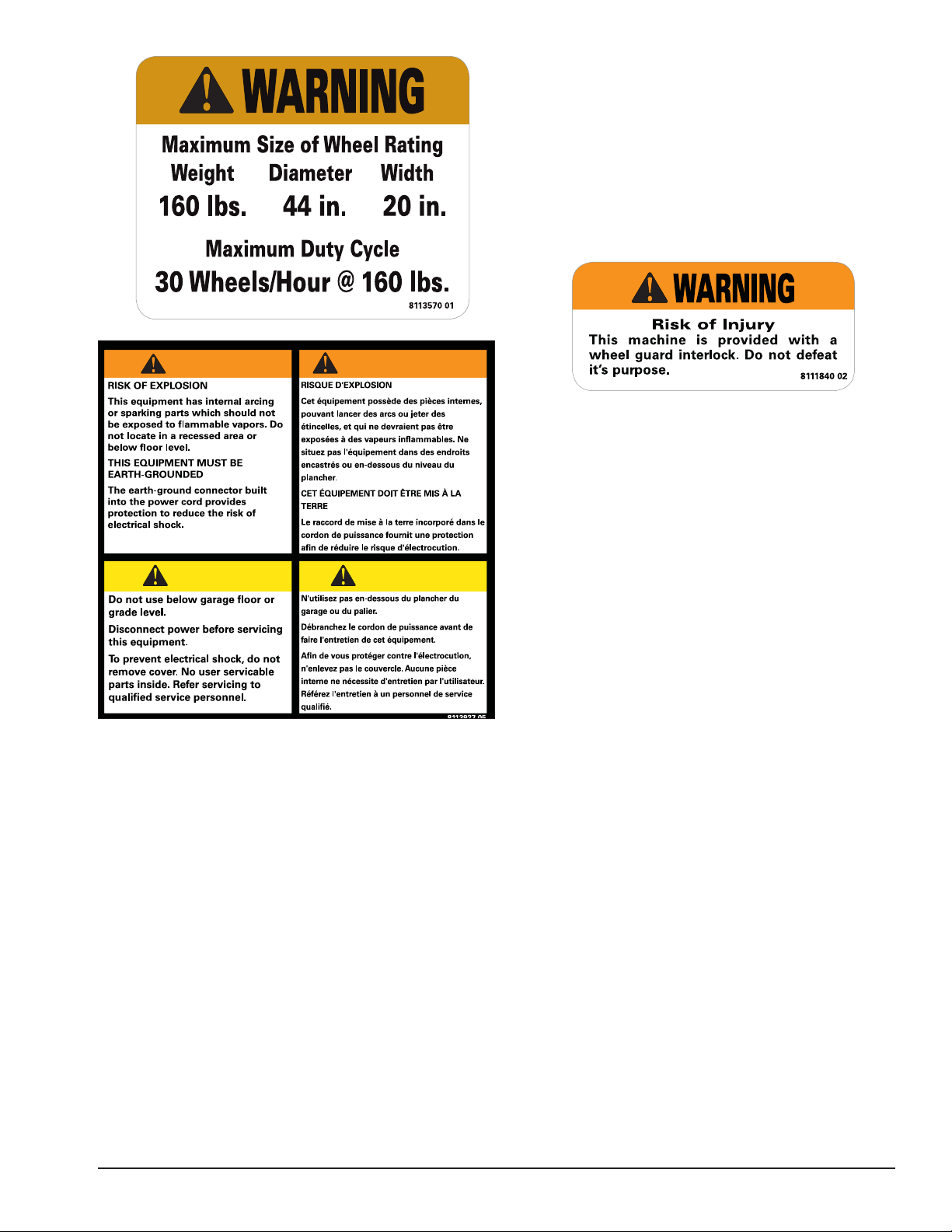

Safety Notices and Decals
WARNING
Failure to follow danger,warning, and caution
instructions may lead to serious personal
injury or death to operator or bystander or
damage to property. Do not operate this
machine until you read and understand all
the dangers, warnings and cautions in this
manual. For additional copies of either, or
further information, contact:
Hennessy Industries, Inc.
1601 JP Hennessy Drive
LaVergne, TN 37086-3565
[phone] or [phone]
www.ammcoats.com
The motor unit of this machine contains a Class IIIa
laser with a maximum output less than 5mW at a wave
length of 630-680 nm. Avoid Exposure - Laser radia-
tion is emitted from its aperture.
CAUTION
Use of controls, adjustments or performance
of procedures other than those specified
herein may result in hazardous radiation
exposure.
In case of failure, the entire motor unit must
be replaced.
iv • Important: Always read and follow instructions.
Read entire manual before assembling,
installing, operating, or servicing this
equipment.
NOTICE

Important: Always read and follow instructions. • v
CAUTION
WARNING
ATTENTION
AVERTISSEMENT
Standard Safety Devices
• STOP key for stopping the wheel under emergency
conditions.
• A hood guard of high impact plastic that is designed
to prevent the counterweights from flying out in any
direction except towards the floor.
• A hood switch interlock system that prevents the
machine from starting if the guard is not lowered
and stops the wheel whenever the guard is raised.

vi • Important: Always read and follow instructions.
Table of Contents
Important Safety Instructions ................................. ii
Owner’s Responsibility............................................iii
Operator Protective Equipment...............................iii
Definitions of Hazard Levels....................................iii
Safety Notices and Decals ......................................iv
Standard Safety Devices ..........................................v
Set Up Instructions................................................... 1
Receiving................................................................. 1
Electrical Requirements .......................................... 1
Machine Set Up....................................................... 1
Floor and Space Requirements ............................... 1
Connect to Power.................................................... 1
Specifications............................................................ 2
Features ..................................................................... 2
Accessory Options.................................................... 2
Balancing Your First Tire ........................................... 3
Principle Operating Parts .................................. 4 - 11
Know Your Unit ................................................... 4 - 5
Power Switch........................................................... 5
Weight Tray .............................................................. 5
Using The Offset Arm......................................... 6 - 7
Using The Laser Locator.......................................... 7
Using Line Laser...................................................... 7
Hood (Wheel Guard)................................................ 8
Using the Hood Sonar (Width Senor) ...................... 8
Positioning Pedal ..................................................... 8
Auto Wheel Positioning ........................................... 8
Laser Guided Operation™ System..................... 8 - 9
Touchscreen ............................................................ 9
Touchscreen Layout................................................10
Touchscreen User Interface (UI)
Function & Review .......................................... 10 - 11
Mounting Wheel on Balancer Shaft ............... 12 - 13
Standard Back Cone Mounting.............................. 12
Standard Front Cone Mounting ............................. 13
Alternate Mounting ............................................... 13
Direct Select™ Weight Location............................ 14
Setting Wheel Dimensions (DIM) ................... 14 - 15

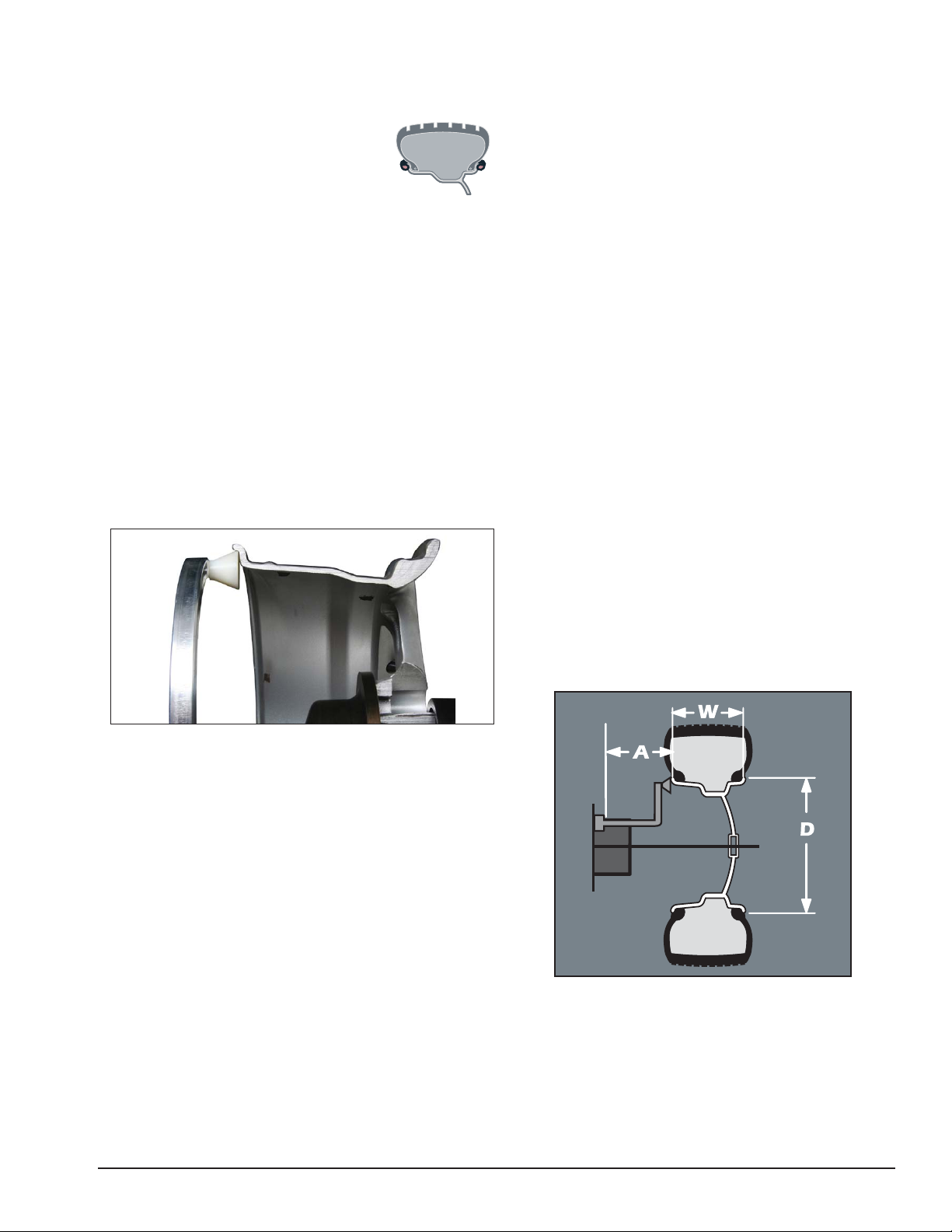

Definition of Dimensions (DIM)............................. 14
Basic Wheel Data Entry......................................... 15
Entering Wheel Dimensions Manually .................. 15
Balancing A Wheel .................................................. 16
Dynamic Balancing ................................................ 16
Static Balancing..................................................... 16
Corrective Weight Placement ......................... 17 - 18
Behind Spoke .........................................................17
ProBalance™ Technology....................................... 18
Calibration........................................................ 19 - 20
Machine Calibration ............................................... 19
Maintenance Instructions ...................................... 20
Diagnostic Procedures .................................... 20 - 21
After Balance Vibration Problems .......................... 20
Troubleshooting..................................................... 21
Glossary................................................................... 22

Important: Always read and follow instructions. • 1
Set Up Instructions
Receiving
The shipment should be thoroughly inspected as soon
as it is received. The signed bill of lading is acknowl-
edgement, for the carrier, of receipt in good condition
of the shipment covered by our invoice.
If any of the goods called for on this bill of lading are
shorted or damaged, do not accept them until the car-
rier makes a notation of the shorted or damaged goods
on the freight bill. Do this for your own protection.
NOTIFY THE CARRIER AT ONCE if any hidden loss or
damage is discovered after receipt and request him to
make an inspection. If the carrier will not do so, prepare
an affidavit to the effect that you have so notified the
carrier (on a certain date) and that he has failed to
comply with your request.
IT IS DIFFICULT TO COLLECT FOR LOSS OR DAM-
AGE AFTER YOU HAVE GIVEN THE CARRIER A CLEAR
RECEIPT.
File your claim with the carrier promptly. Support
your claim with copies of the bill of lading, freight bill,
invoice, and photographs, if possible.
Although COATS responsibility ceases upon delivery
of the shipment to the carrier, we will gladly assist
in tracing lost shipments. Our willingness to assist in
every possible manner does not make COATS respon-
sible for collection of claims, or replacement of lost or
damaged materials.
Electrical Requirements
See serial tag for the appropriate power requirements
of your machine.
Always have a qualified electrician install the proper
receptacles in accordance with state and local codes.
Machine Set Up
CAUTION
Do not use the control panel, control panel
base, accessory storage, faceplate, hood or
shaft to lift the balancer.
CAUTION
Do not attempt to install and set up the unit
yourself. Contact COATS as noted below.
A factory trained COATS Service Technician must per-
form the install, set up, and initial test procedures on
your wheel balancer. Do not attempt to install and set
up the unit yourself. Accurate and reliable operation of
your unit depends on proper installation. Please contact
COATS directly at 1-800-688-9240 for the Certified
Service Partner nearest you.
Floor and Space Requirements
The balancer must be located on a flat floor of solid
construction, preferably concrete. The balancer must
sit solidly on its three feet. If the balancer is not level,
does not sit solidly on its three feet, or is placed on an
unstable floor, the balancer will not function properly
and may produce inaccurate balance readings.
Do not operate the balancer while it is on the pallet.
Select a location for the balancer that provides a level,
solid floor, and adequate clearance around and above
the balancer. Make sure the location selected has
enough room above and behind the unit so the hood
can be raised completely. The location must also pro-
vide working room for mounting and removing wheels.
Make sure the area has adequate lighting.
Figure 1 - Space Requirements
Connect to Power
Your factory trained COATS® Service Technician should
do the final check to verify the power installation before
connecting the balancer to a power supply. Failure due
to improper power connection may void the warranty.
5-ft.
(1529mm)
5-ft.
(1529mm)
6.5-ft.
(1981mm)

2 • Important: Always read and follow instructions.
Specifications
Wheel Diameter Range
8 - 30 inches (203 - 762 mm)
Wheel Width Range
2 - 20 inches (51 - 508 mm)
Maximum Outside Tire Diameter
Up to 44 inches (1118 mm)
Maximum Tire/Wheel Weight
160 pounds (73 Kg)
Mounting Shaft Diameter
40 mm
Resolution (Round Off Mode)
0.25 ounce, position 1.40 degrees
Resolution (Fine Mode)
0.01 ounce, position 1.40 degrees
Balancing Display Increments
0.25 or 0.01 ounces
Electrical Requirements
230V, 1 PH, 60 Hz, 20A
NEMA L6-20R
230V, 3 PH, 60 Hz, 20A
NEMA L15-20R
(use grounding type plug)
Footprint
Width: 60 inches (1524 mm)
Depth: 60 inches (1524 mm)
Height: 78 inches (1981 mm)
Shipping Weight
650 pounds (295 Kg)
(without accessories)
Features
• Direct Drive System
• ProBalance™ Technology
• Direct Select™ Weight Placement
• Behind the Spoke Weight Placement
• Automatic Start When Hood Is Lowered
• Automatic Data Entry for Offset, Diameter & Width
- Manual Entry Backup on all Parameters
• Simple, Interactive User Interface - Touchscreen
• Operator Memory for Two Different Users
• Static, Dynamic And Multiple Tape-A-Weight®
• Laser Guided Operation™ System
• Auto Wheel Positioning
• Hood Safety Interlock System
• MET Lab Listing
Accessory Options Basic Pro Extended Pro Premium Pro
Description Part Number 85609487 85609488 85609489
Stub Shaft 8500920401 x x x
Bracket/Peg Accessory 8111054 xxx
Weight Tray Stud
(6 included) 85608850 xxx
8 Double Sided Collets 85609499 x x x
Calipers 8309011 x x x
Premium Wheel Weight
Hammer 8113175 x x x
Premium Quicknut 85607503 x x x
Small Pressure Cup &
Rubber Lip 8112106 x x x
No Mar Ring 85608312 x x x
Spring 8112107 x x x
Scraper 8113390 xxx
Short Cone 8112421 x x
Light Cone Kit
(4.8” - 6.8”) 8113277C xx
Faceplate Extension 8111935 x x
Pin-Plate System with
Balancer Mate 8KPPBM40 x

Important: Always read and follow instructions. • 3
★Balancing Your First Tire
1. Turn the machine OFF then ON
(resets machine).
Note: The machine wakes up
using standard clip-on wheel
weight locations (Clip 1 & Clip 2)
and wheel dimensions.
2. Mount a tire/wheel on the
balancer that will use standard
clip-on wheel weights.
Use the most appropriate mounting method.
3. Always remove any weights
already attached to the wheel.
4. Enter A & D wheel dimensions
using offset arm.
For Automatic Measurement — pull offset arm
out to the wheel, hold it still at clip-on weight
position against wheel flange, and wait for
BEEP. Return arm to home position.
Clip-on Weight Location — viewed on a cut-
away rim for clarification.

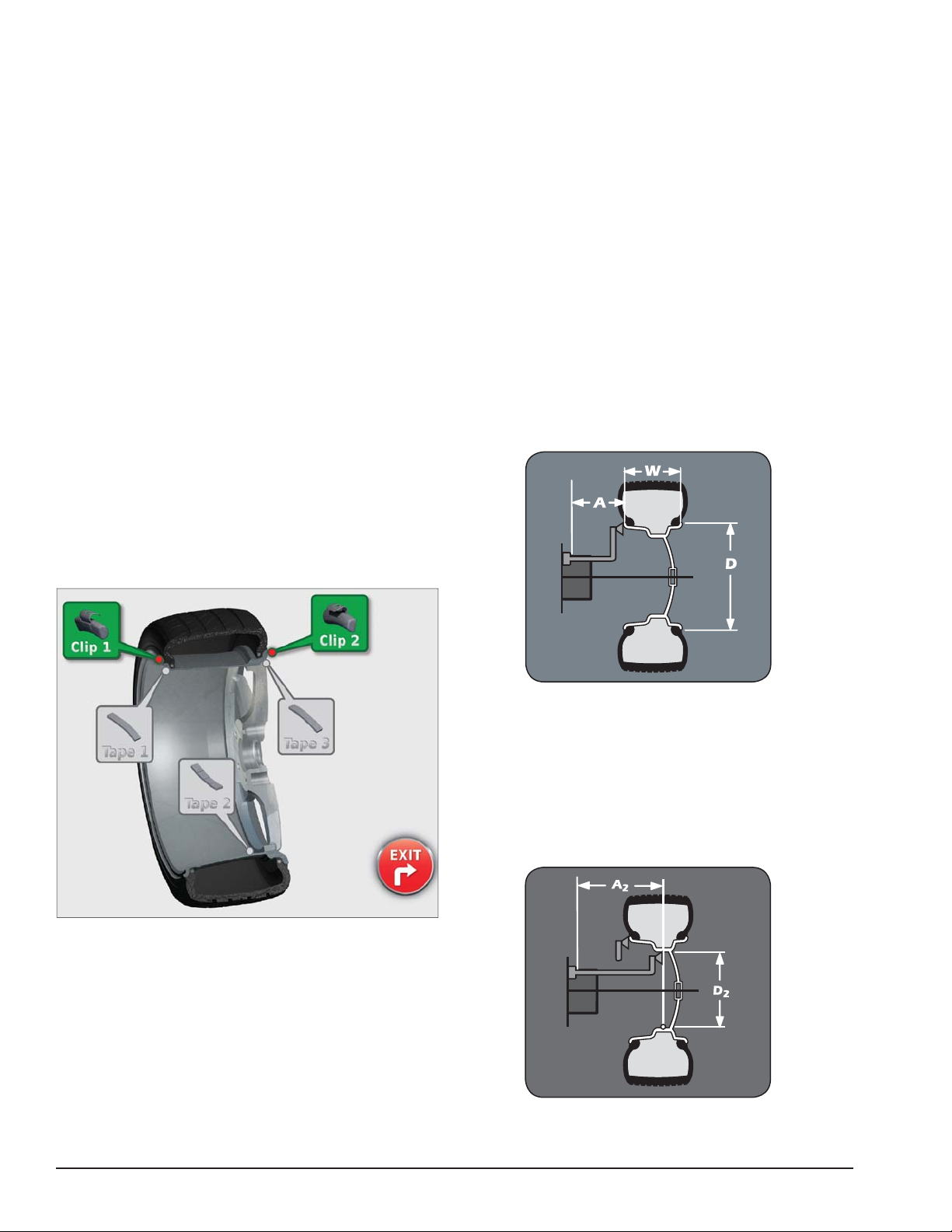

Figure 2 - Clip-On Weight Location
Note the value entry of A & D dimension.
5. Enter Width wheel dimension.
For Automatic Measurement — Lower hood.
For Manual Entry — Use plastic calipers to
measure wheel width. Press W icon. Use key-
pad to enter Width value (between 2.0 and 20.0
inches).
6. Lower hood (wheel guard); wheel
spins and unbalances are mea-
sured and displayed.
The corrective weight amount appears in the
weight display window for inboard and outboard
weight locations.
7. Raise hood after tire stops
rotating.
Note: Wait for wheel to stop before raising the
hood (wheel guard).
8. Wheel automatically stops at
inboard weight position.
The inboard center bar highlights green.
Note: If an inboard corrective weight is not
required then go to step 11.
9. Attach inboard corrective
weight.
Attach specified weight amount at top-dead-
center on inside flange of wheel (clip 1).
10. Press NEXT; wheel rotates.
11. Wheel automatically stops at
outboard weight position.
The outboard center bar highlights green.
12. Attach outboard corrective
weight.
Attach specified weight amount at top-dead-
center on outside flange of wheel (clip 2).
13. Lower the hood to respin the
tire/wheel and check balance.
The weight readings should now be 0.00.
Note: Throughout this manual tire dimensions
are referred to as A, W, and D, see figure 3.
Figure 3 - A, W, and D Tire Dimensions

4 • Important: Always read and follow instructions.
A
A
C
C
B
B
D
D
J
J
K
K
G
G
Principle Operating Parts
Know Your Unit
Compare this illustration with the unit before placing
it into service. Maximum performance and safety will
be obtained only when all persons using the unit are
fully trained in its parts and operation. Each user should
learn the function and location, of all controls.
Prevent accidents and injuries by ensuring the unit is
properly installed, operated and maintained.
H
H
E
E
L
L

Important: Always read and follow instructions. • 5
A
A- Touchscreen
B
B- ON/OFF Switch (Back Of Machine)
C
C- Plug (Back Of Machine)
D
D- Weight Tray Studs
E
E- Weight Tray with Pockets for Weights
G
G- Hood (Wheel Guard)
H
H- Hood Sonar (Width Sensor), if equipped
J
J- 40 mm Shaft
K
K- Laser Locator
L
L- Offset Arm, Measures A & D of Tire/Wheel
(Shown In Home Position)

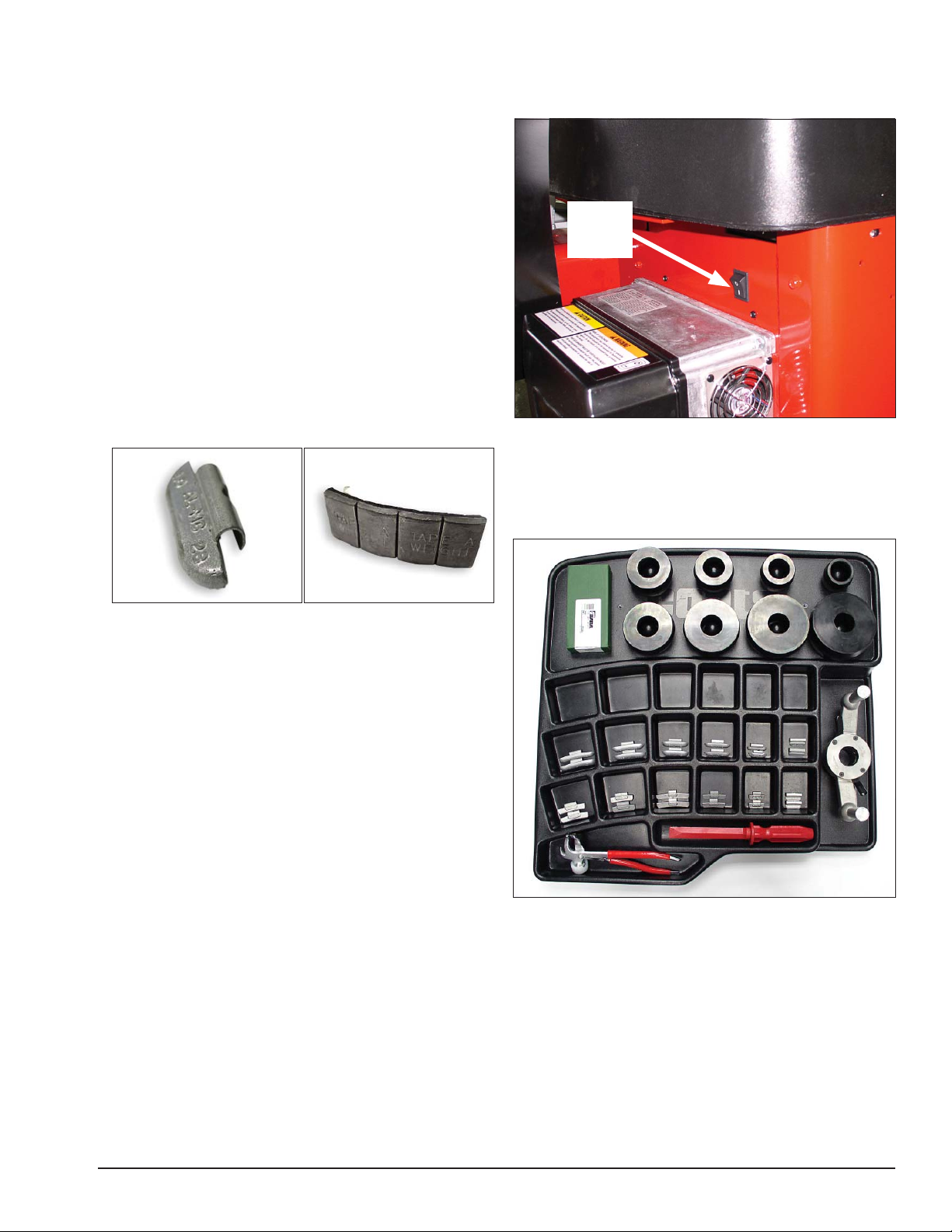

Note: Throughout this manual, wheel weights are
referred to as Clip-on or Tape-A-Weight®. Figure 4
shows an example of each weight.
Figure 4 - Corrective Weight Examples. For Best Results, use
BADA® Brand Wheel Weights.
Power Switch
The ON/OFF switch location (figure 5) is on the left
side of the balancer; below the weight tray.
Figure 5 - On/Off Switch
Weight Tray
Weight pockets are laid out so that wheel weights are
easily accessible. Use the weight tray studs for handy
storage of wheel mounting adapters.
Figure 6 - Top Down View of Weight Tray With BADA Brand
Wheel Weights and COATS® Brand Accessories
ON/OFF
Power
Switch
Clip-on Weight Tape-A-Weight®

6 • Important: Always read and follow instructions.
Using The Offset Arm
When not in use or when prompted by the balancer
instructions, store the offset arm in the home position
as shown in figure 7.
Figure 7 - Location of Offset Arm (Stored In Home Position)
and Laser Locator
Use the offset arm gauge (figure 8A) to automatically
measure the distance from wheel to machine and
the wheel diameter at the point of weight application.
Also, use the offset arm for the correct positioning of
weight application on the inside rim as indicated by the
balancer instructions.
Figure 8A - Automatic A&D Measurement At Clip-on Weight
Location
Be sure to place the offset arm on the wheel flange at
the clip-on weight location as shown figure 8B.
Figure 8B - Clip-on Weight Location Viewed on a Cut-Away
Rim for Clarification.
Note: Use the offset arm to automatically measure
the A & D dimension for all balancing modes.
Note: Refer to page 15 to measure the A dimension
manually using the offset arm.
Note: The T2 Tape Direct Select™ Weight position is
the only mode that requires the A2 & D2 dimension
measurements.
Note: Use laser locators for correct positioning of the
T2 Tape Direct Select™ Weight position, refer to page 7.
If the T2 Tape (hidden Tape-A-Weight®) location is
selected, use the offset arm to enter A2 & D2 measure-
ments automatically. After the A & D measurement is
entered, move the arm from the clip-on weight location
to the inner area of the wheel; up against the rim at the
outboard weight placement location (see figures 9A &
9B). Wait for the BEEP.
Figure 9A - Hidden Weight Location Viewed on a Cut Away
Rim for Clarification.
Offset Arm
In Home
Position

Important: Always read and follow instructions. • 7
Important: The A2 measurement must be at least 2
inches greater than the A1 measurement.
Figure 9B - T2 Tape (Hidden Tape-A-Weight®), Keep At Least 2
inches Between A1 and A2 Measurement
Figure 9C - T2 Tape (Hidden Tape-A-Weight®), Data Entry
Diagram
Using The Laser Locator
If the T2 Tape (hidden Tape-A-Weight®) location is
selected, use the laser locator to point to the hidden
weight location (figures 10 & 9B). Rotate laser locator
knob to position the laser dot outboard at the desired
T2 Tape (hidden Tape-A-Weight®) location.
Note: For best performance, choose a weight position
outboard as far inward (in the rim) as wheel allows.
Figure 10 - Positioning Laser Dot At T2 Tape Hidden Weight
Location (A2)
Note: The T2 Tape Direct Select™ Weight position is
the only mode that requires the A2 & D2 dimension
measurements.
Using The Line Laser
If the T2 Tape (hidden Tape-A-Weight®) location is
selected, use the line laser to align the offset arm with
the laser locator dot (figures 10 & 9B); entering A2 &
D2 measurements automatically. Grasp arm at the line
laser and pull out and up to the wheel flange (figure
8B). Hold arm still at the clip-on weight location and
wait for BEEP. Then, before returning arm to home posi-
tion, press button on line laser to activate the line laser
beam. Move arm to inner area of wheel and align line
laser beam with laser locator dot (figure 10). Hold arm
still, up against the rim, in the same plane as the T2 Tape
(hidden Tape-A-Weight®) location (figure 9A & 9B) and
wait for BEEP. Refer to figure 11.
Note: The line laser remains on for ten seconds after
its button is pushed.
Figure 11 - Positioning Line Laser Beam At T2 Tape Hidden
Weight Location (A2)
At least
2-inch
minimum
difference
A1 A2 Laser
Locator
Knob
Laser
Locator
Dot
Center Line
Laser Beam on
Laser Locator
Dot
Press Line
Laser Button

8 • Important: Always read and follow instructions.
Hood (Wheel Guard)
CAUTION
Never raise up the wheel guard before the
wheel has come to a stop. Keep hair, loose
clothing, fingers and all parts of body away
from moving parts.
If, due to a fault in the machine, the wheel keeps spin-
ning permanently, switch off the machine at the master
switch or by unplugging the plug from the power
supply. Wait until the wheel stops before opening the
wheel guard.
Using the Hood Sonar (Width Sensor)
When prompted by the balancer instructions, use the
hood sonar (width sensor, figure 12) to enter wheel
width measurement automatically. Lower balancer
hood to enter the measurement.
Figure 12 - Tire Width Sonar Located Inside Hood
Note: Refer to page 15 to measure the W dimension
manually using the plastic calipers.
Auto Wheel Positioning
CAUTION
Keep hair, loose clothing, fingers and all
parts of body away from moving parts.
The balancer’s auto positioning feature stops the
wheel automatically at the corrective weight location.
The wheel is spun and unbalances are measured and
displayed. The inboard center bar highlights green as
the balancer stops the wheel at the inboard corrective
weight location (top-dead-center). (If an inboard correc-
tive weight is not required then the wheel will stop at
the outboard corrective weight location.) Press NEXT.
The outboard center bar highlights green as the wheel
automatically moves and stops at the outboard correc-
tive weight location (top-dead-center).
Pressing NEXT moves the wheel automatically to
the next corrective weight location. Pressing STOP &
EXIT releases the wheel so that it can be manually
positioned.
After several minutes of inactivity, the auto position-
ing feature will turn itself off. Press NEXT to make the
feature activate again.
Laser Guided Operation™ System
The operator must selectT2 Tape Laser Locator to acti-
vate the Laser Guided Operation™ feature, see page
14 for the button selection. This Direct Select™ weight
location is used when placing hidden adhesive weight
at the inner area of the wheel and is the required weight
location selection for the Behind Spoke mode.
Follow these steps to use the Laser Guided Opera-
tion™ feature for accurate placement of hidden Tape-A-
Weights®:
Important: Only use the Direct Select Weight position
Clip 1 or T1 Tape and T2 Tape (location activated). Refer
to Using The Offset Arm
on pages 6 - 7 and Using
The Lasers on page 7.
1. Begin by mounting
the wheel assembly on the balancer shaft.
2. Direct Select™ T2 Tape as the outboard weight
location.
Note: The laser locator dot activates and blinks.
Tire
Width
Sonar

Important: Always read and follow instructions. • 9
3. Rotate the laser locator knob to position the laser
locator dot at the desired weight location. See figures
10 & 9B.
Note: For best performance, choose a weight position
outboard as far inward (in the rim) as wheel allows.
4. Enter the A & D wheel measurements, wait for
BEEP. Then, before returning arm to home position,
move arm to inner area of wheel and position the line
laser beam at the T2 Tape laser locator dot position; wait
for BEEP.
5. Lower hood; wheel spins.
6. When the inboard unbalance is displayed, the
inboard center bar highlights green. Attach inboard cor-
rective weight at top-dead-center.
Note: If an inboard corrective weight is not required
then the wheel will stop at the outboard corrective
weight location.
7. Press NEXT to rotate wheel to outboard corrective
weight location where the outboard center bar is steady
and the two bars on either side blink.
Note: The laser locator dot will stop blinking.
8. Center and attach the outboard corrective weight
at laser locator dot location as shown in figure 13.
9. Respin tire/wheel to check balance.
Figure 13 - Centering Corrective Hidden Weight At Laser Loca-
tor Dot Location
Touchscreen
The balancer touchscreen is a resistive touch panel
(figure 14). To enter a function, press the appropriate
function icon.
Figure 14 - Press Touchscreen Functions
Note: Only press the touchscreen with your fingers.
Never use the weight hammer or other pointed objects
to press on the screen.
Center Corrective Weight At
Laser Locator Dot Location

10 • Important: Always read and follow instructions.
Touchscreen Layout
Figure 15 - Model V200 Default Touchscreen Feature Reference
1
1
2
2
2
2
3
3
3
3
5
5
8
8
7
7
6
6
8
8
6
6
4
4
4
4
3
3
7
7
5
5
7
7
Figure
15
Model
V200
Default
Touchscreen
Feature
Reference
Touchscreen User Interface (UI) Function and Review
1
1 Information / Instruction Panel
An information box appears when the operator text assist icon is activated and to display any error
messages.
2
2 Weight Display Dials
Located on either side of the wheel cross-section diagram are the weight position bars, one Inboard
and one Outboard. After a measurement cycle, rotate wheel until the center weight position bar blinks,
indicating the correct weight placement position is at top-dead-center.
3
3 Direct Select™ Weight Location Icons & Cross-section Diagram
or
Clip 1 or T1 Tape The activated Inboard weight location on the wheel
cross-section diagram.
, , or
T2 Tape, T3 Tape, or Clip 2 The activated Outboard weight location on the wheel
cross-section diagram.
Direct Select™ Weight
Location
Select to go to the Direct Select Weight Location
Screen, see page 14.
4
4 Weight Position Bars
Located on either side of the wheel cross-section diagram are the weight position bars, one Inboard
and one Outboard. After a measurement cycle, rotate wheel until the center weight position bar blinks
green, indicating the correct weight placement position is at top-dead-center. When in laser mode (T2
Tape Laser Locator), special blinking bars appear on either side of the center bar to indicate the correct
outboard weight placement position. Also remember that the laser beam dot will stop blinking when it
is at the correct weight placement location.

Important: Always read and follow instructions. • 11

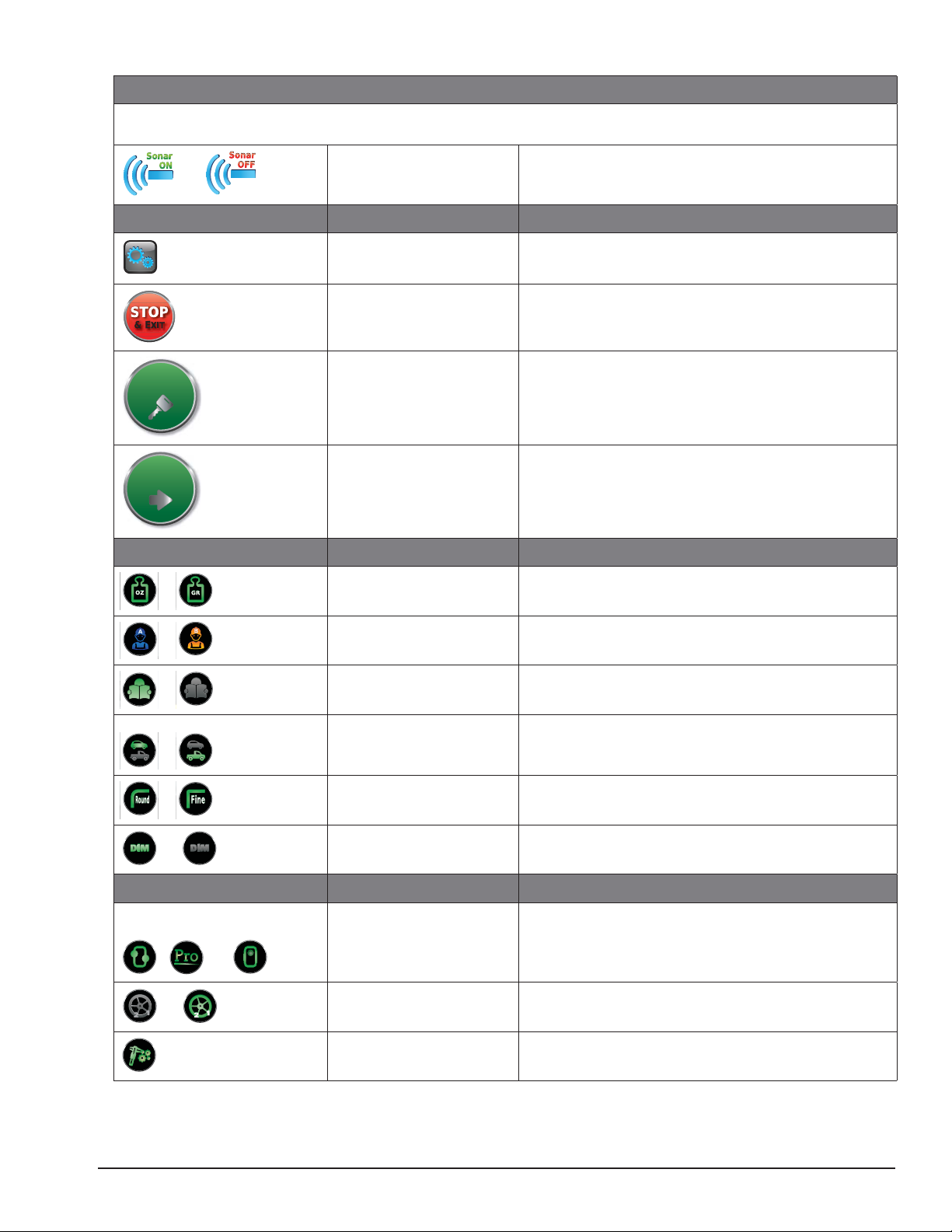

5
5 Wheel Cross-section Graphic and Indicators
On the main screen, a wheel cross-section graphic indicates the wheel balancer operational status.
, or
Sonar On or Sonar Off Indicates whether the width sonar is set on or off.
6
6 Navigation Icons
Settings Select this icon to access and set additional balancer
functions.
STOP
& EXIT
STOP
& EXIT
&
E
X
I
T
STOP & EXIT Deactivates a function or error. Also use to release
the wheel so that it can be manually positioned.
SPIN SPIN Lower hood and press this dashboard icon to begin a
wheel measurement cycle.
NEXT NEXT
Press this dashboard icon to access additional func-
tions or instructions, such as moving to the next
weight location.
7
7 Balance Option Icons
or Ounce or Gram The weight measurement option that is activated.
Toggle to select either Ounce (default) or Gram.
or Operator A or Operator B The Operator Memory option that is activate. Toggle
between two operator memories A (default) or B.
or
Text Assist On or Text
Assist Off Toggle operation instruction box on or off.
or
Passenger Car or RV-
Light Truck
The weight increment option that is activated. Toggle
to select either 0.25-ounce passenger car (default) or
0.50-ounce RV-Lt Truck (heavy wheels).
or Round Off or Fine Toggle to select either a 0.25-ounce (default) or
0.01-ounce (fine) weight increment option.
or
DIM
D
DD
D
D
D
D
D
I
I
I
I
I
I
I
M
M
M
M
M
M
DIM On or DIM Off Toggle wheel dimensions on or off (default). See
Setting Wheel Dimensions (DIM) on page 14.
8
8 Balance Mode Icons
, , or
Dynamic, ProBalance, or
Static
The Balance mode that is activated. Scroll to select
Dynamic (default), ProBalance, or Static. When
enabled, the ProBalance™ Technology icon button
indicates any excessive residual unbalance.
or Behind Spoke Select Behind Spoke mode to activate (turns green).
See Behind Spoke on page 17 for further details.
Machine Calibration Indicates Machine Calibration mode is activated. See
Machine Calibration on page 19 for further details.

12 • Important: Always read and follow instructions.

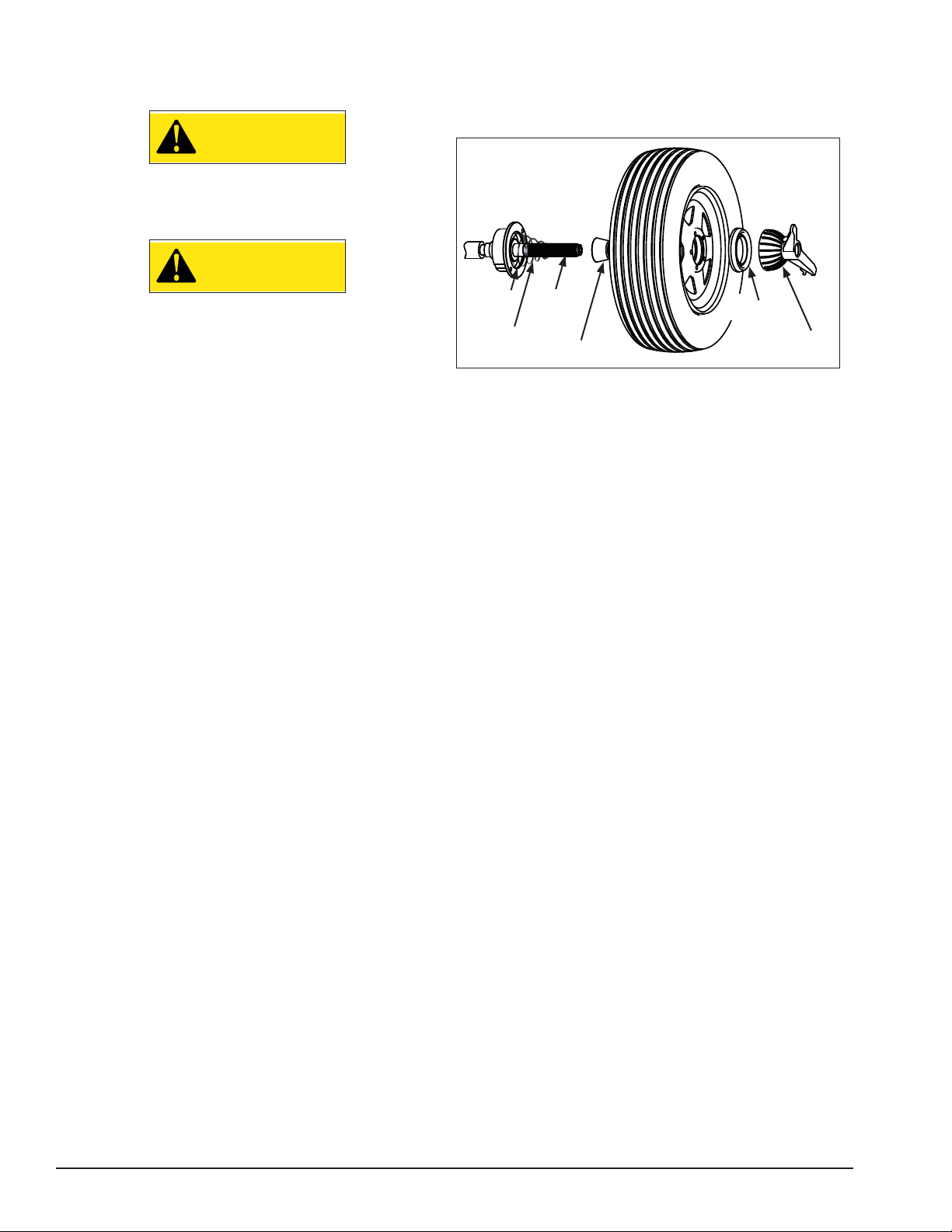

Mounting Wheel On Balancer
Shaft
CAUTION
Avoid back injury, seek assistance when
lifting heavy tire/rim assemblies onto the
balancer shaft.
CAUTION
Failure to tighten the hub nut properly may
result in the wheel dismounting, causing
personal injury and property damage.
Select the most appropriate mounting method for
the wheel you are balancing. Using the proper method
ensures secure mounting and safe balancer operation,
and prevents damage to the wheel.
On most wheels, the inner side of the wheel hub usu-
ally has the most uniform surface for wheel balancing.
Always center the wheel by the most uniform shaped
side of the hub to achieve the most accurate balance.
Regardless of mounting type, on standard units,
always make sure that the wheel is forced firmly against
the shaft faceplate and that the hub nut engages the
threaded shaft for at least four complete turns. To assist
in centering the wheel properly, rotate the wheel and
the shaft while tightening the hub nut.
Standard Back Cone Mounting
Most original equipment and steel wheels can be
mounted properly using this method. The wheel is
centered on a cone from the inner side of the hub.
Figure 16 - Standard Back Cone Mounting
1. Place the cone spring onto the balancer shaft with
the large end towards the faceplate.
2. Select the cone that best fits the center hole in the
wheel. Slide the cone onto the shaft with the large end
towards the cone spring.
3. Lift wheel onto the shaft and center it on the cone.
4. Attach pressure cup to hub nut. Install the hub nut
assembly onto the shaft and tighten it securely against
the wheel. The wheel must be forced firmly against the
faceplate. The hub nut must engage the threads for at
least four full turns
Note: Use a nylon spacer (protective ring) to protect
custom wheel finishes.
Note: If the hub nut will not tighten completely, use
the front cone mounting method.
Cone
Spring Cone
Pressure Cup and
Quick Lock Hub Nut
Shaft Protective
Ring
Faceplate

Important: Always read and follow instructions. • 13
Standard Front Cone Mounting
A wheel should be centered by the outer side of the
hub only when the inner surface will not provide an
accurate surface to center on.
Figure 17 - Front Cone Mounting
1. Select the cone that best fits the center hole in
the wheel.
2. Lift the wheel onto the balancer shaft and slide it
back against the faceplate.
3. Slide the cone onto the shaft and into the center
hole of the wheel. You will need to lift the tire to seat
the cone in the center hole.
4. Install the hub nut (without pressure cup) onto the
shaft. Tighten it securely against the cone. The hub nut
must engage the threads for at least four full turns.
Note: If the hub nut will not tighten completely
because of a lack of threads, use an additional cone as
a spacer between the mounting cone and the hub nut.
The wheel must be forced firmly against the faceplate.
Alternate Mounting
If the wheel has a protruding outer hub which will not
permit the use of the pressure cup, or the cup will not
permit the hub nut to engage at least four turns of the
shaft, this alternate method should be used.
Figure 18 - Alternate Mounting
1. Place the cone spring onto the balancer shaft with
the large end towards the faceplate.
2. Select the cone that best fits the center hole in the
wheel. Slide the cone onto the shaft with the large end
towards the faceplate.
3. Lift wheel onto the shaft and center it on the cone.
4. Use the small nylon spacer (no-mar ring) or a
centering cone to press against the outer wheel hub.
5. Install the hub nut (without the pressure cup) onto
the shaft. Tighten securely.
Cone Quick Lock
Hub Nut
Shaft
Cone
Spring Cone
Quick Lock
Hub Nut
Shaft No-Mar
Ring
Faceplate Faceplate

14 • Important: Always read and follow instructions.
Direct Select™ Weight Location
When the machine is turned ON, the balancer defaults
to a 2-plane dynamic mode using standard clip-on
wheel weight locations (Clip 1 and Clip 2) and wheel
dimensions.
1. Before setting wheel dimensions and spinning the
wheel, first press the Direct Select Weight Placement
icon (see page 10) to go to the Direct Select screen and
enter an alternate weight placement location on the
wheel as follows:
Clip 1 (default) - select this location to place a stan-
dard clip weight on the Inboard rim flange.
T1 Tape - select this location to place an adhesive
weight on the Inboard side of the wheel that is the
horizontal plane at the outer edge.
T2 Tape - select this location to place an adhesive (hid-
den) weight on the Outboard side of the wheel that is
the horizontal plane in the inner area.
T3 Tape - select this location to place an adhesive
weight on the Outboard side of the wheel that is the
horizontal plane at the outer edge.
Clip 2 (default) - select this location to place a stan-
dard clip weight on the Outboard rim flange.
2. Press EXIT to return to the main screen.
Figure 19 - Direct Select™ Weight Icons & Wheel Cross-
section Diagram
Setting Wheel Dimensions (DIM)
Before a wheel can be balanced, wheel dimensions
must be entered into the computer.
Definition of Dimensions (DIM)
A = Offset
The distance measured from the balancer (“0” on off-
set arm) to inner plane of the rim (inner weight location).
W = Width
The width of the wheel at the rim flanges, measured
with the calipers as shown in figure 22.
Note: Only use calipers provided by the wheel bal-
ancer manufacturer because others may be different.
D = Diameter
The diameter of the wheel as indicated on the tire.
Note: A thick flange, on some aluminum wheels, can
effect the measured diameter. For example, a 16-inch
rim can have a measured diameter of 15.5-inches.
Figure 20 - W, D, and A Tire Dimensions
A2 = Offset
The distance measured from the balancer (“0” on
offset arm) to outer plane of the rim (outer weight loca-
tion). Used only for adhesive weight location.
D2 = Diameter
The diameter as measured at the A2 weight location.
Used only for adhesive weight location.
Figure 21 - A2 and D2 Tire Dimensions
