Welcome
Congratulations on your choice of the Cochlear™ Baha®5 Sound Processor. You are
now ready to use Cochlear’s highly advanced bone conduction sound processor,
featuring sophisticated signal processing and wireless technology.
This manual is full of tips and advice on how to best use and care for your Baha sound
processor. By reading this manual and then keeping it handy for future reference, you
will ensure that you get the most benefit out of your Baha sound processor.
Key to device
See figure 1
1. Microphones
2. Battery compartment door
3. Attachment point for the safety line
4. Plastic snap connector
5. Program button, Wireless audio
streaming button
Note on figures: The figures included
on the cover correspond to information
specific to this model of sound processor.
Please reference the appropriate figure
when reading. The images shown are not
to scale.
Introduction
To ensure optimal performance, your
hearing care professional will fit the
processor to suit your needs. Be sure to
discuss any questions or concerns that
you may have regarding your hearing or
use of this system with your hearing care
professional.
Warranty
The warranty does not cover defects or
damage arising from, associated with,
or related to the use of this product with
any non-Cochlear processing unit and/
or any non-Cochlear implant. See the
“Cochlear Baha Global Limited Warranty
card” for more details.
3
English

Contacting Customer Service
We strive to provide you with the best
possible products and services. Your views
and experiences with our products and
services are important to us. If you have
any comments you would like to share,
please contact us.
Customer Service – Cochlear Americas
10350 Park Meadows Drive, Lone Tree
CO 80124, USA
Toll free (North America) 1800 523 5798
Tel: [phone],
Fax: [phone]
E-mail: [e-mail]
Customer Service – Cochlear Europe
6 Dashwood Lang Road, Bourne Business
Park, Addlestone, Surrey KT15 2HJ, United
Kingdom
Tel: [phone],
Fax: [phone]
E-mail: [e-mail]
Customer Service – Cochlear Asia Pacific
1 University Avenue, Macquarie University,
NSW 2109, Australia
Toll free (Australia) 1800 620 929
Toll free (New Zealand) 0800 444 819
Tel: [phone],
Fax: [phone] or
Toll free Fax [phone]
E-mail: [e-mail]
4

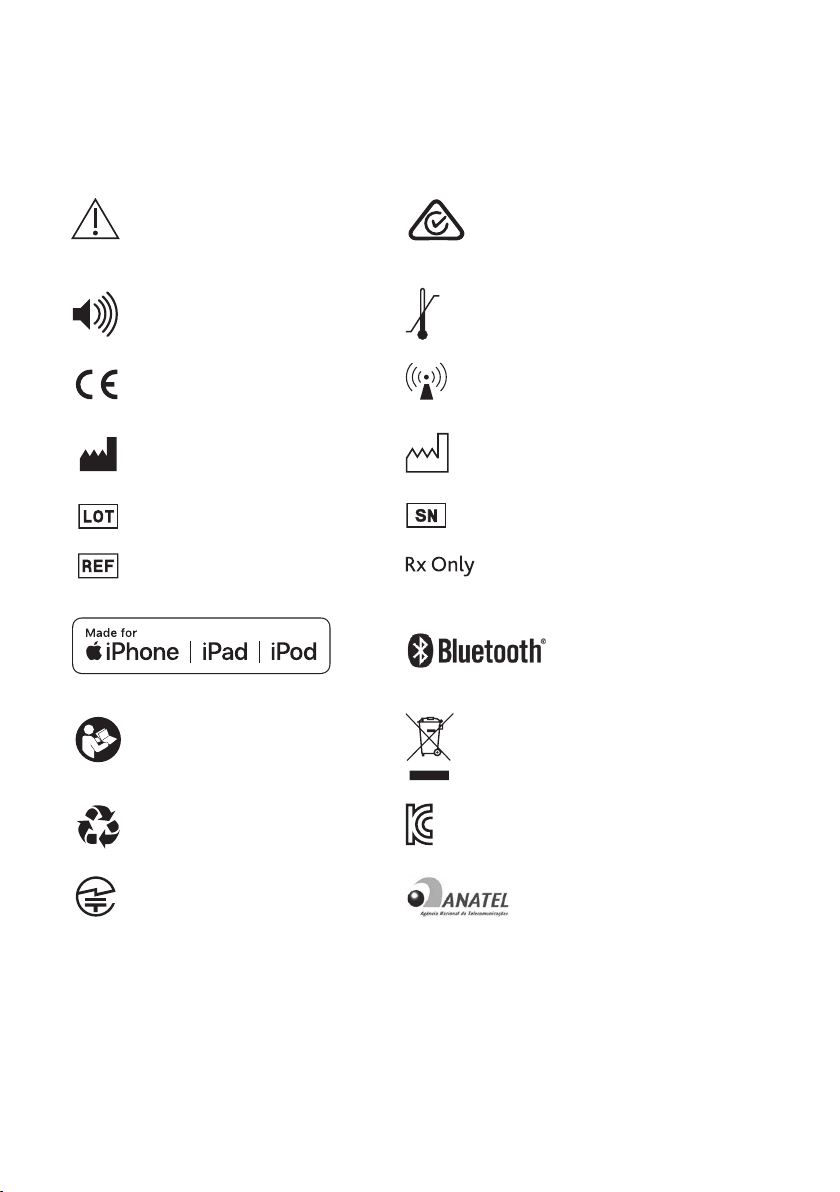

Key to symbols
The following symbols will be used
throughout this document. Please refer to
the list below for explanations:
“Caution” or “Caution, consult
accompanying documents”
ACMA symbol (Australian
Communications and Media
Authority) compliant
Audible signal Temperature limitation
2797
CE mark and Notified Body
number Interference risk
Manufacturer Date of manufacture
Batch Code Serial Number
Catalogue number By prescription
Made for iPod, iPhone, iPad Bluetooth®
Refer to instructions/booklet.
Note: Symbol is blue.
Waste of Electrical and
Electronic Equipment
Recyclable material Radio compliance certification
for Korea
Radio compliance certification
for Japan
Radio compliance certification
for Brasil
5
English

Using your sound processor
The button on your sound processor lets
you choose from your pre-set programs
and enable/disable wireless streaming.
You can choose to enable the audio
indicators to alert you of changes to the
settings and processor status.
Your sound processor is programmed
to be used as either a left or right-sided
device. Your hearing care professional will
have marked your processor(s) with a L or
R indicator.
If you are a bilateral user, changes you
make to one device will automatically
apply to the second device.
On/off
See figure 2
1. Turn on your sound processor by
completely closing the battery
compartment.
2. Turn off your sound processor
by gently opening the battery
compartment until you feel the first
“click”.
When your sound processor is turned off
and then back on again, it will return to
the default setting (program one).
Status indicator
See figure 3
Your sound processor is equipped with
audible indicators. For a an overview of
the audible indicators, refer to the table at
the back of this section.
Your hearing care professional can disable
the audio indicators if you prefer.
Change program/streaming
See figure 4
Together with your hearing care
professional you will have selected up
to four pre-set programs for your sound
processor:
Program 1: _______________________________
Program 2: _______________________________
Program 3: _______________________________
Program 4: _______________________________
These programs are suitable for different
listening environments. Ask your hearing
care professional to fill in your specific
programs.
To switch programs, press and release
the button on your sound processor. If
enabled, an audio indicator will let you
know which program you are using:
Program 1: 1 beep
Program 2: 2 beeps
Program 3: 3 beeps
Program 4: 4 beeps
6

Adjust volume
Your hearing care professional has set the
volume level for your sound processor.
You can adjust the volume level with the
optional Cochlear Baha Remote Control,
the Cochlear Wireless Phone Clip or an
iPhone, iPad or iPod touch (see Made for
iPhone section).
Wireless accessories
You can use Cochlear Wireless accessories
to enhance your listening experience.
Ask your hearing care professional to
learn more about your options or visit
www.cochlear.com.
To activate wireless audio streaming,
press and hold the sound processor
button until you hear a melody.
See figure 4
To end wireless audio streaming,
press and release the button. The sound
processor will return to the previous
program.
Flight mode
See figure 8
When boarding a flight, wireless
functionality must be deactivated because
radio signals may not be transmitted
during flights. To disable wireless
operation:
1. Turn off the sound processor by
opening the battery compartment.
2. Press the button and close the battery
compartment at the same time.
To deactivate flight mode, turn the
sound processor off and back on again.
(by opening and closing the battery
compartment).
Made for iPhone (MFi)
Your sound processor is a Made for
iPhone (MFi) hearing device. This allows
you to control your sound processor
and stream audio directly from iPhone,
iPad or iPod touch. For full compatibility
details and more information visit
www.cochlear.com.
1. To pair your sound processor turn
on Bluetooth on your iPhone, iPad or
iPod touch.
2. Turn off your sound processor and go
to Settings > General > Accessibility on
your iPhone, iPad or iPod touch.
3. Turn on your sound processor and
select Hearing Aids in the Accessibility
menu.
4. When displayed, tap on the sound
processor name under “Devices” and
press Pair when prompted.
7
English

Talk on the phone
See figure 5
For best results, use a Cochlear Wireless
Phone Clip or stream the conversation
directly from your iPhone. When using
a normal handheld phone, place the
receiver near the microphone inlet of your
sound processor instead of near your
ear. Ensure the receiver does not touch
the sound processor as this may result in
feedback.
Replace battery
See figure 7
When there is approximately one hour
of battery power remaining, you will
hear an audio indicator comprising of
two sets of four short beeps. At this time
you may experience low amplification. If
the battery runs down completely, the
sound processor will beep and then stop
working.
Use one of the included batteries (zinc-
air, non-rechargeable) as a replacement.
The batteries included in the sound
processor kit reflect Cochlear’s latest
recommendations. Contact your hearing
care professional for additional batteries.
1. Hold the sound processor with the
back facing upwards.
2. Gently open the battery compartment
until it is completely open. Remove
the old battery. Dispose of the battery
according to local regulations. Remove
the sticker on the + side of the new
battery. Insert the new battery with
the + sign facing upwards in the
battery compartment.
3. Gently close the battery compartment
until it is completely closed.
Battery tips
• Battery life decreases as soon as the
battery is exposed to air (when the
plastic strip has been removed).
• Battery life depends on daily use,
the volume setting, the use of
wireless audio streaming, the sound
environment, the program setting,
and battery strength.
• To maximise battery life, switch off the
sound processor when its not in use.
• If a battery leaks, replace it
immediately.
Optional tamper-proof battery door
To prevent the accidental opening of
the battery door, an optional tamper-
resistant battery door is available. This is
particularly useful to prevent children, and
other recipients in need of supervision,
from accidentally accessing the battery.
Contact your hearing care professional for
a tamper-resistant battery door.
8

To use the tamper-proof battery door:
See figure 9
• To unlock the device, carefully insert
the tip of a pen in the small hole on
the battery door and gently open the
battery compartment.
• To lock the device, gently close
the battery compartment until it is
completely closed.
• Before use, verify that the tamper-
proof battery door is locked.
WARNING:
Batteries can be harmful if swallowed,
put in the nose or in the ear. Be sure
to keep your batteries out of reach of
small children and other recipients in
need of supervision. Before use, verify
that the tamper-resistant battery
door is properly closed. In the event
a battery is accidentally swallowed, or
stuck in the nose or in the ear, seek
immediate medical attention at the
nearest emergency centre.
Attaching the safety line
See figure 6
Before connecting your sound processor,
attach the safety line and clip it to your
shirt or jacket.
Cochlear recommends connecting the
safety line when engaging in physical
activities. Children should use the safety
line at all times.
General care
Your Baha sound processor is a delicate
electronic device. Follow these guidelines
to keep it in proper working order:
• When not in use, turn off your sound
processor and store it free from dust
and dirt.
• If you will not be using your sound
processor for a long period, remove
the battery.
• During physical activities, secure your
sound processor by using the safety
line.
• Remove your sound processor before
applying hair conditioners, mosquito
repellent and or similar products.
• Avoid exposing your sound processor
to extreme temperatures.
• Your sound processor is not
waterproof. Do not use it when
swimming and avoid exposing it to
heavy rain.
• For cleaning your sound processor
and snap coupling use the
Baha sound processor Cleaning kit.
If the sound processor becomes very
wet
1. Immediately open the battery door
and remove the battery.
2. Put your sound processor in a
container with drying capsules such
as a Dri-Aid Kit, etc. Leave it to dry out
overnight. Drying kits are available
from most hearing care professionals.
9
English

Feedback (whistling) problems
See figure 11
• Check to ensure that your sound
processor is not in contact with items
such as glasses or a hat, since that
can cause feedback. Also ensure the
sound processor is not in contact with
your head or ear.
• Check that the battery compartment
is closed.
• Check that there is no external
damage to the sound processor.
Share the experience
See figure 10
Family members and friends can “share
the experience” of bone conduction
hearing. The test rod can be used by
others to hear with the sound processor.
To use the test rod
1. Turn on your sound processor and
snap it onto the test rod using the tilt
technique. Hold the rod against the
skull bone behind an ear. Plug both
ears and listen.
2. To avoid feedback (whistling), the
sound processor should not touch
anything other than the test rod.
10

Functions and audible indicators
Function On the device Audible indicator
Turn ON Close battery compartment
10 beeps
Turn OFF Open battery compartment None
Change program.
Number of beeps indicates
the number of the current
program.
Short button press
1-4 beeps
Low battery warning
4 beeps 2 times
When using Cochlear Wireless Accessory or MFi
Change volume With Cochlear Baha Remote
Control, Cochlear Wireless
Phone Clip or with an
iPhone, iPad or iPod touch
1 beep indicates volume
increase/decrease
Volume limit reached With Cochlear Baha Remote
Control, Cochlear Wireless
Phone Clip or with an
iPhone, iPad or iPod touch
1 long beep
Wireless streaming activated Long button press
Ripple tone
(melody in upward scale)
End wireless streaming Short button press
1 beep for program 1
2 beeps for program 2 etc
Pairing confirmation None
Ripple tone (melody in
upward scale)
Toggle between wireless
accessories
Long button press
Ripple tone
(melody in upward scale)
Turn ON flight mode Press button and close
battery compartment
10 x dual beeps
Note: Your hearing care professional may have disabled some or all of the audible indicators.
11
English

General advice
A sound processor will not restore normal
hearing and will not prevent or improve
a hearing impairment resulting from
organic conditions.
• Infrequent use of a sound processor
may not enable a user to attain full
benefit from it.
• The use of a sound processor is only
part of hearing rehabilitation and may
need to be supplemented by auditory
and lip reading training.
Warnings
• Contains small parts that may present
a choking hazard.
• Adult supervision is recommended
when the user is a child
• The sound processor and other
external accessories should never
be brought into a room with an MRI
machine, as damage to the sound
processor or the MRI equipment could
occur.
• The sound processor must be
removed before entering a room
where an MRI scanner is located.
Advice
• The sound processor is a digital,
electrical, medical instrument
designed for specific use. As such, due
care and attention must be exercised
by the user at all times.
• The sound processor is not
waterproof!
• Never wear it in heavy rain, in the bath
or shower!
• Do not expose the sound processor
to extreme temperatures. It is
designed to operate within the
temperature ranges +5 °C (+41 °F)
to +40 °C (+104 °F). In particular,
battery performance deteriorates
in temperatures
under +5 °C. The
processor should not
be subjected, at any
time, to temperatures
below -20 °C (-4 °F)
or above +50 °C
(+122 °F).
• This product is not suitable for
use in flammable and/or explosive
environments.
• If you are to undergo an MRI
(Magnetic Resonance Imaging)
procedure, refer to the MRI Reference
Card included in the document pack.
• Portable and mobile RF (radio
frequency) communications
equipment can affect the performance
of your sound processor.
• The sound processor is suitable for
use in electromagnetic environments
with mains power of typical
commercial or hospital quality, and
-20 °C
(-4 °F)
+50 °C
(+122 °F)
12

power frequency magnetic fields
of typical commercial or hospital
levels. It is intended for use in an
electromagnetic environment in
which radiated RF (radio frequency)
disturbances are controlled.
• Interference may occur in
the vicinity of equipment
with the symbol to the right.
• Dispose of batteries and electronic
items in accordance with your local
regulations.
• Discard your device as electronic
waste according to local regulations.
• When the wireless function is
activated, the sound processor
uses low-powered digitally
coded transmissions in order to
communicate with other wireless
devices. Although unlikely, nearby
electronic devices may be affected. In
that case, move the sound processor
away from the affected electronic
device.
• When using wireless functionality
and the sound processor is affected
by electromagnetic interference,
move away from the source of this
interference.
• Be sure to deactivate wireless
functionality when boarding flights.
• Turn off your wireless functionality by
using the flight mode in areas where
radio frequency emission is prohibited.
• Cochlear Baha wireless devices include
an RF transmitter that operates in the
range of 2.4 GHz–2.48 GHz.
• For wireless functionality, only use
Cochlear Wireless accessories. For
further guidance regarding e.g.
pairing, please refer to the user guide
of the relevant Cochlear Wireless
accessory.
• No modification of this equipment is
allowed.
• Portable RF communications
equipment (including peripherals
such as antenna cables and external
antennas) should be used no closer
than 30 cm (12 in.) to any part of your
Baha 5, including cables specified
by the manufacturer. Otherwise,
degradation of the performance of
this equipment could result.
• Use of accessories, transducers and
cables other than those specified or
provided by Cochlear could result in
increased electromagnetic emissions
or decreased electromagnetic
immunity of this equipment and result
in improper operation.
Sound processor type designations for
models included in this User Manual
are:
FCC ID: QZ3BAHA5, IC: 8039C-BAHA5, IC
model: Baha®5.
Statement:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation.
13
English

NOTE:
This equipment has been tested
and found to comply with the
limits for a Class B digital device,
pursuant to part 15 of the FCC
Rules. These limits are designed
to provide reasonable protection
against harmful interference in
a residential installation. This
equipment generates, uses and
can radiate radio frequency energy
and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is
no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and
on, the user is encouraged to try to
correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and receiver.
• Connect the equipment into an
outlet on a circuit different from
the one in which the receiver is
connected.
• Consult the dealer or an
experienced radio/TV technician
for help.
• Changes or modifications can void
the user’s authority to operate the
equipment.
Intended use
The Cochlear™ Baha®5 Sound Processor
uses bone conduction to transmit
sounds to the cochlea (inner ear). It is
indicated for people with conductive
hearing loss, mixed hearing loss and
single sided sensorineural deafness (SSD).
Furthermore it is indicated for bilateral
and paediatric recipients. Fitting range
up to 45 dB SNHL. It works by combining
a sound processor and a small titanium
implant that is placed in the skull behind
the ear. The skull bone integrates with the
titanium implant through a process called
osseointegration. This allows sound to
be conducted via the skull bone directly
to the cochlea, which improves hearing
performance. The sound processor can
be used together with the Baha Softband.
The fitting is to be done either at a
hospital, by an audiologist, or in some
countries, by a hearing care professional.
List of countries:
Not all products are available in all
markets. Product availability is subject
to regulatory approval in the respective
markets.
The products are in compliance with the
following regulatory requirements:
• In EU: the device conforms to the
Essential Requirements according to
Annex I of Council Directive 93/42/
EEC for medical devices (MDD) and
essential requirements and other
relevant provisions of Directive
14

2014/53/EU (RED). The declaration
of conformity may be consulted at
www.cochlear.com.
• Other identified applicable
international regulatory requirements
in countries outside the EU and
US. Please refer to local country
requirements for these areas.
• In Canada the sound processor
is certified under the following
certification number: IC: 8039C-BAHA5
and model no.: IC model: Baha®5.
• This device complies with Industry
Canada licence-exempt RSS
standard(s).
• This Class B digital apparatus
complies with Canadian ICES-003. Cet
appareil numérique de la classe B est
conforme à la norme NMB-003 du
Canada.
• Operation is subject to the following
two conditions: (1) this device may
not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne
doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi,
même si le brouillage est susceptible
d’en compromettre le fonctionnement.
Equipment includes RF transmitter.
NOTE:
The sound processor is suited for use
in a home healthcare environment.
The home healthcare environment
includes locations such as homes,
schools, churches, restaurants,
hotels, cars, and airplanes, where
equipment and systems are less likely
to be administered by healthcare
professionals.
15
English

Добре дошли
®5.








Вижте фигура 1
1. 
2. 

3. 

4. 

5. 

Забележка относно фигурите:






Въведение



















16









Customer Service – Cochlear Americas
10350 Park Meadows Drive, Lone Tree
CO 80124, USA
Toll free (North America) 1800 523 5798
Tel: [phone],
Fax: [phone]
E-mail: [e-mail]
Customer Service – Cochlear Europe
6 Dashwood Lang Road, Bourne Business
Park, Addlestone, Surrey KT15 2HJ, United
Kingdom
Tel: [phone],
Fax: [phone]
E-mail: [e-mail]
Customer Service – Cochlear Asia Pacific
1 University Avenue, Macquarie University,
NSW 2109, Australia
Toll free (Australia) 1800 620 929
Toll free (New Zealand) 0800 444 819
Tel: [phone],
Fax: [phone] or
Toll free Fax [phone]
E-mail: [e-mail]
17
Български

Легенда на символите









(Australian Communications




 

2797

 
 
 
 
Made for iPod, iPhone, iPad Bluetooth®














18

Използване на Вашия
звуков процесор




















Вижте фигура 2
1. 


2. 








Вижте фигура 3









Вижте фигура 4




Програма 1: _____________________________
Програма 2: _____________________________
Програма 3: _____________________________
Програма 4: _____________________________










Програма 1:
Програма 2:
Програма 3:
Програма 4:
19
Български


















www.cochlear.com.




Вижте фигура 4






Вижте фигура 8






1. 


2. 





Made for iPhone (MFi)







www.cochlear.com.
1. 


2. 




3. 



4. 




20
