Coffee Queen CATER User manual

Service manual
Your Dealer
COFFEE QUEEN
CATER SINGLE (Cater Train)
S / EN
Rev 100104

2.
1. Table of contents page 2
2. General 3
3. Function description 3
4. Start up 3
5. Overview of components 4
5. Overview operation buttons 5
6. Indications brewing 5
7. Installation and start 6
8. Operation instructions, brewing 7 - 10
9. Maintenance and cleaning 11 - 13
10. Important! 13
11. Dimension sketch 14
12. Programming 15 - 16
13. Error message 17
14. Facts 18
15. Spare parts lists 19 - 21
16. Exploded views 22 - 25
17. Electrical drawing 26
18. Mounting and dimension drawings 27 - 29
18. Contemplated use and warnings 30
1. Table of contents Cater Train

3.
2. General Cater Train
Cater Train
We congratulate to your choice of coffee brewer.
Cater Train is equiped with full and half brew function
and a separate outlet for hot water.
Cater is delivered with a brew unit, serving station
and lter holder.
Coffee Queen AB is certied ISO 9001 and 14001
and therefore a minimal stress of the enviroment.
3. Function description
Coffee brewer with automatic water supply.
It is also equipped with a separate outlet for hot water.
Brewing takes place in a removable serving station.
Brewing is carried out in paper lters.
Brew time = 5 - 6 min.
4. Start up
Turn on the main switch (A).
The machine will now ll and start heating water.
A

4.
5. Overview of components. Cater Train
Warning!
The machine must be connected correctly for your safety.
Read the manual before using the machine.
Tap for
Hot water
Upper lid
Display
Handle
Serving
station
Level tube
ON/OFF-switch
Tap for
coffee
Drip tray insert
Drip tray
Filter holder
Programming
buttons

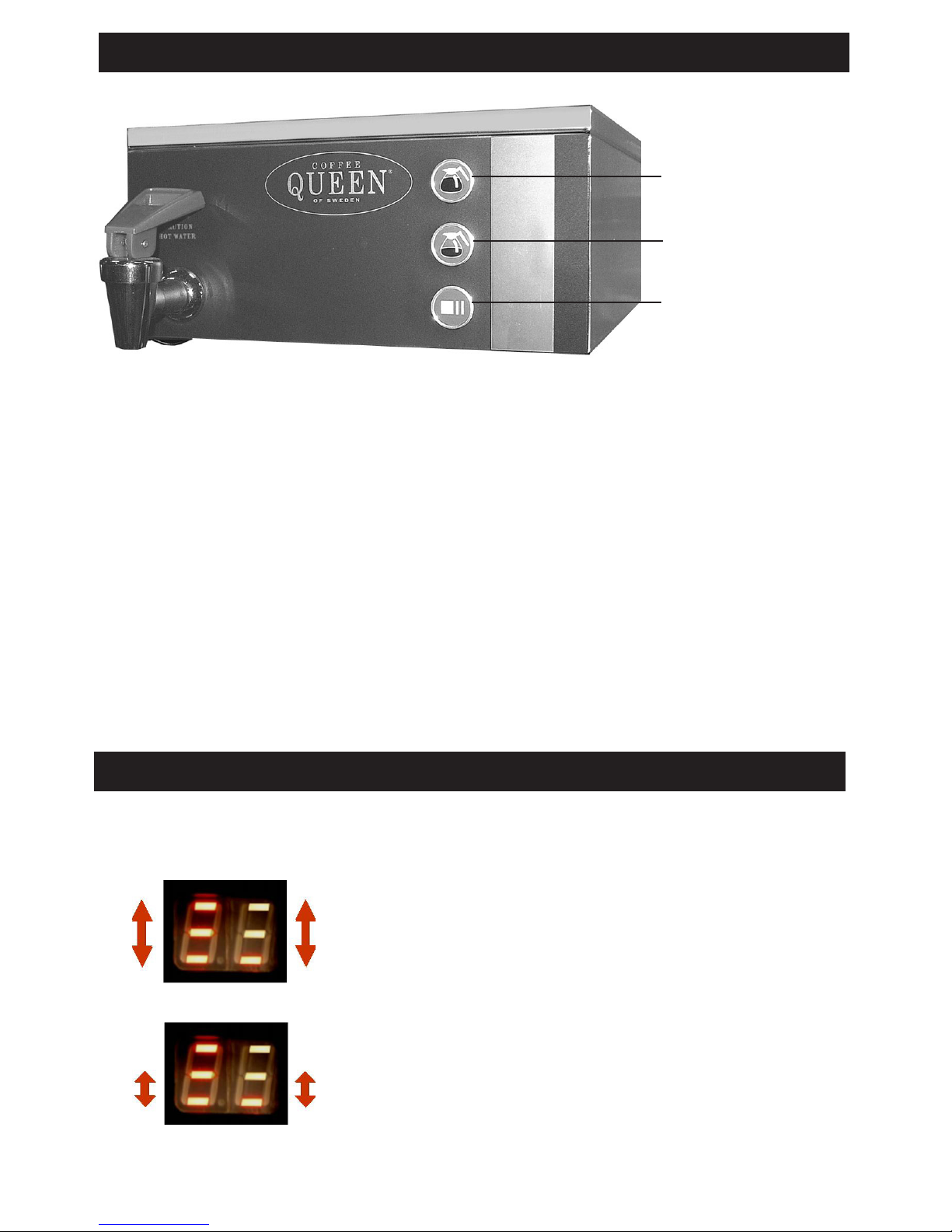

5. Overview operating buttons. Cater Train
5.
6. Indications when brewing. Cater Train
1/1 Brewing
1/2 Brewing
PAUSE / STOP
While machine is brewing
Full brew
Display shows: see A
While machine is brewing
Half brew
Display shows: see B
A
B
1/1 Brewing 1/2 Brewing
Full brew = 2,5 litre Half brew = 1,25 litre

6.
7. INSTALLATION AND START. Cater Train
7.1.
Place the brewer unit on a at, level and waterproof surface.
7.2. Connect to cold water feed with connection tube supplied.
Connection to a closable valve is recommended.
Water pressure shall be 14,5 - 72,5 PSI (1 - 5 bar)
for a correct operation
Water supply to the machine is the customer’s responsibility
according to instruction and advice from the supplier.
In areas with high level lime problem, a descaling
lter should be mounted.
7.3. Electrical connection;
CAUTION! Connect the plug to a separate wall socket.
230 V, 10 ampere.
Train version; see electrical drawing. page 26.

8. Operating instructions. Brewing with coffee Cater Train
7.

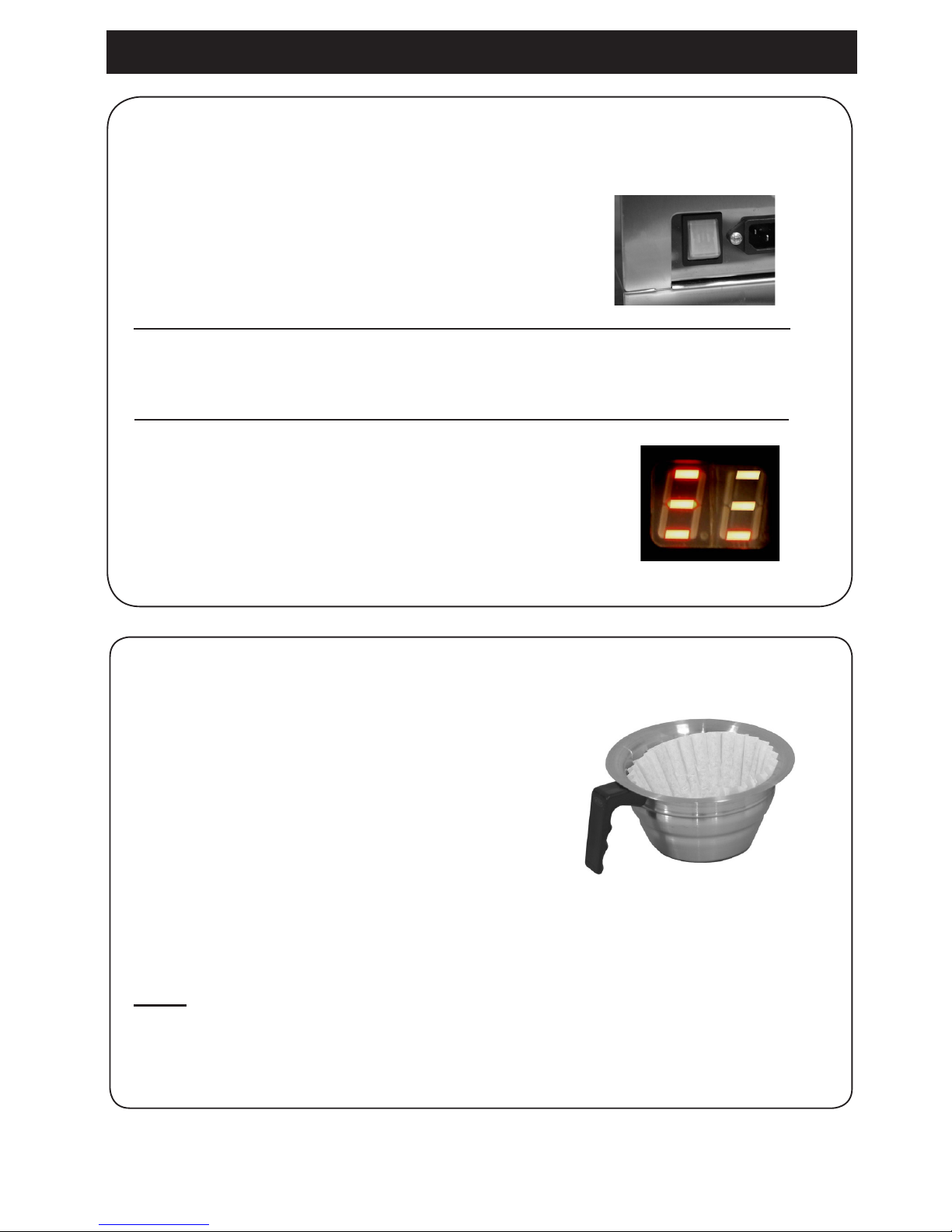

8.1. Starting up machine.
Turn on the switch A.
The machine starts lling water .
A
Place a lter in the lter holder.
8.3. Place a lter in the lter holder.
Always use Coffee Queen´s recommended coffee lter
Filter type 110mm lter Article no. 110110
8.2. Machine starts heating water.
While machine is heating the water, display is blinking.
When water has reached the right temperature.
Display will light up.
Machine is now ready to use.

8. Operating instructions. Brewing with coffee Cater Train
8.
8.5. Place lter holder and serving station.
1. Place the lter holder. (A).
2. Loosen upper lid B on the serving
station and then place the
serving station C.
A
B
C
8.4. Brewing: Add coffee.
Add coffee 115 - 135 gram, restaurant / catering
grounded coffee).
This is recommended for full brewing.
Make sure that the coffee is evenly spread.

8. Operating instructions. Brewing with coffee Cater Train
9.

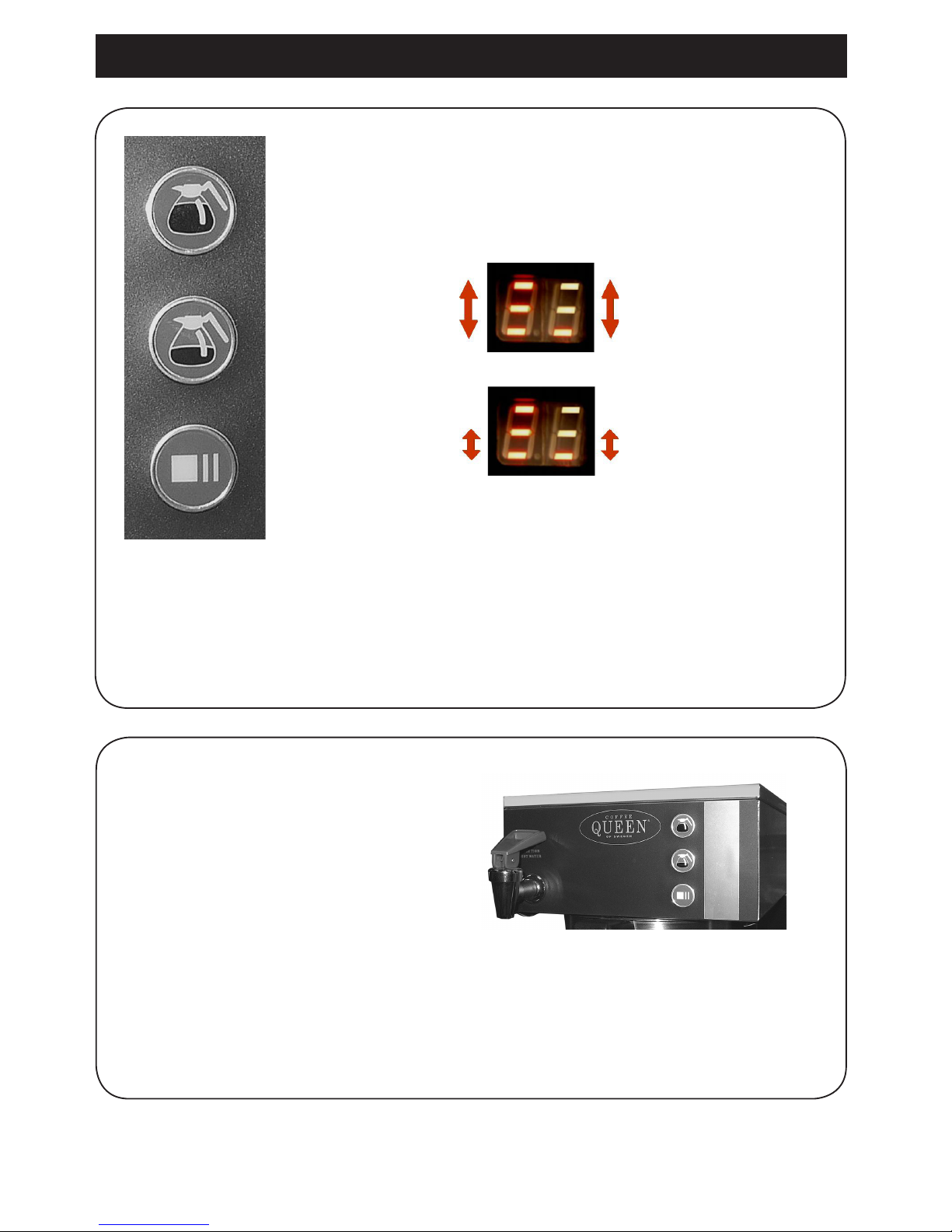

8.6. START BREWING.
1. Push button 1/1 for 2,5 litre.
1/1 Full brew 2,5 litre
1/2 Half brew 1,25 litre
3. STOP / PAUSE button
- Press button once for stand by.
- Press button twice to stop brewing.
To complete brewing, press ½ alt. 1/1.
TAPING HOT WATER
Recommended:
Not taping hot water while
machine is brewing.
1/1
Full brew 2,5 litre
1/2
Half brew 1,25 litre
PAUSE / STOP
2. When ”Brewing” is ready.
The ”Brewing” indicator
lamp will lit.

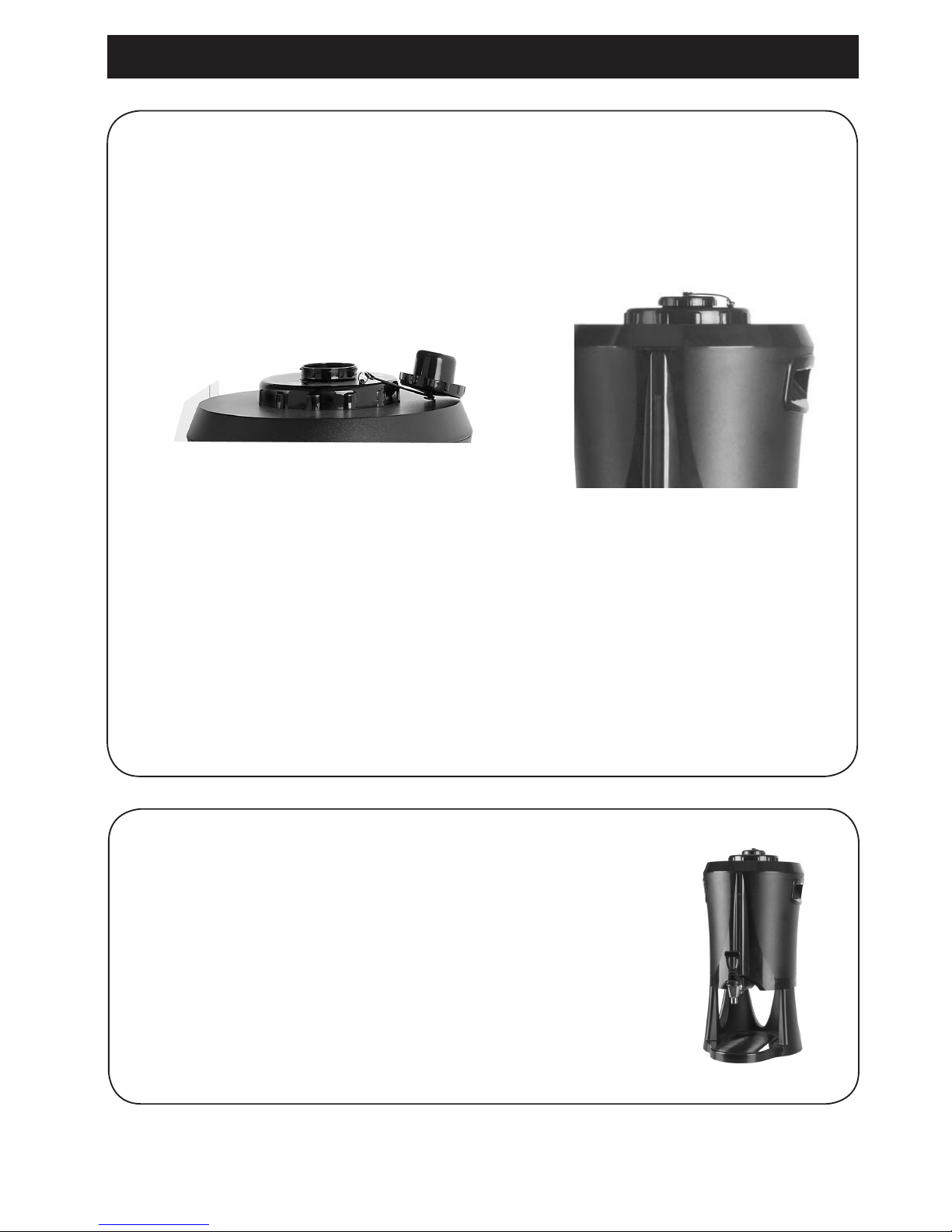

8.7. To keep temperature and aroma.
Put the lid (A) back on the serving station
immediately after the brewing.
(A)
Tips!
Preheating of serving stations.
Fill the serving station with hot tap water one hour before brewing.
Pour out water and do a brewing.
8.8. Empty the lter holder from lter and coffee grounds
and clean the lter holder.
Machine is now ready for the next brew.
Some tips for best coffee quality
1. Do not change the recommended portion of coffee.
2. Do not mix freshly brewed coffee with old coffee.
3. Always rinse the serving station beforenext brew.
8. Operating instructions. Brewing with coffee Cater Train
10.

9. Maintenance and cleaning. Cater Train
11.
NOTE!
Before each brewing.
Rinse the serving station with fresh tap water.
Each day.
Rinse serving station and ltre holder with hot water.
Outside cleaning use a soft rag and liquid solution that
not prevent scratches.
CAUTION!
The machine should not be
submerged in water or been
washed in a dishwasher
Clean and dry this surfaces!
A
Each day.
Clean the bottom plate (A).
Clean the spray nozzle (B) and the surrounding area.
B
EACH DAY
When needed;
Clean the spray nozzles hole. If necessary loosen spray nozzle and clean/de-scaling

9. Maintenance and Cleaning. Cater Train
12.

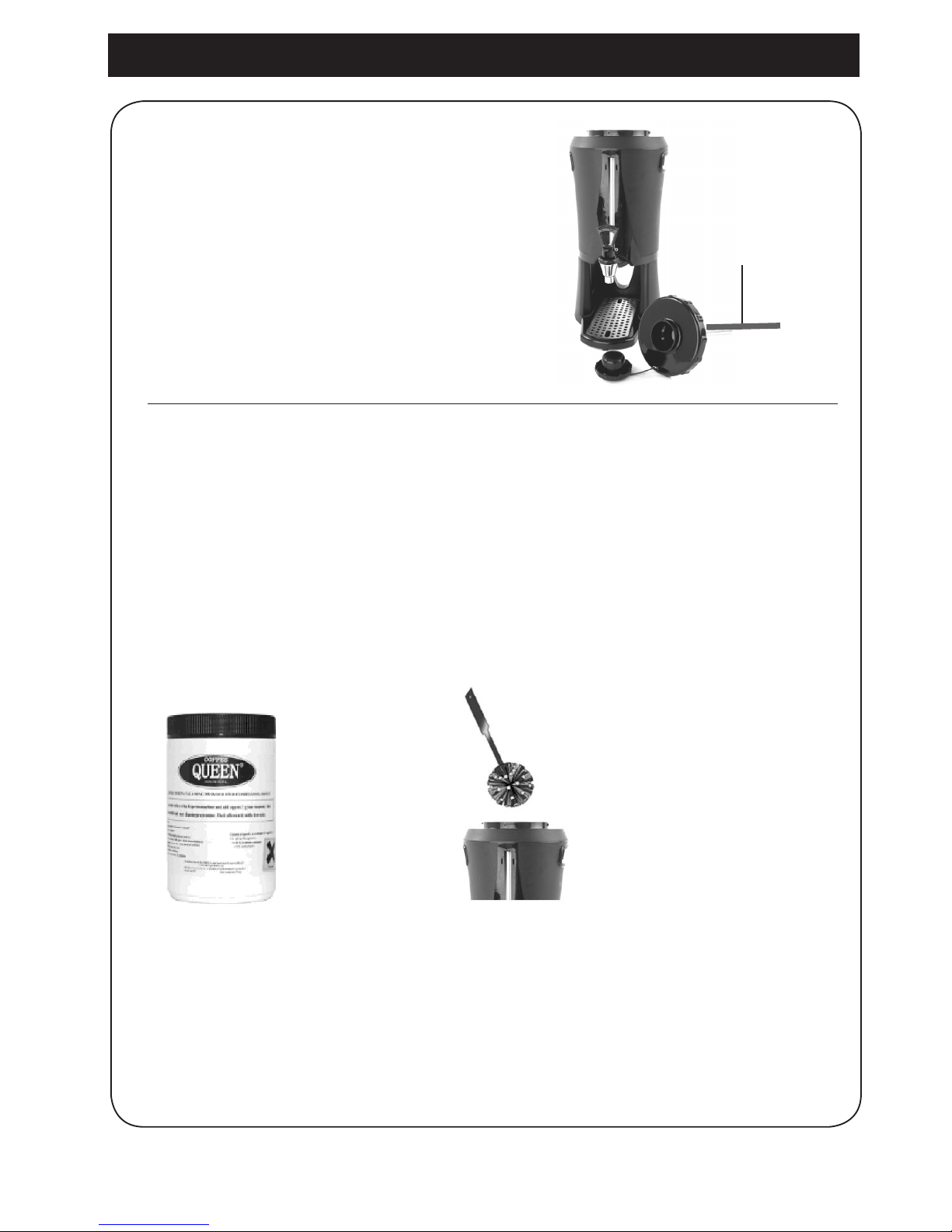

CLEANING OF 5 and 2.5 LITER SERVING STATION. Begin cleaning according to
the manual.
1. Fill the entire serving station with hot water by running a brew cycle without coffee
and lter.
2. Add 1 tablespoon of cleaning powder for 2.4 litres and allow to stand at least
15 minutes.
3. Drain 2/3 of the cleaning solution and use the cleaning brush to wash out any
remaining cleaning agent.
IMPORTANT! Carefully rinse the inside of the serving station several times with clean water.
Cleaning serving station
Dismount the level tube and clean it every week
with the enclosed brush.
Turn off the bigger lid, and clean the mixer tube.
EACH WEEK.
Mixer tube
Options: Cleaning parts
Cleaning powder can be ordered from your retail dealer. Article no. 1104162
Cleaning brush Article no. 1104231
Cleaning brush, level tube, mixer tube Article no. 1103360

9. Maintenance and Cleaning. Cater Train
NOTE!
Outwardly Cleaning of machine
Use a soft rag and liquid cleaning agent
to prevent scratches.
10. Important! Cater Train
Important.
Do not make any alterations to the machine. Such measures may cause personal injury and
the machine to fail.
The machine should stand on a at surface so that it will function properly.
The machine should be placed on a water-proof surface so that any leakage is easily noticeable.
Make sure there is no bendage on the connection tube when machine is pushed into its place.
The tube connections should be regularly checked. Make sure that no leakage has occurred in
connection with installation.
Do not leave the machine unattended while using. Close water connection when not using
machine.
The machine must be disconnected from electrical supply before any maintenance.
All maintenance and installations must be done by authorized personel.
13.

14.
11. Dimension sketch. Cater Train

15.

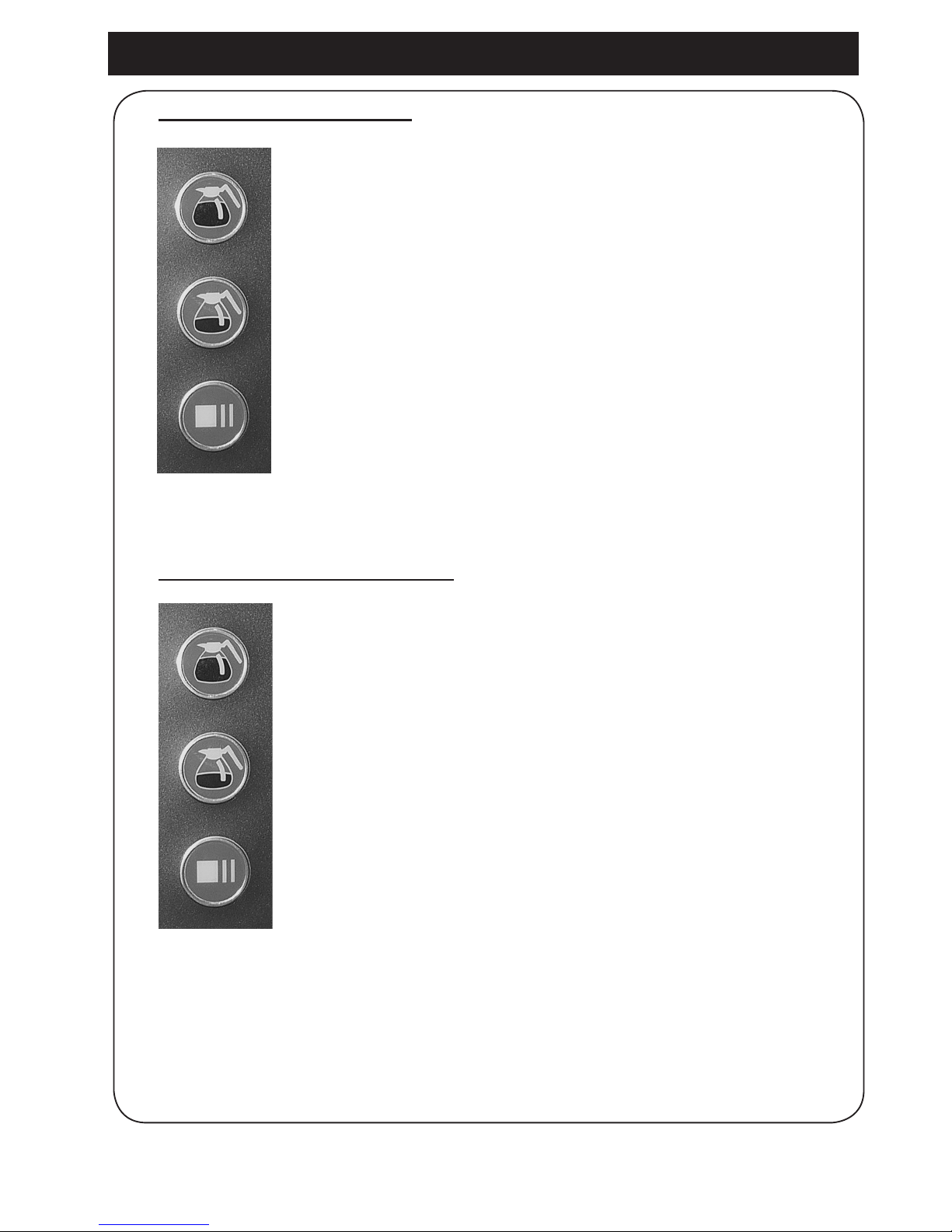

12. Programming. Adjustings. - SERVICE Cater Train
1. Press buttons full brew and half brew at the same time
for 5 seconds. Buzzer beeps once.
Display shows: actual setting.
2. Adjust with the buttons;
full brew = (increase water temp.)
and
half brew = (decrease water temp.)
3. Conrm the new settings by pressing button Stop/Pause.
70°C = min. temperature.
96°C = max. temperature.
1. Press buttons full brew.
and Stop/Pause at the same time for 5
seconds until you hear 3 beeps.
Display shows: present setting.
2. Adjust with the buttons;
full brew = (increase)
and
half brew = (decrease)
3. Conrm the new settings by pressing
button Stop/Pause.
ADJUSTING OF WATER TEMP.
ADJUSTING OF WATER QUANTITY.
Adjust Signal
Off 6
25% 5
20% 4
15% 3
10% 2
5% 1
0% 0
-5% -1
-10% -2
-15% -3
-20% -4
-25% -5

16.
12. Programming. Adjustings. - SERVICE Cater Train
ADJUST BREWING TIME. (Coffee ready).
1. Press buttons half brew and Stop/Pause att the
same time for 5 seconds until you hear 3 beeps.
Display shows: present setting.
2. Adjust with the buttons;
full brew = (increase) and
half brew = (decrease)
3. Conrm the new settings by pressing button
Stop/Pause.
Adjust
Signal
Off 6
25% 5
20% 4
15% 3
10% 2
5% 1
0% 0
-5% -1
10% -2
-15% -3
-20% -4
-25% -5
CALIBRATE TEMP. SENSOR.
1. Press buttons full brew and half brew and
stop/pause att the same time for 5 seconds until
you hear 3 beeps.
Display shows: present setting.
2. Adjust with the buttons;
full brew = (increase) and
half brew = (decrease)
3. Conrm the new settings by pressing button
Stop/Pause.
Adjust
Signal
98° 2
97° 1
96° 0
95° 1
94° 2
93° 3
92° 4
91° 5
OFF 6
NOTE! When calibrating the temperature sensor, you
must check the present temperature in water tank.

17.
13. Error message - SERVICE Cater Train
Error message: Display shows: E1, E2, E3, E4.
LEVEL CONTROL
TEMPERATURE CONTROL
Display shows: E1 = Level sensors short electrod is Clean level sensor.
earthed, (GND) Change level sensor.
but not level sensors long electrod. Cables wrongly coupled.
Display shows: E4 = Filling time too long. Restart machine.
Low pressure on water.
Water tap not open.
Display shows: E2 = Temp. sensor out of range 5°C - 105°C.
Temp. sensor failure. Change temp. sensor.
Cable is loose. Connect cable.
Display shows: E3 = Heating time too long. Restart machine.
Solid state defect. Change solid state.
Element defect. Change heating element.
High limit control defect.
IMPORTANT! All maintenance and installations must be done of an
authorized technician.

14. Facts. Cater Train
Facts:
Height 701mm
Width 205 mm
Depth 420 mm
Weight -
Tank volume 5 litre
Electricity 2x230VAC 1N + 230VAC 1N
Water connection ½” outside thread
Drain connection 3/8” outside thread
Capacity:
6 minutes to brew 17 cups
20 L / hour
18.

Pos. nr. Art. no. Description Amount per unit
Valid spare part list for cater page 22
1
2 1203531 Tank 1
3 120422 Air Inlet Plastic 1.8L PC 1
4 1201924 FAUCET, CATER COPPER 1
5 1604203 Solid State 1
6 220221 High Limit switch short 1
- 1206505 Gasket for HL Switch Fiber 1
7 120620-01 Inlet valve single 0,95 l/min. 1
8 160801-04 Rocker switch 1
9 160570 Inlet plug and socket 1
10 160565 Main supply cable/Europe 1
10 160566 Main supply cable/South Africa 1
10 160567 Main supply cable/Great Britain 1
11 1031801 Spray nozzle 1
12 140339 Clamp for hose 16.4mm Spring Steel 6
13 1102011 Brew basket 1.8L 1
14 1103303 Serving station 2.5L 1
15 150501 Drainage hose, L= 600 mm (sales by metre) 1
16 150501 Silicon Hose Cold Long, L= 390 mm (sales by metre) 1
17 1603863 Membrane switch cater singel 1
18 1603865 Overlay cater with hole 1
19 1603866 Overlay cater without hole 1
20 1403400 Nylon plug for drainage hose 1
21 1206123 Non return valve 1
22 150541 Inlet hose(water main) 3/4” x 1/2” 1
23 1031646 Electronic box 1
24 160193 Regulator PDS 1
25 1561009 Silicone tube braided 1
26 1364004 Clamp 16mm 1
Valid spare part list for cater page 23
30 1601311 Element 2200W / 230V HVA SUS 316 1
31 1206123 Non return valve 1.8L ABS 1
32 1206504 Gasket, element 2
33 1605303 Sensor pin, long 1
34 1031504 Outlet hose 1
35 1031506 Hose, venting 1
36 1205305 Sensor pin, short 1
37 1605362 Double Seal Level Sensor 1
38 1031505 Silicone hose, hot water 1
39 160538-03 Plug 1
40 711000 NTC thermistor 1
41 1605361 Seal for NTC Silicon 1
42 1206587 Gasket, lid tank 1
15. Spare parts list. Cater Train
19.

Pos. nr. Art. no. Description Amount per unit
Valid spare part list for cater page 24
1. 1104032 Guide serving station
2. 1202492 Fastening Kit
3. S302306 Bulk Head union 1/8-3/8
4. S302314 Reducing nipple 1/8-1/4
5. 180158 Nipple for hose 1/4” X 10 MM
6. 1605641 Restrainer M20
7. 1605642 Nut for restrainer M20
8. 1206292 Outlet valve 230V AC DELTROL
9. 1561009 Silicone tube braided, ID 9,53MM
10. 1364004 Hose clamp ID 16MM
11. 160549 Connector FV 122/B
12. S302258 Rubber grommet YD25MM
-. 160521 Flexibel cord 5 x 1,5kv H07RN-F
-. 1603686 Round pin 1,5MM HA.
-. 1603687 Protection hood without locking
-. 1603685 Connector 7-POL HA.
-. 1605641 Restrainer M20
-. 160555 Flexibel cord 3 x 2,5kv H07RN-F
-. 1603684 Round pin 2,5MM HA.
-. 1603687 Protection hood without locking
-. 1603683 Connector 5-POL HA.
-. 1605641 Restrainer M20
15. Spare parts list. Train components Cater Train
20.
