OPERATING MANUAL
PTFETUBING PUMP
Model 77390-00
®
®
®
Cole-Parmer Instrument Co.
1-800-MASTERFLEX (627-8373) (U.S. and Canada only)
11 [phone] (outside U.S.)
[phone] (Local)
www.masterflex.com
Barnant Company
1-800-637-3739 (U.S. and Canada only)
11 [phone] (outside U.S.)
[phone] (Local)
www.barnant.com
A-1299-0538
Edition 07
a-1299-0538.p65 1/29/02, 5:51 AM1

2
a-1299-0538.p65 1/29/02, 5:51 AM2

3
TABLE OF CONTENTS
Title Page
SAFETY PRECAUTIONS .......................................................................4
INTRODUCTION.....................................................................................5
APPLICATION DATA..............................................................................6
GENERAL DESCRIPTION ..................................................................... 6
INSTALLATION.......................................................................................7
SETUP AND OPERATION .....................................................................8
Selecting Tubing Size ..........................................................................8
Loading Tubing .................................................................................... 9
Recommended Occlusion Setting ...................................................... 11
Optimized Occlusion Settings ............................................................12
MAINTENANCE .................................................................................... 12
Service Parts...................................................................................... 12
Occlusion Bed .................................................................................... 12
SPECIFICATIONS ................................................................................ 13
WARRANTY.......................................................................................... 14
PRODUCT RETURN ............................................................................ 14
TECHNICAL ASSISTANCE .................................................................. 14
Trademarks bearing the ® symbol in this publication
are registered in the U.S. and in other countries.
This product is covered by one or
more of the following U.S. and
corresponding foreign patents:
5,468,129 and 5,482,447
a-1299-0538.p65 1/29/02, 5:51 AM3

4
SAFETY PRECAUTIONS
CAUTION: Use only pre-formed MASTERFLEX
®
L/S
®
PTFE tub-
ing. Use of other tubing may result in premature or
unknown failure modes.
WARNINGS: Turn drive off before removing or installing tubing.Fin-
gers or loose clothing could be caught in the rollers.
Use recommended fittings only. Use of improper fit-
tings and/or improper connection to fittings may re-
sult in leakage at the fittings.
Do not operate the pump without the following pre-
cautions:
Either of the following two conditions can result in
sudden and/or extensive tubing failure.Tubing failure
may result in liquid leaking from pump. In the event of
tubing failure, operating pump at elevated speeds and
pressures will result in accelerated liquid leakage. Use
appropriate measures to protect operator and equip-
ment from caustic liquids.
1. HIGH PUMP-generated pressures.
A PRESSURE RELIEF/BYPASS VALVE must always
be installed in a potentially high pressure system
to prevent the pump from exceeding the maximum
rated pressure (100 psig;6.8 bar).
a. where the possibility of a blocked outlet occurs.
b. where occlusion setting is greater than recom-
mended.
c. where higher pressure filters are used that do
not have a built-in pressure relief system.
2. HIGH SYSTEM-generated backpressures.
AN INJECTION CHECK/BACK PRESSURE VALVE
should always be installed when pumping into a
pressurized reservoir or line. This will prevent
siphoning and/or backflow of liquid from a treated
line in the event of tubing failure.
WARNING: PRODUCT USE LIMITATION
These products are not designed for, nor intended for use in patient
connectedapplications;including,butnotlimitedtomedicalanddental
use, and, accordingly have not been submitted for FDA approval.
a-1299-0538.p65 1/29/02, 5:51 AM4

5
INTRODUCTION
The Model 77390-00 PTFE Tubing Pump, Figure 1, provides quick loading
of the special PTFE tubing assemblies. The pump is designed to work with
the MASTERFLEX 2mm ID PTFE Tubing Model 77390-50 and 4mm ID
Model77390-60andprovidesawideflowrangewhenusedwithcompatible
MASTERFLEX Pump Drives. Appendix A lists most of the MASTERFLEX®
L/S®Pump Drives which can be used with this pump.
The step-by-step instructions in this manual are task-oriented for easy
reference. The manual provides information for installing, operating and
customer maintenance of the Model 77390-00 PTFE Tubing Pump.
CAUTION: Improper setup or operation may result in damage to
the pump system components. Read instructions prior
to use.
Figure 1. Model 77390-00 PTFE Tubing Pump
a-1299-0538.p65 1/29/02, 5:51 AM5

6
APPLICATION DATA
The Model 77390-00 PTFE Tubing Pump is used to pump caustic and/or
sterile liquids, particularly those liquids that are not compatible with other
existing MASTERFLEX tubing materials. The use of PTFE tubing provides
improvedliquidcompatibilityandmaintenanceofliquidpurity.Thespecially
designed tubing assemblies provide for intermittent operation at pressures
upto100psig.VariouscompatibleaccessoriesareavailableincludingPTFE
valves, T-connectors, fittings, etc. for connection to remaining user system
components.Makesurethatthefittingsusedareproperlysizedandare
compatible with the pressure rating of the pump. Contact your dealer.
A typical application is transfer of liquids from storage containers to those
usedinexperiments.Meteringofsuchliquidsisanotherapplicationwhenthe
pump is used with an appropriate MASTERFLEX®L/S®Pump Drive. The
higher pressure capability allows use in low-volume filtering, chromatogra-
phy sample injection and other applications.
GENERAL DESCRIPTION
ThePTFETubingPump(seeFigure1)iscomposedofaBodyAssemblyand
anadjustableOcclusionBed.TheBodyAssemblyisusedtoattachthepump
to a drive and to support the six-roller ball bearing Rotor Assembly and the
OcclusionBed.TheOcclusionBedholdsthetubingandmountstotheBody
Assembly. It is held in place by increasing the occlusion to an appropriate
level. Occlusion is controlled by adjustment of the Occlusion Adjustment
Knob.ALockingRingmaintainstheocclusionsetting.Thesix-rollerconfigu-
ration provides low pulsation and prevents back-flow when the pump is
stopped.
Tubingisheldinplacewithouttheuseofspecialretainers.Thecurvature of
the groove along the lower surface of the Occlusion Bed matches the curve
of the tubing assembly and holds the tubing in place during pumping.
Two different diameter specially fabricated PTFE tubing assemblies are
available. The tubing is semi-flexible and chemically inert.
a-1299-0538.p65 1/29/02, 5:51 AM6

7
INSTALLATION
Mounting the Pump Head to a MASTERFLEX®L/S®Pump Drive
The Pump Head is attached to the drive unit with four supplied screws as
shown in Figure 2.
NOTE: TwoTangBootsareprovided. The Pump Headisshippedwiththe
closed end Tang Boot (A-3480) installed which matches most
MASTERFLEX®L/S®Drives. Replace with open end Tang Boot
(A-3514) when necessary.
1. Rotate the Occlusion Adjustment Knob fully counterclockwise to lift the
Occlusion Bed as shown in Figure 3.
2. Remove the Occlusion Bed by sliding out thefrontof the Body Assembly.
3. AligntheTangon thePumpHead(including installedboot)withthe slot
in the motor drive shaft.
4. Align the lower mounting holes on the Pump Head with the mounting
holes on the drive and fasten with the two thumbscrews.
5. Insert the two Phillips screws through the mounting holes in the upper
part of the Body Assembly. The upper two screw holes are accessible
by removing the Occlusion Bed.
This completes the mounting of the Pump Head. Proceed with the Setup
Procedure.

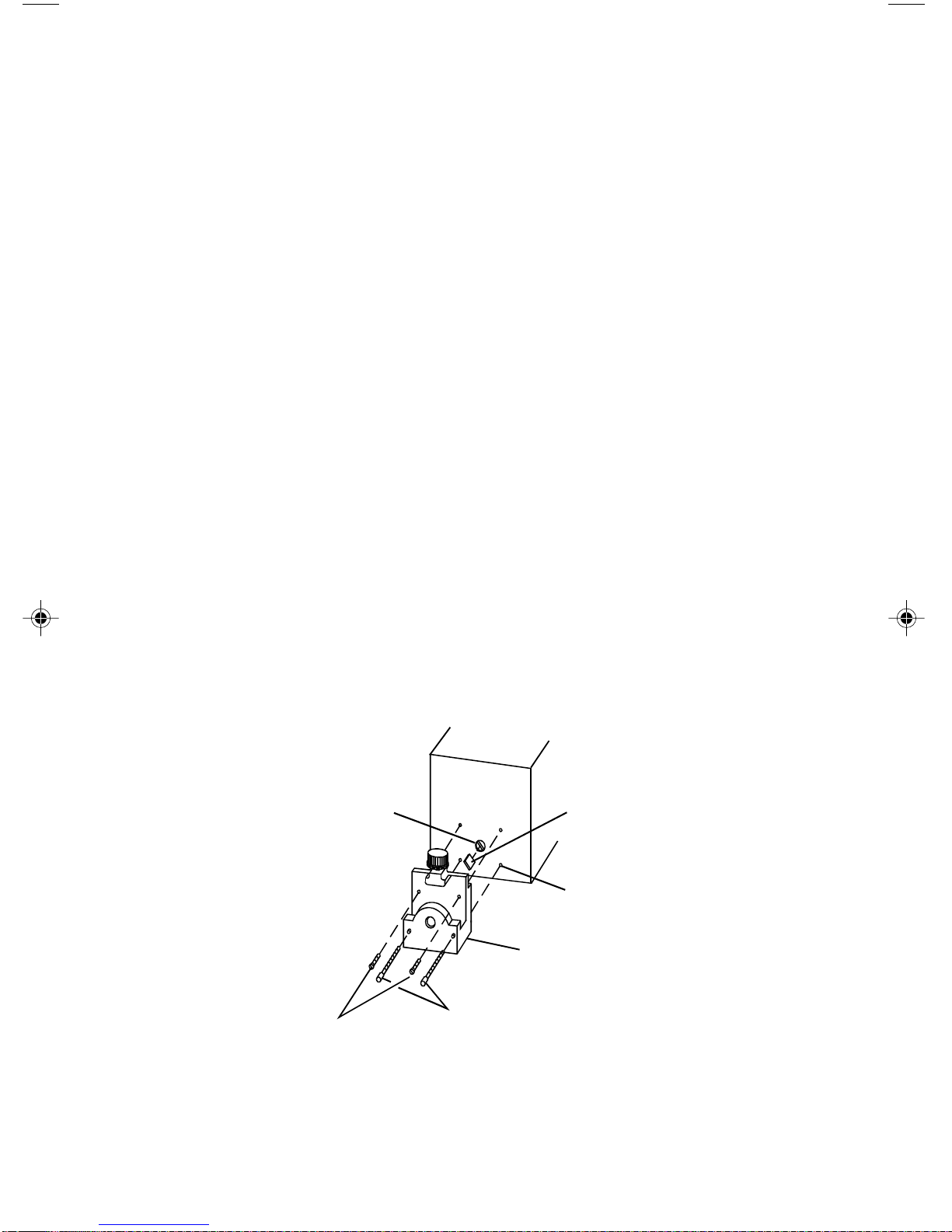

Figure 2. Attaching Pump to Drive
a-1299-0538.p65 1/29/02, 5:51 AM7

8
SETUP AND OPERATION
Selecting Tubing Size
The following chart provides approximate flow rates for the different tubing
sizes when used at various speeds. Liquid medium is distilled water at
72°F (22.2°C) and zero psig backpressure.
Tubing Catalog No.
Drive Speed 77390-50 77390-60
r/min Initial Flow Rate mL/min
1 0.09 0.35
75 7 26
100 9 35
150 13 53
300 26 105
Drive speeds greater than 300 r/min are not recommended.
Initial Flow Rate vs. Drive Speed
Thefollowingcurveprovidesapproximatepercentageofdecayofinitialflow
vs. time at 300 r/min. Decay will be faster or slower at different speeds.
Decay of initial Flow vs. time at 300 r/min
a-1299-0538.p65 1/29/02, 5:51 AM8

9
Loading Tubing
WARNING: Turn drive off before removing or installing tubing. Fin-
gers or loose clothing could be caught in the rollers.
1. Rotate Locking Ring fully counterclockwise tounlockOcclusionAdjust-
ment Knob.
2. Rotate the Occlusion Adjustment Knob completely counterclockwise.
Figure 3. Occlusion Assembly in Raised Position
3. LifttheOcclusionBedasshownin Figure3,thenremove theOcclusion
Bed by sliding out the front of the Body Assembly.
CAUTION: Use only pre-formed MASTERFLEX
®
L/S
®
PTFE tubing.
Use of other tubing may result in premature or unknown
failure modes.
a-1299-0538.p65 1/29/02, 5:51 AM9

10
4. Install the pre-formed PTFE tubing assembly in the groove of the
Occlusion Bed as shown in Figure 4.
Figure 4. Positioning Tubing Assembly in Occlusion Bed
5. Slide the occlusion assembly into the front of the body assembly.
WARNING: Use recommended fittings only. Use of improper fit-
tings and/or improper connection to fittings may re-
sult in leakage at the fittings.
6. Attach connecting fitting to the inner PTFE tubing in the Pump Head.
Never attach connecting fitting over the larger of the two concentric
PTFE tubing sections.
WARNINGS: Do not operate the pump without the following precau-
tions:
Either of the following two conditions can result in
sudden and/or extensive tubing failure. Tubing failure
may result in liquid leaking from pump. In the event of
tubing failure, operating pump at elevated speeds and
pressures will result in accelerated liquid leakage. Use
appropriate measures to protect operator and equip-
ment from caustic liquids.
1. HIGH PUMP-generated pressures.
A PRESSURE RELIEF/BYPASS VALVE must always
be installed in a potentially high pressure system to
prevent the pumpfrom exceedingthe maximumrated
pressure (100 psig; 6.8 bar).
a. where the possibility of a blocked outlet occurs.
b. where occlusion setting is greater than recom-
mended.
a-1299-0538.p65 1/29/02, 5:51 AM10

11
c. where higher pressure filters are used that do not
have a built-in pressure relief system.
2. HIGH SYSTEM-generated back pressures.
AN INJECTION CHECK/BACK PRESSURE VALVE
should always be installed when pumping into a
pressurized reservoir or line. This will prevent
siphoning and/or backflow of liquid from a treated
line in the event of tubing failure.
NOTE: The following leakage modes are considered evidence of tubing
failures:
1. Drip from exit of the outer tube of the concentric tubing
assembly.
2. Liquid between inner and outer tubes of the tubing
assembly.
3. After pump reaches full prime, a continuous and regular
stream of bubbles exiting the tubing assembly.
User must replace tubing at first sign of such leakage.
Recommended Occlusion Setting
CAUTION: Do not run the pump dry for an extended period of time.
Pumping dry or over-occluding can cause overheating
and pump damage.
Proceed as follows:
1. Dipentryandexitconnectingtubingapproximatelyoneinchintothefluid
to be pumped.
2. Be sure Pump Drive is turned on and set to desired operating speed.
3. Rotate Locking Ring fully counterclockwise. Ring should be against
lower side of Occlusion Adjustment Knob.
4. Slowly rotate Occlusion Adjustment Knob clockwise just until bubbles
firstappearatoutputoftheexitconnectingtube. Roughly ,thiswilloccur
when 1) the top of the Occlusion Bed becomes even with the top of the
Body Assembly, and 2) the pump noise level decreases.
5. Rotate Occlusion Adjustment Knob an additional one-fourth turn clock-
wise.
6. Rotate Locking Ring fully clockwise until it is tight against the top of the
Body Assembly, thus locking the Occlusion Adjustment Knob in place.
a-1299-0538.p65 1/29/02, 5:51 AM11

12
Optimized Occlusion Settings
Occlusion is reduced by rotating the Adjustment Knob counterclockwise.
Some applications require adjustment of the occlusion setting to maximize
tubelifewhileothersrequireadjustmenttomaintainflowratewhensubstan-
tial system pressure exists. However, the recommended setting will meet
the requirements of most applications, giving both good tube life and some
pressure capabilities.
To Maximize Tubing Life
Occlude according to recommended setting described above and allow
pump to prime with the fluid to be transferred. Then, while the pump is
running, simply reduce the adjusted occlusion setting by slowly turning the
Occlusion Adjustment Knob until the flow drop-off becomes unacceptable.
Thenturntheknob slightly clockwiseandlockinposition with LockingRing.
To Maintain Flow Rate at Higher Pressures
TurnOcclusionAdjustmentKnobclockwise just until flowratereturnstothe
desired level. Lock in position with Locking Ring.
MAINTENANCE
Service Parts:
Item Part Number
Occlusion Bed D-2692
Thumb Screw (1) B-3304-0012
Phillips Head Screw (1) B-1079-0076
Tang Boot (Closed End) A-3480
Tang Boot (Open End) A-3514
Occlusion Bed
ProceduresforremovalandinstallationoftheOcclusionBedarecoveredin
the Installation Section.
a-1299-0538.p65 1/29/02, 5:51 AM12

13
SPECIFICATIONS
PUMP
Maximum Torque load: 150 in-oz (12 kg-cm)
Operating Speed: 300 r/min maximum
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: −50°F to 150°F (−45°C to 65°C)
Humidity (Non-cond): 10% to 90% RH
Dimensions (L x W x H): 2-11/16 in x 3-5/16 in x 5-1/2 in
(6.83 cm x 8.4 cm x 14.0 cm)
Weight: 2 lb. (0.91 kg)
Color: Black
Material:
Pump Head: Anodized aluminum, acetal, and
stainless steel
Knob: Plastic
TUBING
Material: PTFE
Tubing Length: 15 inches ±1 inch (38 cm ±2.54 cm)
Tubing Diameter: 77390-50 2mm ID, 4mm OD
77390-60 4mm ID, 6mm OD
Maximum Pressure at rated flow: 100 psig*
Operating Temperature (Continuous): 32°F to 104°F (0°C to 40°C)
Operating Temperature (Intermittent): 32°F to 212°F (0°C to 100°C)
Storage Temperature: −50°F to 150°F (−45°C to 65°C)
Humidity (Non-cond): 10% to 90% RH
* Tubing life is significantly reduced at elevated pressure.
a-1299-0538.p65 1/29/02, 5:51 AM13

14
WARRANTY
Use only pre-formed MASTERFLEX
®
L/S
®
PTFE tubing. Use of other
tubing may result in premature or unknown failure modes.
TheManufacturerwarrantsthisproducttobefreefromsignificantdeviations
frompublishedspecifications.Ifrepairoradjustmentisnecessarywithinthe
warranty period, the problem will be corrected at no charge if it is not due to
misuse or abuse on your part as determined by the Manufacturer. Repair
costsoutsidethewarrantyperiod,or thoseresultingfrom productmisuseor
abuse, may be invoiced to you.
The warranty period for this product is noted on the Warranty Card.
PRODUCT RETURN
To limit charges and delays, contact the seller or Manufacturer for authori-
zationandshippinginstructionsbeforereturningtheproduct,eitherwithinor
outsideofthewarrantyperiod.Whenreturningtheproduct,pleasestatethe
reason for the return. For your protection, pack the product carefully and
insure it against possible damage or loss. Any damages resulting from
improper packaging are your responsibility.
NOTE: Items returned must be free of hazardous or toxic
materials.
TECHNICAL ASSISTANCE
If you have any questions about the use of this product, contact the
Manufacturer or authorized seller.
a-1299-0538.p65 1/29/02, 5:51 AM14

15
Printedin U.S.A.
070102
NOTES
®
Cole-ParmerInstrumentCo.
625 East Bunker Court
VernonHills, Illinois U.S.A.60061-1844
1-800-MASTERFLEX (627-8373) (U.S. and Canada only)
11 [phone] (outside U.S.)
[phone] (Local)
FAX [phone] (U.S. and Canada only)
11 [phone] (Fax outside U.S.)
www.masterflex.com
e-mail:[email protected]
BarnantCompany
28W092Commercial Ave.
Barrington,IllinoisU.S.A.60010-2392
1-800-637-3739 (U.S. and Canada only)
11 [phone] (outside U.S.)
[phone] (Local)
11 [phone] (Fax outside U.S.)
[phone] (Local Fax)
www.barnant.com
e-mail:[email protected]
a-1299-0538.p65 1/29/02, 5:51 AM15
