ColorKey Dazzler FX User manual

/
Dazzler FX
Cold Spark Machine
CKU-7700 / CKU-7701
USER MANUAL

2
Table of Contents
INTRODUCTION ......................................................................................................................................... 3
INSTALLATION .......................................................................................................................................... 4
MAINTENANCE & PRECAUTIONS .......................................................................................................... 4
SERVICE & SUPPORT .............................................................................................................................. 4
DAZZLER FX OVERVIEW ......................................................................................................................... 5
LCD DISPLAY OPERATION ..................................................................................................................... 6
MENU GUIDE .............................................................................................................................................. 7
DMX VALUES ............................................................................................................................................. 8
3 CHANNELS MODE ................................................................................................................................. 8
WIRELESS REMOTE OVERVIEW ............................................................................................................ 9
READ BEFORE FIRST USE .................................................................................................................... 10
OPERATION ............................................................................................................................................. 11
TROUBLESHOOTING ............................................................................................................................. 13
.................................................................................................................................................................... 13
TECHNICAL INFORMATION .................................................................................................................. 13
Please read these instructions carefully before use. Operating this fixture according
to these instructions is important to avoid any possible damage or accidents caused
by misuse.

3
Introduction
Package Contents
• Dazzler FX Cold Spark Machine
• PowerCon Locking Power Cable
• Remote
• Remote Receiver
• User Manual
Caution! Opening this unit voids warranty. Contact ColorKey for any service requests.
Warning! To avoid electrical shock, be sure to disconnect power before any service or
when moving or setting up the fixture.
• Always keep this fixture in a dry area
• This fixture must be used at a minimum distance of 5 meters (16’4”) away from
any contactable objects.
• Do not install or operate this fixture near flammable materials.
• This device must be installed, operated, and maintained by a qualified
professional.
• Please check if the voltage is in accordance with the rated power before
installing.
• Do not operate this fixture if the power cord has been damaged. Turn off fixture
and replace with a power cord of similar rating.
• Do not touch the fixture during operation as the housing heats up

4
Installation
• Ensure there are no flammable materials within 5 meters (16’4”) of the fixture
• Connect the fixture to power and turn on
Maintenance & Precautions
• Dazzler FX must be cleaned after each use to extend the life of the unit. Use the
Clearing function (IR Remote option (6), DMX Ch2; set at 150-255) to expel
unspent powder after each use.
• Ensure that you are using ColorKey Dazzler FX Cold Spark Powder [CKU-7800]
(Sold separately)
• Be sure to keep track of wireless Remote receiver. If it gets lost, you will need to
contact ColorKey
Service & Support
Your ColorKey product includes a 2-year warranty. For technical support or to register
your product, please visit https://www.colorkeyled.com/support/
You can also reach us by phone Monday thru Friday, 8:30am – 5pm PST at (818) 578-
4030.

5

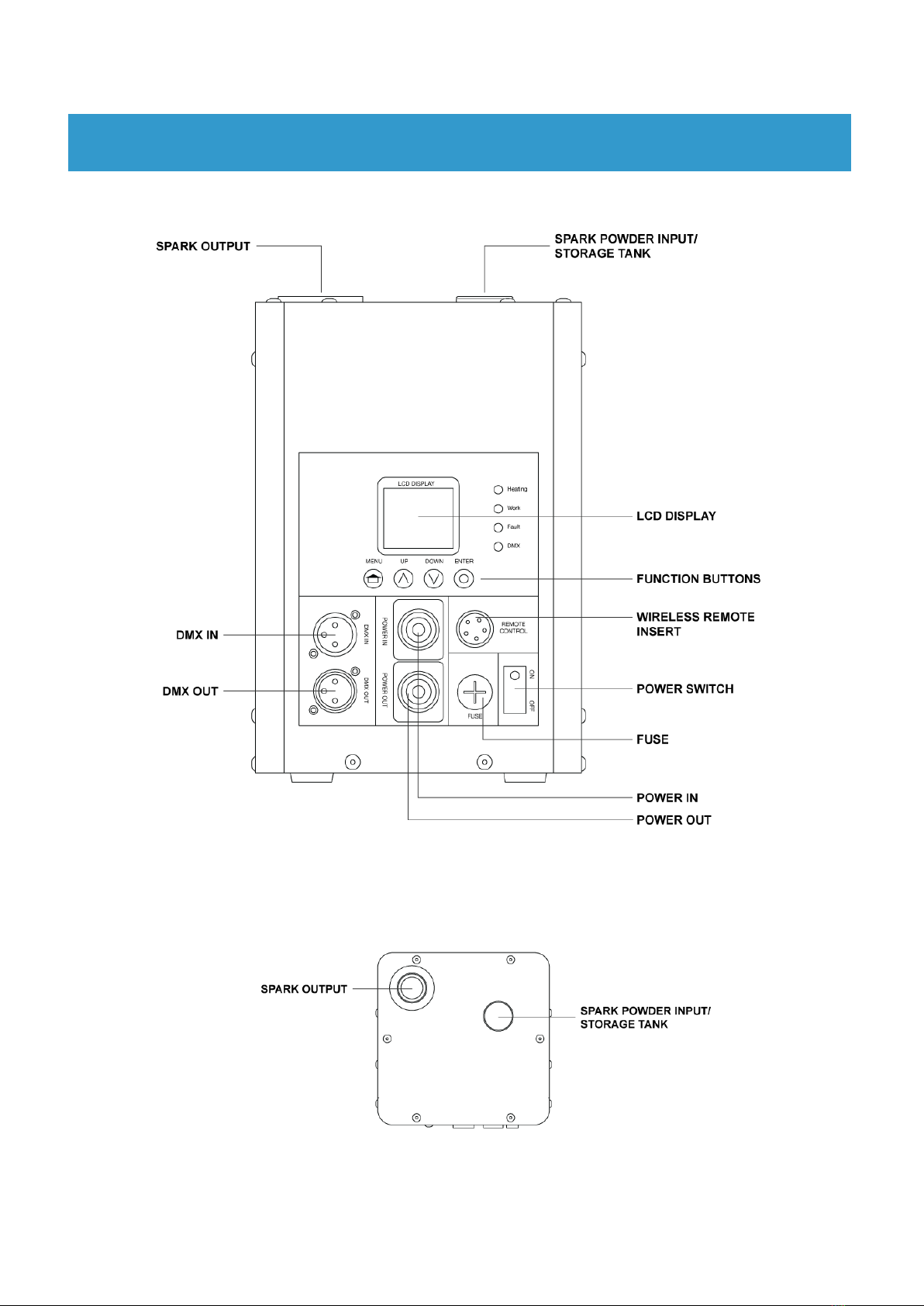

Dazzler FX Overview

6

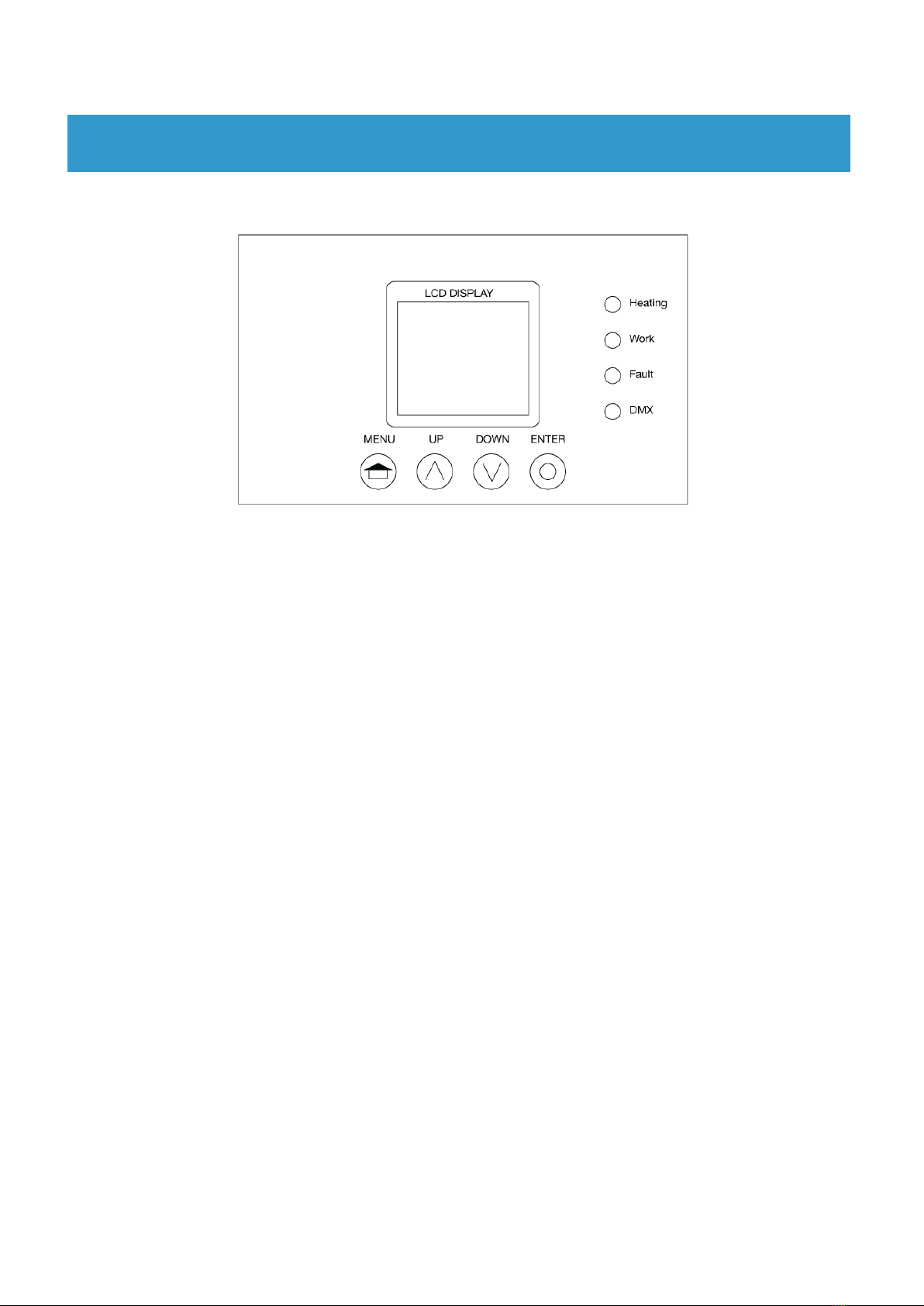

LCD Display Operation
Menu: Access the menu/Scroll through menu options
Up: Scroll through menu selection or increase parameter
Down: Scroll through menu selection or parameters decrease
Enter: Open/Select the current menu option

7
Menu Guide
Menu Item Show
Values
Function
DMX Address
001-512
DMX Address setting
Wireless Switch
On / Off
Turn the Wireless Remote On or Off
Language
CN / EN
11CH/72CH
Switch between English and Chinese
Master
On / Off
When Multiple units are connected in series, set one
unit as the Master. The Master can be controlled by
the remote and control and connected units will
respond accordingly
ID Code
01-30
When machines are connected in series, set each
with a unique ID Code to allow for Master/Slave pre-
programed FX shows such as “Horse Race”. The first
unit should be 001, the next 002 and so on.
THE MAXIMUM NUMBER IS 30.
PaoMA
01-30
This is the number of machines to be connected in
series. For example, if only using 8 units in series set
all Master and Slave units to 008.
THE MAXIMUM NUMBER IS 30.
Class switch
(Spray Effect)
On / Off
The fan and spray effect will only operate when Class
is On
Class (Spray
height)
1, 2, 3
1-Low spray height, 2-Medium spray height,
3-High spray
Manual Spark
On / Off
Use this function to troubleshoot the machine if you
encounter any issues during use.
Display Protect
On / Off
Automatically blackout the screen after 30 seconds of
non-use

8
DMX Values
3 Channels Mode
Channel
Value
Function
1
0-10
Spark Off
11-255
Spark On
2
0-149
No Effect
150-255
Clear Material (Blower only, no heat)
Recommended after each use.
3
0-199
Heating on (Ch1 functions will not work)
200-255
Stop heating (Ch1 functions will not work)
*NOTE: The “Stop heating” function can be
useful when a machine needs to be part of
a live event setting for an extended time
while remaining cool.

9
Wireless Remote Overview
Button
Function
Description
1
Turn On
Spark On
2
Turn Off
Spark Off
3
High
Maximum spark fountain height
4
Medium
Medium spark fountain height
5
Low
Minimum spark fountain height
6
Clear Powder
Run for 5 seconds to clear Dazzler FX Spark Powder
7
5s Show
Will produce a 5-second show at Class setting
8
10s Show
Will produce a 10-second show at Class setting
9*
Sigle FX Auto
See page 11 “ Horse Racing Effects using the
Master Slave settings” for instructions for enabling
multi-unit Auto FX.
*More than one Dazzler FX is needed to run Auto FX
10*
Round FX Auto
11*
Double Direction FX Auto
12*
Flowing FX Auto
13*
Refresh FX Auto
14*
Double Direction FX Auto
15*
Increase FX Speed
16*
Decrease FX Speed

10
Read Before First Use
• At power on, the Dazzler FX will begin heating for use. It is recommended to
connect to your selected DMX controller and other machines at this time.
• The Dazzler FX must be used in a well-ventilated area only. If the machine is
placed in too hot an environment (above 104 degrees) where there is limited
airflow, the machine’s heating protection system may cause a safety shutdown.
• The Dazzler FX machine must be used horizontally on the ground only. The
machine should have 1 meter (3 feet) clearance on all sides. Keep away from
children, flames, flammable, and combustible materials.
• Don't allow the Dazzler FX machine to run out of powder for an extended time. If
the machine is allowed to run empty, it may cause the motor and heater to be
damaged.
• Turn off the power before adding powder and do not allow powder to enter the
inside of the housing as internal electrical damage may result.
• If the spark output is low, or there is noise from motor, or the machine stops
creating spark altogether- do not attempt modify or repair the machine by yourself.
Please contact the dealer of purchase of ColorKey directly for more support.
• To better protect the life and longevity of your Dazzler FX units, it is advised to use
the effect in small increments of 10-30 seconds. If the machine continues to work,
heat up and consumes a whole package of powder, please cut off the power and
make the machine stop working for more than 10 minutes.
• When the machine is not being used, or will be in storage for a long time, please
do not keep the powder loaded in the tank. Please be sure to spray out the powder
using the remote, manual or DMX clearing functions to prevent the machine from
becoming blocked or lodged with powder.
• When finished loading Dazzler FX Spark Powder, be sure to securely fasten the
Storage Tank cap, otherwise it could allow for safety issues.
• The power supply can connect to a maximum of 6 machines in series.
• If the machine is overturned or impacted during use, it will automatically shut down.
To correct, turn off the power, check all connections are not damaged. When
confirmed ok, it can be used normally after restarting.

11
Operation
Using the Wireless Remote
• Plug in the power cord and power on. Wait for the machine to warm up for 3-5
minutes, the 'heating' indicator will flash during warm up.
• Ensure the Wireless Receiver is connected to your Dazzler FX and Wireless is
turned On in the main menu. The remote has a power switch located on the right
side and uses a A123 battery (included).
• When the heating indicator light stops flashing to signal that the machine has
finished preheating, pour Dazzler FX Spark Powder into the storage tank. (We
recommend using about half a bag of powder at a time)
• You may now use the remote control to trigger spark effects. (See page 9 for
remote control details).
Horse Racing Effects using the Master Slave settings:
• Using the Menu, set your desired "Master" unit to the "ON" state.
• Select "PaoMa Num" and set it to the TOTAL number of connected machines.
n For example, if 4 machines are connected in series, the value is set to 004.
• The host "ID code" is set to 001 by default.
• To Slave machines, enter the Menu setting interface and set the second "ID code"
to "002". In turn the third will be set to "003", and so on...
• After the settings are completed, use the remote control’s Multi Unit buttons
“9,10,11 …16” will now work to trigger the various multi-unit Dazzler FX spray FXs.

12
Using a DMX controller:
• Power on the machine and connect to a DMX controller with a DMX cable.
The machine defaults to DMX address 001. The DMX address can now be set as
needed.
• Dazzler FX preheating starts instantly when plugged in. When the preheating is
complete, the heating indicator will stop flashing. You can then push channel 1 to
start spraying and adjusting the height.
• To turn off the machine’s continuous heating feature, engage Channel 3 DMX
value to 200-255.
• Use Channel 2 to start the blower only and clear unused Dazzler FX Spark Powder.
Set Spray Height (Use for manual testing only):
NOTE: These settings are used for manual testing only, we strongly suggest not to
modify the “Class” settings on the Menu
Select “Setting” and press “ENTER” to enter the Setting Menu. Select “Gear” and
switch to “On”. Gear associates to height as follows: (1) is low, (2) is medium, and
(3) is the highest spray height (approx. 5m).
WIRELESS
MASTER
SOUND
DMX
SLAVE
DMX
SELECT
MENU ENTER
WIRELESS
MASTER
SOUND
DMX
SLAVE
DMX
SELECT
MENU ENTER
WIRELESS
MASTER
SOUND
DMX
SLAVE
DMX
SELECT
MENU ENTER
WIRELESS
MASTER
SOUND
DMX
SLAVE
DMX
SELECT
MENU ENTER
WIRELESS
MASTER
SOUND
DMX
SLAVE
DMX
SELECT
MENU ENTER

13
Troubleshooting
Problems
Solutions
No DMX Control
Ensure your DMX controller is sending signal and you are
using a proper and working DMX cable.
Error Light Indicator On
If the error light indicator is on, please ensure your
Dazzler FX is in the correct upright position. Restart to
test.
If the fan is working but
no spark
If the fan of the machine is working but the Dazzler FX
does not spray sparks, please ensure the machine is fully
preheated. (The heating indicator will no longer flash and
remain solid when Dazzler FX is fully warmed up)
Technical Information
• 600W Cold Spark Machine with FX
• DMX Channel Modes: 3 channels
• Control modes: DMX 512, Master /Slave, Wireless Remote
• Screen Display: LCD
• Pre-heating time: 3 min
• Spark Height: 1.5 - 5 meter adjustable
• Power connection: PowerCon In / Out
• Power consumption: 600W
• Power supply: AC120-240V; 50-60Hz
Please note: As we continue to work towards improving our products and your
experience as a user, we recommend that you check our website periodically for
updates to user manuals and specifications at www.ColorKeyLED.com or you may
contact us directly at [email protected].
