ColorKey KasBar COB Tri 5 User manual

KasBar COB Tri 5
5x15w 3in1 COB LEDs (RGB)
USER MANUAL

Table of Contents
1. Introduction ..................................................................................... 1
2. Safety ............................................................................................... 2
3. DMX Values & Function ................................................................... 3
4. Display Operation............................................................................. 7
5. Menu Guide & Operation.................................................................. 8
6. DMX Connections .......................................................................... 11
7. Master/Slave Mode Operation........................................................ 12
8. Troubleshooting.............................................................................. 12
9. Technical Information…………………..……………………………...13

1
1. Introduction
!Summary
Thank you for purchasing the ColorKey KasBar COB Tri 5. Please read these
instructions carefully before use. O perating this fixture according to these instructions is
important to avoid any possible damage or accidents caused by misuse.
!Product Introduction
The ColorKey KasBar COB Tri 5 uses an aluminum housing and adopts a 5, 15W
3in1 (RGB) COB LEDs. This fixture features long life span, low power consumption,
amazing color mixing and bright output. Each of the 3 colors can be independently
controlled. Built-in modes include; dimming, strobe, gradual change, color fading, color pulse
as well as other programs. This fixture uses a switching power supply that is light weight
and requires minimal power consumption . This fixture also features universal protocol
DMX-512.
!Packing list
"1x KasBar COB Tri 5
"1x IEC Power Cable
"User Manual
"Warranty Card

2
2. Safety
!Safety Notes
Caution! Opening this unit voids warranty. Contact ColorKey for any service requests.
Warning! To avoid electrical shock, be sure to disconnect power before any service or when
moving or setting up the fixture.
Caution! Avoid direct eye exposure with the fixture when on.
!Safety instruction
●The KasBar COB Tri 5 has an automatic voltage switch and will automatically detect
voltage when connected to power. Please be sure to check voltage is within the range of
this fixtures specifications.
●Before use, check this fixture for damage that may have been caused during the
shipping process. If damage is found to the unit, do not use and contact ColorKey
immediately.
● This fixture is designed for indoor use only; operating this fixture outdoors may
cause damage.
●This fixtures maybe mounted in any position provided there is adequate space for
ventilation.

3
3. DMX Values & Functions
!DMX 1 Channel Mode
!DMX 3 Channel Mode
Channel
Value
Function
Priority
CH1
000-002
Off
003
Red = 100%
004-038
Red = 100% Green ↑
039
Red Green = 100%
040-074
Green =100% Red ↓
075
Green =100%
076-110
Green =100% Blue ↑
111
Green Blue =100%
112-146
Blue =100% Green ↓
147
Blue =100%
148-182
Blue =100% Red ↑
183
Red Blue =100%
184-218
Red =100% Blue ↓
219
Red =100%
220-254
Red =100% Green ↑Blue ↑
255
Red Green Blue =100%
Channel
Value
Function
Notes
Priority
CH1
000-255
Red
0-100%
CH2
000-255
Green
0-100%
CH3
000-255
Blue
0-100%

4
!DMX 7/8 Channel Mode
Channel
Value
Function
Notes
Priority
CH1
000-255
Master Dimmer 0-100%
1
CH2
0-255
Red 0-100%
CH3
0-255
Green 0-100%
CH4
0-255
Blue 0-100%
CH5
0-14
N/A
Not Used
2
15-255
Strobe Speed (Fast-Slow)
CH6
000-003
N/A
Not Used
3
004-013
Red
014-023
Green
024-033
Blue
034-043
Red + Green
044-053
Green + Blue
054-063
Red + Blue
064-073
Red + Green + Blue
074-083
Program 1
084-093
Program 2
094-103
Program 3
104-113
Program 4
114-123
Program 5
124-133
Program 6
134-143
Program 7
144-153
Program 8
154-163
Program 9
164-173
Program 10
174-183
Program 11
184-193
Program 12
194-203
Program 13
204-213
Program 14
214-223
Program 15
224-233
Program 16
234-243
Program 17
244-253
Program 18
254-255
Program 1-18
CH 7
000-255
Speed (Slow-Fast)
3
CH8
000-005
Use ‘nodE’ setting
3
006-055
Dimming 0
056-105
Dimming 1
106-155
Dimming 2
156-205
Dimming 3
206-255
Dimming 4

5
!DMX 19/20 Channel Mode
Channel
Value
Function
Notes
Priority
CH1
000-255
Master Dimmer 0-100%
1
CH2
000-255
Red 0-100%
Pixel 1
CH3
000-255
Green 0-100%
Pixel 1
CH4
000-255
Blue 0-100%
Pixel 1
CH5
000-255
Red 0-100%
Pixel 2
CH6
000-255
Green 0-100%
Pixel 2
CH7
000-255
Blue 0-100%
Pixel 2
CH8
000-255
Red 0-100%
Pixel 3
CH9
000-255
Green 0-100%
Pixel 3
CH10
000-255
Blue 0-100%
Pixel 3
CH11
000-255
Red 0-100%
Pixel 4
CH12
000-255
Green 0-100%
Pixel 4
CH13
000-255
Blue 0-100%
Pixel 4
CH14
000-255
Red 0-100%
Pixel 5
CH15
000-255
Green 0-100%
Pixel 5
CH16
000-255
Blue 0-100%
Pixel 5
CH17
000-014
N/A
Not Used
2
015-255
Strobe (Fast – Slow)
CH18
000-003
N/A
Not Used
3
004-013
Red
014-023
Green
024-033
Blue
034-043
Red + Green
044-053
Green + Blue
054-063
Red + Blue
064-073
Red + Green + Blue
074-083
Program 1
084-093
Program 2
094-103
Program 3
104-113
Program 4
114-123
Program 5
124-133
Program 6
134-143
Program 7
144-153
Program 8
154-163
Program 9
164-173
Program 10
174-183
Program 11
184-193
Program 12
194-203
Program 13
204-213
Program 14

6
CH 18
214-223
Program 15
3
224-233
Program 16
234-243
Program17
244-253
Program 18
254-255
Program 1-18
CH19
000-255
Speed Adjustment (Slow-Fast)
3
CH20
000-005
Use ‘nodE’ Setting
3
006-055
Dimming 0
056-105
Dimming 1
106-155
Dimming 2
156-205
Dimming 3
206-255
Dimming 4

7
4. Display Operation
DMX IN/OUT
LED display
4 buttons
!MENU : access the menu or return to a previous menu option
!ENTER: select the current menu option
!UP: menu selection or parameter increments
!DOWN: menu selection or parameters decrease
DMX IN DMX OUT
MENU UP DOWN ENTER

8
5. Menu Guide & Operation
Addr
d001-d512
DMX Mode
UEm
UE2.0
Software Version
nodE
nod0-nod4
Speed Limitor
LEd
On/oFF
Display on/oFF
SoUA
So.UA
Sound Activated
bL- -
b000-b255
Blue Dimming
MENU
GL- -
G000-G255
Green Dimming
rL- -
r000-r255
Red Dimming
FLAS
FL00-FL15
Strobe Mode
(Fast-Slow)
FAdE
FA00-FA15
Color Fade
(Fast-Slow)
ASC
AC00-AC15
Color Jump
Change
Pr- -
Pr00-Pr15
Preset Selection

9
SP- -
SP00-SP15
Program Speed
(Fast-Slow)
SLAU
SL.AU
Slave Mode
CHnd
1/3/7/8/19/20
DMX Channel
Mode
1．Operating instruction:
To operate your unit in DMX mode, follow these steps:
!Press MENU to activate display / return to ‘main menu’ screen.
!Press UP/DOWN until “Addr” is displayed.
!Press ENTER to proceed. Display will flash indicating you have entered edit mode.
!Press UP/DOWN to select desired DMX address. This will display as d001-d512.
!Press ENTER to save and store your selections. T he screen will stop flashing
indicating you have exited edit mode.
To select DMX Channel Mode, follow these steps:
!Press MENU to activate display / return to ‘main menu’ screen.
!Press UP/DOWN until “CHnd” is displayed.
!Press ENTER to proceed. Display will flash to indicating you have entered edit mode.
!Press UP/DOWN to select desired DMX channel mode (3CH, 6CH, 10CH or 11CH).
!Press ENTER to save and store your selections. The screen will stop flashing
indicating you have exited edit mode.

10
To select Display On/Off, follow these steps:
!Press MENU to activate display / return to ‘main menu’ screen.
!Press UP/DOWN until “LED” is displayed.
!Press ENTER to proceed. Display will flash indicating you have entered edit mode.
!Press UP/DOWN until desired selection is displayed (“On” or “OFF”).
!Press ENTER to save and store your selections. The screen will stop flashing
indicating you have exited edit mode.
Note*** Display will remain on for approximately 2 minutes after the last button
selection. When the display is off, press any button to activate display.
2. Details of Built-in Programs (Pr- -)
!Press MENU to activate display / return to ‘main menu’ screen.
!Press UP / DOWN until “Pr- -“ is displayed.
!Press ENTER to proceed. Display will flash indicating you have entered edit mode.
!Press UP / DOWN until desired selection is displayed (see chart below “Pr- -“).
! Press ENTER to save and store your selections. The screen will stop flashing
indicating you have exited edit mode.
Built-in Program Chart:
!Pr32 - Pr35 are speed adjustable. SP00 is the fastest, SP15 is the slowest.
!Pr00 - Pr63：R,G,B,A,W,UV single color or multi-colors lighting
!Pr64 - 6 Color Change mode.
!Pr65 - 6 Color Change + Strobe
!Pr66 - Multi-Color Change
!Pr67 - Multi-Color Change + Strobe

11

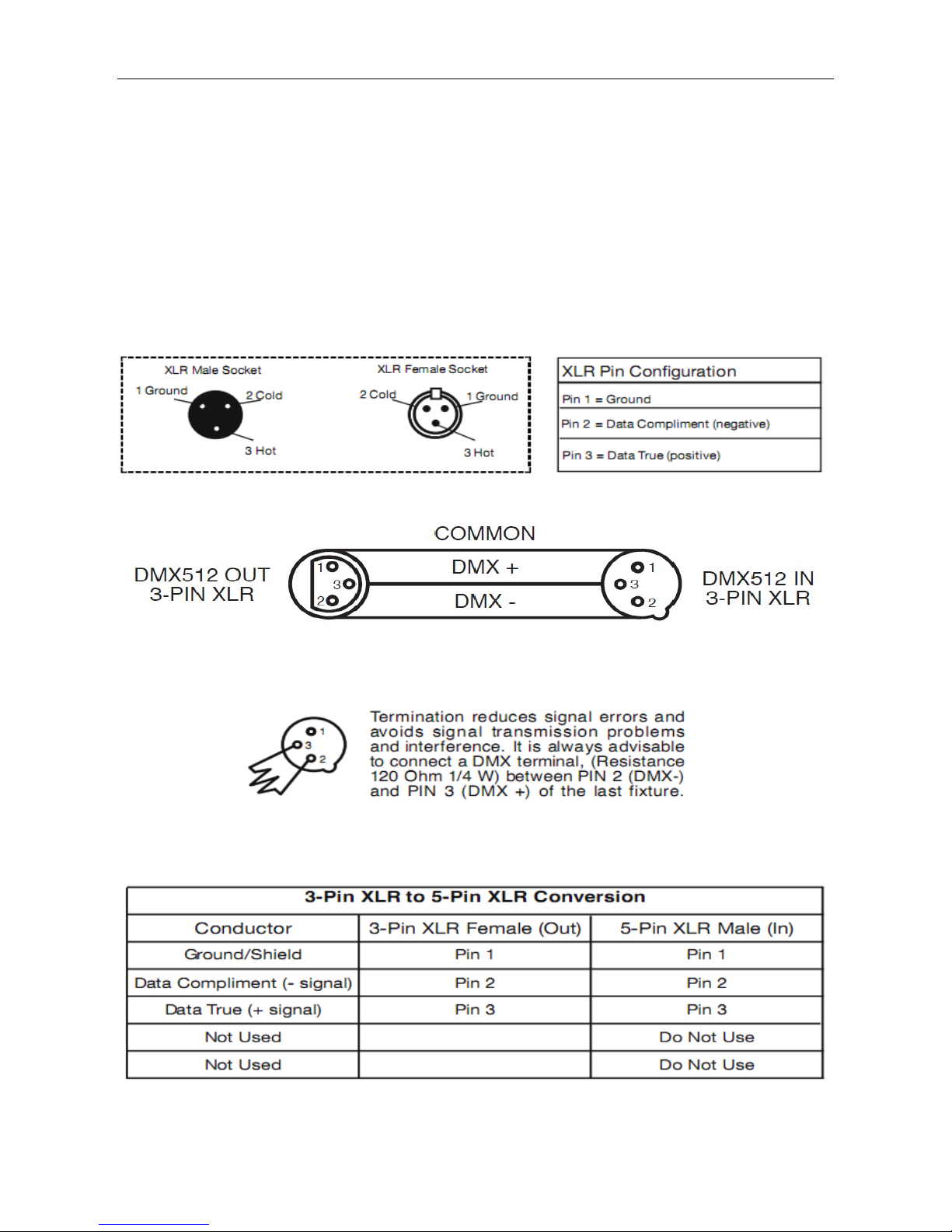

7. DMX Connections
!DMX Cable：
The KasBar COB Tri 5 can be controlled via DMX using a 3-pin XLR connection. The
standard DMX connection is XLR is: one end connects to the male plug, and the other
connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal
Noted：In order to avoid failures and interference signal transmission，we connect a
resistance120Ω（1/4W ）at the end of the DMX connecting as below:
!The Conversion between 3 pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable

12
6. Master/Slave Mode Operation
Master/Slave
Master/Slave mode allows you to connect multiple units together using one (1) unit to control
others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a
controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal
via DMX to Slave units which will react in synchronization. When a fixture is set into ‘Slave
Mode’, this fixture will receive the Master signal. To ensure a fixture is in ‘Slave Mode’ the
fixture’s display must read “SLAV”. To avoid master signal and DMX signal interference, do
not connect DMX when using Master/Slave mode. If using a DMX run longer than 60 meters
and/or over 32 units, a signal amplifier may be required.
8. Troubleshooting
Problem
Solutions
No DMX control
#Make sure that the DMX cable is properly connected
#Make sure that the DMX controller is operational
#Check the DMX cable for tears or breaks
#Make sure that the fixture is in DMX mode
Fixture does not
respond to sound
#Make sure that the fixture is in Sound Active mode.

13
9. Technical Information
Input Voltage: AC 100V-260V/50-60HZ
Power Consumption: 90W
Lamp Spec: 5PC 15W 3in1(RGB) COB LED
Refresh Rate :> 400HZ (32 BIT MCU processing, 16bit PWM)
Control Mode: DMX512, Mater/Slave, Sound Activated, Stand Alone
Channel: 1/3/7/8/19/20
Beam Angle: 80°
Cooling Mode: Fan Cooling
Anti-electricity Intension：>1.5KV
Insulation Resistance：＞２MΩ
IP rated: IP20
Dimension: 270*225*405mm
N.W.: 2.8KG
ColorKey offers a 2-year limited warranty. Please visit our website at
www.ColorKeyLED.com to register your product.
Please note: As we continue to work towards improving our products and your experience
as a user, we recommend that you check our website periodically for updates to user
manuals and specifications at www.ColorKeyLED.com or you may contact us directly at
[email protected].
