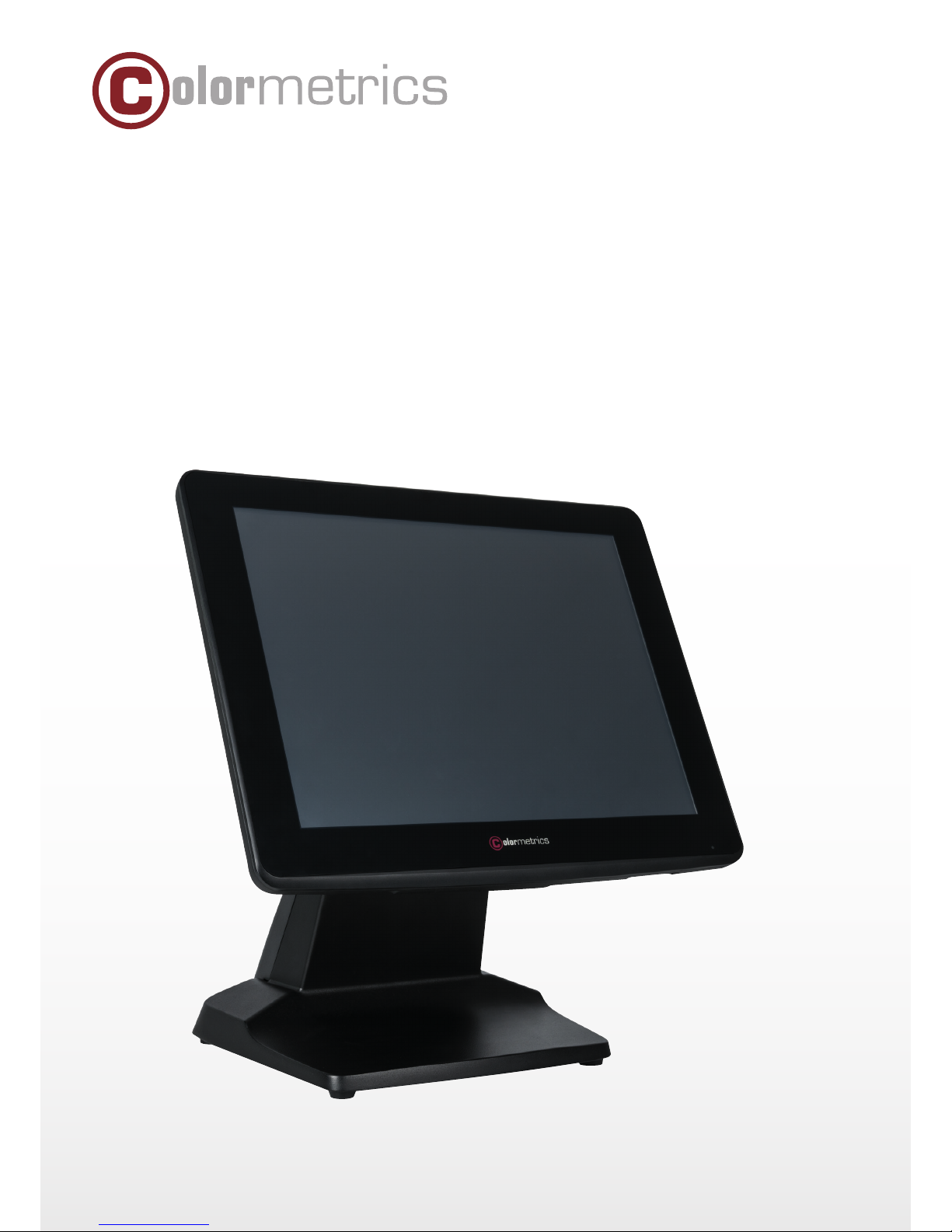

Colormetrics P4500 User manual

Errors excepted; subject to change www.colormetrics.info
P4500
User Manual
Version 1.0

2
www.colormetrics.infoColormetrics P4500
Copyright 2017 Colormetrics. All Rights Reserved.
This manual, and the software and firmware described in it are copyrighted by their respective owners
and protected under the laws of the Universal Copyright Convention. You may not reproduce, transmit,
transcribe, store in a retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, biological, molecular, manual, or otherwise, any
part of this publication without the express written permission of the publisher.
All products and trade names described within are mentioned for identification purposes only. No affili-
ation with or endorsement of the manufacturer is made or implied. Product names and brands appearing
in this manual are registered trademarks of their respective companies.
The information published herein has been checked for accuracy as of publishing time. No represen-
tation or warranties regarding the correctness of this document for any use are made or implied by the
publisher. We reserve the right to revise this document or make changes in the specifications of the
product described therein at any time without notice and without obligation to notify any person of such
revision or change.
COPYRIGHT

3
www.colormetrics.info Colormetrics P4500
SAFETY INSTRUCTIONS
1. Read these instructions carefully. Keep these instructions for future reference.
2. Please disconnect the equipment from AC outlet before cleaning.
Don’t use liquid or spray detergents for cleaning. Use a moist sheet or cloth for cleaning.
3. Please keep the equipment in a room with low humidity.
4. Lay the equipment on a reliable surface when installing. A drop or fall could cause injury.
5. Make sure power cord lies in such a way that people cannot step on it.
Do not place anything over the power cord.
6. All cautions and warnings on the equipment should be noted and adhered to.
7. If the equipment is not used for long time, disconnect it from the mains to avoid being damaged
by transient over voltage.
8. Never pour any liquid into the opening; this could cause a fire or electrical shock.
9. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well or you cannot get it work according to the user manual.
e. The equipment has been dropped and is damaged.
10. Do not leave the equipment in an unconditional environment, at a storage temperature below
-20°C or above 60°C, as it may damage the equipment.
11. Unplug the power cord when doing any service or adding optional kits.
Lithium Battery Caution:
Danger of explosion arises if the battery is incorrectly replaced. Replace only the original
or equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
CE Notice
This device complies with the requirements of the CE directive.

4
www.colormetrics.infoColormetrics P4500
COPYRIGHT 2
SAFETY INSTRUCTIONS 3
CE NOTICE 3
1 PACKING LIST 5
1-1. Standard Accessories 5
1-2. Optional Accessories 5
2 SYSTEM VIEW 6
2-1. Rear View (I/O Type A) 6
2-2. Back View 7
2-3. Specification 8
2-4. Internal Layout 9
3 PIN DEFINITION 10
4 REAR I/O INTERFACE 12
5 SYSTEM ASSEMBLY & DISASSEMBLY 14
5-1. HDD 14
5-2. Memory 15
5-3. M.2 SSD 17
5-4. MSR/iButton/RFID 18
5-5. VFD / 8"/10.4"/15" 2nd Display 19
5-6. 1D/2D Barcode scanner 22
6 DEVICE DRIVER INSTALLATION 23
6-1. Resistive Type Touch Panel and P-CAP 23
6-2. MagStripe Card Reader Configuration Utility 29
6-3. RFID 40
6-4. Configuration Utility of i-Button Reader 46
6-5. VFD 51
7BIOS/UTILITY SETUP 56
7-1. Advanced 58
7-2. Security 63
7-3. Power 64
7-4. Boot 65
7-5. Exit 66
8. LCD SURFACE CLEANING 67
TABLE OF CONTENTS

5
www.colormetrics.info Colormetrics P4500
7

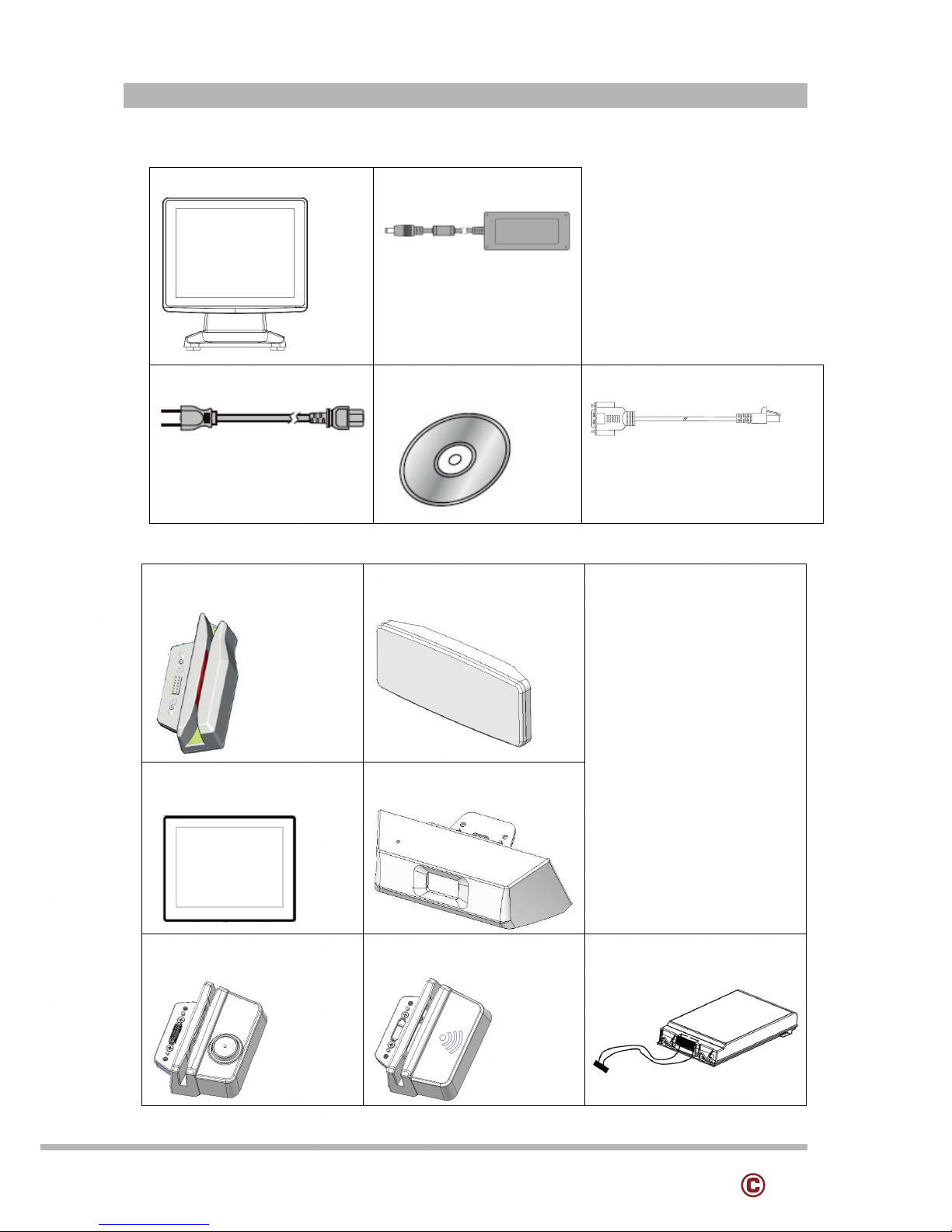

1-1 Standard Accessories
a.
b.
a. System (with stand)
b. Power Adapter
c. Power Cord
d. Driver Bank
e. Cable D-SUB9 to RJ45 (4x)
c.
d.
e
1-2 Optional Accessories
a.
b.
a. Single MSR
b. VFD
c. 8”/10.4”/15” 2nd Display
d. 1D or 2D Barcode Scanner
e. MSR + iButton
f. MSR+RFID
g. UPS Battery
c.
d.
e.
f.
g.
PACKING LIST

6
www.colormetrics.infoColormetrics P4500
8

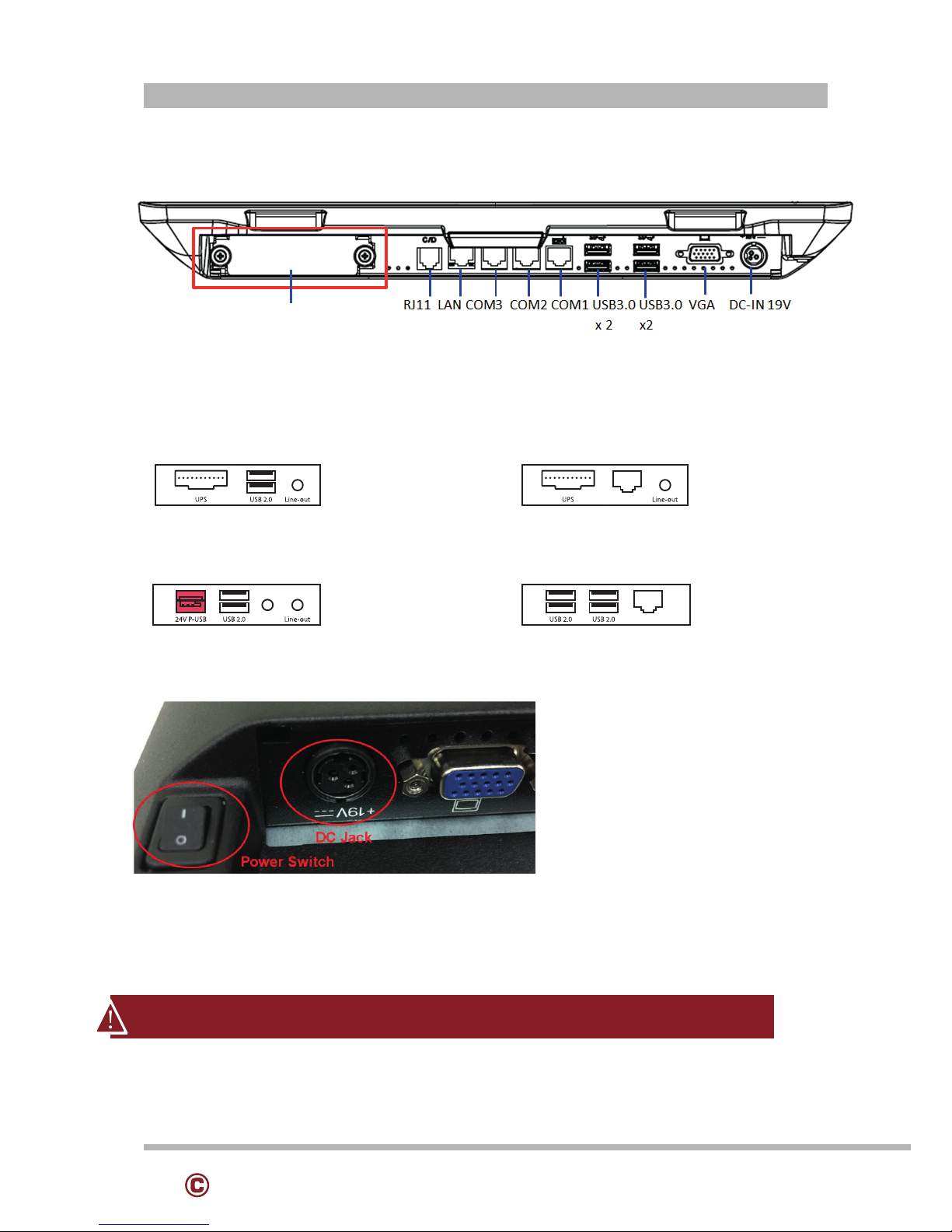

2-1. Rear View
I/O Extension
Type A I/O Card Type B I/O Card
Type C I/O Card Type E I/O Card
System View
2
☆
Please make sure the 19V DC is plugged in the right direction before plugging in DC jack.
I/O Extension
Please make sure the 19V DC is plugged in the right direction before plugging in DC jack.
COM
Mic-in COM
SYSTEM VIEW

7
www.colormetrics.info Colormetrics P4500
9
2-2. Back View
VFD Cover/8”/10.4” 2nd Display (Optional)
MSR/iButton/RFID
(Optional)
HDD Cover
9
2-2. Back View
VFD Cover/8”/10.4” 2nd Display (Optional)
MSR/iButton/RFID
(Optional)
HDD Cover
15" Display, VFD pole (optional)

8
www.colormetrics.infoColormetrics P4500
10
2-3. Specification
Model Ares755J
Display Display Size 38.1 cm (15") TFT LCD
Resolution 1024 X 768
Brightness /Color 350 cd/m
2
, 16.7M colors
Backlight LED
Touch Panel Type 5 wire resistive or projected capacitive touch
Processor CPU/Chipset Intel® Celeron 3965U (Dual Core 2MB Cache, up to
2.20GHz)
Memory 1x (DDR4-2133MHz SO-DIMM, up to 16GB)
Storage 1x (2.5” SATAIII HDD or SSD ) / 1x M.2
(Support 2242 & 2280) (SSD)
I/O Connectors USB 3.0 4x
Powered COM 3x (RJ45 x 1 with DC 5V/12V selectable)
Cash Drawer Port 1x (12V/24V RJ11 cash drawer port)
VGA 1x
LAN 1x (RJ45, 10/100/1000 Base-T)
I/O Expansion Type A 1x UPS, 2x USB2.0, 1x Line-out
Type B 1x UPS, 1x COM (RJ45 with DC 5V/12V selectable),
1x Line-out
Type C 1x 24V Powered USB, 2x USB 2.0, 1x Mic-in, 1x Line-out
Type E 4x USB 2.0, 1x COM (RJ45 with DC 5V/12V selectable)
Optional Peripherals VFD / 8"/10.4” 2nd display / MSR / iButton / RFID /
fingerprint reader / 1D/2D barcode scanner / WiFi
Power Supply 90W or 150W 19V lockable 3-pin DC input power adapter
OS Support Win 10 IoT Enterprise
Environment Temperature Operation 0 to 35° C
Storage 20 to 60° C
Relative Humidity 20 to 80% non-condensing
Dimension (W x H x D)
374 x 394 x 265
mm

9
www.colormetrics.info Colormetrics P4500
11

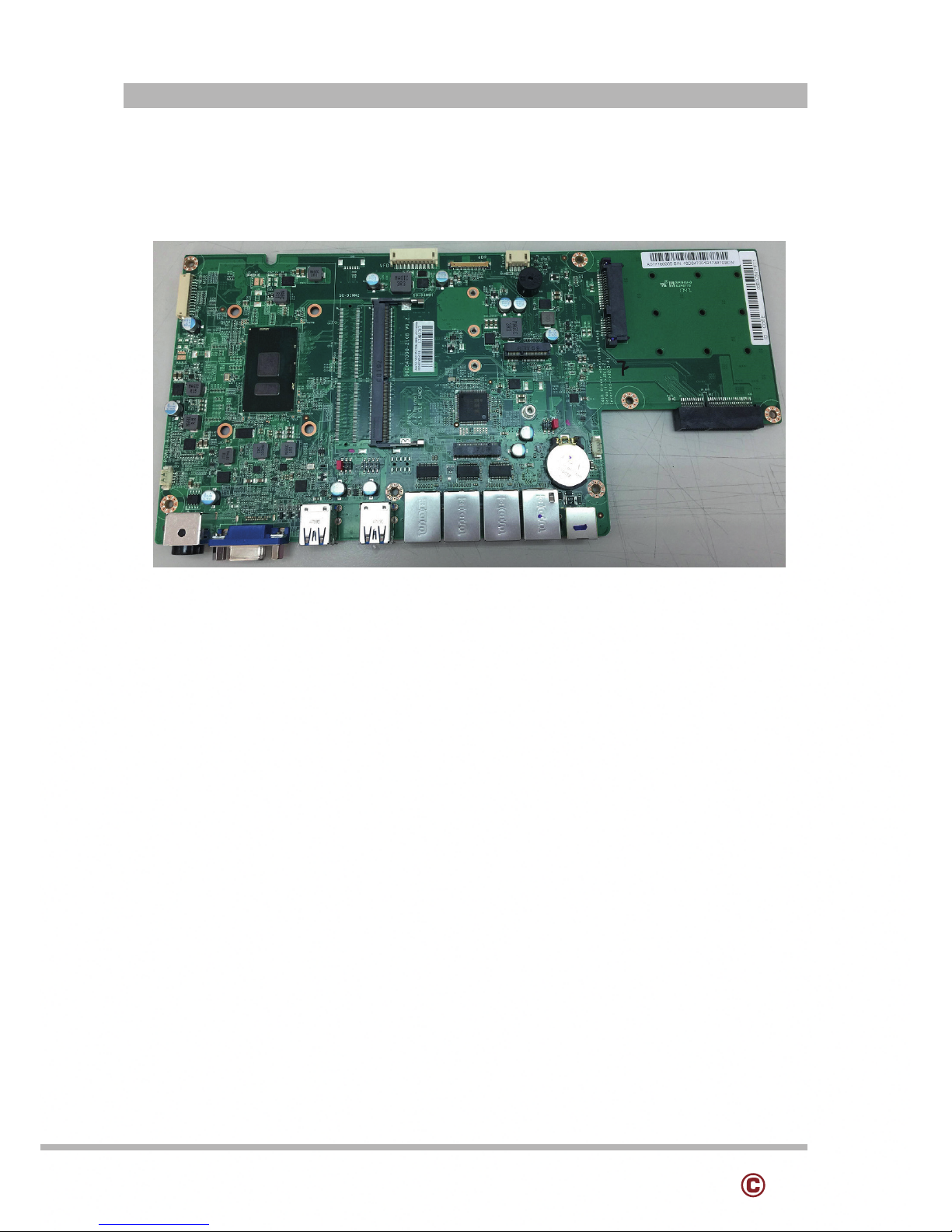

2-4. Internal Layout
M/B PCBA

10
www.colormetrics.infoColormetrics P4500
12
1. J1: eDP Pin Definition
No. Definition No. Definition
1
NC
16
GND
2
GND
17
DDI2_DP_HPD
3
DDI2_DP_TX1_DN
18
GND
4
DDI2_DP_TX1_DP
19
GND
5
GND
20
GND
6
DDI2_DP_TX0_DN
21
GND
7
DDI2_DP_TX0_DP
22
BL_Enable
8
GND
23
BL PWM DIM
9
SOC_EDP1_AUX_P
24
NC
10
SOC_EDP1_AUX_N
25
NC
11
U3Rxp1
26
+12V
12
+V3.3V
27
+12V
13
+V3.3V
28
+12V
14
NC
29
+12V
15
GND
30
NC
2. SATA1: 7+15 PIN SATA Pin Definition
No. Definition No. Definition
1
GND
12
GND
2
SATA_TX0_P
13
GND
3
SATA_TX0_N
14
+V5
4
GND
15
+V5
5
SATA_RX0_N
16
+V5
6
SATA_RX0_P
17
GND
7
GND
18
GND
8
N/C
19
GND
9
N/C
20
N/C
10
N/C
21
N/C
11
GND
22
N/C
3. SPK1: Int. Speaker Pin Definition
No. Definition
1
Left Out +
2
Left Out -
3
Right Out-
4
Right Out+
Pin Definition
3
PIN DEFINITION

11
www.colormetrics.info Colormetrics P4500
13
4. SW1: Power Button Pin Definition
No. Definition
1
+5V standby
2
+5V
3
Power-ON#
4
GND
5. JBAT1: Power Button Pin Definition
No. Definition
3
Clear CMOS#
5
GND
6. CN1: Touch Panel Pin Definition
No. Definition
1
+5V
2
USB D-
3
USB D+
4
GND
7. CN4: Sideway MSR Connector Pin Definition
No. Definition
1
+5V
2
+5V
3
GND
4
USB D-
5
USB D+
6
USB D-
7
USB D+
8
USB D-
9
USB D+
10
GND
11
+3.3V
12
+3.3V
13
N/C
8. CN2: VFD Connector Pin Definition
No. Definition
1
RTS#
2
DSR#
3
TxD
4
RxD
5
CTS#
6
DTR#
7
+5V
8
USB D-
9
USB D+
10
GND
REAR I/O INTERFACE

12
www.colormetrics.infoColormetrics P4500
14
1. JS1: DC Jack Pin Definition
No. Definition
1 +19V
2 Ground
3 +19V
2. VGA1: VGA Connector Pin Definition
No. Definition
1
RED
2
GREEN
3
BLUE
4
N/C
5
GND
6
GND
7
GND
8
GND
9
N/C
10
GND
11
N/C
12
SPD
13
HSYNC
14
VSYNC
15
SPCLK
3. CN6, CN7: 2-Layer USB3.0 Pin Definition
No. Definition No.
Definition
1
+5V
8
TX-
2
D-
9
TX+
3
D+
10
+5V
4
GND
11
D-
5
RX-
12
D+
6
RX+
13
GND
7
GND
4. COM1, COM2, COM3: RJ45 Pin Definition
No. Definition
1
5V/12V/Ring#
2
DSR#
3
GND
4
DTR#
5
RTS#
6
CTS#
7
TxD
8
RxD
Rear I/O Interface
4
REAR I/O INTERFACE

13
www.colormetrics.info Colormetrics P4500
15
5. LAN1: RJ45 Pin Definition
No. Definition
1
MDI0A+
2
MDI0A-
3
MDI1A+
4
MDI1A-
7
MDI2A+
8
MDI2A-
9
MDI3A+
10
MDI3A-
6. CN8: RJ11 (Cash Drawer) Connector Pin Definition
No. Definition
1
GND
2
C/D_OPEN#
3
C/D Status
4
+12V/+24V
5
N/C
6
GND
System Assembly & Disassembly
5

14
www.colormetrics.infoColormetrics P4500
16

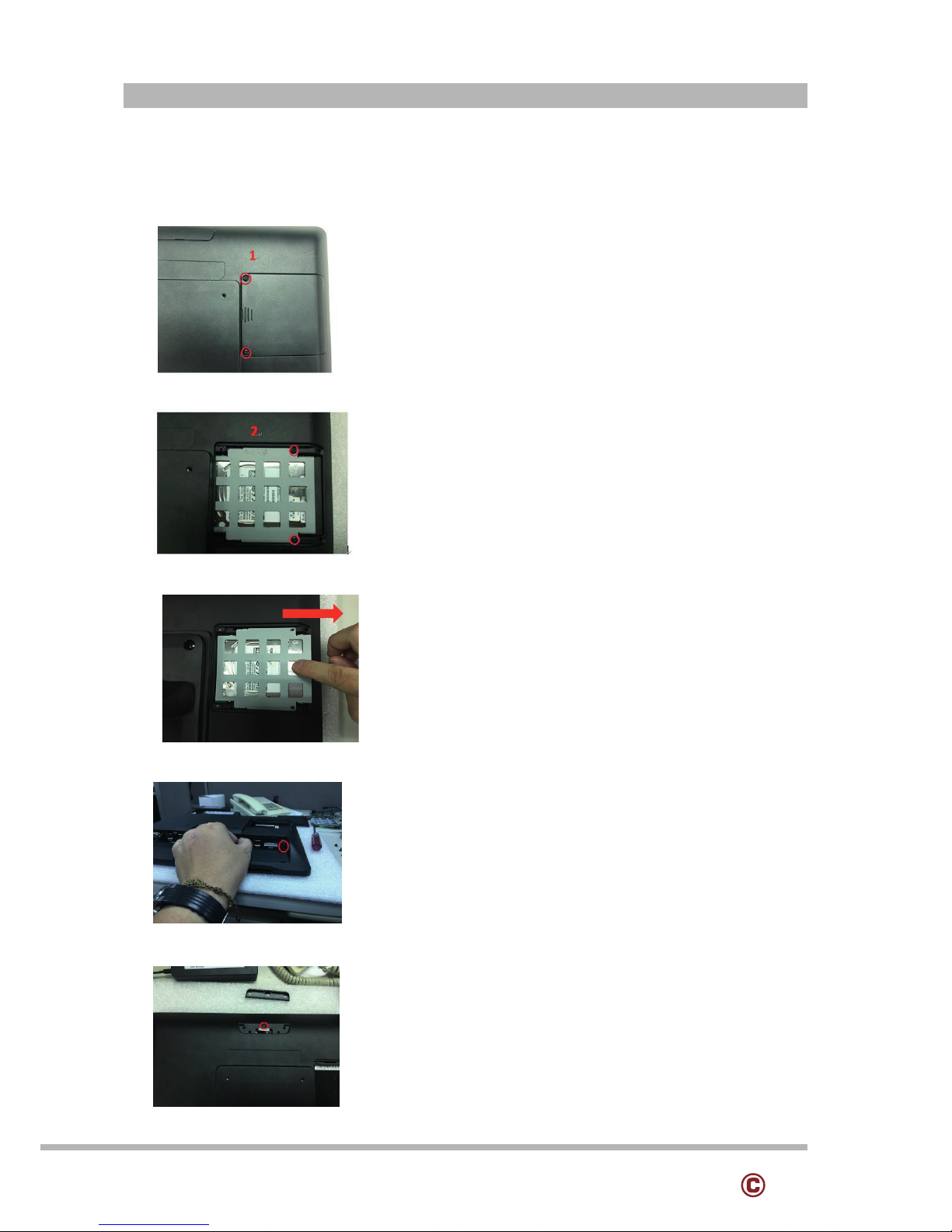

5-1. HDD
1. Remove the 2 hard drive cover screws, then remove the hard drive cover.
2. Remove the 2 screws from the hard drive bracket.
3. Slide the hard drive bracket outward to remove it from the system.
4. Remove the 4 hard drive bracket screws.
5. Remove the hard drive from the hard drive bracket.
3
5
SYSTEM ASSEMBLY & DISASSEMBLY

15
www.colormetrics.info Colormetrics P4500
17

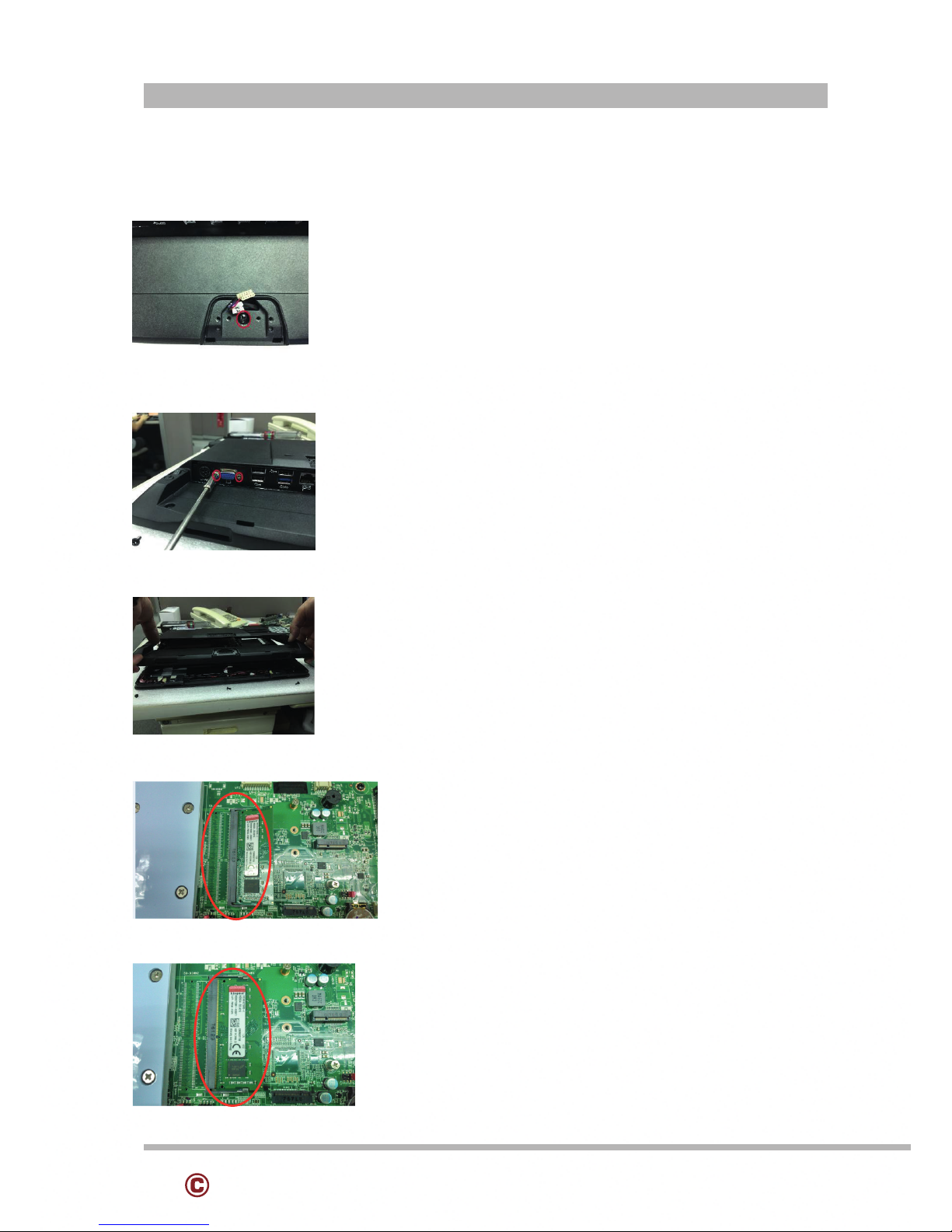

5-2. Memory
1. Remove the 2 hard drive cover screws, then remove the hard drive cover.
2. Remove the 2 hard drive bracket screws, then remove the hard drive bracket.
3. Slide the hard drive bracket outward to remove it from the system.
4. Remove the 2 I/O board screws.
5. Remove the 1 VFD screw.
4
5
3

16
www.colormetrics.infoColormetrics P4500
18
6. Remove the screw near the barcode area.
7. Remove the 2 VGA screws.
8. Remove the back cover.
9. Install the memory into the socket.
10. Push down on memory.
6
7
8
9
10
18
5. Remove the 1 VFD screw.
6. Remove the screw inside the barcode area.
7. Remove the 2 VGA screws.
8. Remove the back cover.
9. Install the memory into the socket.
10. Push down on memory.
5
6
7
8
9

17
www.colormetrics.info Colormetrics P4500
19
5-3. M.2 SSD
1. Remove the screw and standoff from location of M.2 2280.
2. Install the standoff to the location of M.2 2242.
3. Install the M.2 2242 SSD into the socket.
4. Push down on the memory, then fasten the screw.
1
2
3
4

18
www.colormetrics.infoColormetrics P4500
20
5-4. MSR / iButton / RFID
1. Remove MSR cover.
2. Fasten the MSR holder with 2 screws.
3. Plug the MSR cable into the MSR connector.
4. Reattach the MSR cover with 2 screws.
1
2
3
4

19
www.colormetrics.info Colormetrics P4500
21
5-5. VFD / 8”/10.4”/15” 2nd Display
5-5-1. VFD/ 8”/10.4” 2nd Display
1. Remove top cover.
2. Either plug the VFD cable into the VFD connector or plug the 8”/10.4” 2nd display cable into the
2nd display’s connector (note: display connector can only be connected to one device at a time).
3. Install VFD with 2 screws / Install 8”/10.4” 2nd display with 2 screws.
1
2
3

20
www.colormetrics.infoColormetrics P4500
22
5-5-2. 15” 2nd Display

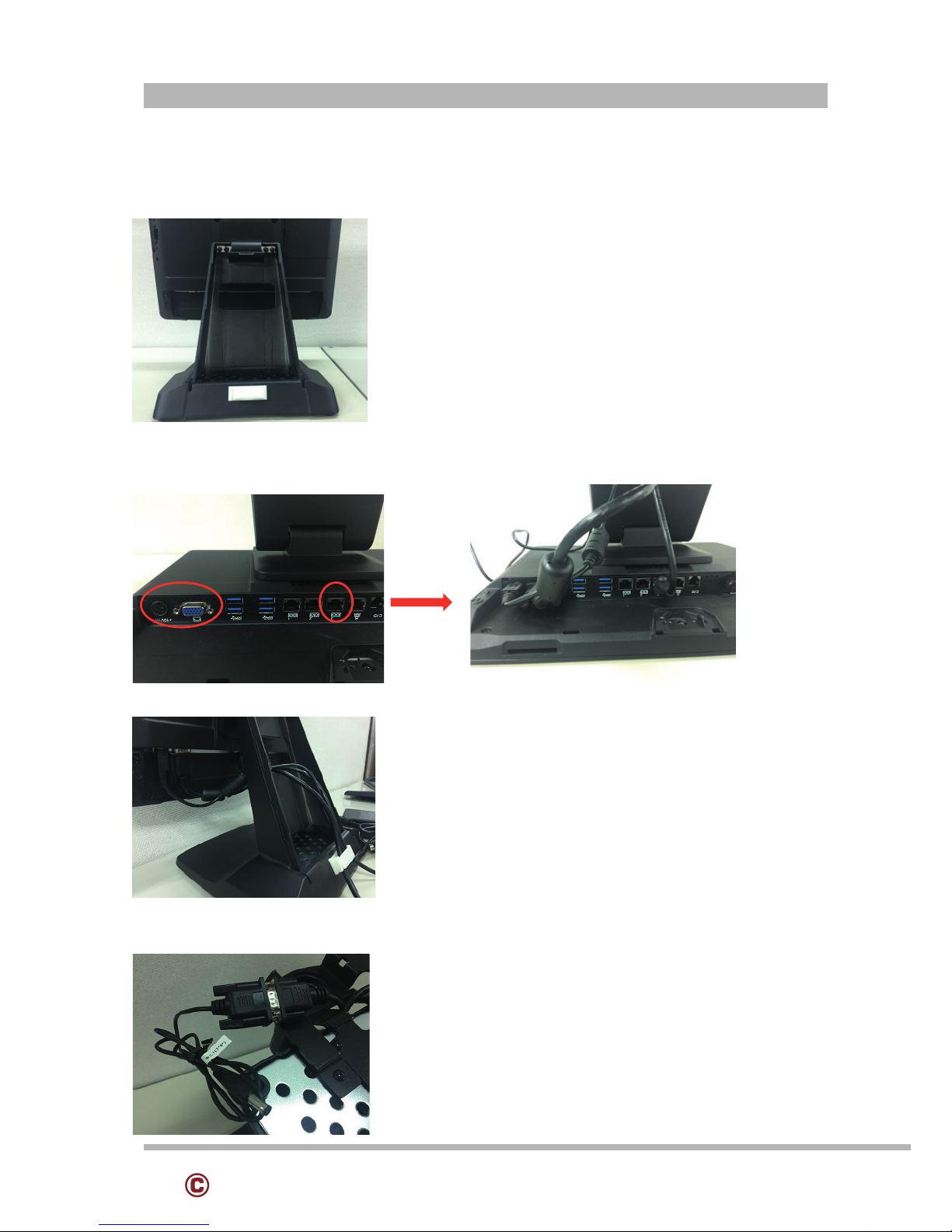

1. Remove the back cover of the stand.
2. Plug the DC 19V, VGA and 9P cables into the DC Jack, VGA and 9P ports on the system.
3. Arrange the cables as shown in the figure.
4. Connect the female D-SUB 9P cable to the male D-SUB 9P cable.
1
c
2
3
4
