Audio/video module for ViP system
Art.4682HD

2
Table of contents
Warning ............................................................................................ 2
Description....................................................................................... 3
Art. 4682HD - Compatibility table.......................................................3
Technical characteristics................................................................ 5
External unit installation ................................................................. 6
Connections..................................................................................... 7
Connection with POE power supply.......................................................7
Connection with additional power supply (Art. 1595) ..........................7
Variants .....................................................................................................8
Module Connection ......................................................................... 9
External unit module consumption table...............................................9
Connection of Ikall modules .................................................................10
Connection of button modules 33433, 33434, 33436, 33433M,
33434M, 33436M..............................................................................10
Connection of Art.3360B, 3360BM..................................................10
Connection of Vandalcom modules .....................................................11
Connection of Art.3064S and Art. 1172B ........................................11
Connection of Art.3188SB...............................................................11
Connection of Art.3070S, 3072S .....................................................12
Modules for Single-plate external unit.................................................12
Connection of Art.3063D with additional power supply ..................12
Simplekey modules................................................................................13
Connection of readers Art.SK9000I, Art. SK9001I...........................13
Programming ................................................................................. 14
Assigning an index number to the “additional button modules”.......14
Addressing table ....................................................................................15
Device reset............................................................................................16
Connection distances ................................................................... 17
Warning
Intended use
This Comelit product has been designed and manufactured for use in the creation of audio and video communication
systems in residential, commercial, industrial and public buildings.
Installation
All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with
careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products.
Wires
Disconnect the power supply before carrying out any operations on the wiring.
Use wires with a cross-section suited to the distances involved, observing the instructions provided in the system
manual.
We advise against running the system wires through the same duct as power cables (230V or higher).
Safe usage
To ensure Comelit products are used safely:
• carefully observe the indications provided in the Manuals / Instruction sheets,
• make sure the system created using Comelit products has not been tampered with / damaged.
Maintenance
Comelit products do not require maintenance aside from routine cleaning, which should be carried out in accordance
with the indications provided in the Manuals / Instruction sheets.
Any repairs must be carried out:
• for the products themselves, exclusively by Comelit Group S.p.A.,
• for the systems, by qualified technical personnel.
Disclaimer
Comelit Group S.p.A. accepts no liability for
• any purpose other than the intended use,
• failure to observe the indications and warnings contained in this Manual / Instruction sheet.
Comelit Group S.p.A. reserves the right to change the information provided in this Manual / Instruction sheet at any
time and without prior notice.

3
Description
The 4682HD colour audio-video module is compatible with ViP door entry monitor systems.
It can be installed in Ikall, Ikall Metal, Vandalcom and Roma series external units and can be finished with additional modules to
meet all system requirements.

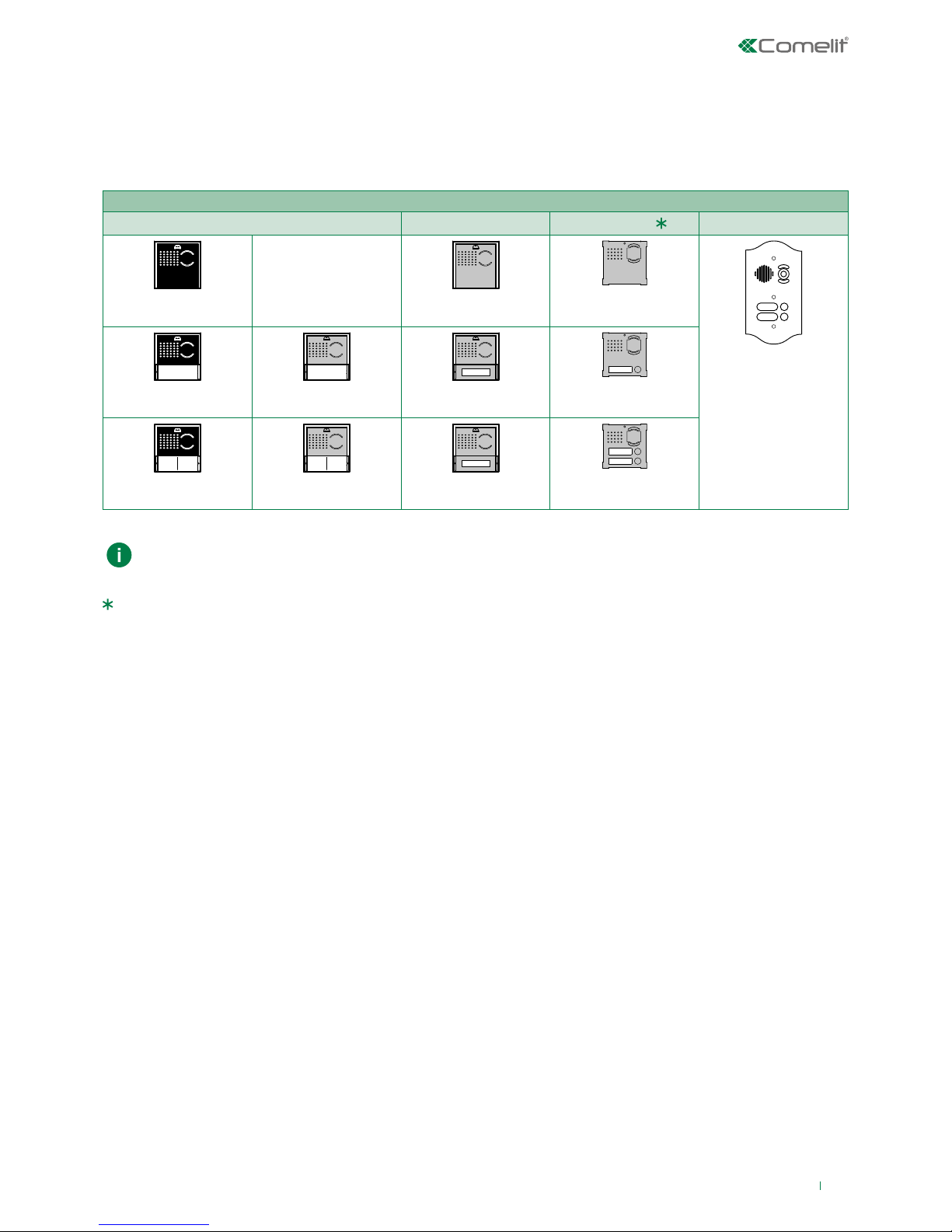

Art. 4682HD - Compatibility table
Ikall Ikall Metal Vandalcom Roma
33410 33410M
3268S/0
32xx/RI
33411 33411A 33411M
3268S/1
33412 33412A 33412M
3268S/2
For programming and configuration of the external unit and system parameters use the ViP Manager software,
which can be downloaded from pro.comelitgroup.com.
For Vandalcom audio/video modules, select the configuration “Video adaptation: Vandalcom” in ViP Manager.

1.
ON DIP
2. 3. 4.
6. 9.
10. 11. 12.
8.7.
5.
B A
PR
1. 2. 3.
4
1. Programming DIP-switch for button module indexing
and Device reset
2. Power supply indicator LED
3. PR switch for input/output programming
A in programming mode
Bnormal operation
4. Connector for magnetic induction audio amplification
module connection
5. Ethernet port activity indicator LED
6. Indicator LED: call sent
7. Speaker.
8. Microphone.
9. Indicator LED: system busy
10. Indicator LED: sound activated
11. Colour camera.
12. Indicator LED: lock-release activated
1. Connector for 8-core wire for button module connection
2. JP1 manages the RC network for door lock filter on the relay contacts (see “Variant for using the external unit relay /
Variant for using a safety lock”)
3. Terminal block for connection:
SE+ connection for electric door lock
COM relay common contact
NC relay normally closed contact
NO relay normally open contact
GND SE- RTE input and SE door lock reference negative
RTE local lock-release input
V- V+ +33V or PoE power supply
TX- TX+ Ethernet transmission line terminals
RX- RX+ Ethernet receiving line terminals

5
Technical characteristics
MAIN FEATURES
Audio/video systems Yes
Induction loop module output Yes
Camera Colour
Diagonal viewing angle 125°
Video encoding H.264
Camera sensor 1/3" CMOS
Signal/noise ratio (dB) 40
Camera positioning No
Power supply voltage 30 - 57 / PoE
Consumption in standby 3.0 W
Consumption during call 5.5 W
Consumption with audio active 6.0 W
Terminals TX- TX+ RX- RX+ V- V+ RTE GND/SE- SE+ COM NC NO
Microphone Yes
Loudspeaker Yes
Operating temperature (°C) -35 to 55
SW/FW FEATURES
Video resolution (H x V) 1280x720 px MAX
Multistream management Yes
FUCNTION
Key button function Yes
HARDWARE CHARACTERISTICS
Visual indications Ye s
Acoustic indications Yes
Voice synthesis Yes
ADJUSTMENTS
Loudspeaker volume Yes (via ViP Manager)
Mic volume Yes (via ViP Manager)
GENERAL DATA
Product height (mm) 55
Product width (mm) 102
Product depth (mm) 43
COMPATIBILITY
ViP system Yes
Video entry family Ye s
CONNECTIVITY
Type of connections/ports Wired
Ethernet ports on terminals TX- TX+ RX- RX+
ELECTRICAL SPECIFICATIONS
Relay outputs (C NO NC) Rated voltage 12VDC/24VAC
Maximum rated current 2.5A
Max. peak current 15A
Electronic lock (SE GND) Rated voltage 12VDC
Maximum rated current 0.25A
Max. peak current 3A
RTE (reference GND) 3.3V
With Vandalcom modules Art. 3268S: diagonal viewing angle = 105°
With Vandalcom modules Art. 3268S: video resolution (H x V) = 1136x640

6
External unit installation
The camera must not be installed in front of light sources, or in places where the filmed subject is against the
light.
In dim environments, we recommend additional lighting is provided.
3 4
1
1
2
5
CAUTION
The wires
must be long
enough so as
to allow easy
programming of
the audio/video
module
LED
O
F
F
LED
O
F
F
WHITE OFF BLUE
6
Index the modules before
proceeding with installation
(see Assigning an index number
to the “additional button
modules”)
Nameplate LED lighting selection
163 cm
130 cm
40-45 cm
125° MAX
163 cm
130 cm
12
Connect the module support
frame to earth
32
1
360°
8
2
1
3
7
Alternative microphone
position (excluding 4
module entrance panel)
Close
Open

7
Connections
Connection with additional power supply (Art. 1595)
√The additional power supply is necessary when you want to connect additional modules which require a power level greater
than 5W in total to the serial port (see Module Connection).
Connection with POE power supply
ORANGE
BLUE & WHITE BLUE
BROWN & WHITE BROWN
WHITE ORANGE
GREEN
WHITE GREEN
-
V V
+
++
-
TX
4682HD
1441 1440
L N
-
+
V V
OUT
43
OUTOUT
21
IN
21
IN
+
-
OUT
J1
J2
J1
J2
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
ORANGE
WHITE ORANGE
GREEN
WHITE GREEN
++
-
TX
4682HD
+3268S
J2
J1
C
V
+
-
S
J1
J2
C
V
+
-
S
J2
C
V
+
-
S
J1
1172B1172B1172B 1172B
3064S 3064S 3064S
3064S
CV3
1441 1440
L N
-
+
V V
OUT
43
OUTOUT
21
IN
21
IN
+
-
OUT
-
+
120-230 V
1595
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
Local lock-release button
For further information on module connection, please refer to Module Connection
Local lock-release button
For further information on module connection, please refer to Module Connection

8

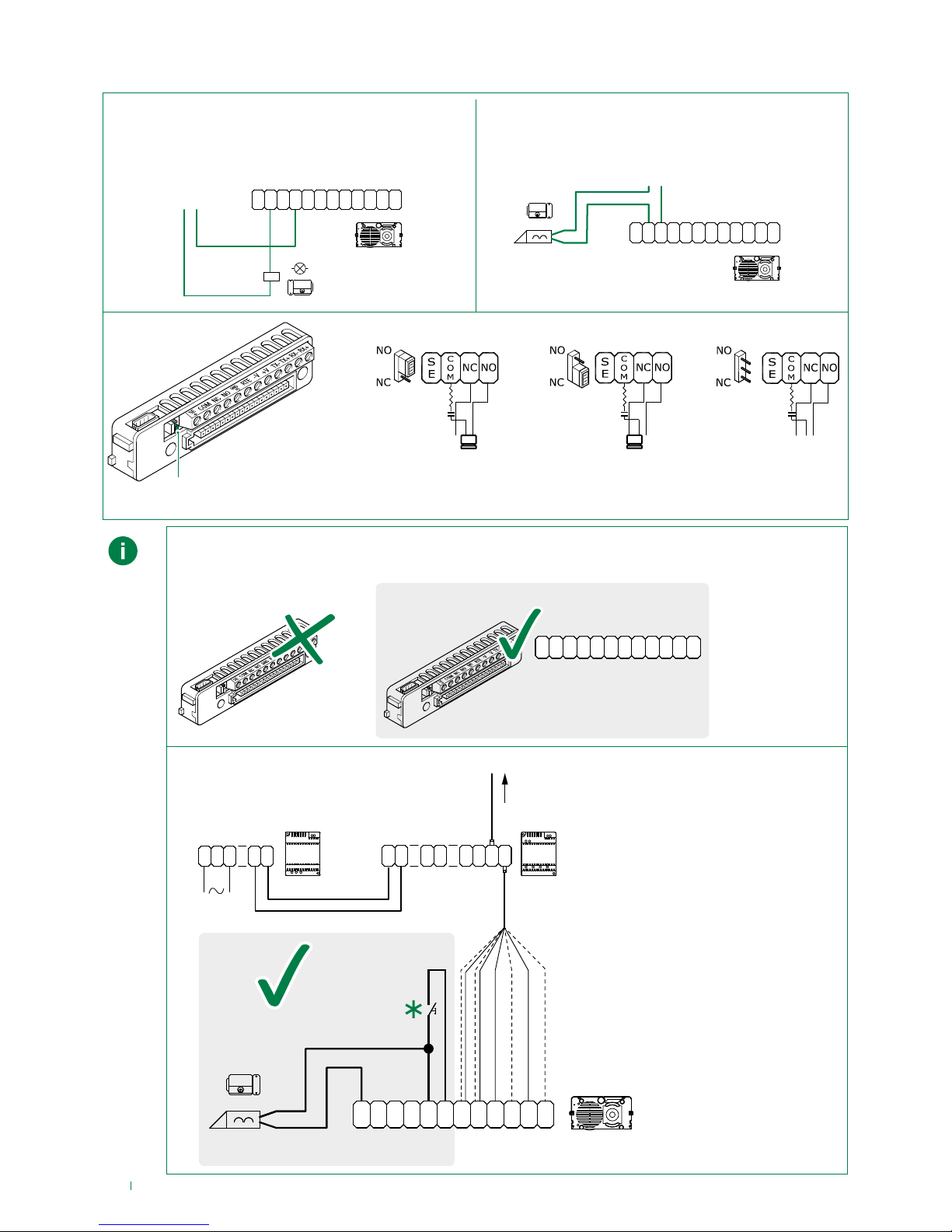

Variants
Variant for using the external unit relay Variant for using a safety lock
JP1
2,5A MAX
AC-DC
12V/24V
4682HD
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
12/24V
AC/DC
2,5A MAX
4682HD
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
On C. NO. contacts On C. NC. contacts Excluded: voltage-free
contact
In case of replacement of a module previously installed, with the Art. 4682HD:
fremove the existing terminal block and replace it with the terminal block supplied with item 4682HD
4682HD
4682HC
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
fconnect the 4682HD module as shown in the wiring diagram below.
4682HD
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
ORANGE
BLUE
& WHITE BLUE
BROWN
& WHITE BROWN
WHITE ORANGE
GREEN
WHITE GREEN
-
V V
+
++
-
TX
1441 1440
L N
-
+
V V
OUT
43
OUTOUT
21
IN
21
IN
+
-
OUT

9
Module Connection
On systems with Art. 4682HD and Art. 1595, the MAXIMUM power available for the additional external unit
modules is 10.5W.
On systems with Art. 4682HD and Art. 1440+1441, the MAXIMUM power available for the additional external
unit modules is 5W.
Calculate the total power consumption of the modules in your system configuration using the Consumption table.
External unit module consumption table
Code Consumption
Ikall modules
33433 / 33434 / 33436
33433M / 33434M / 33436M 0.4W
3336 / 3336M 0.4W
3339M 0.4W
3348B
3348BM
0.8W
with 1 bistable relay active 1.6W
with 2 bistable relays active 2.4W
3360B
3060BM 1.7W
3332 / 3332M 4.0W
Vandalcom modules
3064S (with Art. 1172B) 0.5W
3070S 2.4W
3072S 1.8W
3188SB
0.7W
with 1 bistable relay active 1.4W
with 2 bistable relays active 2.1W
Modules for Single-plate external unit
3063D (with Art. 1172B) 0.5W

10
Connection of Art.3360B, 3360BM
4682HD
J1
J2
J1
J2
3360B
3360BM
S
G
N
DG
R
P
485
D
-
+
D
485 24
Vac
24
Vac
1441 1440
ORANGE
BLUE & WHITE BLUE
BROWN & WHITE BROWN
WHITE ORANGE
GREEN
WHITE GREEN
-
V V
+
++
-
TX
L N
-
+
V V
OUT
43
OUTOUT
21
IN
21
IN
+
-
OUT
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
Connection of Ikall modules
Connection of button modules 33433, 33434, 33436, 33433M, 33434M, 33436M
J1
J2
J1
J2
MAX 12
4682HD
1441 1440
L N
-
+
V V
OUT
43
OUTOUT
21
IN
21
IN
+
-
OUT
ORANGE
BLUE & WHITE BLUE
BROWN & WHITE BROWN
WHITE ORANGE
GREEN
WHITE GREEN
-
V V
+
++
-
TX
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
MAX. 20 modules using Connection with additional power supply (Art. 1595)

11
Connection of Vandalcom modules
Connection of Art.3064S and Art. 1172B
C
V
+
-
S
J2
J1
J1
J2
C
V
+
-
S
J2
C
V
+
-
S
J1
N°1 N°2 N°10
1172B1172B1172B 1172B
3064S 3064S 3064S
4682HD+3268S 3064S
CV3
MAX 10
MAX 10
1441 1440
L N
-
+
V V
OUT
43
OUTOUT
21
IN
21
IN
+
-
OUT
ORANGE
BLUE & WHITE BLUE
BROWN & WHITE BROWN
WHITE ORANGE
GREEN
WHITE GREEN
-
V V
+
++
-
TX
BLACK
RED
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
MAX. 20 Art. 3064S plus up to 20 Art. 1172B using Connection with additional power supply (Art. 1595)
Use bulb Art. 1172B for nameplate lighting. The bulb is polarised
Use the cable supplied with Art. 3268S
Connection of Art.3188SB
4682HD
+3268S
C
V
+
-
S
J2
J1
J1 J1
J2
C
V
+
-
S
J2
C
V
+
-
S
J2
J1
3188SB
-
AL
CK
+
~
-
~
-
AC
OUT
+
-
+
-
D
D
PGM
NC2
C1
NO1
-
RK
NC1
C2
NO2
N°1 N°2 N°5
1172B1172B1172B 1172B
3064S 3064S 3064S
3064S
CV3
BLACK
RED
MAX 5
MAX 5
1441
L N
-
+
V V
OUT
43
OUTOUT
21
IN
21
IN
+
-
OUT
ORANGE
BLUE & WHITE BLUE
BROWN & WHITE BROWN
WHITE ORANGE
GREEN
WHITE GREEN
-
V V
+
++
-
TX
1440
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
MAX. 18 Art. 3064S plus up to 18 Art. 1172B using Connection with additional power supply (Art. 1595)
Use bulb Art. 1172B for nameplate lighting. The bulb is polarised.
Use the cable supplied with Art. 3268S

12

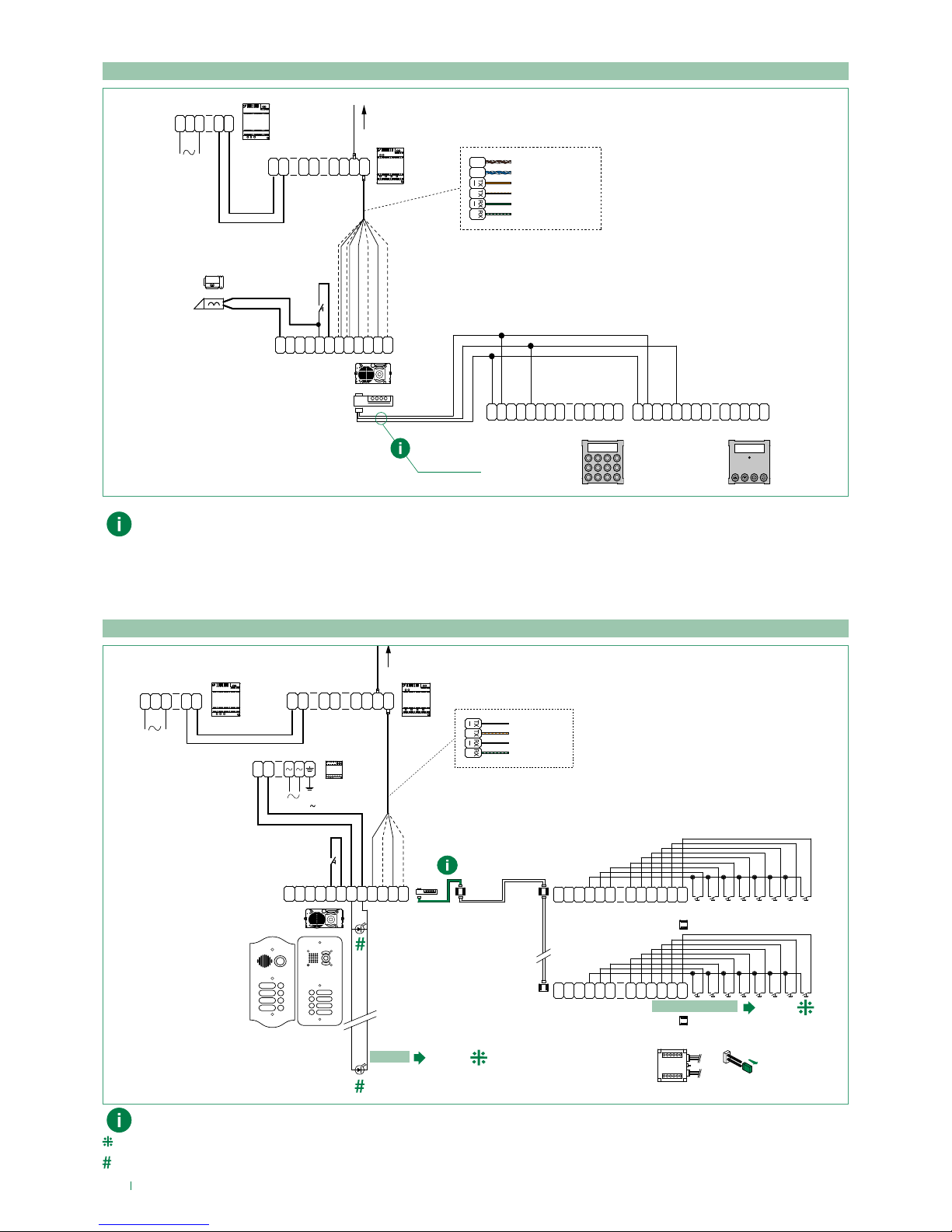

Connection of Art.3070S, 3072S
1441
L N
-
+
V V
OUT
43
OUTOUT
21
IN
21
IN
+
-
OUT
ORANGE
BLUE & WHITE BLUE
BROWN & WHITE BROWN
WHITE ORANGE
GREEN
WHITE GREEN
-
V V
+
++
-
TX
1440
3070S
X
T
-
R
XR
-
P
-
D
S
-
"S" YELLOW
"V-" BLUE
-
SD
-
3072S
12
~
12
~
P
-
R X
R
-
T
X
12
~
12
~
-
VV
+
-
VV
+
"V+" BROWN
2E7T000696
+ +
DD
J2
J1
4682HD
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
-
+
RXTX
+
-
TX
Use the cable 2E7T000696 supplied with Art. 3070S and Art. 3072S
Modules for Single-plate external unit
Connection of Art.3063D with additional power supply
MAX 20
MAX 20
P
2
P
1
-
S C P
3
P
4
P
5
P
6
P
7
P
8
V
+
J2
J1 J1
J2
3063D
3063D
P
2
P
1
-
S C P
3
P
4
P
5
P
6
P
7
P
8
V
+
3063D
J1
J2
J1
N°1
N°20
1172B
1172B
N°20
N°1
CV2
4682HD
-
+
120-230 V
1595
1440
1441
L N
-
+
V V
OUT
43
OUTOUT
21
IN
21
IN
+
-
OUT
ORANGE
WHITE ORANGE
GREEN
WHITE GREEN
++
-
TX
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
-
+
RXTX
+
-
TX
MAX. 20 Art. 3063D, plus up to 20 Art. 1172B
Use bulb Art. 1172B for nameplate lighting. The bulb is polarised
Use the cable included in Art. 1250IV, Art. 1250IA

13
Simplekey modules
Connection of readers Art.SK9000I, Art. SK9001I
RTE
12V12V
SK9000I
NC
-
+
+
-
DD
C NO AoAiPB G
+
-
DD
SK9001I
MAX 20
J1
J2
J1
J2
-
+
120-230 V
1595
4682HD
12/24V
AC/DC
1440
1441
L N
-
+
V V
OUT
43
OUTOUT
21
IN
21
IN
+
-
OUT
ORANGE
WHITE ORANGE
GREEN
WHITE GREEN
++
-
TX
+
SE NC NO
GND
SE-
-
V V
+
M
O
CR
T
E
RX
- +
RXTX
+ -
TX
MAX. 20 modules

14
Programming
Assigning an index number to the “additional button modules”
The following procedure is used to assign an index number to each “additional button module”.
The module index must then be used with the ViP Manager software to complete module button programming
(see manual for ViP Manager software).
√If the module has not yet been powered up, carry out the necessary wiring and wait for the device to start running.
fWire the modules and buttons and power up the external unit
» after 10 sec. the top right-hand LED lights up
fwait for 50 sec. to complete the startup procedure
» the LED switches off to confirm completion of the procedure
Set the Index code using the dip switches; see addressing table.
Repeat steps 2and 3to index each additional button module
1 2
1
2
3 4
LED ON
10''0'' 50''
LED OFF

15
Addressing table
EXAMPLE setting code 200
Code
Dip switch
ON
Code
Dip switch
ON
Code
Dip switch
ON
Code
Dip switch
ON
Code
Dip switch
ON
Code
Dip switch
ON
Code
Dip switch
ON
Code
Dip switch
ON
1 1 31 1,2,3,4,5 61 1,3,4,5,6 91 1,2,4,5,7 121 1,4,5,6,7 151 1,2,3,5,8 181 1,3,5,6,8 211 1,2,5,7,8
2 2 32 6 62 2,3,4,5,6 92 3,4,5,7 122 2,4,5,6,7 152 4,5,8 182 2,3,5,6,8 212 3,5,7,8
3 1.2 33 1.6 63 1,2,3,4,5.6 93 1,3,4,5,7 123 1,2,4,5,6.7 153 1,4,5,8 183 1,2,3,5,6.8 213 1,3,5,7,8
4 3 34 2.6 64 7 94 2,3,4,5,7 124 3,4,5,6,7 154 2,4,5,8 184 4,5,6,8 214 2,3,5,7,8
5 1.3 35 1,2,6 65 1.7 95 1,2,3,4,5.7 125 1,3,4,5,6.7 155 1,2,4,5,8 185 1,4,5,6,8 215 1,2,3,5,7.8
6 2.3 36 3.6 66 2.7 96 6.7 126 2,3,4,5,6.7 156 3,4,5,8 186 2,4,5,6,8 216 4,5,7,8
7 1,2,3 37 1,3,6 67 1,2,7 97 1,6,7 127 1,2,3,4,5,6,7 157 1,3,4,5,8 187 1,2,4,5,6.8 217 1,4,5,7,8
8 4 38 2,3,6 68 3.7 98 2,6,7 128 8 158 2,3,4,5,8 188 3,4,5,6,8 218 2,4,5,7,8
9 1.4 39 1,2,3,6 69 1,3,7 99 1,2,6,7 129 1.8 159 1,2,3,4,5.8 189 1,3,4,5,6.8 219 1,2,4,5,7.8
10 2.4 40 4.6 70 2,3,7 100 3,6,7 130 2.8 160 6.8 190 2,3,4,5,6.8 220 3,4,5,7,8
11 1,2,4 41 1,4,6 71 1,2,3,7 101 1,3,6,7 131 1,2,8 161 1,6,8 191 1,2,3,4,5,6,8 221 1,3,4,5,7.8
12 3.4 42 2,4,6 72 4.7 102 2,3,6,7 132 3.8 162 2,6,8 192 7.8 222 2,3,4,5,7.8
13 1,3,4 43 1,2,4,6 73 1,4,7 103 1,2,3,6,7 133 1,3,8 163 1,2,6,8 193 1,7,8 223 1,2,3,4,5,7,8
14 2,3,4 44 3,4,6 74 2,4,7 104 4,6,7 134 2,3,8 164 3,6,8 194 2,7,8 224 6,7,8
15 1,2,3,4 45 1,3,4,6 75 1,2,4,7 105 1,4,6,7 135 1,2,3,8 165 1,3,6,8 195 1,2,7,8 225 1,6,7,8
16 5 46 2,3,4,6 76 3,4,7 106 2,4,6,7 136 4.8 166 2,3,6,8 196 3,7,8 226 2,6,7,8
17 1.5 47 1,2,3,4,6 77 1,3,4,7 107 1,2,4,6,7 137 1,4,8 167 1,2,3,6,8 197 1,3,7,8 227 1,2,6,7,8
18 2.5 48 5.6 78 2,3,4,7 108 3,4,6,7 138 2,4,8 168 4,6,8 198 2,3,7,8 228 3,6,7,8
19 1,2,5 49 1,5,6 79 1,2,3,4,7 109 1,3,4,6,7 139 1,2,4,8 169 1,4,6,8 199 1,2,3,7,8 229 1,3,6,7,8
20 3.5 50 2,5,6 80 5.7 110 2,3,4,6,7 140 3,4,8 170 2,4,6,8 200 4,7,8 230 2,3,6,7,8
21 1,3,5 51 1,2,5,6 81 1,5,7 111 1,2,3,4,6.7 141 1,3,4,8 171 1,2,4,6,8 201 1,4,7,8 231 1,2,3,6,7.8
22 2,3,5 52 3,5,6 82 2,5,7 112 5.67 142 2,3,4,8 172 3,4,6,8 202 2,4,7,8 232 4,6,7,8
23 1,2,3,5 53 1,3,5,6 83 1,2,5,7 113 1,5,6,7 143 1,2,3,4,8 173 1,3,4,6,8 203 1,2,4,7,8 233 1,4,6,7,8
24 4.5 54 2,3,5,6 84 3,5,7 114 2,5,6,7 144 5.8 174 2,3,4,6,8 204 3,4,7,8 234 2,4,6,7,8
25 1,4,5 55 1,2,3,5,6 85 1,3,5,7 115 1,2,5,6,7 145 1,5,8 175 1,2,3,4,6.8 205 1,3,4,7,8 235 1,2,4,6,7.8
26 2,4,5 56 4,5,6 86 2,3,5,7 116 3,5,6,7 146 2,5,8 176 5,6,8 206 2,3,4,7,8 236 3,4,6,7,8
27 1,2,4,5 57 1,4,5,6 87 1,2,3,5,7 117 1,3,5,6,7 147 1,2,5,8 177 1,5,6,8 207 1,2,3,4,7.8 237 1,3,4,6,7.8
28 3,4,5 58 2,4,5,6 88 4,5,7 118 2,3,5,6,7 148 3,5,8 178 2,5,6,8 208 5,7,8 238 2,3,4,6,7.8
29 1,3,4,5 59 1,2,4,5,6 89 1,4,5,7 119 1,2,3,5,6.7 149 1,3,5,8 179 1,2,5,6,8 209 1,5,7,8 239 1,2,3,4,6,7,8
30 2,3,4,5 60 3,4,5,6 90 2,4,5,7 120 4,5,6,7 150 2,3,5,8 180 3,5,6,8 210 2,5,7,8 *240 5,6,7,8

16
Device reset
The reset procedure restores the factory settings of the external units, deleting all settings implemented by the installer.
6
FAST BLINK
7
1 2 3
LED ON
10''
SLOW BLINK
4 5

MAX 150m
MAX 150m MAX 100m
IN (100Mb)
IN (100Mb)
OUT (10Mb)
OUT (10Mb)
6802W
6802B
6842W
6722W
6742W
1441
1441B
1440
4682HD
MAX 150m
17
Connection distances
If Art.4682HD is powered directly from third-party standard POE switches, the maximum distance is reduced to 100 m.

www.comelitgroup.com
Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy
2nd edition 06/2018 code 2G40002296
CERTIFIED MANAGEMENT SYSTEMS
