Commax CDL-100WL User manual

Warning for Safety
* Do not disassemble, repair or modify the device by any unauthorized person.
* This product is for indoor, we do not guarantee any operation at other environment.
* Please use the product after reading User
’
s Manual.
* Do not press the buttons with any tools(Ex. Awl, Pins..)
* Change your password from time to time for your safety.
* Do not impact on the device.
* Be careful that leakage or rupture may occur when inserting a battery in wrong direction.
* Be careful that water should not seep into the device.
* When replacing a battery, change all the batteries with new alkaline batteries.
* Please wipe the product with soft, dry towels.
* Do not use this product with other purposes except digital door lock function.
Due to non-key door lock, it may cause
destruction of digital door lock when it is in trouble.
COMMAX Co.Ltd.,
Thank you for purchasing COMMAX products.
Please carefully read this User
’
s Manual(in particular, precautions for safety) before using a product and follow
instructions to use it correctly. The company is not responsible for any safety accidents caused by abnormal
operation of the product.
USER MANUAL
These warnings are to secure user
’
s safety and prevent the possible loss of property.
Please read carefully below to use the product in a correct manner.

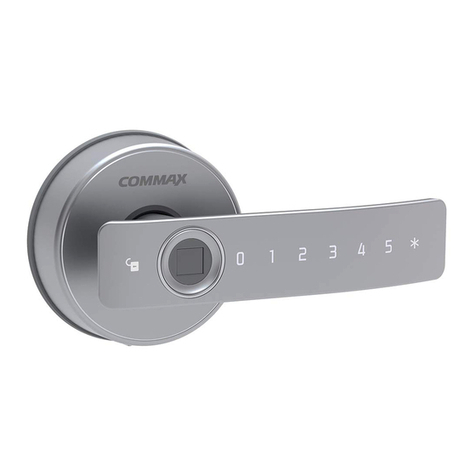

CDL-800WL(Fingerprint)
CDL-100WL(SMART KEY)

Product Specifications
Main Parts and Functions (Inside)
Main Parts and Functions (Outside)
* Components of the product may be changed depending
on installation environment.
Division Contents
Applicable Normal wooden door Thickness 35mm~55mm
Password 4~12digit nember(up to 4 password available)
Smart Key(CDL-100WL) Up to 30 smart keys available
Fingerprint
(CDL-800WL)
Up to 100 fingerprints available
Power Source DC 6V LR6 1.5V AA Alkaline batteries(4ea)
DC 9V Alkaline battery(optional)
Auxiliary battery MICRO USB 5PIN
T
emperature Alar
m
Temperature sensor 60‘C ± 10’C
Out body AL,ZN,ABS,PC
In body AL,ZN,ABS,PC
Material
Access methods
CDL-100WL(Smart Key, Anti-fireproof type, Non-key type, Master key door lock)
Emergency Power
Type of product
CDL-800WL(Fingerprtint, Anti-fireproof type, Non-key type, Master key door lock)
Outbody Inbody Mortise Striker Screw
Installation Guide User Manual Batteries Outdoor Shaft
No.
Name
1Outdoor handle and number
plate
Able to enter numbers when registering/changing
access code.
Use to open/close the door from outside
Input for smart key
(CDL-100WL)
Able to register smart keys and open the door
with the register smart keys
Input for fingerprints
(CDL-800WL)
Able to register fingerprints and open the door
with the register fingerprints
3 Door open indicator Able to check whether the door is opened(CDL-
800WL)
4 [Start] button Make Led on nember plate to be turned on.
5 Emergency Power Teminal
When the batteries run out comlpetely, please
contact the 9v battery to emergency power
terminal and the power will be on
6 Micro USB 5PIN
When the batteries run out comlpetely, please
contact the auxilliary battery to emergency power
terminal and the power will be on
2
No. Name Feature
1 Battery Cover Cover to protect battery and [Registration] button
2 [Registration] Button To register/change smart key, fingerprint or
access code
3 Double Lock Button To lock the door and make it locked from the
ouside such as at night time
4 Inner Handle To open/close the door at inside
Feature
Smart card

How to Register Your Smart Key(CDL-100WL)
How to Register Your Password
Be sure to register your password with the door open.
1.Press [Register] button. 2. Press [1] on the main parts
(Outside)
3. Enter new password
0 1 2 3 4 5 *
Beep
Open the battery cover inside of
the main part and press [Register] button.
0 1 2 3 4 5 *
After entering new password(4~12digits)
, press [*] button. You will hear beep
sound and registration is done.
Once you press the [*] button
again, registration will be terminated.
1.You may repeat step 3. before the lamp on
[number plate] goes out.
2.You can register up to 4 passwords.
1.By registering a new password, the existing
password will automatically deleted.
2. Do not use consecutive number for your
password.
Note
Warning
1. Press [Register] button. 2. Press [2] on the main parts
(Outside)
0 1 2 3 4 5 *
Beep
Open the battery cover inside
of the main part and press
[Register] button.
1.By registering a new password, the existing
password will automatically deleted.
1.You may repeat step 3. before the lamp on
[number plate] goes out.
2.You can register up to 30 smart keys.
Note
3. Tag smart key to smart key input section.
Each time you tag the smart keys, you will hear
a confirmation tone and be registered.
Press the [Register] button on the indoor body
to complete the registration.
Warning
When registering or re-registering a smart key, you must register
all your keys together. Other smart key or transportation card will
not be registered. Also, registered smart keys are for digital door
lock only. It may not operate to other products.

1. Press [Register] button 2. Press [5] on the main parts
(Outside)
0 1 2 3 4 5 *
Beep
Open the battery cover inside of
the main part and press [Register] button.
How to Delete Your Smart Key(CDL-100WL)
3. Press [*] on the main parts for 5 sec. (Outside)
0 1 2 3 4 5 *
All the registered smart keys will be deleted with confirmation
tone after you press [*] button for 5 seconds
How to Register Your Fingerprint(CDL-800WL)
2. Press [2] on the main parts
(Outside)
0 1 2 3 4 5 *
3. Register new
fingerprint
After tagging your registering fingerprint 4 times, press [Register] button
to complete registration.
1. You can register up to 100 fingerprints.
2. During the registration, it will be terminated if
there are no any inputs for 20 seconds.
.
Note
1. Press [Register] button. 2. Press [5] on the main parts
(Outside)
0 1 2 3 4 5 *
How to Delete Your Fingerprint(CDL-800WL)
3. Press [*] on the main parts for 5 sec. (Outside)
0 1 2 3 4 5 *
All the registered fingerprints will be deleted with confirmation tone after
you press [*] button for 5 seconds.
1. Press [Register] button
Beep
Open the battery cover inside of
the main part and press [Register] button.
Beep
Open the battery cover inside of
the main part and press [Register] button.

How to Unlock from Outside(password)
1. Press [Start] button. 2. Enter your password
0 1 2 3 4 5 *
Beep
Press [Start] button from
the outdoor handle.
How to Lock from Indoor
1. When Auto lock is set
The door will be locked after the door open state is maintained for 7 sec.
with password / fingerprint.
2. When Manual lock is set
The door will be locked after you press
[dual lock] button at indoor.
How to Lock from Outdoor
1. When Auto lock is set
The door will be locked after the door open state is maintained for 7 sec.
with password / fingerprint.
2. When Manual lock is set
The door will be locked after you press
[Start] button 2seconds inside of the outdoor handle.
Beep
[Dual Lock]
3. Press [*] button.
0 1 2 3 4 5 *
When you press the button, the door will be opened with confirmation tone.
Enter registered password when LED
light is on.
[Start]
Setting for Auto/Manual Lock
Set Auto/Manual mode by switching slide
inside of the indoor product.
A : Automation Lock
M : Manual Lock
AM

How to Set Dual Lock Function
1. How to set dual lock function
Press [Dual Lock] button for 3 seconds from inside
while the door is locked. And setting is done with
the confirmation tone.
This function is to prevent the door opening even with a password
or fingerprint from outside the door.
Beep
[Dual Lock]
1. When dual lock is set,5 buttons on number
plate will be illuminated.
Note
1. Deleting from inside door
Press [Dual Lock] button from inside door
to delete dual lock function.
Enter password
Beep
Press [Start] button from outside door.
How to Delete Dual Lock Function
2. Deleting from outside door
0 1 2 3 4 5 *
Beep
Press [Start] button from outside door. Press [0] to delete dual lock function.
0 1 2 3 4 5 *
Converting the directions of handle
1. Press [Register] button.
Beep
Open the battery cover inside of
the main part and press
[Register] button.
2. Press [Start] button.
Beep
Press [Start] button from the
outdoor handle.
3. Press [Register] button.
Beep
Open the battery cover of the indoor main
part and press [Register] button, and directions
of handle will be changed.
1. If the number plate on the outside handle is
turned upside down after installation,
change the setting as described above.
Note
Beep
[Dual Lock]

1. Press [Start] button. 2. Enter password.
0 1 2 3 4 5 *
Beep
Press [Start] button from
the outdoor handle.
Enter registered password when LED light is on.
3.Press [Start] button.
0 1 2 3 4 5 *
Beep
Press [Start] button twice in a row, press [0] and open the battery cover
of the indoor main part and press [Register] button, and 3D touch
setting/delete will be changed.
- Setting alarm : Beeeeeep
- Delete alarm : Beep
[Register]
Press [start] button 2 times
Beep
How to Register/Delete 3D Touch
1. It is to strengthen the security of password.
When registering/ authentication a password,
pressing the number for a second or longer will
set the number to a virtual number instead of the
original number.
(Ex. When you press [1] for a long time : it indicates
virtual number, not 1.)
2. Combined with the imaginary function of this
product, password security will be much strengthened.
3. You can set each number and check by the blinking
of the lamp when you press the button more than a second.
4. 3D Touch mode is not set when it is in factory reset mode.
Note
1. When 3D touch mode is deleted, the password is
reset to ‘1234’.
2. Recognized as normal number mode in case of
master registration/deletion, fire/mischief.
Warning
* What is imaginary function?
Function to open a door even if random number is
entered with the actual password.
Ex) Password “1234”
* Enter imaginary and password
- 5231234, 1234253, 45123402
* Even entered as above, the door opens
Note

To Register/Delete Multi-layered
1. Press [Start] button. 2. Enter password.
0 1 2 3 4 5 *
Press [Start] button from
the outdoor handle.
Enter registered password
when LED light is on.
3.Press [Start] button 2 times
0 1 2 3 4 5 *
Press [Start] button twice in a row, press [4] and open the battery cover of
the indoor main part and press [Register] button, and multi-layered
authentication setting/delete will be changed.
- Setting alarm : Beeeeeep
- Delete alarm : Beep
[Register]Press [start] button 2 times
Alarm Alert for Battery Replacement
1. The battery life may vary depending on the
manufacturer, date of manufacture, and usage
environment.
(Wireless interlock module not used,AA type
alkaline batteries*4EA, 10 times a day basis of
use can be used more than 10 months.)
2. If battery leakage occurs, the product may be
damaged. Please check it regularly
(apporx. Every 6 months.)
Warning
When warning light is on the number plate after
operation or if you hear ‘Beep, Beep, Beep’ sounds,
you need to change the battery. At this time,
you need to replace all the batteries for new one.
1. When Multi-layered Authentication mode is set,
you can open the door after password +
card / password + fingerprint authentication.
*Multi-layered authentication mode is not set
when it is in factory reset mode.
*Multi-layered authentication mode is deleted
when you set in same way of registration.
Note
Beep
Beep Beep

Sounds Control
Setting/Deleting Register Authentication
1. Press [Start] button. 2.Enter password.
0 1 2 3 4 5 *
Press [Start] button from
the outdoor handle.
Enter registered password
when LED light is on.
3. Press [Start] button.
0 1 2 3 4 5 *
Press [Start] button twice in a row, press [5] and open the battery cover
of the indoor main part and press [Register] button, and 3D touch
setting/delete will be changed.
- Setting alarm : Beeeeeep
- Delete alarm : Beep
[Register]
Press [start] button 2 times
Beep
Beep Beep
1. When Register Authentication mode is set, you
need to authenticate with existing password to
use registration mode.
* Register Authentication mode not set when it is
in factory reset mode.
* Register authentication mode is deleted when
you set in same way of registration.
Note
1. Press [Start] button. 2.Enter password.
0 1 2 3 4 5 *
Press [Start] button from
the outdoor handle.
Enter registered password
when LED light is on.
3.After you press [start] button, change the volume with
[1] and [3] buttons.
0 1 2 3 4 5 *
Beep
Press [1] to decease the volume.
Press [3] to increase the volume
[*]Button
[Start]
1. You can set the sound volume in 8 different stages.
2. Under the temporary pause mode, the lamp on
keypad will keep blinking when you push the buttons.
Note
Beep
Beep

Setting the sound temporary pause
This is for only once, you will hear the operating
sound afterwards.
Note
You can set the sound temporary pause at once whatever you
have set the sound volume.
Settings
1-1. Press [Start] button on outer body 2times
After pressing password, press [*] button
1-2. Press [Start] button on outer body 2times
Contact [fingerprint] or [smart key] to unlock the door
High Temperature Detection
If the high-temperature (60℃±10℃) is detected,
it unlock the door automatically
with warning sounds for safety.
While contacting 9V battery to terminal of outer body, press
password + [*] and the door will be unlocked.
Emergency Power
If you can
’
t open the door when the batteries run out completely,
1. Contact 9V battery to terminal of outer body.
While contacting auxiliary battery(Micro USB 5 pin) to terminal of
outer body, press password + [*] and the door will be unlocked.
2. Connect auxiliary battery to terminal of outer body.(Micro USB 5 pin)

Self-checking list
You can see the status of the door lock by checking the flashing number
on the number plate.
Operation Self-Checking List
LED 1 ON FLASH
LED 2 ON FLASH
- Error on access code, fingerprint RF card registreation / delete (duplicate registration)
- Not registered password, fingerprint, RF card
LED 3 ON FLASH
Number of fingerprint/password registered
is full.
LED 4 ON FLASH Fire alarm
LED 5 ON FLASH Duplicate lock inside
LED 0 ON FLASH Trouble with fingerprint module
ALL NUMBERS ON FLASH Trouble with deadbolt
Factory Reset Mode
1. Press [Register] button
for 5 sec.
2. When all the lamp on
[number plate] is on, enter
“01234543210”.
3. Press [Start] button on outer handle for 2 sec.
0 1 2 3 4 5 *
Beep
Open the battery cover inside
of the main part and press
[Register] button for 5 sec.
Factory reset mode is on with the
confirmation tone when you press
[start] button for 2 sec.
1. All the setting goes default after the factory
reset mode.
Warning
Note
Settings for Factory Reset Mode
- password : [1][2][3][4]
- Sound setting : High
- Multi-layered authentication mode : Off
- Register authentication mode : Off
- 3D Touch mode : Off
- Direction of handle(left/right) : Right
Beep
None

Summary of how to use
Function Default
Password registration/change 1234 [Registration] ⇒[1] ⇒Password to register ⇒[*] ⇒[*]
Fingerprint registration(CDL-800WL)
[Registration] ⇒[2] ⇒Fingerprint registration 4 time ⇒[Registration]
Delete all fingerprints(CDL-800WL) [Registration] ⇒[5] ⇒[*] button More than 5 seconds
Smart key registration(CDL-100WL) [Registration] ⇒[2] ⇒Contact Smart key
Delete allSmart key(CDL-100WL) [Registration] ⇒[5] ⇒[*] button More than 5 seconds
Open the door indoors Interior side handle operation
Manual Locking: Press the [Internal Dual Locking] button
Auto lock: Auto lock will be after 7seconds
Open the door outdoors Password : [Start] ⇒LED ON ⇒password ⇒[*]
Auto lock: Auto lock will be after 7seconds
Manual lock : Push the [Start] button 2 seconds
Left/Right direction conversion function Right [Registration] ⇒[Start] ⇒[Registration]
Internal force lock setting Press and hold the [Internal force lock] button for 3 seconds
Indoors: manual opening and closing with door open and door
closing
Outdoors : [Start] ⇒password ⇒[Start] ⇒[0]
password : [Start] 2times ⇒password ⇒[*]
fingerprint, smart card : [Start] 2times ⇒contact fingerprint,smart
key
Treble :[Start] ⇒password ⇒[Start] ⇒[1] ⇒[*]
Bass : [Start] ⇒password ⇒[Start] ⇒[3] ⇒[*]
Set dual authenitication mode Release [Start] ⇒password ⇒[Start] 2times ⇒[4] ⇒[Registration]
Set registration authenitication mode Release [Start] ⇒password ⇒[Start] 2times ⇒[5] ⇒[Registration]
3D touch enhanced Release [Start] ⇒password ⇒[Start] 2times ⇒[0] ⇒[Registration]
Close the door indoors
Close the door outdoors
Release internal force lock
Etiquette mode function
Buzzer volume setting
This manual suits for next models
1
Table of contents
Other Commax Door Lock manuals
